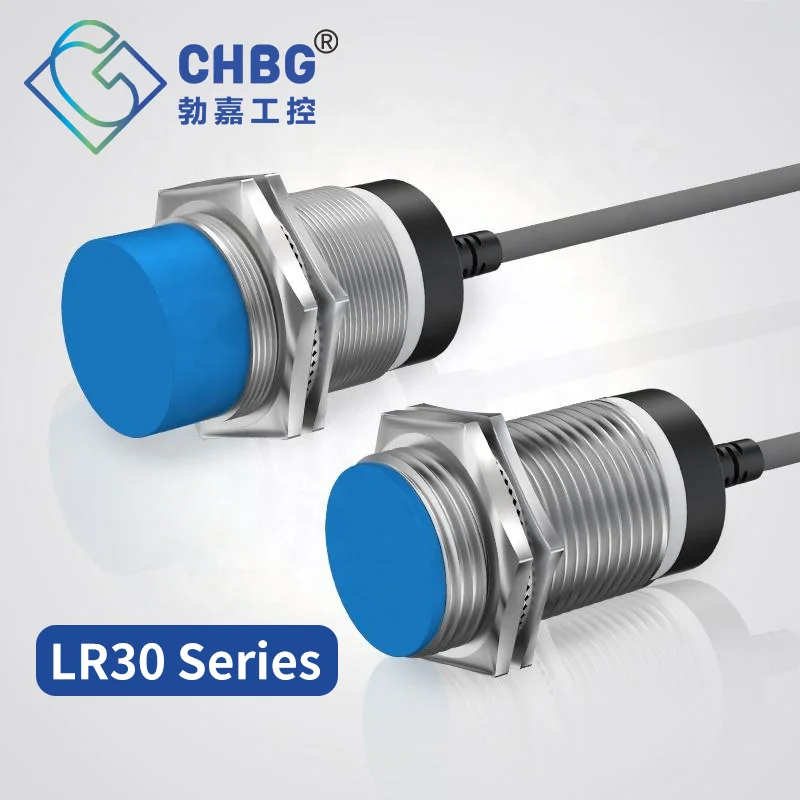

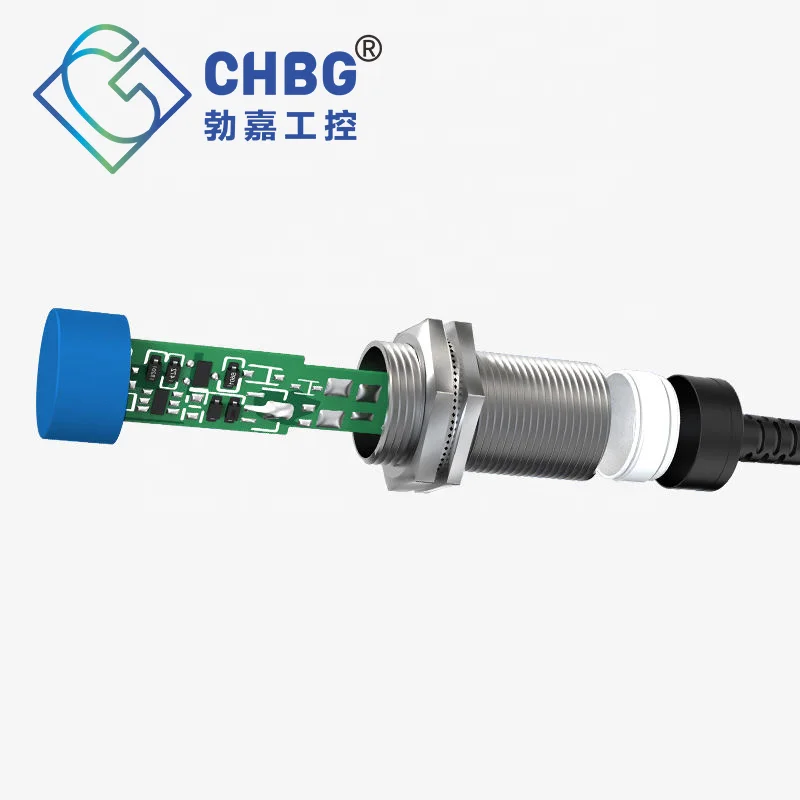

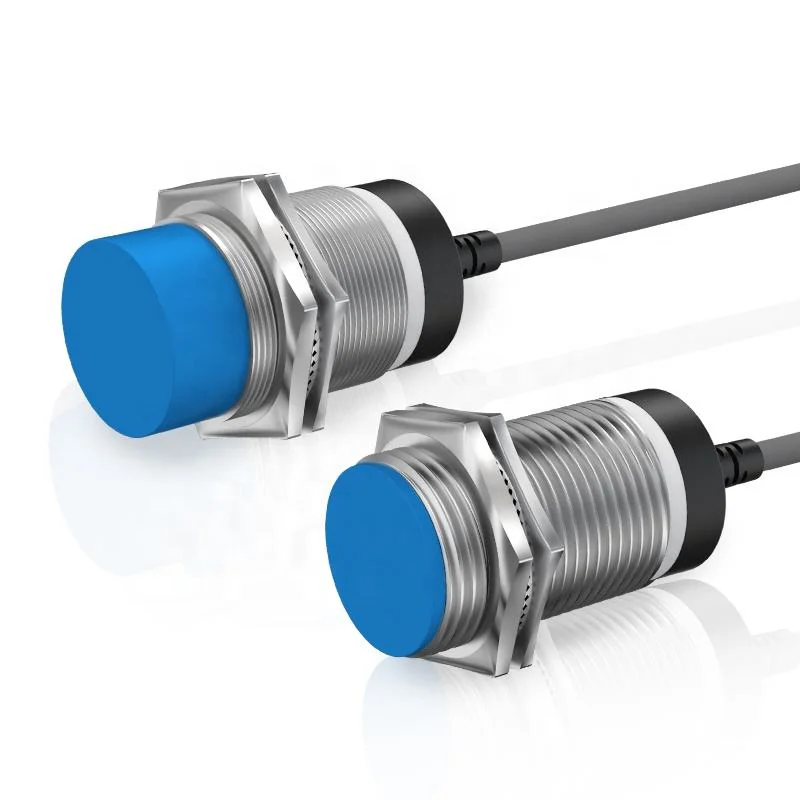

CHBG горячая Распродажа Бесконтактное переключение класс защиты Ip67 M30 серия NPN NO 10 30VDC Индуктивный бесконтактный
- Категория: Sensors >>>
- Поставщик: Zhejiang Bojia Industrial Automation Co. Ltd.
Сохранить в закладки 1600770624762:
Описание и отзывы
Характеристики
Product Description
Model and specification | |||||||||
Output mode | NPN.NO | LR30-10N1 | LR30-15N1 | LR30-10N1-P | LR30-15N1-P | ||||
NPN.NC | LR30-10N2 | LR30-15N2 | LR30-10N2-P | LR30-15N2-P | |||||
PNP.NO | LR30-10P1 | LR30-15P1 | LR30-10P1-P | LR30-15P1-P | |||||
PNP.NC | LR30-10P2 | LR30-15P2 | LR30-10P2-P | LR30-15P2-P | |||||
DC two-wire NO | LR30-10D1 | LR30-15D1 | LR30-10D1-P | LR30-15D1-P | |||||
DC two-wire NC | LR30-10D2 | LR30-15D2 | LR30-10D2-P | LR30-15D2-P | |||||
AC second line NO | LR30-10A1 | LR30-15A1 | LR30-10A1-P | LR30-15A1-P | |||||
AC second line NC | LR30-10A2 | LR30-15A2 | LR30-10A2-P | LR30-15A2-P | |||||
Installation method | Embedded type | Non-buried | Embedded type | Non-buried | |||||
Maximum detection distance | 10MM±10% | 15MM±10% | 10MM±10% | 15MM±10% | |||||
Stable detection range | 0-9MM | 0-13.5MM | 0-9MM | 0-13.5MM | |||||
movement differential | Less than 10% of detection distance | ||||||||
Standard test object | 30*30*1MM(iron) | ||||||||
working voltage | 10-30VDC(Power supply needs to be filtered or stabilized);AC:90-250VAC(50/60Hz) | ||||||||
NPNPNP type:≤10mA:DC two-wire type·≤1mA:AC two-wire type:≤2mA | |||||||||
Residual voltage | NPNPNP type:≤0.7V:DC two-wire type·≤3V;AC two-wire type: ≤7V | ||||||||
protect | Surge absorption, overload protection, reverse connection protection | ||||||||
Leakage current | 0.6mA following | ||||||||
working frequency | 500Hz(DC)25Hz(AC) | ||||||||
load current | 200mA | ||||||||
Action display | Green LED | ||||||||
working temperature | When working and saving:-20～+70℃each(no ice or condensation) | ||||||||
Impact resistance | 500m/s(50G)X.Y.Z 3times in each direction | ||||||||
Anti-vibration | 10~55Hz(Cycle 1 minute)amplitude 1mmX.Y.Z 2 hours in each direction | ||||||||
Protection grade | IEC standard IP67 company internal | ||||||||
Connection mode | Lead out type (standard lead length 2M) | Connector type (2M plug cable optional) | |||||||
Housing material | Nickel plated brass(threaded rod) | ||||||||
Test surface material | PBT | ||||||||

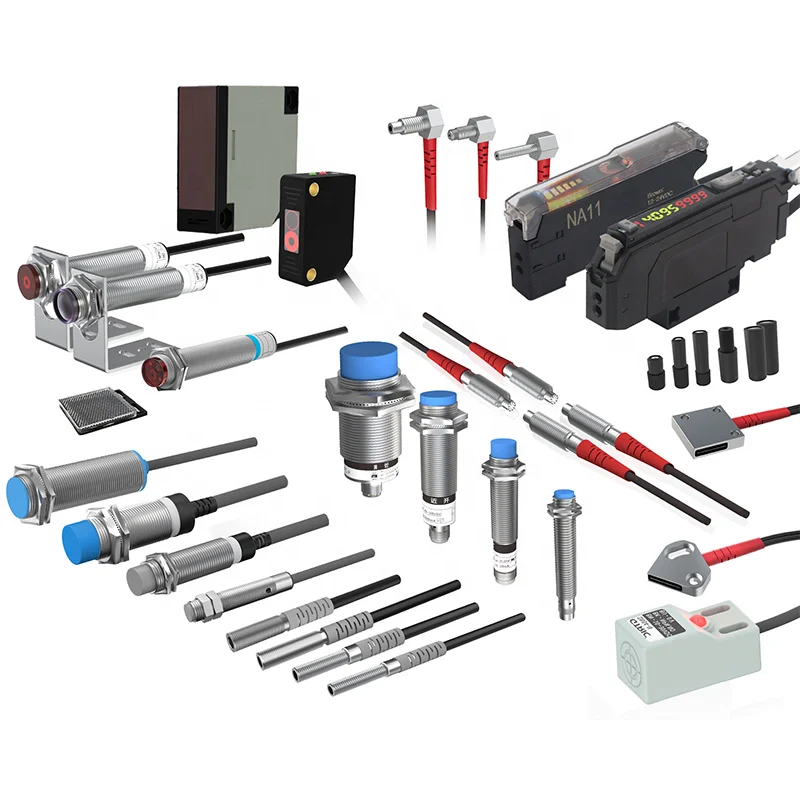

Fast Selection For Sensors | ||
Fiber Optic Sensor | Light Curtain Sensor | |
Certifications
Our Services
1. Any questions about our items will be answered within 24hrs.
2. CHBG has professional technicians provide professional technical support
3. One-stop solution will offer to meet all your requirements on budget, designing and shipment
4. Update the procession of manufacturing
5. Warranty 12 months: Free replacement of defective products within 12 months.
2. CHBG has professional technicians provide professional technical support
3. One-stop solution will offer to meet all your requirements on budget, designing and shipment
4. Update the procession of manufacturing
5. Warranty 12 months: Free replacement of defective products within 12 months.
Packing & Delivery
Package depend on the type and quantity of products you purchase.Including cartons, wooden cases, plastic bags.
Company Profile
About Us
Established in 2011, BOJIA is one of the world's leading developers and manufacturers of industrial sensors and rotary encoders in the world. We have over 500 standard models widely used in CNC machine, new-type elevator, servo motor, textile, petroleum, mine,metallurgical machinery and various of automation fields. Our 8000m2 modern facility and the intelligent information management system allow us to keep enough stock for 95% of standard models, enabling prompt delivery. To meet customer's demands, BOJIA can deliver orders ranging in size 1 to 50,000 units. Our goal is to offer total solutions that satisfy our customer's requirements. We have earned a good reputation based on the quality, competitive prices and punctual delivery of our products.
Currently, we have thousands of customers throughout the world. We have formed long-term associations with most of our customers, working together for many years, developing many treasured relationships. For more customized demands that can't be found in our standard product lines, we also can offer CDM(Cooperation Design Manufacturer) solution to combine your specific requirements into our newly design standard products. Thanks to our extensive library of circuit solutions, we are confident that we can prompt provide satisfied samples for your review and approval.
FAQ
Похожие товары
Датчик освещения Taidacent RS485 Modbus RTU уличный светильник люкс из нержавеющей стали датчик яркости детектор передатчик для

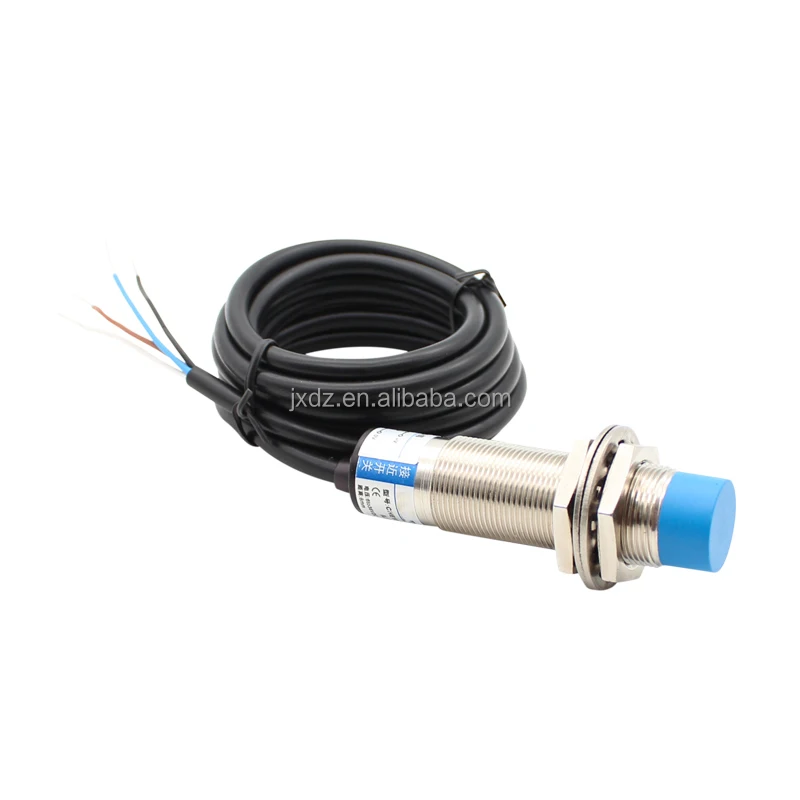

Индуктивный бесконтактный датчик приближения CHE18-8NB-A710 LJ18A3-8-Z/AX трехпроводной Силовые транзисторы NPN NC;

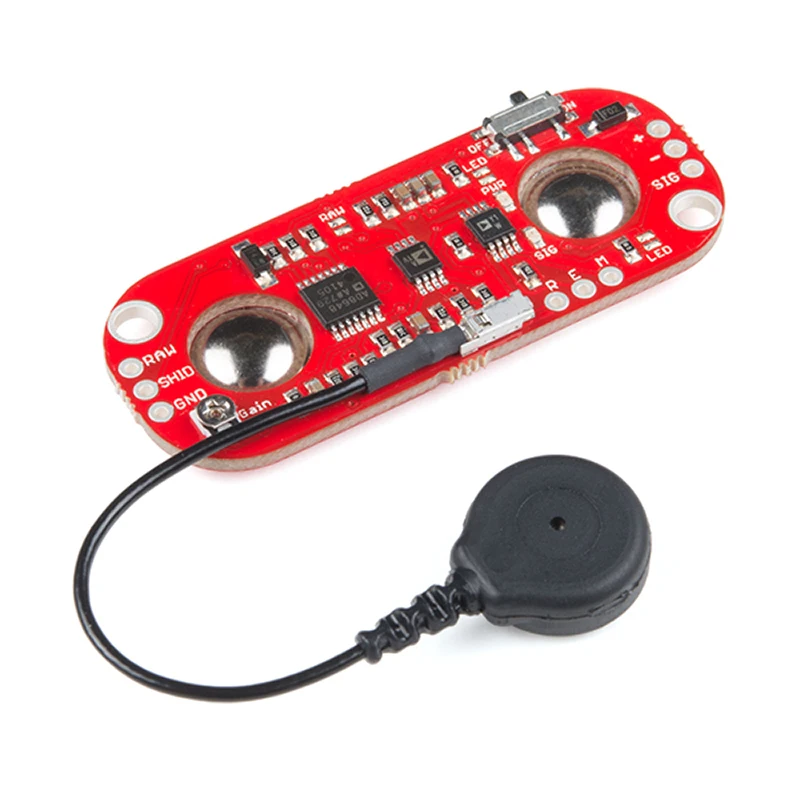

SEN-13723 модуль датчика
45,80 $ - 65,40 $

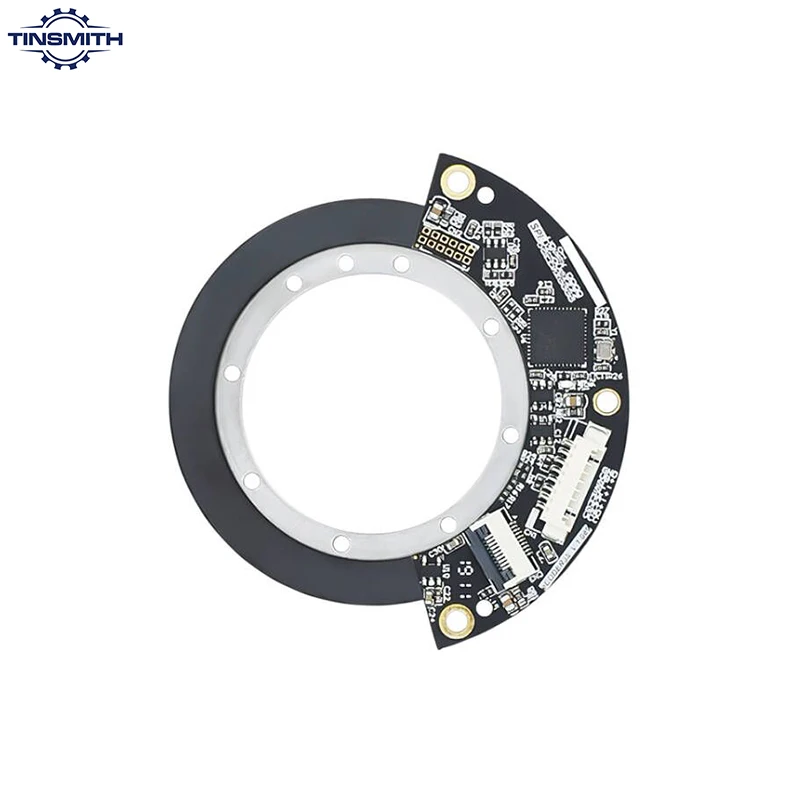

Электронное оборудование, инкрементный Поворотный энкодер, высокоточный абсолютный энкодер
118,00 $ - 130,00 $
Оптический датчик клапана предотвращения переполнения напрямую с
50,00 $

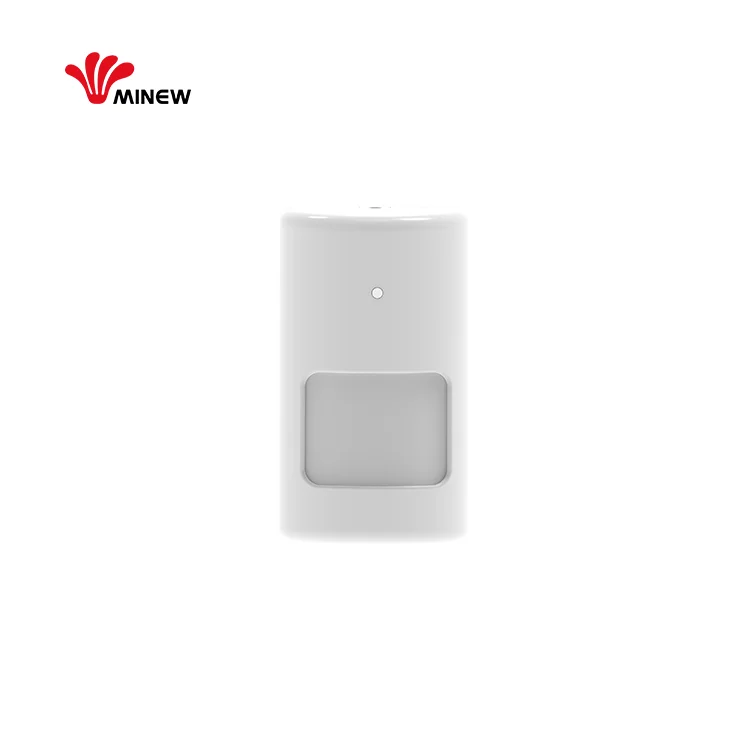

Детектор движения с Bluetooth 5 0 датчик человеческого тела инфракрасные датчики защитой от кражи для умного
25,00 $

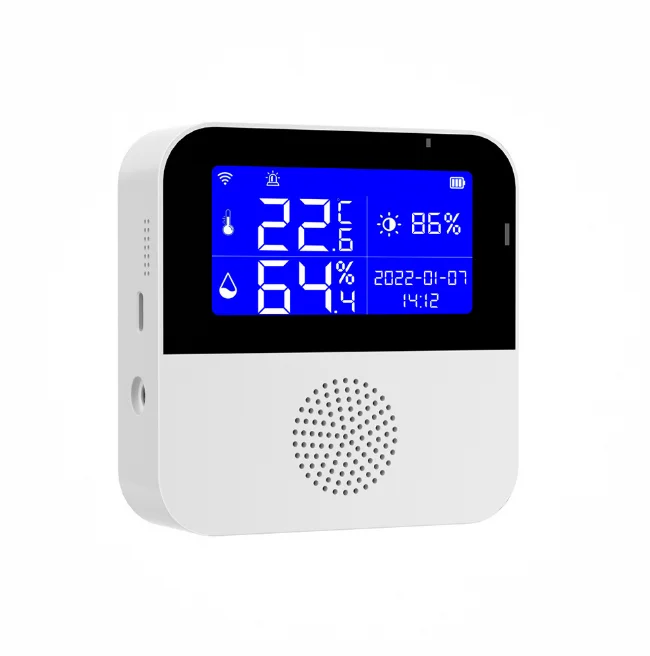

Датчик температуры и влажности Tuya с Wi-Fi цифровой термостат ЖК-дисплеем для умного дома поддержкой Alexa Google
