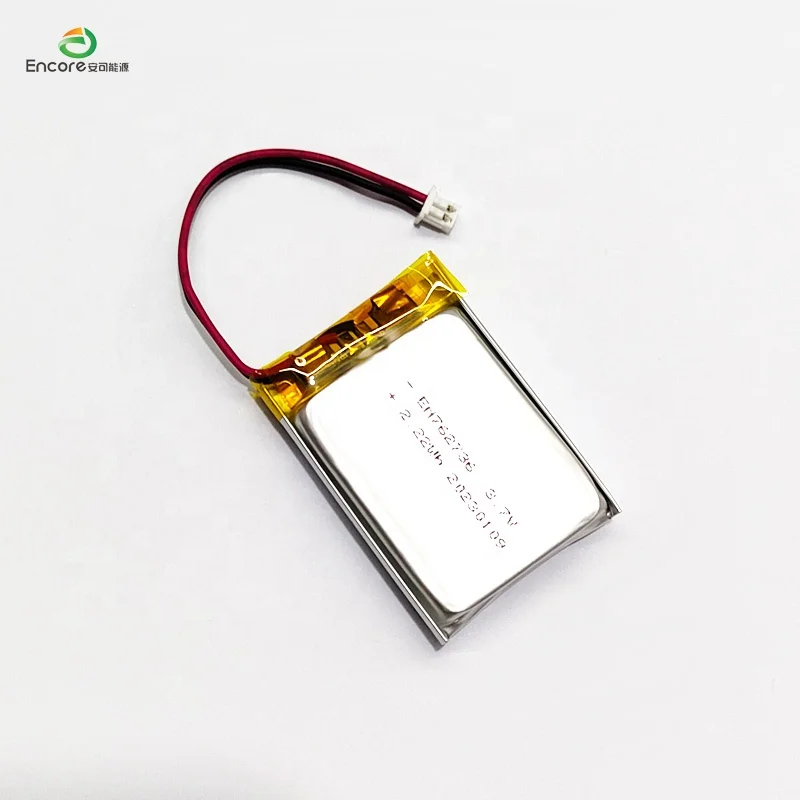

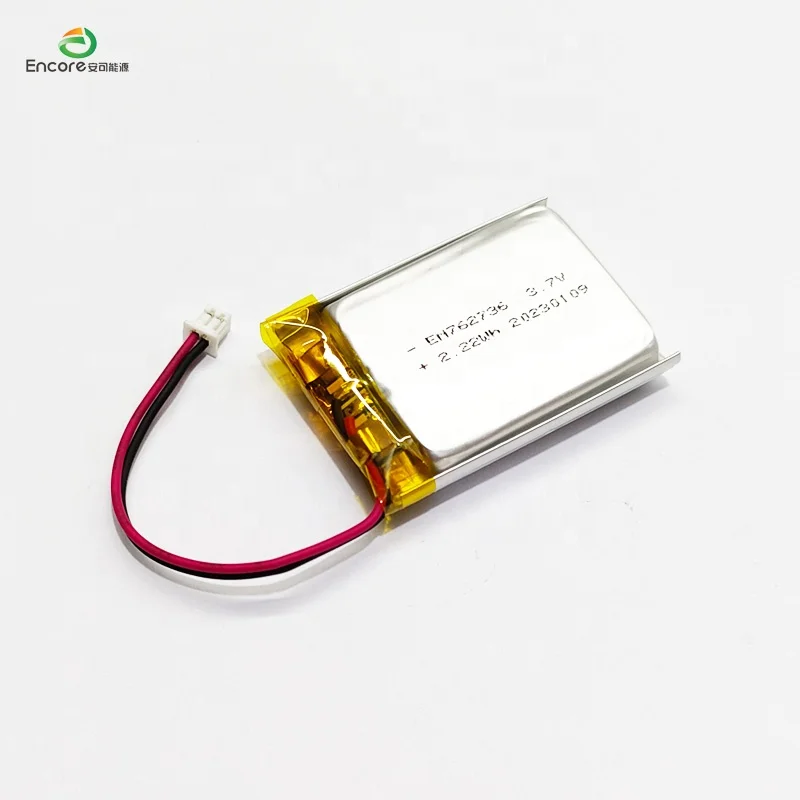

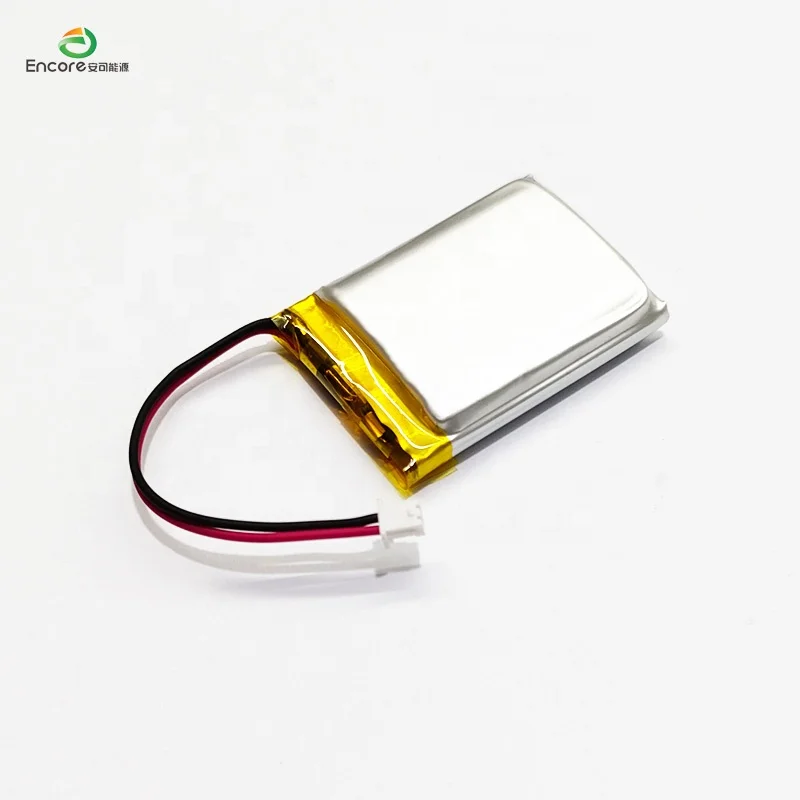

762736 3 7 Втч литий ионный перезаряжаемый аккумулятор 600 в мАч литий полимерный 37 литиевый
- Категория: >>>
- Поставщик: Dongguan Encone Energy Co. Ltd.
Сохранить в закладки 1600772058962:
Описание и отзывы
Характеристики
Model | EN762736 |
Material | Lithium ion battery |
Normal Capacity(0.2C) | 600mAh |
Minimum Capacity(0.2C) | 600mAh |
Energy: | 2.22wh |
Normal Voltage: | 3.7V |
Delivery Voltage: | 3.7V ~ 3.9V |
Standard Charge Method: | 0.2C CC(constant current) charge to 4.2V, then CV(constant voltage4.2V) charge till charge current decline to ≦ 0.02C |
Max Charging Current: | 1C |
Max Discharging Current: | 1C |
Over-Discharging Current: | 3.0V |
Charging: 10℃ ~ 50℃ | |
Discharging: -10℃ ~ 50℃ | |
Cell Exterior Temperature: | Charging: 10℃ ~ 45℃ |
Discharging: -10℃ ~ 50℃ | |
Storage Tem ( At 50% SOC and specified temp, recoverable capacity in % & time): | -10℃ ~ 45℃ (1months ≥ 90%) |
-10℃ ~ 35℃ (3months ≥ 85%) | |
-10℃ ~ 25℃ (12months ≥ 80%) | |
Cycle Life(at 15℃ ~ 35℃ ) | ≥ 300 times, more than 80% at 0.5C discharge |
Pack Weight | Approx. 5.4g |
Key Features:
1.High operation voltage
2.High energy density
3.Long cycle life
4.Minimal self-discharge
5.Wide temperature range
6.Environmentally compatible
7.High level of safety
8.Non-memory
2.High energy density
3.Long cycle life
4.Minimal self-discharge
5.Wide temperature range
6.Environmentally compatible
7.High level of safety
8.Non-memory
Details Images
Similar Prismatic Battery Size | ||||||
Style | Diamension | Certification | Remark | |||
302020-80mAh | 3.0*20.0*20.8 | UL1642 | ||||
302530-180mAh | 3.0*25.0*30.0 | UL1642 | ||||
351213-35mAh | 3.6*12.0*13.5 | UL1642 | ||||
353035-350mAh | 3.5*30.0*35.0 | UL1642 | ||||
372135-250mAh | 3.7x21.0x35.0 | UL1642 | ||||
381424-80mAh | 3.8*14.0*22.0 | UL1642 | 5C Fast Charging | |||
401020-50mAh | 4.0*10.0*20.0 | UL1642 | ||||
401030-90mAh | 4.0*10.0*30.0 | UL1642 | ||||
401220-70mAh | 4.0*12.5*20.0 | UL1642 | ||||
401230-125mAh | 4.0*12.0*30.0 | UL1642 | ||||
402030-200mAh | 4.0*20.0*29.5 | UL1642 | 15C High Rate | |||
410929-80mAh | 4.1*9.0*29.0 | UL1642 | ||||
421217-50mAh | 4.2x12.0x17.0 | UL1642 | ||||
432126-190mAh | 4.3x21.0x26.0 | UL1642 | ||||
451220-70mAh | 4.5x12.0x20.0 | UL1642 | ||||
455080-2100mAh | 4.5x50.0x80.0 | UL1642 | ||||
462558-720mAh | 4.6x25.0x58.0 | UL1642 | ||||
465782-3450mAh | 4.6x57.0x82.0 | UL1642 | 4.35V | |||
500930-90mAh | 5.0*9.0*28.0 | UL1642 | 5C Fast Charging | |||
501015-50mAh | 5.0x10.0x15.0 | UL1642 | ||||
501225-110mAh | 5.0*12.0*25.0 | UL1642 | ||||
501227-110mAh | 5.0*12.0*25.0 | UL1642 | 5C Fast Charging | |||
501447-280mAh | 5.2x14.0x47.5 | UL1642 | 3A Discharging | |||
501456-350mAh | 5.0*14.0*56.0 | UL1642 | ||||
502030-250mAh | 5.0*20.0*30.0 | UL1642 | ||||
502530-300mAh | 5.0x25.0x30.0 | UL1642 | ||||
502540-500mAh | 5.0*25.0*38.5 | UL1642 | ||||
503035-500mAh | 5.0*30.0*35.5 | UL1642 | ||||
503040-550mAh | 5.0x30.0x40.0 | UL1642 | ||||
504040-480mAh | 5.0*40.0*38.0 | UL1642 | ||||
504050-1000mAh | 5.0x40.0x50.0 | UL1642 | ||||
5267105-5000mAh | 5.2*67.0*105.0 | UL1642 | ||||
551245-220mAh | 5.5x12.0x45.0 | UL1642 | ||||
552530-410mAh | 5.5x25.0x30.5 | UL1642 | ||||
553825-500mAh | 5.5x38.0x25.0 | UL1642 | ||||
554270-1900mAh | 5.5x42.0x70.0 | UL1642 | ||||
581038-180mAh | 5.8*10.0*38.0 | UL1642 | ||||
582235-380mAh | 6.0x22.5x37.5 | UL1642 | ||||
Application
Mobile phones, tablets, smart pen, headsets, smart watches and other smart wearable devices, GPS, electric toys, beauty instruments, aromatherapy machines, POS machine, LED lights, quadcopters, drones, VR, smart camera etc.
Related Products
Packing&Shipping
1. Standard export carton packaging or Custom-made Package
2. Mode of Transport:
(1) By express UPS/DHL/FEDEX/TNT (It takes 3-15 days to arrive).
(2) By air cargo (It takes about one week to arrive)
(3) By sea shipment (It takes about one month to arrive)
3. Delivery 4-25 working days after payment and packing confirmation.
2. Mode of Transport:
(1) By express UPS/DHL/FEDEX/TNT (It takes 3-15 days to arrive).
(2) By air cargo (It takes about one week to arrive)
(3) By sea shipment (It takes about one month to arrive)
3. Delivery 4-25 working days after payment and packing confirmation.
Company Introduction
Dongguan Encore Energy Co.,LTD, is established in 2016, registered capital is RMB10000000, with workers around 200; It’s a high-tech enterprise specialize in the R&D, production, and marketing for the environmental friendly lithium-ion battery;
Encore Energy has fully absorbed the advanced international management experience, and successfully passed the certification ISO9001:2015 quality management system and ISO14001:2015 environmental management system since the establishment of the company.
Our products including the prismatic, cylindrical lithium polymer single cells and battery packs, lithium-ion battery and battery pack. All of our products comply with the RoHS requirements and some of them passed the certification of: UL, CE, IEC62133, IEC62368, KC, PSE, FCC, Reach, UN38.3 and so on.
Our mission: “Focus on customer needs, supply competitive products with service”, dedicated to unremitting efforts to ensure the long-term interests of customers.
Encore Energy has fully absorbed the advanced international management experience, and successfully passed the certification ISO9001:2015 quality management system and ISO14001:2015 environmental management system since the establishment of the company.
Our products including the prismatic, cylindrical lithium polymer single cells and battery packs, lithium-ion battery and battery pack. All of our products comply with the RoHS requirements and some of them passed the certification of: UL, CE, IEC62133, IEC62368, KC, PSE, FCC, Reach, UN38.3 and so on.
Our mission: “Focus on customer needs, supply competitive products with service”, dedicated to unremitting efforts to ensure the long-term interests of customers.
Certifications
FAQ
1.Are you factory / Manufacturer ?
We are a factory in Dongguan city of China. Which has 200 workers and big production capacity per month. Specialized on make the small size batteries.
2.OEM&ODM are available?
Sure, OEM&ODM are welcomed.
3. How to solve the quality problems after goods shipped?
Mostly,We have done all testing needed before ship the battery, But if it really has meet quality issues. We absolutely will deal with it actively,Customers will need to provide testing data,photo and video for our engineer to find out solution.
4.What kind of testing requirements to full test a battery? (1) Battery test environment:
(1) Temperature: 23±2℃;
Relative humidity: 60± 20% RH;
Atmospheric pressure: 86~106 KPa.
(2) Measuring instrumentation requirements:
Voltage: Measuring the voltage meter accuracy no less than 0.5 magnitude;
Current: Measuring the current meter accuracy no less than 0.5 magnitude;
Time: Measuring the time meter accuracy no less than 0.1%;
Temperature: Measuring the temperature meter accuracy no less than 0.5 ℃;
Impedance: Measuring impedance should by sinusoidal alternating (1 KHZ) test.
We are a factory in Dongguan city of China. Which has 200 workers and big production capacity per month. Specialized on make the small size batteries.
2.OEM&ODM are available?
Sure, OEM&ODM are welcomed.
3. How to solve the quality problems after goods shipped?
Mostly,We have done all testing needed before ship the battery, But if it really has meet quality issues. We absolutely will deal with it actively,Customers will need to provide testing data,photo and video for our engineer to find out solution.
4.What kind of testing requirements to full test a battery? (1) Battery test environment:
(1) Temperature: 23±2℃;
Relative humidity: 60± 20% RH;
Atmospheric pressure: 86~106 KPa.
(2) Measuring instrumentation requirements:
Voltage: Measuring the voltage meter accuracy no less than 0.5 magnitude;
Current: Measuring the current meter accuracy no less than 0.5 magnitude;
Time: Measuring the time meter accuracy no less than 0.1%;
Temperature: Measuring the temperature meter accuracy no less than 0.5 ℃;
Impedance: Measuring impedance should by sinusoidal alternating (1 KHZ) test.
Похожие товары
Труба Tianjin оцинкованная, толстая стенка предварительно/горячеоцинкованная стальная труба, труба sch40
600,00 $ - 650,00 $
Опорный подшипник 85 мм 6 мм 8 мм 1,25 12 мм 15 мм 1,75 60 мм P213 207 1 дюйм 2 дюйма 2 болта опорный подшипник
Медные и золотые оловянные урны для кремации домашних животных прямоугольные мини-жестяные зонт питомцев жестяные собак
Оптовая продажа, Заводская Книга в жестком переплете, книга разных цветов от ИНДИЙСКОГО Производителя
0,95 $ - 3,50 $
Новый оригинальный высококачественный кодировщик LEINE + LINDE RHA 608 549856-01
1 100,00 $ - 1 399,00 $
Производители, оптовая продажа, экономичный метиловый спирт, бесцветный метанол
680,00 $ - 750,00 $

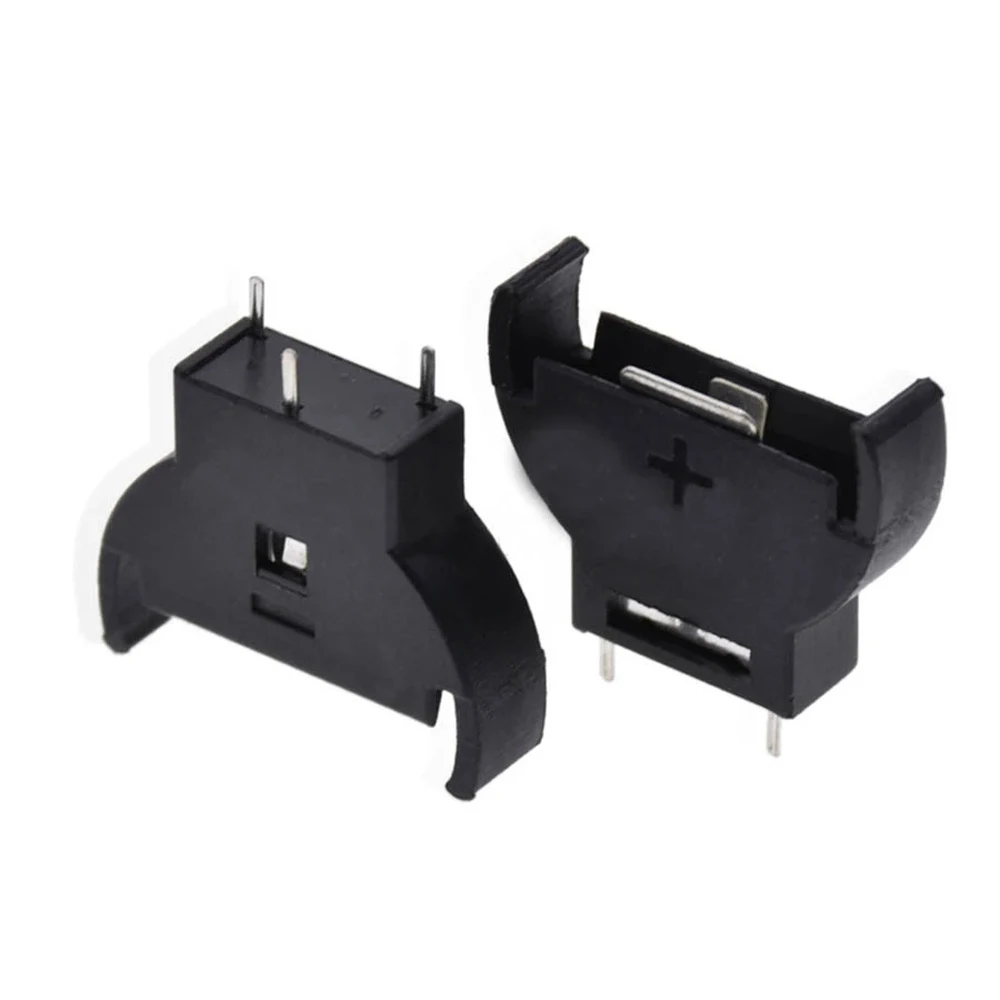

3 штыря CR2032 полукруглый литиевая батарея таблеточного типа ячейки держатель батарейного отсека чехол LIR2032 батареи держатель Гнездо BS-5
