HPE ленточный накопитель библиотека лента для хранения LTO4 18 ТБ/45 ТБ
188,00 $ - 208,00 $
Broadcom LSI 9380 8i8e 05 25716 00 PCIe 3 0x8 SAS3316 8 внутренних и внешних портов MegaRAID трехрежимный адаптер для
- Категория: Other Drive & Storage Devices >>>
- Поставщик: HongKong Ant Tec Co. Limited
Сохранить в закладки 1600773453772:
Описание и отзывы
Характеристики

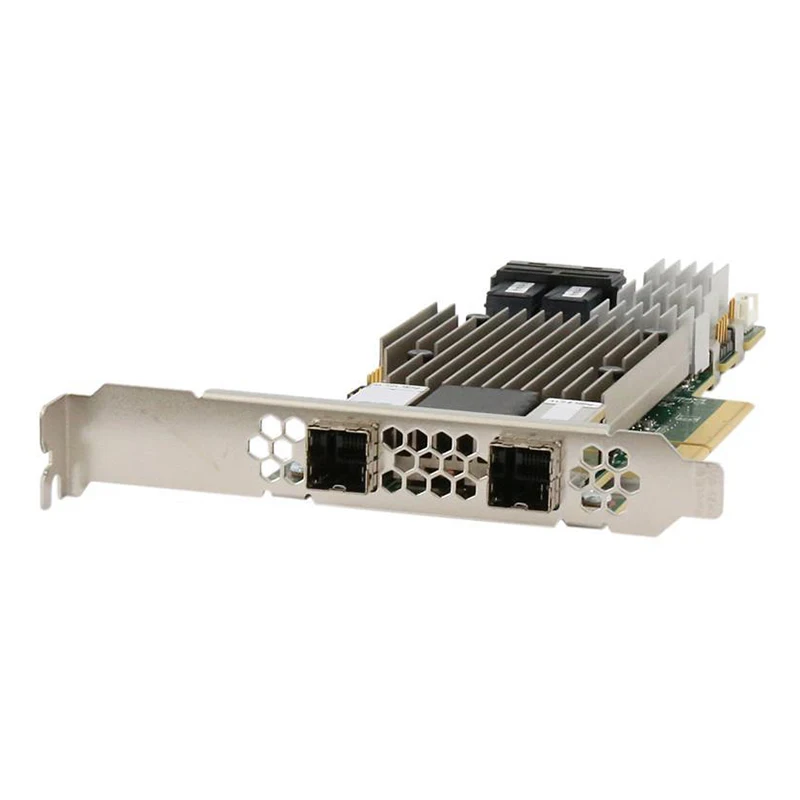

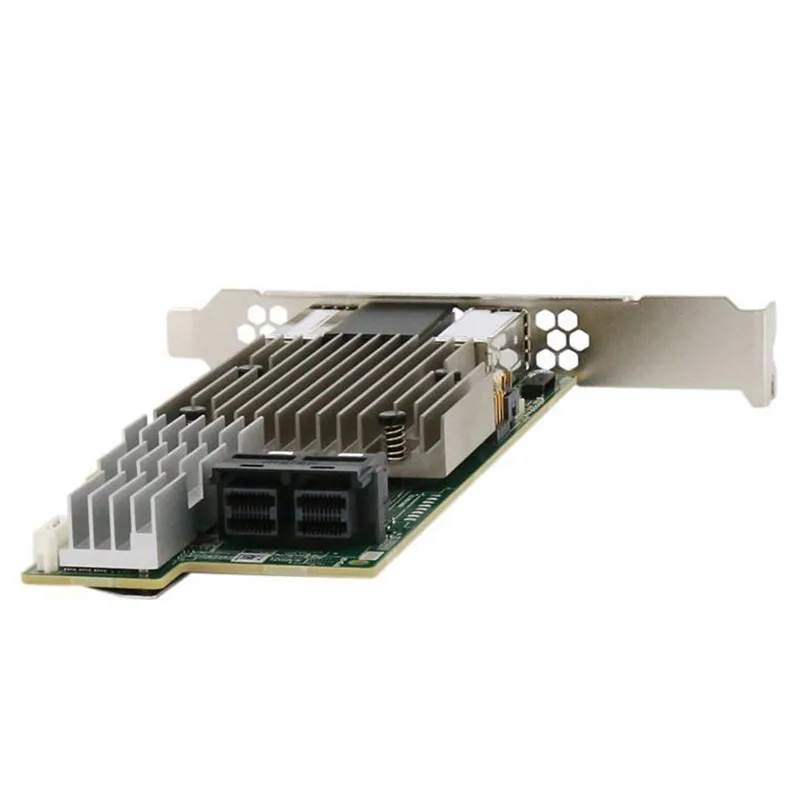

MegaRAID SAS 9380-8i8e Controller Card | ||
Solution Provided | Eight-port internal/eight-port external SATA+SAS solution for internal drive storage and external JBOD expansion in a wide variety of performance and capacity-oriented environments using up to 240 SAS or SATA devices. | |
Physical Dimensions | MD2 low profile (6.600” x 2.712”)/(167.65 mm x 68.90 mm) | |
Connectors | Two SFF8643 x4 Two SFF8644 x4 | |
Device Support | Up to 240 SAS and/or SATA devices | |
Host Bus Type | x8 lane PCI Express 3.0 compliant | |
Data Transfer Rates | Up to 12 Gb/s per port | |
I/O Processor/SAS Controller | SAS3316 dual core RAID on Chip (ROC) | |
Key RAID Data Protection Features | • RAID levels 0, 1, 5, and 6 • RAID spans 10, 50, and 60 • Online Capacity Expansion (OCE) • Online RAID Level Migration (RLM) • Auto resume after loss of system power during array rebuild or reconstruction (RLM) • Single controller multipathing • Load balancing • Configurable stripe size up to 1 MB • Fast initialization for quick array setup • Check Consistency for background data integrity • SSD support with SSD Guard technology • Patrol read for media scanning and repairing • 64 logical drive support • DDF compliant Configuration on Disk (COD) • S.M.A.R.T. support • Global and dedicated Hot Spare with Revertible Hot Spare support - Automatic rebuild - Enclosure affinity - Emergency SATA hot spare for SAS arrays • Enclosure management – SES (inband) – SGPIO (sideband) • DataBolt bandwidth optimizer technology support for compatible expander-based enclosures • Shielded state drive diagnostic technology | |
Operating Temperature | Maximum ambient: Controller Card: 55°C, with optional CacheVault accessory (CVPM02): 55°C | |
Operating Voltage | +3.3V, +12V | |
MTBF (Calculated) | >2,500,000 hours at 40°C | |
Hardware Warranty | 3 years; with advanced replacement option | |
MegaRAID Management Suite | • LSA (LSI Storage Authority) • MegaRAID Storage Manager • StorCLI (command-line interface) • CTRL-R (BIOS configuration utility) • HII (UEFI Human Interface Infrastructure) | |
SSD Optimization | MegaRAID CacheCade Pro 2.0 Software leverages SSDs in front of HDD volumes to create high-capacity, high- performance controller cache pools (Optional Upgrade) | |
Regulatory Certifications | USA (FCC 47 CFR part 15 Subpart B, class B); Canada (ICES -003, Class B); Taiwan (CNS 13438) ; Japan (VCCI V-3); Australia/New Zealand (AS/NZS CISPR 22);Korea (RRA no 2013-24 & 25); Europe (EN55022/EN55024); Safety: EN/IEC/UL 60950; RoHS; WEEE | |
OS Support | Microsoft Windows, Linux (Oracle, SuSE , Red Hat), Solaris, VMware, FreeBSD, CentOS, Canonical, Citrix, FreeBSD, Fedora, Debian See www.broadcom.com/support/download-search for details on versions. Contact Oracle support for Oracle driver or software support.. | |
Ordering Information | ||
MegaRAID SAS 9380-8i8e | 05-25716-00 (Single Pack) | |
CVPM02 | 05-50038-00 (Kit) | |
Packaging & Shipping
We ship worldwide:
We use TNT/DHL and many other carries(such as below), please contact us if you have
special requirements.
We use TNT/DHL and many other carries(such as below), please contact us if you have
special requirements.
We can ship on your account also.
Multiple item combined shipping discounts are avalible. Call us for details.
All items won will be shipped within 1 working day of payment recieved.
If this is on urgent item and has to be shipped sooner, please call and we can assist your
requirements.
Multiple item combined shipping discounts are avalible. Call us for details.
All items won will be shipped within 1 working day of payment recieved.
If this is on urgent item and has to be shipped sooner, please call and we can assist your
requirements.
Q: What's your advantages?
A: Multi-vendor distribution + Low Prices + Experience + Knowledge + Flexibility+Investment
Q: What's the MOQ for your products?
A: 1 piece / 1 unit / 1 set.
Q: What else products do you sell?
A: We carry majority of high demand product lines in our China warehouse by Cisco, HPE, DellEMC, Intel, Juniper, F5, Sophos,
Huawei, H3C etc. We also sell CPU, HDD, SSD, GPU, RAM, SFP Module, HBA, PSU, Heat sink & Fan, Line Card, Networking cards,
Controller, Expander Card, Chassis, Compute Card, Switch, Tape Drive, Server, Mini PC...
Q: How long does the package take to delivery after I place the order?
A: According to the order quantity, small order usually need 1-3 days, big order need negotiation.
Q: What's the package?
A: Original packing. For the outside, we will pack it in an empty box to protect from damaged during transportation, and ensure
you will receive the goods in good condition.
Q: What's the payment terms?
A: Pre T/T or paypal or west union or Alibaba Trade Assurance order.
A: Multi-vendor distribution + Low Prices + Experience + Knowledge + Flexibility+Investment
Q: What's the MOQ for your products?
A: 1 piece / 1 unit / 1 set.
Q: What else products do you sell?
A: We carry majority of high demand product lines in our China warehouse by Cisco, HPE, DellEMC, Intel, Juniper, F5, Sophos,
Huawei, H3C etc. We also sell CPU, HDD, SSD, GPU, RAM, SFP Module, HBA, PSU, Heat sink & Fan, Line Card, Networking cards,
Controller, Expander Card, Chassis, Compute Card, Switch, Tape Drive, Server, Mini PC...
Q: How long does the package take to delivery after I place the order?
A: According to the order quantity, small order usually need 1-3 days, big order need negotiation.
Q: What's the package?
A: Original packing. For the outside, we will pack it in an empty box to protect from damaged during transportation, and ensure
you will receive the goods in good condition.
Q: What's the payment terms?
A: Pre T/T or paypal or west union or Alibaba Trade Assurance order.
Contact Us
FYI, the prices on our website are for reference only. If you have any enquiries or are planning to place an order, please contact
our online customer service to confirm the price and availability.
Thank you for your understanding and we look forward to serving you.
our online customer service to confirm the price and availability.
Thank you for your understanding and we look forward to serving you.
Похожие товары
HPE SKU # R6V47A SN6600B 32 Гб 48/24 16 короткая волна SFP + парча G620 волоконно-канальный
03056794 SMARTIO10ETH OceanStor 5500 V3 4 port smartio I/O module (SFP +, 10 ГБ ETH/FCoE (VN2VF)/масштаба)
Твердотельный накопитель PM1643A /PM1643 15 36 ТБ Enterprise SSD SAS 2 5
2 000,00 $ - 2 007,00 $
Купить Качественный жесткий диск Cheetah 15K-внутренний оптом по сниженной цене в
11,66 $ - 21,66 $
SharkBlu HDD:4 Blu-ray/DVD/CD автономный ручной дубликатор
Оригинальный смарт-Массив 804338-B21 P816i-a SR Gen10 (16 внутренних дорожек/4 ГБ кэш/SmartCache) 12G SAS для сервера
390,00 $ - 400,00 $

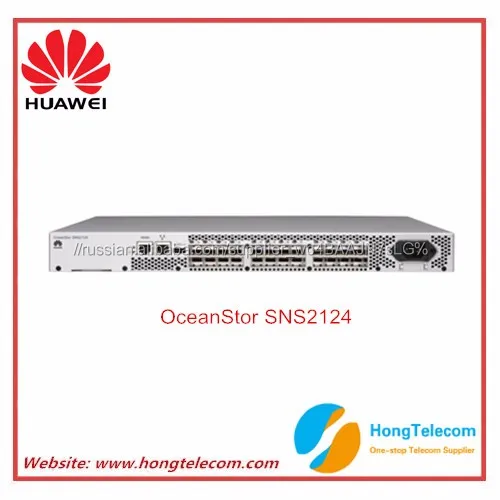

05330716 Huawei хранения OceanStor SNS2124
