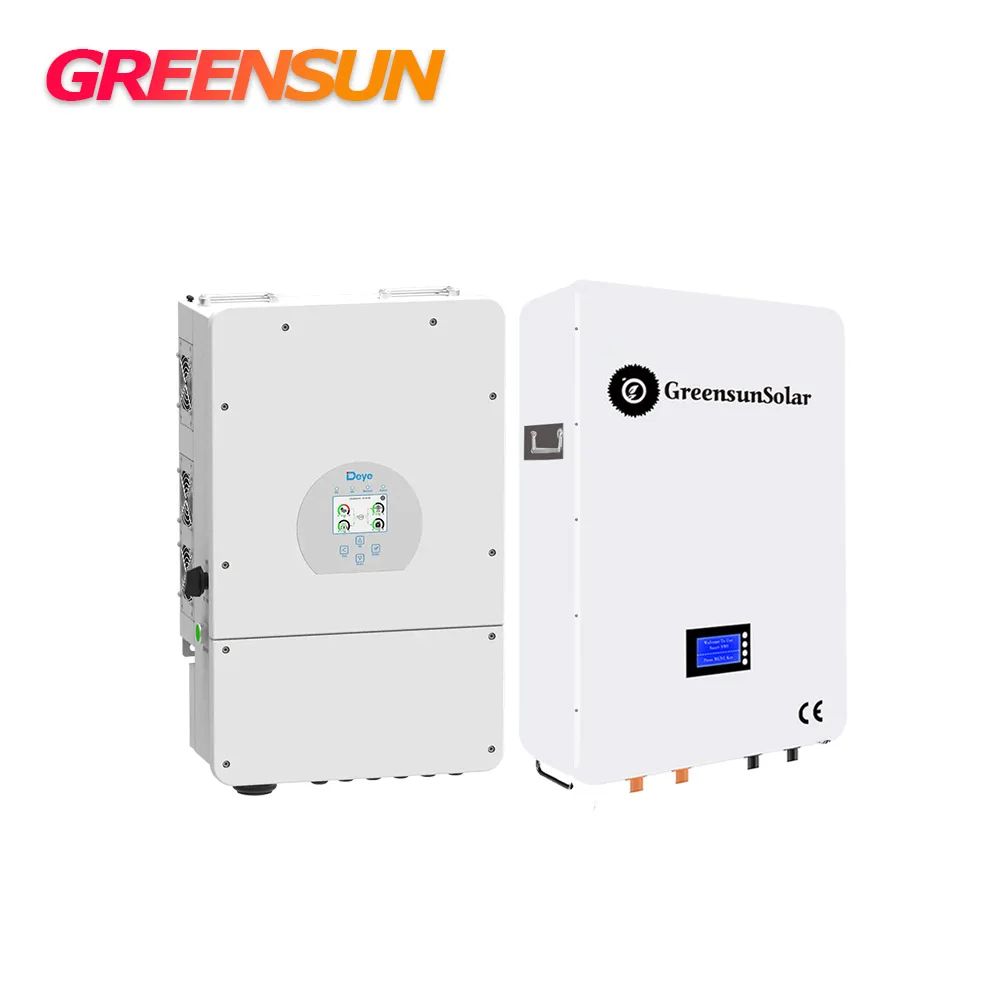

Гибридный Инвертор солнечной энергии Green Sun 10 ква кВт 10000 Вт 380 В

Сохранить в закладки 1600774977022:


Цена:180 919,86 ₽ - 195 393,45 ₽*

Количество:

  • В избранное

Описание и отзывы

Характеристики



Product Description






Specification


Model
SUN-8K -SG04LP3-EU
SUN-10K -SG04LP3-EU
SUN-12K -SG04LP3-EU
Battery Data
Battery Type
Lithium-ion or Lead-acid
Battery Voltage Range (V)
40-60
Max. Charging/Discharge  Current (A)
190/190
210/210
290/290
Communication with BMS
RS485; CAN
PV String Input Data
Max. DC Input Power (W)
10400
13000
15600
Rated PV Input Voltage (V)
550 (160-800)
Start-up Voltage (V)
160
PV Input Current (A)
13/13
26/13
26/13
No.of MPP Trackers/
No.of Strings per MPP Tracker
2/1+1
2/2+1
2/2+1
AC Output Data
Rated/Max AC Output Active Power (W)
8000/8800
10000/11000
12000/13200
Output Frequency and Voltage
50/60Hz; 3L/N/PE 220/380, 230/400Vac
Grid Type
Three Phase
MAX Efficiency
97.6%
Certifaication
VDE4105, IEC61727/62116, VDE0126, AS4777.2, CEI 0 21, EN50549-1, G98, G99, C10-11, UNE217002, NBR16149/NBR16150
Weight
33.6kg
Size(mm)
422W x 702H x281D
Protection Degree
IP65


Packing & Delivery




Professional Packing: Carton, Wooden Pallet and Wooden Box
By Express
TNT, DHL, FedDex, UPS available
By Air
Shenzhen/Shanghai or other Designated Airport
By Sea
Shenzhen, Shanghai, Ningbo or other Designated Port in China


Project




Company Profile




Our Advantages


We are a factory, we have professional technicians, we can provide competitive prices, and at the same time provide the best after-sales service
