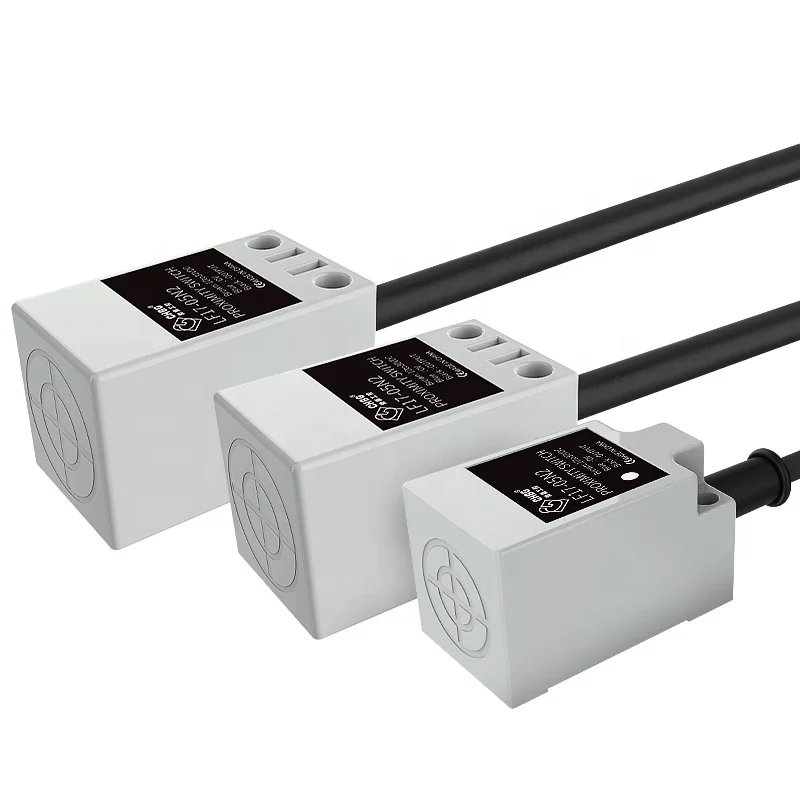

CHBG 15 мм квадратный Бесконтактный переключатель NPN PNP 3 провода IP67 металлический индуктивный датчик приближения с CE
- Категория: Sensors >>>
- Поставщик: Zhejiang Bojia Industrial Automation Co. Ltd.
Сохранить в закладки 1600776274156:
Описание и отзывы
Характеристики
Contact us
Certifications
Product Description
Model and specification | ||||||
Output mode | NPN.NO | LF30-10N1 | LF30-15N1 | |||
NPN.NC | LF30-10N2 | LF30-15N2 | ||||
PNP.NO | LF30-10P1 | LF30-15P1 | ||||
PNP.NC | LF30-10P2 | LF30-15P2 | ||||
DC two-wire NO | LF30-10D1 | LF30-15D1 | ||||
DC two-wire NC | LF30-10D2 | LF30-15D2 | ||||
AC second line NO | LF30-10A1 | LF30-15A1 | ||||
AC second line NC | LF30-10A2 | LF30-15A2 | ||||

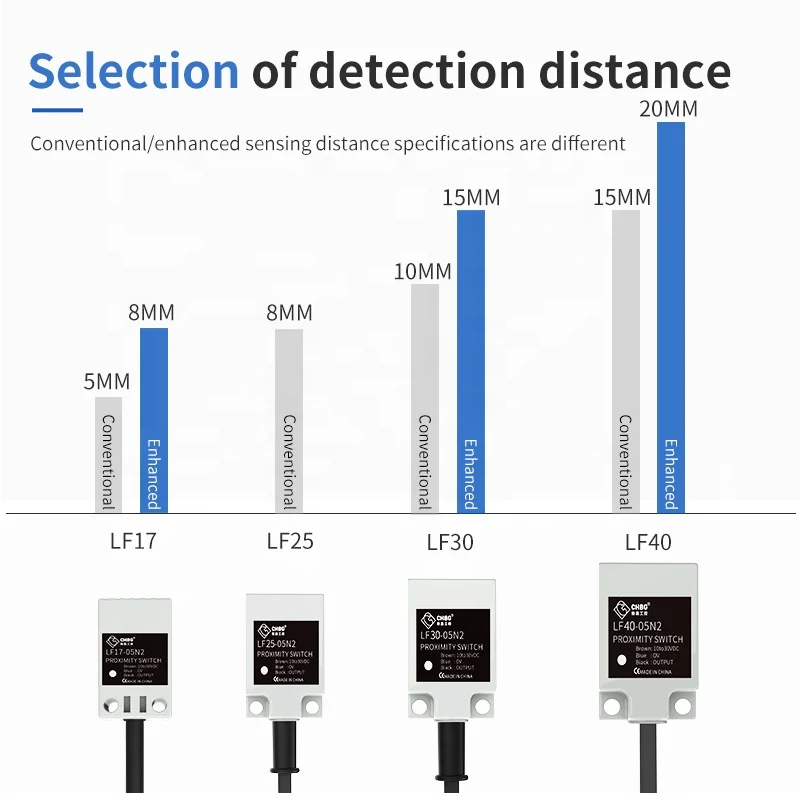

Maximum detection distance | 10MM±10% | 15MM±10% | ||||
Stable detection range | 0-9MM | 0-13.5MM | ||||
movement differential | Less than 10% of detection distance | |||||
Detectable object | Magnetic metal (non-magnetic metal detection distance is short) | |||||
working voltage | 10-30VDC(Power supply needs to be filtered or stabilized);AC:90-250VAC(50/60Hz) | |||||
Leakage current | DC: 0.6mA or less AC: 1.2mA or less | |||||
working frequency | 500Hz(DC)20Hz（AC) | |||||
current consumption | NPNPNP type: ≤10mA; DC two-wire type: ≤3mA; AC second-wire model: ≤2mA | |||||
load voltage | 200mA | |||||
residual voltage | NPNPNP type: ≤1V; DC two-wire type: ≤3V; AC second-wire model: ≤10V | |||||
protect | Surge absorption, overload protection, reverse connection protection | |||||
Action display | Electric green light, induction yellow light | |||||
operating temperature | When working and saving:-20～+70℃each(no ice or condensation) | |||||
shock resistance | 500m/s(50G)X.Y.Z 3times in each direction | |||||
anti-vibration | 10~55Hz(Cycle 1 minute)amplitude 1mmX.Y.Z 2 hours in each direction | |||||
level of protection | IEC standard IP67 company internal | |||||
connection type | Lead out type(standard lead length 2M) | |||||
sheating material | PBT | |||||
Our Services
1. Any questions about our items will be answered within 24hrs.
2. CHBG has professional technicians provide professional technical support
3. One-stop solution will offer to meet all your requirements on budget, designing and shipment
4. Update the procession of manufacturing
5. Warranty 12 months: Free replacement of defective products within 12 months.
2. CHBG has professional technicians provide professional technical support
3. One-stop solution will offer to meet all your requirements on budget, designing and shipment
4. Update the procession of manufacturing
5. Warranty 12 months: Free replacement of defective products within 12 months.
Packing & Delivery
Each of our products will have its own independent packaging. The surface of the packaging bag will be labeled with the basic parameters of the product, such as model, voltage and quantity, etc. 10pcs products are a box, and the size of the box is 205mmx148mmx75mm.
Why Choose Us& Company Information
About Us
Established in 2011, BOJIA is one of the world's leading developers and manufacturers of industrial sensors and rotary encoders in the world. We have over 500 standard models widely used in CNC machine, new-type elevator, servo motor, textile, petroleum, mine,metallurgical machinery and various of automation fields. Our 8000m2 modern facility and the intelligent information management system allow us to keep enough stock for 95% of standard models, enabling prompt delivery. To meet customer's demands, BOJIA can deliver orders ranging in size 1 to 50,000 units. Our goal is to offer total solutions that satisfy our customer's requirements. We have earned a good reputation based on the quality, competitive prices and punctual delivery of our products.
Currently, we have thousands of customers throughout the world. We have formed long-term associations with most of our customers, working together for many years, developing many treasured relationships. For more customized demands that can't be found in our standard product lines, we also can offer CDM(Cooperation Design Manufacturer) solution to combine your specific requirements into our newly design standard products. Thanks to our extensive library of circuit solutions, we are confident that we can prompt provide satisfied samples for your review and approval.
FAQ
Related Products
The related products are as follows. Click on the item to see detail. There's always one for you.
Похожие товары

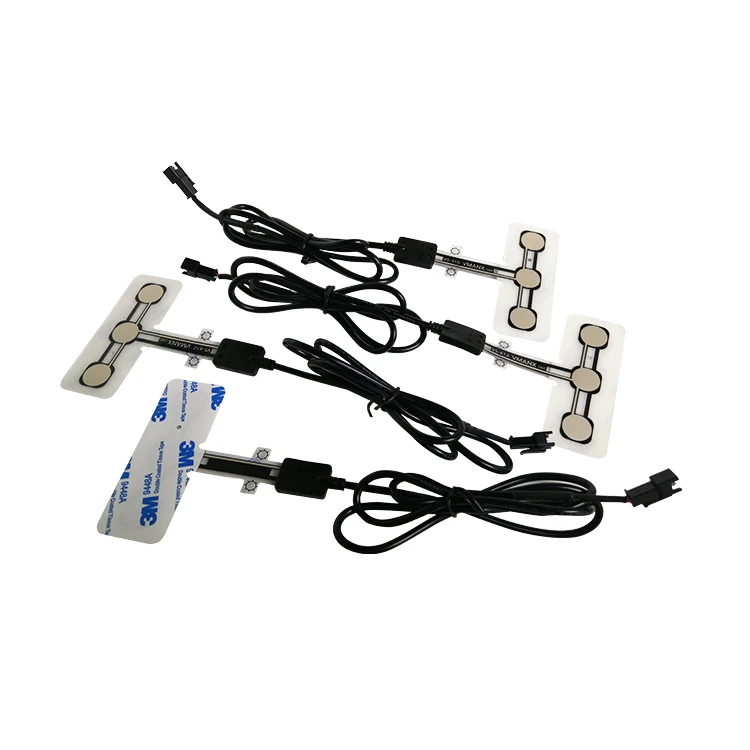

Vmanx пользовательский высококачественный 0 15 мм ~ 1 Датчик заполнения сиденья

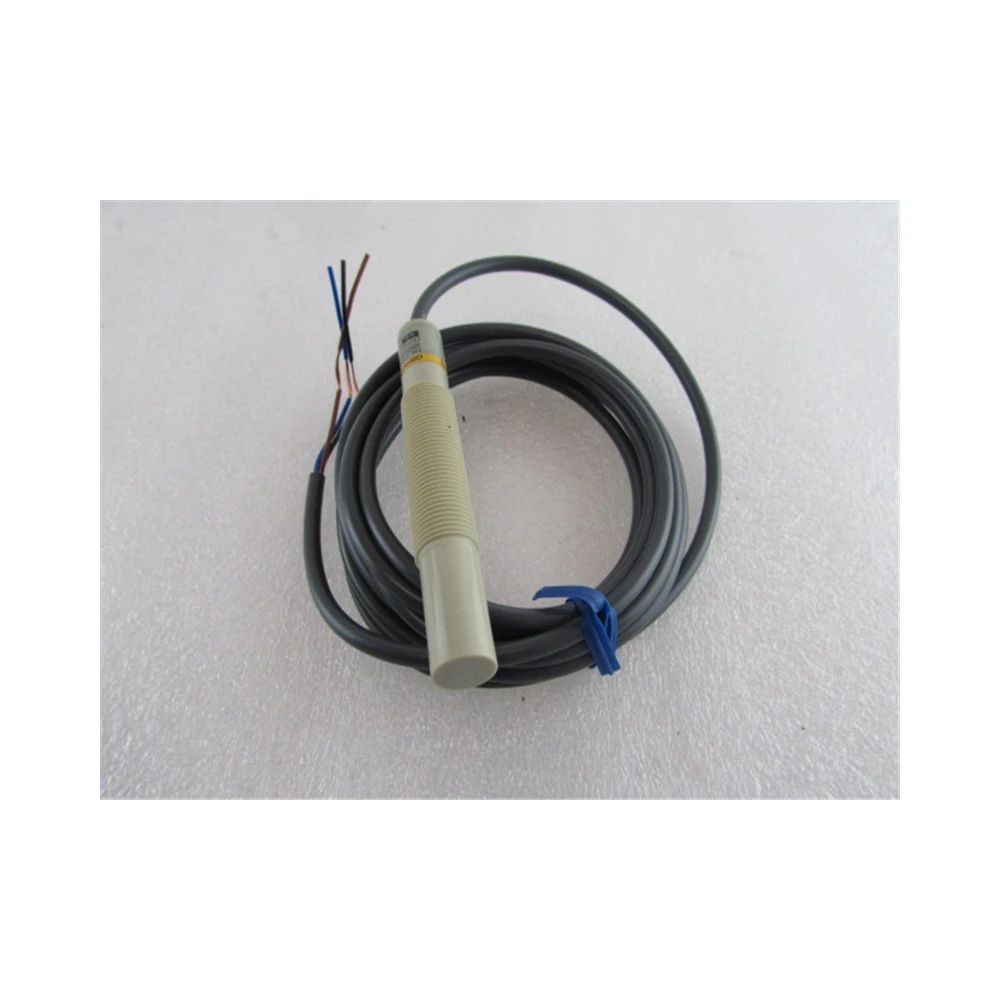

Оригинальный сенсор E2E2-X3D1 5
Микроволновые датчики DL6 для автоматической раздвижной двери/автоматической

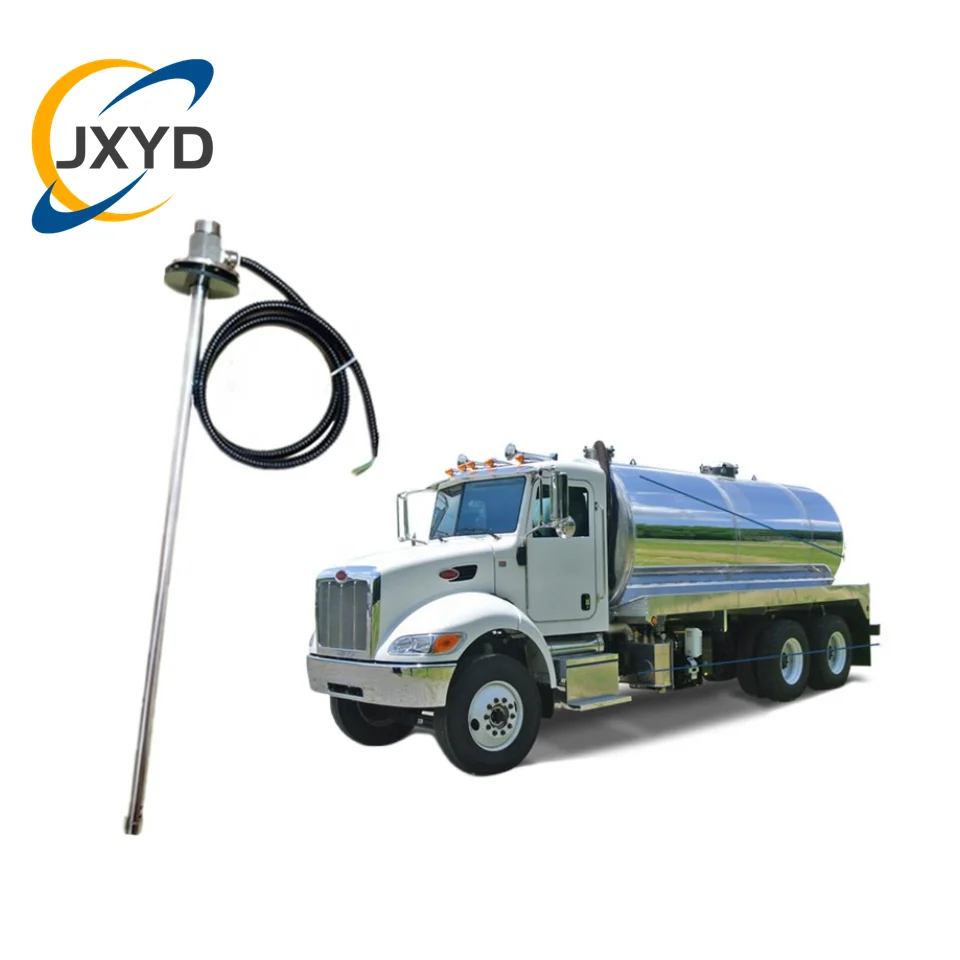

Пульт дистанционного контроля расхода топлива калибратор GPS трекер с датчиком
65,00 $ - 69,00 $

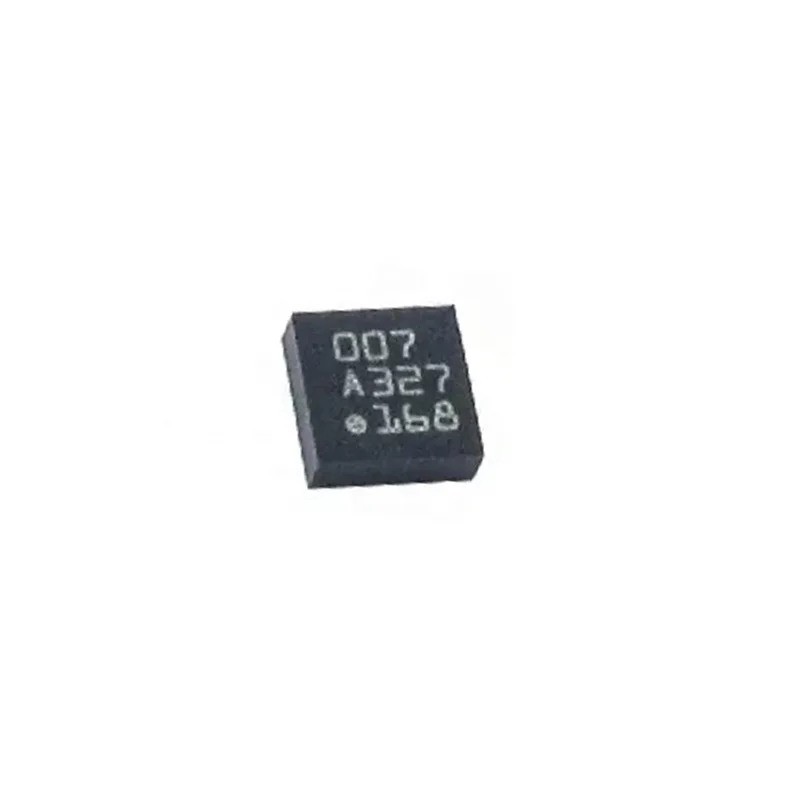

Гироскоп ic чипы датчик гироскопа датчики 007 BMG160
0,30 $ - 2,00 $

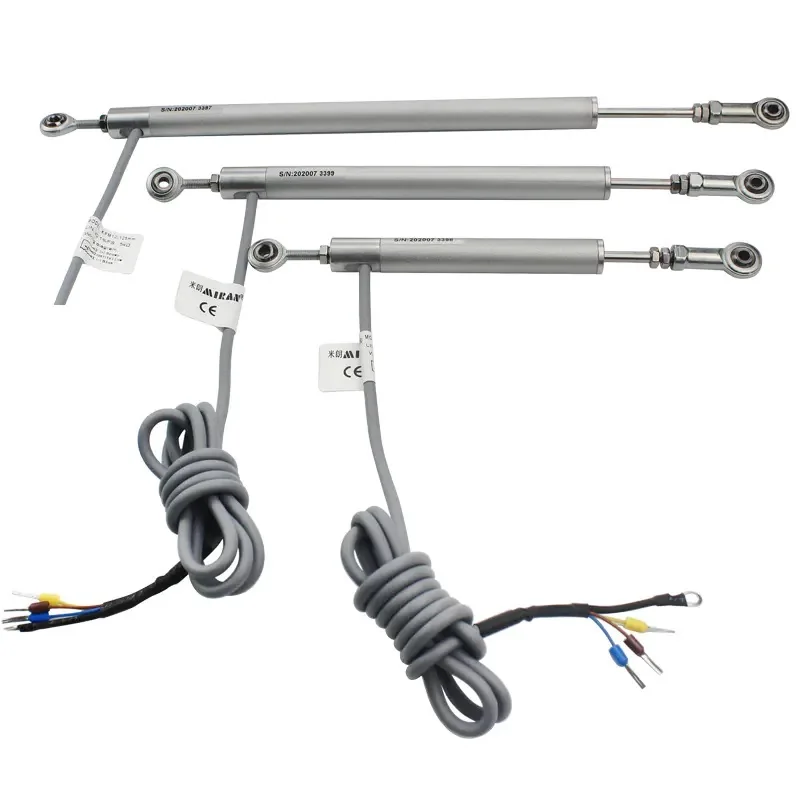

Линейный миниатюрный датчик перемещения тягового стержня марки MIRAN потенциометр KPM12 серия

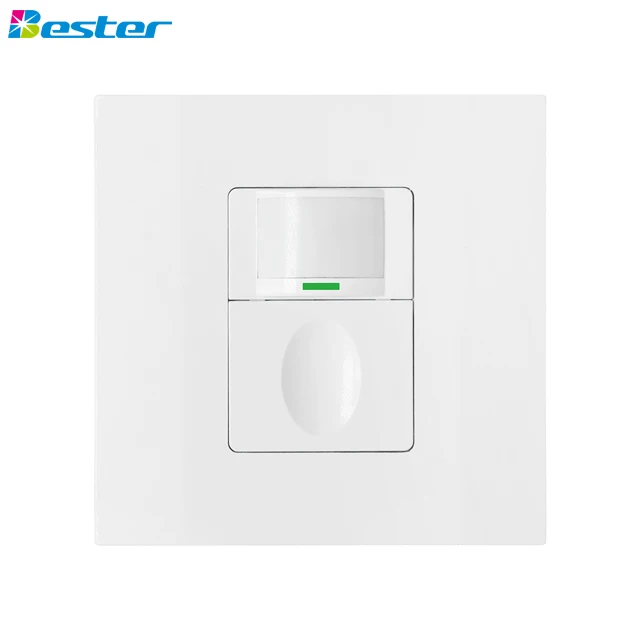

Три провода утвержеденный европейскими стандартами по ограничению на использование опасных материалов в производстве электрического движения pir сенсор RZ023-5A пребывания настенный
