Product Information
WIRE MESH MOVING BENCH

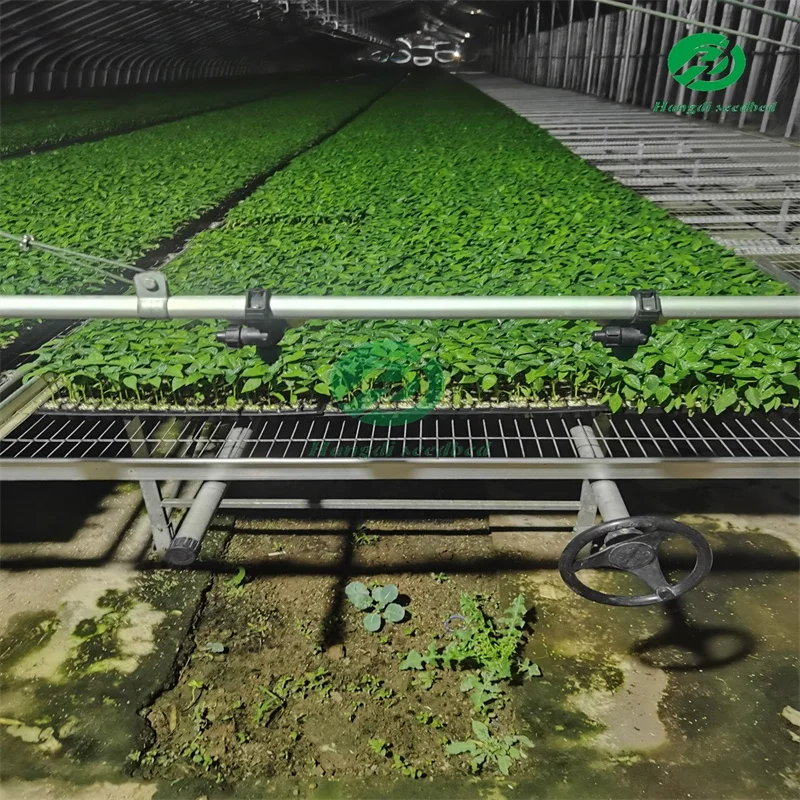

The mobile seedbed is mainly composed of seedbed mesh, rolling shaft, bracket, seedbed frame, handwheel, cross support, inclined tie rod and other connecting parts.
Mobile seedbed specifications:
The standard height of the mobile seedbed is 0.7m, which can be fine-tuned and the standard width is 1.7m. It can also be set according to the width of the greenhouse, and the length can be set according to user requirements. Seedbed mesh is generally welded with steel wire, and then hot-dip galvanized treatment, high corrosion resistance, good bearing capacity, long life; Grid is generally 130㎜*30㎜ (length * width),
Mobile seedbed specifications:
The standard height of the mobile seedbed is 0.7m, which can be fine-tuned and the standard width is 1.7m. It can also be set according to the width of the greenhouse, and the length can be set according to user requirements. Seedbed mesh is generally welded with steel wire, and then hot-dip galvanized treatment, high corrosion resistance, good bearing capacity, long life; Grid is generally 130㎜*30㎜ (length * width),
Mobile seedling bed features:
1, manual drive, simple operation, easy to move. The frame of the seedbed is aluminum alloy material, which can be moved left and right. The operation channel of 0.6m can be produced between any two seedbeds, which can make the use area of the greenhouse reach about 80%.
2, the main frame and seedling bed net are using hot dip galvanizing process, can be used in humid environment for a long time.
3, planting operation is convenient, with a limit anti-tipping device, to prevent the tilt problem caused by excessive weight.
Mobile seedling bed configuration instructions:
Greenhouse configuration mobile seedbed number, according to the seedling or production of actual greenhouse area to determine, our factory designers can be customized for your greenhouse mobile seedbed.
1, manual drive, simple operation, easy to move. The frame of the seedbed is aluminum alloy material, which can be moved left and right. The operation channel of 0.6m can be produced between any two seedbeds, which can make the use area of the greenhouse reach about 80%.
2, the main frame and seedling bed net are using hot dip galvanizing process, can be used in humid environment for a long time.
3, planting operation is convenient, with a limit anti-tipping device, to prevent the tilt problem caused by excessive weight.
Mobile seedling bed configuration instructions:
Greenhouse configuration mobile seedbed number, according to the seedling or production of actual greenhouse area to determine, our factory designers can be customized for your greenhouse mobile seedbed.
一. mobile seedbed The first step: seedbed support and base connection
1. Place the seedbed support flat on the ground, and then put the adjustment base into the seedbed support according to the specified direction.
2. Insert the bolt from the outside of the adjusting base, install the nut on the inside, and lock the nut with the corresponding wrench.
Install the end bracket
1. Place the seedbed support installed with the adjusting base on the ground according to the specified interval distance
(generally, the seedbed support spacing is 2 meters), insert fixing bolts from the outside of the reserved hole of the seedbed
support to the inside, then insert the two ends of the end diagonal brace into the bolts according to the specified position from
the inside of the seedbed support, install nuts on the bolts inserted into the end diagonal brace, and lock the nuts with
corresponding wrenches.
2. Adjust the height of the seedbed support base so that the upper beam of the seedbed support is on a horizontal plane and the
whole seedbed support is on a plane. Step
(generally, the seedbed support spacing is 2 meters), insert fixing bolts from the outside of the reserved hole of the seedbed
support to the inside, then insert the two ends of the end diagonal brace into the bolts according to the specified position from
the inside of the seedbed support, install nuts on the bolts inserted into the end diagonal brace, and lock the nuts with
corresponding wrenches.
2. Adjust the height of the seedbed support base so that the upper beam of the seedbed support is on a horizontal plane and the
whole seedbed support is on a plane. Step
Place roller tube and cross brace
1. Place the two roller tubes flat on the seedbed support according to the direction of the seedbed. Do not align the two ends of the two roller tubes, stagger them, and reserve the installation size of the hand wheel.
2. On the roller tube, place the cross braces evenly according to the specified number. The first 1 cross brace and the last 1 cross brace are aligned up and down with the upper cross beams of the seedbed support corresponding to both ends. When there are multiple sets of anti-rollover cards in the seedbed, the cross brace installed at the anti-rollover card position shall be aligned with the upper cross beams of the corresponding seedbed support.
Place roller tube and cross brace
1. Place the two roller tubes flat on the seedbed support according to the direction of the seedbed. Do not align the two ends of the two roller tubes, stagger them, and reserve the installation size of the hand wheel.
2. On the roller tube, place the cross braces evenly according to the specified number. The first 1 cross brace and the last 1 cross brace are aligned up and down with the upper cross beams of the seedbed support corresponding to both ends. When there are multiple sets of anti-rollover cards in the seedbed, the cross brace installed at the anti-rollover card position shall be aligned with the upper cross beams of the corresponding seedbed support.
Installation of seedbed mesh, handwheel and plugging
1. Place the seedbed mesh in the frame from one end of the seedbed support, and fix it with drill tail wire and gasket at the junction of the mesh and the cross brace, and at the junction of the mesh and the frame.
2. Install the hand wheel, respectively set the two hand wheels on the reserved ends corresponding to the two ends of the two roller tubes, fix them with drill tail wire, and install a sleeve on the other end of the roller tube for blocking.
make the seedbed
1. Adjust the roller tube and seedbed worktable so that when the seedbed worktable is in the middle position, it can move 30cm to the left or right respectively with the rotation of the roller tube.
2. Install and adjust all seedbeds in the greenhouse.
Specification
item | value |
Manufacturer | Factory direct sales |
Size | Large |
Type | Multi-Span Agricultural Greenhouses |
Cover Material | Film |
Hot dip galvanizing/plastic spraying/aluminum alloy | |
Double | |
Model Number | WIRE MESH MOVING BENCH |
Place of Origin | China |
Hebei | |
Brand Name | HANGDI |
Product name | Galvanized Structure Greenhouse |
Application | Vegetable Fruits Flowers |
Color | Sliver |
Usage | Flower Vegetable Growing |
Features | Stable Structure Easily Assembled |
Advantage | Super Strong Resistance |
Service | Sample + OEM + ODM |
Function | Multi-purpose |
Delivery time | 10-30 Days |
Products Show
Packing & Delivery
Company Profile
Anping Hangdi Silk Screen Products Co., Ltd. is located in Anping County, Hengshui City, Hebei Province. It is a modern enterprise integrating research and development, learning, production and foreign trade. Adhering to the company's core values, based on "integrity", with unity, progress, and innovation as the business tenet, integrating high-tech development, international trade, industrial investment and domestic and foreign networks, focusing on the R & D and innovation of seedbed and screen products. Our business radiates Asia, Europe, Africa and North America and is moving towards the corporate vision of "becoming an international group with global influence. Our company is an enterprise specializing in the production and processing of tidal seedbeds, wire screens and other products. Have a complete and scientific quality management system. Serving hundreds of cooperative enterprises across the country, adhering to the "people-oriented, customer first" business philosophy, sincere cooperation with customers, common development. Anping Hangdi Silk Screen Products Co., Ltd. has been recognized by the industry for its integrity, strength and product quality. Friends from all walks of life are welcome to visit, guide and negotiate business.
FAQ
1. who are we?
We are based in Hebei, China, start from 2008,sell to Southeast Asia(20.00%),Central America(20.00%),North
America(20.00%),Northern Europe(10.00%),South America(10.00%),Mid East(10.00%),Africa(10.00%). There are total about 51-100 people
in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Seedbed,Tidal disk,Track seedbed
4. why should you buy from us not from other suppliers?
For many years, we have been focusing on the research and development of tidal seedbed products. Our R & D team has more than 20
years of experience. All our products come directly from the factory. We accept OEM and ODM!
5. what services can we provide?
Accepted Delivery Terms: FOB,EXW；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
We are based in Hebei, China, start from 2008,sell to Southeast Asia(20.00%),Central America(20.00%),North
America(20.00%),Northern Europe(10.00%),South America(10.00%),Mid East(10.00%),Africa(10.00%). There are total about 51-100 people
in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Seedbed,Tidal disk,Track seedbed
4. why should you buy from us not from other suppliers?
For many years, we have been focusing on the research and development of tidal seedbed products. Our R & D team has more than 20
years of experience. All our products come directly from the factory. We accept OEM and ODM!
5. what services can we provide?
Accepted Delivery Terms: FOB,EXW；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
