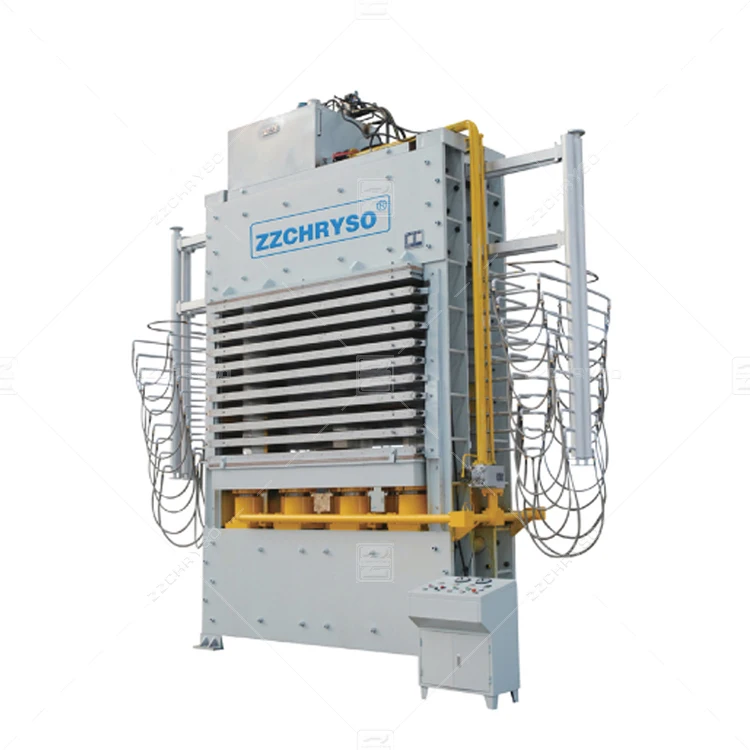

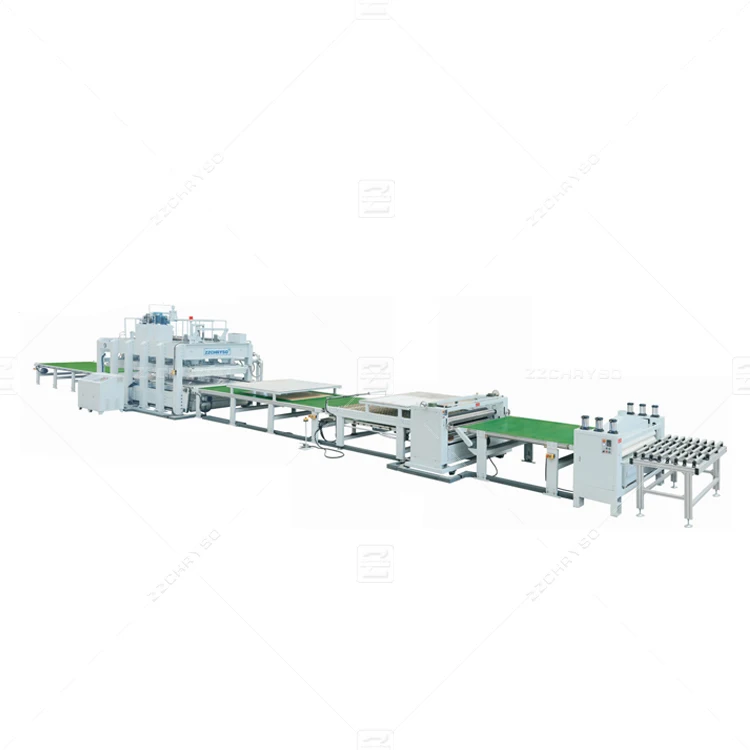

Полная линия по производству фанерных досок шпона пресса паркета деревянного
- Категория: Wood Based Panels Machinery >>>
- Поставщик: Zhengzhou Chryso Machinery Equipment Co. Ltd.
Сохранить в закладки 1600780507370:
Описание и отзывы
Характеристики
Product Description

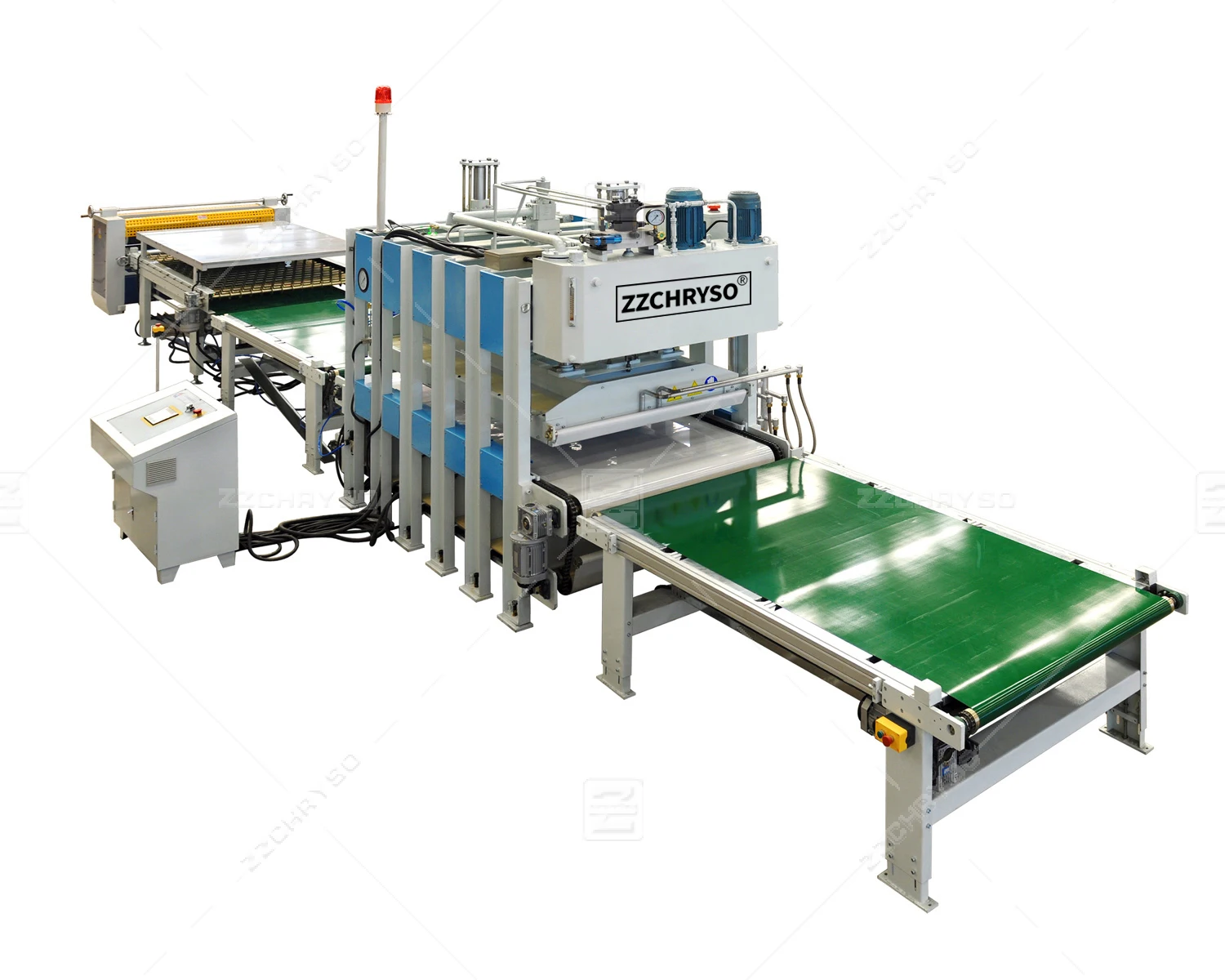

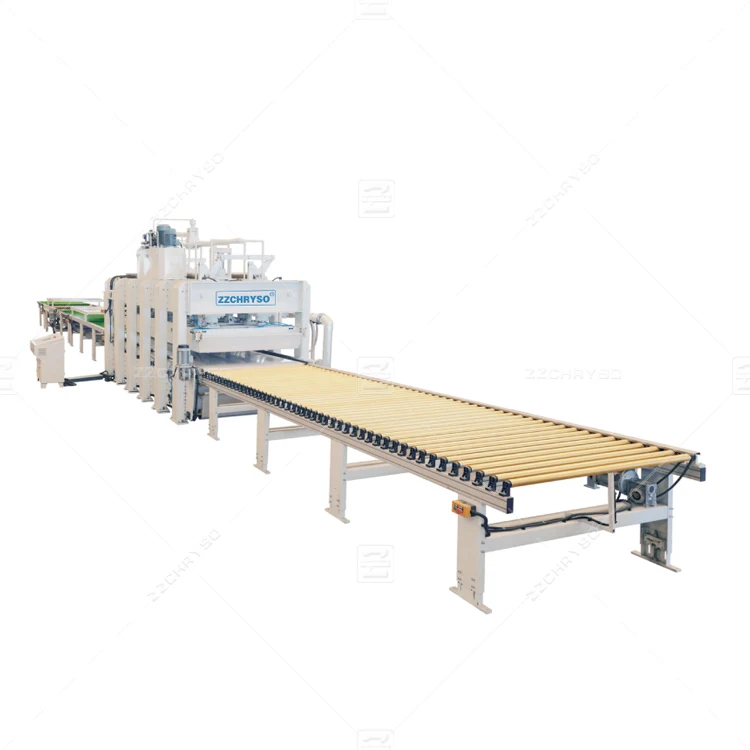

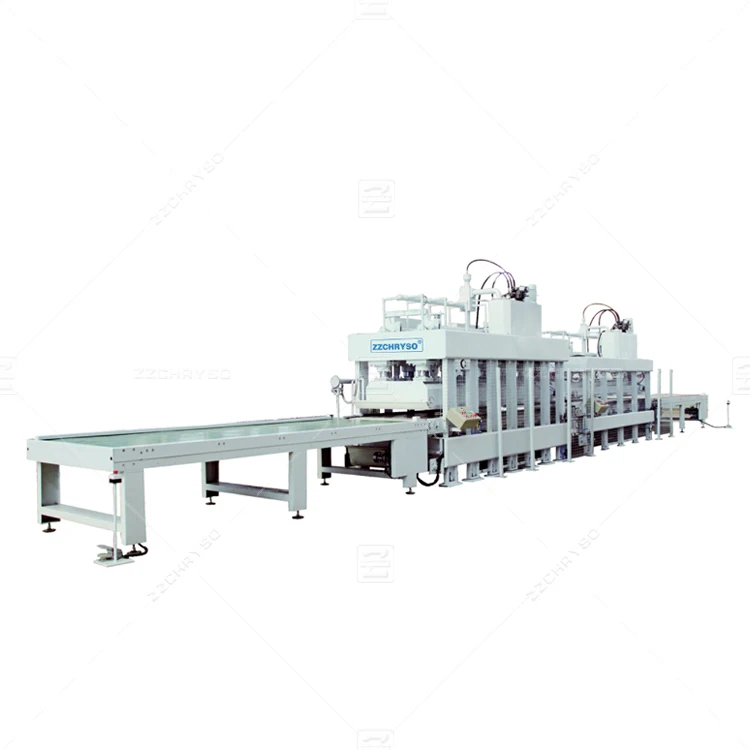

Wood veneer hot press line is used for the veneer lamination of the man-made panels as base material, such as particle board, plywood, chipboard or MDF, with natural wood veneer decorative skin.
The optimum lamination quality of various types of panels is ensured by its precise pressure regulation and precise temperature control system.
The machine adopts an excellent hot pressing panel, which has good bearing performance and is not easy to deform;The oil pipeline is dredged, heated evenly, and has a long service life.
The optimum lamination quality of various types of panels is ensured by its precise pressure regulation and precise temperature control system.
The machine adopts an excellent hot pressing panel, which has good bearing performance and is not easy to deform;The oil pipeline is dredged, heated evenly, and has a long service life.
Specification
Model | BY624X8/16 |
Total Pressure | 1600KN |
Rated pressure | 28MPa |
Dimension of platen | 2-2700x1370x42mm |
Working layer | 1 |
Opening | 250mm |
No. &diameter of main oil cylinder | 10-Φ85mm |
No. &diameter of raising oil cylinder | 2-Φ85mm |
Closing speed | 50mm/s |
Speed of conveying | 10-30m/min(frequency control) |
Overall size | 3394x3409x2475mm |
Installation power | 44.45KW |
Gross weight | 8500KG |
Voltage | 3PE 380V 50HZ |
Remark: There are many different types, for reference, we just show you one type parameter, for more details of other customized models, please contact us.
Product Features

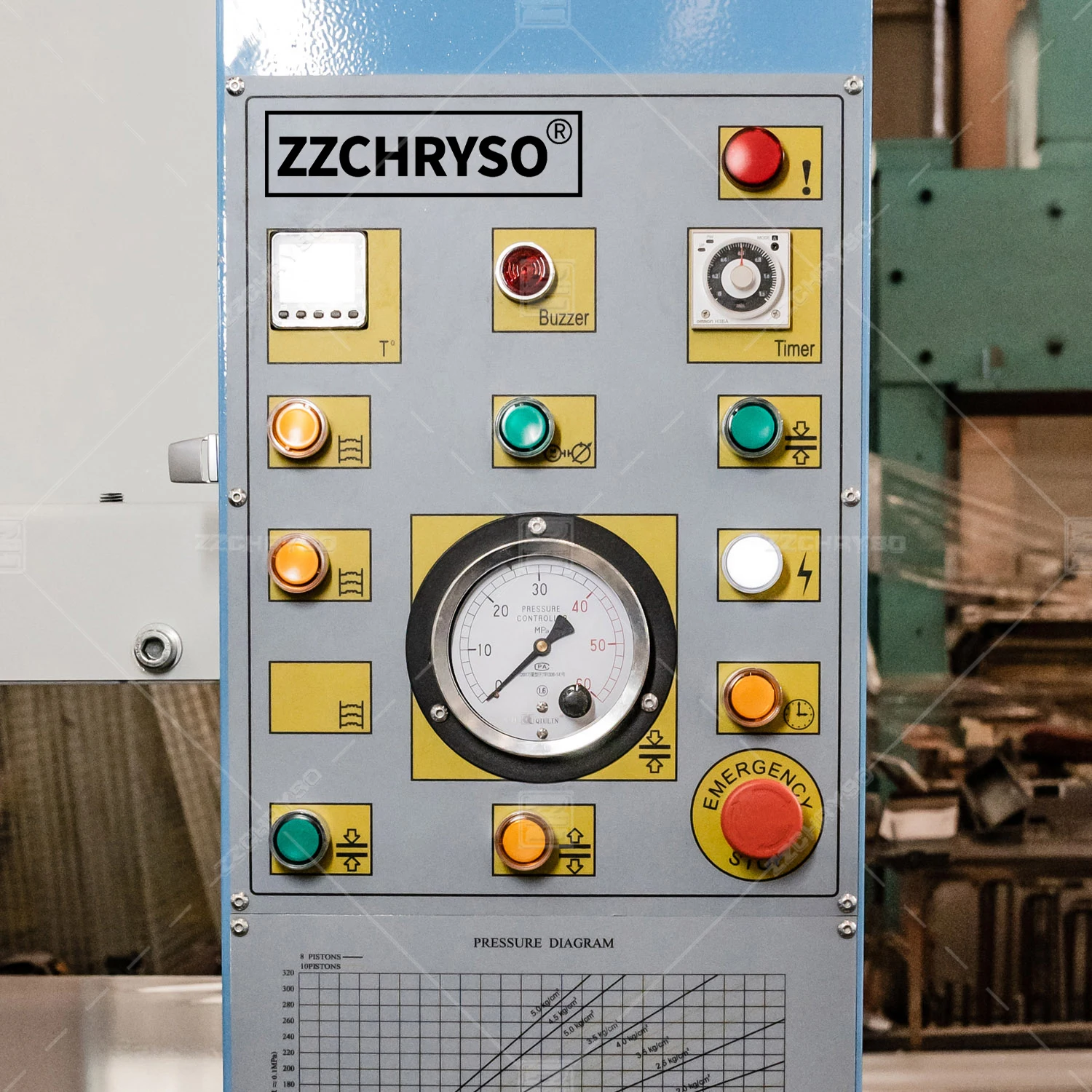

1.The button-type operation panel is equipped with functions such as pressure gauge, time meter, and temperature control meter. It only needs one button to start, and the operation is simple. It is also equipped with an emergency stop button, which has high safety performance;

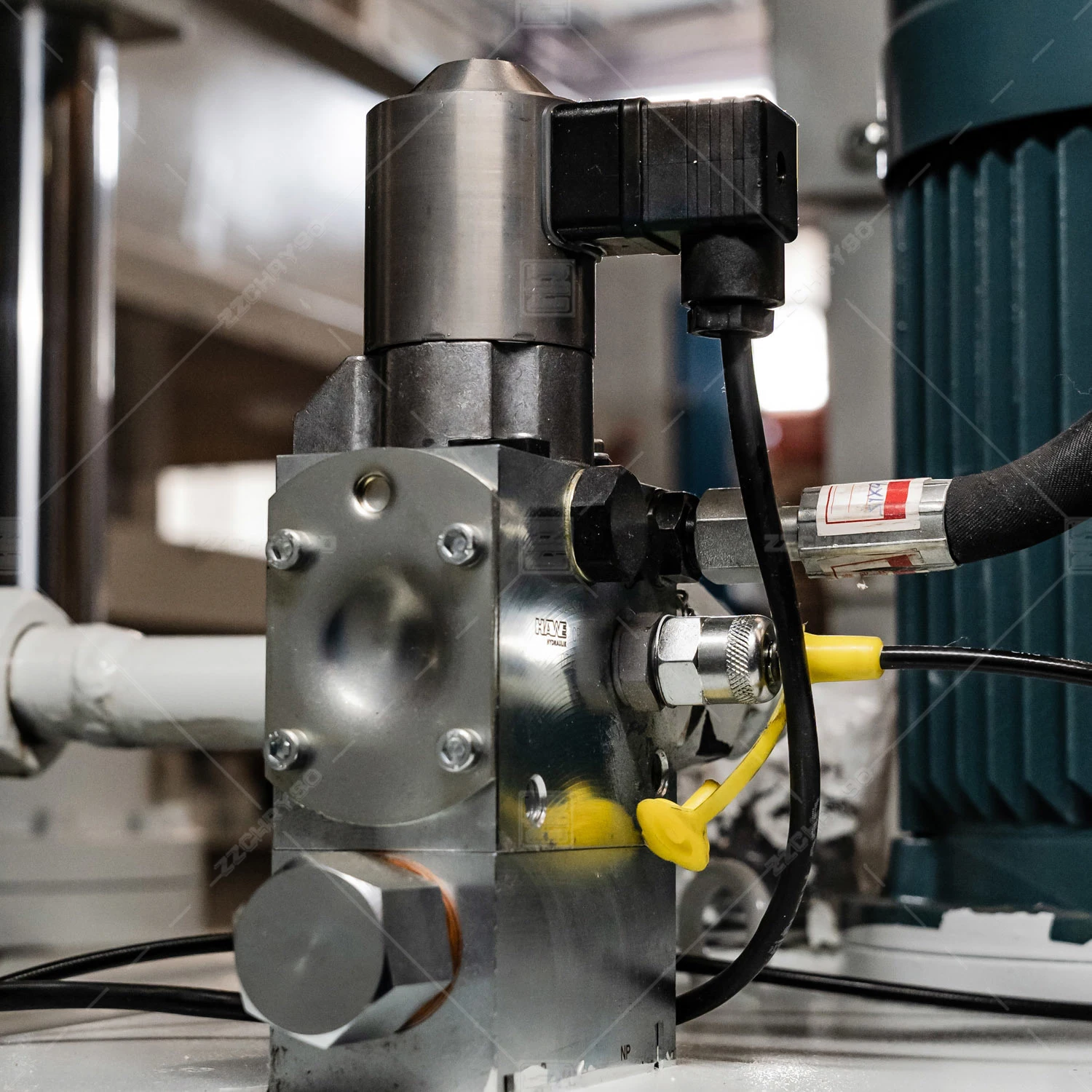

2.Adopt a new integrated hydraulic system with accumulator control system and zero configuration pressure sensor to control the working pressure; configure a large-capacity mailbox and a new direct-connected liquid filling device up and down, and configure a forced air cooling system to effectively reduce the working temperature of the hydraulic system;

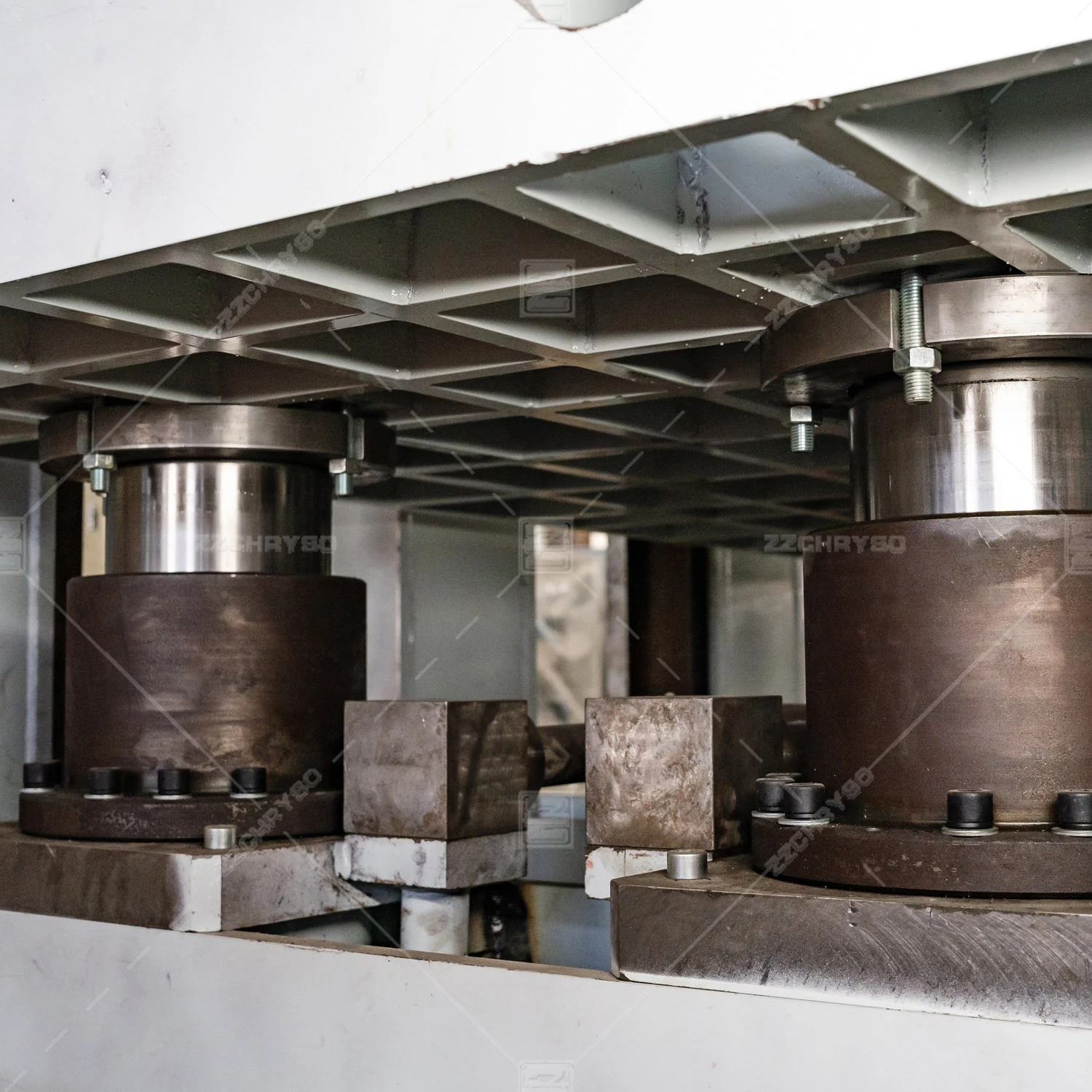

3.The cylinder body is designed with stainless steel, which has good sealing performance and good safety;

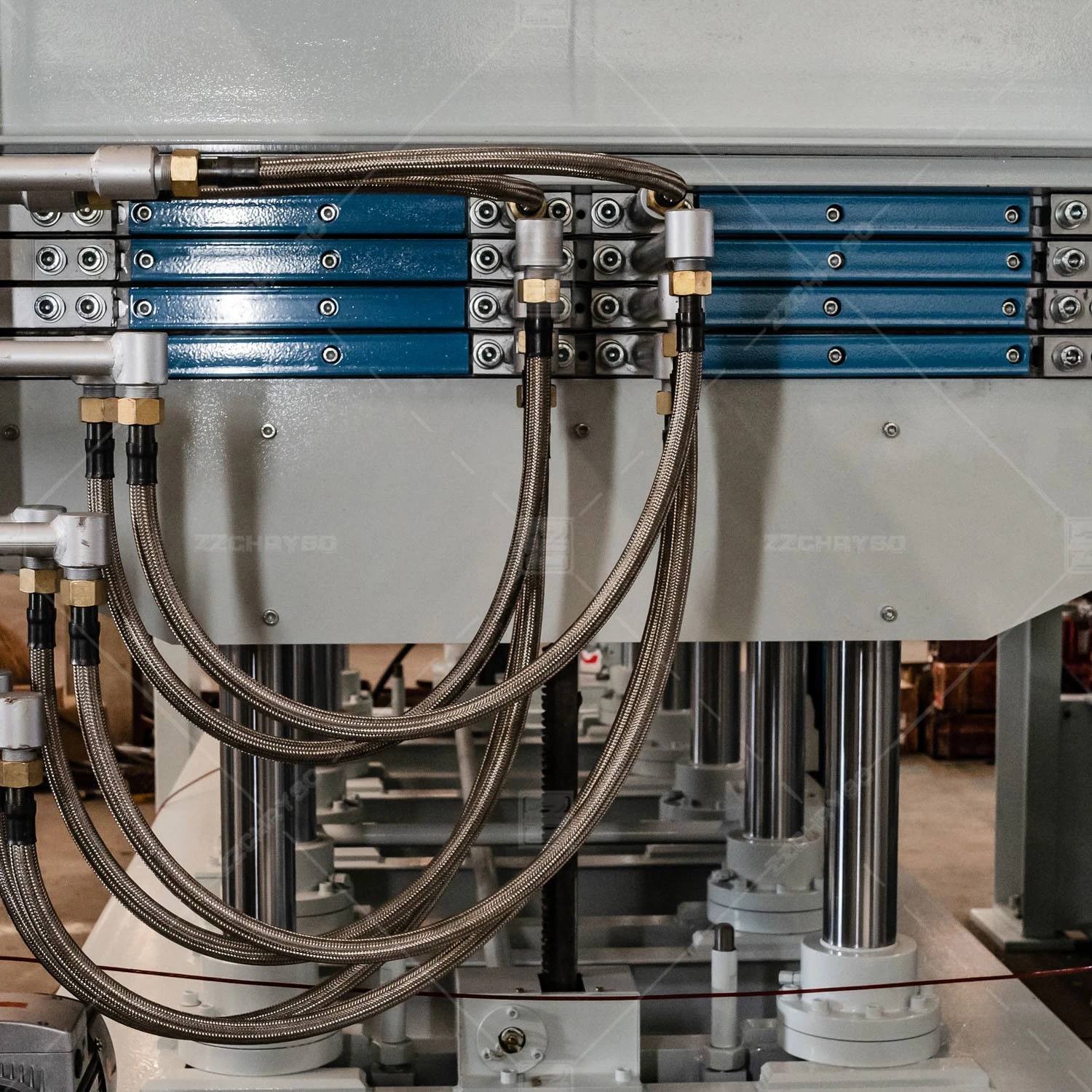

4.The machine adopts an excellent hot pressing panel, which has good bearing performance and is not easy to deform; the oil pipeline is dredged, heated evenly, and has a long service life;
5.A safety isolation net is installed on the side of the machine to effectively protect the fuselage electrical appliances and
prevent personnel from touching it, making it safer.
2.Adopt a new integrated hydraulic system with accumulator control system and zero configuration pressure sensor to control the working pressure; configure a large-capacity mailbox and a new direct-connected liquid filling device up and down, and configure a forced air cooling system to effectively reduce the working temperature of the hydraulic system;
3.The cylinder body is designed with stainless steel, which has good sealing performance and good safety;
4.The machine adopts an excellent hot pressing panel, which has good bearing performance and is not easy to deform; the oil pipeline is dredged, heated evenly, and has a long service life;
5.A safety isolation net is installed on the side of the machine to effectively protect the fuselage electrical appliances and
prevent personnel from touching it, making it safer.

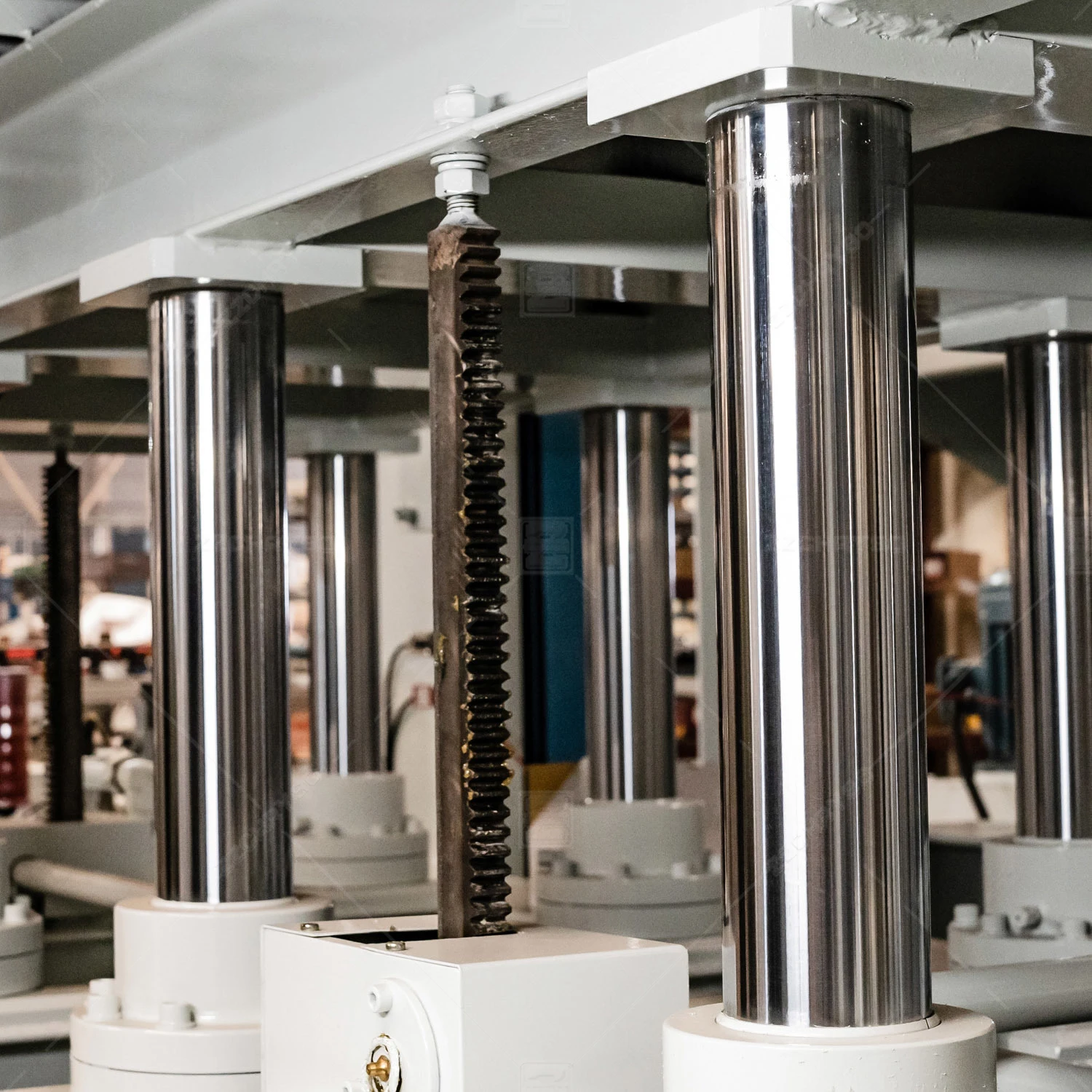

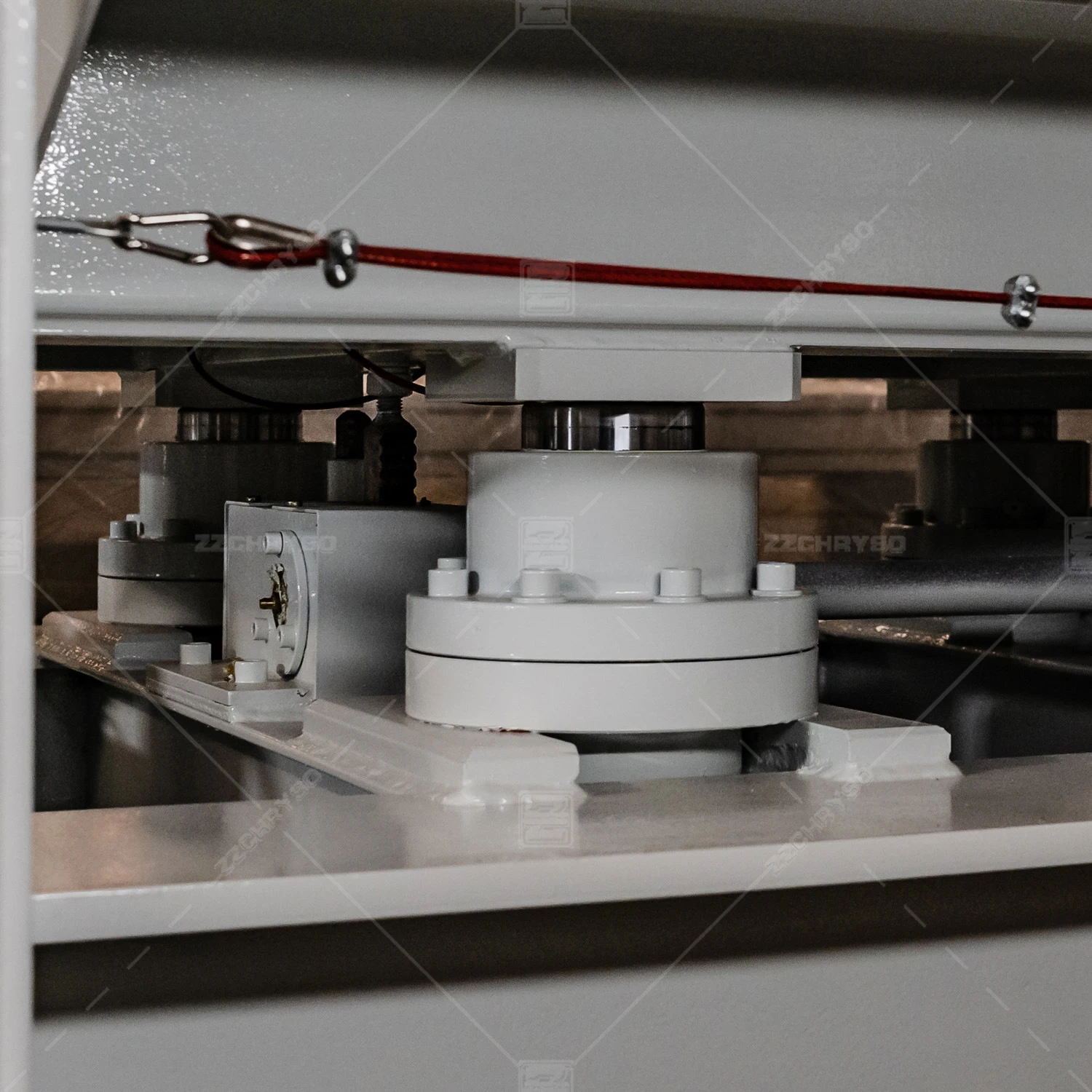

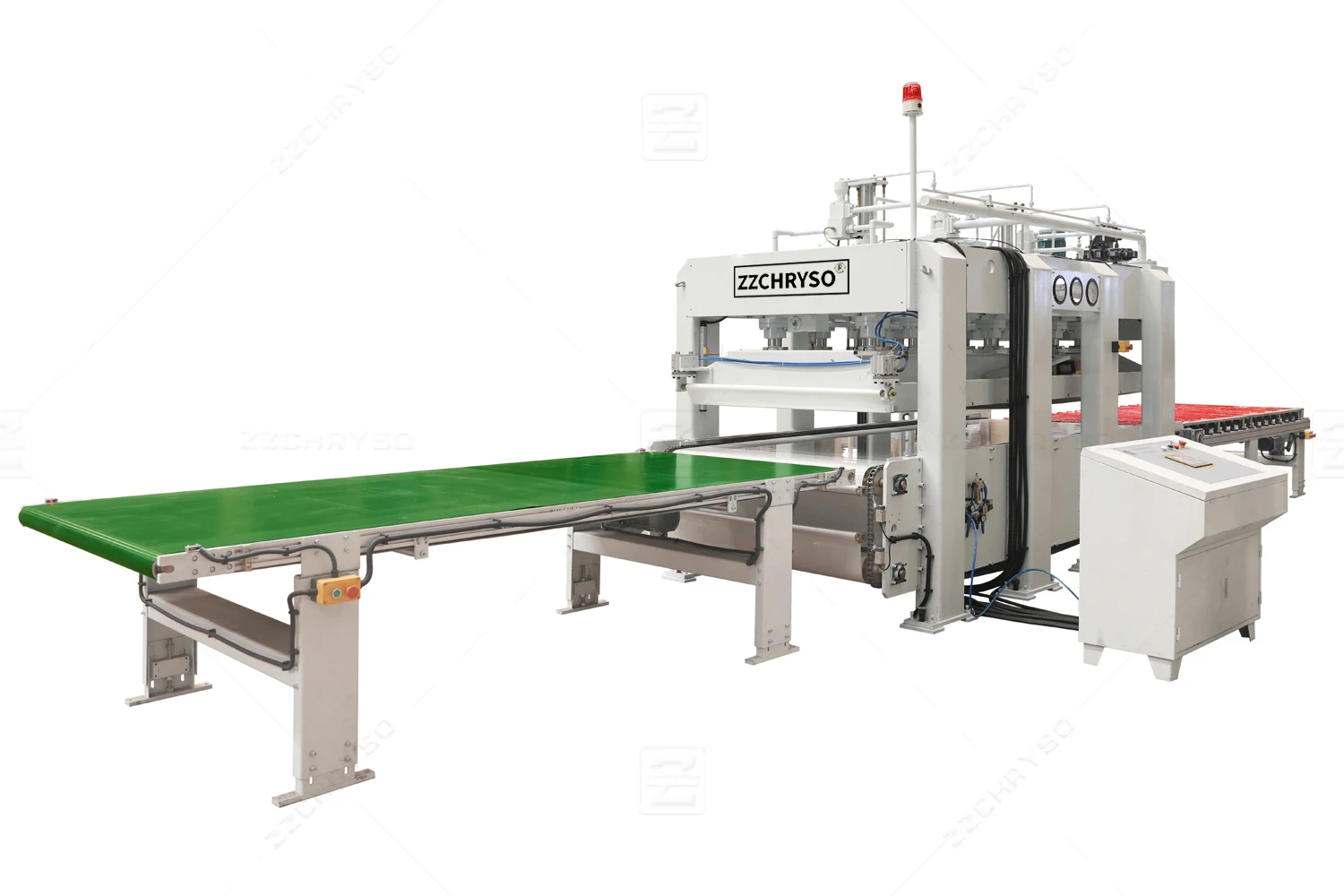

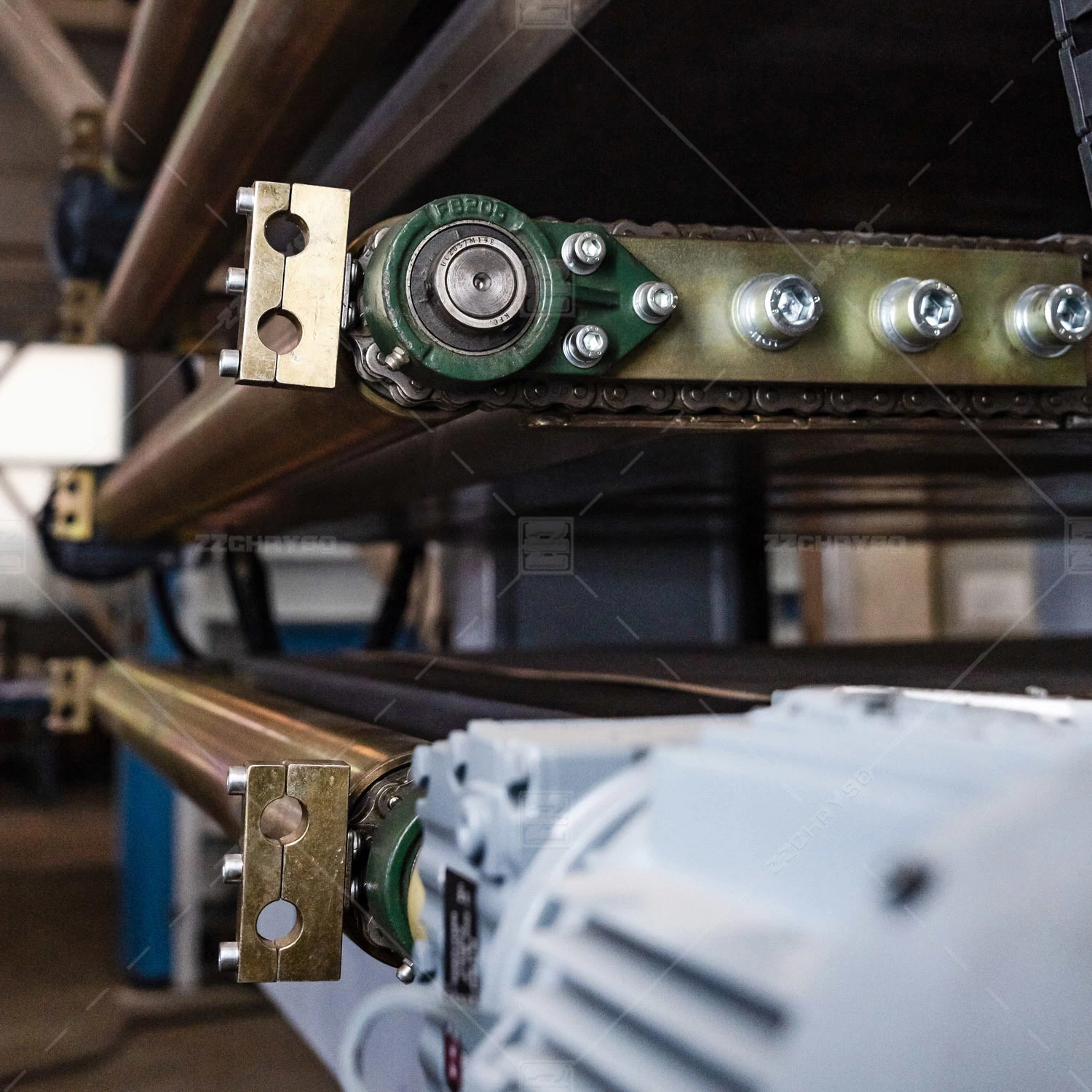

Details Images

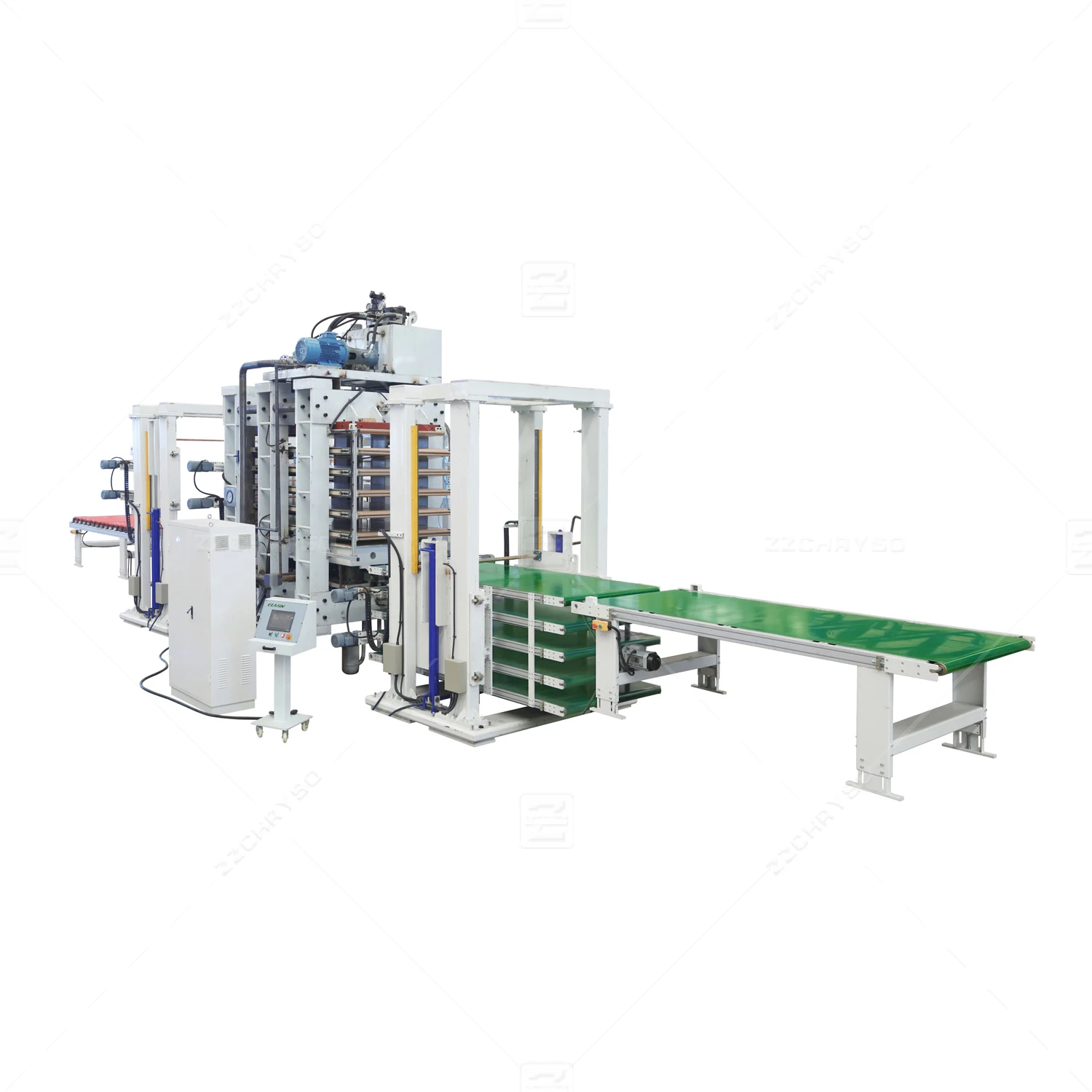

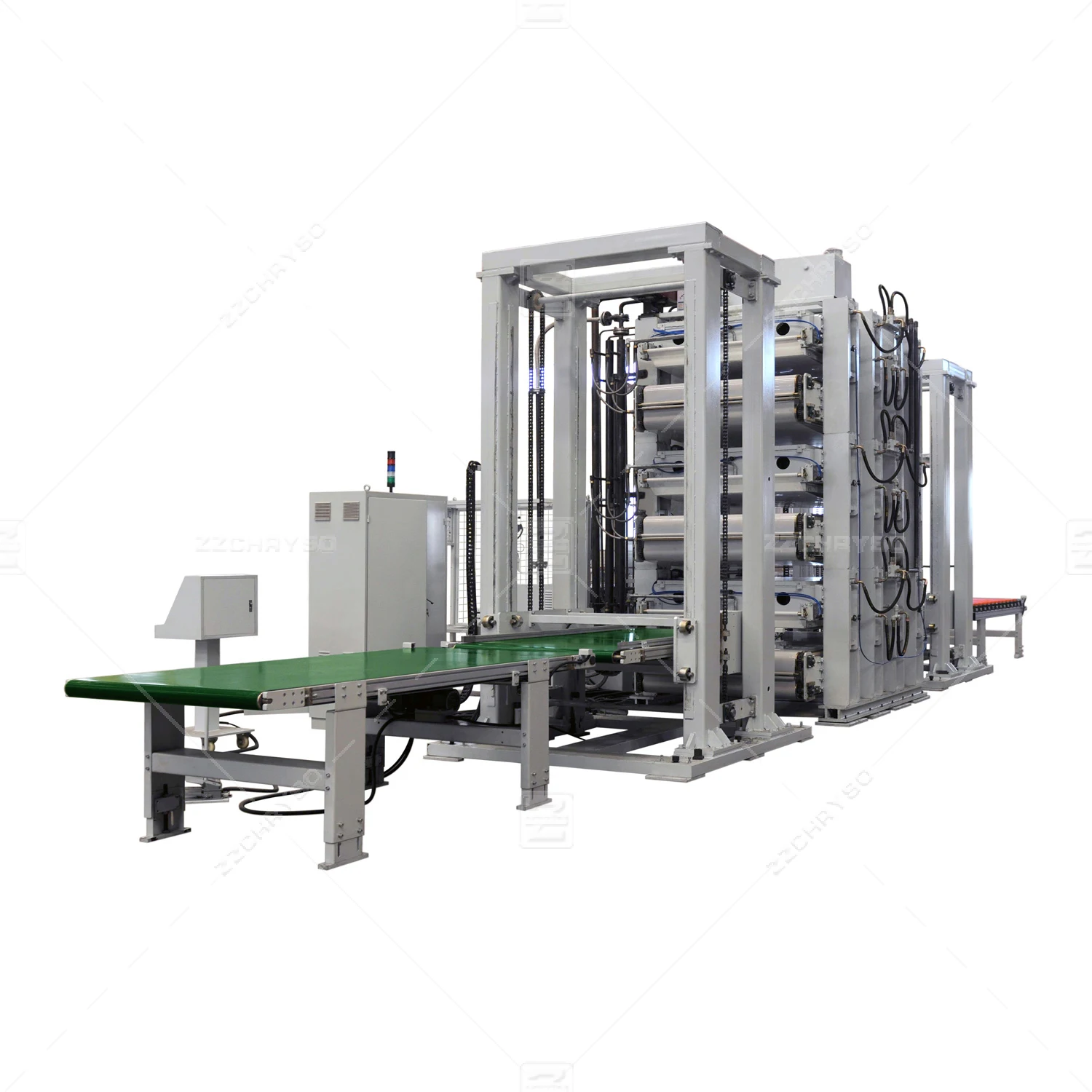

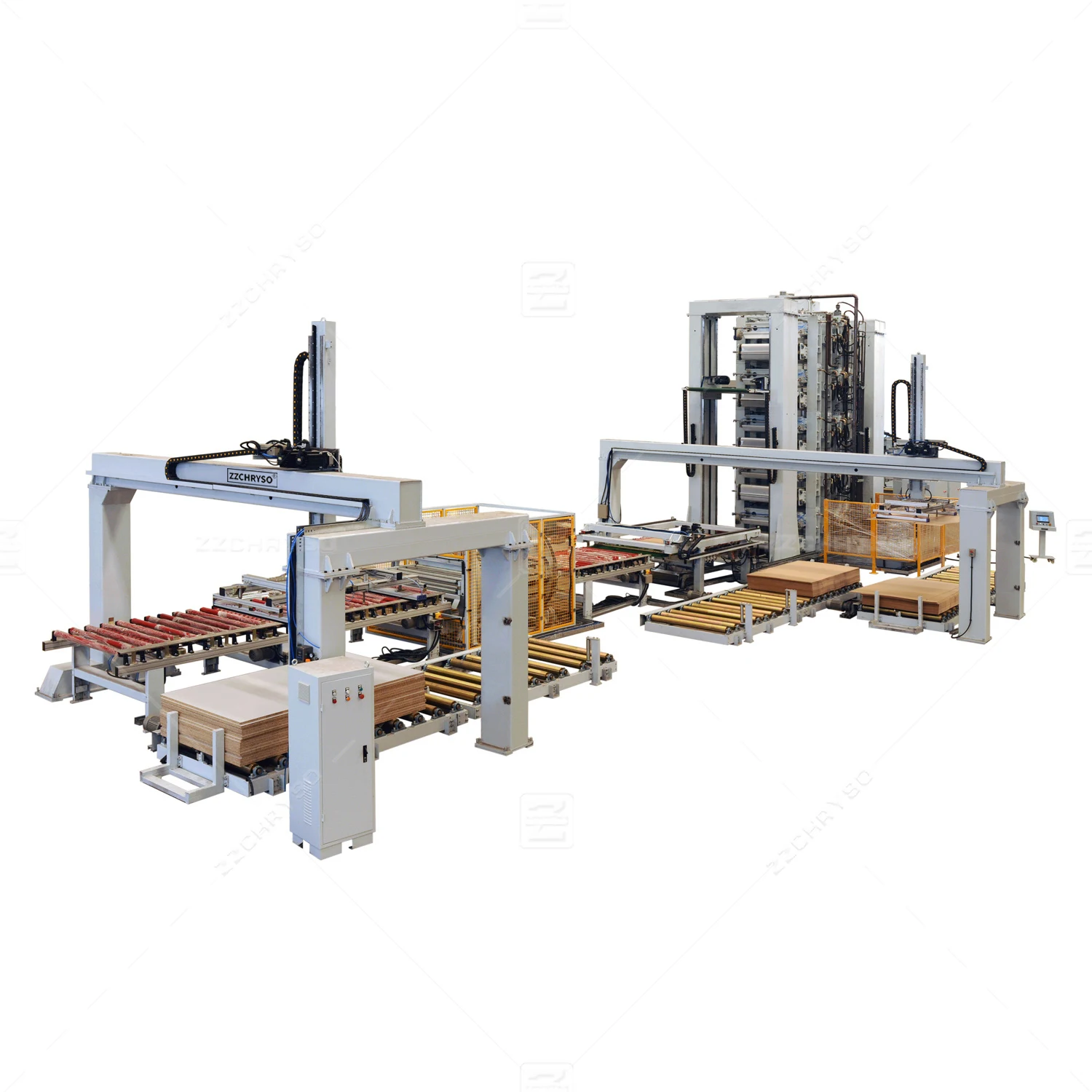

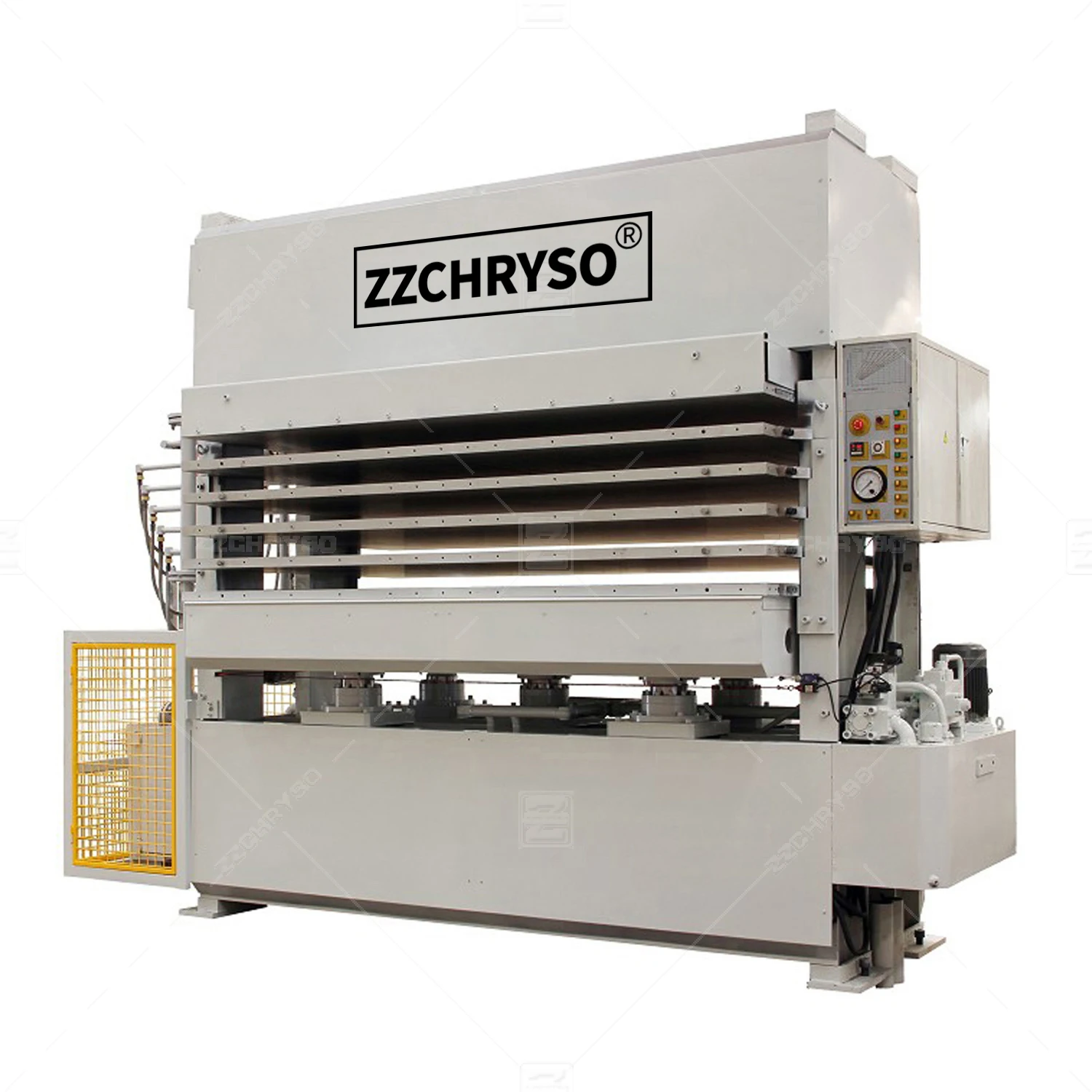

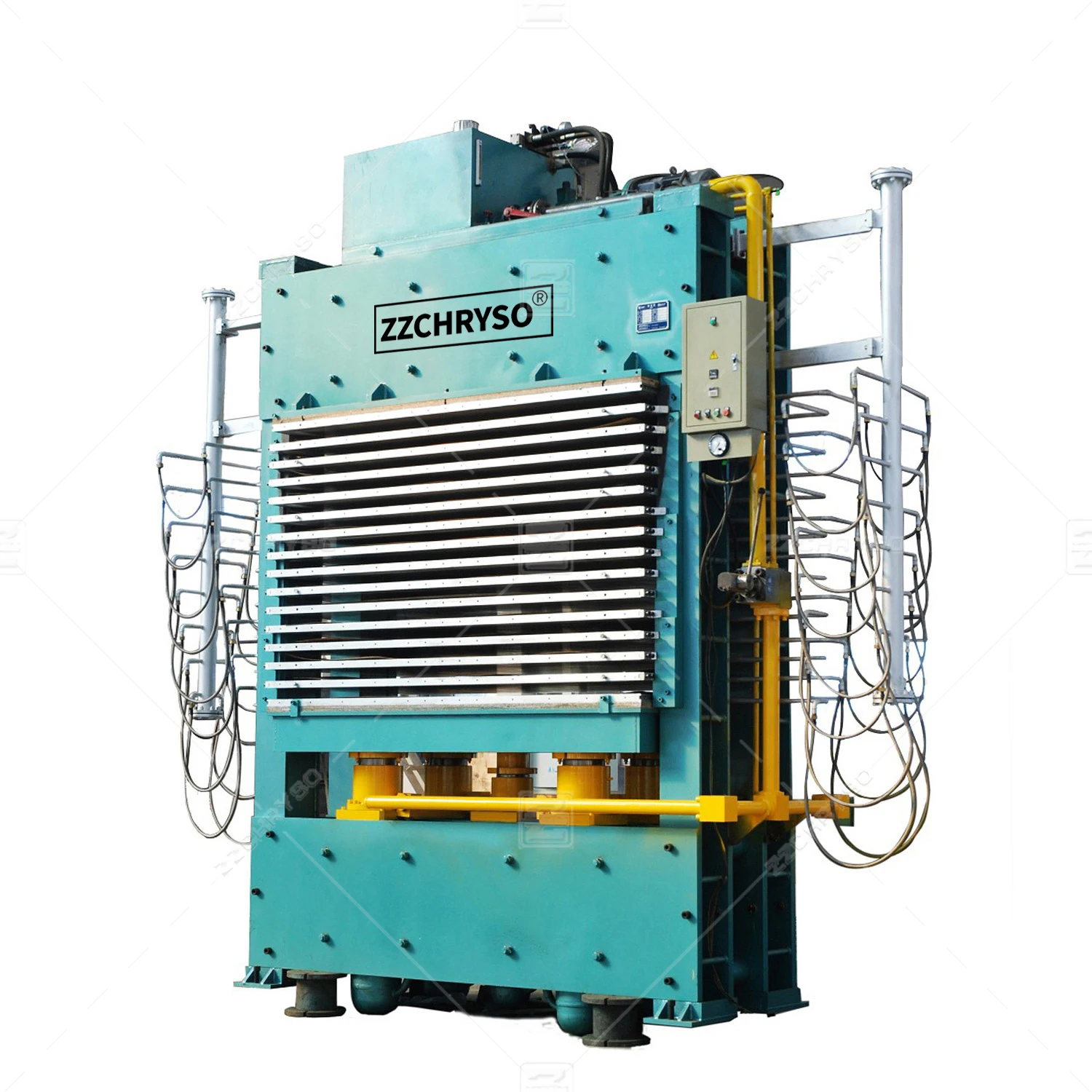

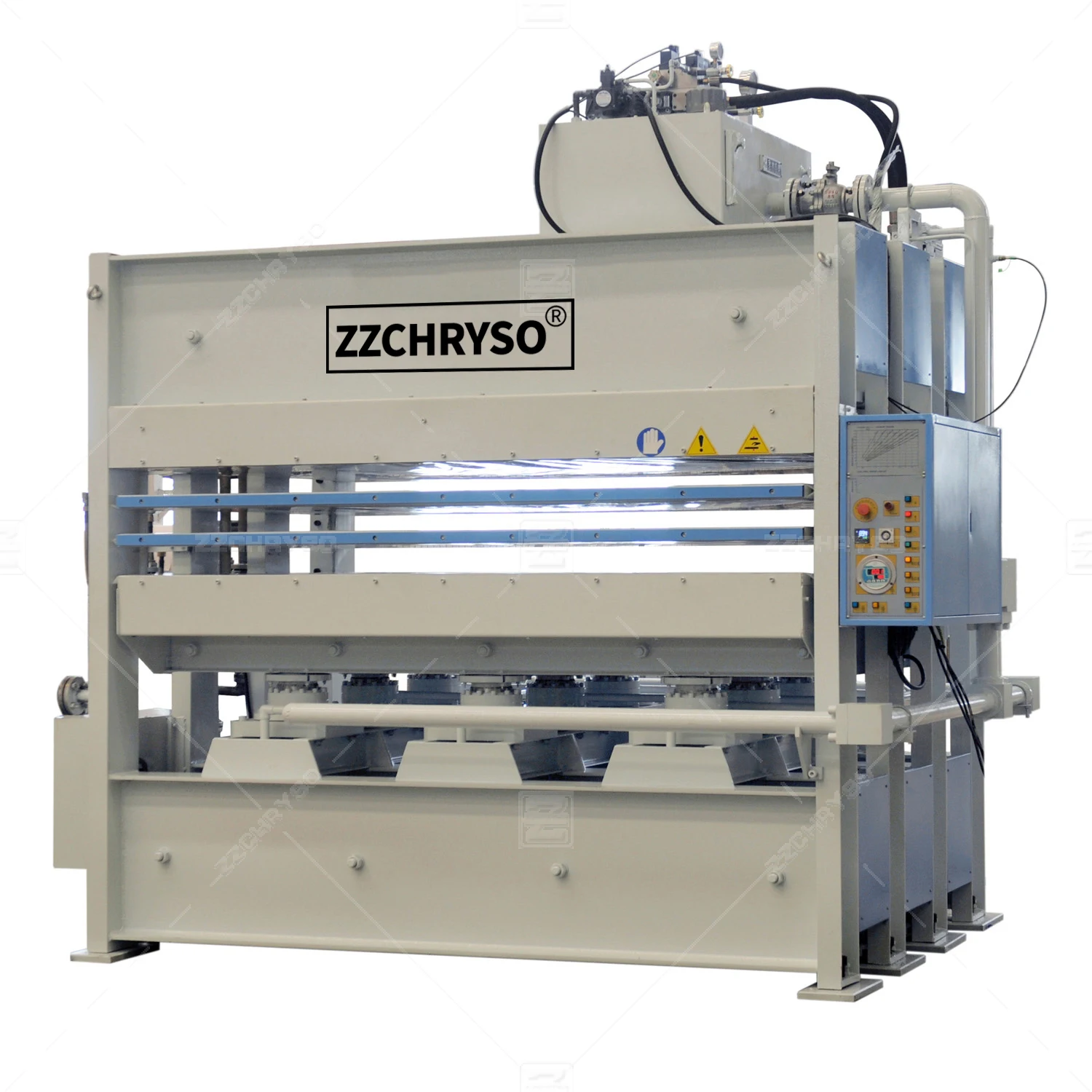

Product Show

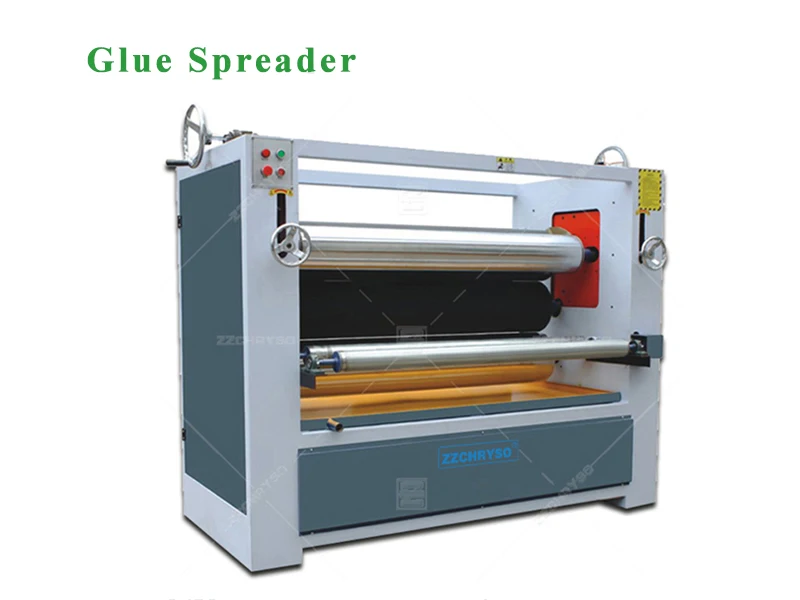

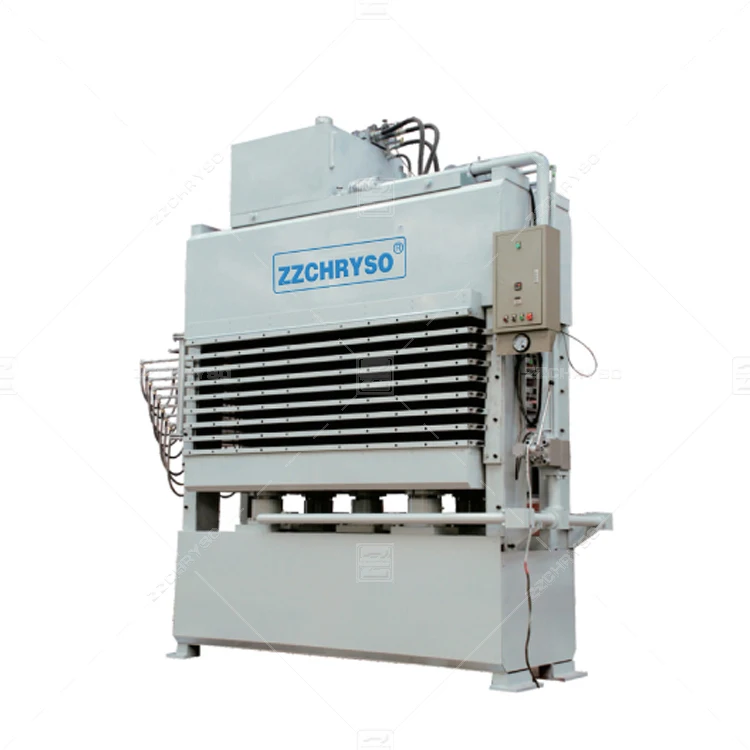

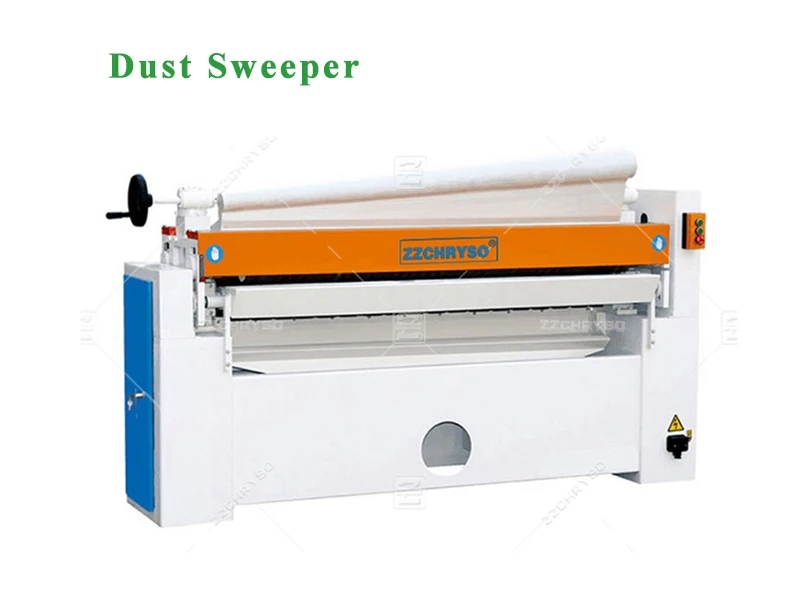

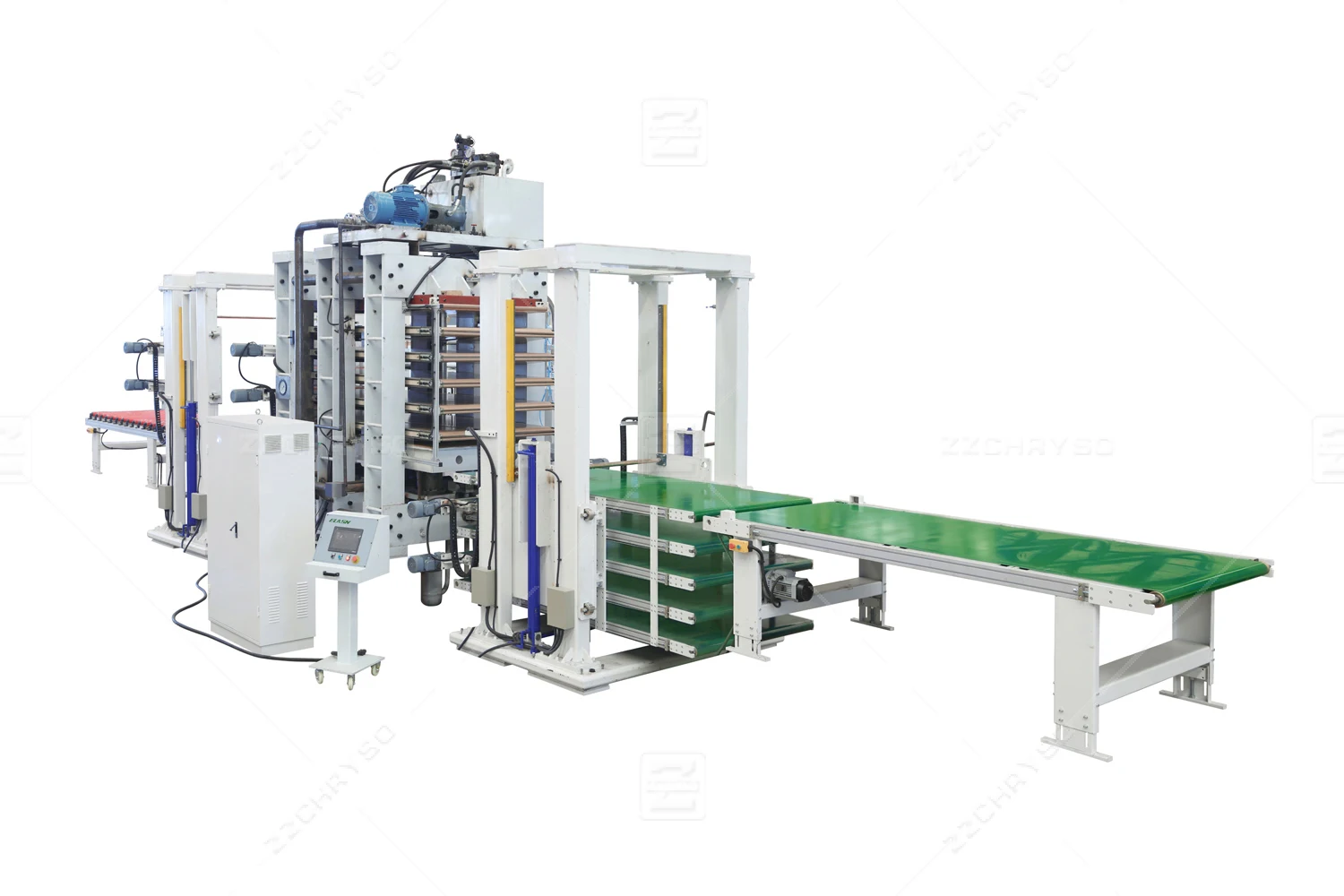

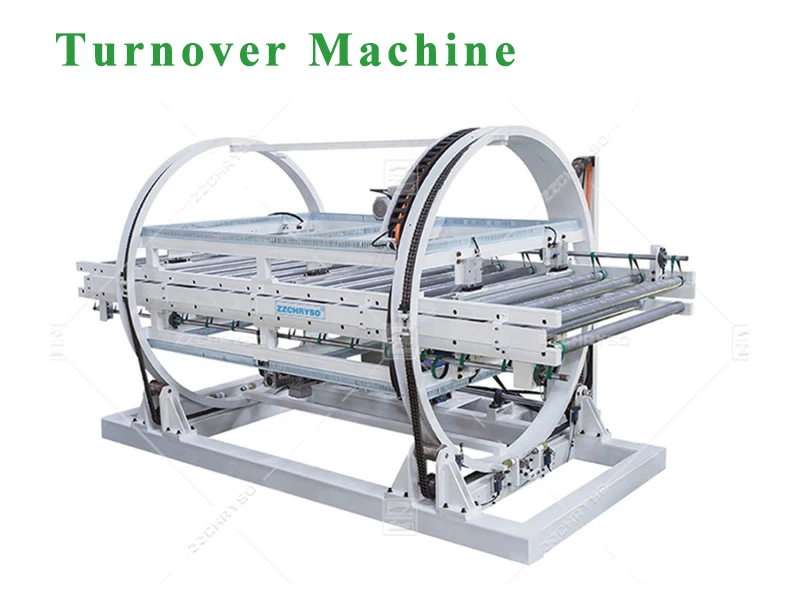

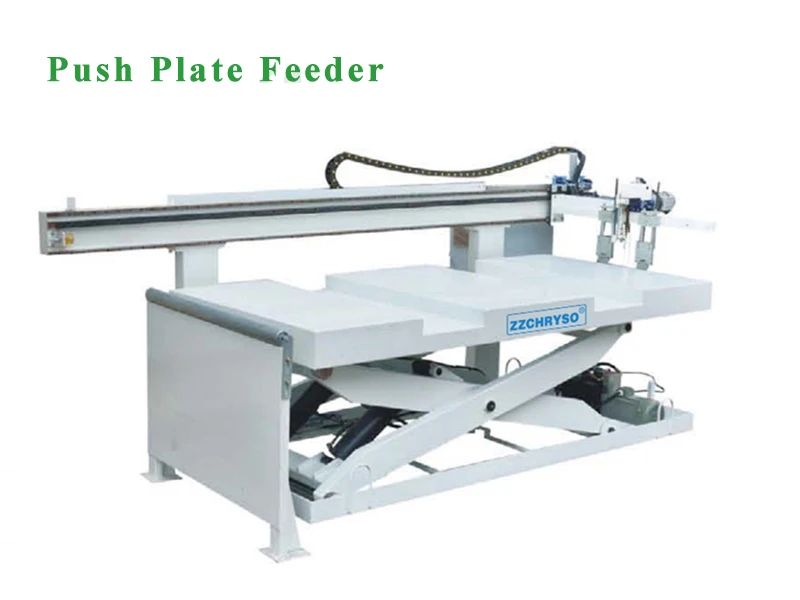

Related Machines
Application
Hot press is suitable for furniture manufacturers, wooden door factories, wood-based panels secondary processing veneer, used for hot pressing bonding home panels, building partition, wooden doors, fire door surface material veneer. Wood-based panels, plywood, Blockboard, medium fiber board, particle board, surface pressing all kinds of decorative materials, decorative cloth,wood skin, PVC and so on.
Company Profile
Zhengzhou CHRYSO is one leading manufacturing and exporting company of wood working machine in China. We are committed to provide one-stop service to our customers all over the world.
CHRYSO focus on Woodworking Machinery, Here we can provide a complete solution for your wood line processing. CHRYSO's products develop and increase not limit to wood working machinery, with main products of Wood pallet production line, wood press machine series,wood saw machine series,wood crusher and chip machine series ,etc.
Our company is equipped with a professional team of quality control and after-sales service members to keep track of each order scientifically, so as to provide high-speed services for customers. "To provide a design, production, quality control, inspection, testing, sales and logistics service to companies that need a reliable supply of wood machinery from China. "
All members of CHRYSO welcome new and regular customers to contact us to build long-term and friendly relation of cooperation! We will strive to produce more quality products for you!
CHRYSO focus on Woodworking Machinery, Here we can provide a complete solution for your wood line processing. CHRYSO's products develop and increase not limit to wood working machinery, with main products of Wood pallet production line, wood press machine series,wood saw machine series,wood crusher and chip machine series ,etc.
Our company is equipped with a professional team of quality control and after-sales service members to keep track of each order scientifically, so as to provide high-speed services for customers. "To provide a design, production, quality control, inspection, testing, sales and logistics service to companies that need a reliable supply of wood machinery from China. "
All members of CHRYSO welcome new and regular customers to contact us to build long-term and friendly relation of cooperation! We will strive to produce more quality products for you!

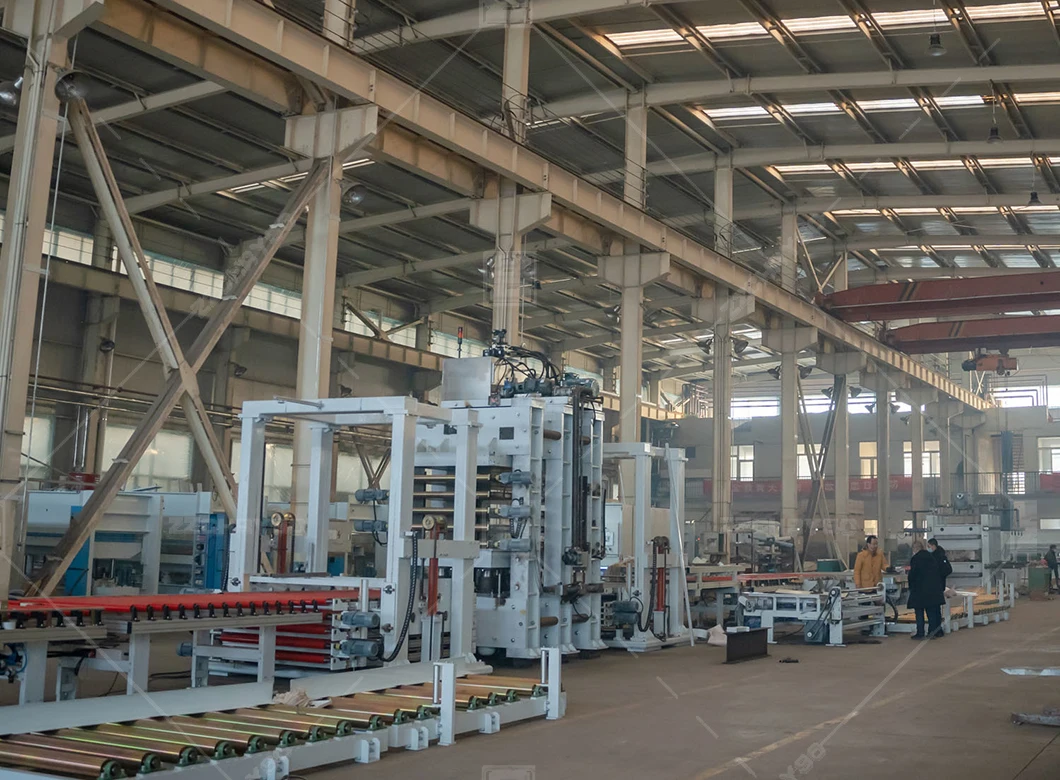

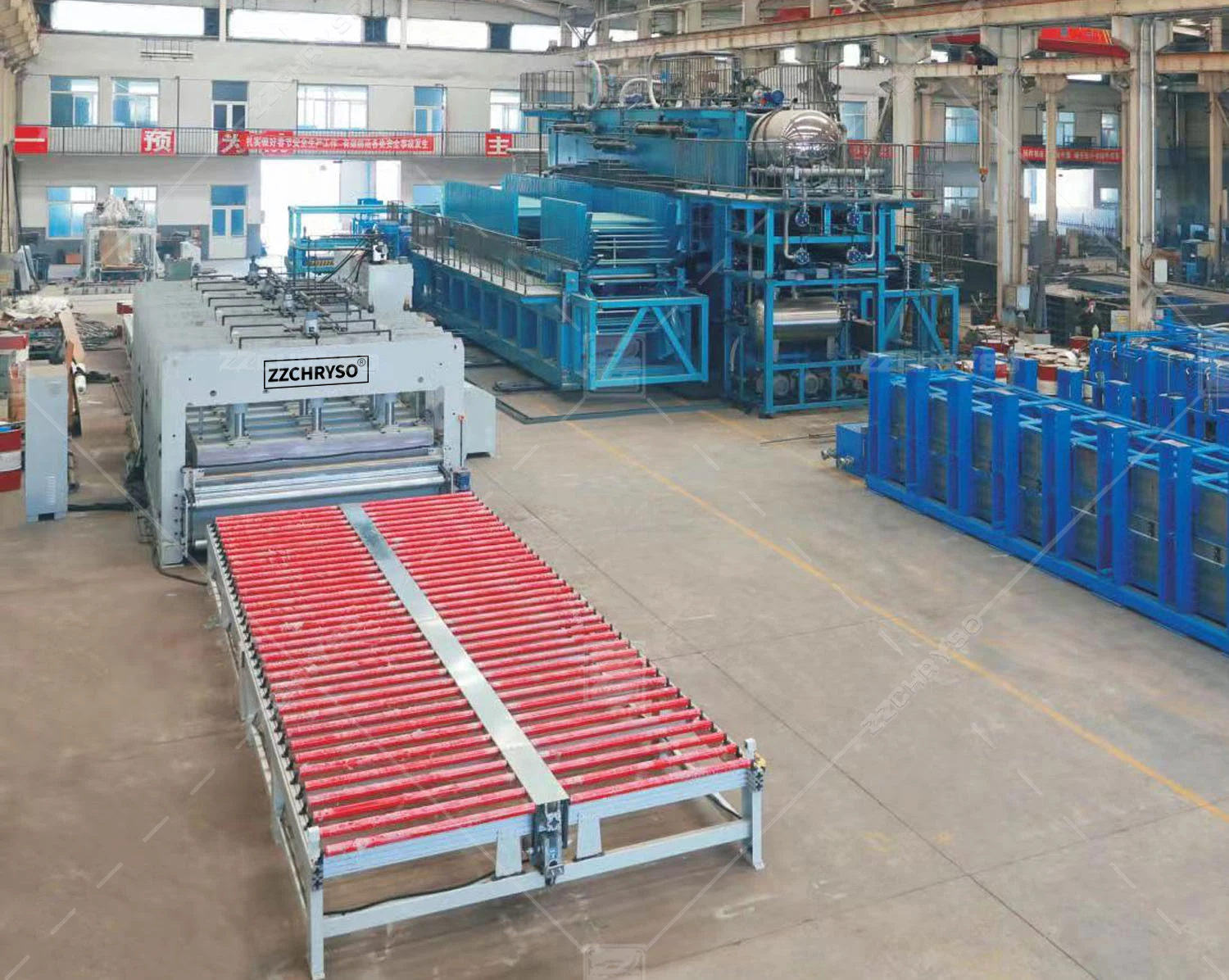

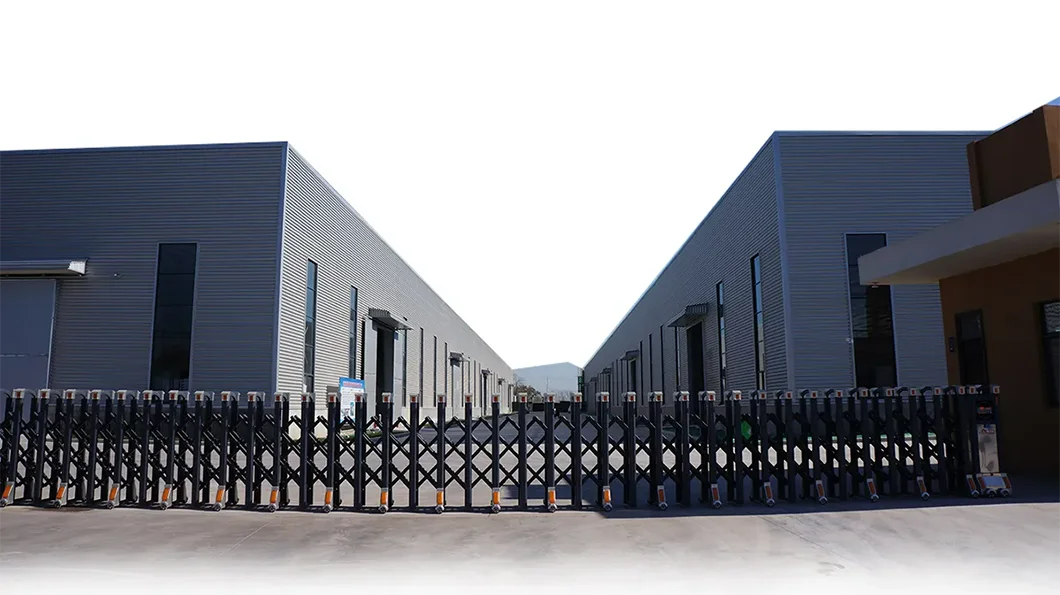

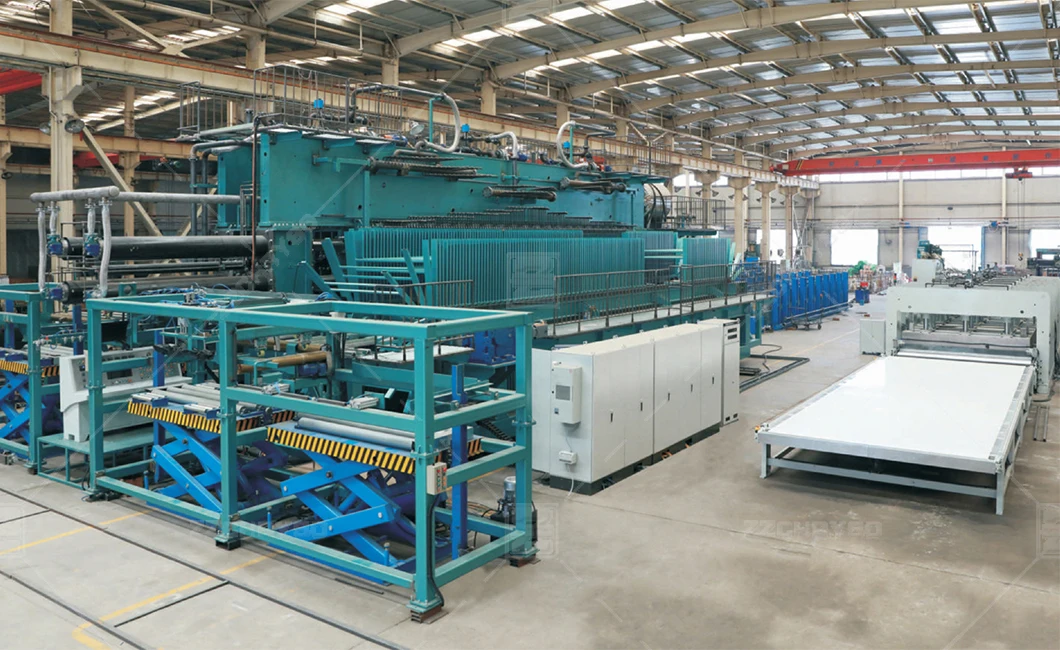

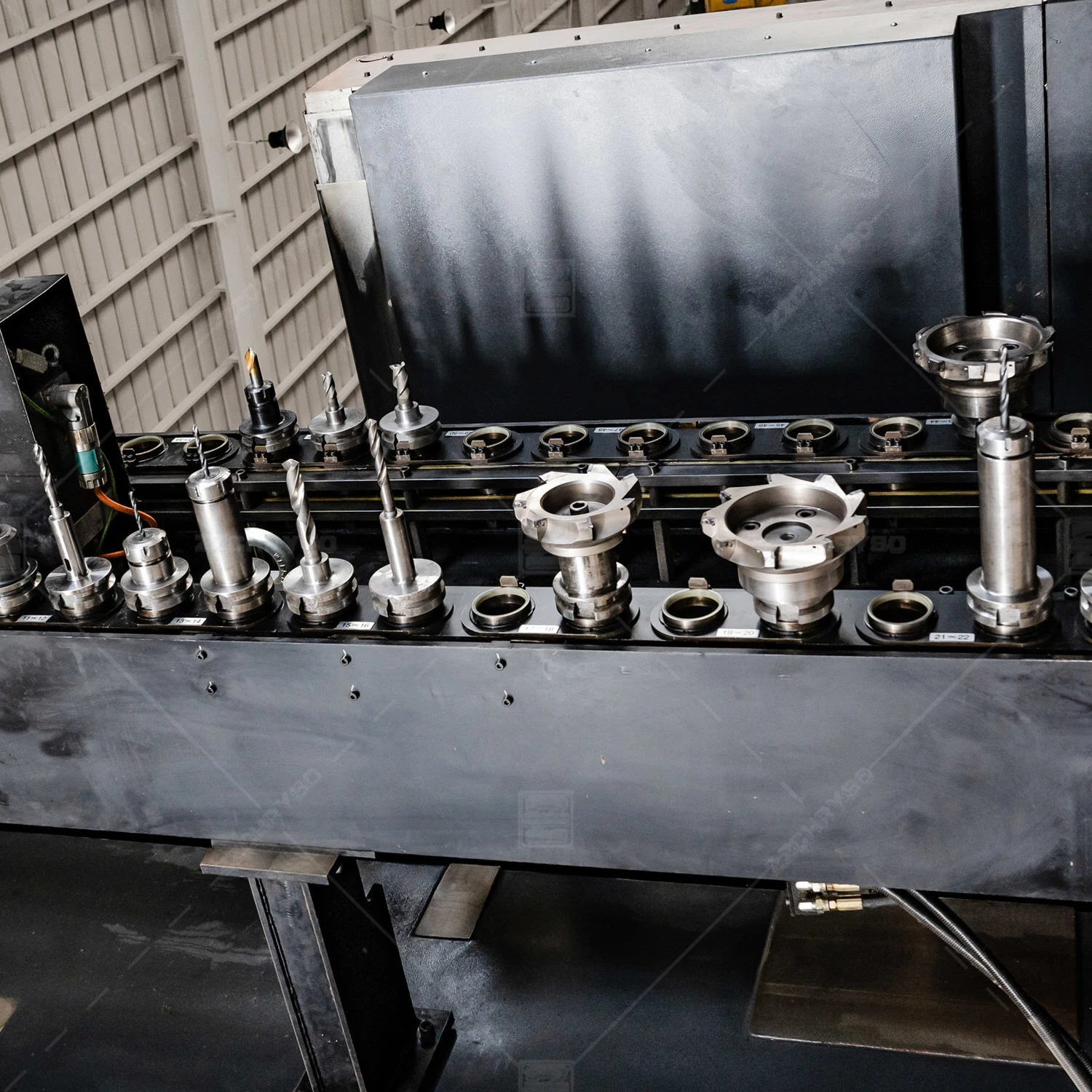

Our Factory
After Sales Service
-The main machine has 12 months guarantee and the electric elements have 6 months warranty.
- We respect any feedback from you after receiving the goods.
- We promise all spare parts available in lifetime use.
- We handle your grumble within 48 hours.
Technical Support
- We have sales teams, together with all technical support from our engineering team.
- Before sending machines, test and adjustment service are provided.
- Operating video & instruction will be sent to clients for better use of machines.
- Any problems occur while using, professional advice will be given by us.
-The main machine has 12 months guarantee and the electric elements have 6 months warranty.
- We respect any feedback from you after receiving the goods.
- We promise all spare parts available in lifetime use.
- We handle your grumble within 48 hours.
Technical Support
- We have sales teams, together with all technical support from our engineering team.
- Before sending machines, test and adjustment service are provided.
- Operating video & instruction will be sent to clients for better use of machines.
- Any problems occur while using, professional advice will be given by us.

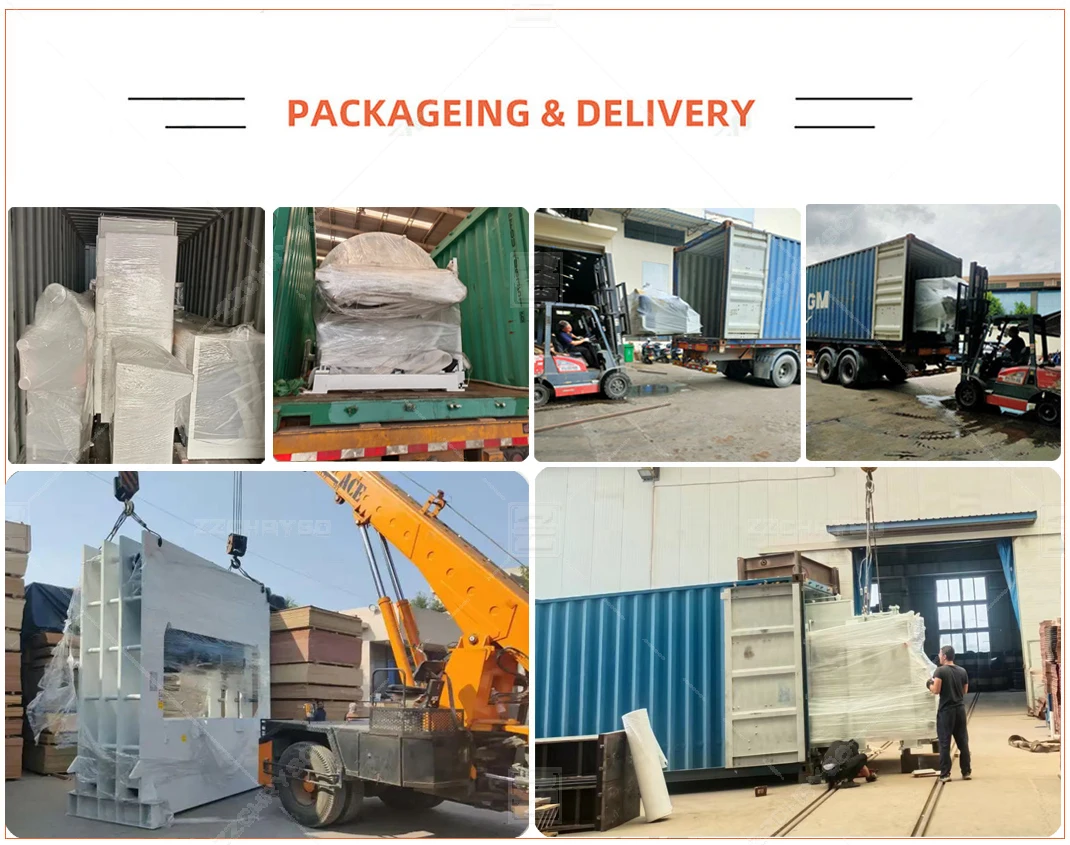

Packaging & Delvery
FAQ
Q1: What's your factory MOQ and best price?
A1: No MOQ and 1 set machine order is also welcomed. We usually quote FOB Qingdao price, but if you want to know the other price term, we will try our best to meet with your demands.
Q2: This is the first time I use this kind of machine, is it easy to operate?
A2: There is English manual that show you how to use machine. If you still have any question,please contact us by e-mail / skype/phone / whatsapp /trademanager online service.
Q3: Is it difficult to maintenance the machine?
A3: If your company have a technician, then with our guiding videos, then it's not difficult we think, our other customers can handle by themselves, we think you also can.
Q4: How to install?
A4: We adjusted machines well before we delivery. When customers receive them, you can work with them directly.
Q5: What to do if the machine has a problem?
A5: 24 hours timely response of mail and phone calls. If the parts broken belong to non-artificial factors within 12 months, we offer free replacement. If beyond 12 months, customers should bear the freight back and forth and accessories cost.
A1: No MOQ and 1 set machine order is also welcomed. We usually quote FOB Qingdao price, but if you want to know the other price term, we will try our best to meet with your demands.
Q2: This is the first time I use this kind of machine, is it easy to operate?
A2: There is English manual that show you how to use machine. If you still have any question,please contact us by e-mail / skype/phone / whatsapp /trademanager online service.
Q3: Is it difficult to maintenance the machine?
A3: If your company have a technician, then with our guiding videos, then it's not difficult we think, our other customers can handle by themselves, we think you also can.
Q4: How to install?
A4: We adjusted machines well before we delivery. When customers receive them, you can work with them directly.
Q5: What to do if the machine has a problem?
A5: 24 hours timely response of mail and phone calls. If the parts broken belong to non-artificial factors within 12 months, we offer free replacement. If beyond 12 months, customers should bear the freight back and forth and accessories cost.
