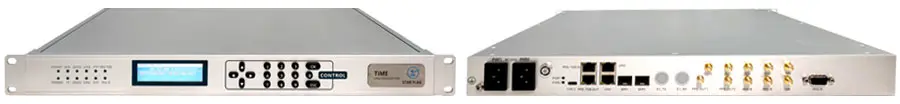

High-Precision PTP Grandmaster Server XQ-810
Details Images
Products Description
Introduction
The XQ-810 provides high-performance client processing capabilities and hardware architecture design based on hardware timestamps to achieve high scalability and maximize network availability. It combines the high-precision function of IEEE 1588-2008 Grandmaster and NTP function,and 10MHz/1PPS/IRIG-B/PPS_ TOD etc.
The XQ-810 is a Grandmaster Server that provides high-performance client processing capabilities and hardware architecture design based on hardware timestamps to achieve high scalability and maximize network availability. It combines the high-precision function of IEEE 1588-2008 master clock, the universality of NTP function, and 10MHz/1PPS/IRIG-B/PPS_TOD/E1 High performance output and taking into account the compact (1U) of the equipment. It is very suitable for deployment in racks such as wireless telecommunication network controllers and base station controllers, and places with limited space.
The XQ-810 provides high-performance client processing capabilities and hardware architecture design based on hardware timestamps to achieve high scalability and maximize network availability. It combines the high-precision function of IEEE 1588-2008 Grandmaster and NTP function,and 10MHz/1PPS/IRIG-B/PPS_ TOD etc.
The XQ-810 is a Grandmaster Server that provides high-performance client processing capabilities and hardware architecture design based on hardware timestamps to achieve high scalability and maximize network availability. It combines the high-precision function of IEEE 1588-2008 master clock, the universality of NTP function, and 10MHz/1PPS/IRIG-B/PPS_TOD/E1 High performance output and taking into account the compact (1U) of the equipment. It is very suitable for deployment in racks such as wireless telecommunication network controllers and base station controllers, and places with limited space.
Technical Parameter
Main features:
○ Redundant hardware: inputs, outputs, clock, and power
○ Single or dual GNSS inputs with GPS, GLONASS, Galileo, and Beidou options
○ Synchronous Ethernet support with optical SFPs
○ Fully interoperable with standards based clients
○ NTP time accuracy is ≤100us；PTP time accuracy is ≤100ns
Main advantages:
○ Support BC, OC, TC
○ Support multiple PPS trigger signals
○ Support SyncE(Synchronous Ethernet)
○ PTP and carrier-grade NTP server.Simultaneously supports both PTP and NTP elements in the network
○ Support RTC automatic cut-out time keeping
○ Single or dual GNSS inputs with GPS, GLONASS, Galileo, and Beidou options
○ Synchronous Ethernet support with optical SFPs
○ Fully interoperable with standards based clients
○ NTP time accuracy is ≤100us；PTP time accuracy is ≤100ns
Main advantages:
○ Support BC, OC, TC
○ Support multiple PPS trigger signals
○ Support SyncE(Synchronous Ethernet)
○ PTP and carrier-grade NTP server.Simultaneously supports both PTP and NTP elements in the network
○ Support RTC automatic cut-out time keeping

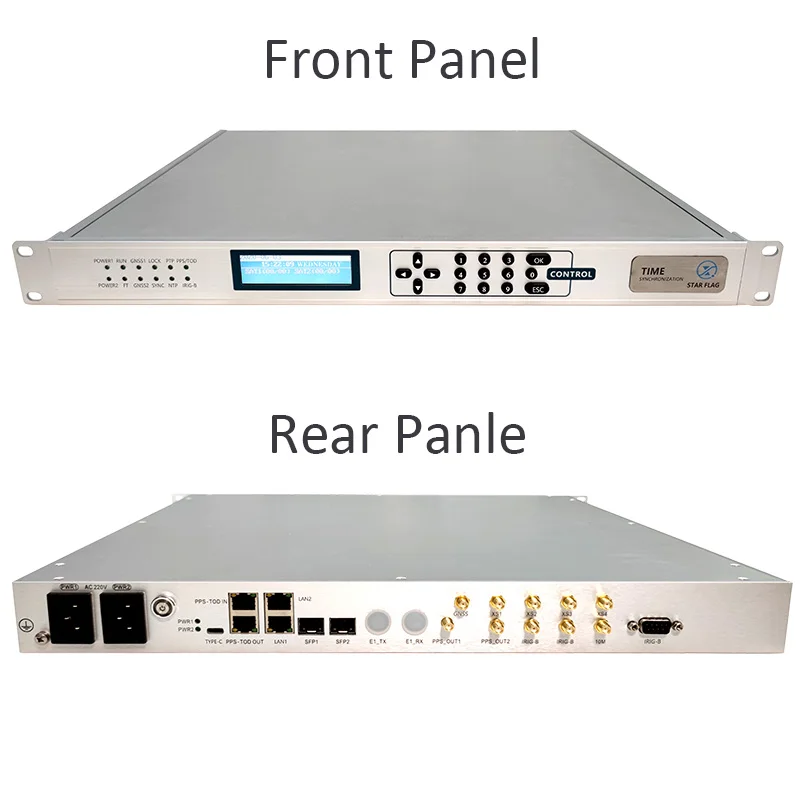

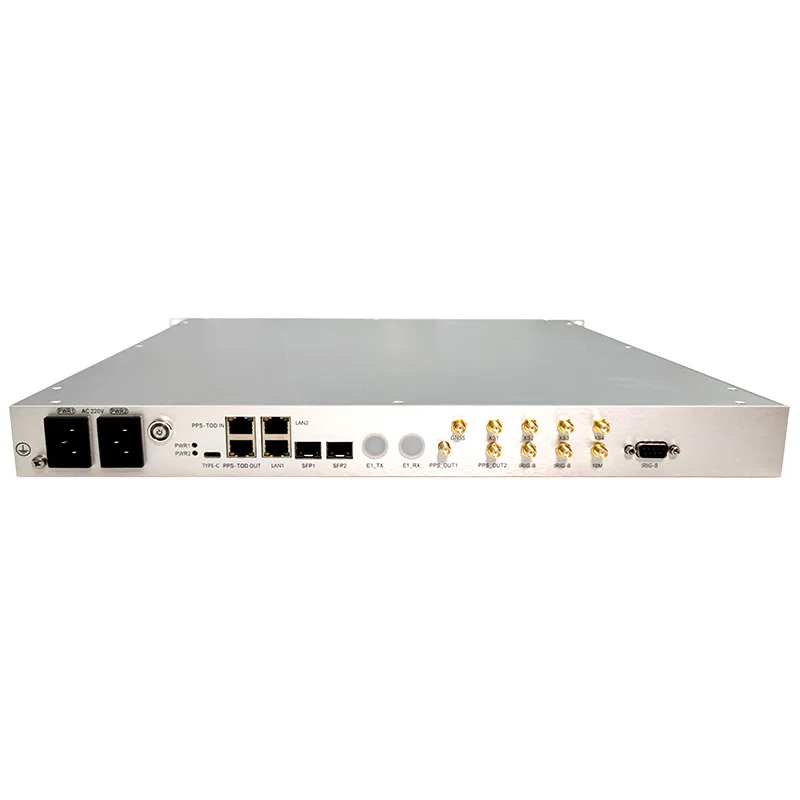

Grandmaster Server - physical interface specification
GNSS Input Options | ○ GPS、GLONASS、GALILEO、BeiDou |
Network system interface | ○ 2 × ETH (100/1000 BASET) PTP/NTP, RJ45(PTP/NTP Time Synchronization output interface can also be used SFP interface) |
○ 1 × RS232 Debugging Interface, 115200 Baud , TYPE-C interface, System Debugging Configuration | |
IRIG-B interface | ○ 1 × IRIG-B DC input, RS485 TTL, DB9 interface |
○ 1 × IRIG-B DC output, RS485 TTL, DB9 interface | |
PPS_ TOD interface | ○ 1 × PPS_ TOD input, RS485 TTL(9600 Baud can set), RJ45 interface |
○ 1 × PPS_ TOD output, RS485 TTL(9600 Baud can set), RJ45 interface | |
○ 20 × XS output (PPS,IRIG-B,TOD can set),SMA interface | |
PPS interface | ○ 1 × PPS output, TTL, SMA interface |
Frequency interface | ○ 1 × 10MHz output, TTL, SMA interface |
Environmental requirements | ○ Ambient Temperature: - 30 ℃ -+70 ℃ |
○ Storage Temperature: - 40 ℃ -+85 ℃ | |
○ Humidity: 5% - 95% non-condensing | |
Physical specifications | ○ Size: 440×400×44mm(19'' racks, 1U) |
○ Weight: 2.1Kg |
OCXO Model Selection
Specifications | OCXO LQ | OCXO MQ | OCXO HQ | OCXO DHQ |
Nominal Frequency | 10.000MHz/CMOS | 10.000MHz/CMOS | 10.000MHz/CMOS | 10.000MHz/CMOS |
Accuracy of PPS | ≤100ns | ≤100ns | ≤50ns | ≤50ns |
Initial Frequency Accuracy | ≤±0.2ppm +25℃/VC=2.5V | ≤±0.1ppm +25℃/VC=2.5V | ≤±0.1ppm +25℃/VC=2.5V | ≤±0.1ppm +25℃/VC=2.5V |
Temperature Stability | ＜±10ppb -20℃~+70℃ ref+25℃ | ＜±10ppb -40℃~+70℃ ref+25℃ | ＜±10ppb -40℃~+70℃ ref+25℃ | ＜±10ppb -40℃~+70℃ ref+25℃ |
GPS-Synchronous Accuracy | ±1×10-11 | ±5×10-12 | ±2×10-12 | ±1×10-12 |
Aging | ≤±0.5ppb/Day ≤±50ppb/Year | ≤±0.5ppb/Day（0.3ppb） ≤±50ppb/Year（30ppb） | ≤±0.5ppb/Day（0.3ppb） ≤±50ppb/Year（30ppb） | ≤±0.5ppb/Day（0.3ppb） ≤±50ppb/Year（30ppb） |
Short-term Frequency Stability | 2E-11/1s(≤0.02ppb) | 8E-12/1s 1E-11/10s | 5E-12/1s 9E-12/10s | 2E-12/1s 8E-12/10s |
Phase Noise | -80dBc/1Hz -120dBc/10Hz -140dBc/100Hz -145dBc/1KHz -150dBc/10KHz | -95dBc/1Hz -125dBc/10Hz -145dBc/100Hz -150dBc/1KHz -155dBc/10KHz | -95dBc/1Hz -128dBc/10Hz -145dBc/100Hz -155dBc/1KHz -160dBc/10KHz | -105dBc/1Hz -135dBc/10Hz -155dBc/100Hz -165dBc/1KHz -168dBc/10KHz |
Warm up time with accuracy | ≤±10ppb | ≤±10ppb | ≤±10ppb | ≤±10ppb |
Accuracy of Time Free run 1 Day | ±18.28us | ±12.5us | ±7.6us | ±4.5us |
Accuracy of Time Free run 1 Year Power | ±5.78s / Start-up:3.5W | ±3.6s / Start-up:4.2W | ±1.56s / Start-up:4.2W | ±388ms / Start-up:4.2W |
Stable Power | 1.2W | 1.5W | 1.5W | 1.5W |
Product Model | OC5SC36AW-10.00MHz | TO-100-118M58HT-10M | TO-100 | TO-100 |

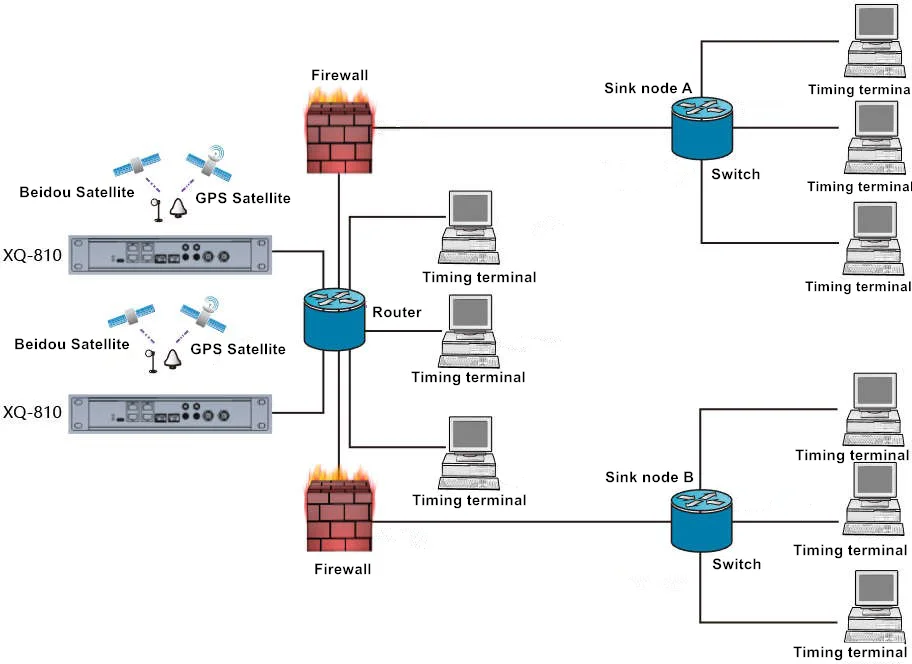

Main applications:
○ LTE, LTE-Advanced, and 5G synchronization
○ Transportation, finance, big data, digital TV/radio network
○ Circuit emulation services (CES)
○ Passive optical networks (PON)
○ Transportation, finance, big data, digital TV/radio network
○ Circuit emulation services (CES)
○ Passive optical networks (PON)
Company Profile
Hubei Fangyuan Environmental Protection Science & Technology Co., Ltd, established in 1994, is a national high-tech enterprise and software enterprise specialized in R&D, production and sales of instruments and equipment.
We have a group of professional teams engaged in R&D, production and operation of instruments for near 30 years, products more than 100 varieties in 5 categories, includes Radioactive Testing Instruments, Indoor Environmental Testing Instruments, Food Water Quality Testing Instruments, Ambient Air Quality Monitoring Instruments, Fixed Pollution Source Monitoring Instruments. Many of the products have our own intellectual property rights, and at the same time, we also sell famous and excellent testing instruments and equipment at home and abroad.
Fangyuan has successively obtained more than 30 national invention patents, utility model patents and computer software copyright authorizations, and participated in drafting 6 national standards (regulations), 3 industry standards and several local verification regulations.
We have a group of professional teams engaged in R&D, production and operation of instruments for near 30 years, products more than 100 varieties in 5 categories, includes Radioactive Testing Instruments, Indoor Environmental Testing Instruments, Food Water Quality Testing Instruments, Ambient Air Quality Monitoring Instruments, Fixed Pollution Source Monitoring Instruments. Many of the products have our own intellectual property rights, and at the same time, we also sell famous and excellent testing instruments and equipment at home and abroad.
Fangyuan has successively obtained more than 30 national invention patents, utility model patents and computer software copyright authorizations, and participated in drafting 6 national standards (regulations), 3 industry standards and several local verification regulations.
Package
PRODUCT NAME
to be shipped by Air, Sea, Express, as your requirements.
PRODUCT NAME
to be packed by
1. Product packed with Bubble wrap / PE film
2. Wooden box or Carton outer package filled with foam board to prevent impact
3. Customized package is available
1. Product packed with Bubble wrap / PE film
2. Wooden box or Carton outer package filled with foam board to prevent impact
3. Customized package is available
FAQ
1. Are you a manufacturer or trading company?
Manufacturer + trading company, engaged in production and sales since 2000.
2. What is your terms of payment?
T/T, L/C, Paypal, Credit Card and more are acceptable and negotiable.
3. What about your warranty?
One year warranty since the shipping date, lifelong maintenance and free software upgrade.
One year warranty since the shipping date, lifelong maintenance and free software upgrade.
4. How long is the probable delivery date?
Normally, 15-30 days production time, depends on the configuration of your requirements
The production is visible.
The production is visible.
5. Can you offer the technical support, online or site training or other ?
Considering the high cot of site training, and our product are easy to use, we usually offer online technical support.
The operation instructions are available, we also take videos to show the operation process, for further questions, it will be
solved within 24 hours via more instruction and videos.
The operation instructions are available, we also take videos to show the operation process, for further questions, it will be
solved within 24 hours via more instruction and videos.
