Product Description

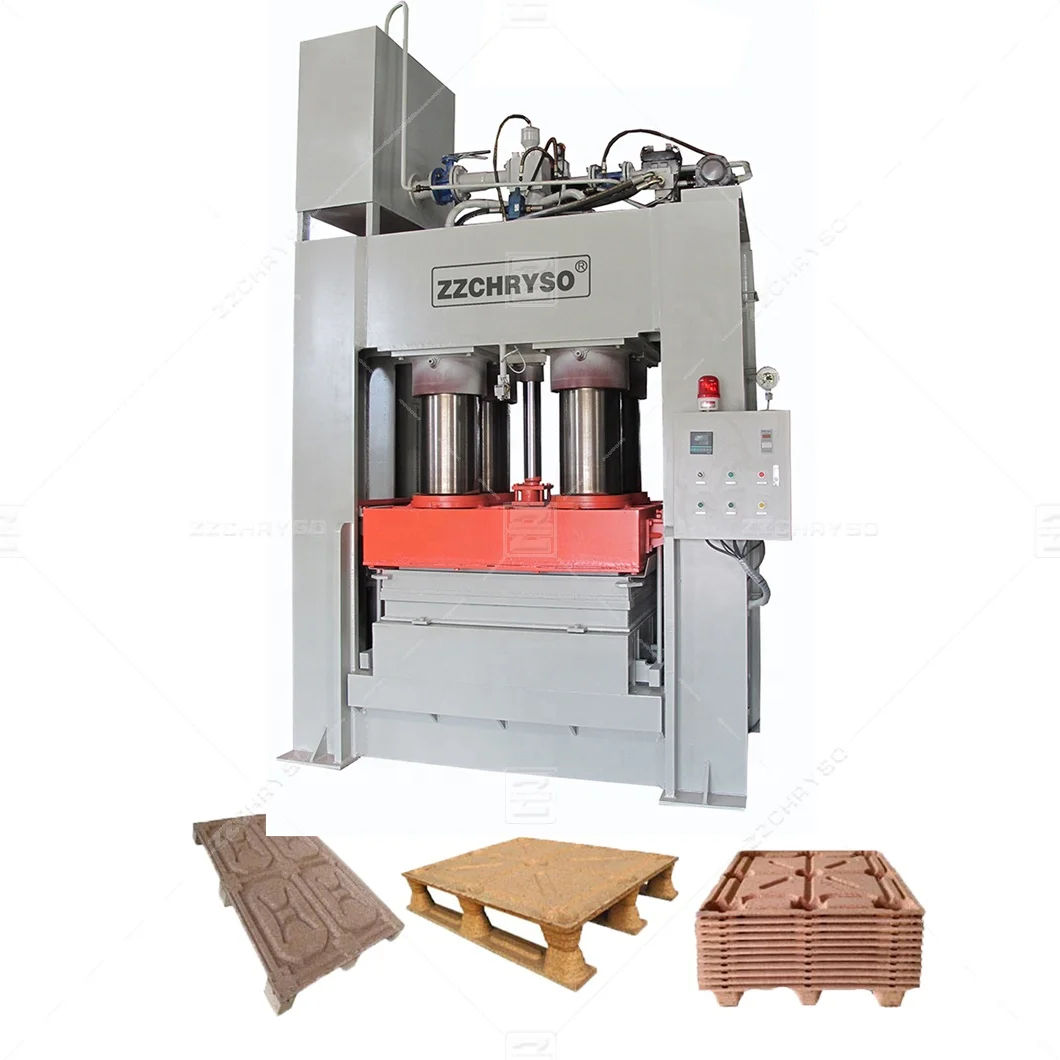

The compressed wood pallet machine is used for pressing and forming wood chips, straw, waste chemical fiber and other raw materials.There is an independent hydraulic system in this equipment.
The compressed wood pallet making machine has the advantages of good stability performance,high efficiency,and energy saving.What is more,the compressed wood pallet is fumigation free and no limit for international transportation.
The press machine can use both the steam and the thermal oil as heating source.
The pallet press machine is very convenient for installation and do not need basic positioning.You can produce different wood pallet size and pallet design by changing the mold.
The compressed wood pallet making machine has the advantages of good stability performance,high efficiency,and energy saving.What is more,the compressed wood pallet is fumigation free and no limit for international transportation.
The press machine can use both the steam and the thermal oil as heating source.
The pallet press machine is very convenient for installation and do not need basic positioning.You can produce different wood pallet size and pallet design by changing the mold.
Raw materials
The compressed wood pallet making machine mainly use the Bamboo shavings, wood sawdust, wood shavings, scrap materials as main raw materials.

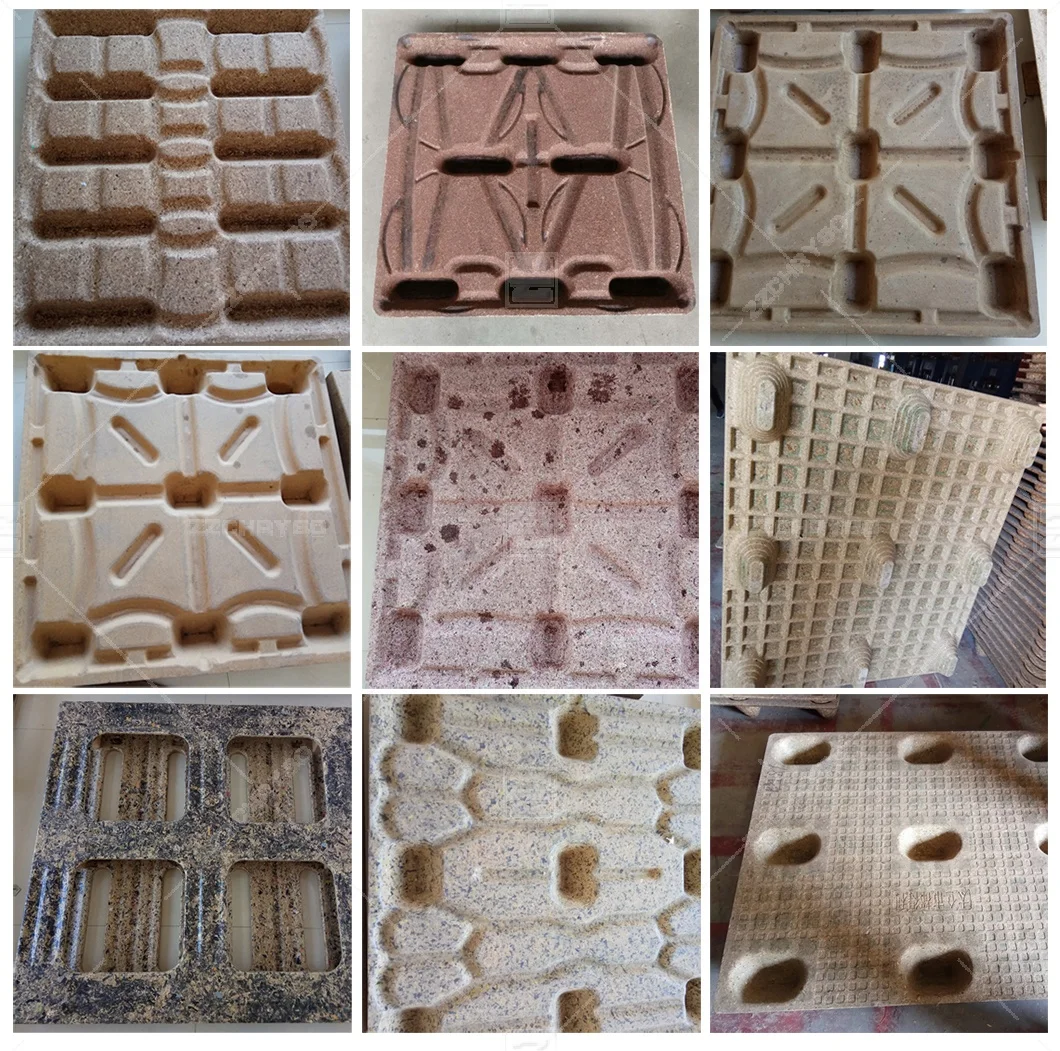

End Products of Compressed Wood Pallet Machine :

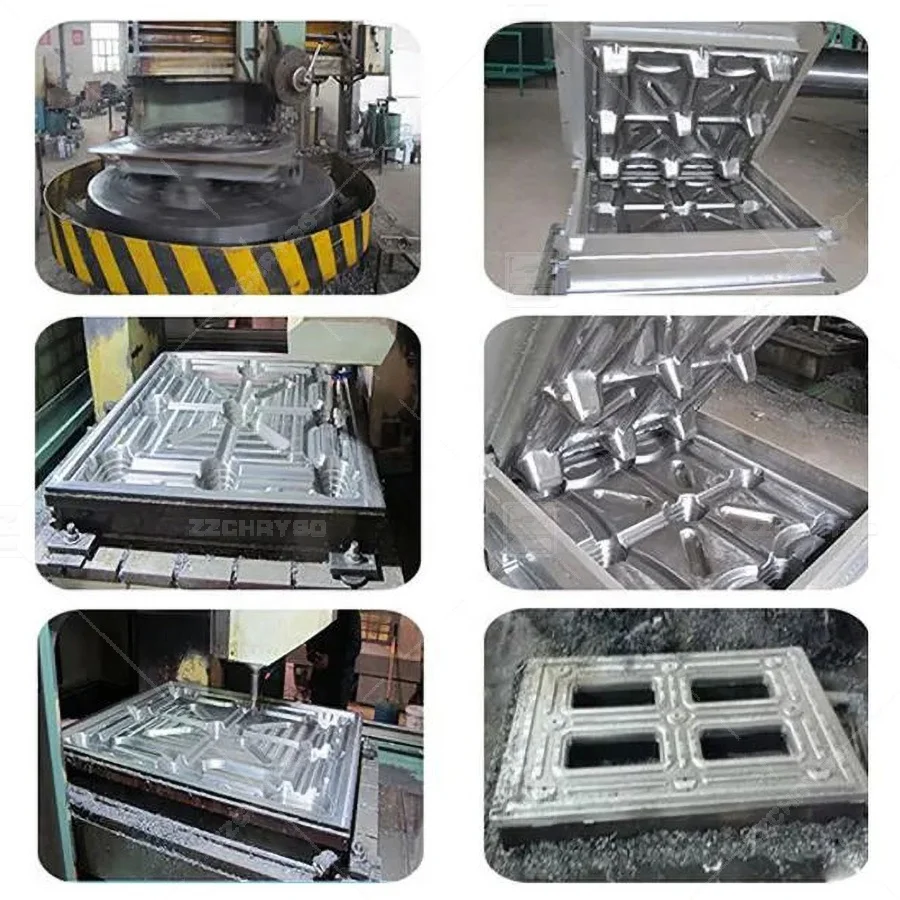

The pictures of wood pallet making macine different molds :
The pallet mold is customized basis on your request and we also can provide the design for your choice.The normal pallet size is 1200*800mm,1200*1000mm,1200*1100mm and so on. Our engineer will draw pallet mold CAD for your checking.
Specification
Model | CRS-800T |
Pressure | 800T or customized |
Main cylinder | Φ320,4 sets |
Pilot oil cylinder | Φ100,1 set |
Lift cylinder | Φ100,2 sets |
Main motor power | 7.5KW |
Press stroke | 550mm |
Capacity | 130-160Pcs/Day |
Mold type | less than 1300*1250mm or customized |
Heating type and capacity | Steam or thermal oil,0.15 Cubic metre |
Machine size | 2300*1500*4300mm |
Machine weight | 12700kg |
Product Features
Features of our compressed wood pallet making machine :
1.Our wood pallet machine has a good structure ,it use the three-way synchronous positioning,precision and balance,the pressurize will be soon when filling ,the pressurize will be fine within 35 seconds.
2.It is easy to operate ,just press the work button,then the machines will complete the whole process automatically.
3.It needs about 450 seconds to molding a tray .
4.The machine can produce about 130-160 PCS pallet per day .
5.The density of the pallet is about 900kg per cubic meter.
6.The machine can be customized
1.Our wood pallet machine has a good structure ,it use the three-way synchronous positioning,precision and balance,the pressurize will be soon when filling ,the pressurize will be fine within 35 seconds.
2.It is easy to operate ,just press the work button,then the machines will complete the whole process automatically.
3.It needs about 450 seconds to molding a tray .
4.The machine can produce about 130-160 PCS pallet per day .
5.The density of the pallet is about 900kg per cubic meter.
6.The machine can be customized

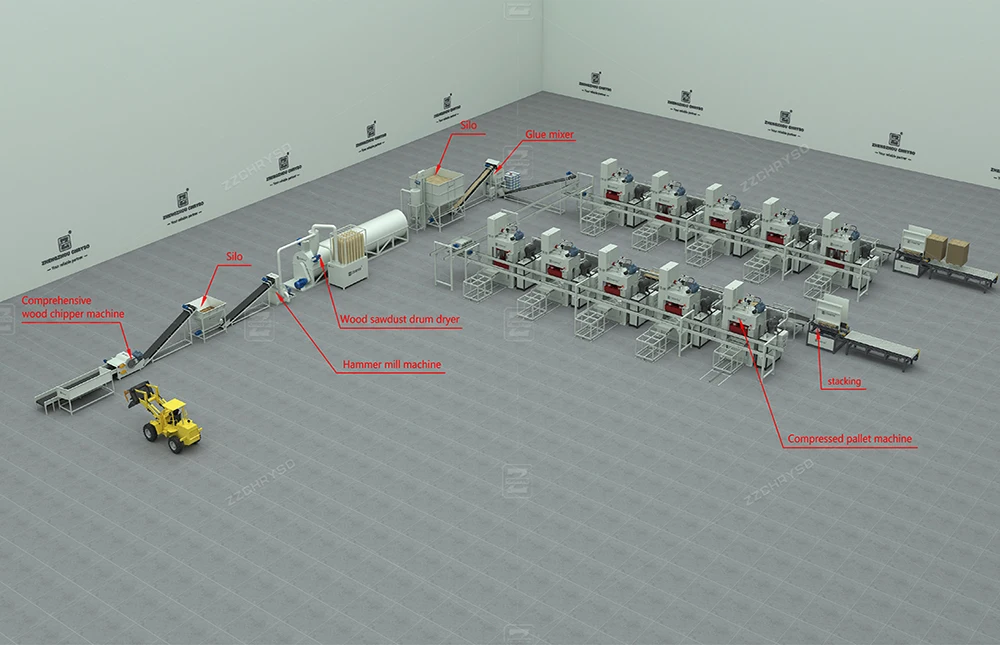

Whole Production Line
The whole compressed wood pallet production line :
Providing electric thermal boiler machine for whole automatic production line:
Step 1: crushing the materials into 5mm.
Step 2: If raw materials with high moisture, dry them to about12% moisture content.
Step 3: Mix the dried materials with glue according to a certain proportion.（Metering electric glue mixer machine for mixing the sawdust and glue）
Step 1: crushing the materials into 5mm.
Step 2: If raw materials with high moisture, dry them to about12% moisture content.
Step 3: Mix the dried materials with glue according to a certain proportion.（Metering electric glue mixer machine for mixing the sawdust and glue）
Step 4: Fill the mixed materials into the mould and press.
Step 5: Keep pressing for 7-10 minutes, then the finished pallet can be gotten.
Auto feeding and discharging conveyor for pallet press machine.
Step 5: Keep pressing for 7-10 minutes, then the finished pallet can be gotten.
Auto feeding and discharging conveyor for pallet press machine.
Our factory
Company Profile
Zhengzhou CHRYSO is one leading manufacturing and exporting company of wood working machine in China. We are committed to provide one-stop service to our customers all over the world.
CHRYSO focus on Woodworking Machinery, Here we can provide a complete solution for your wood line processing. CHRYSO's products develop and increase not limit to wood working machinery, with main products of Wood pallet production line, wood press machine series,wood saw machine series,wood crusher and chip machine series ,etc.
Our company is equipped with a professional team of quality control and after-sales service members to keep track of each order scientifically, so as to provide high-speed services for customers. "To provide a design, production, quality control, inspection, testing, sales and logistics service to companies that need a reliable supply of wood machinery from China. "
All members of CHRYSO welcome new and regular customers to contact us to build long-term and friendly relation of cooperation! We will strive to produce more quality products for you!
CHRYSO focus on Woodworking Machinery, Here we can provide a complete solution for your wood line processing. CHRYSO's products develop and increase not limit to wood working machinery, with main products of Wood pallet production line, wood press machine series,wood saw machine series,wood crusher and chip machine series ,etc.
Our company is equipped with a professional team of quality control and after-sales service members to keep track of each order scientifically, so as to provide high-speed services for customers. "To provide a design, production, quality control, inspection, testing, sales and logistics service to companies that need a reliable supply of wood machinery from China. "
All members of CHRYSO welcome new and regular customers to contact us to build long-term and friendly relation of cooperation! We will strive to produce more quality products for you!
After Sales Service
-The main machine has 12 months guarantee and the electric elements have 6 months warranty.
- We respect any feedback from you after receiving the goods.
- We promise all spare parts available in lifetime use.
- We handle your grumble within 48 hours.
Technical Support
- We have sales teams, together with all technical support from our engineering team.
- Before sending machines, test and adjustment service are provided.
- Operating video & instruction will be sent to clients for better use of machines.
- Any problems occur while using, professional advice will be given by us.
-The main machine has 12 months guarantee and the electric elements have 6 months warranty.
- We respect any feedback from you after receiving the goods.
- We promise all spare parts available in lifetime use.
- We handle your grumble within 48 hours.
Technical Support
- We have sales teams, together with all technical support from our engineering team.
- Before sending machines, test and adjustment service are provided.
- Operating video & instruction will be sent to clients for better use of machines.
- Any problems occur while using, professional advice will be given by us.
Packing & Delivery
FAQ
Q1: What's your factory MOQ and best price?
A1: No MOQ and 1 set machine order is also welcomed. We usually quote FOB Qingdao price, but if you want to know the other price term, we will try our best to meet with your demands.
Q2: This is the first time I use this kind of machine, is it easy to operate?
A2: There is English manual that show you how to use machine. If you still have any question,please contact us by e-mail / skype/phone / whatsapp /trademanager online service.
Q3: Is it difficult to maintenance the machine?
A3: If your company have a technician, then with our guiding videos, then it's not difficult we think, our other customers can handle by themselves, we think you also can.
Q4: How to install?
A4: We adjusted machines well before we delivery. When customers receive them, you can work with them directly.
Q5: What to do if the machine has a problem?
A5: 24 hours timely response of mail and phone calls. If the parts broken belong to non-artificial factors within 12 months, we offer free replacement. If beyond 12 months, customers should bear the freight back and forth and accessories cost.
A1: No MOQ and 1 set machine order is also welcomed. We usually quote FOB Qingdao price, but if you want to know the other price term, we will try our best to meet with your demands.
Q2: This is the first time I use this kind of machine, is it easy to operate?
A2: There is English manual that show you how to use machine. If you still have any question,please contact us by e-mail / skype/phone / whatsapp /trademanager online service.
Q3: Is it difficult to maintenance the machine?
A3: If your company have a technician, then with our guiding videos, then it's not difficult we think, our other customers can handle by themselves, we think you also can.
Q4: How to install?
A4: We adjusted machines well before we delivery. When customers receive them, you can work with them directly.
Q5: What to do if the machine has a problem?
A5: 24 hours timely response of mail and phone calls. If the parts broken belong to non-artificial factors within 12 months, we offer free replacement. If beyond 12 months, customers should bear the freight back and forth and accessories cost.
