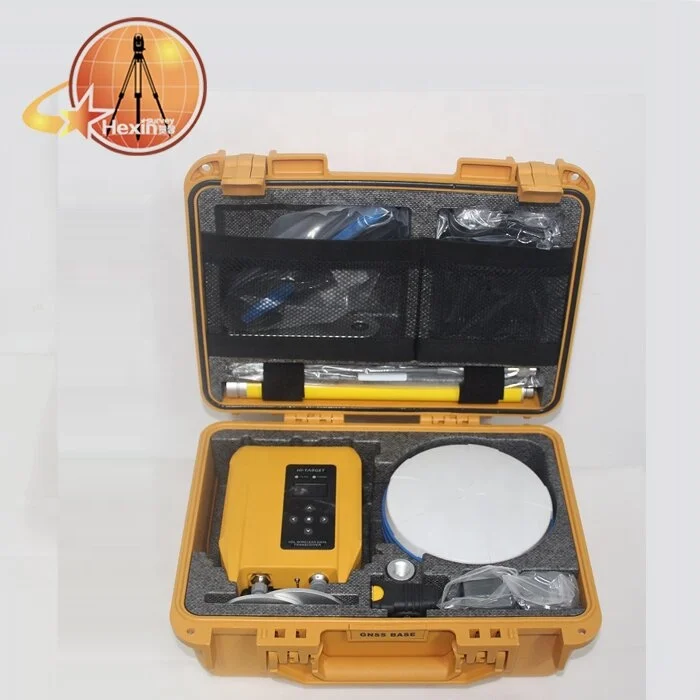

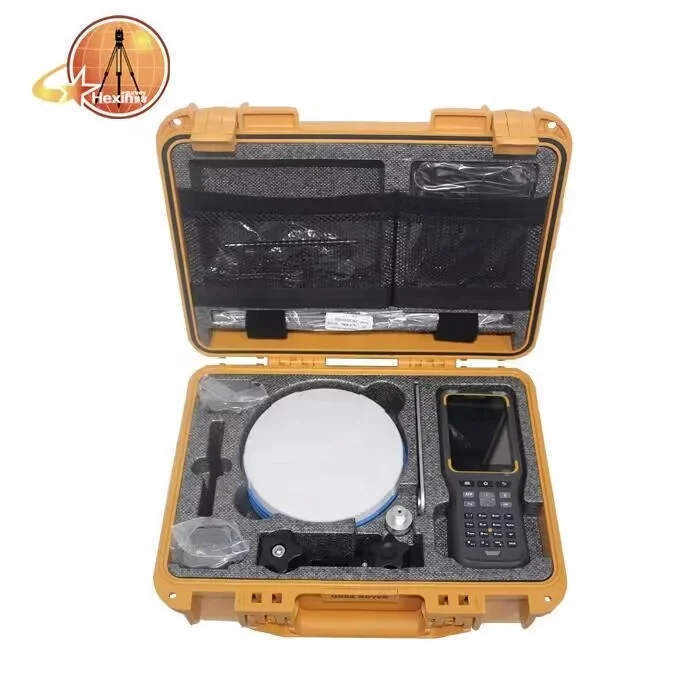

Новое поколение RTK GPS Hi target TS5 rover GNSS антенна Высокая точность приемник контроллер iHand55 или iHand30
- Категория: >>>
- Поставщик: Shanghai Hexin Survey Instrument Company Ltd.
Сохранить в закладки 1600785180962:
Описание и отзывы
Характеристики
Product Description
New generation RTK GPS Hi-target TS5 rover GNSS antenna high accuracy GPS receiver controller iHand55 or controller iHand30

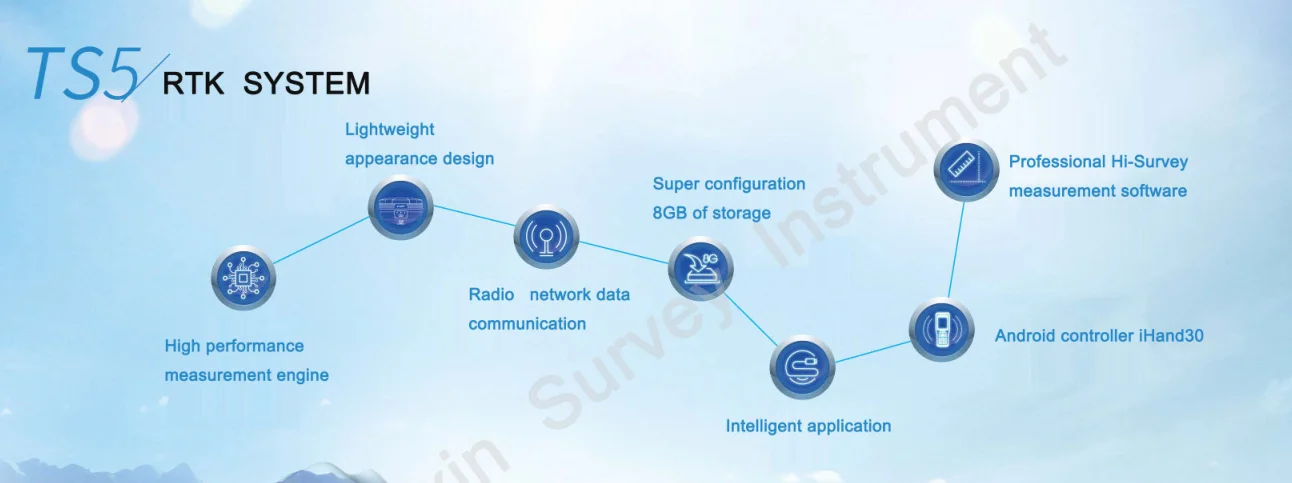

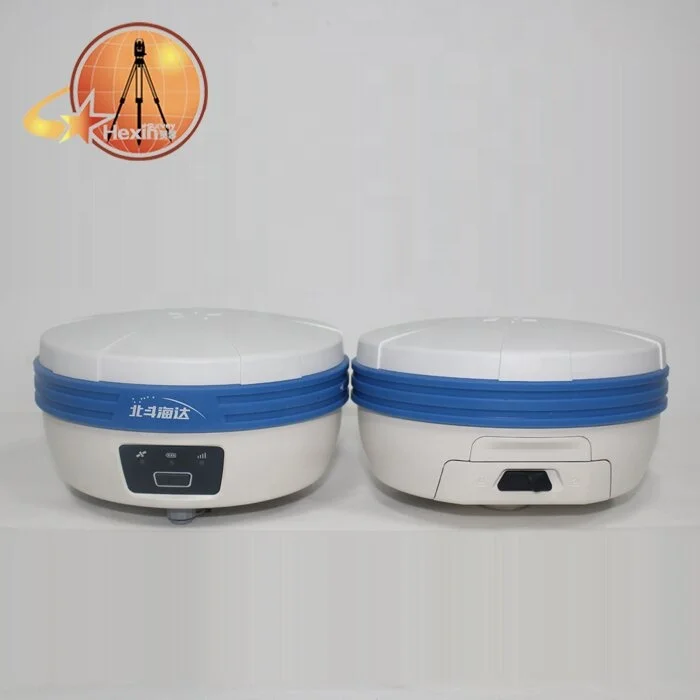

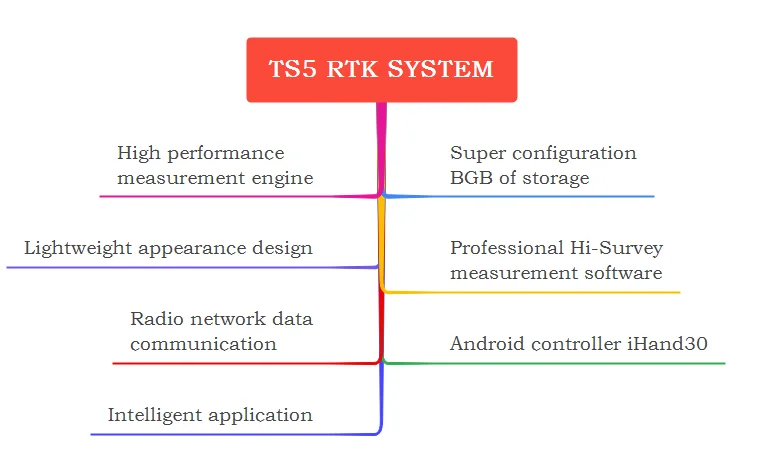

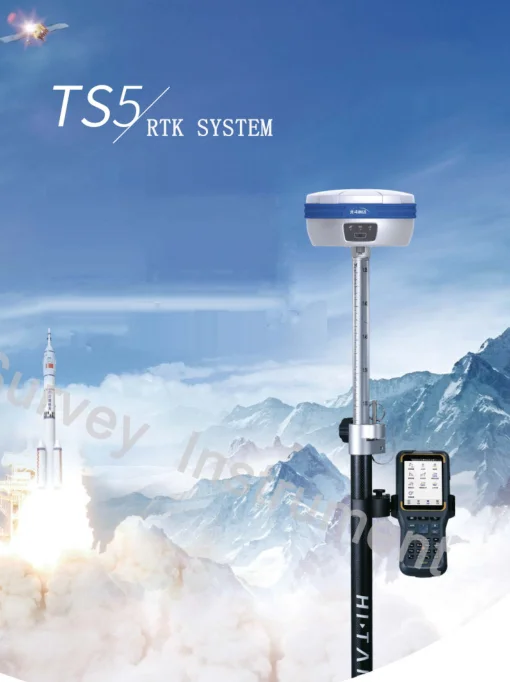

TS5 RTK SYSTEM
Lightweight design convenient use powerful performance
TS5 miniaturized RTK system adopts domestic independent intellectual property rights multi-mode multi-frequency RTK algorithm, advanced multi-path suppression technology,lightweight structural design, new signal tracking technology to adapt to the harsh and complex environment, easy to achieve stable and reliable high-precision measurement operations.
Magnesium alloy body, small volume and large storage,buil-in.4G full netcom,multi-protoco radio, dual mode Blue tooth,NFC flash connection, MiniUSB interface,iHand30 Android controller.
High quality accessories
iHand30 Professional Field Controller
The iHand30 is a rugged field controller that is designed for data collection and GNSS device control. Based on the Android operating
system, it is compatible with Hi-Target professional software and third-party Android software. Combining the physical keyboard with a touchscreen, it can boost efficient field work and provide express solutions for users.
KEY FEATURES
*Ergonomically designed, lighter and easy to hold
*Industrial-grade protection that can withstand tough environments
*Convenient wireless data transmission via Blue tooth Wi-Fi and 4G
*Quick charge, with large capacity lithium battery to ensure all day work
*Industrial-grade protection that can withstand tough environments
*Convenient wireless data transmission via Blue tooth Wi-Fi and 4G
*Quick charge, with large capacity lithium battery to ensure all day work
Hardware Configuration | OS:Android 6.0Processer:MTK6737, 1.5GHz, 4 core Storage:RAM 2GB 16GB(up to 32GB extension Micro-SD) Display:3.7’’, 640 x 480, sunlight readable Camera:8MP, tag available. Sensors:G-sensor, E-compass, barometer, light-field sensor, gyro. | ||||||
Communication | Cellular mode:Dual SIM card, dual stand-by Cellular network:4G (TDD-LTE, FDD-LTE, WCDMA, GPRS) Wi-Fi:IEEE 802.11b/g/n,2.4GHz/5GHz Blue tooth:V2.0/4.0 USB:Type-C, supports OTG NFC | ||||||
Physical | Weight:440g(within battery)Size:208mm*83mm*24mm Operating temperature:-20℃ ~ +60℃ Storage temperature:-30℃ ~ +70℃ Free fall:1.2m Water/dustproof:IP67 | ||||||
GNSS Features | GNSS:GPS, GLONASS, AGPS, 20 channels Update rate:1Hz | ||||||
Power Supply | Battery:Removable 3.7V lithium battery, 5200mAh Duration:15 hours | ||||||

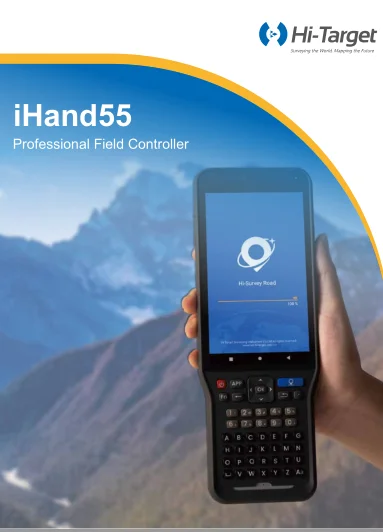

iHand55 Professional Field Controller
KEY FEATURES
*5.5” sunlight readable display capacitive touch screen for fingers or stylus.
*Alphanumeric full keyboard designed, convenient for different measurement application scenarios.
*Quick charge with internal lithium battery to improve efficiency under long time job.
*Android 10.0 operating system equipped to maintain the productivity of numerous survey projects and data.
*5.5” sunlight readable display capacitive touch screen for fingers or stylus.
*Alphanumeric full keyboard designed, convenient for different measurement application scenarios.
*Quick charge with internal lithium battery to improve efficiency under long time job.
*Android 10.0 operating system equipped to maintain the productivity of numerous survey projects and data.
OS :Android 10 Processer:CPU: 8 core; 2.0 GHZ Storage:2 GB RAM+16 GB ROM; T-Flash memory card, up to 128GB Display:5.5” bright Outdoor Color capacitive touch screen (with touch pen, can be operated with gloves) InputConfiguration:Physical full keyboard, number / letter separate, professional custom smart input method | |||||||
GNSS Features | GNSS:GNSSantenna, GPS, GLONASS, BDS, AGPS, 20 channels | ||||||
Communication Interface | Cellular mobile: 4GDual SIM WiFi:IEEE 802.11 b/g/n, Wapi, AP Blue tooth:Built-in Blue tooth (2.1+4.0) NFC USB:USB, TypeC interface, OTG | ||||||
Power Supply | Battery:7500 mAh internal Duration:14 hours | ||||||
Application | Camera:Built-in 13 million pixel camera Flash:Highlight Flash LED flash(support flashlight function) Sensor:gravity sensor, compass, light sensor, gyroscope | ||||||
Physical Features | Weight:480g(within battery) Size:236 mm*85 mm*25 mm Operating temperature:-20℃ ~ +60℃ Storage temperature:-30℃ ~ +70℃ Free fall:1.2 m | ||||||
Two hand thin Professional Field Controllers are optional

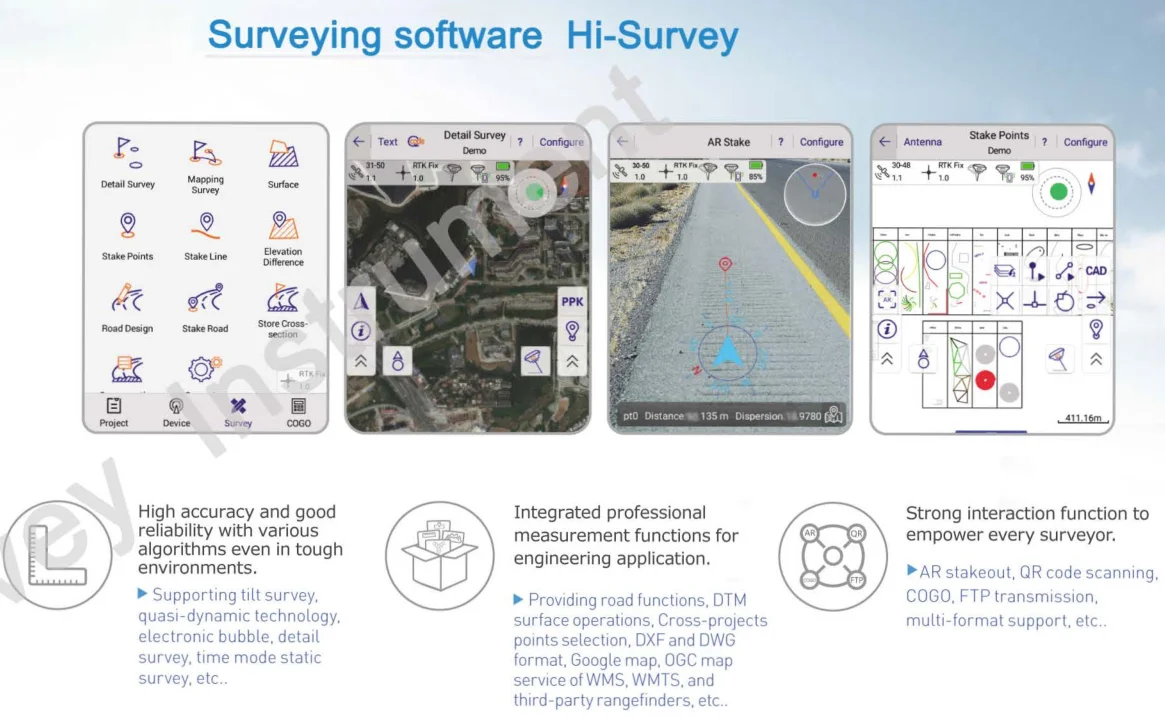

Surveying software Hi-Survey
*High accuracy and good reliability with various algorithms even in tough
environments.(Supporting tilt survey quasi dynamic technology,electronic bubble. detail survey time mode static survey, etc)
environments.(Supporting tilt survey quasi dynamic technology,electronic bubble. detail survey time mode static survey, etc)
*Integrated professional measurement functions forengineering application.(Providing road functions, DTM surface operations, Cross-projectspoints selection, DXF and DWG format, Google map. OGC map service of WMS, WMTS, and third- party rangefinders. etc)
*Android controller iHand30 Srong interaction function to empower every surveyor(AR stakeout, QR code scanning,COGO,FTP transmission,multi-format support, etc.)
Specification
Channels:400+ GPS:L1,L 2, L5 BeiDou:L1, L2 GLONASS:L1, L2 Galileo:E1,E5A,E5B QZSS:L1,L2,L5 SBAS:L1 | |
Positioning Performance High-precision static GNSS Surveying | Horizontal:2.5mm + 0.5ppm RMS Vertical:5mm + 0.5ppm RMS |
Real Time Kinematic (RTK) Single Base | Horizontal:8mm+1ppm RMS Vertical:15mm+1ppm RMS |
Network RTK | Horizontal:8mm+0.5ppm RMS Vertical:15mm+0.5ppm RMS Initialization time:Typically 2-10s Initialization reliability:Typically > 99.9% |
Tilt Survey Electronic Bubble Communication Internal UHF Radio | Frequency:410-470MHz Channels:116(16 adjustable) Transmitting power:1W/2W/4W adjustable Supports multiple protocols:HI - TARGET, TRIMTALK450S, TRIMMARK Ill, TRANSEOT, SA TEL -3AS, etc Working range:3-5km typical, 5-8km optimal |
Frequency:450-470MHz Channels:8 Transmitting power:5W/25W adjustable Supports multiple protocols:TRIMTALK4505, TRIM MARK Ill, TRANSEOT | |
Blue tooth:4.0/2.1 +EDR, 2.4GHz 4G Network:TDD - LTE, FDD - LTE , WCDMA, EDGE, GPRS, GSM Wi Fi frequency:2.4GHz Wi-Fi protocol:802.11 b/g/n | |

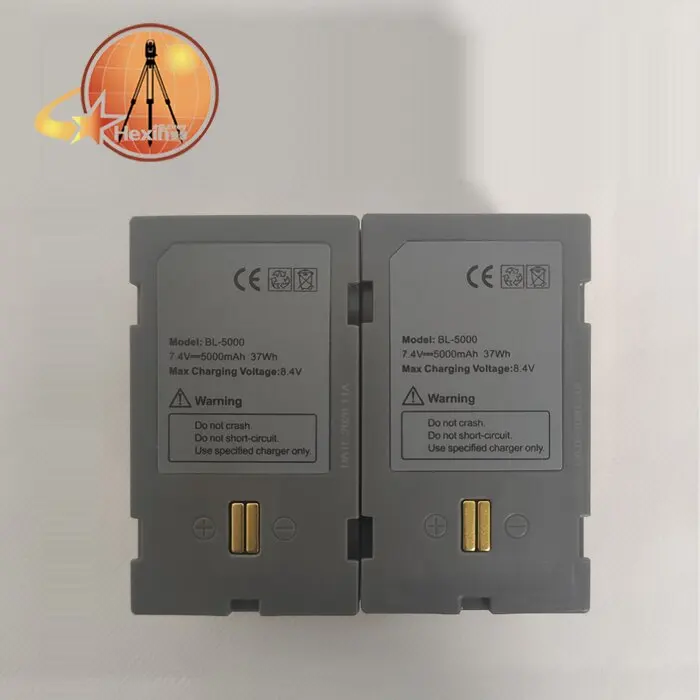

5000mAh lithium-ion rechargeable and removable battery RTK Rover (UH F/Cellular)for 10 hours | |
External Power | 6 28V DC external power input (5 pin port)with over charge protection Power consumption:4.2W |
Dimensions(W×H):164mm × 83.5mm Weight:< 1.4kg (includes battery) Data storage:8G internal storage | |
I/O Interface | 1 x Mini US8 port 1 x TNC antenna connector 1 x DC power input (5-pin) 1 x SIM card slot |
Control Panel | Physical button:1 LED lamp:Satellite, Signal, Power |
Water/Dustproof:IP67 Shock and vibration:Survive from 2m natural fall on to ground Humidity:100%condensing Operation temperature:-45°C-+ 75°C Storage temperature:55°C-+85°C | |
Output rate:1-20Hz Static data format:GNS, Rinex Network model:VRS,supports NTRIP protocol Message type:CMR, RTCM 2.x, RTCM 3.0, RTCM 3.2 Navigation outputs ASCII:NMEA 0183 |
Terms of payment
Our usual terms of payment are as follows:T/T, Western Union, Paypal , etc.If there are other payment methods you prefer, we can discuss them in detail.
Our usual terms of payment are as follows:T/T, Western Union, Paypal , etc.If there are other payment methods you prefer, we can discuss them in detail.
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Related Product
Company Profile
With 10 years' experience in geodetic surveying and cadastration surveying, we are a professional and leading enterprise in the
surveying industry in Mainland China. We specialize in the R&D and manufacturing and sales of all kinds of surveying products,including total station, electronic theodolite, electronic distance meter, automatic level, laser level,reflector prism, surveying accessory, GPS receiver, mapping software, etc.
surveying industry in Mainland China. We specialize in the R&D and manufacturing and sales of all kinds of surveying products,including total station, electronic theodolite, electronic distance meter, automatic level, laser level,reflector prism, surveying accessory, GPS receiver, mapping software, etc.
The marketing model advocated by us is not a simple sense of
"selling products", instead, pre-sales service, services during operation and after-sales service are integrated in entire operating activities. It makes the customers feel that they purchased not only a commodity, but also a professional service.
We welcome new and old customers from all walks of life to contact us for future business relationships and achieving mutual success!
"selling products", instead, pre-sales service, services during operation and after-sales service are integrated in entire operating activities. It makes the customers feel that they purchased not only a commodity, but also a professional service.
We welcome new and old customers from all walks of life to contact us for future business relationships and achieving mutual success!
Packaging & Shipping
FAQ
1:How to turn off voice broadcast of receiver?
a. Enter the WEBUI, find the voice switch in the settings page and turn it off.
b. Controller Software→Device→Device Setting, turn off the “enable voice”, and click “OK”.
2:Can the base station and rover station be interchangeable?
The difference between the rover station and the base station is that the accessories are different, the function and hardware configuration are the same. You can use the controller to choose the working mode of the device and set it as the base station or rover station.
3:What is CORS?
CORS is called a continuous operating reference station system. It can be understood as a base station that is erected at a fixed known point and works continuously for 24 hours, and sends its own data to a specific server through the network. The use of CORS operation eliminates the need for a base station, and CORS is equivalent to a base station in a normalnetwork operation.
a. Enter the WEBUI, find the voice switch in the settings page and turn it off.
b. Controller Software→Device→Device Setting, turn off the “enable voice”, and click “OK”.
2:Can the base station and rover station be interchangeable?
The difference between the rover station and the base station is that the accessories are different, the function and hardware configuration are the same. You can use the controller to choose the working mode of the device and set it as the base station or rover station.
3:What is CORS?
CORS is called a continuous operating reference station system. It can be understood as a base station that is erected at a fixed known point and works continuously for 24 hours, and sends its own data to a specific server through the network. The use of CORS operation eliminates the need for a base station, and CORS is equivalent to a base station in a normalnetwork operation.
4: What services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW
Accepted Payment Currency:USD
Accepted Payment Type: T/T,PayPal,Western Union
Accepted Delivery Terms: FOB,CIF,EXW
Accepted Payment Currency:USD
Accepted Payment Type: T/T,PayPal,Western Union
If you have any questions,please click on the text or the picture below to contact us.
Похожие товары

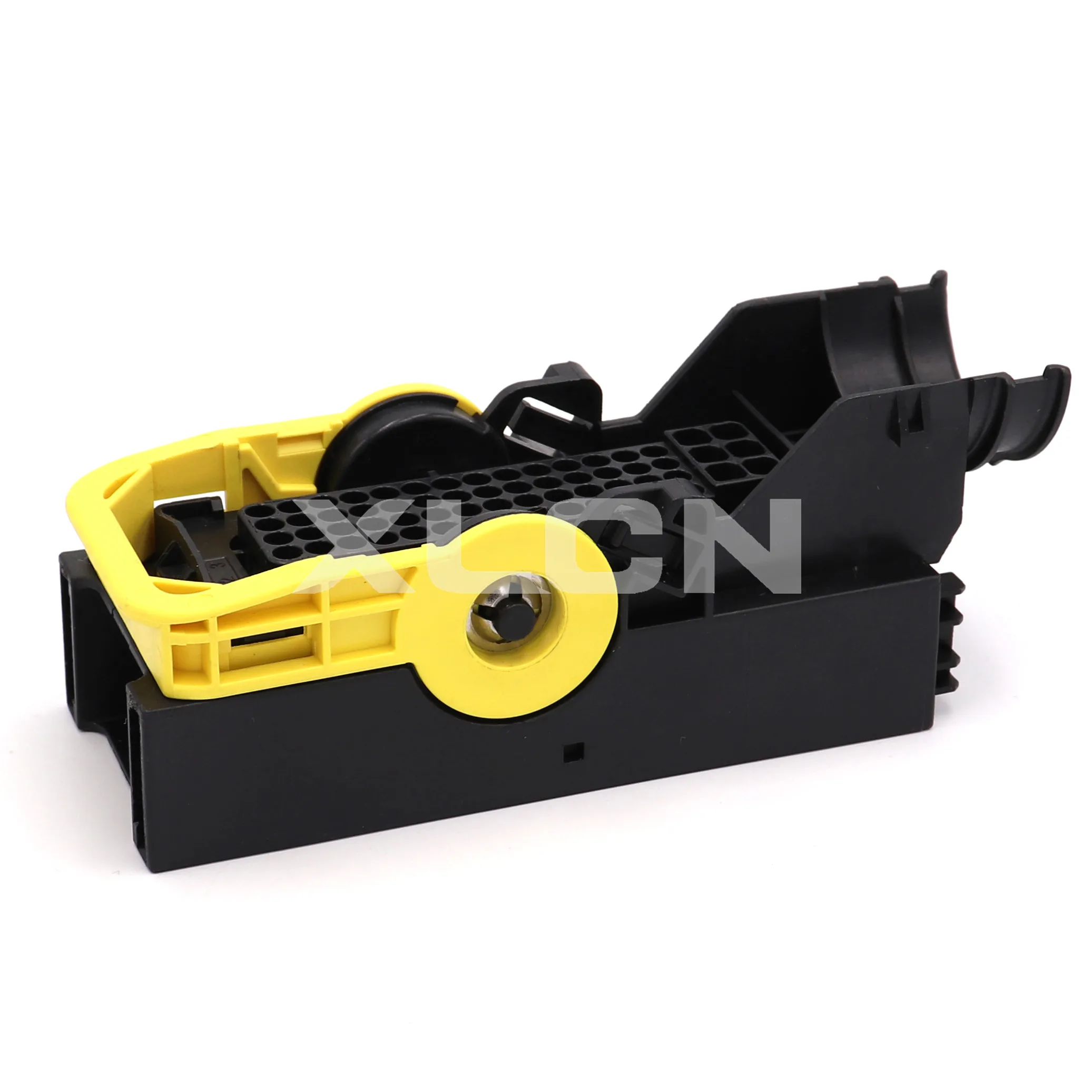

62 штифтов Авто водонепроницаемые разъемы Женский ECU соединитель 1418883-1/1418882-1 черный корпус для жгута
