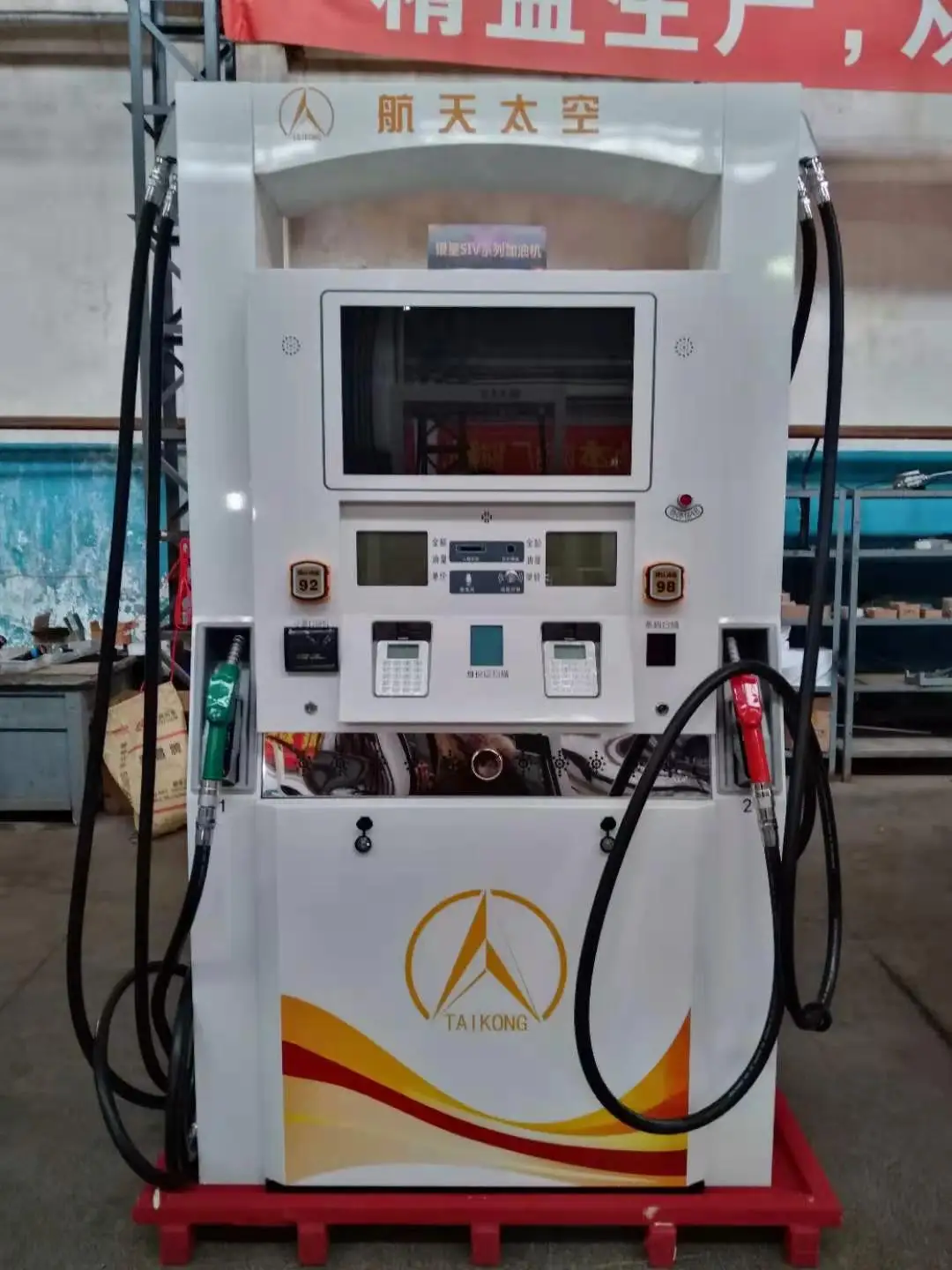

TA 2424V Taikong бензиновая станция топливный насос топливная оборудование диспенсер
- Категория: >>>
- Поставщик: Shenyang Aerospace Xinyang Mechanical And Electrical Co. Ltd.
Сохранить в закладки 1600785634151:
Описание и отзывы
Характеристики
Our Company
Shenyang Aerospace Xinyang Mechanical and Electrical Co,, Ltd. is a high- tech enterprise mainly engaged in development and production of fuel dispenser with revenue function, service station equipment and technical service.
Xinyang was founded in 2005, but has been engaged in development and production of oiling machines with excellent quality and reliable performance since 1979, has won countless honors such as Customer Satisfaction Product, Quality Trustworthy Product, Top 10 Aerospace Civilian Products, Aerospace Famous-brand Products, National Key New Product, etc. Meanwhile, establishes long -term and friendly cooperative relationship with Petro China, Sinopec, etc, and exported to Europe, Africa, South -east Asia, etc. High quality, competitive price, we will be your best choice.
Our Customers
We have established long -term and friendly cooperative relationship with Petro China, Sinopec, etc, and exported to Europe, Africa, South -east Asia, etc.
Product Description
Main Technical Parameters | ||||||
Motor rated power | 750W (or 1000W ) | |||||
Inlet oil pressure | Submersible pump series≤0.3MPa | |||||
Max permissible error | ±0.30% | |||||
Ambient temperature | -25℃～＋55℃(low temperature area: -40℃～＋55℃) | |||||
Relative humidity | ≤95% | |||||
Vapor recovery | 95% ～ 105% (with vapor recovery feature) | |||||
Unit price setting range | 1.00 ～ 99.99 yuan /L | |||||
Display after power failure | ≥15 minutes | |||||
Noise | ≤80dB(A) | |||||
Flow range | 5L/min ～ 50L/min (±10%) | |||||
Large flow 10L/min ～ 100L/min (±10%) | ||||||
LMaximum flow with vapor recovery feature 45L/min (±10%) | ||||||
Power | Common: AC380V+10%, -15% (50Hz±1Hz) | |||||
Single-phase: AC220V+10%, -15% (50Hz±1Hz) | ||||||
Vehicle-mounted: DC12/24V±10% | ||||||
Single measurement range | Amount: 0.01 ～ 9999.99 yuan | |||||
Volume: 0.01 ～ 9999.99 L | ||||||
Cumulative measurement range | Amount: 0.01 ～ 99999999.99 yuan | |||||
Volume: 0.01 ～ 99999999.99 L | ||||||
Main Features
★ Support multi-brand dispensers
★ Easy to install and operate
★ Real-time display of fueling information and card information
★ Provide professional reports to facilitate checking statistics
★ Support SMS function; business data of fuel station can be regularly sent daily
★ Automatically upload fueling data
Optional configuration
1. submersible pump
2. combination pump
3. IC card
4. oil and gas recovery function
Series Details
Taikong TA/TB- Pump Nozzle Product Flow meter Keyboard Display
2211 1 2 1 1 2 2
2212 1 2 1 2 2 4
2222 2 2 2 2 2 4
2422 2 4 2 2 4 4
2424 2 4 2 4 4 4
2444 4 4 4 4 4 4
3111 1 1 1 1 1 2
3212 1 2 1 2 2 4
3222 2 2 2 2 2 4
FAQ
Q: Why you choose Xinyang Taikong?
Because we have been professional fuel dispensers manufacturer since 1979, we were national-owned military enterprise before 2005, so we have abundence experiences of making different kinds of fuel dispensers, have stable quality,competitive prices, reliable service... We will be your best choice.
Q: Can you print our logos on the fuel dispensers?
Yes.Customized logos can be print on the machines according to your requirements.
Q: Is that factory price?
Yes.We assure you all prices are based on factory and with high quality.
Q: When can I get the order?
When we received your payment, it will take about 5-7 days to your door by express,
it will take about 7-10 days to your local air port by air,
it will take about 7 to 60 days depends on your destination port by sea.
Q: What is your terms of delivery?
We accept EXW, FOB, CIF, etc. You can choose the one which is the most convenient or cost effective for you.
Q: How long is the warranty period?
Guarantee one year. During the warranty period(except wearable parts & seals). we shall repair or replace the damaged part accordingly because of any damage due to quality problem.(For wearable parts&seals, we provide small quantity free, if occur quality problems.)
Certifications
Other details
Installation Diagram
Model: TB-3111
Brand: Taikong
Original: Shenyang, China
Quality Control Process
Every fuel dispenser was tested and inspected at least 3 times before they came out of our factory. So we can ensure our stable high quality for so many years and got good reputation all over the world.
Machine Parts
Name: Conbination
Brand: Yinhe
Original: Wenzhou, China
Domestic famous pumps, strong driving force, low consumption, high economic benefits .
Main Features
Name: Flow meter
Brand: Sipu
Original: Wenzhou, China
Domestic famous flow meters, high precision, low consumption, high economic benefits .
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Warranty for 12 months.
Packing & Delivery
Packaging | ||
Size | 1430 (L) * 760(W) * 2485 (H)mm | |
Weight | net :224kg gross: 241kg | |
Packaging Details | The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. | |
Packaging | ||
Size | 1430 (L) * 760(W) * 2485 (H)mm | |
Weight | net :224kg gross: 241kg | |
Packaging Details | The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. | |
Related Products
Products Name with link
91.8% Response Rate
Products Name with link
91.8% Response Rate
Products Name with link
91.8% Response Rate
Похожие товары
Автомобильные вентиляционные зажимы/металлический зажим для автомобильных духов
Китайский поставщик тигель из карбида кремния высокой чистоты графитовый низкая цена для плавления индукционной

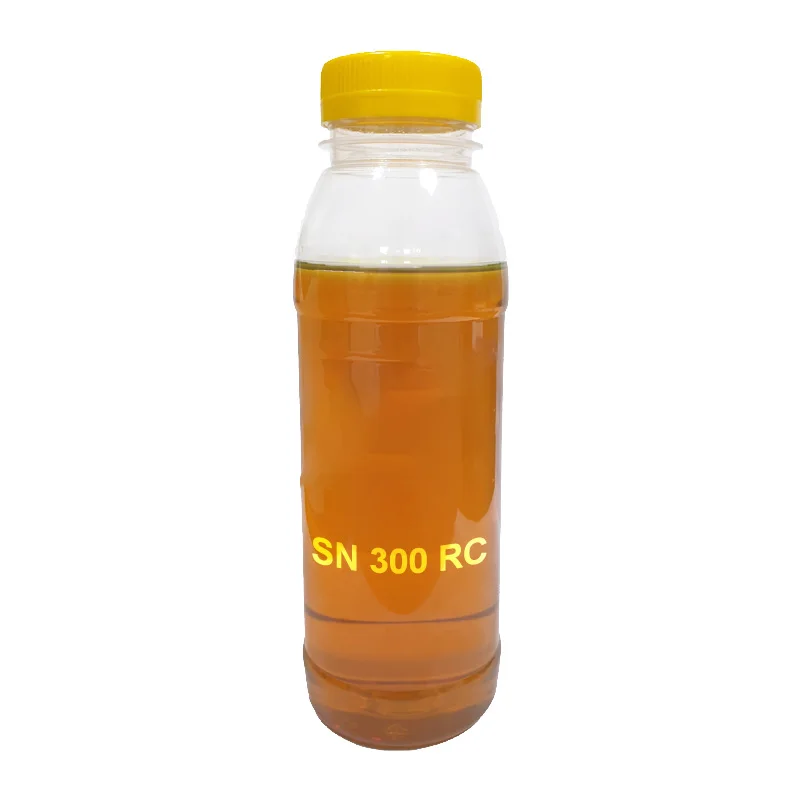

Базовое масло SN 300 базовое

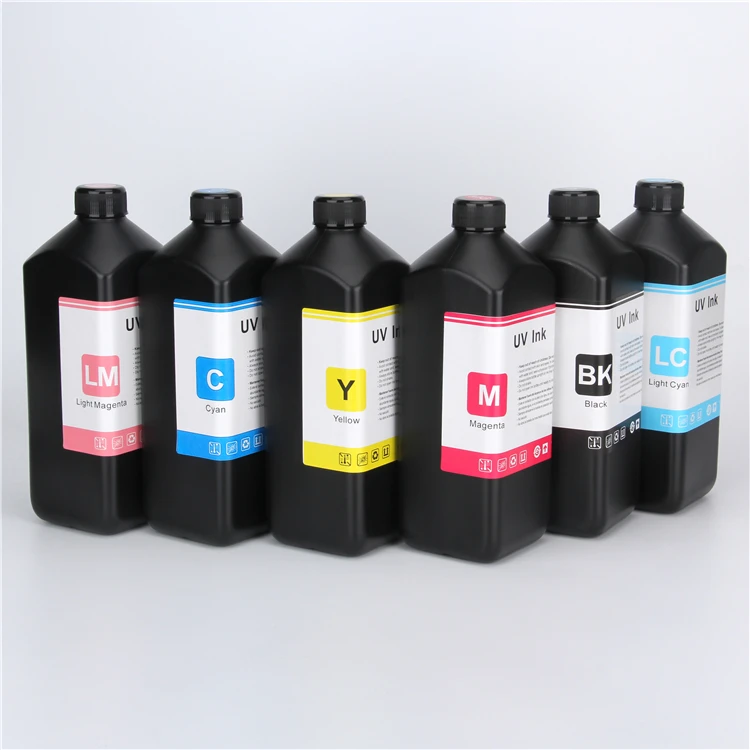

1000 мл 5 литров мягкий гибкий светодиодный отверждаемый УФ белые чернила для печати для UV планшетный принтер Epson Tx 800 Xp 600 Xp600 Tx800 две головы

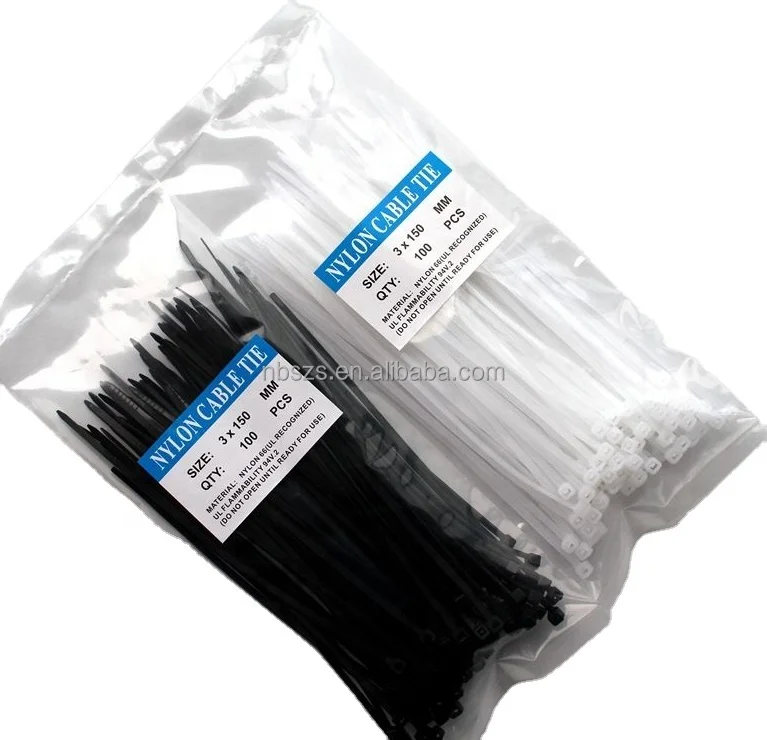

Самоблокирующиеся Многоразовые Кабельные стяжки, нейлоновые стяжки, оптовая продажа, Прямая поставка с завода, бесплатный образец, белый экологически чистый пластиковый крючок, нейлоновый ремешок
0,01 $ - 0,02 $

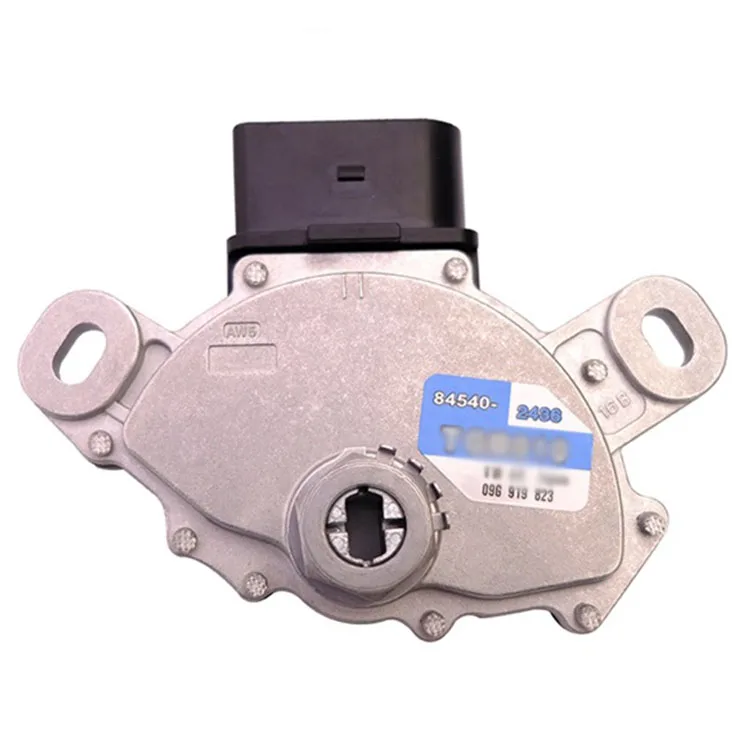

Переключатель стартера коробки передач 84540-2436 09G919823 для Volkswagen Golf
13,00 $ - 15,00 $

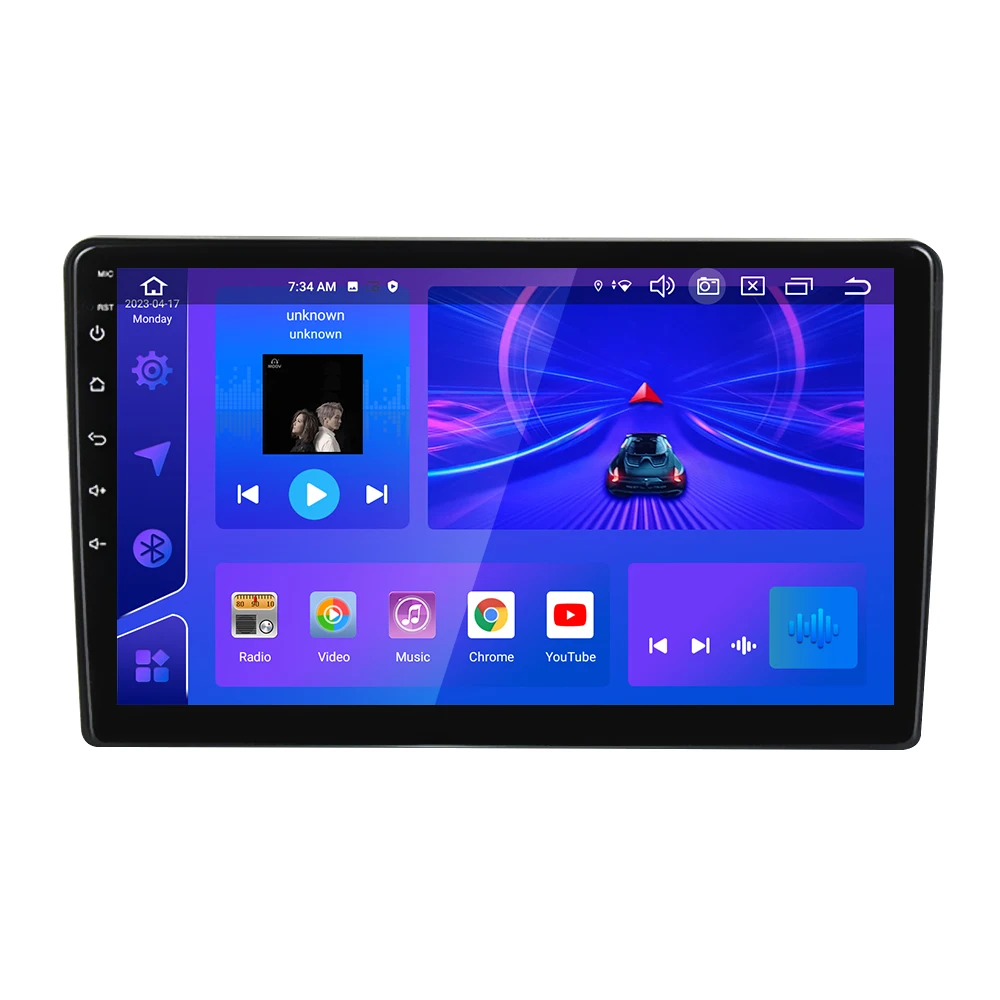

Вентилятор охлаждения 6762 bluetooths 4 г ОЗУ 64 г ПЗУ 8 ядер Wi-Fi/FM/AM/gps/DSP/carplay андроид Авто Видео Стерео 2 din 9 дюймов автомобильное радио
