OEM сервис En124 D400 C250 квадратный круглый колпачок из ковкого чугуна с эпоксидным покрытием
- Категория: Other Roadway Products >>>
- Поставщик: Honghua (shandong) Steel Group Co. Ltd.Honghua Ltd.
Сохранить в закладки 1600785944211:
Описание и отзывы
Характеристики
Product Display

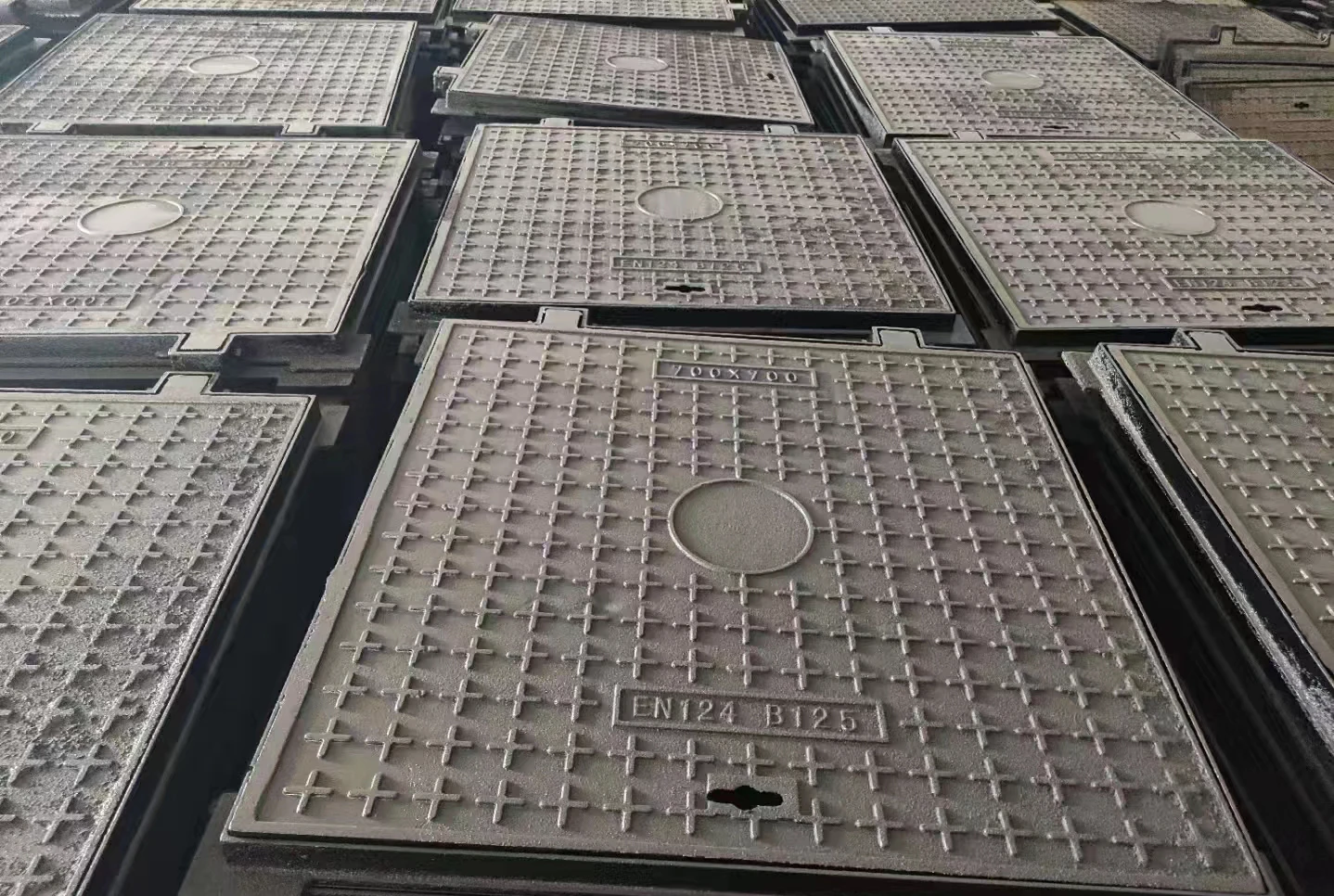

Ductile iron manhole cover is made from spheroidal graphite cast iron by machining hand moulding, solid top, recessed,double triangular, single seal or double seal, square or rectangular or round,with or without hinge. Very good quality, smooth and free from sand holes, blow holes, distortion or any other defects. Loading capacity is 40 tons. The normal coating is black bitumen 30 microns thickness, also can make the epoxy coating according to the customer’s demand.
Class D400 specifications | ||||||||||
Type | Dimensions (mm) | H | e | |||||||
A X A | O X O | C X C | ||||||||
Single Sealed, Square | 600X600 | 500X500 | 532X532 | 100 | 50 | |||||
Single Sealed, Square | 700X700 | 600X600 | 633X633 | 100 | 50 | |||||
Single Sealed, Square | 800X800 | 700X700 | 733X733 | 100 | 50 | |||||
Single Sealed, Square | 900X900 | 800X800 | 833X833 | 100 | 50 | |||||
Single Sealed, Square | 1000X1000 | 900X900 | 933X933 | 100 | 50 | |||||
Single Sealed, Square | 1100X1100 | 1000X1000 | 1033X1033 | 100 | 50 | |||||
Single Sealed, Square | 1200X1200 | 1100X1000 | 1133X1133 | 100 | 51 | |||||
Single Sealed, Rectangular | 600X800 | 500X700 | 558X762 | 80 | 72 | |||||
Single Sealed, Rectangular | 750X550 | 600X450 | 636X486 | 75 | 69 | |||||
Single Sealed, Round cover, Round Base | Ф850 | Ф600 | Ф646 | 95 | 49 | |||||
Single Sealed, Round cover, Rectangular Base | 850X850 | Ф600 | Ф645 | 100 | 49 | |||||
Single Sealed, Round cover, Rectangular Base | 700X700 | Ф600 | Ф645 | 100 | 49 | |||||
Single Sealed, Round cover, Rectangular Base | 900X900 | Ф710 | Ф734 | 102 | 41 | |||||
Single Sealed, Round cover, Rectangular Base | 1000X1000 | Ф710 | Ф734 | 102 | 41 | |||||
Single Sealed, Round cover, Rectangular Base | 1050X1050 | Ф850 | Ф835 | 100 | 46 | |||||
Single Sealed, Round cover, Round Base | Ø750 | Ø600 | Ø660 | 100 | 29 | |||||
Single Sealed, Round cover, Round Base | Ø780 | Ø600 | Ø660 | 100 | 29 | |||||
Double Sealed, Square, Recessed Cover | 750X750 | 600X600 | 694X694 | 100 | 29 | |||||
Double Sealed, Square, Solid Top | 750X750 | 600X600 | 694X694 | 100 | 29 | |||||
The marks including the customer’s logo can be changed.
Besides the standard products, SYI can be the specialist of your Personal Tailor also!
A group of highly experienced technical engineers are right here waiting for any of your request. We are able to use most of the world-wide engineering software, including AUTO Cad, Pro Engineer, Solid Works and etc. Professional software used for design and test.
Manhole Cover Series (EN 124) - Maximum load allowed for various classes
- GROUP 1: (class A 15 minimum) Test 1.5 metric ton
Areas which can only be use by pedestrians and pedal cyclists.
- GROUP 2: (class B 125 minimum) Test 12.5 metric ton
Footways, pedestrian areas and comparable areas, car parks or car parking decks.
- GROUP 3: (class C 250 minimum) Test 25 metric ton
For gully tops installed in the area kerbside channels of roads which when measured from the kerb edge, extend a maximum of 0.5m
into the carriageway and a maximum of 0.2m into the footway.
- GROUP 4: (class D 400 minimum) Test 40 metric ton
Carriageway of roads (including pedestrian street), hard shoulders and parking areas, for all types of road vehicles.
- GROUP 5: (class E 600 minimum) Test 60 metric ton
Areas imposing particularly high wheel loads, e.g. docks, aircraft pavements.
- GROUP 6: (class F 900 minimum) Test 90 metric ton
Areas imposing particularly high wheel loads, e.g. Aircraft pavements.
The standard specifies that the designer is responsible for making the appropriate choice of class and where there is any doubt
regarding the class to be used, a higher class should be selected.
1) Solid Cover Series
* Ductile Iron
* Two Lifting Keyholes
* Cut-Corner Design (Regular corner covers are also available)
* Diamond raised top design
2) Double Sealed Series
* Ductile Iron
* Double Sealed
* 2 Lifting Key Holes
* Cut-Corner Design (Regular corner covers are also available)
Some types come with GRP sealing plate.
3) Double Triangular Series
* Ductile Iron
* Double Triangular
* Square Plate raised top design
* Special inscription or different identification is available

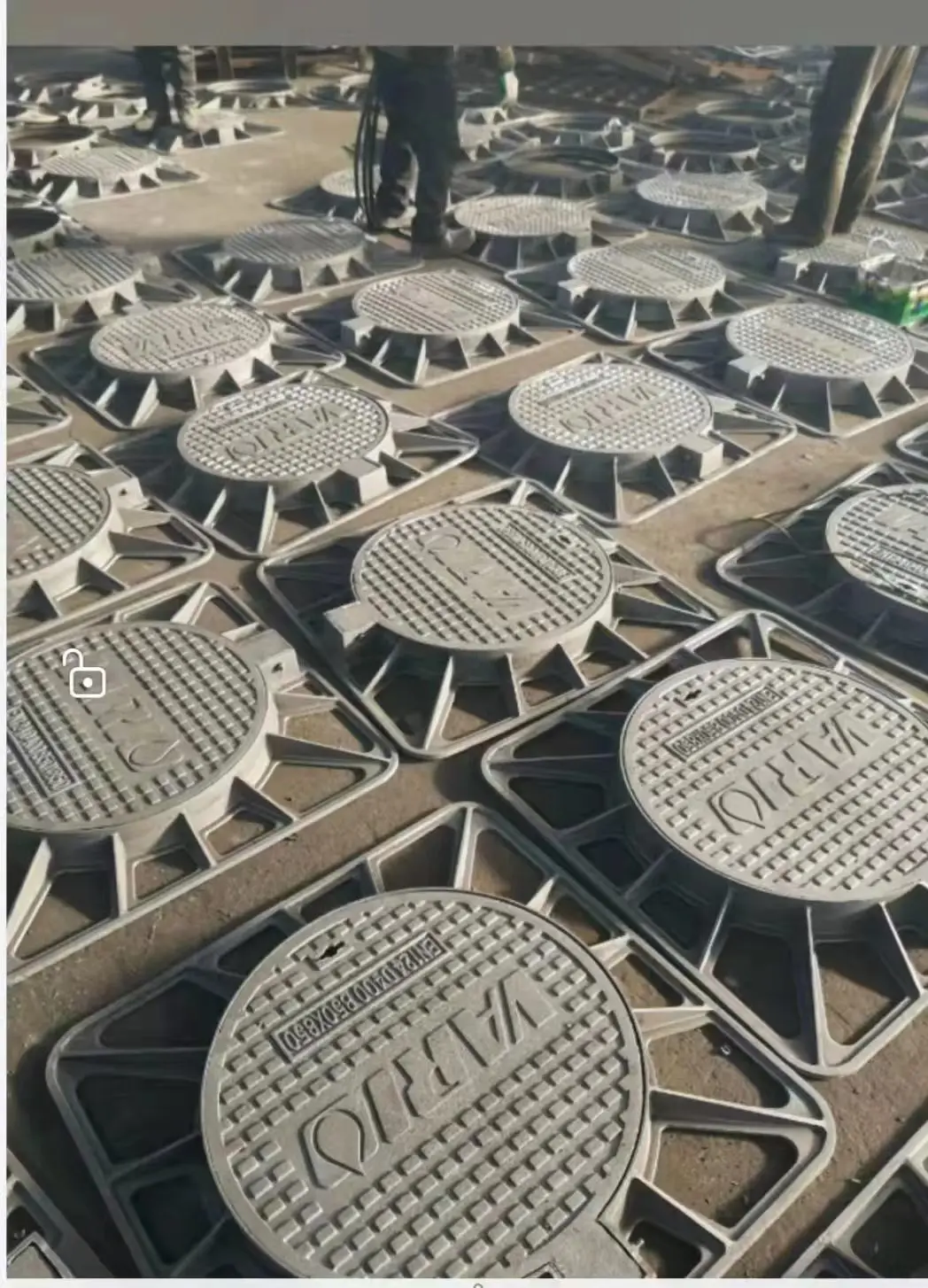

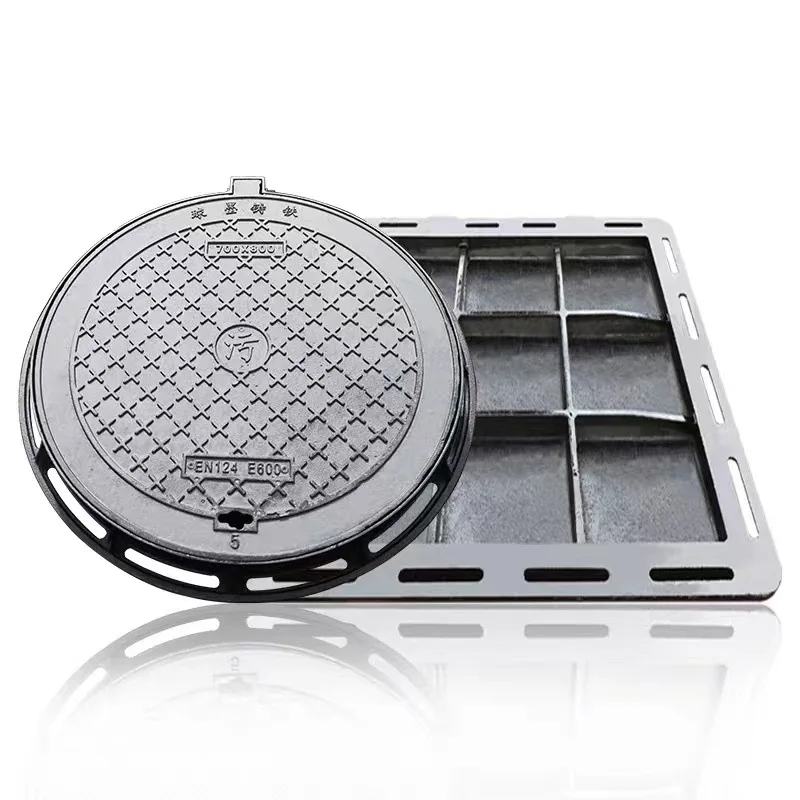

4) Round Cover Series
* Ductile Iron
* Double Triangular
* Square Plate raised top design
* Special inscription or different identification is available
Round frames, Square frames and Octagonal frames are available.
Some types come with GRP sealing plate.
- GROUP 1: (class A 15 minimum) Test 1.5 metric ton
Areas which can only be use by pedestrians and pedal cyclists.
- GROUP 2: (class B 125 minimum) Test 12.5 metric ton
Footways, pedestrian areas and comparable areas, car parks or car parking decks.
- GROUP 3: (class C 250 minimum) Test 25 metric ton
For gully tops installed in the area kerbside channels of roads which when measured from the kerb edge, extend a maximum of 0.5m
into the carriageway and a maximum of 0.2m into the footway.
- GROUP 4: (class D 400 minimum) Test 40 metric ton
Carriageway of roads (including pedestrian street), hard shoulders and parking areas, for all types of road vehicles.
- GROUP 5: (class E 600 minimum) Test 60 metric ton
Areas imposing particularly high wheel loads, e.g. docks, aircraft pavements.
- GROUP 6: (class F 900 minimum) Test 90 metric ton
Areas imposing particularly high wheel loads, e.g. Aircraft pavements.
The standard specifies that the designer is responsible for making the appropriate choice of class and where there is any doubt
regarding the class to be used, a higher class should be selected.
1) Solid Cover Series
* Ductile Iron
* Two Lifting Keyholes
* Cut-Corner Design (Regular corner covers are also available)
* Diamond raised top design
2) Double Sealed Series
* Ductile Iron
* Double Sealed
* 2 Lifting Key Holes
* Cut-Corner Design (Regular corner covers are also available)
Some types come with GRP sealing plate.
3) Double Triangular Series
* Ductile Iron
* Double Triangular
* Square Plate raised top design
* Special inscription or different identification is available
4) Round Cover Series
* Ductile Iron
* Double Triangular
* Square Plate raised top design
* Special inscription or different identification is available
Round frames, Square frames and Octagonal frames are available.
Some types come with GRP sealing plate.
>>Don't know the details?Contact our experienced designers for best suggestions.<<

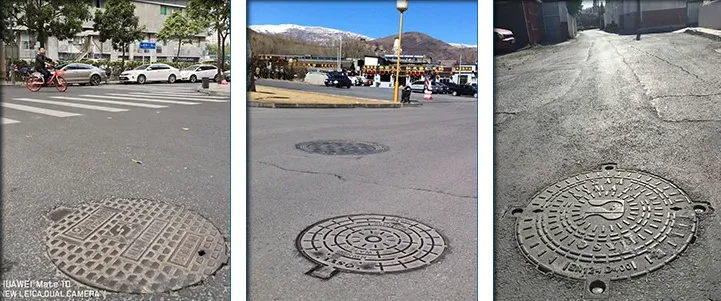

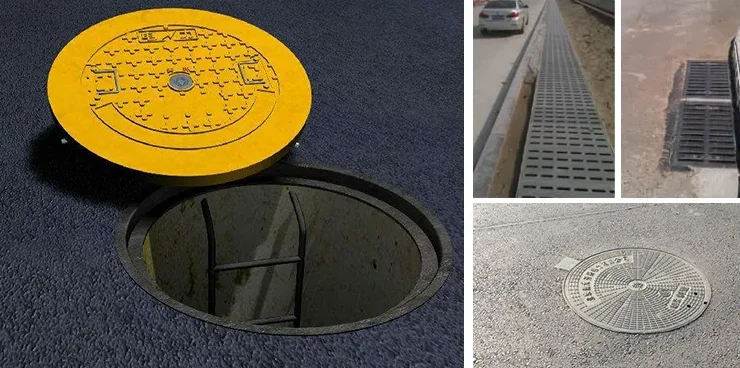

Product Application
contact me!

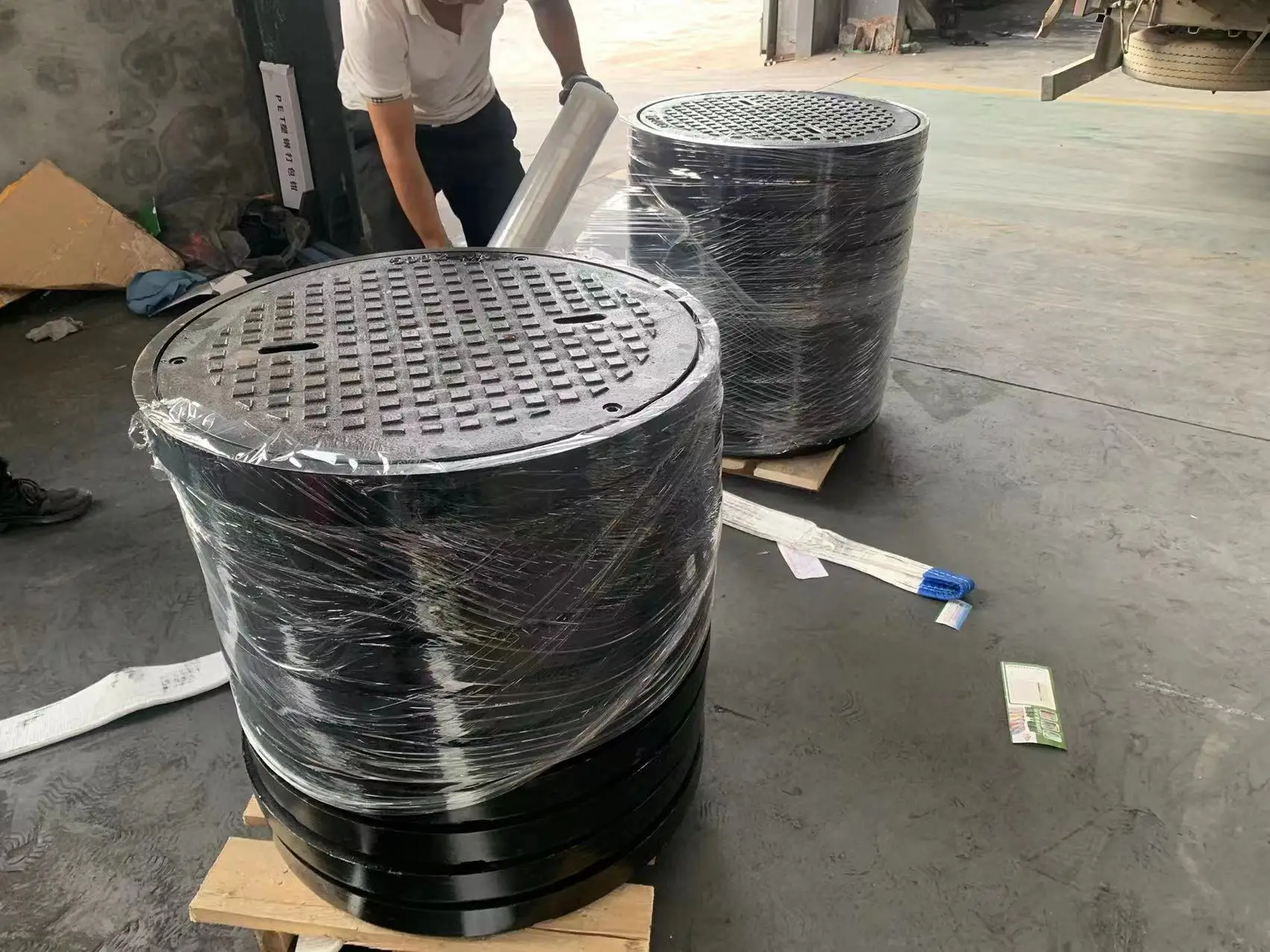

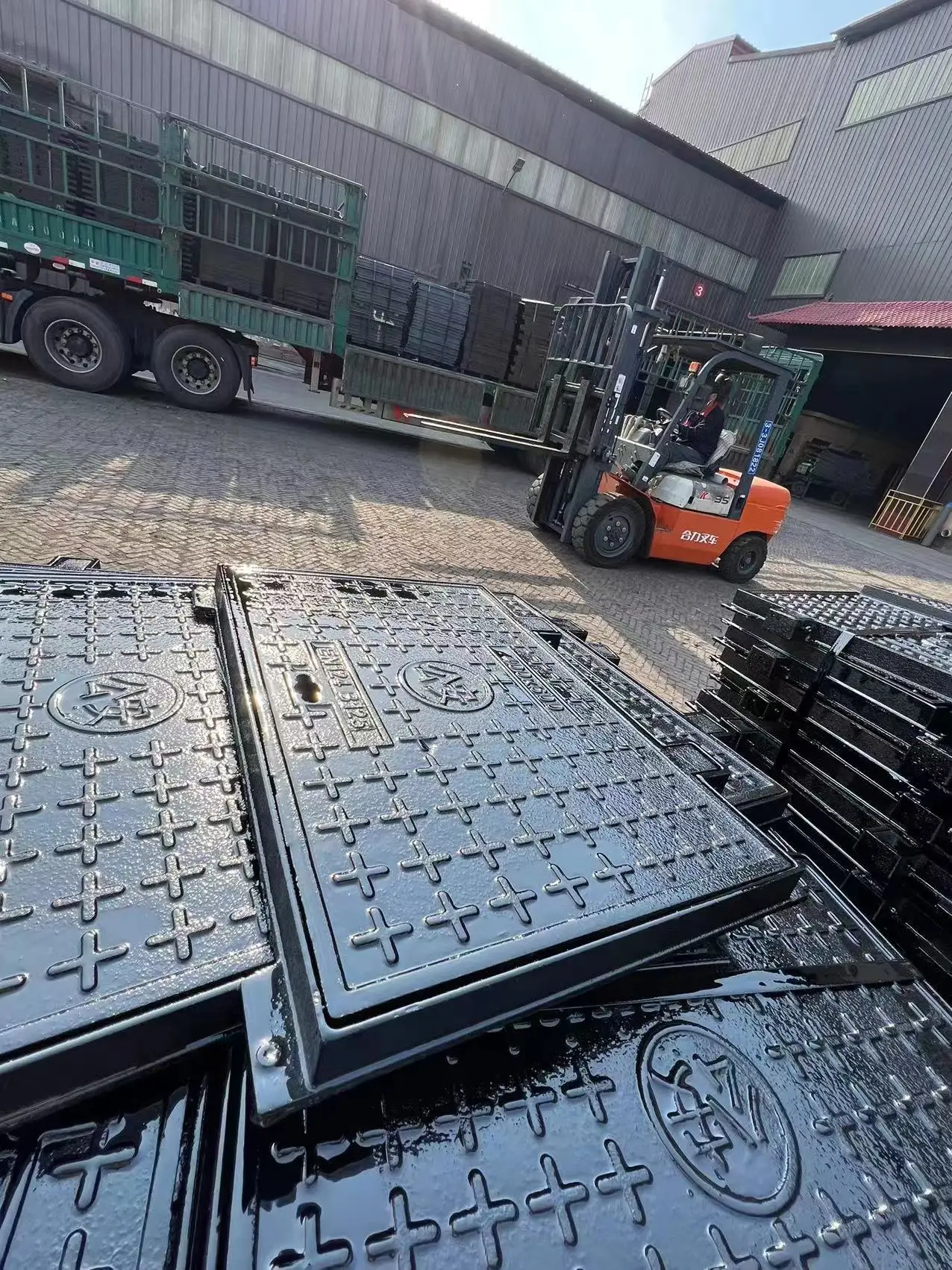

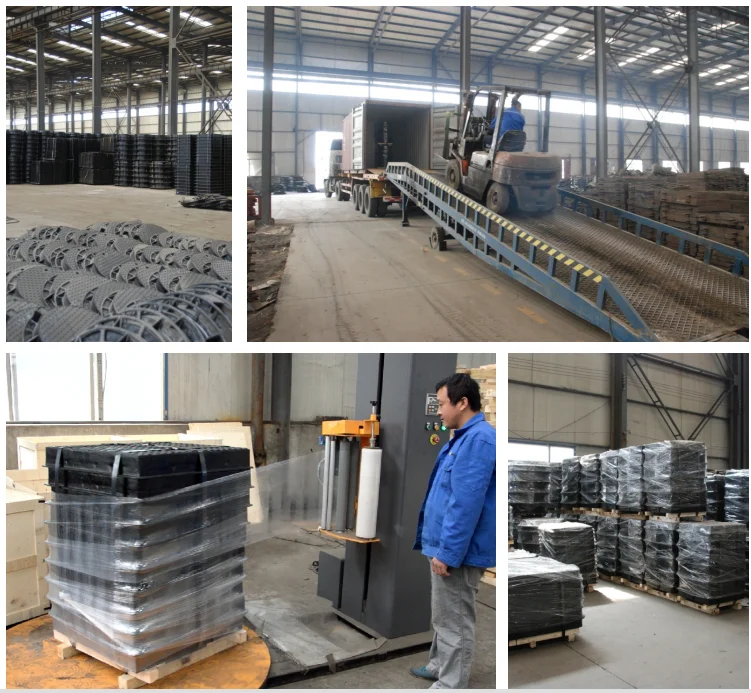

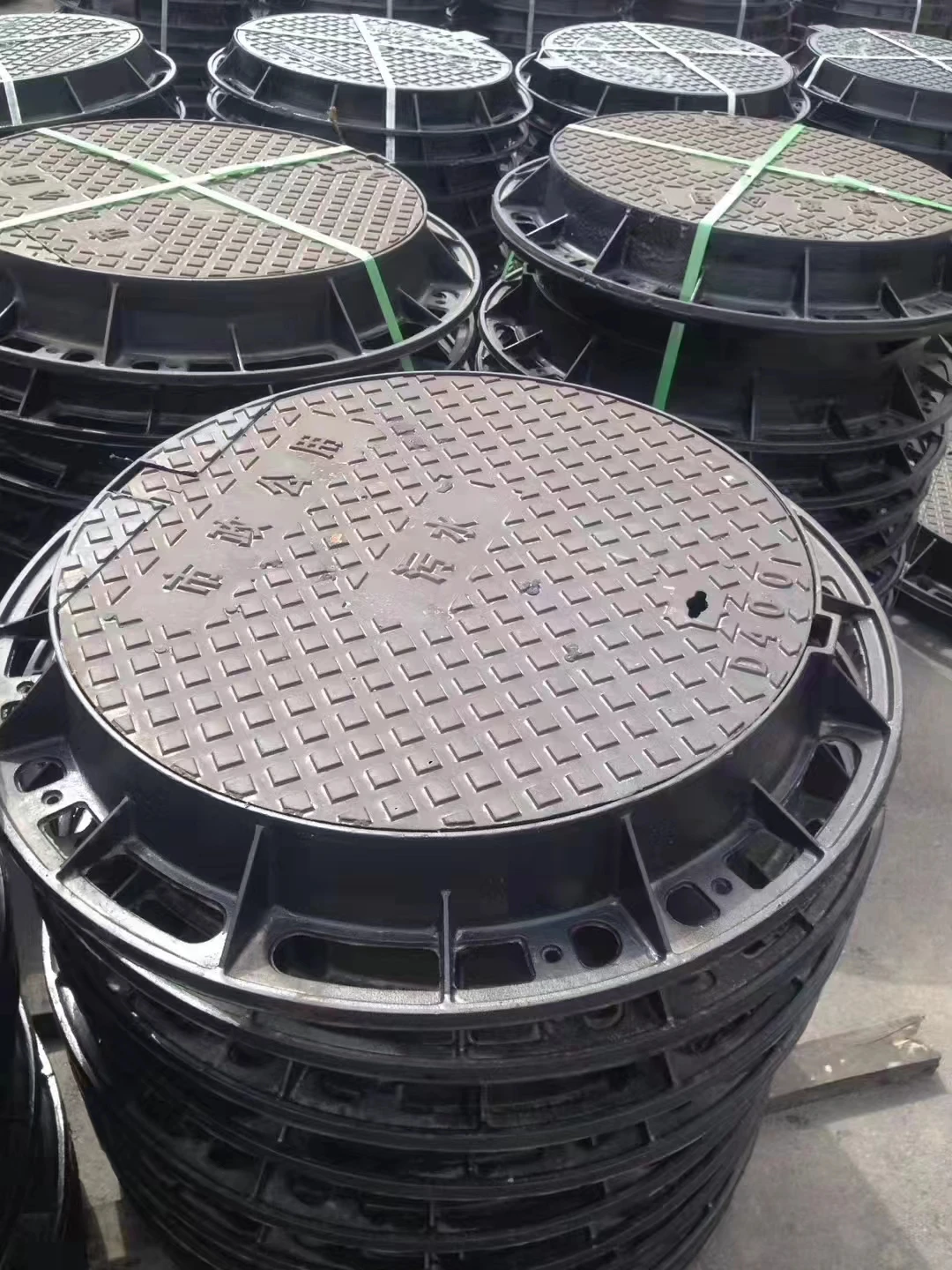

Packing & Shipping
The package: iron or plywood or fimugated wooden pallet, wrap film to keep the clean, the pallet should be enough strong, and it is suitable for the long time sea transportation, and bear with the bumps in transit.
Company Profile
Honghua (Shandong) Steel Group Co.,Ltd. is an integrated company of manufacture and trade with 21 years domestic experience of competitive price steel products, providing one-stop service for global client.Our Main products include steel pipe seamless and welded, galvanized steel coil, steel sheet, PPGI, stainless steel sheet, aluminum coil, angel bar, H steel beam, and deformed steel bar are widely applied to auto industry,household appliances,construction industry,and highway guardrail construction,etc.
Annual sales of more than 50 million tons.Our products has been wildly sold to Africa, Middle East, Southeast Asia , Europe and Australia,including over 50 countries and regions.We have won recognition from our clients due to our good credit and good services.We sincerely welcome friends from all over the world to visit our company and cooperate with us on the basis of long-term mutual benefits.We are looking forward to receiving your enquiries soon!
Our Certificate
FAQ
Q1: Are you trading company or manufacturer ?
A: We are professional manufacturer for steel, and our company also is a very professional a trade company for steel products. we can also provide a wide range of steel products.
Q2:Can you send samples?
A:Of course, we can provide customers with free samples and express shipping service to all over of the world.
A:Of course, we can provide customers with free samples and express shipping service to all over of the world.
Q3: Can provide OEM/ODM service?
A: Yes. Please feel free to contact us for more details discuss.
Q4:What are the certifications for your products?
A:We have ISO 9001, MTC, third parties’ inspections are all available such SGS, COC ,BV,BIS,ABSect.
Q5:Can I go to your factory to visit?
A:Of course, we welcome customers from all over the world to visit our factory, and you can also watch the factory live.

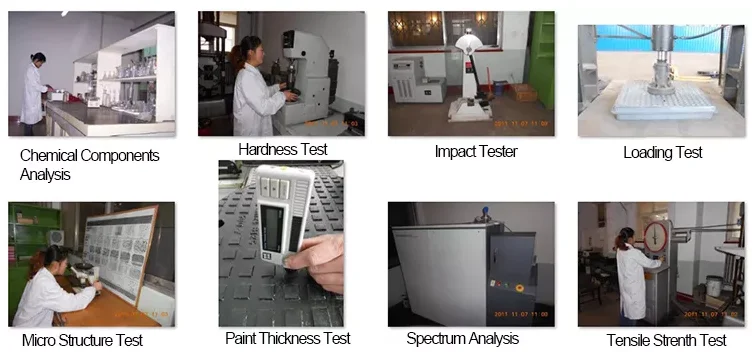

Q6: How to ensure the quality?
A:Mill Test Certificate is supplied with shipment. If needed, a Third Party Inspection is acceptable
A: Yes. Please feel free to contact us for more details discuss.
Q4:What are the certifications for your products?
A:We have ISO 9001, MTC, third parties’ inspections are all available such SGS, COC ,BV,BIS,ABSect.
Q5:Can I go to your factory to visit?
A:Of course, we welcome customers from all over the world to visit our factory, and you can also watch the factory live.
Q6: How to ensure the quality?
A:Mill Test Certificate is supplied with shipment. If needed, a Third Party Inspection is acceptable
Q7: How many countries you already exported to?
A:We have exported to America, Canada, Brazil, Chile, Colombia, Russia, Ukraine, Thailand, Myanmar, Vietnam, India,Kenya,Ghana,somalia and other African countries.Our export experience is rich, we familiar with different market demands, can help customers avoid a lot of trouble.
A:We have exported to America, Canada, Brazil, Chile, Colombia, Russia, Ukraine, Thailand, Myanmar, Vietnam, India,Kenya,Ghana,somalia and other African countries.Our export experience is rich, we familiar with different market demands, can help customers avoid a lot of trouble.
Q8:Why choose our company ?
A:(1)We are specialized in this industry for more than 20 years,you are welcome to investigate in any ways, by all means.
(2) We are the gold supplier on Alibaba com, you could place an order in Alibaba with trade assurance which could secure your payment.
A:(1)We are specialized in this industry for more than 20 years,you are welcome to investigate in any ways, by all means.
(2) We are the gold supplier on Alibaba com, you could place an order in Alibaba with trade assurance which could secure your payment.
Wish You Have A Pleasant Purchasing Time!
GET A DISCOUNT! Contact us now .^_^
