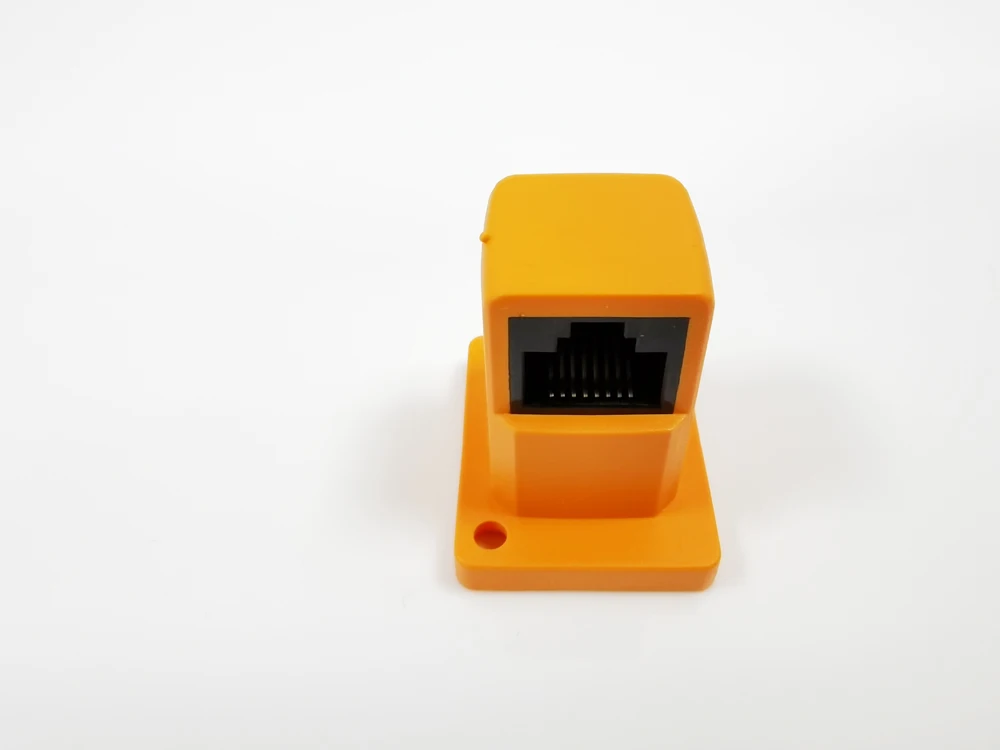

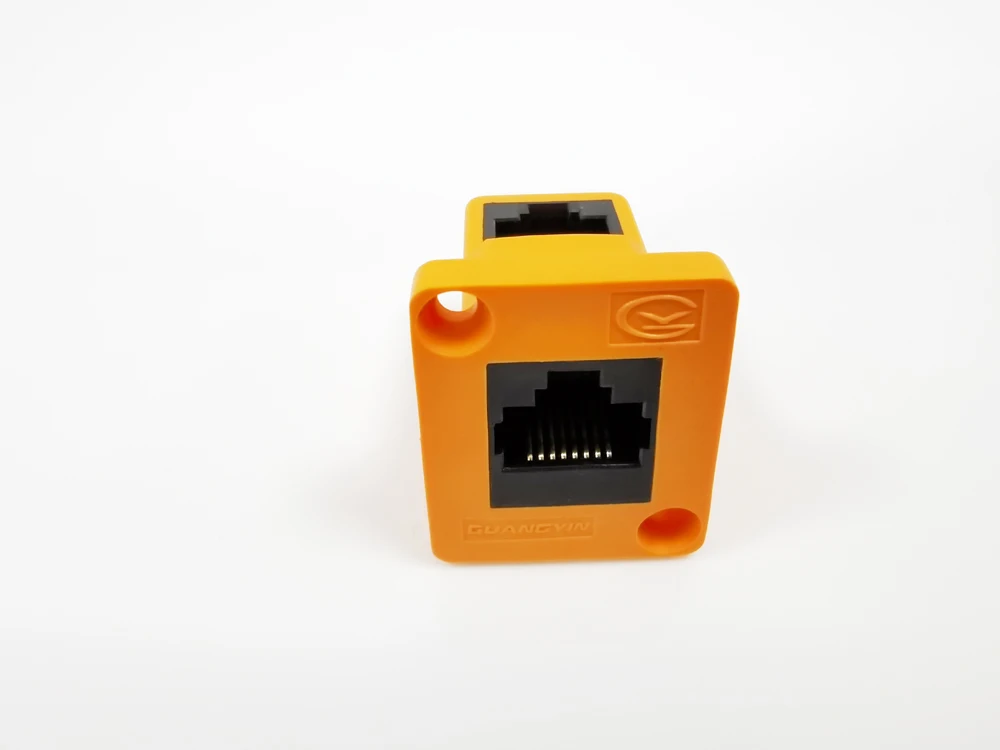

Cat5e 8P8C RJ45 прямой угол соединения Роскошная панель

Cat5e 8P8C RJ45 прямой угол соединения Роскошная панель

Категория: Other Networking Devices >>>
Поставщик: Shenzhen Seiton Tuoda Technology Co. LTD

Цена:0,46 $ - 0,78 $*

Количество:

В избранное

Описание и отзывы

Характеристики

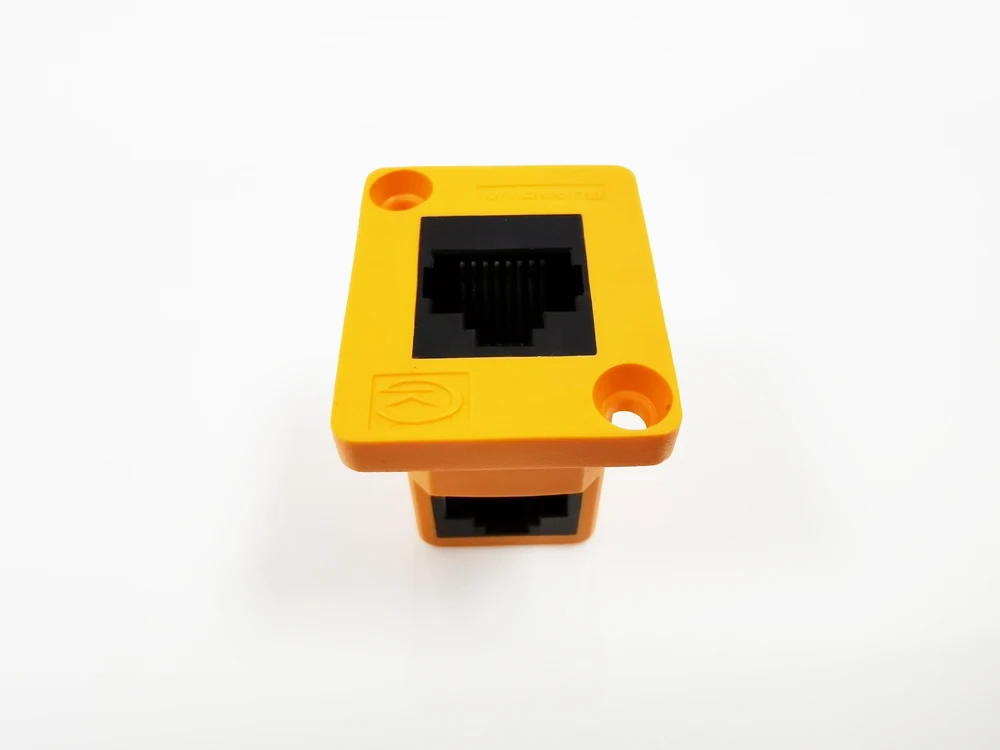

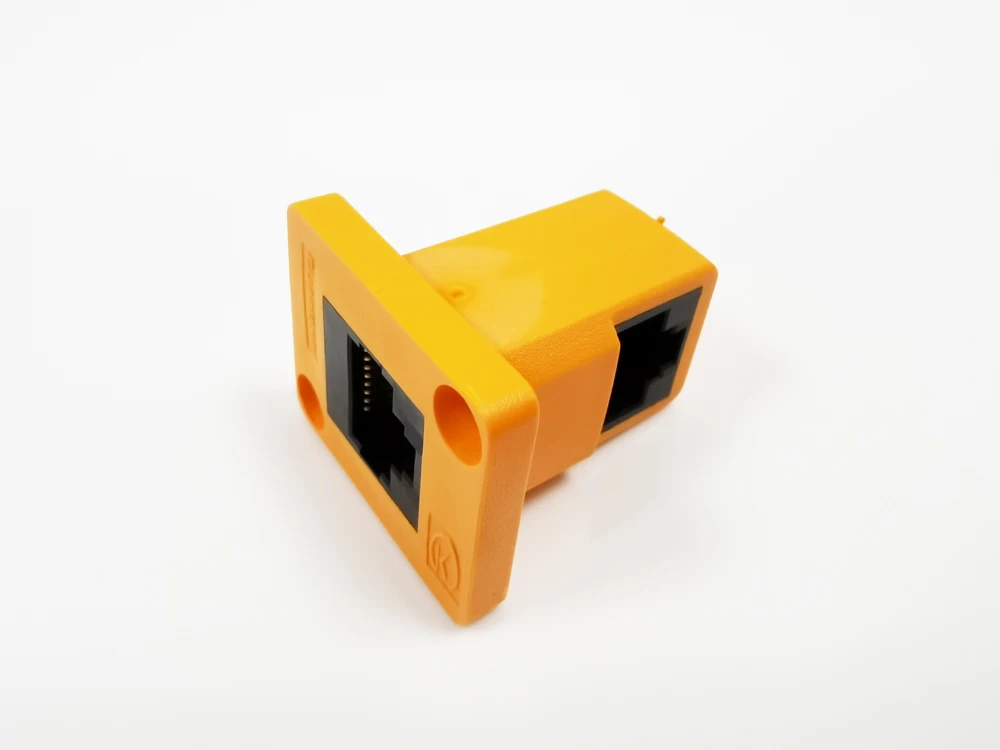

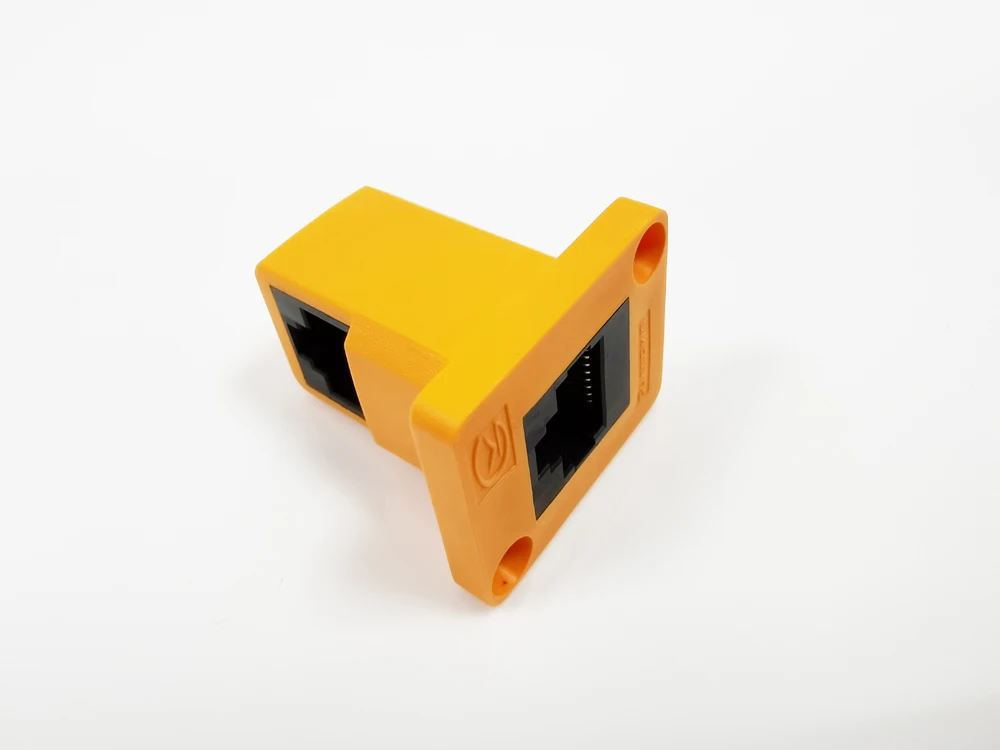

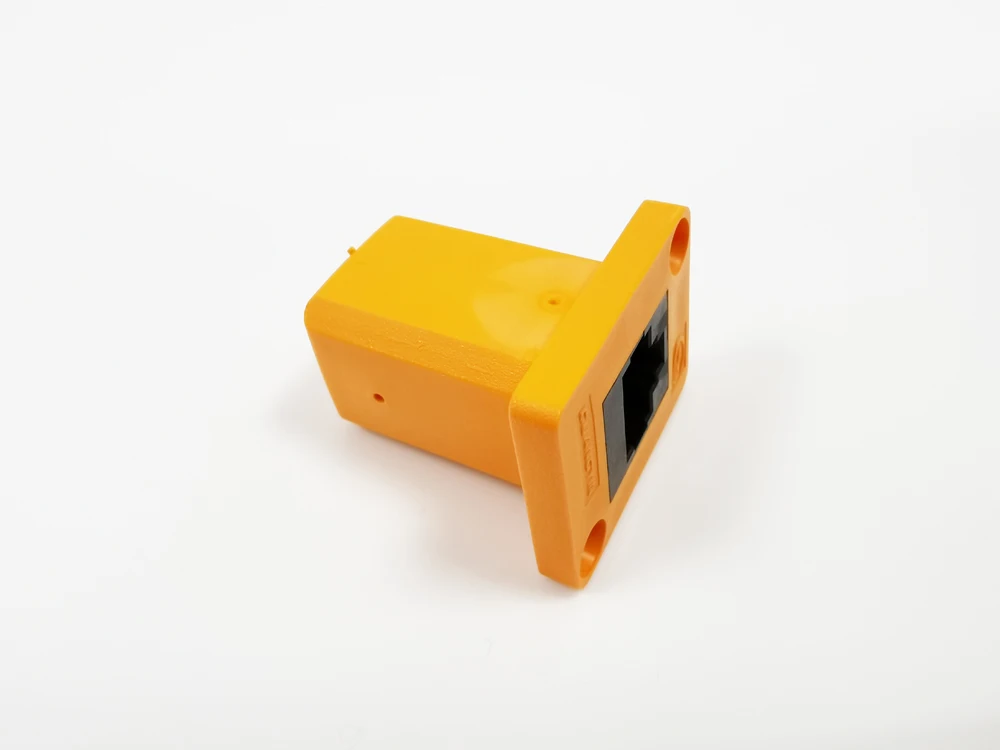

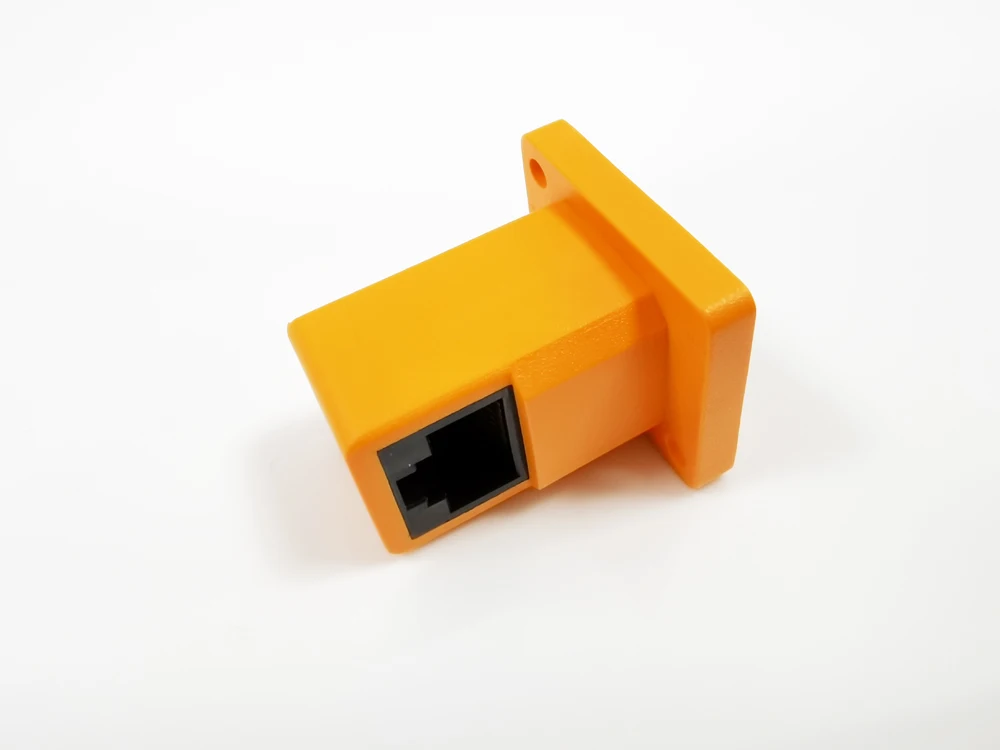

Cat5e 8P8C RJ45 Right Angle Coupler Deluxe Panel Coupler Kit

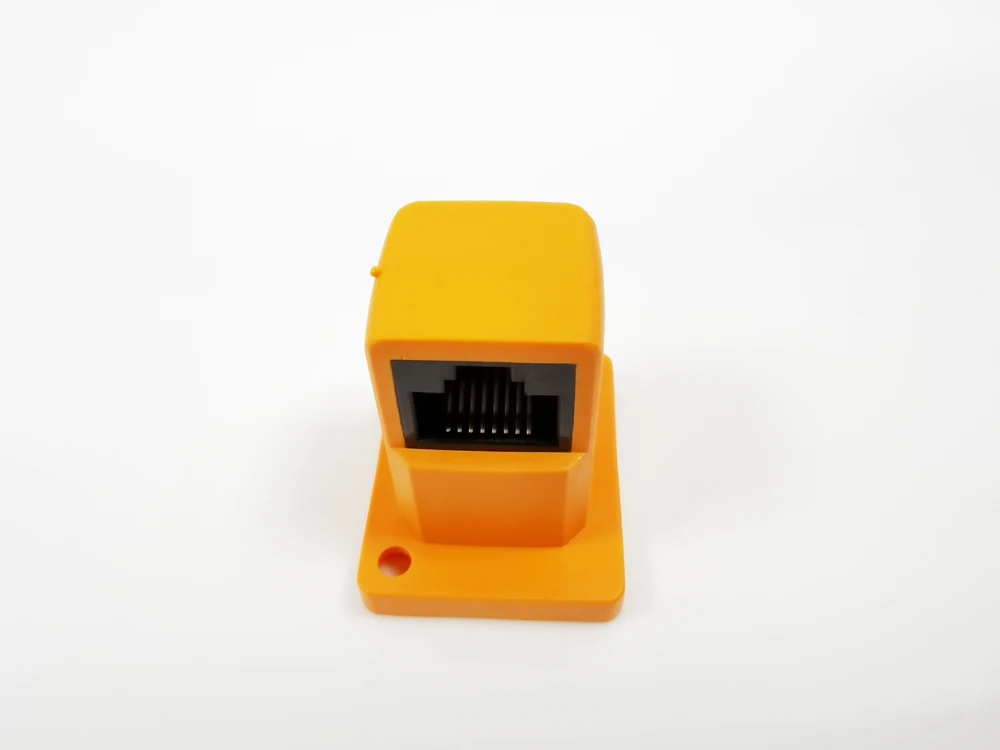

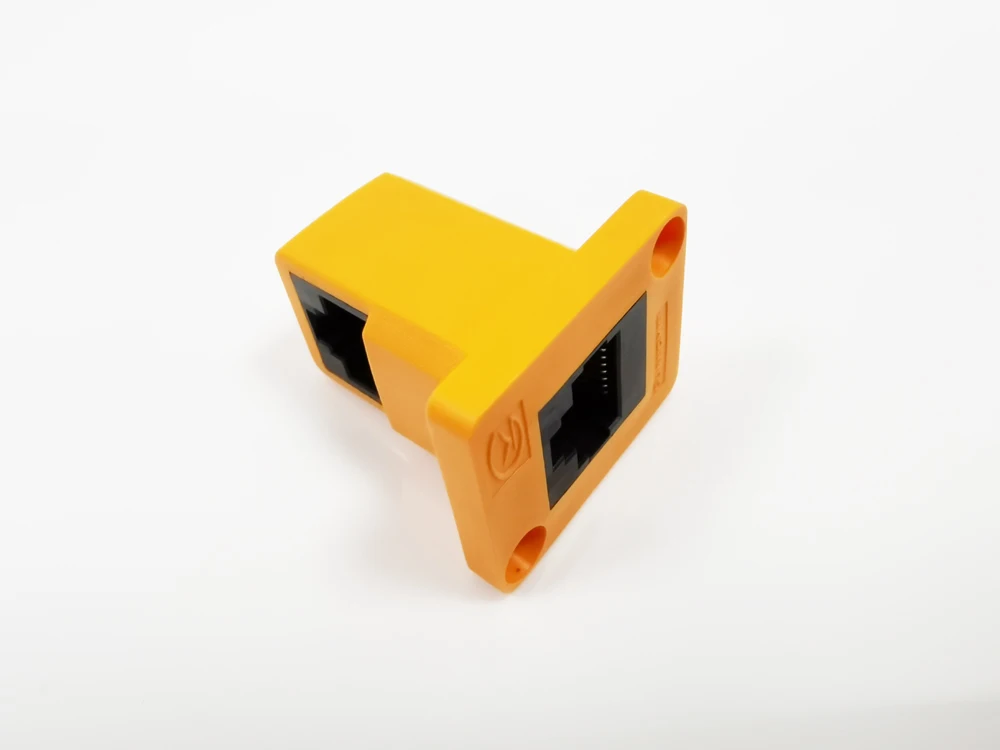

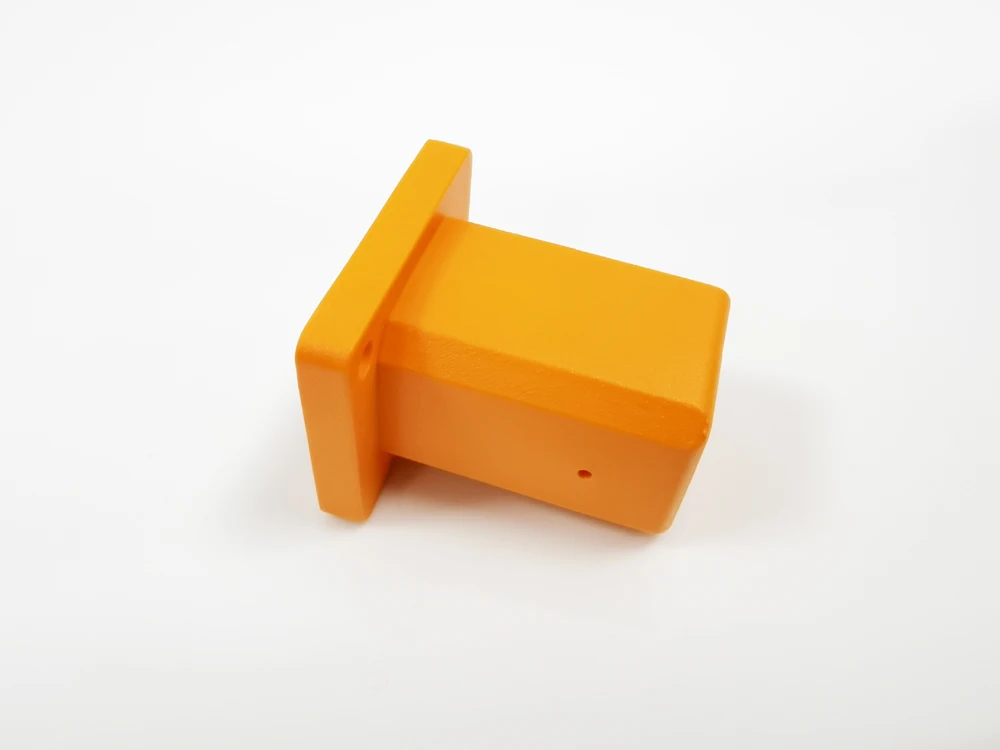

This Cat5e RJ45 Unshielded Panel Mount Style coupler allows the user to mount it to a panel with its versatile design. It features a solid die-cast metal frame, capable of mounting to most panels of virtually any thickness. This coupler is Cat6a rated, meaning it is also backward compatible with Cat3 systems. It is suited to work with EIA/TIA 568A/B wiring, matching most standard wired cables and features 2 female RJ45 ports wired straight through. Right angle port in back allows for easier access in tight networking spaces. Package includes coupler, frame and 4-40 machine screws.

An exclusive product design, these new right angle Cat5e & 6a RJ45 couplers offers true 90° connectivity and meets Category 5e or 6a standards. With a solid die-cast metal mounting frame, these unique RJ45 coupler kits allow panel mounting in virtually any panel thickness. Designed to work with EIA/TIA 568A and B wiring, these right angle RJ45 couplers offer a reliable method to pass high-speed data communication through a chassis or rack panel. RJ45 couplers include a Category 5E or 6a performance rating in both Shielded and Unshielded versions. Kits include a snap-in coupler, mounting frame and 4-40 machine screws.

CONNECTOR :
1. Housing:PBT,BLACK,
2. Contact material:OD=0.3*0.4mm flat needle nickel plating, tin plating, contact area gold plating.
3. Gold plating: 6u” Optional
4. Shielding Shell: NO
5. Shell: PVC Black

Features
EIA/TIA 568A/B compliant insures compatibility and reliability in your application.

RJ45 Female connectors and straight through wiring for network system compatibility.

Flange kit includes a snap-in coupler, mounting frame and 4-40 machine screws.
Fully stamped shielding (where applicable) offers isolation from EMI/RFI.
High Performance Cat 6a or Cat 7 right angle coupler for panel, wall plate and enclosure
mounting.

Application
LAN
Ethernet
MDF/IDF
Premise Wiring

Model:	TD01
Place of Origin:	Guangdong of China
Gold plating	6u” Optional
Product Type :	RJ45 Modular Connector
Jack Type:	RJ45
Number of Positions :	8
Terminals per Port:	8
LED Option:	No
Shielded EMI Tabs:	No
Voltage rating:	125 V
Current rating:	1.5 A
Contact resistance:	30mΩ
Insulation resistance:	500 MΩ MIN @ 500V DC
Dielectric resistance:	1000V AC RMS 50Hz. 1MIN
Durrability:	750 CYCLES MIN
Minimal Order:	2000 pcs
Package:	100pcs/bag
Carton size:	/
Delivery Time:	20 Days
Payment Terms:	T/T, Western Union,Paypal
Supply Ability:	500K/year
