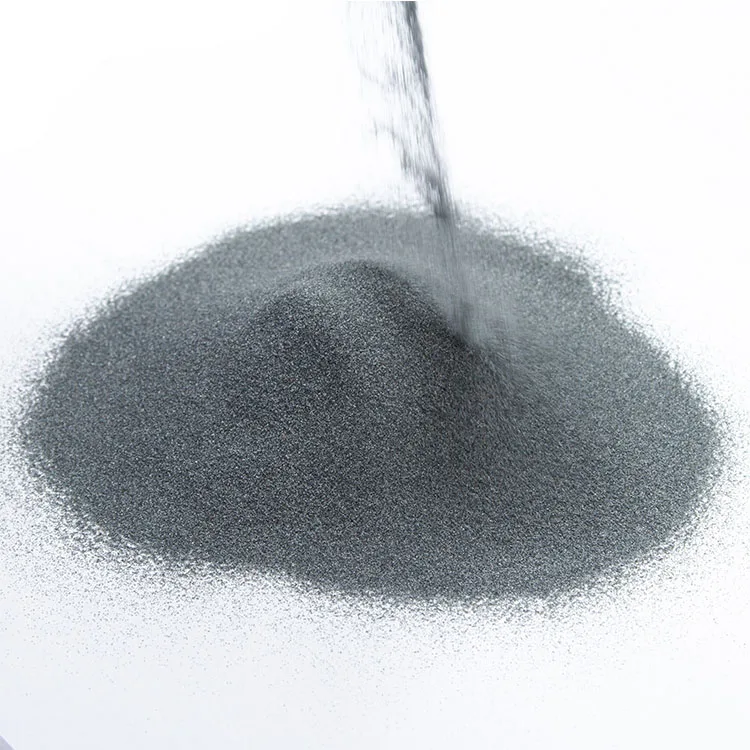

SIC карборунд для гранита, полировальный порошок, сетка F600
1 600,00 $ - 1 800,00 $
12V 24V 2500N электрический линейный привод со скоростью 5 мм/сек 1000 мм ТВ Лифт
- Категория: >>>
- Поставщик: Ningbo Limei Intelligent Technology Co. Ltd.
Сохранить в закладки 1600788935772:
Описание и отзывы
Характеристики
Product Description
Advantage

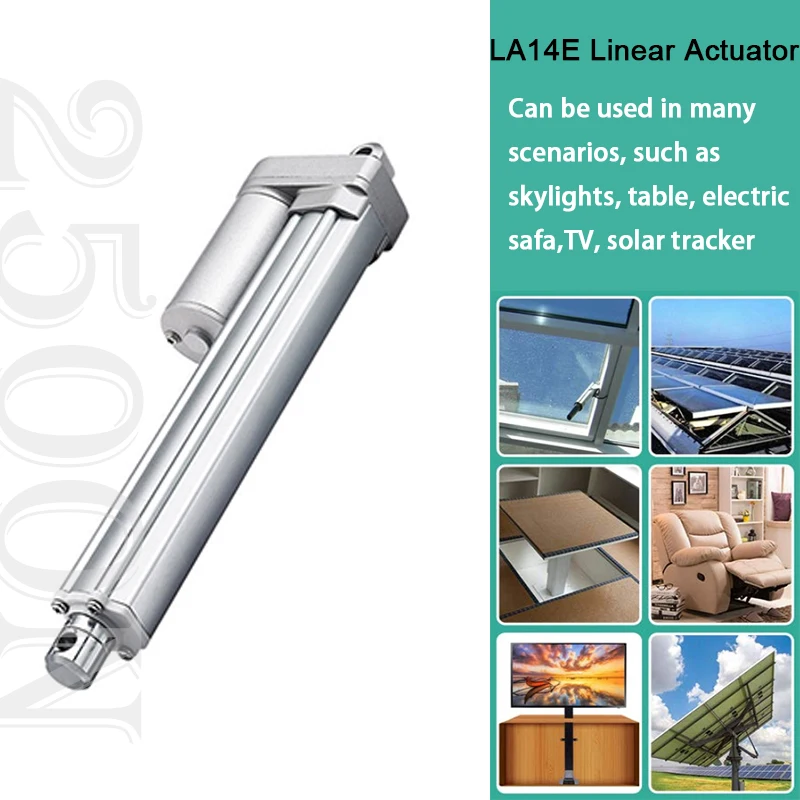

The LA14-E electric Linear Actuator is designed in a small size,with high load capacity and quiet noise,the load is up to
2500N/250KG/550LBS force,100mm/s 4inch/s speed,80inch stroke. The LA14-E actuator is good idea for inner door application as the noise level is 51DB. Internal limited switch deactivate the unit once the piston has reached maximum or minimum stroke,protecting your build.
For full specifications,customization options,and dimension,please check linear actuator descripation or contact with our online engineer service.
The LA14-E electric Linear Actuator is designed in a small size,with high load capacity and quiet noise,the load is up to
2500N/250KG/550LBS force,100mm/s 4inch/s speed,80inch stroke. The LA14-E actuator is good idea for inner door application as the noise level is 51DB. Internal limited switch deactivate the unit once the piston has reached maximum or minimum stroke,protecting your build.
For full specifications,customization options,and dimension,please check linear actuator descripation or contact with our online engineer service.

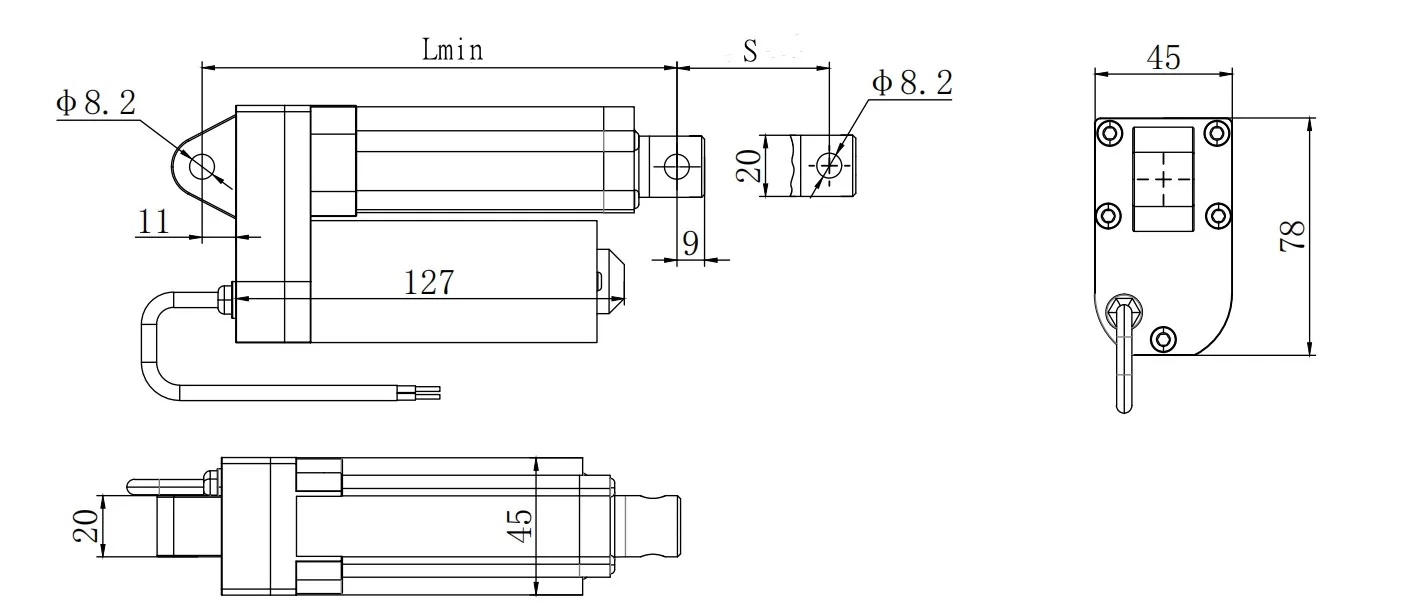

Dimension
Lmin means when the linear actuator completely retracts,the length between the front hole and rear hole.
Lmin=108mm/4.32inch+Stroke. For example 50mm stroke,Lmin=108+50=158mm=6.32inch
Lmax means when the linear actuator completely extends,the length between the front hole and rear hole.
Lmax=Lmin+Stroke
Lmax=Lmin+Stroke For example 50mm stroke,Lmax=158+50=208mm=8.32inch
There is two pcs cable,one is + and another one is -. If the power+ connects cable +,power- connects cable-,the linear actuator will extend,If the power+ connects cable -,power- connects cable +,the linear actuator will retract.
If customers want customized front and rear mounting hole size,Lmin and Lmax size,mounting degree or direction,please leave technical data.
The customers have many different application for linear actuator. We can supply varies of front and rear connector to satisfy your requirements. Here is the drawing.
Force ,Speed &Current
Specification
Type | LA14-E |
Input Voltage | 12VDC, 24VDC,36VDC,48VDC |
Actuator type | mini linear actuaator,small linear actuator,electric linear actuator |
Load | 50 - 2500N/5-250KG/11lbs - 550lbs |
Unload Speed | 4mm/s - 100mm/s. 0.16"/s -4"/s |
Stroke | 20-2000mm / 0.8" - 80" |
Limited switch | bulit in |
Adjustable limited switch | customizable |
Limited switch feedback | customizable |
Position signal feedback | Limited switch,Potentiometer, Hall Effect(Hall Sensor) |
Screw type | ACME or Ball screw |
Motor type | Brush DC motor |
Inner tube material | Aluminum or customizable |
Gear material | Metal |
Housing material | Metal |
Control system | synchronous control unit options |
Retracted Length | 108+Stroke|4.32inch+Stroke or customizable |
Extended Length | 108mm+2*Stroke|4.32inch+2*Stroke or customizable |
Duty Cycle | 25% , Max 2mins. Continuous use , 18mins rest |
IP Grade | IP54 IP65 or customizable |
Operational Temperature | -25°C to 65°C (-13°F to 149°F) |
Color | Silver |
Cable Length | 1000mm / 40inch (Customizable) |
Noise | Less than 51DB |
Mounting bracket | customizable |
Certificate | CE , Rohs |
Warranty | 12 Months |
Package Info
How to order linear actuator
How to order linear actuator
A linear actuator type LA10-E
A Power Eg. 12V or 24V or 36V
B Load Eg. 1000N or 500N or customizable
C Noload speed Eg 5mm/s or 10mm/s or customizable
D Stroke Eg 50mm or 100mm or customizable
E Retracted length or customizable
F Cable length 1000MM or customizable
G Other customized technical data
Recommend Products
There are different controller fors linear actuator,such as speed controller,adapter,control unit,wire remote and wireless remote. We also provide DC controller,the input is 12V/24V/36V/48V/96V and output 12V/24V/36V/48V/96V. If your power is 110V-240V AC,you can select our R2 series control system.
For customized controller,we needs more technical data.
We produce many types mounting bracket. If you want customized parts,you can send us drawing.
FAQ
Are you manufacturer?
Yes,we have been focused on manufacturing linear actuator,lifting column,handset,control system,tv lift with more than 18 years experience. Welcome to visit us.
Yes,we have been focused on manufacturing linear actuator,lifting column,handset,control system,tv lift with more than 18 years experience. Welcome to visit us.
Where is your factory?
Ningbo City,in south of Shanghai city,1.5 hours to Shanghai by high speed train.
What’s your advantage?
Good quality,good price and good after sales service. We have rich experienced engineer team,automatic
machine and professional quality management sytem. If the quality is poor,we will lose all customers and market. We offer competitive product price to customer,besides,the logistics department will offer best shipping solution,in order to reduce cost for clients. After delivering order,we think our cooperation just starts,it is our duty to provide after sales service.
To achieve synchronous motion control, you will require signal feedback. We offer position signal feedback in the forms of potentiometer,or hall effect sensors.
Will temperature affect Linear Actuator?
Temperature may be a factor in the functionality of your linear actuator. Please ensure that you use your actuator within the specifications advised in the product datasheet. If you have a specific query related to an actuator and temperature, please check it with us before ordering.
I don't have a power source – What can I do?
We have a range of AC TO DC or DC TO DC power supplies to choose from in our catalog. As the majority of our actuators are powered by 12 VDC, 12 VDC automotive battery is also a good solution,too. Please ensure the connected devices will provide sufficient current to linear actuator.
Can you supply us AC adapter?
Yes,most of our power supplies can be converted up to 230 VAC. To browse our power supply range
Can you change rear hole direction?
Yes,we can supply customized direction.
Does my Linear Actuator come with Mounting Brackets ?
No, all of our mounting brackets are sold separately. We do produce compatible mounting brackets for each of our linear actuators.
How long is be shipped?
For sample order , We will shipping out the goods within 7 working days after we check your complete order
For Bulk order , the delivery time may take approximately 10 to 20 working days depending on your product specifications and quantity.
Company Profile
We are professional manufacturer of linear actuator,lifting column,TV lift and office desk. Our first factory was founded in
2006.We have rich experience engineer,big CNC machine,injection molding machine,Electric welding machine,Laser cutting machine,automatic production line,industrial camera,noise test room and quality control machine.
2006.We have rich experience engineer,big CNC machine,injection molding machine,Electric welding machine,Laser cutting machine,automatic production line,industrial camera,noise test room and quality control machine.
Our customers are from
Japan,Korea,USA,Germany,France,Italy,Sweden,Swistherland,Netherlands,Russia,Canada,Brazil,Chile,Iran,UAE and
other countries.
For heavy industry application,our linear actuator is up to 50000N/5000KG/11000LBS load. The max speed is 230mm/second. Many customers require linear actuator with potentiometer,hall sensor,encoder position signal feedback,our H and P and E series are best choice. We also supply linear actuator with quiet noise,less than 50 DB and with powerful load capacity. For micro linear actuator,we recommend hot sell type LA-T8,it is mini and smart. The body size is almost as small as one finger. In order to satisfy marine application,we have developed IP67 linear actuator,it is waterproof.
For customized service,you can contact with our online service.
We are here for you. It is our honor if we can cooperate together.
Japan,Korea,USA,Germany,France,Italy,Sweden,Swistherland,Netherlands,Russia,Canada,Brazil,Chile,Iran,UAE and
other countries.
For heavy industry application,our linear actuator is up to 50000N/5000KG/11000LBS load. The max speed is 230mm/second. Many customers require linear actuator with potentiometer,hall sensor,encoder position signal feedback,our H and P and E series are best choice. We also supply linear actuator with quiet noise,less than 50 DB and with powerful load capacity. For micro linear actuator,we recommend hot sell type LA-T8,it is mini and smart. The body size is almost as small as one finger. In order to satisfy marine application,we have developed IP67 linear actuator,it is waterproof.
For customized service,you can contact with our online service.
We are here for you. It is our honor if we can cooperate together.
Похожие товары
Впускной коллектор Xintian OE 0248L1 1479837 3M5Q6K271AC подходит для всех моделей дизельных двигателей 1,6 л Citroen Peugeot 206 Ford Mazda Volvo
11,29 $ - 13,88 $

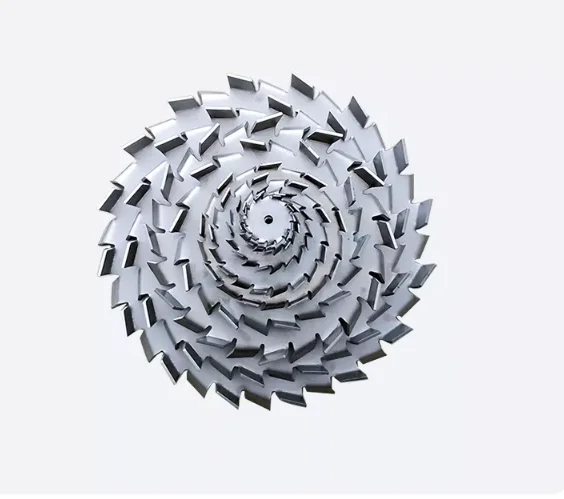

Дисковый смеситель с пропеллером, дисперсионный диск для дисков пилы типа Sus, диспергирующая пластина, лопасть для краски, мешалка с вентилятором, мешалка
8,00 $

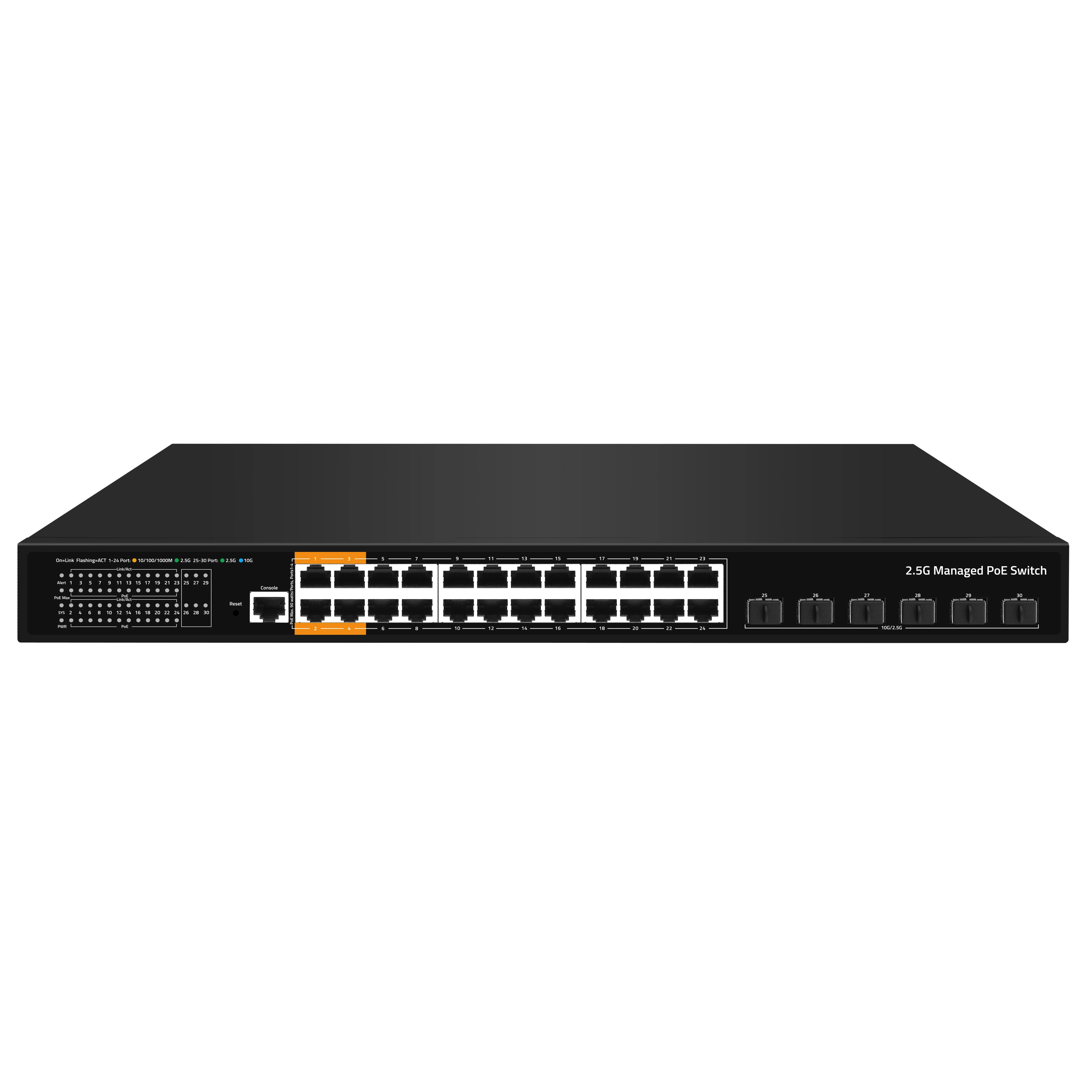

Заводской новый тип 4/8/16/24/48 порт 2,5 г/10 г умный управляемый 10 г управляемый переключатель l2 sfp
260,00 $ - 298,00 $
CS3503 линейный элемент Холла переключатель Датчик интегральная схема прямой штекер TO-92UA шелкографии 503 в наличии
0,12 $

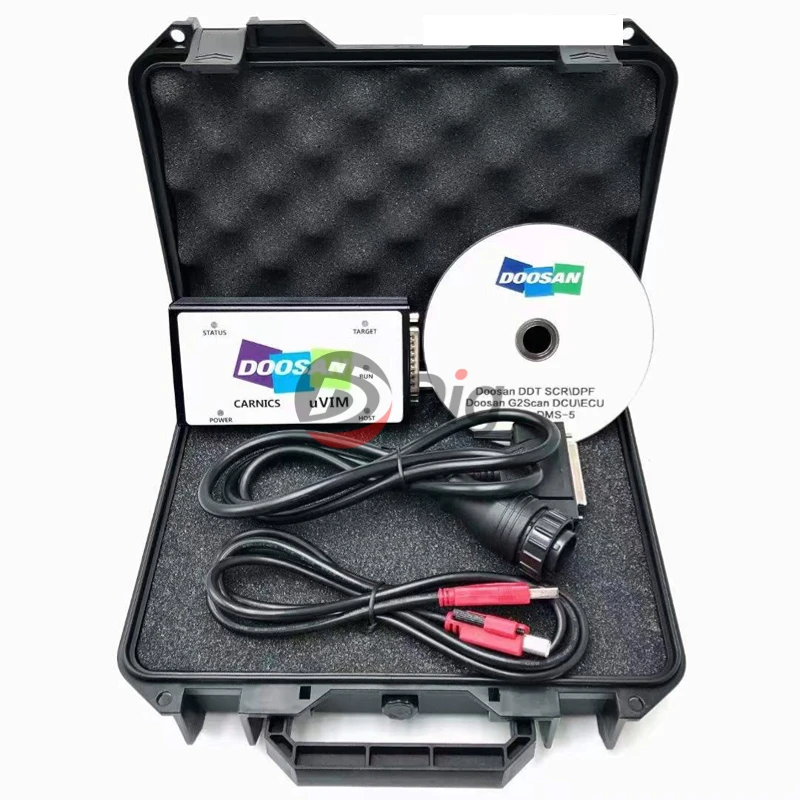

Высококачественный диагностический инструмент DL06 DL08 двигатель Коммуникационный адаптер для Doosan экскаваторы
280,00 $ - 310,00 $

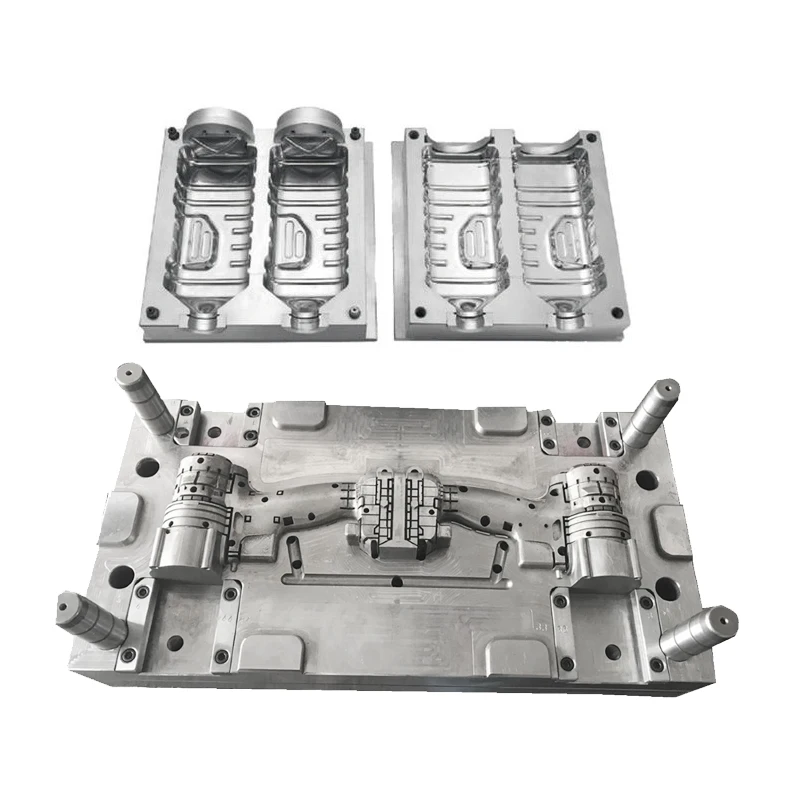

Производство Kmier инъекционная Преформа мягкая пластиковая бутылка изготовленная на заказ форма eva производитель пластиковых литьевых колес запасная Кнопка

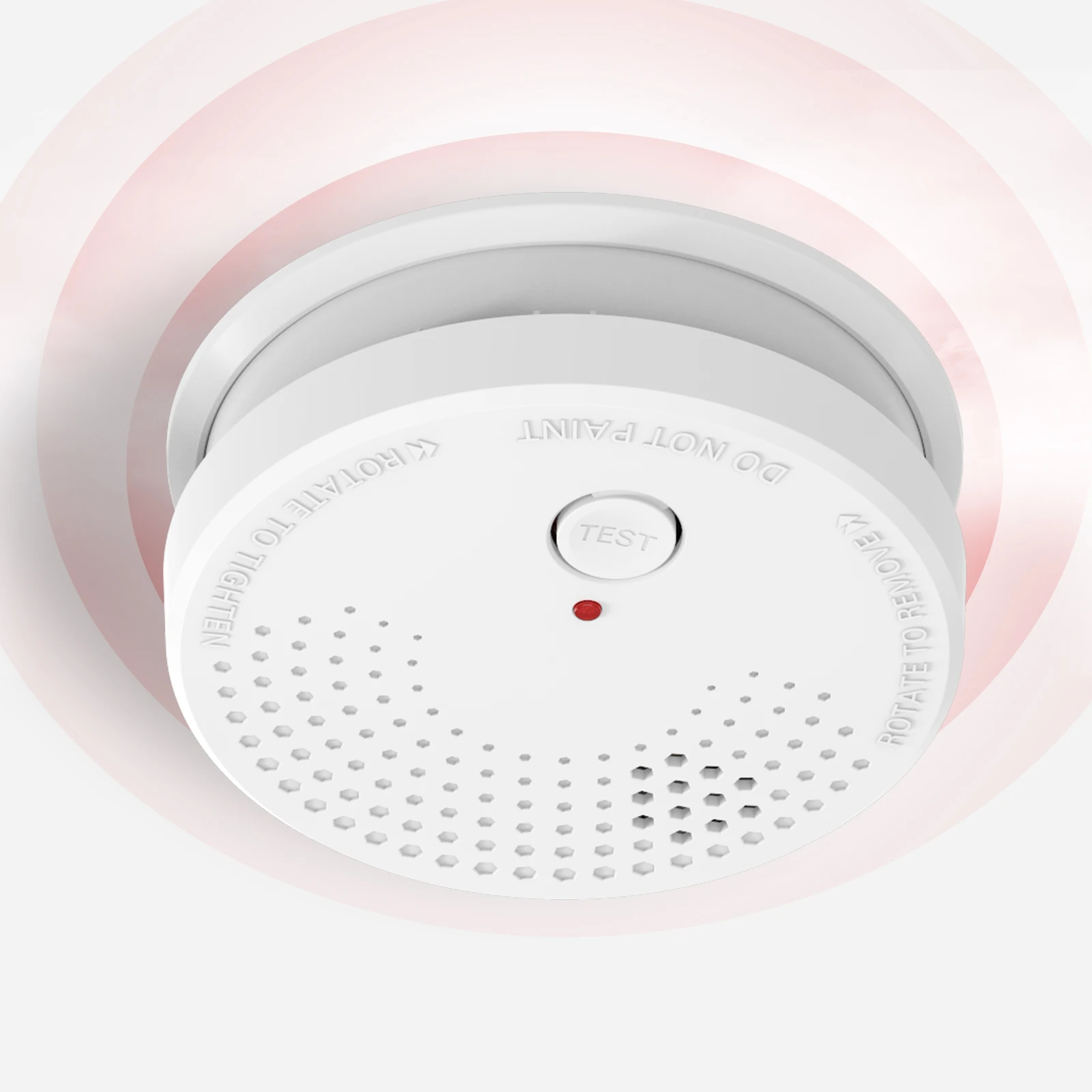

Автономный детектор дыма сирена для дома мини-размер ультратонкий Oem/odm En14604 Чувствительный датчик
