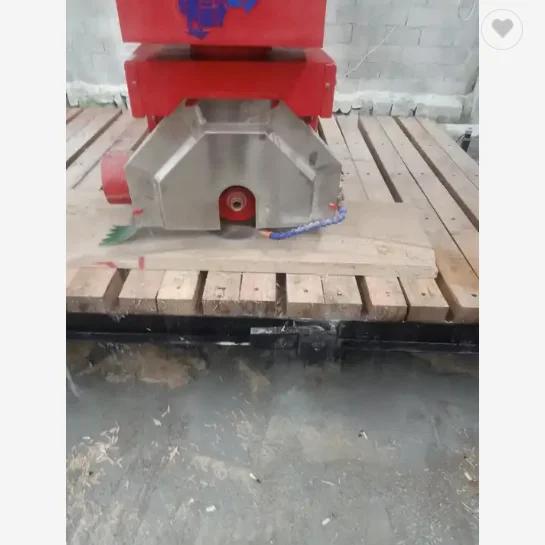

Машина для резки мрамора JINYOU TANK 600 с высокой точностью обработки 5 осевая машина моста гранитных мраморных камней
- Категория: >>>
- Поставщик: Jinjiang Jinyou Machinery Co. Ltd.
Сохранить в закладки 1600790521755:
Описание и отзывы
Характеристики
Product Overview

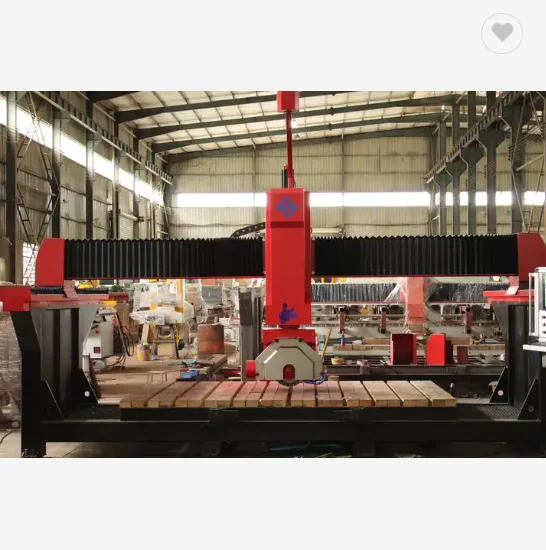

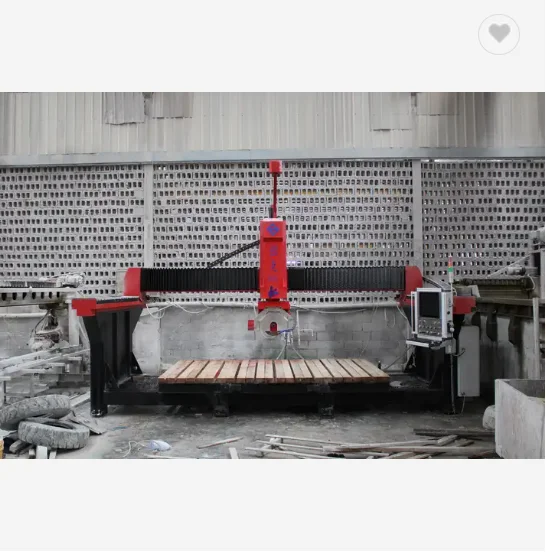

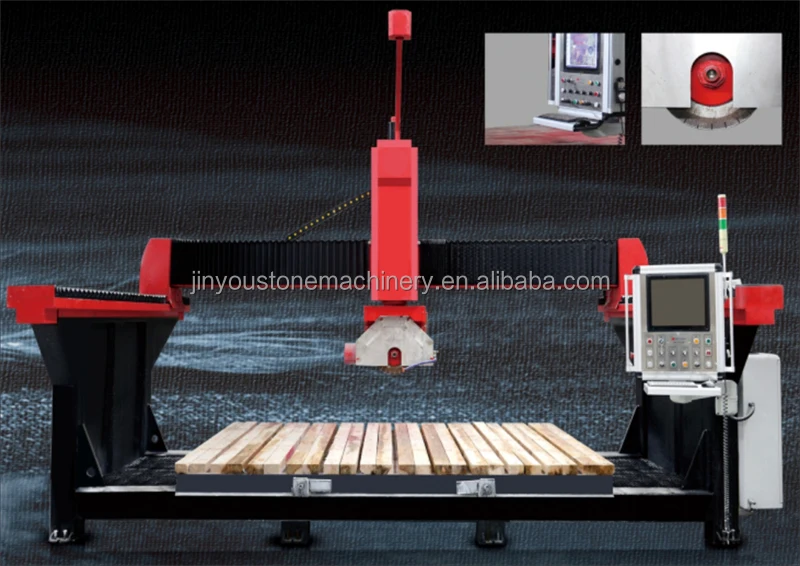

Five axis cnc bridge saw machine
Jinyou five-axis integrated bridge-cutting machine has the functions of transverse cutting and
longitudinal cutting, arbitrary chamfering of 0-90 degrees, circular, elliptical, fan-shaped, and irregular typesetting. It can be
used for cutting granite, quartz stone, slate, ceramic tile, marble and other materials.
longitudinal cutting, arbitrary chamfering of 0-90 degrees, circular, elliptical, fan-shaped, and irregular typesetting. It can be
used for cutting granite, quartz stone, slate, ceramic tile, marble and other materials.
FEATURES AT A GLANCE
It aims to solve the problem of time-consuming, labor-intensive and high cost of high-end technology in the production process of stone countertops. It is currently widely used in the processing of various stone countertops, such as kitchen countertops, bathroom countertops, bar island countertops, coffee table surfaces, stone tabletops,etc.
Right elevation
Left elevation
Front elevation
PRODUCT SPECIFICATIONS
No | Item | Data |
1 | Name | five axis cnc bridge saw cutting machine |
2 | Blade diameter | 350-500mm |
3 | Blade rotate degree | 0-360° |
4 | Blade tilt degree | 0-90° |
3 | Worktable size | 3200*2000mm |
4 | Worktable tilt degree | 0-85° |
5 | Main motor power | 15kw |
5 | Control system | CNC |
6 | Water consumption | 4m³/h |
high power cutting ability
high cutting precision

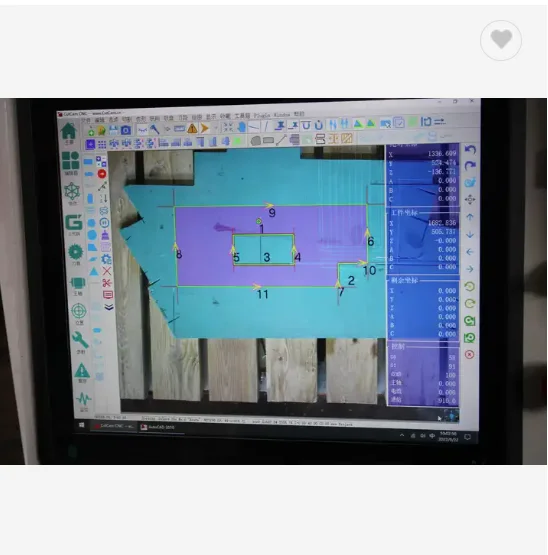

easy shape input
Products Description
1. Full 3D design and stress analysis, CNC machining modular assembly.
2. The selected accessories are excellent, greatly improving the reliability and
stability of the machine, and ensuring the continuous operation of the machine.
3. Bed body and gantry structure: the overall high-quality steel is welded and tempered
to ensure that the machine will not produce stress and deformation during long-term use.
4. High-precision lead screw and guide rail: the lead screw and guide rail used are
imported. Oil-immersed lubrication method for X and Y axes. In addition, the effective waterproof and dust-proof structure
ensures the high precision of processing, and greatly extends the service life of the lead screw and guide rail.
5. Fixing method: suction cup/batten
6. After tempering treatment, all relevant accessories are processed with CNC one-time
clamping precision to ensure the overall accuracy of the machine.
7. It adopts CNC system and human-machine interface, combined with high-precision
magnetic ruler and infrared device, uses frequency converter to control the left and right feeding, and adjusts the speed
according to the stone. It adopts hydraulic lifting system, and its main parts are made of imported high-quality materials,
such as Schneider brand and Omron brand; The whole machine has high cutting efficiency, high slicing accuracy, high flatness,
good stability and easy operation after cutting.
2. The selected accessories are excellent, greatly improving the reliability and
stability of the machine, and ensuring the continuous operation of the machine.
3. Bed body and gantry structure: the overall high-quality steel is welded and tempered
to ensure that the machine will not produce stress and deformation during long-term use.
4. High-precision lead screw and guide rail: the lead screw and guide rail used are
imported. Oil-immersed lubrication method for X and Y axes. In addition, the effective waterproof and dust-proof structure
ensures the high precision of processing, and greatly extends the service life of the lead screw and guide rail.
5. Fixing method: suction cup/batten
6. After tempering treatment, all relevant accessories are processed with CNC one-time
clamping precision to ensure the overall accuracy of the machine.
7. It adopts CNC system and human-machine interface, combined with high-precision
magnetic ruler and infrared device, uses frequency converter to control the left and right feeding, and adjusts the speed
according to the stone. It adopts hydraulic lifting system, and its main parts are made of imported high-quality materials,
such as Schneider brand and Omron brand; The whole machine has high cutting efficiency, high slicing accuracy, high flatness,
good stability and easy operation after cutting.

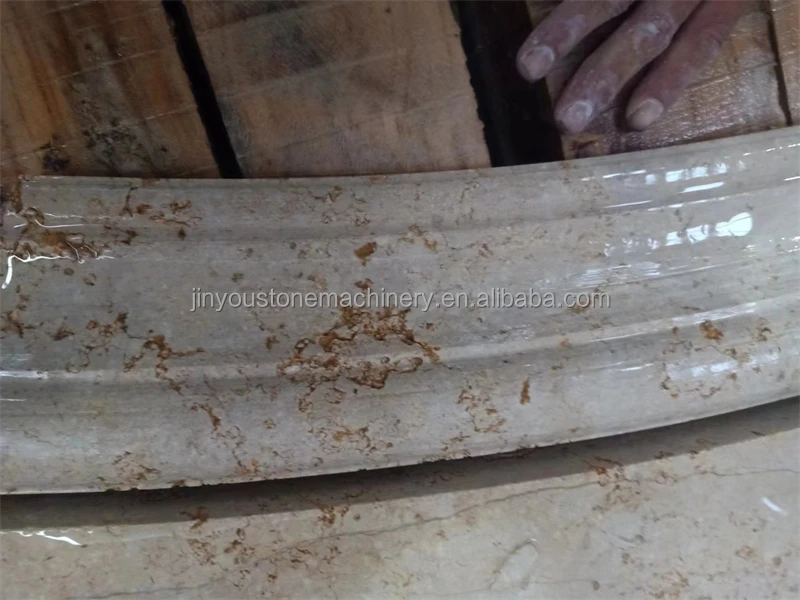

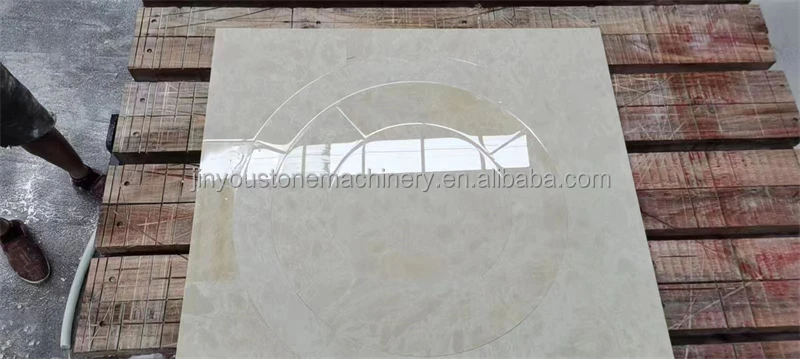

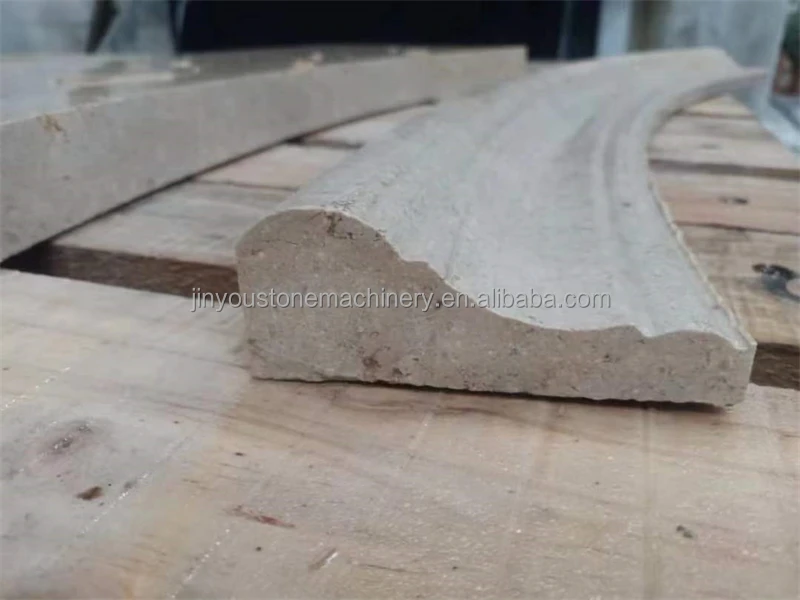

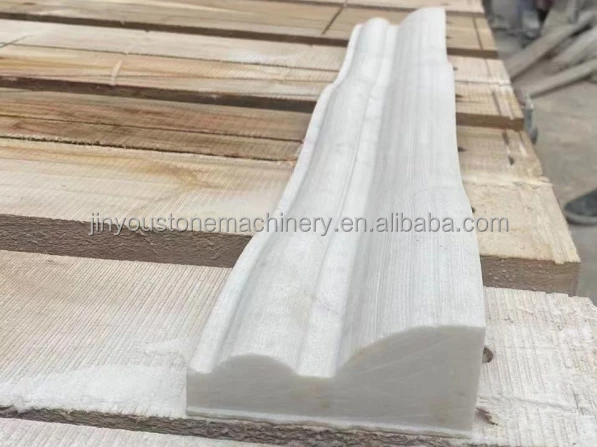

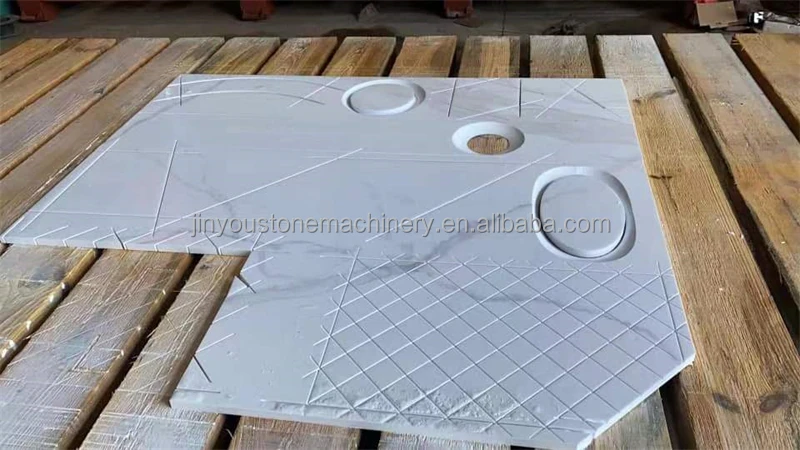

Details Images

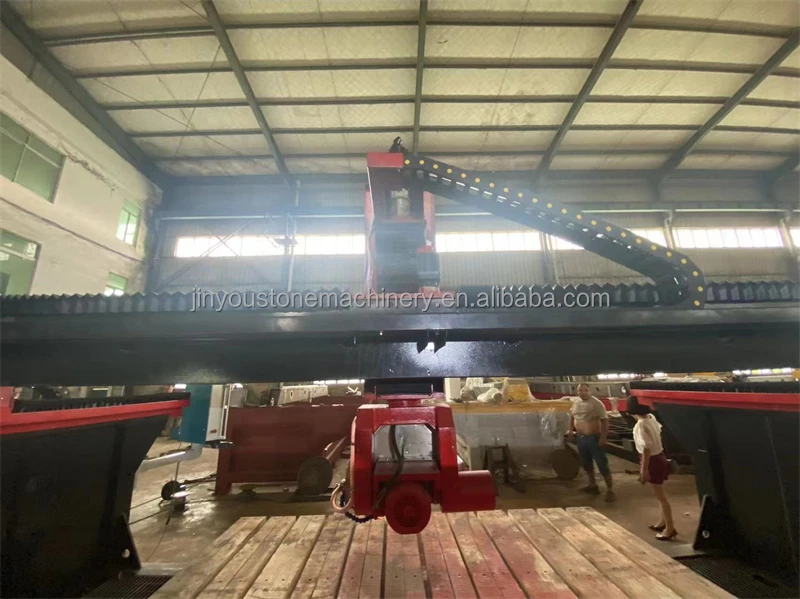

Factory demo
Favtory description
Jinyou Machinery Co., Ltd. founded in 2000, is located in the Minjiang Golden Triangle region that beautiful and rich--Jinjiang City, the smooth flow of traffic and best location. The plant covers an area of more than 4,000 square feet. The company’s business philosophy is "customer service, and common development", and close to the market, with the times, continuous innovation,and selling products, well received by our customers trust and praise.
Jinyou Machinery Co., Ltd. has advanced production equipment, mature production business model and improve the service system.The main products are Block Cutting Machine, Bridge Type Cutting Machine, One-Piece Bridge Cutting Machine, Bridge Cutting Machine,Edge Cutting Machine, Automatic Special Shaped Cutting Machine, Bridge Special Shaped Cutting Machine and stone productionequipment. Superior product performance, reasonable structure and beautiful shape, both to meet the needs of traditional stone processing equipment can be fully integrated material finishing needs of today's construction and decoration industry.
In Jinyou Machinery Co., Ltd., you can put all kinds of stone processing equipment one-stop shopping, and enjoy the first-class product quality and after-sales service. Jinyou Machinery Co., Ltd. confidence to win "integrity, quality, credibility” keep the firm belief of the crown, and practical products. Sincere do service. New and old friends of the community is willing to work together to create a brilliant future!
Jinyou Machinery Co., Ltd. has advanced production equipment, mature production business model and improve the service system.The main products are Block Cutting Machine, Bridge Type Cutting Machine, One-Piece Bridge Cutting Machine, Bridge Cutting Machine,Edge Cutting Machine, Automatic Special Shaped Cutting Machine, Bridge Special Shaped Cutting Machine and stone productionequipment. Superior product performance, reasonable structure and beautiful shape, both to meet the needs of traditional stone processing equipment can be fully integrated material finishing needs of today's construction and decoration industry.
In Jinyou Machinery Co., Ltd., you can put all kinds of stone processing equipment one-stop shopping, and enjoy the first-class product quality and after-sales service. Jinyou Machinery Co., Ltd. confidence to win "integrity, quality, credibility” keep the firm belief of the crown, and practical products. Sincere do service. New and old friends of the community is willing to work together to create a brilliant future!
Exhibition
FAQ
Q1：Are you manufacturer or trading company?A1：We are the only new composite technology company in China's stone machinery industry that integrates Al+IT software
team,electrical engineer team, mechanical design team, and production team.
Q2：What is your advantage?
A2：1.We are manufacturer, you could get best price without paying any commission.
2.We provide advisory machinery, debugging, maintenance and fault handling package of services.
3.We offer customized overall solutions and one stop service. Both of our machine and diamond tools are excellent.
4. We give you technology support on not only machine, but also diamond tools.
5.Better and lower cost after-sale service could be provided thanks to our worldwide network.
Q3：When can you ship my order?
A3：Normally 15-20 days after advanced payment is received. The exact delivery date will be advised after order is confirmed. We will try our best to deliver soonest, if you need them urgently.
Q4：How long is the warranty period for machine?
A4：12 months for the main parts,like motors,steel frame,main bean and so on.
Q5：How do I install and operate the machine,after receiving it?
A5：For simple machine, we will provide sufficient installation, operation and maintenance instruction and videos, which will makethe whole thing as simple as possible for users. For high-tech machine, our engineers can fly abroad to help you install & debug the machine, and teach you how to operate and maintain the machine properly in the future.
