22 кВт 220 240 В R32/R410 тепловой насос с воздушным источником холодной энергии для отопления и

Сохранить в закладки 1600794133612:


Цена:1 500,00 $ - 1 800,00 $*

Количество:

  • В избранное

Описание и отзывы

Характеристики


Product Description:


-------------------------------------------------

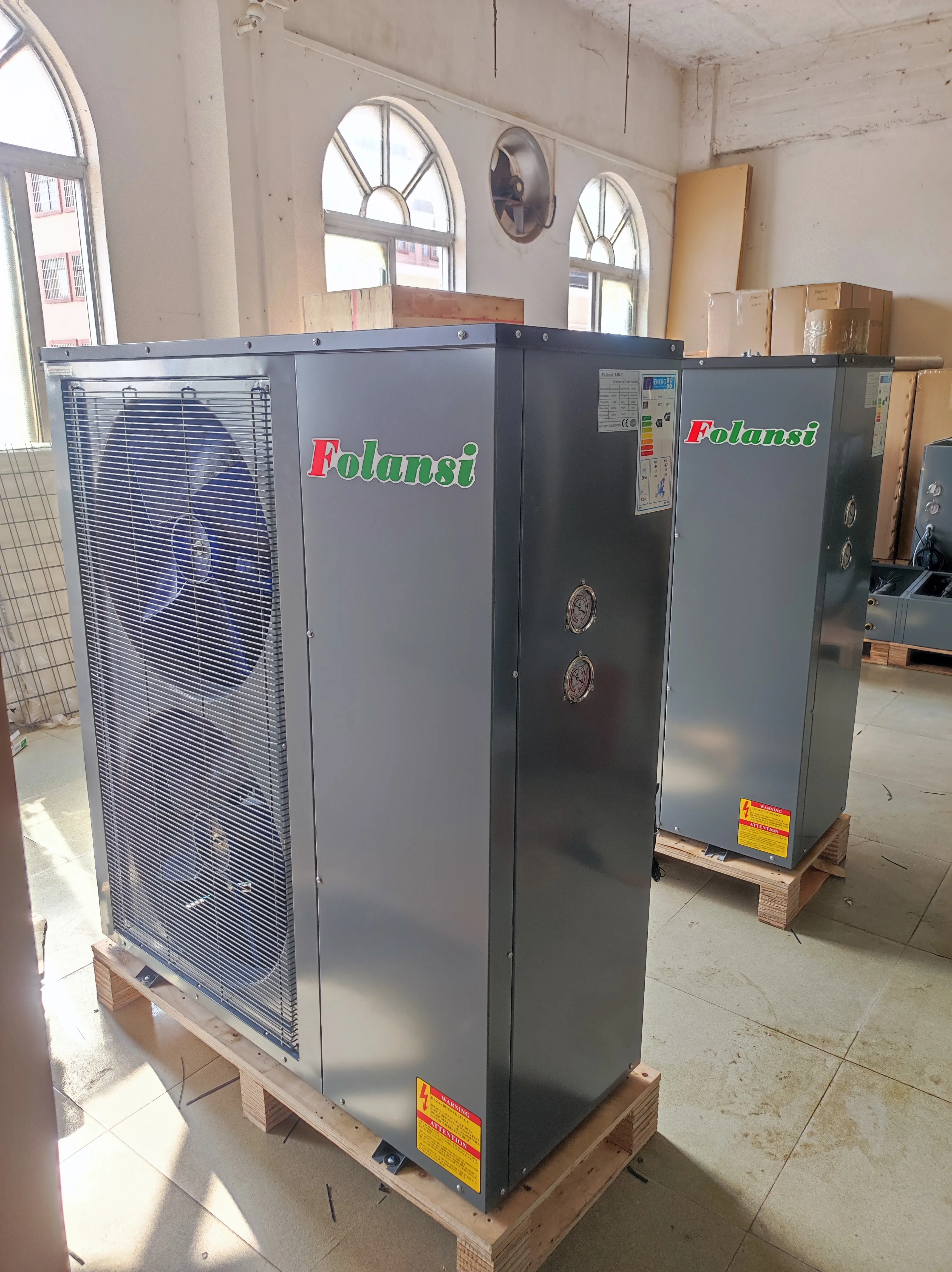

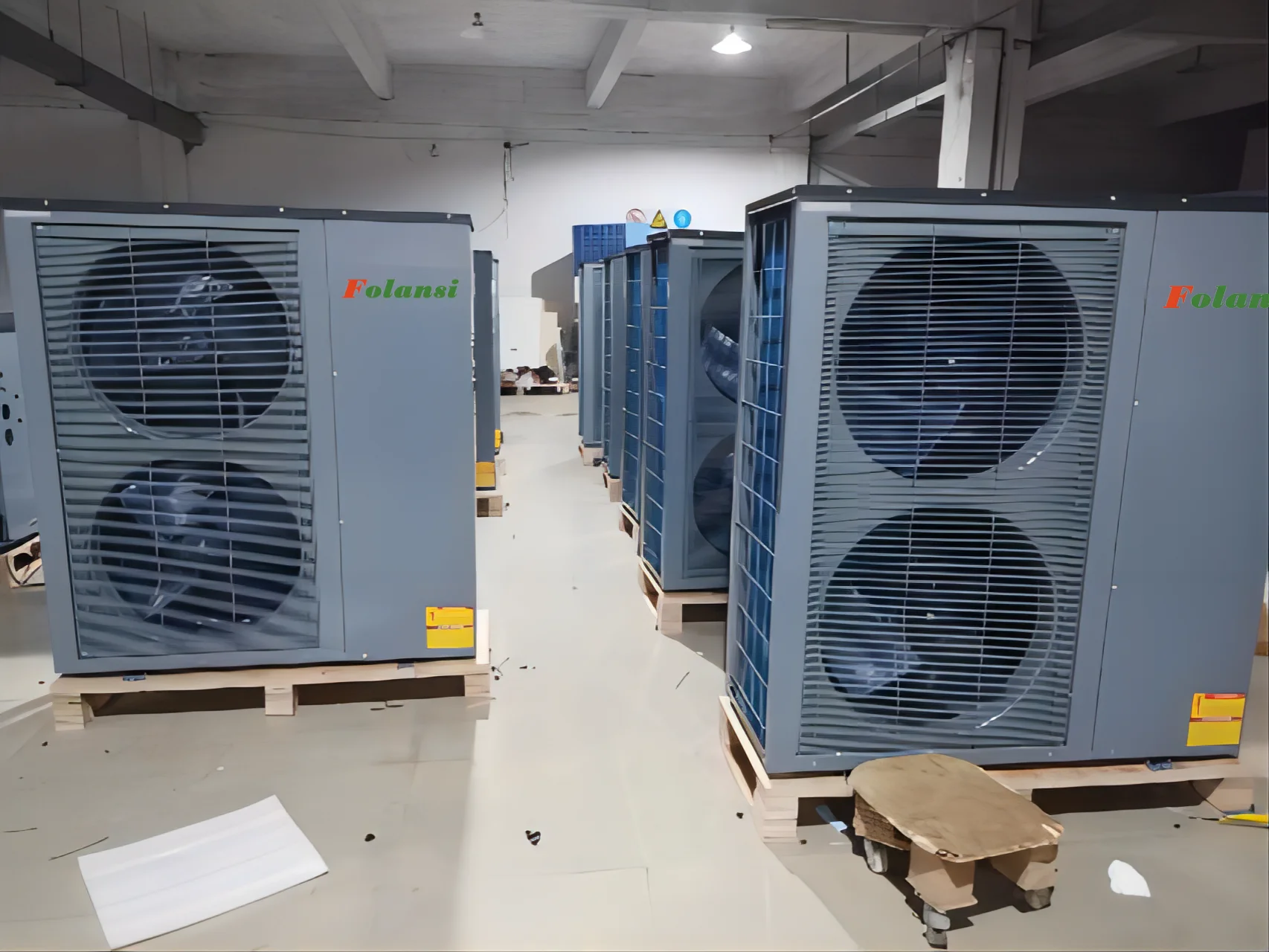

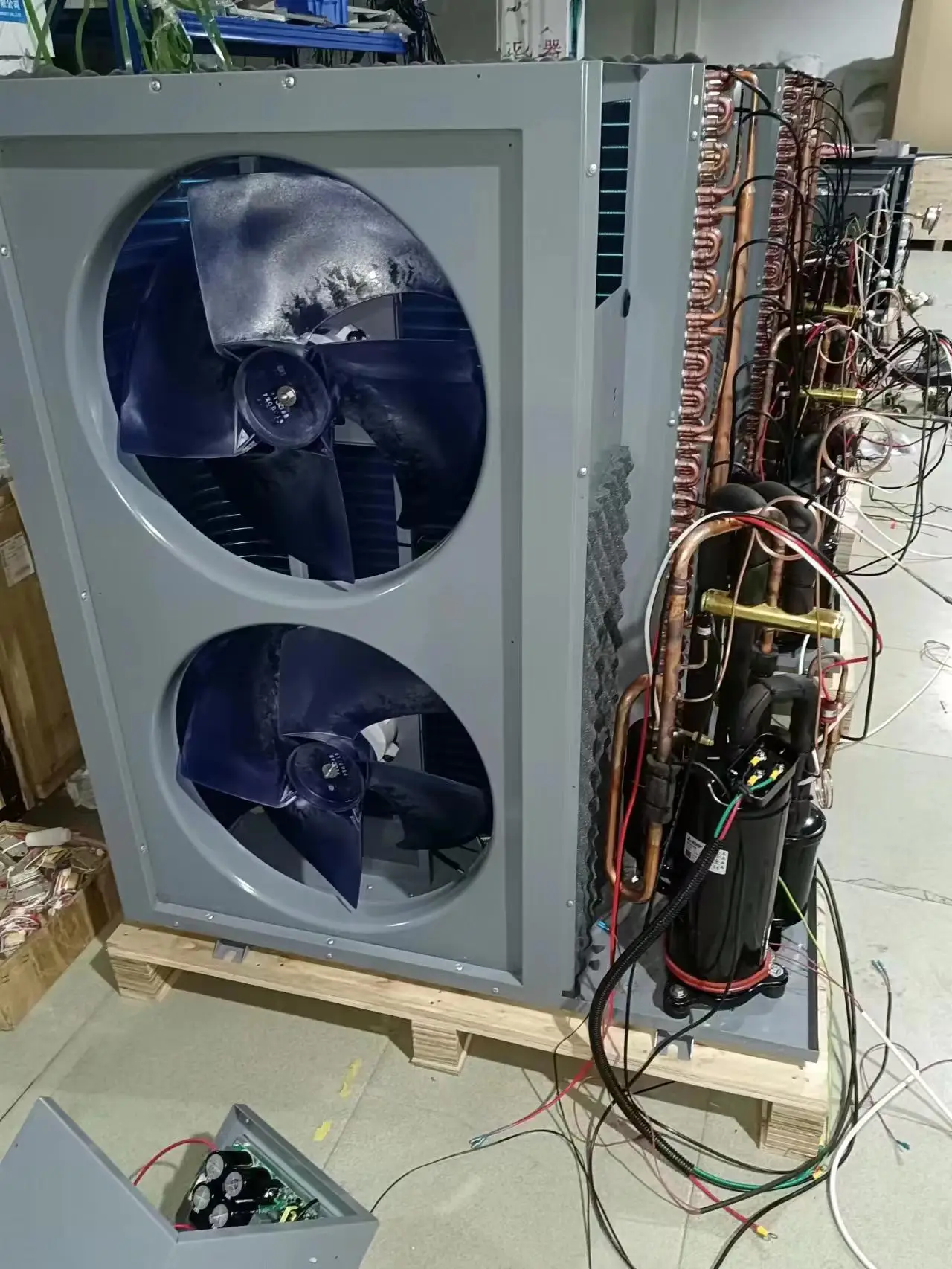

                  Air to water heat pump/air cooled mini chiller (Heating and cooling)
 ModelheatpumpFAC-08
Unit functionsRated heatingHeating capacitykW21.4
Btu/h73038
Rated powerkW6.73
Rated currentA12.8
Rated coolingCooling capacitykW17.4
Btu/h59386
Rated powerkW6.87
Rated currentA13
Max ruuning currentA20.9
PowerV/Ph/Hz380v/50hz/3n
NoisedB(A)57
SizeL(A)mm1450
w(B)mm780
H(C)mm1050
Weightkg225
Operating controlPrecision temp precision±1℃
Operation range— 20℃~45℃
Operation panelType LCD
Main functions Operating mode,temperature,operating condition, timing
Throttling Electronic expansion valves
The  outlet temp60℃
RefrigerateType R410A, R407C
CompressorType
Air side heat exchangeType Finned heat exchange
Qtypc2
Fan typeTypeAxial big twist angle fan
Motor powerw50*2
Water side heat exchangeType tube in shell heat exchanger/plate heat exchanger
Water flow(summer)m3/h2.93
Water flow(winter)m3/h3.68
Water pressure downkpa34
Connection dimensionInch1
Water side max working pressureKPA1000

Rated cooling working conditions: Air side return air temp 35℃,use side input water temp is 12℃,Outlet water temp is 7℃.
Rated heating working conditions: Air side return air dry ball temp is 7℃,wet ball temp is 6℃, use side input water temp 40℃ , outlet water temp is 45℃.


53







Our Advantages:


-----------------------------------------------


1) Base frame and external panels made of galvanized powder coated steel
2) Extremely compact structure and good demountability
3) Reliable compressor with R410A refrigerant
4) Galvanomagnetic reverse valve
5) Intelligent controller and adjustment by quick mind microprocessor with possibility of remote control
6) Water exchanger equipped with high efficiency tube in shell heat exchanger

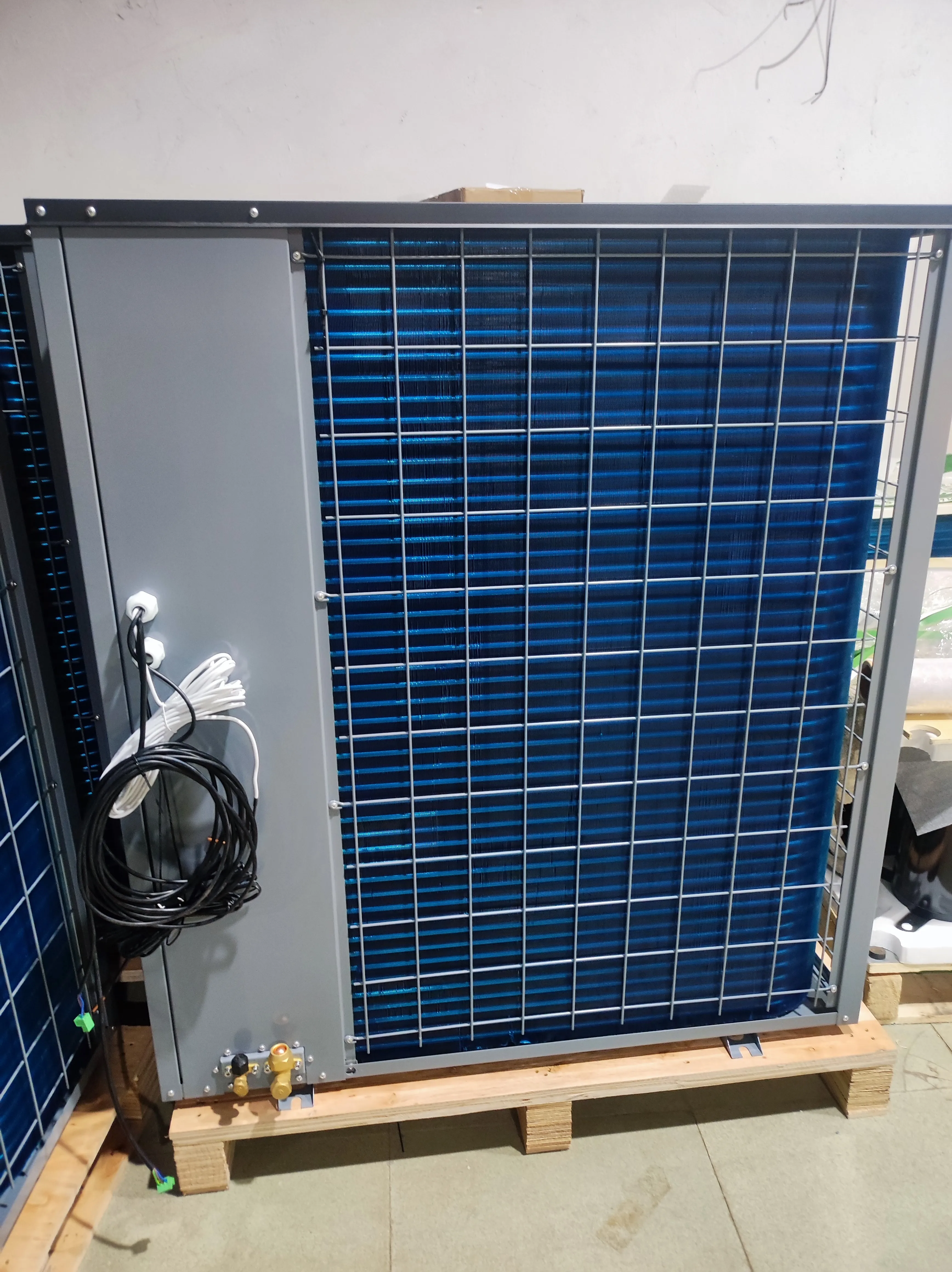

7) Air exchanger (fins-coil) with hydrophilic coating
8) Automatic defrosting function included
9) Thermostatic heating element for evaporator anti-frosting protection
10) Thermostatic or Electric expansion valve
11) General testing and operational test carried out for every unit before package in the factory
12) Stable water flow switch built-in





We can help you reduce your energy bills





With the global trend of environmental degradation, energy plays an important role in national development. Energy can be divided into renewable energy and non-renewable energy, among which air belongs to renewable energy. In European countries, there is an energy bill. Every household has to pay for the energy used. Similarly, the less energy used, the less the bill. SUNRAIN's air energy technology allows one unit of electricity plus four units of air to generate five units of heat, which greatly reduces coal consumption.


For example, last year, there was a ridiculous and terrible phenomenon in the UK. Due to the Arctic storm, the temperature in the UK plunged to below freezing point, but because of the high energy price, many people did not turn on the heating at home and had to sit in cold and damp houses to save electricity. Peter Sumby, community director of the nonprofit National Energy Action. "The number of people struggling with their energy bills is a bit unimaginably high compared to a year or so ago."
