Усовершенствованное сварочное устройство электрический сварщик Инвертор сварочное оборудование для высокочастотной сварки
3 800,00 $ - 4 200,00 $
Сварочная головка используемая в точных точечных сварочных аппаратах для сварки HDMI MINI и других разъемов
- Категория: Spot Welders >>>
- Поставщик: Chuangjin Shidai (foshan) Technology Co. Ltd.
Сохранить в закладки 1600797364963:
Описание и отзывы
Характеристики
Product Description
spot welding head
hot-press welding head and crimping head are precision welding heads designed for use with our company's precision spot welder. They are capable of direct welding of enameled wires, copper-clad aluminum enameled wires, and bare metal wires with precise positioning and the ability to cut wires. hot-press welding head and crimping head are exclusive welding heads for our precision spot welder.
Usage Scenarios
We have different types of welding joints, such as butt, flat, sloping, V, and circular joints. They offer features like reliable and bright welding, accurate positioning, low signal attenuation, and no need for cleaning. We provide a range of welding equipment models for different electronic components and welding needs.

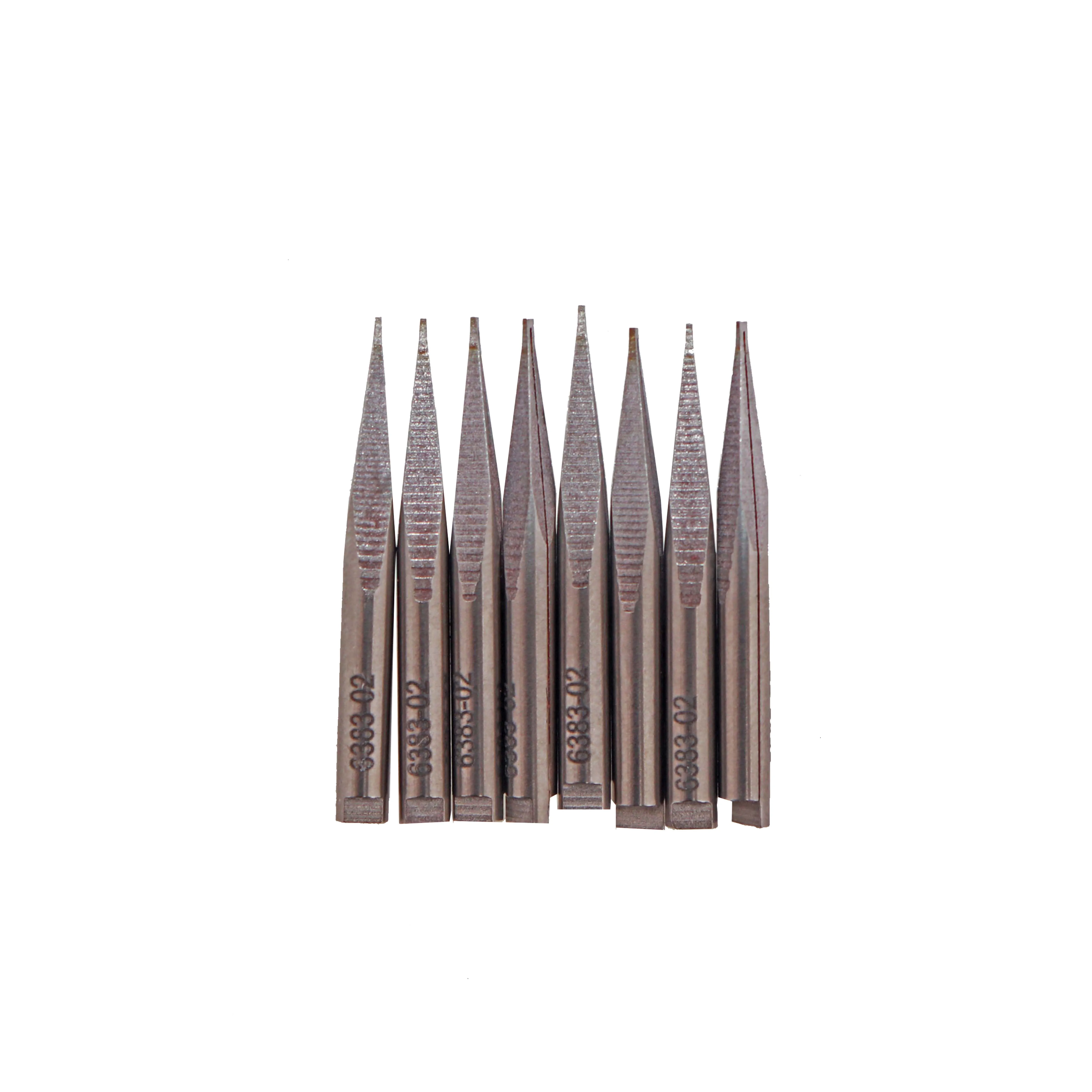

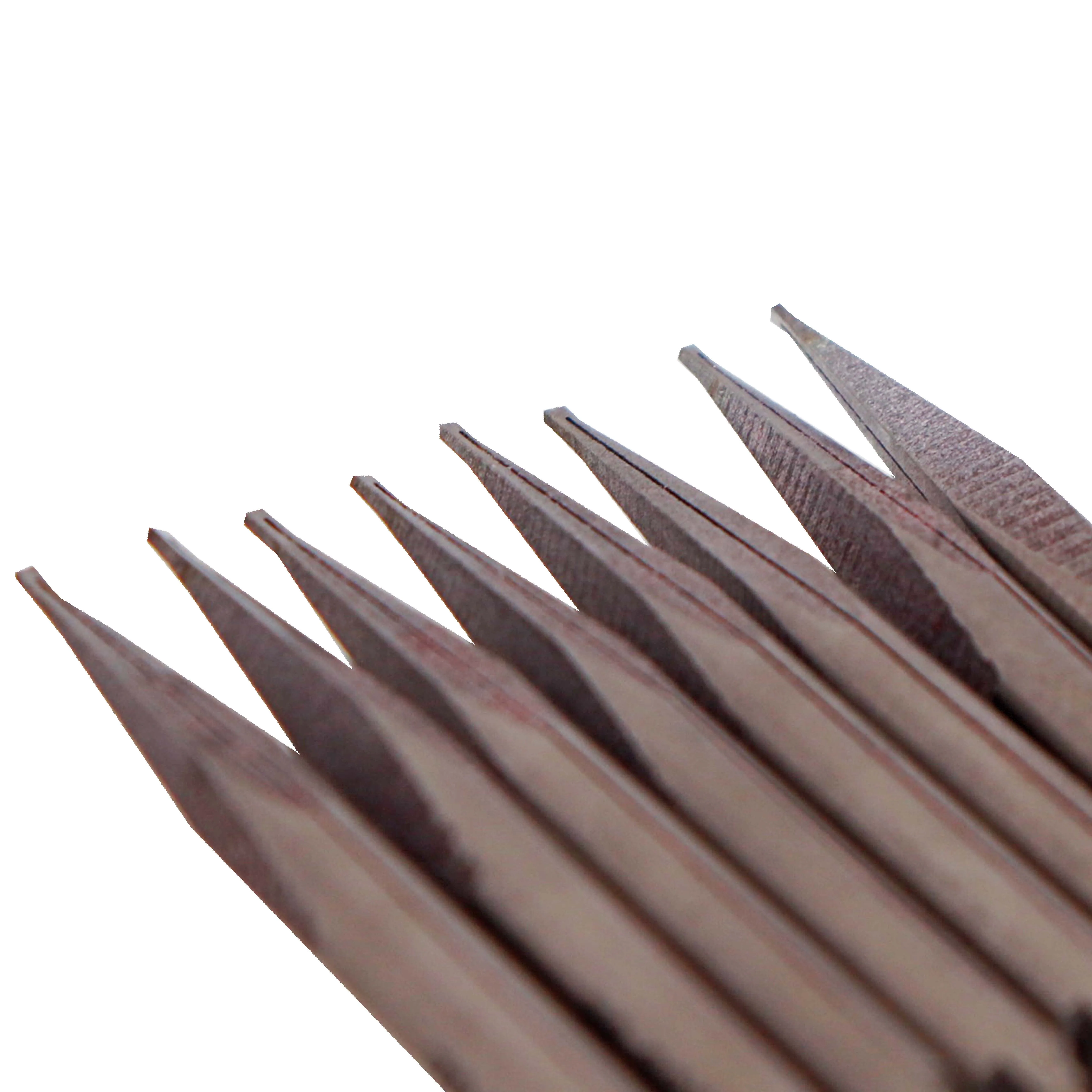

Parallel gap welder electrodes are crucial components in the gap welding process
The shape of the electrode tip, insulator, and material are critical factors in producing high-quality electrodes. SW Tech Equipment offers three types of electrodes: standard electrodes, clean-free electrodes, and PCB repair machine electrodes. The materials used are High Temperature Molybdenum Alloy (HTM), High Purity Molybdenum Alloy (HPM), and Molybdenum Tungsten Alloy (MTA). Various tip shapes are available to perform different ribbon and enameled wire welding tasks. The following figures illustrate the tip shapes offered by SW Tech Equipment.
Support customization
We can customize spot welding heads according to the customer's requirements. The customer needs to provide drawings or finishedproducts, and we can produce and send samples to the customer.
Specialized equipment
We can support customized production of the welding heads you need, including integral spot welding heads, hot-press weldingheads, diamond hot-press welding heads, and tungsten-copper electrode welding heads.
Product Features
JIYI electronic spot welding machine is specially designed for electronic industry, microelectronics industry and PCB industry to provide electronic spot welding equipment.
1, without any flux, solder, solder, can directly weld the enameled wire, to achieve the "spot welding" special production process.
2、Enameled wire can be directly "spot soldered" without removing insulating varnish, dipping tin and other tedious processes, simplifying the production process and improving production efficiency.
3、Environmentally friendly lead-free tin soldering technology is realized, and the solder joints are in perfect compliance with SGS certification and RoHS standards.
4、Fine and reliable solder joints, small resistance value, high temperature, low temperature, shock resistance, etc.
5、To achieve the shortest lead, giving you no side tolerance and high quality products.
6、Spot welding will only shape the perfect quality and will not hurt the workpiece.
7、Say goodbye to the dangerous production of noise, air pollution and high temperature when dipping tin, into the JIYI electronic spot welding machine "spot welding" without any pollution, noiseless production environment.
8、Small size, light weight, easy to operate, convenient to move, very suitable for the production line into use.
9、Welding wire diameter range: 0.02--1.50mm; welding metal film thickness range: 0.01mm--0.80mm.
1, without any flux, solder, solder, can directly weld the enameled wire, to achieve the "spot welding" special production process.
2、Enameled wire can be directly "spot soldered" without removing insulating varnish, dipping tin and other tedious processes, simplifying the production process and improving production efficiency.
3、Environmentally friendly lead-free tin soldering technology is realized, and the solder joints are in perfect compliance with SGS certification and RoHS standards.
4、Fine and reliable solder joints, small resistance value, high temperature, low temperature, shock resistance, etc.
5、To achieve the shortest lead, giving you no side tolerance and high quality products.
6、Spot welding will only shape the perfect quality and will not hurt the workpiece.
7、Say goodbye to the dangerous production of noise, air pollution and high temperature when dipping tin, into the JIYI electronic spot welding machine "spot welding" without any pollution, noiseless production environment.
8、Small size, light weight, easy to operate, convenient to move, very suitable for the production line into use.
9、Welding wire diameter range: 0.02--1.50mm; welding metal film thickness range: 0.01mm--0.80mm.
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
The company has been dedicated to researching precision electronic spot welding and thermal bonding technology. It holds the intellectual property rights to spot welding equipment and heads, and has obtained two national invention patents. The electronic spot welding machine is a specialized production equipment for manufacturers of high-frequency communication components, chip transformers, chip inductors, micro motors, mobile phone motors, mobile phone speakers, miniature speakers, IC cards, relays, network components, sensors, and so on. It can also be applied to industries such as batteries, electronic appliances, thermal instrumentation, precision hardware products, automotive sensors, and solar panels.
Used in conjunction with spot welding machine.
Any spot welding tip needs to be used in conjunction with a spot welding machine. We can customize and manufacture spot weldingmachines and spot welding tips based on your data.
model | SMAPRO 500 Type S | ||||
Input power supply | 220V，50Hz 500VA(220VAC10VAC) 110V，60Hz 500VA(110VAC10VAC) | ||||
Maximum output current | 500A | ||||
Maximum overload output current | 800A | ||||
Welding frequency | 2 times/second, with a maximum speed of 4 times/second | ||||
Angle (welding pulse rising and falling angles) | Synchronous adjustable, adjustable Bow diagram: 45 "- 90" (subdivision accuracy 5 °/div) | ||||
Preheating pulse (percentage of main welding pulse energy) | 55% - 100% (subdivision accuracy 5 °/div) | ||||
Cool Time | 0-99ms (subdivision accuracy: 1ms) | ||||
Main welding pulse (main welding pulse voltage is V, time T) | 0.01-0.99v------39.9msMax1.00-1.99v------19.9msMax | ||||
Cooling pulse (percentage of main welding pulse voltage) | System default time: V3=50% V, hour T3=3ms Cool Tims=0ms Poetry, V3=0V, T3=0ms | ||||
Welding pressure | 10 Gorgons, 6 Ears, 100 Amps, 0z | ||||
Early wiring diameter | 0.01-0.2mm | ||||
Overall dimensions of main engine (length, width, height) | 345mm x 270mm x 235mm | ||||
Operating Weight | 20.5Kg | ||||
Похожие товары
Небольшая лазерная сварочная машина для ювелирных изделий браслетов колец
2 900,00 $ - 3 200,00 $

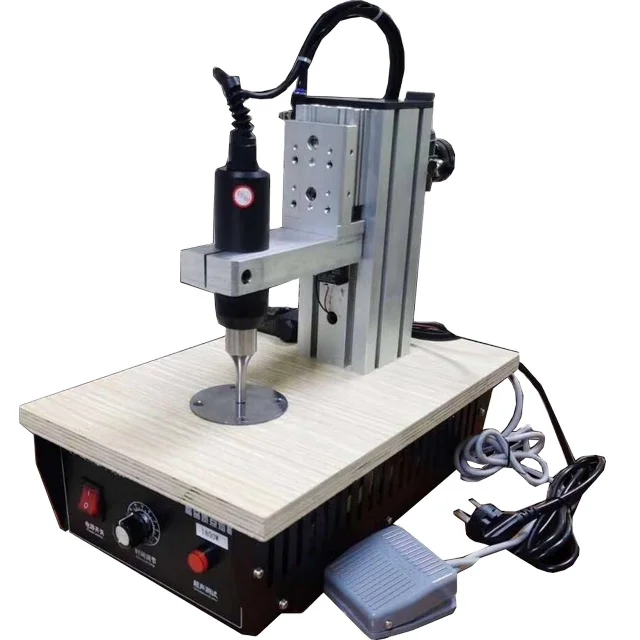

Продается полуавтоматический ультразвуковой защитный ушной крюк сварочный щит
300,00 $ - 320,00 $

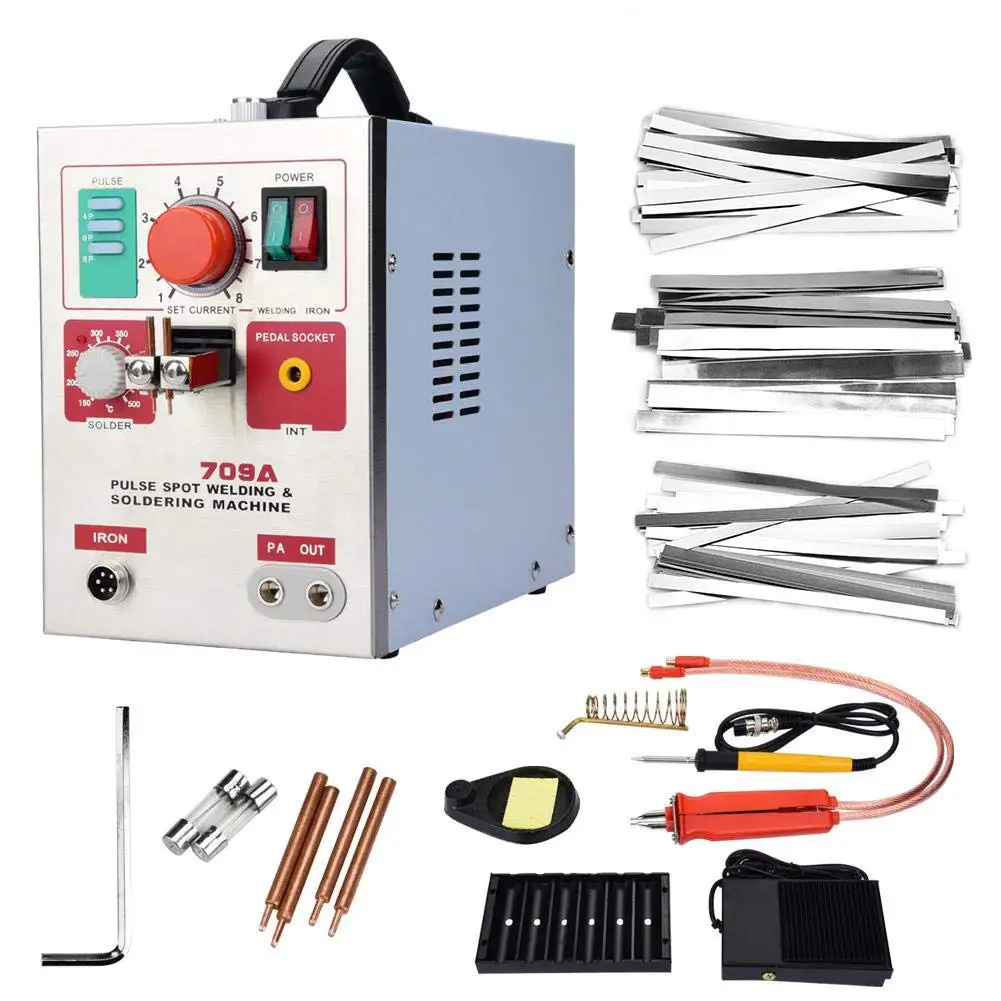

1.5kw Sunkko 709a 220/110v батарея машины для точечной сварки с 70b сварщик ручка накопленной энергией 18650 21700 батарейный
119,56 $ - 121,69 $
Ручной пневматический инвертор 5000 А/8000 А аппарат для точечной сварки постоянного тока аккумуляторного блока EV

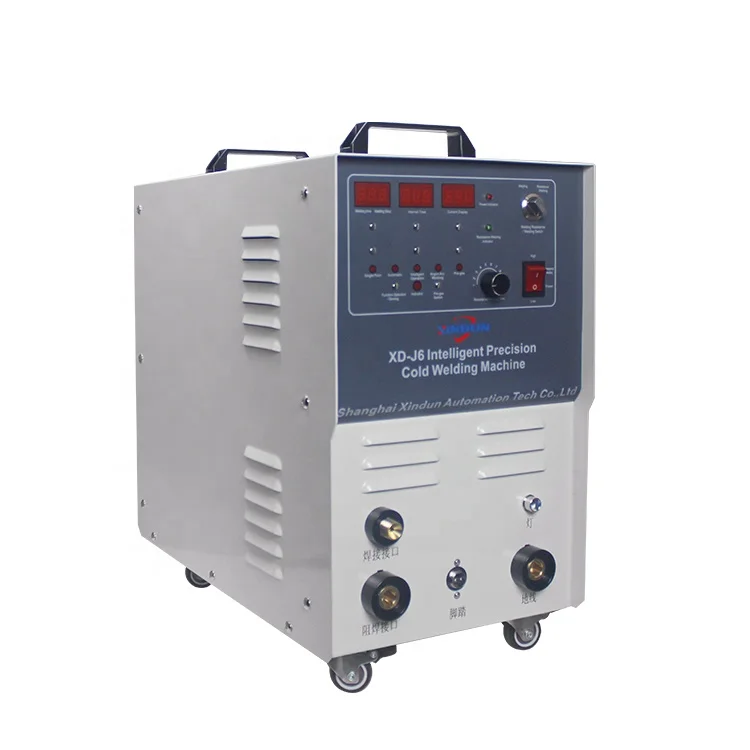

J6 из нержавеющей стали точечная сварочная машина сопротивление сварки
