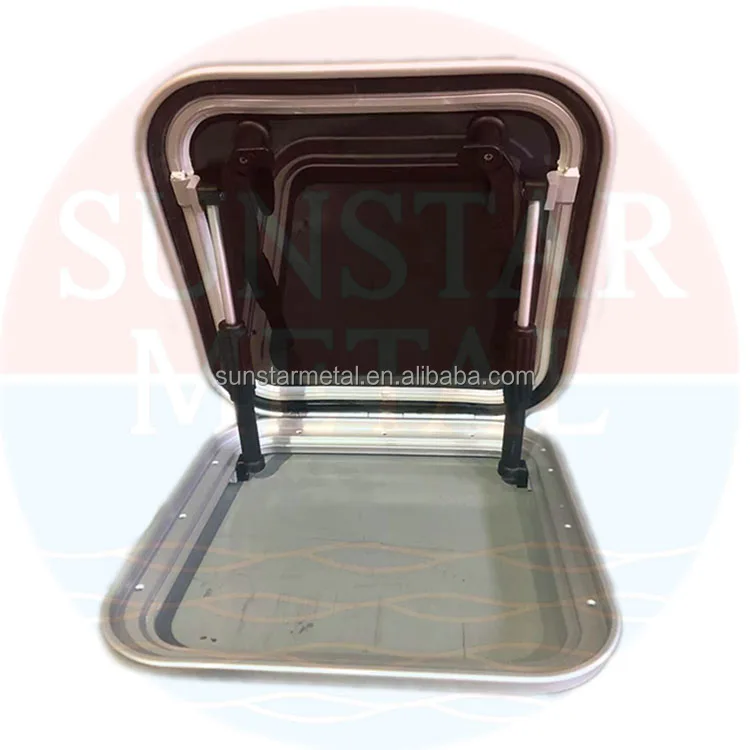

Морской Алюминиевый палубный люк, крыша, Люк, ветровые турбины
21 601,24 ₽
Высокое качество CE полная Вертикальная гибридная солнечная и ветровая энергия 3 кВт 5 10 система генерации ветровой энергии
- Категория: >>>
- Поставщик: Guangdong Engineering Plastics Industries (group) Co. Ltd.
Сохранить в закладки 1600797921961:
Описание и отзывы
Характеристики

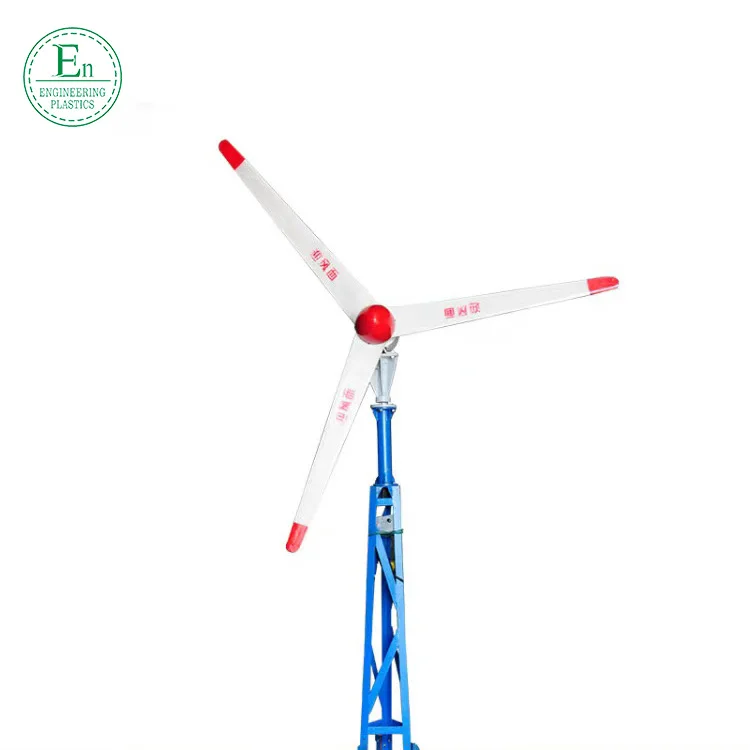

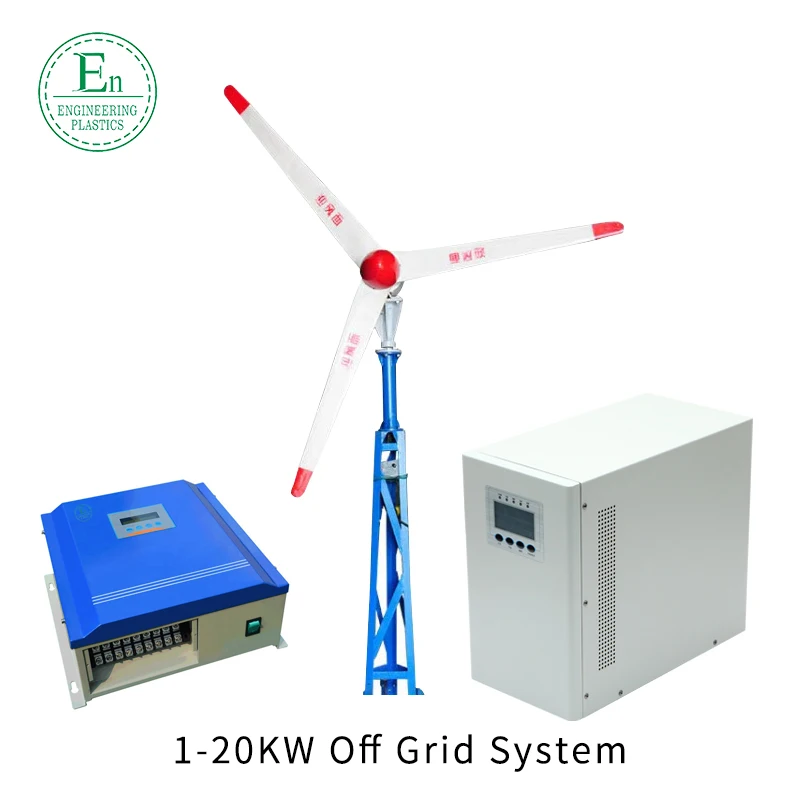

Sweden Finland 1kw 2kw 3kw 5kw 10kw wind power kit generators wind turbine energy saving generator wind power generation system
Prouduct Parameters
Model | FD-500W | FD-1000W | FD-2000W | FD-10000W | FD-20000W | ||||
Starting velocity | 4m/s | ||||||||
work speed | 3m/s-18m/s | ||||||||
Rated wind speed | 8m/s | ||||||||
Parking wind speed | ＞8m/s autobrake | ||||||||
Alternator Rated speed | 500 Rotation per minute | ||||||||
Alternator Rated power | 500W | 1000W | 2000W | 10000W | 20000W | ||||
Alternator Rated voltage | 12V/24v | 24v/48v | 48V/96V | 220V-450V | 220V-750V | ||||
Generator type | Rubidium iron shed permanent magnet three phase alternator | ||||||||
Inner wheel diameter | 1.3M | 1.5M | 2.5M | 6M | 10M | ||||
Blade number material | Three glass fiber reinforced plastic fairings with all glass fiber reinforced plastic blades | ||||||||
Speed regulation mode | Automatic side brake (automatic) | ||||||||
Tower way | Building block type steel pipe cable type or lamp pole embedded part type | ||||||||
Fan height | 5-6m landscape complementary street lamp type, can reach 6-16m or higher | ||||||||
Output control system | NWP wind solar complementary, multi-function control inverter (see the description for parameters) | ||||||||
Power supply mode | Single independent power supply or centralized and unified power supply of multiple units: AC220V / 50Hz / 60Hz square wave or sine wave: DC controlled by battery output | ||||||||
Selection and matching of small wind turbine system
1. First, application; second, good quality and low price; third, safety and reliability;
2. Select wind turbines according to local wind resources;
3. The wind turbine shall be selected according to the power consumption of electrical appliances;
4. The wind turbine equipped with hand brake parking device shall be selected in coastal windy areas;
5. The best matching of battery and wind turbine;
6. The best match between electrical appliances and wind turbines;
7. The best match between the controller and the wind turbine;
8. The best matching of inverter and generator system;
9. The best match between the load release device and the wind turbine;
2. Select wind turbines according to local wind resources;
3. The wind turbine shall be selected according to the power consumption of electrical appliances;
4. The wind turbine equipped with hand brake parking device shall be selected in coastal windy areas;
5. The best matching of battery and wind turbine;
6. The best match between electrical appliances and wind turbines;
7. The best match between the controller and the wind turbine;
8. The best matching of inverter and generator system;
9. The best match between the load release device and the wind turbine;

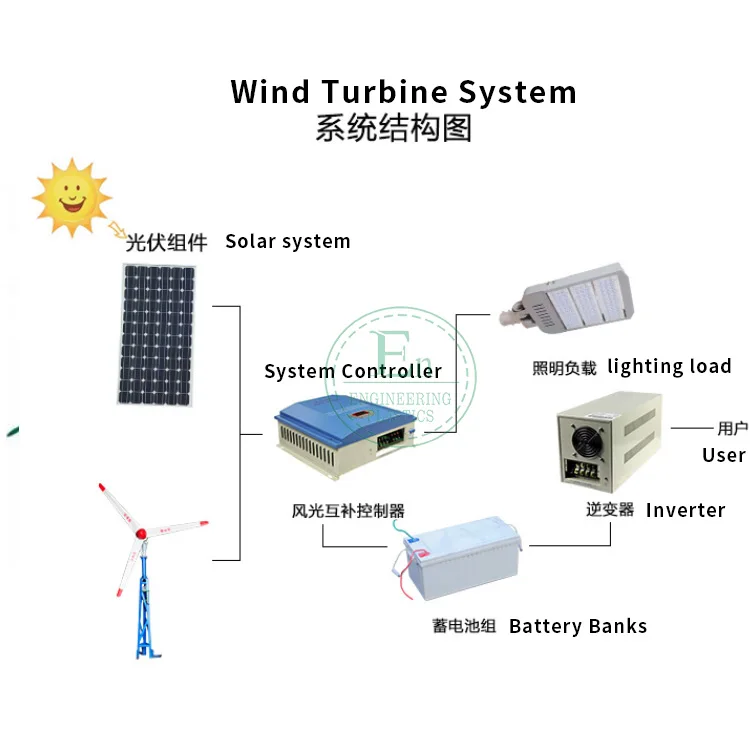

500-20000w power generation system structure diagram
1) Phoenix wheel assembly; 2) front and rear wind guide hoods; 3) generators; 4) cyclotron speed control and side deflection mechanism; 5) tail rudder assembly;
6) tower assembly; 7) cable ring; 8) steel wire chuck; 9) steel wire rope; 10) cable; 11) wind solar complementary inverter; 12) ground pile; 13) base; 14) anchor screw;
15) open screw; 17) wire binding. (refer to figure 1)
500-20000w diagram II (enlarged)
1. Generator 2. Air wheel plate 3. Nut 4. Washer 5. Cotter pin 6. Front air guide cover
7. Rear air guide cover 8. Bolt 9. Nut 10. Bullet washer 11. Tail pin 12. Cotter pin 13. Blade × 3 14. Carbon brush lead out 15. Collector ring lead out 16. Tail rudder 17. Swivel 18. Screw 19. Wire pressing plate (not used) 20. Limit bolt 21. Nut 22. Plane bearing 23 , collector ring 24, carbon brush cover plate 25, set screw 26, cable 27, insulating tape 28, tower (cable type or clamp type). Note: do not loosen all limit bolts and set screws on the revolving body. (adjusted before delivery)
FD fan installation diagram
F, F1 and F2 are the stress diagram of manual installation.
P is the mechanical lifting force point
P is the mechanical lifting force point
FAQ
Q1: How many winds for wind turbines can generate electricity?
In general situation, about 3 levels to the battery charge (the wind generator voltage is higher than the battery voltage), the installation of wind turbines must be aware of your local wind resources, such as the annual wind speed in the 3-5 level, we proposed 300-1000W small wind power generator, if more than 4 levels of wind resources in the usual year, can choose more than 1000W wind generator.
Q2: How to confirm your wind situation
Level 1: smoke with the wind
Level 2: wind blows the face
Level 3: the leaves move, the red flag flies
Level 4 level: wind blowing paper
Level 5 level: shakes with small leaves
Level 6: hard lifting
Level 7: inconveniences in the wind
Level 8 level: wind blowing branch break
Level 9 level: roof flying tile
Level 10: pull up a tree and reverse the house
Q3: Why does the fan has the starting wind speed
In addition to the influence of gravity, such as its own wind blades, and the wind cap, the most important thing is the magnetic resistance (that is, the resistance that usually cuts the magnetic line). Now the good Magnet material is used NdFeB. So the speed of the fan does not necessarily mean that the amount of electricity generated is much.
Q4:Why the wind generator will brake
When the battery is full, or in the case of strong wind, the fan will also have the phenomenon of braking or not turning. This is the normal phenomenon of the fan controller in protecting the battery or the fan.
In general situation, about 3 levels to the battery charge (the wind generator voltage is higher than the battery voltage), the installation of wind turbines must be aware of your local wind resources, such as the annual wind speed in the 3-5 level, we proposed 300-1000W small wind power generator, if more than 4 levels of wind resources in the usual year, can choose more than 1000W wind generator.
Q2: How to confirm your wind situation
Level 1: smoke with the wind
Level 2: wind blows the face
Level 3: the leaves move, the red flag flies
Level 4 level: wind blowing paper
Level 5 level: shakes with small leaves
Level 6: hard lifting
Level 7: inconveniences in the wind
Level 8 level: wind blowing branch break
Level 9 level: roof flying tile
Level 10: pull up a tree and reverse the house
Q3: Why does the fan has the starting wind speed
In addition to the influence of gravity, such as its own wind blades, and the wind cap, the most important thing is the magnetic resistance (that is, the resistance that usually cuts the magnetic line). Now the good Magnet material is used NdFeB. So the speed of the fan does not necessarily mean that the amount of electricity generated is much.
Q4:Why the wind generator will brake
When the battery is full, or in the case of strong wind, the fan will also have the phenomenon of braking or not turning. This is the normal phenomenon of the fan controller in protecting the battery or the fan.
Похожие товары

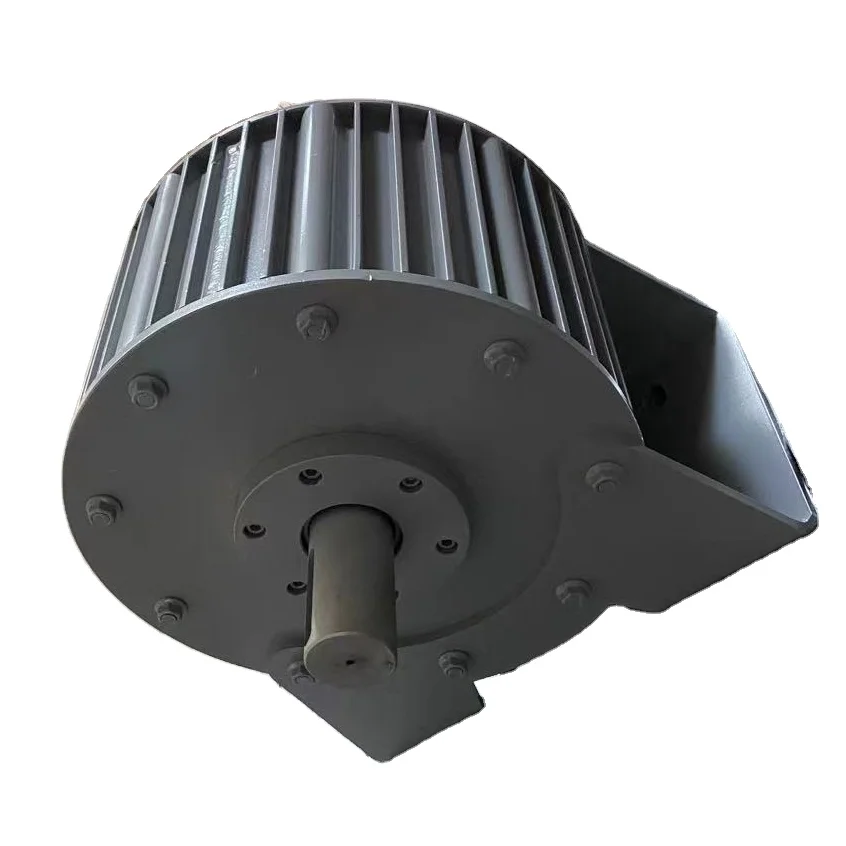

Генераторы с постоянным магнитом 20 кВт, Низкие обороты в минуту, 200 об/мин, 300 об/мин для использования в ветровой турбине, 220 В, 380 В, частота 50 Гц, 60 Гц
290 536,68 ₽ - 297 017,05 ₽
220 вольт 380 В 1 кВт 2 кВт 3 кВт 5 кВт ветряная мельница для домашнего использования ветряная турбина с простой установкой
32 401,86 ₽ - 45 362,61 ₽
300w 24 volt residential wind power price low noise

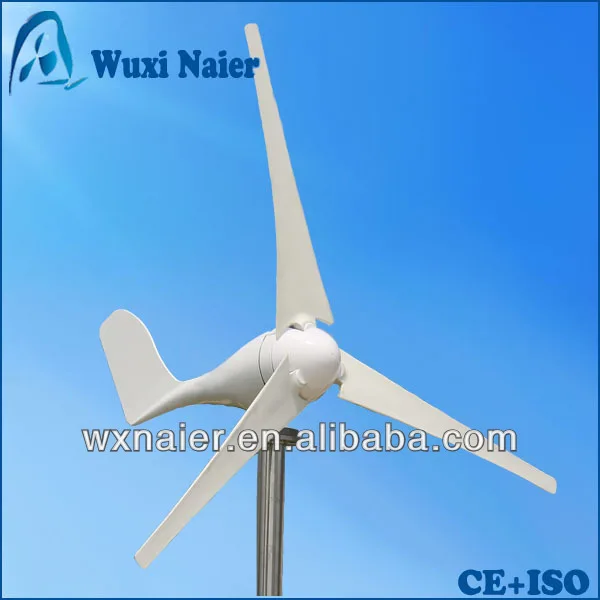

300w 12 volt wind generator frp blades nearly quiet

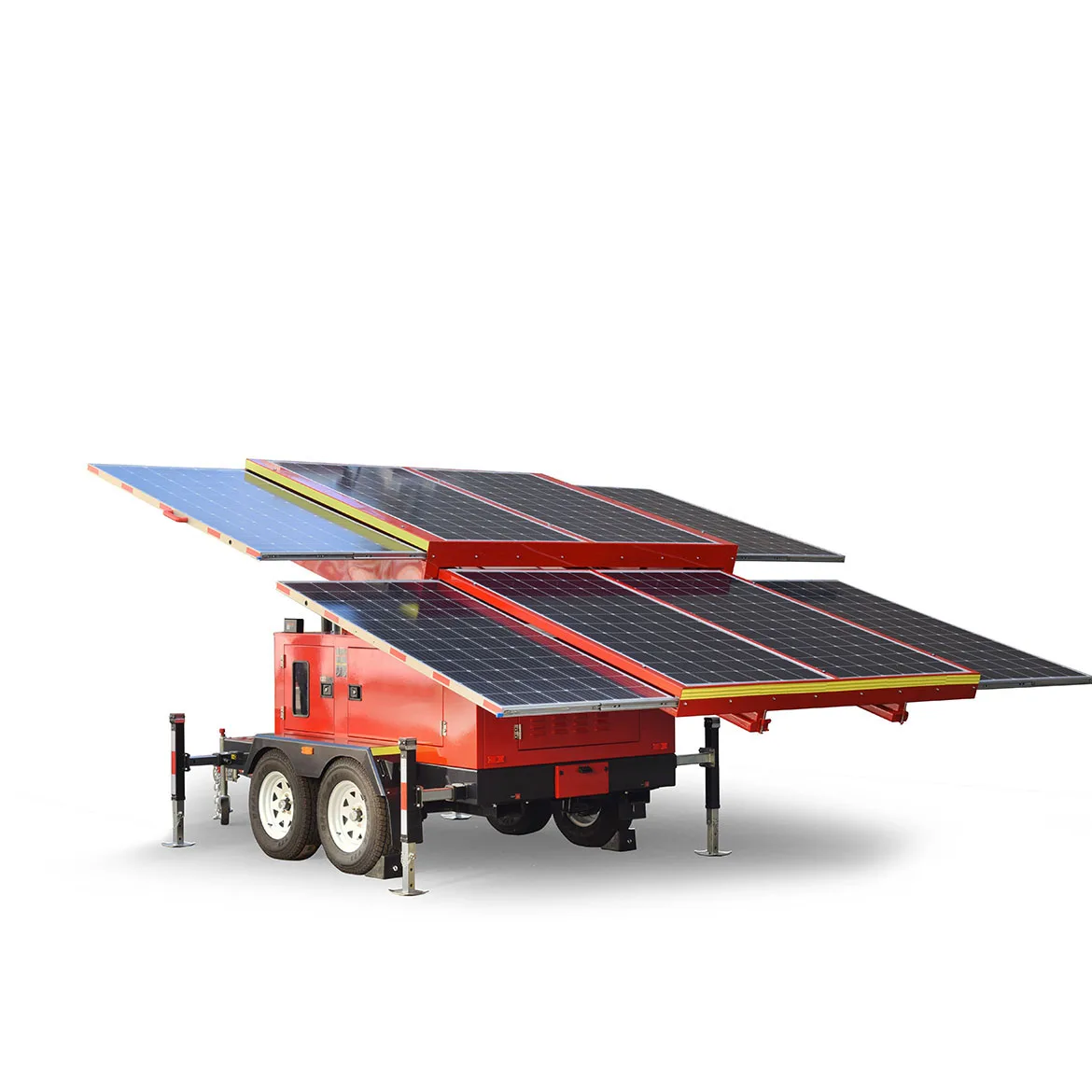

Jackery 1000 микроволновая печь Ecoflow Delta зарядный солнечный генератор 10000 Вт

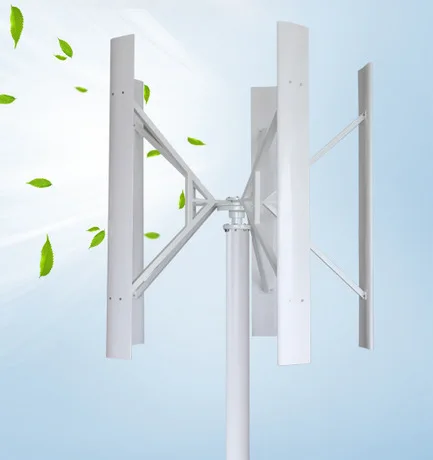

Высокая эффективность 24 В 48 В 3000 5000 Вт, ветряные турбины, вертикальный ветрогенератор для дома
334 819,22 ₽ - 372 621,39 ₽

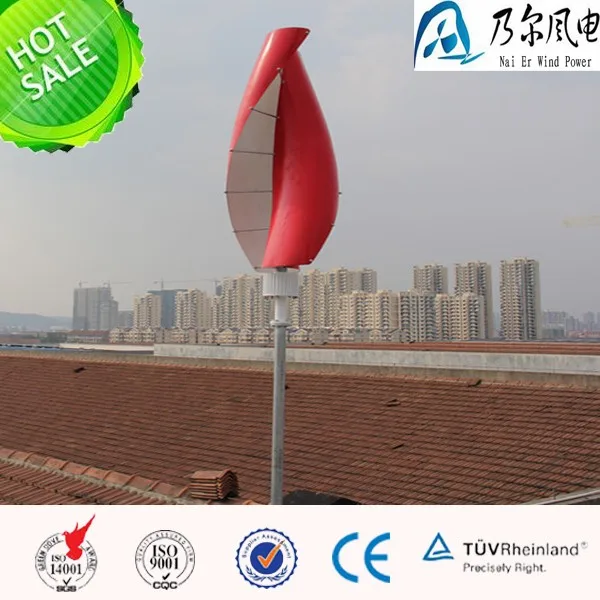

Новый дизайн, 300 Вт, 400 Вт, 500 Вт, 600 Вт, 800 Вт, 5 кВт, 10 кВт, ветряная система, вертикальный турбогенератор
