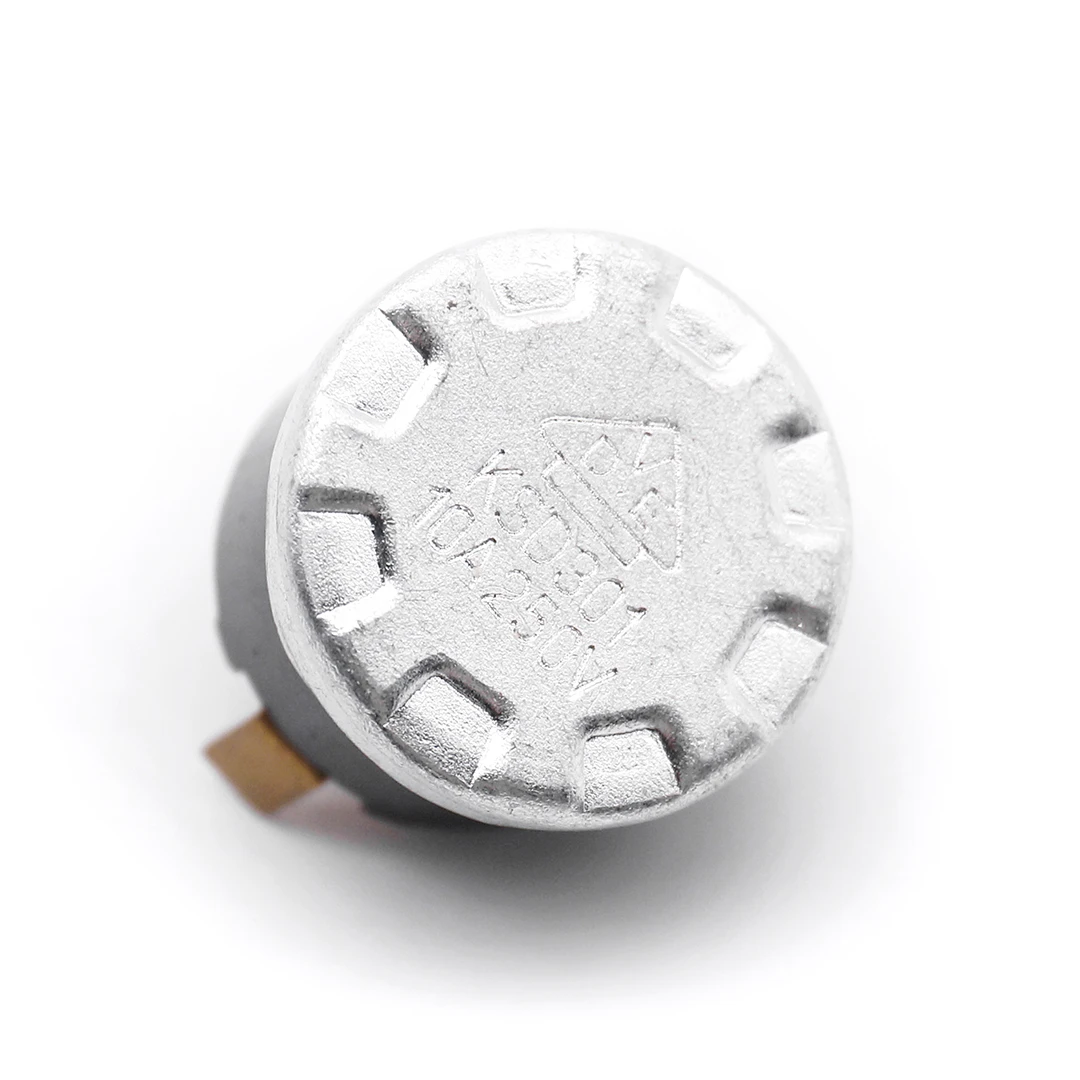

Термостат KSD301 10 А 250 В
- Категория: >>>
- Поставщик: Dongguan Shengruichi Electronic Co. Ltd.
Сохранить в закладки 1600798075991:
Описание и отзывы
Характеристики
Normally close KSD301 10A 250V Bimetal Thermostat Thermal Cutout Switch Thermistor for Rice Cooker Disc for heating kettle
Normally close KSD301 10A 250V Bimetal Thermostat Thermal Cutout Switch Thermistor for Rice Cooker Disc for heating kettle
•Temperature Holding Function
•Control Functions
•As Safety Thermostats
•Strong Conductivity
•Corrosion Resistant
•Strict Selection of Materials
-The KSD301 series comprises a wide range of bimetallic thermostats, with extremely compact dimensions and fitted with a snap-action trip device.
-Widely used for temperature control or protection for household electric appliances.
-The KSD301 series comprises a wide range of bimetallic thermostats, with extremely compact dimensions and fitted with a snap-action trip device.
The datasheet of KSD301 Auto reset Heating Element Bimetal Thermostat 10A 250V Switch For Heaters
Rated Current | 10A, 16A |
Rated Voltage | AC 125V 250V |
Application | Disinfecting cupboards, electric boiling water bottles, coffee pots, warm water bags, water dispensers, microwave ovens, etc |
Case | Bakelite/Ceramic |
Reset Type | Manual Auto Reset Thermal Temperature Control Switch Normally Closed/OpenThermostat |
Terminal Size | 6.3mm |
Bracket | Fixed Or Movable |
Terminal Direction | Horizontal Or Vertical |
Action Temperature | 20℃ To 180C℃ |
Action Temperature Tolerance | ±5℃ |
Operating Temperture Range | ＞30000 Times |
Electric intensity | AC2000V 50/60Hz for 1min;no breakdown and no flashover |
Insulation resistance | ﹥100MΩ |
Contact resistance | ﹤50mΩ |
Response speed | ≤1℃/min |
Certification | ROHS UL TUV VDE CCC CQC |

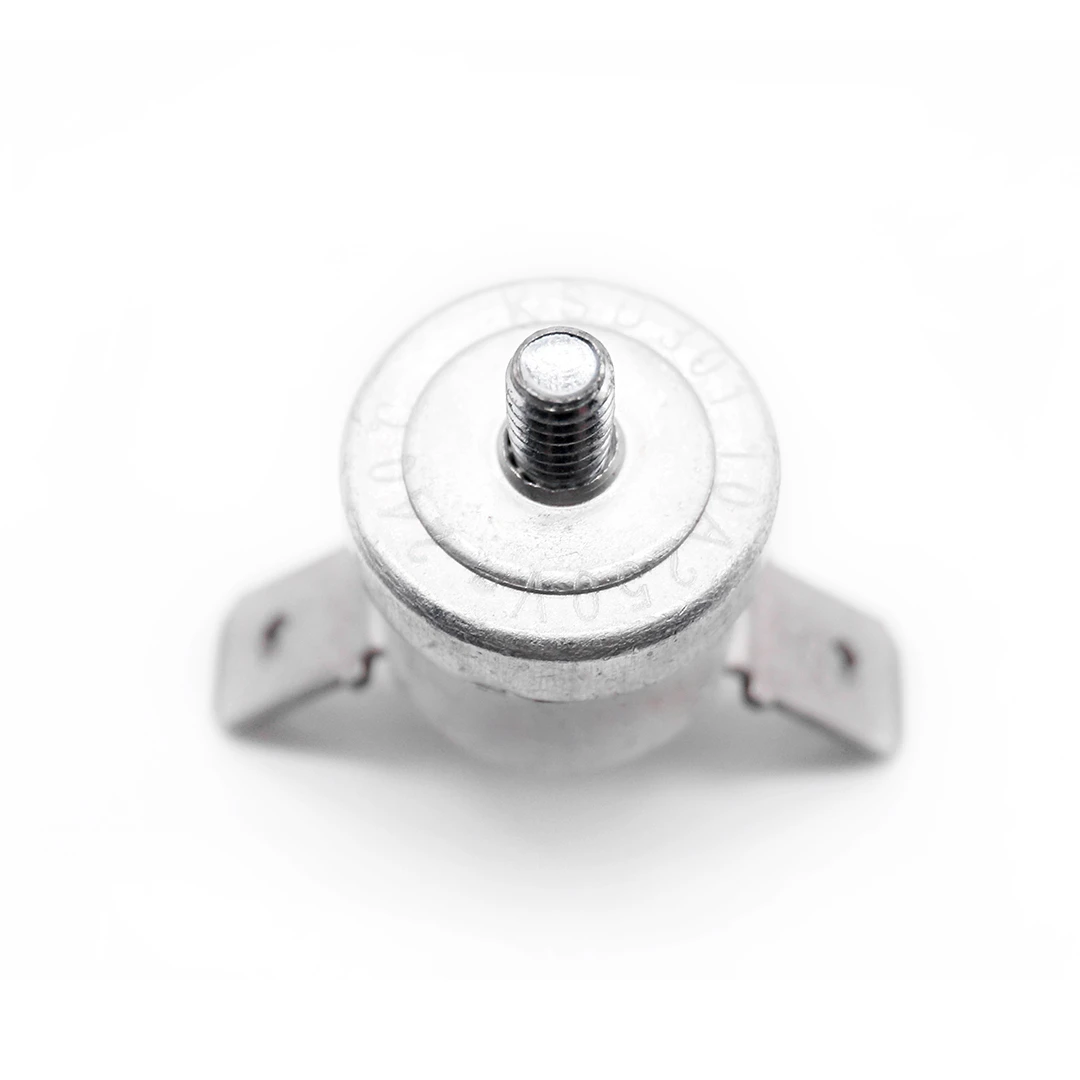

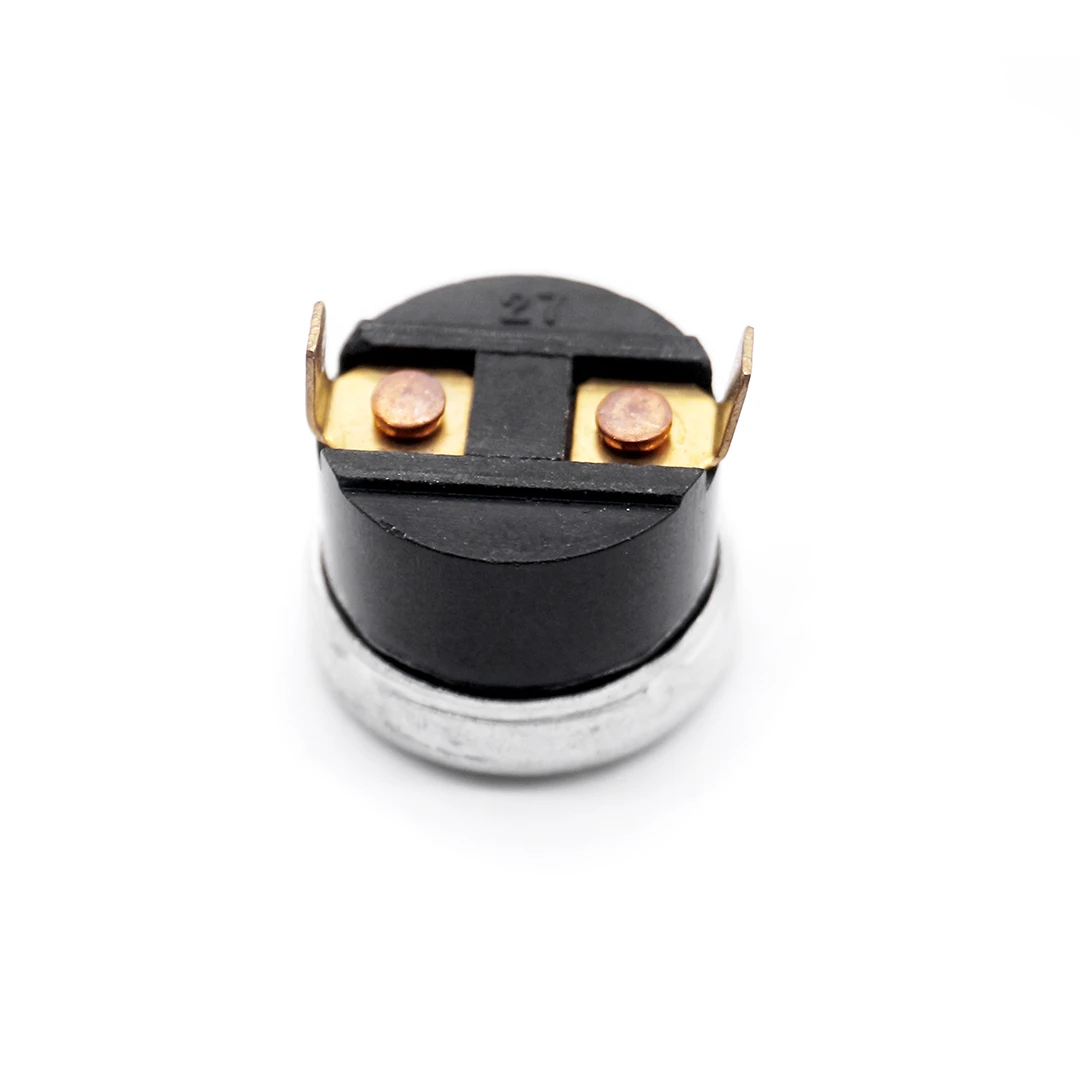

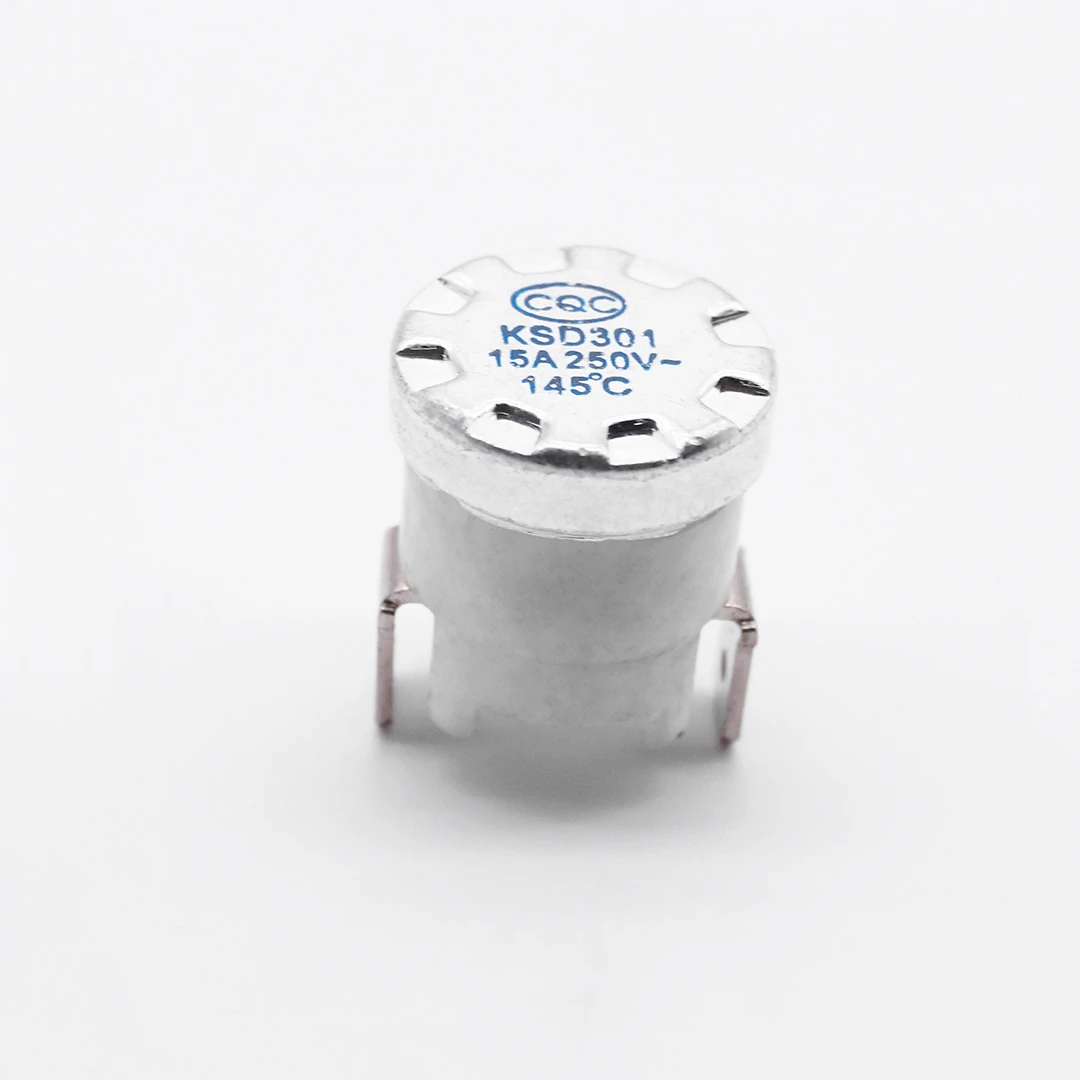

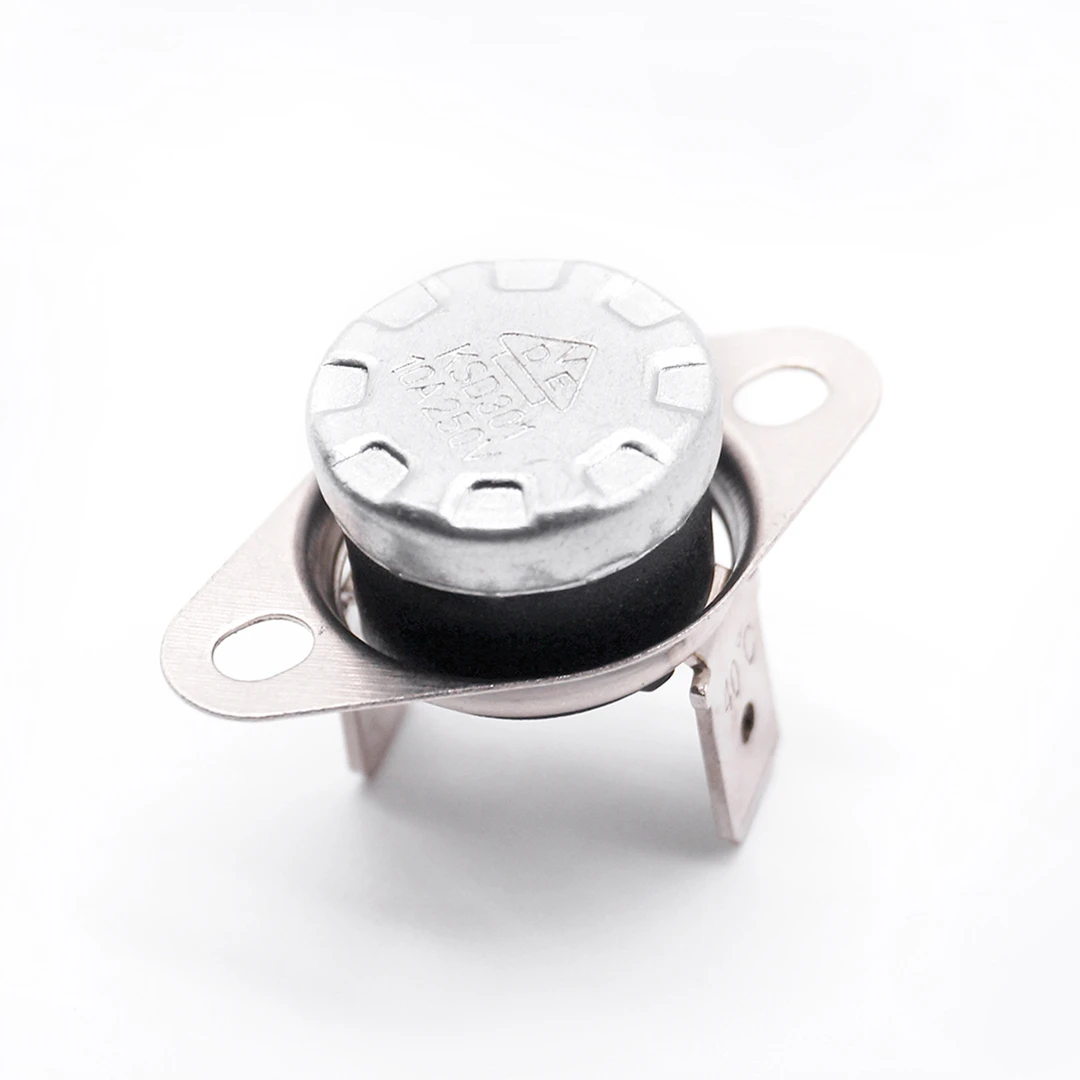

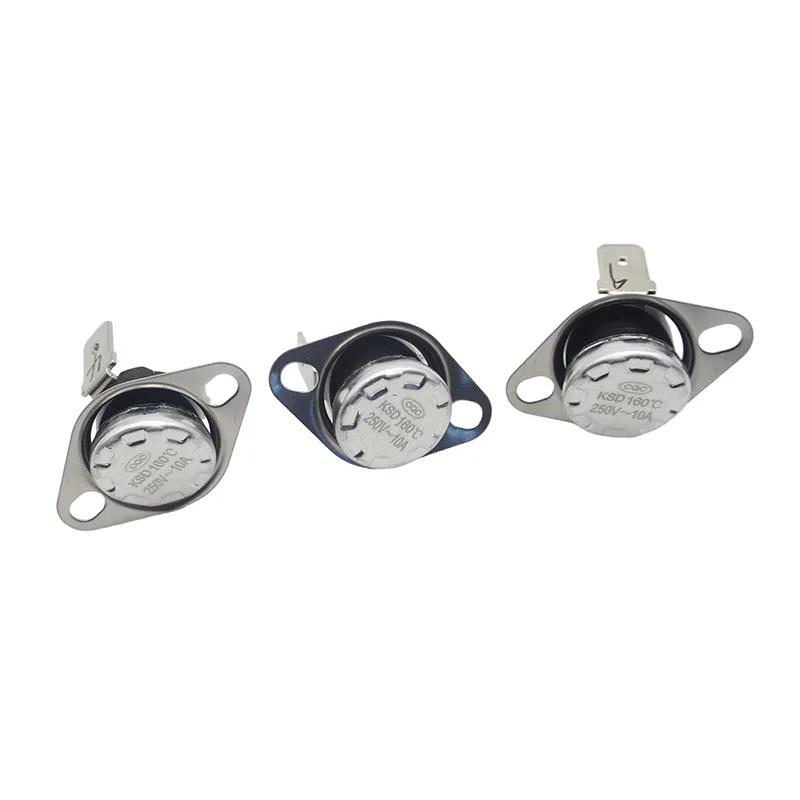

Different appearances for you to choose
Test method:
Sample is connected to the fixture of the equipment,and placed into the test equipment (Hot current of air in the space of test should be equipped with a stirrer and temperature is controllable).A detect current about 10mA(no more then 100mA)is passed through the sample and a thermometer is placed junction to the sample to monitor the opening temperature .The temperature of the test equipment is raised at the rate of 0.5～1℃ per minute until the sample functioned.
Working Principle of KSD301 Series Temperature Thermostat:
When the electrical appliance works normally, the bimetallic sheet is in the free state and the contact is in the closed / open state. When the temperature reaches the operating temperature, the contact is opened / closed, and the circuit is cut / closed, so as to control the temperature. When the electric appliance cools to the reset temperature, the contact will automatically close / open and return to the normal working state.
Kindly Note:
2. Do not collapse, loosen or deform the top of cover surface during installation to avoid affecting performance.
3. The thermostat should be stored in a warehouse with RH less than 90% and ambient temperature less than 40 ℃, which is ventilated, clean, dry.
The dimension of KSD301 erminal Thermostat 16A 250V Thermal Protector Different Type Of Adjustable Switch
The Feature of 10A 16A 125V 250V Manual Automatic Switchable Reset Thermal Magnetic Trip KSD301 Series Thermostat Protector Switch for Small Appliances :
【With metal cap】This wing temperature sensor features stable performance, high precision, small in size, light weight, high reliability, long service life and low interference to wireless. KSD301 Thermostat has double metal chip, speed dynamic type, sensitive, reliable, stable action temperature, no arc phenomenon.
【High sensitivity】High sensitivity and reliability of pins. What’s more, there are some engraved numbers and letter on the metal cap for the size recognition. No fluid is allowed to submerge inside the thermal control switch and cracks on the cap is unusable.
【Intelligent control】The thermostat has a built-in intelligent control panel, which can be adjusted by pressing the button. it is very easy to operate and does not require complicated operations.
【Professional design】The thermostat switch is designed to turn on and off automatically, which makes it easier to control the temperature of the thermostat.
【High sensitivity】High sensitivity and reliability of pins. What’s more, there are some engraved numbers and letter on the metal cap for the size recognition. No fluid is allowed to submerge inside the thermal control switch and cracks on the cap is unusable.
【Intelligent control】The thermostat has a built-in intelligent control panel, which can be adjusted by pressing the button. it is very easy to operate and does not require complicated operations.
【Professional design】The thermostat switch is designed to turn on and off automatically, which makes it easier to control the temperature of the thermostat.
Why Choose Us/Our Advantages
The Senreach KSD301 Series NC NO Temperature Thermal Control Switch Thermostats are universal and general purpose, automatic reset, low cost, large capacity, minute current thermostats constant temperature sensor. Thermal switch has the characteristics of stable performance, high precision, small volume, light weight, high reliability, long service life and small radio interference. With temperature holding function, control functions, and even as safety thermostats.
Application
The KSD301 Series NC NO temperature control thermal switch is mainly used for electric water dispensers, water dispenser, electric open water bottles, kettles, cabinets, coffee shells, coffee maker, microwave, sterilizer, electric irons, clothes dryers, water heaters, rice cookers, air conditioners, heaters, cabinets, and other electric appliances.
Company Profile
Dongguan Senreach Electronics Co., Ltd. sells fuses, fuse holders and related accessories. Our products come in different properties, types and specifications, and are widely used in household appliances and automobile industries. With more than 20 years of experience, we are one of the leading factories engaged in fuses, fuse holder assemblies in China and the world. Our products comply with UL, UR, CSA, BSI, CUL, VDE, TUV, PSE, CE, CCC, ROHS and other international standards. Our 5,000-square-meter factory is equipped with 25 production lines and has more than 150 technicians. The monthly output of products can meet the capacity needs of customers.
Exhibition
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 3 days if the goods are in stock. Or it is 5-10 days if the goods are not in stock, according to the quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: 100% in advance, T/T.
If you have another question, pls feel free to contact us.
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 3 days if the goods are in stock. Or it is 5-10 days if the goods are not in stock, according to the quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: 100% in advance, T/T.
If you have another question, pls feel free to contact us.
