Автоматический фильтр для сточных вод гидравлический мембранный фильтр пресс-камера ленточный фильтр-пресс
540 031,00 ₽
Новинка 2023 автоматический и ручной пресс для фильтров очистки сточных вод обезвоживания осадка
- Категория: >>>
- Поставщик: Liaoyang Wintech Industrial Co. Ltd.
Сохранить в закладки 1600798839759:
Описание и отзывы
Характеристики
Product Overview
2023 new automatic and manual pull plate filter press machine for sewage treatment sludge dewatering
After concentration and digestion, the sludge still has a water content of about 95% to 97%, and its volume is still large. Sludge dewatering can further remove interstitial and capillary water in sludge, reduce its volume, and facilitate subsequent transportation and treatment.
Sludge filtration dehydration is driven by the pressure difference between two sides of the filter medium, which forces sludge water to pass through the filter medium to form filtrate, while solid particles are trapped on the medium to form filter cakes, thereby achieving the purpose of sludge dehydration.
Plate and frame filter press is the first machine used in chemical dehydration. Due to its advantages such as strong filtering driving force, high solid content of filter cake, clear filtrate, high solid recovery rate, it is still widely used in some sewage plants.
FEATURES AT A GLANCE
1.Strong corrosion resistance, basically applicable to all solid-liquid separation operations.
2.Adopts low-pressure filtration and high-pressure pressing, which can greatly shorten the entire filtration cycle.
3.Save operating power consumption. In the late stage of filtration, the flow rate is small, the pressure is high, and power
consumption is saved.
4.Improve the sludge cake dry degree, reduce the water content.
Working Principle
Our company's filter press is a technologically advanced separation machine that integrates mechanical, electrical, and hydraulic components. It consists of five main components: rack components, filter components (filter plate/frame, filter cloth), traction plate components, hydraulic components, and electrical control components. According to user requirements, liquid collection devices can be added.
RACK PART
Rack part is the main body of machine, in order to support the filtering mechanism, connect other components. It is mainly composed of thrust plate, press plate, oil cylinder and the main girder and other parts.
When working, the piston of oil cylinder push the press plate, press tight the filter plate and filter cloth between press plate and thrust plate, to ensure that the slurry with pressure in the filter chamber for pressure filtration.
FILTER PART
The filter component consists of filter plates in a certain order in the main beam and filter cloth between the filter plates, which are alternately arranged to form multiple independent filter units - filter chambers. When filtering is started, the feed liquid is pushed by the feed pump and enters the filter chamber through the feed port on the thrust plate. Filter the pressure generated by the feed pump. Due to the interception effect of the filter cloth, solid particles remain in the filter to form a filter cake chamber and filtrate flows out from the water nozzle or liquid valve.
Product Parameters
Model | Filter plate size(mm) | Filter area (m2) | Quantity of filter plate(pcs) | Filter room volume(L) | ||||
WIN-XMZ800/30 | 800*800 | 30 | 29 | 450 | ||||
WIN-XMZ800/40 | 800*800 | 40 | 39 | 600 | ||||
WIN-XMZ800/40 | 800*800 | 50 | 49 | 750 | ||||
WIN-XMZ800/40 | 800*800 | 60 | 59 | 900 | ||||
We still have larger and smaller models, customizable in various sizes | ||||||||
Equipment Core Configuration
1. MAIN FRAME
The main beam is made of Q355B high-quality carbon steel, and carbon dioxide shielded welding is used for double-sided welding.The oil cylinder is made of 27SiMn seamless steel pipe.
2.PROGRAM CONTROL ELECTRIC CONTROL CABINET SYSTEM
PLC using Germany Siemens, reliable performance; Control feed etc.
3. AUTOMATIC HYDRAULIC SYSTEM
The oil pump in the hydraulic station uses Hengyuan or Jinda products, and the hydraulic main control valve uses high-precisionBeijing Huade Company products.
4. CHAMBER-TYPE FILTER PLATE
The chamber type filter plate is made of materials such as alkali - free glass fiber reinforced polypropylene.
5.PRESS CLOTH
Made on a German loom and made of high-quality materials, the sleeved non pinch cloth has good acid and alkali resistance. The filter cloth is self-produced
6. AUTOMATIC PULL PLATE SYSTEM
The frequency converter adopts AB brand or Delta brand; The automatic plate pulling system adopts a closed chain box, which has good anti-corrosion and dust-proof performance.
Application Scope
Plate and frame filter press is a new type of high efficiency filter, widely used in the field of suspension filtration and separation. The plate and frame filter press has a simple structure, compact equipment, large filtration area, small floor area, high operating pressure, low water content in the filter cake, and strong applicability to various materials, making it suitable for intermittent operation. It is applied to industries such as chemical industry, ceramics, petroleum, food, smelting, etc., as well as wastewater treatment in the industrial filtration industry.

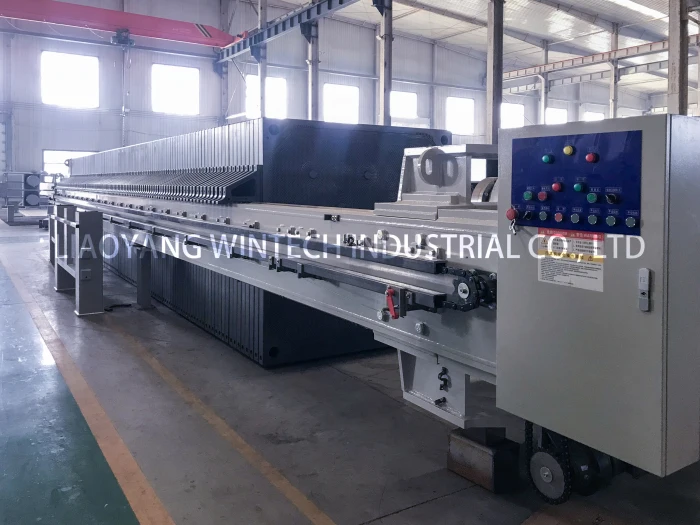

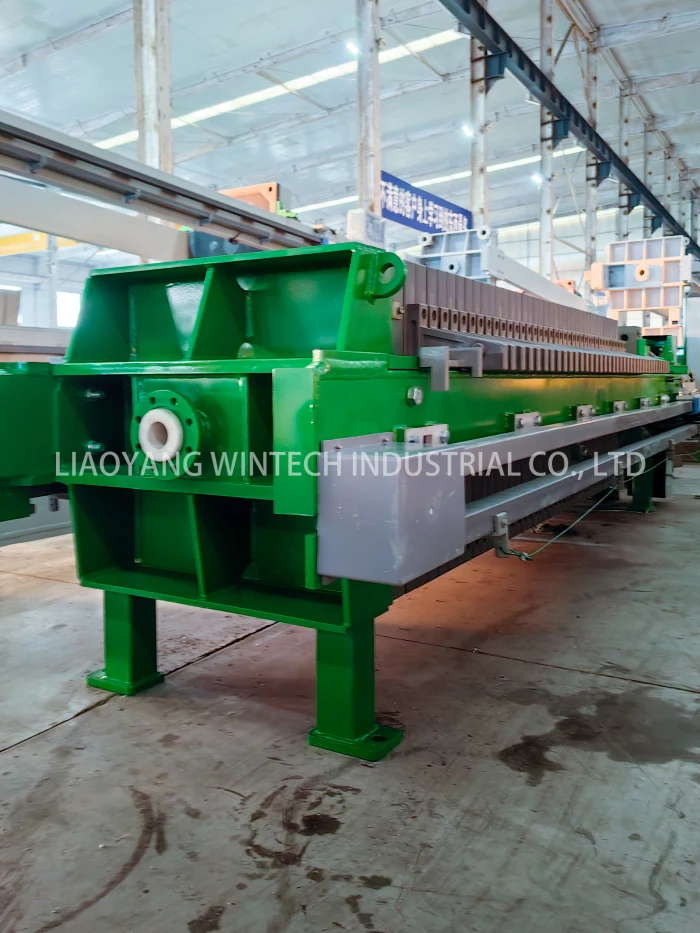

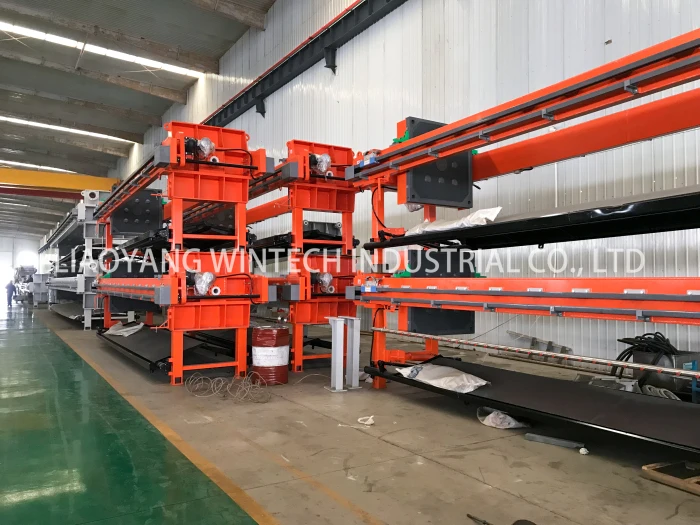

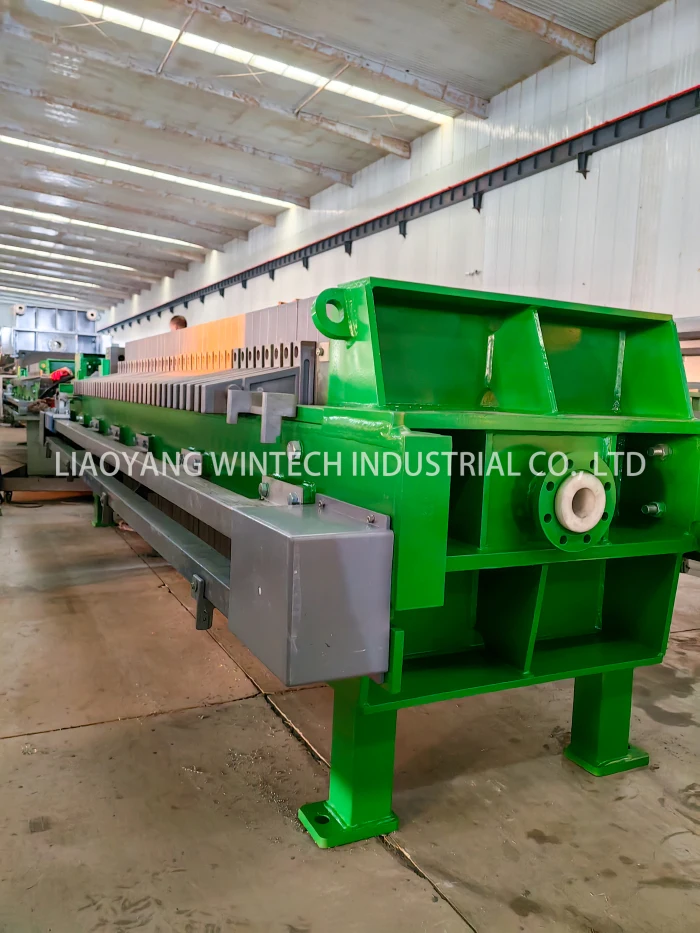

Product More Pictures
Company Profile
LIAOYANG WINTECH INDUSTRIAL CO.,LTD takes Centrifuge Equipment and Drying Equipment processing and manufacturing as the main industry, main products are Horizontal Decanter Centrifuge, Disc Centrifuge, Tubular Centrifuge, Flat Series Centrifuge, CO2 Supercritical Extraction Equipment, Spray Dryer, Fluid Bed Dryer, Drying Oven, Drum Dryer and corresponding supporting equipment. At the same time, to undertake standards and non-standard products. Our equipment is exported to Europe, America, Southeast Asia, Africa and other countries, and has been praised by foreign customers.
Our company has professional engineers with strong new product development ability, and can develop equipment products according to the actual needs of customers. Our company has ISO 9001 certification, CE certification and other relevant authoritative parts of professional identification and recognition. At the same time, facing the fierce market competition, our company is relying on its own advantages, integrating external resources, optimizing internal management, constantly exploring and innovating, and striding forward in the direction of business specialization and diversification. Our company adheres to the business philosophy of quality and service, and wholeheartedly provides high-quality products and services for new and old customers to meet the needs of customers to the maximum extent. Serve customers, achieve customers, sincerely look forward to cooperating with new and old customers to create a better future.
Our company follows strict quality controls and various systematic procedures. We take utmost care of quality at every stage of the manufacturing process.Our research and development wing is our asset that develops and incorporates innovative ideas and products. Our Team is full of experienced and qualified professionals, who have sound knowledge about the quality of our machinery.
We sincerely invite you to be our long term relationship friend , and we always prepared to provide our best services for you and would like you to know below we want to present :
1. Each machine is manufactured by professional experienced staff.
2. 12 months warranty + 100% QC inspection before Shipment.
3. Overseas services provided. Technicians can be sent to spot for guiding the installation and debugging. Training operators and accomplish the commissioning.
4. Consultant services for whole machine life, 24 hours technical support by email and phone.When warranty date expired, lifetime maintenance service is provided and at buyer’s cost.
1. Each machine is manufactured by professional experienced staff.
2. 12 months warranty + 100% QC inspection before Shipment.
3. Overseas services provided. Technicians can be sent to spot for guiding the installation and debugging. Training operators and accomplish the commissioning.
4. Consultant services for whole machine life, 24 hours technical support by email and phone.When warranty date expired, lifetime maintenance service is provided and at buyer’s cost.
SIMILAR PRODUCTS
FAQ
1. What data is required to confirm the model?
(1) Raw material detailed information (2) Treatment capacity (3) Special requirements2. What certificates do you have?
We can provide CE, ISO 9001, etc.
3. What is the warranty period of the equipment?
Normally 1 year warranty.
4. Can we visit your factory?
Sure, we sincerely invite you to visit, if it's not convenient for you, you can visit our factory and solve problems through video conference.
5. Can we bring our own materials to your factory for experiments?
Sure, you are welcome at any time. We will arrange professional engineers and technicians to do experiments and analyze data for you on site.
6. Can it be customized?
No problem, our equipment can be customized according to the actual requirements of customers.
7. How long is the construction period?
It's about 30 days, but it also needs to be determined according to the specific equipment model, order number, etc., But if you need it urgently, please let us know, we can arrange the factory to rush production.
8. Will you provide installation services?
If you need, we can arrange professional technicians and engineers to install and debug on site.
Похожие товары

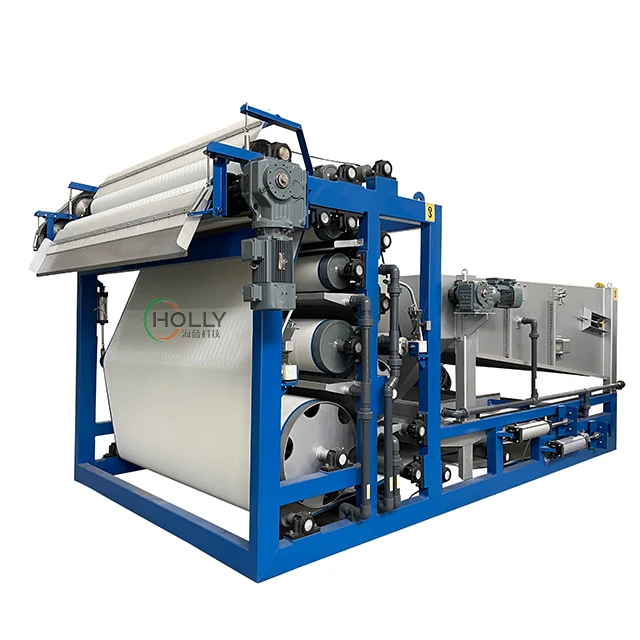

Оборудование для очистки воды, фильтр для обезвоживания осадка, оборудование, очистное оборудование, цена
540 031,00 ₽
Картонная коробка, чернильная очистка сточных вод, фильтрующая пресс-машина, завод по фильтрации
874 850,22 ₽ - 918 052,70 ₽

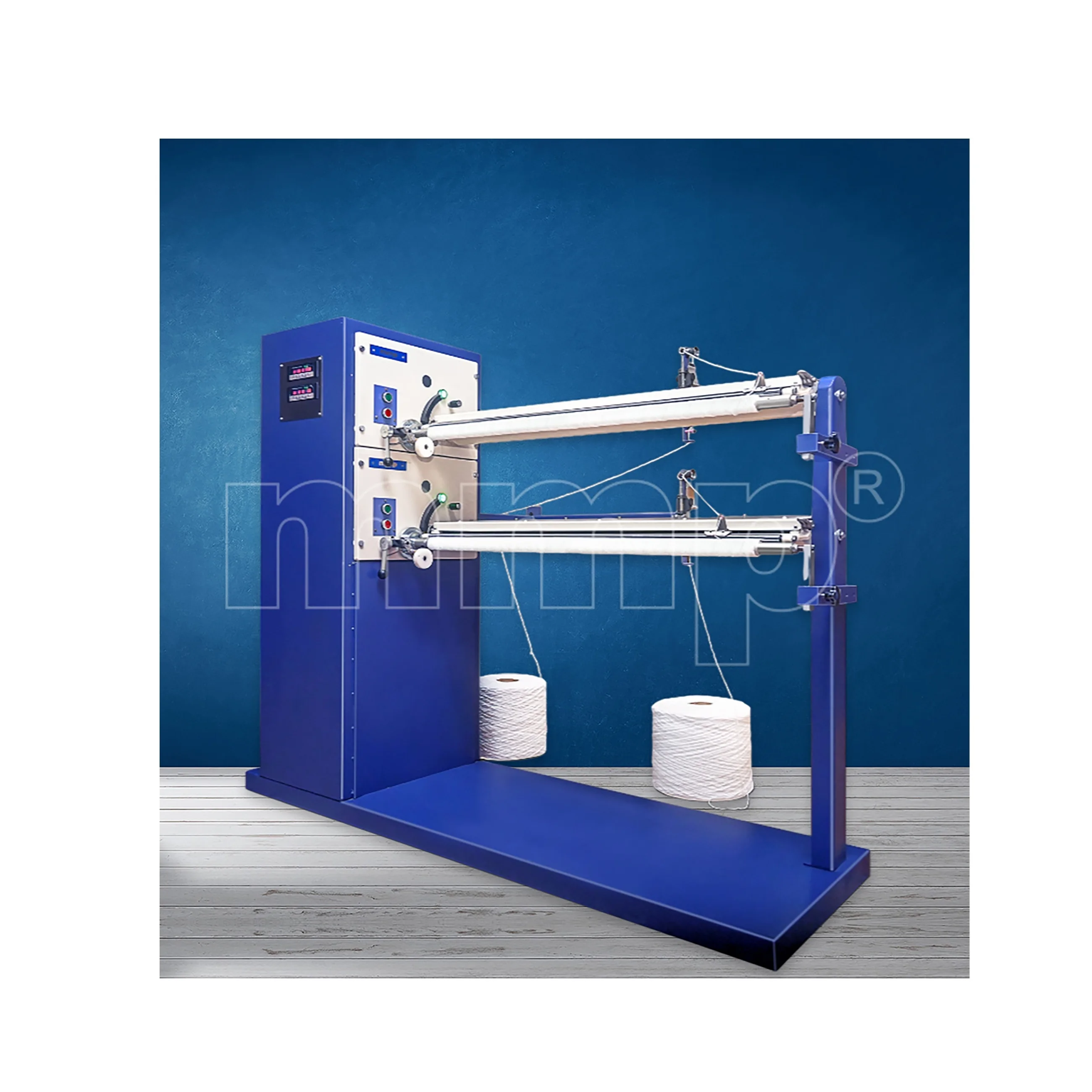

Купите стандартное качество, машина для изготовления картриджей для намоточного фильтра с высококачественным материалом и сверхмощный картридж для фильтра
464 426,66 ₽

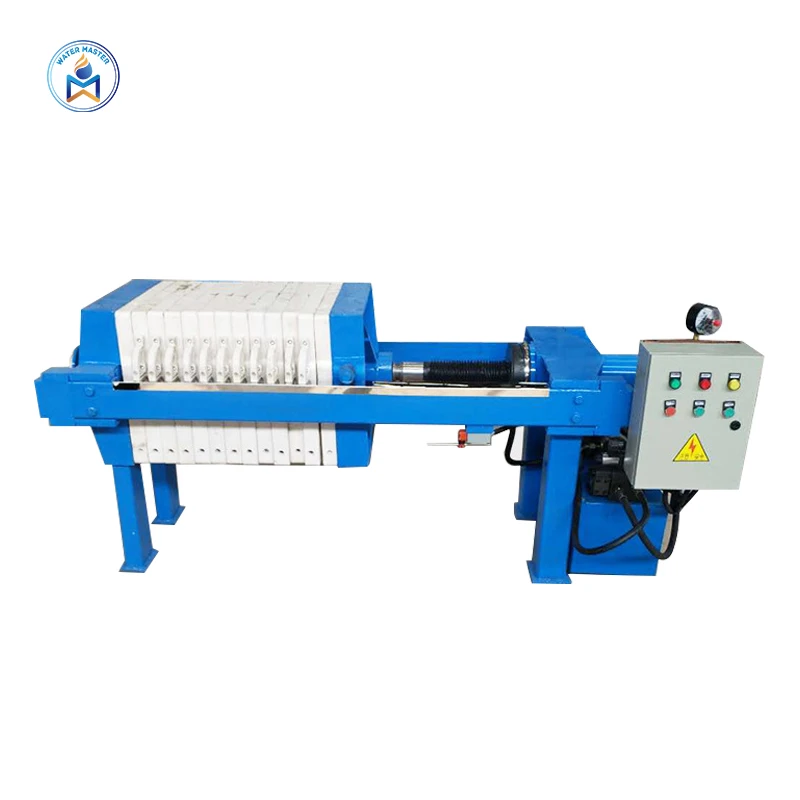

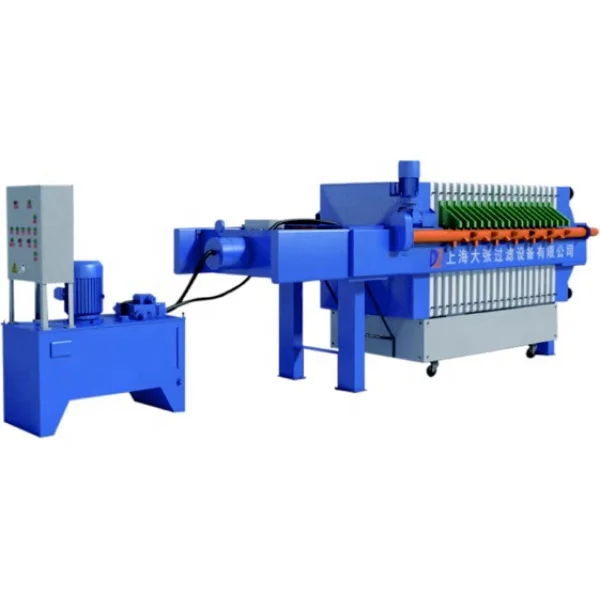

Пластина и рама мембранный фильтр пресс оборудование гидравлический винтовой фильтр пресс
216 012,40 ₽
Твердый/водный сепаратор автоматический фильтр-пресс-винтовой фильтр-пресс для обработки осадка
216 012,40 ₽

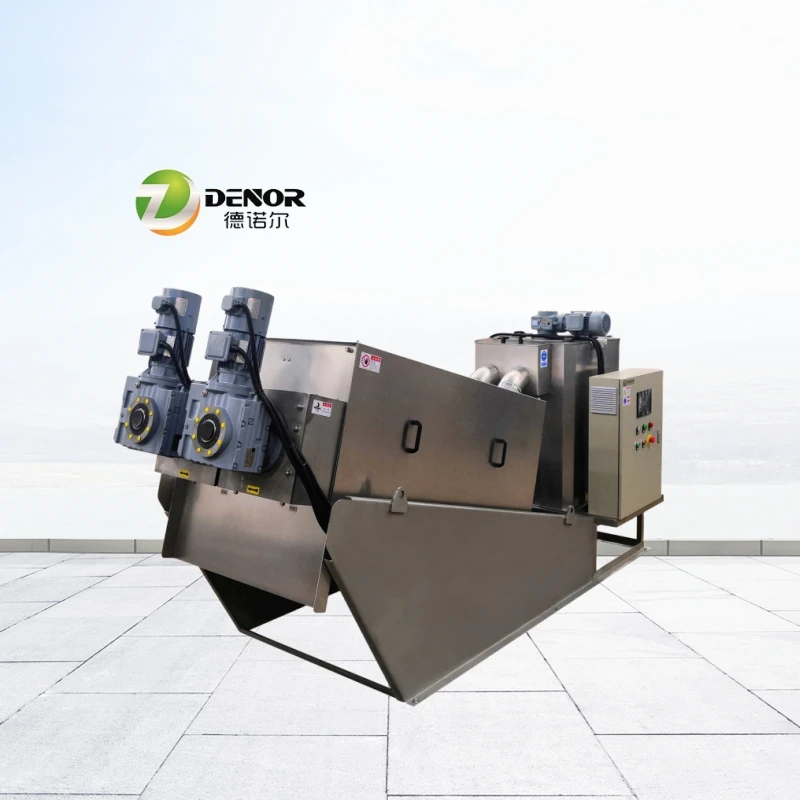

Многодисковый двухцилиндровый винтовой пресс для машин для очистки пищевых сточных вод
270 015,50 ₽ - 594 034,10 ₽

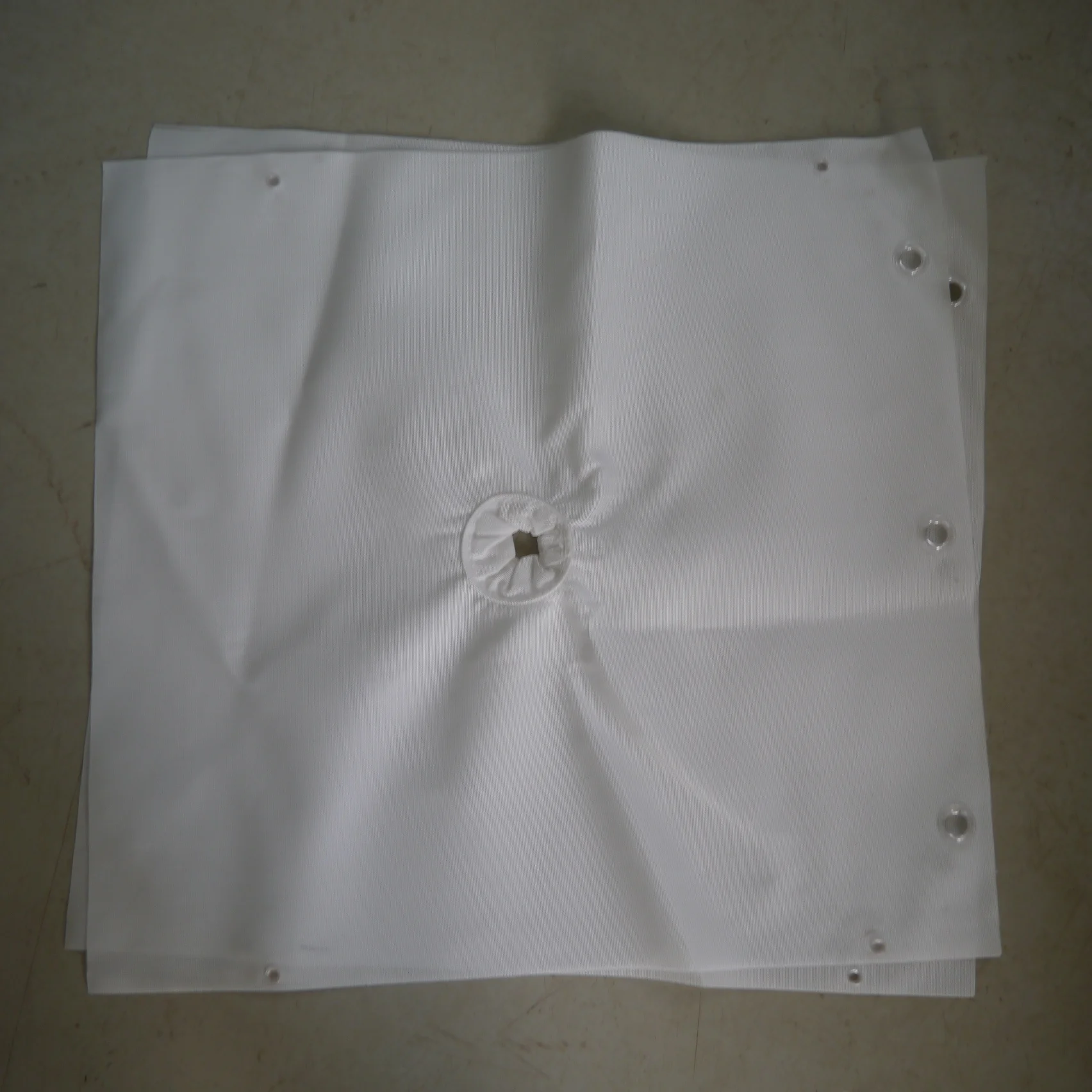

Фильтрующая ткань для замены ткани разного размера из различных материалов и фильтрующая Микронная сетка от Leo Filter Press
