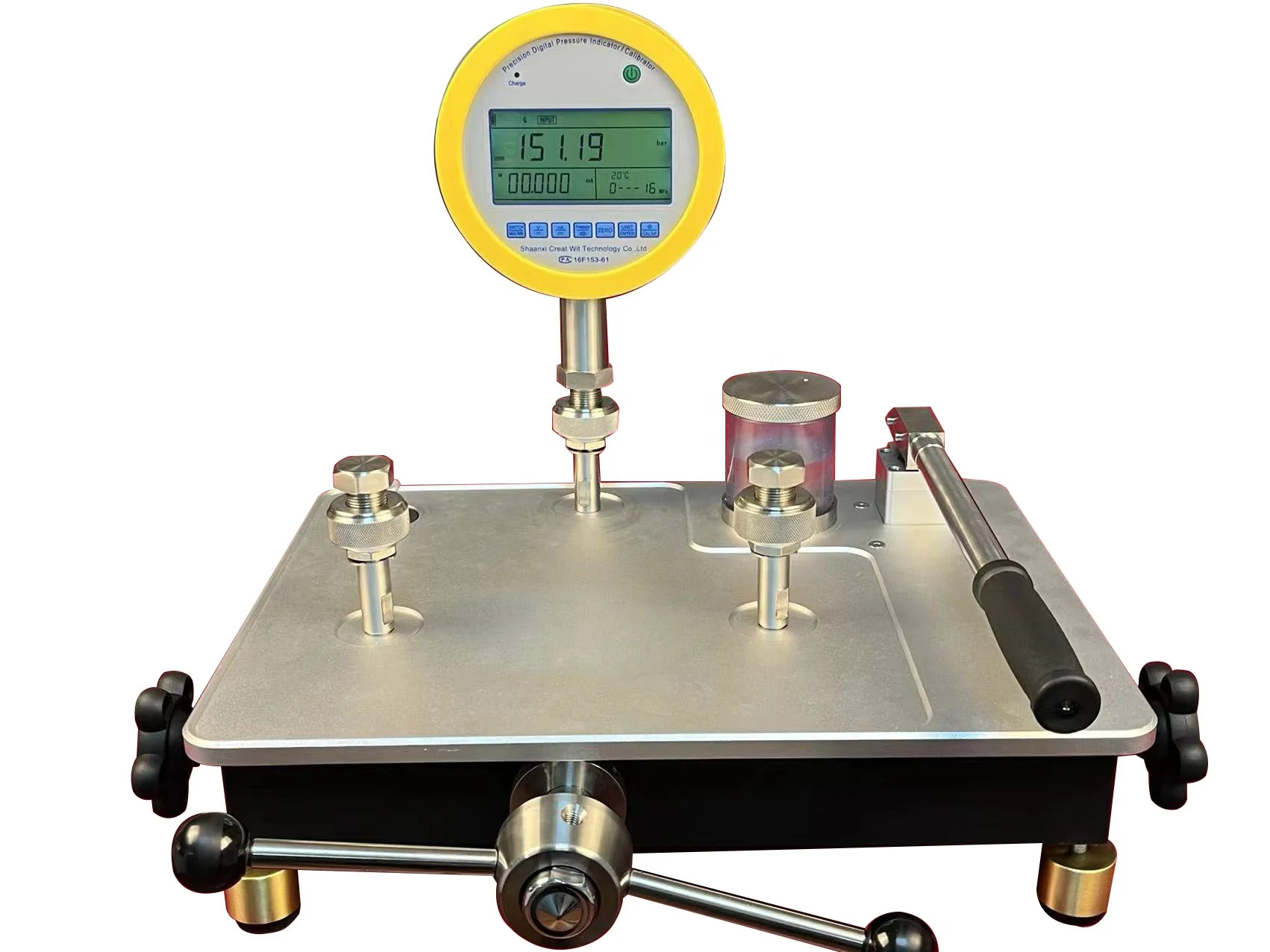

Испытательный насос высокого давления 2500

The pump (CW8400) includes pre-pressure pump, pressure regulator, stop valve, relief valve and output connection. And it adopts anti-rust technology, good sealing performance, stable pressure rise performance, long lifetime, simple operation.

Application

The pump (CW8400) serves as pressure generator for the testing, adjustment  and calibration of mechanical and electronic pressure measuring instruments.

Widely used both in laboratory and on site for Power, Metallurgy, Petroleum, chemistry, Metrology industries.

lSpecification

1. Model: CW8400

2. Range:(0~250)MPa

3. Medium: Oil compatible with copper, aluminum alloy, stainless steel (304), butadiene rubber (usually sebacate)

4.  Size:500mm×400mm×175mm

5.  Weight:20kg

6.  Connection:M20*1.5

Note: During long-distance transportation, try to empty the liquid medium in the oil cup.

lConfiguration structure

1  prim-pump                    2 oil cup                         3 stop valve                 4 regulator handle

5 vent valve                      6 dirty oil/water cup      7 connection                8 effluent discharge/filter mesh

lPipeline connection

lSize

*The comparison pump with gauge to a pressure calibration solution

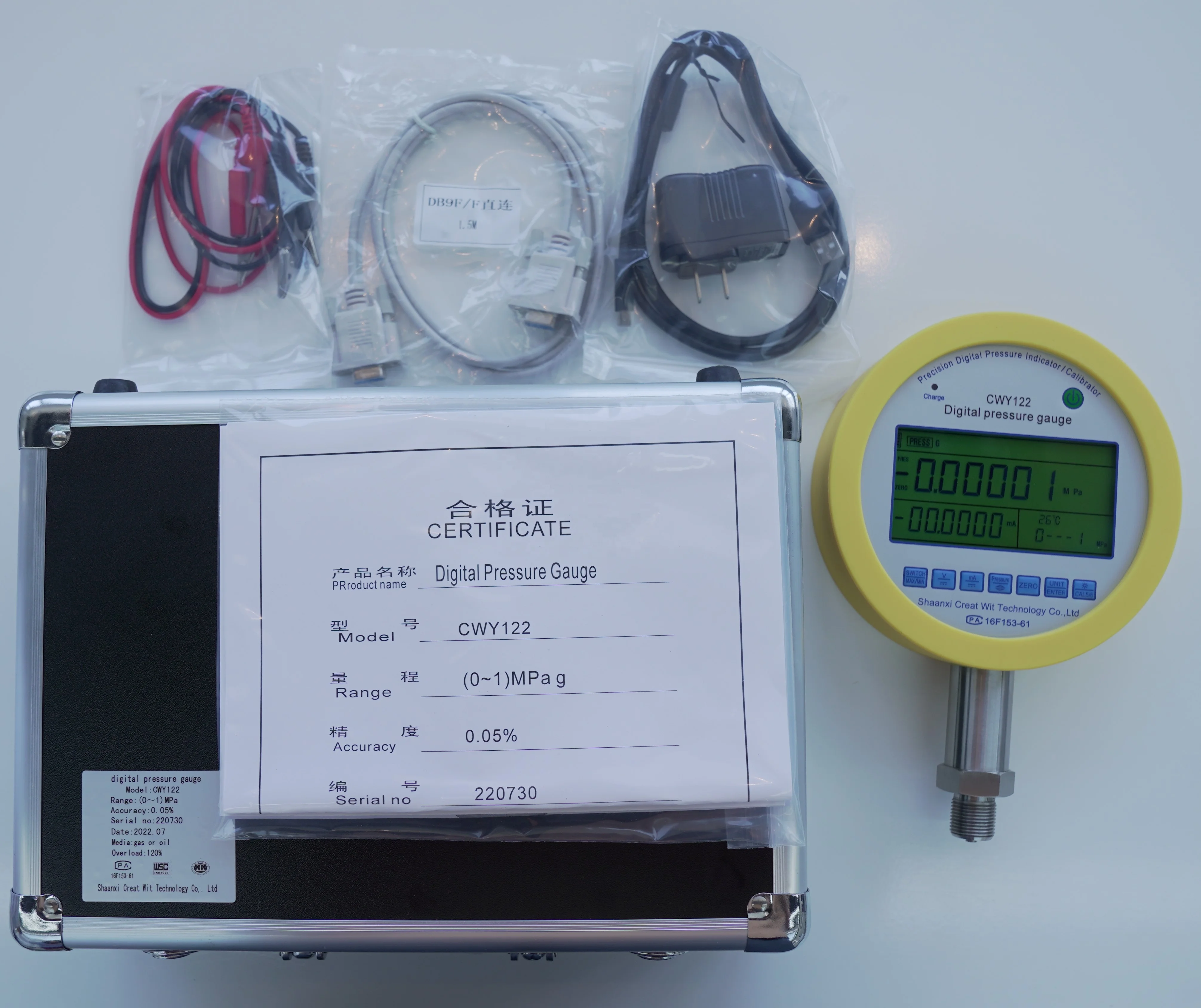

digital pressure gauge 0.05%, 0.02%                                  Portbale pump to 700bar

 We are top pressure instruments manufacturer in China, founded in 2006.

Our products includes: pressure gauges; pressure calibrators; pressure pumps and pressure benches, etc,.
