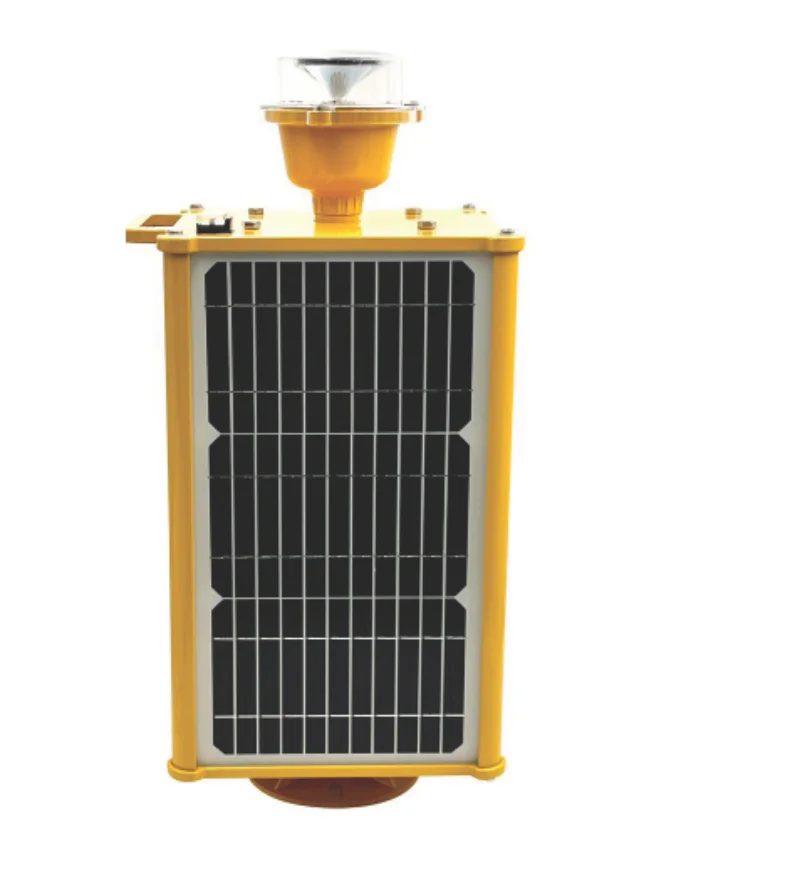

Стандартный авиационный световой ограничитель низкой интенсивности типа B от ICAO/солнечный свет/солнечный для строительства

Стандартный авиационный световой ограничитель низкой интенсивности типа B от ICAO/солнечный свет/солнечный для строительства

Категория: >>>
Поставщик: Shenzhen Green Source Light Equipment Co. Ltd.

Цена:153 150,76 ₽ - 164 090,10 ₽*

Количество:

В избранное

Описание и отзывы

Характеристики

Solar Medium intensity Type A Aviation Obstruction Light

Product Details

TX-LB-01(L) type B low-intensity aviation obstruction light, base adopt high intensity casting aviation aluminum. Light source adopt high efficient SMT LED chip and combine with reflecting optical structure, which have the specific of high brightness and long lifespan; Management circuit with Strong lightning protection and With the surge protection device, which can adopt to extremely bad working environment. Built-in advanced battery management protection module, which can prolong the battery lifespan effectively

Specification

Model	TX-LB-01(L)	Vertical Divergence	>10°
Power supply	Solar power supply	Horizontal Out-put	360°
Power frequency	DC	Overall Size	132126125mm
Average power	≤2.6W	Installation size	G3/4 cylindrical pipe thread
Solar panel power	4×14W	Battery power	288WH
Working mode	Steady light	Ambient Temperature	-40℃~+55℃
Emitted color	Red	Weight	≈15kg( include solar system)
Light source	LED	Wind load	240km/h
Shell material	Aviation Aluminum alloy	Luminous mirror material	optical PC
Light source lifespan	≥200000h	Energy efficiency	≥95%
Surge protection rating	3KA	Protection grade	IP65
Get wet in the rain	Can be exposed to rain in any wind direction	Relative humidity	0%~95%
Radiation	Can be exposed to solar radiation	Salt spray	Can be exposed to salt spray
Seismic resistance	10~500Hz,2G 10min/cycle,XYZ 60 minutes for each axis	Insulation characteristic	/
Mean Time Between Failure	≥200000h,MIL-HDBK-217F(25℃)	EMC standards	Emitted:EN55022(CISPR22) class A harmonic wave:EN61000-3-2,-3
Electric shock protection	Has	Altitude	≥2500m
Effective intensity	night:>32.5cd
Photocell ambient brightness	50/100Lux

Applications

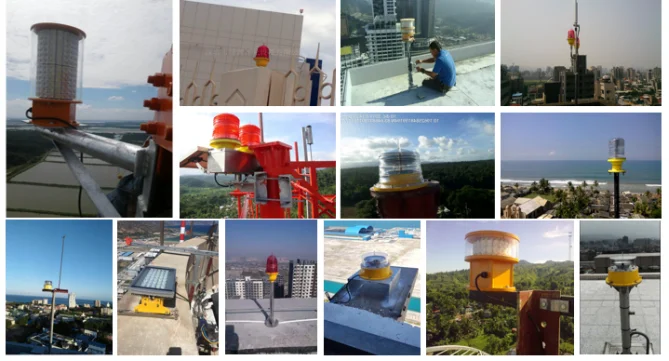

Block, Airport, high-pole lamp, Chimney, Bridge, Towers, Communication tower, super high building

Our Company

Exhibition

Feeback

FAQ
Q1. Can I have a sample order for Obstruction light?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?

A: Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than.

Q3. Do you have any MOQ limit for Obstruction light order?

A: Low MOQ, 1pc for sample checking is available.

Q4. How do you ship the goods and how long does it take to arrive?

A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q5. How to proceed an order for Obstruction light?

A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.

Q6. Is it OK to print my logo on Obstruction light product?

A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q7: Do you offer guarantee for the products?

A: Yes, we offer 2-5 years warranty to our products.

Q8: How to deal with the faulty?

A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
