Products Description

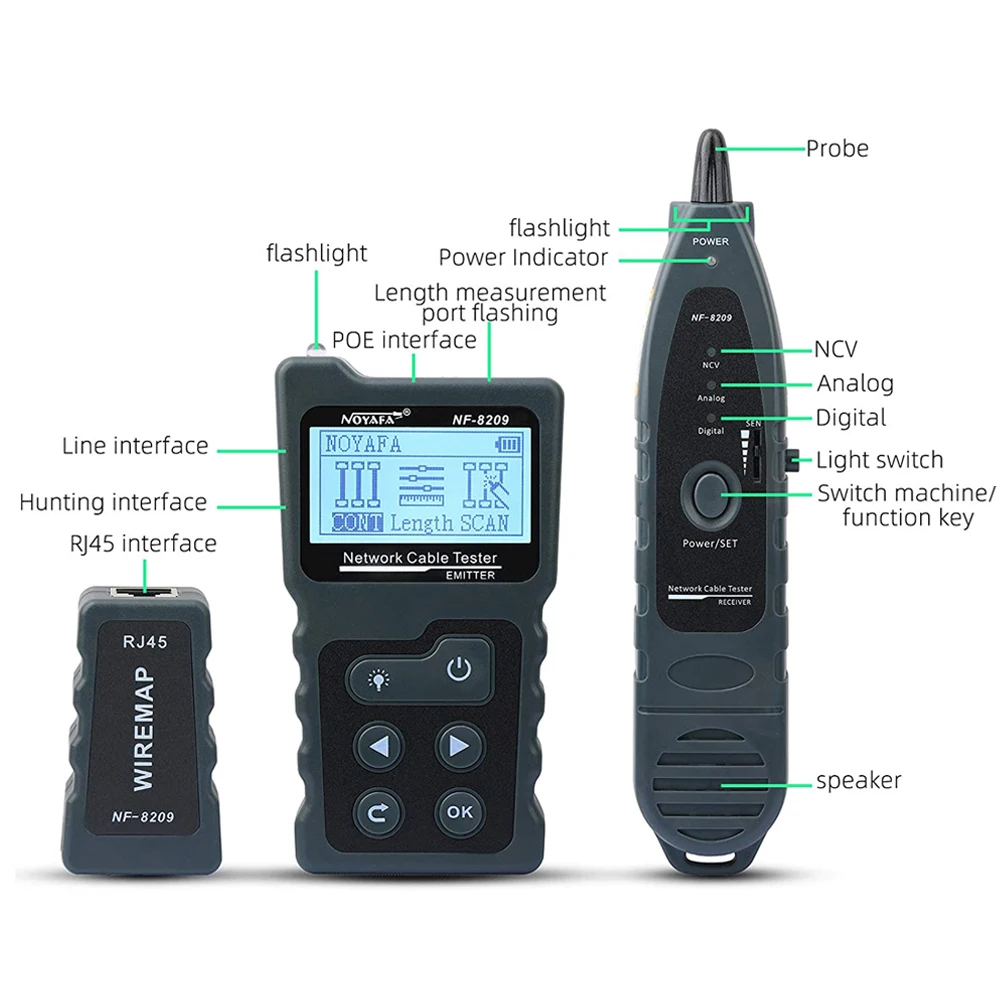

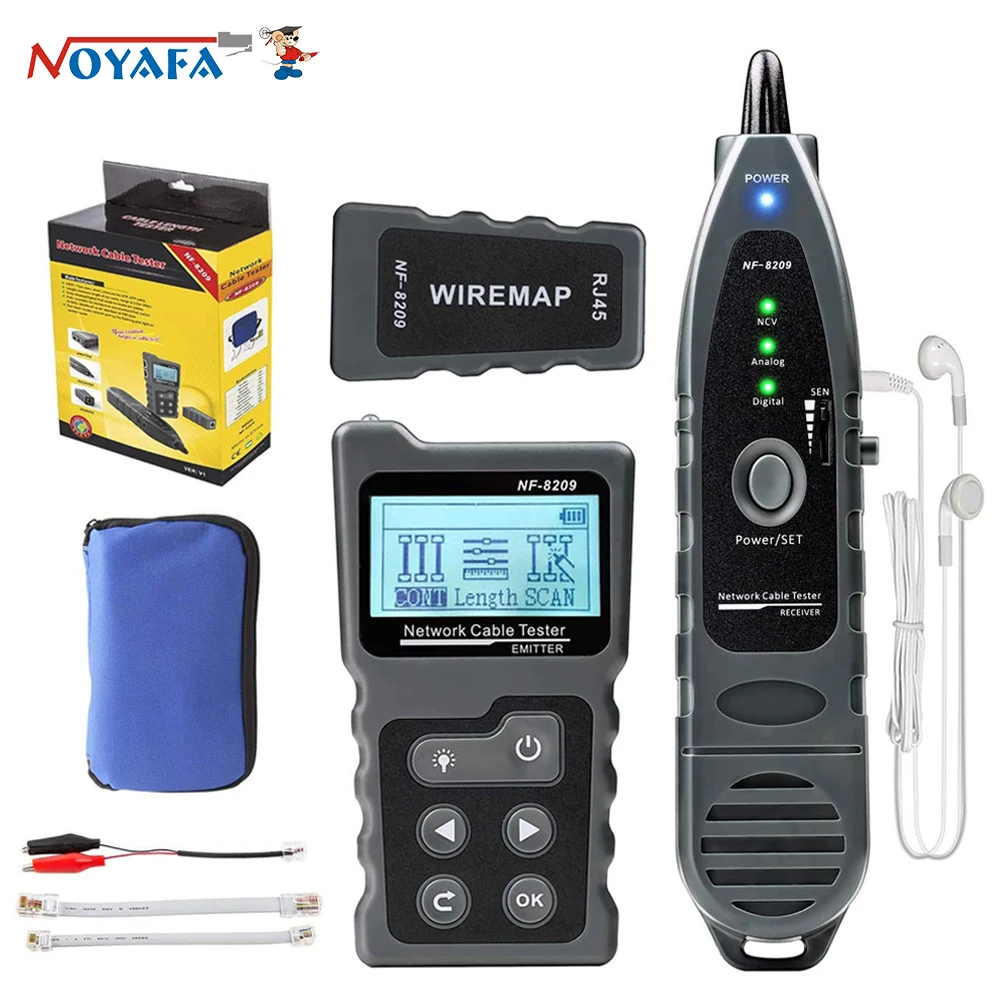

NOYAFA NF-8209 Lan Network Tools LCD Display Measure Length Wiremap Tester Cable Tracker

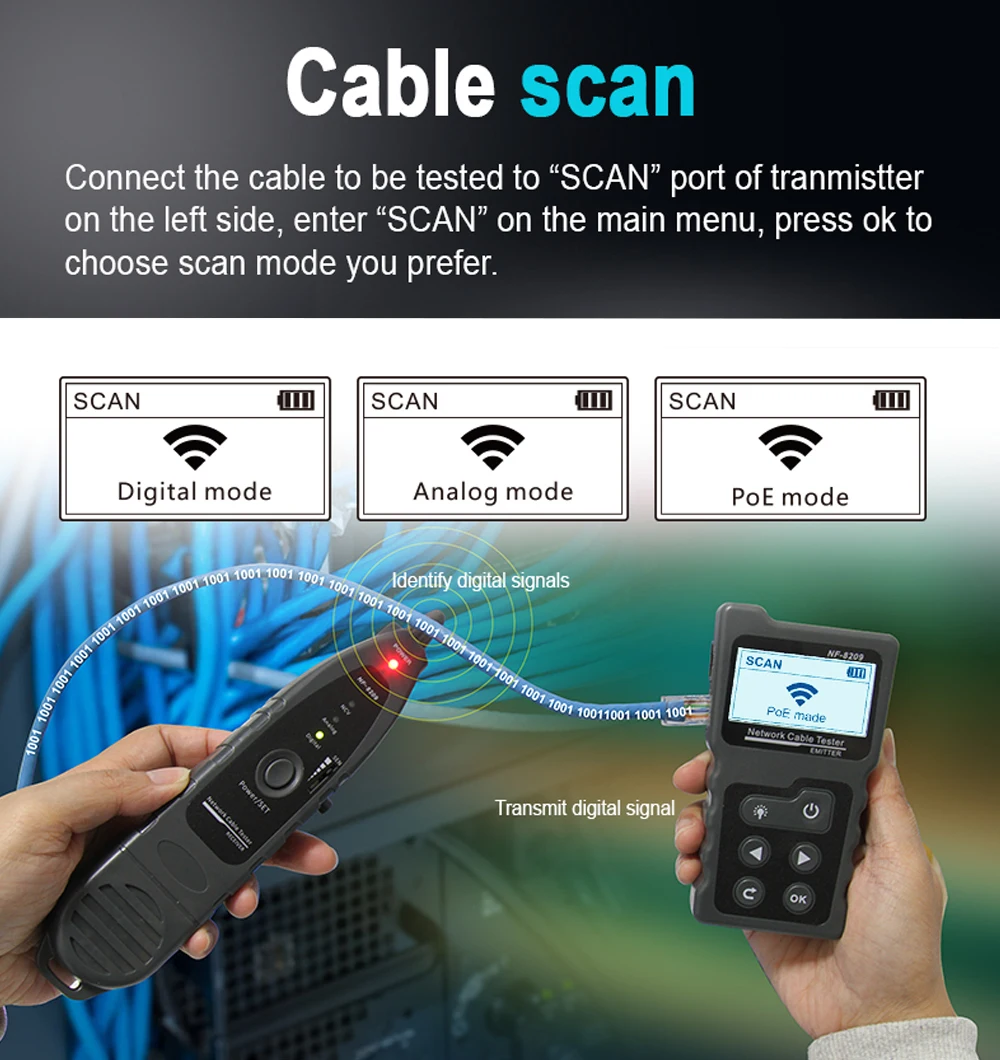

3 Cable Tracing Modes - Digital, Analog, and PoE. In digital or analog mode the tone generator sends strong, clear toning to let you find cables faster. If the cable you need to identify is plugged in a PoE switch, the PoE scan mode will make the cable tracing more precise.
3 Cable Testing Capabilities - Wiremap, Length, and PoE. The NF-8209 allows you to do wire map testing and check 5 common connection problems including open, short, cross, split, and reversed pairs, measure the length of LAN cables with range of 2.5m - 500m, test the info of PoE devices such as PoE voltage, power supply polarity and mode, type of PSE (AF or AT standard).
Port Flash & Switch Details Test. The port flash feature enables you to locate network ports by flashing port light on switches or routers, and will tell you the connected switch’s info like its speed, transmitting mode , and protocol.
128x64 Dots Graphic LCD Display. The NF-8209 cable tracker comes with a bright and easily discernible LCD display making it much easier to use. Any cable issues can be easily identified and tracked just from looking at the visual and well-lit tester display.
Non-contact Voltage (NCV) Detecting. The receiver (the tone probe) can be used to detect AC voltage presence.
Certification. Passes RoHS, FCC, and CE compliance testing, and Noyafa is certified to the ISO 9001 standard.
100% Affordable. Manufactured in China and a lot cheaper than competitor products with similar quality, like Fluke, KleinTools, Greenlee, etc.
NF-8209 is a new generation to offer digital and analog signaling all in one network toner and probe. It has three modes for options to track cable like digital mode, analog mode and PoE mode. That means it’s equipped with the most powerful cable location technologies for any work environment. Also, it includes cable length measurement , cable faults testing, PoE testing, hub blink and NCV function, all these makes it a must-tool for cabling engineers.
Product Operation
1. CONT-- Test open, short, cross,ect for STP, UTP cable.

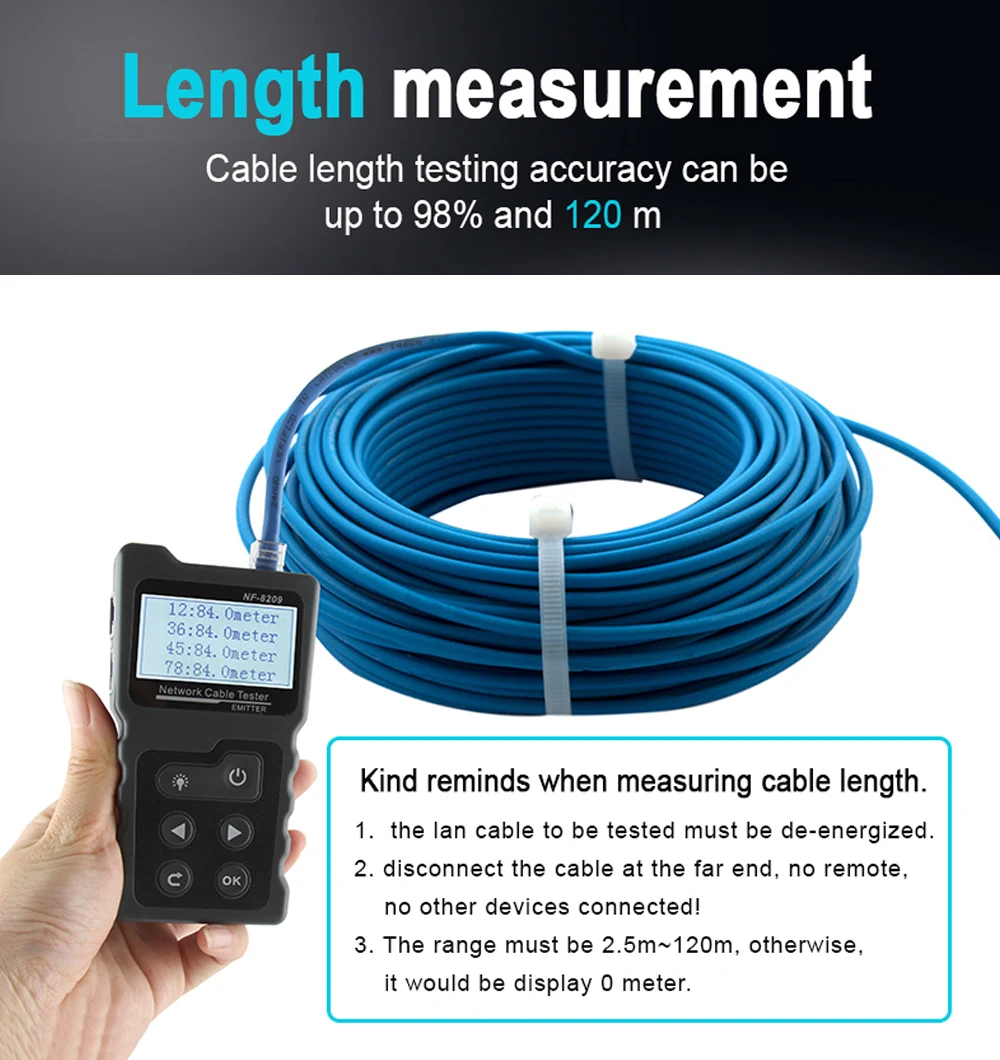

2. Length--measure length of lan cable, range is 2.5m~120m.
3. Scan--Analog/Digital/ PoE mode to locate lan cables.
4. PoE-- available for standard or non-standard PoE switch (5~60V), identify AT or AF standard of PSE type.
Product Operation
1. CONT-- Test open, short, cross,ect for STP, UTP cable.
2. Length--measure length of lan cable, range is 2.5m~120m.
3. Scan--Analog/Digital/ PoE mode to locate lan cables.
4. PoE-- available for standard or non-standard PoE switch (5~60V), identify AT or AF standard of PSE type.
5. Flash--locate network port by the flashing port light on switch/ router.
Product Paramenters
Transmitter | Wiremap | Cable type | CAT5、CAT6 (STP & UTP) | |
Test with switch directly | Yes | |||
Max range | 600m | |||
Length | Cable type | CAT5、CAT6 (STP & UTP) | ||
Test range | 2~200m | |||
Accuracy | ±1.6m | |||
Breakage location | Yes | |||
Scan | Cable type | CAT5、CAT6 (STP & UTP) | ||
Max. signal voltage | 8Vp-p | |||
Frequency | 130KHz | |||
AC filter | Yes | |||
Max range | 600m | |||
POE | Test range | DC 5~60V standard / non-standard PoE switch | ||
Voltage display | Yes | |||
PoE type | IEEE 802.3af/at | |||
LCD display | 128*64 Dot-matrix with backlight | |||
Power supply | AAA*3 (Not included) | |||
Low battary warning | 2.7V | |||
Auto-off time | 15min、30min、60min、OFF | |||
Voltage protection | DC48V 5mA | |||
Max working current | <150mA | |||
Receiver | Sentivity adjustable | Yes | ||
AC Voltage detecting | Yes | |||
Lamp | Yes | |||
Battary type | 9V*1 (Not included) | |||
Low battary warning | 6± 0.5V | |||
Max working current | <100mA | |||
Remote | Wiremap Port | RJ45 | ||
Voltage protection | DC48V 5mA | |||
Details Images
Customer Photos
Manufacturing Technique
FAQ
Q1: What is your company type?
Answer 1: We are manufacturers from China. We have our own brand SITIANTEK, and we are the first-level agents of UNI-T, SNDWAY, MESTEK, WANPTEK, FNIRSI, BSIDE, Hantek and other brands.
Q2: How long can you deliver the goods?
Answer 2: If it is not a customized product, it can be delivered in about 1~3 days. If the product is in short supply, it will take about a week to ship. We will inform the buyer of the delivery time in advance.
Q3: How long is your product warranty?
Answer 3: Our product warranty period is one year, but the premise is that it is not intentionally damaged.
Q4: What is your MOQ? Can I talk with you about a discount if I only buy one product?
Answer 4: Our MOQ is 1 (most products). If you only buy one product, you can also apply for a lower price with us.
Answer 1: We are manufacturers from China. We have our own brand SITIANTEK, and we are the first-level agents of UNI-T, SNDWAY, MESTEK, WANPTEK, FNIRSI, BSIDE, Hantek and other brands.
Q2: How long can you deliver the goods?
Answer 2: If it is not a customized product, it can be delivered in about 1~3 days. If the product is in short supply, it will take about a week to ship. We will inform the buyer of the delivery time in advance.
Q3: How long is your product warranty?
Answer 3: Our product warranty period is one year, but the premise is that it is not intentionally damaged.
Q4: What is your MOQ? Can I talk with you about a discount if I only buy one product?
Answer 4: Our MOQ is 1 (most products). If you only buy one product, you can also apply for a lower price with us.
