Гидравлический фильтрующий пресс для разделения твердых жидкостей с цианидом золотой руды
- Категория: >>>
- Поставщик: Liaoyang Wintech Industrial Co. Ltd.
Сохранить в закладки 1600800101387:
Описание и отзывы
Характеристики

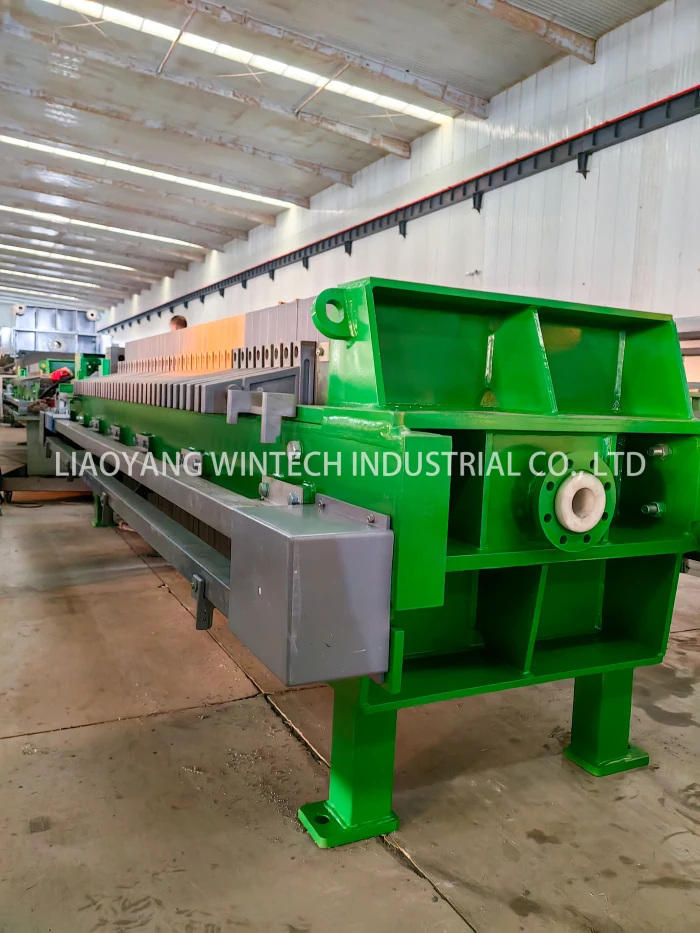

Gold Ore Cyanide Leaching Process Hydraulic Filter Press for Solid-Liquid Separation
Product Description
Filter Press is widely used in industries that require solid-liquid separation, including chemical, mining, food and environmental protection. It is efficient in filtering, concentrating, and separating chemicals, minerals, foods. Additionally, Filter Press is widely used for wastewater and exhaust gas treatment in environmental protection.
1. MAIN FRAME
The main beam is Q355B high-quality carbon steel, and the carbon dioxide protection welding is used for double-sided welding. The oil cylinder is made of 27SiMn seamless steel pipe.
2.PROGRAM CONTROL ELECTRIC CONTROL CABINET SYSTEM
PLC using Germany Siemens, reliable performance; Control feed etc.
3. AUTOMATIC HYDRAULIC SYSTEM
The oil pump in the hydraulic station uses Hengyuan or Jinda products, and the hydraulic main control valve uses high-precision Beijing Huade Company products.

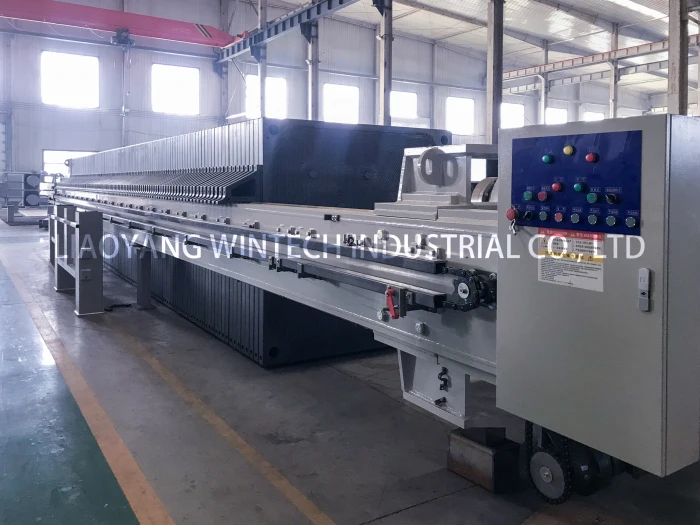

4. AUTOMATIC PULL PLATE SYSTEM
Frequency converter adopts brand AB or Delta; The automatic pulling plate system adopts closed chain box, which has good anti-corrosion and dust-proof performance.
5. CHAMBER-TYPE FILTER PLATE
The chamber type filter plate is made of materials such as alkali - free glass fiber reinforced polypropylene.
6.PRESS CLOTH
The use of German loom weaving, selection of high quality material, sleeve type without clip cloth, good acid and alkali resistance. Filter cloth is produced by own.
Working Principle
Our company’s filter press is integrating machine, electricity, liquid as a whole, advanced technology separation machinery. It consists of five major components: the rack part, filter part ( filter plate/frame, filter cloth), pulling plate part, hydraulic part and electrical control part. According to user requirements, it can be added the liquid collecting device etc.

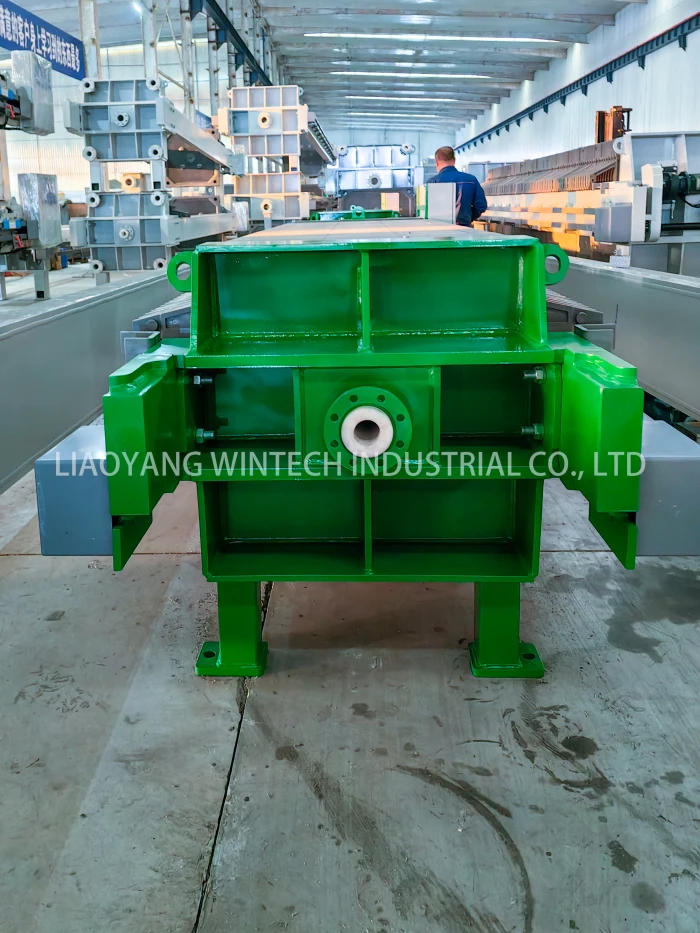

RACK PART
Rack part is the main body of machine, in order to support the filtering mechanism, connect other components. It is mainly composed of thrust plate, press plate, oil cylinder and the main girder and other parts. When working, the piston of oil cylinder push the press plate, press tight the filter plate and filter cloth between press plate and thrust plate, to ensure that the slurry with pressure in the filter chamber for pressure filtration.
FILTER PART
Filter part is made of filter plate with a certain order in the main girder and filter cloth between filter plates, filter plate
and filter cloth is alternate arrangement, form a number of separate filtering unit ─ the filter chamber. When begin to filter,the material liquid is pushed by the feed pump, come into filter chamber from feed inlet on the thrust plate. Filter by the pressure generated by feed pump. Due to the effect of entrapment of the filter cloth, make the solid particles stay in the filter chamber forming filter cake and filtrate liquid flow out from the water nozzle or the liquid valve. If need to wash filter cake,feed the washing water from the washing mouth on the thrust plate, wash filter cake; If you need low moisture content of filter cake, also feed compressed air from the washing mouth, through filter cake layer, take away some parts of moisture of the filter cake moisture (applicable to Uk machine model).
and filter cloth is alternate arrangement, form a number of separate filtering unit ─ the filter chamber. When begin to filter,the material liquid is pushed by the feed pump, come into filter chamber from feed inlet on the thrust plate. Filter by the pressure generated by feed pump. Due to the effect of entrapment of the filter cloth, make the solid particles stay in the filter chamber forming filter cake and filtrate liquid flow out from the water nozzle or the liquid valve. If need to wash filter cake,feed the washing water from the washing mouth on the thrust plate, wash filter cake; If you need low moisture content of filter cake, also feed compressed air from the washing mouth, through filter cake layer, take away some parts of moisture of the filter cake moisture (applicable to Uk machine model).
Technical Parameters
Model | Filter plate size(mm) | Filter area(m2) | Quantity of filter plate(pcs) | Filter room volume(L) | ||||
WDXMZ800/30 | 800*800 | 30 | 29 | 450 | ||||
WDXMZ800/40 | 800*800 | 40 | 39 | 600 | ||||
WDXMZ800/40 | 800*800 | 50 | 49 | 750 | ||||
WDXMZ800/40 | 800*800 | 60 | 59 | 900 | ||||
We still have bigger or smaller model, can be customized for any size. | ||||||||

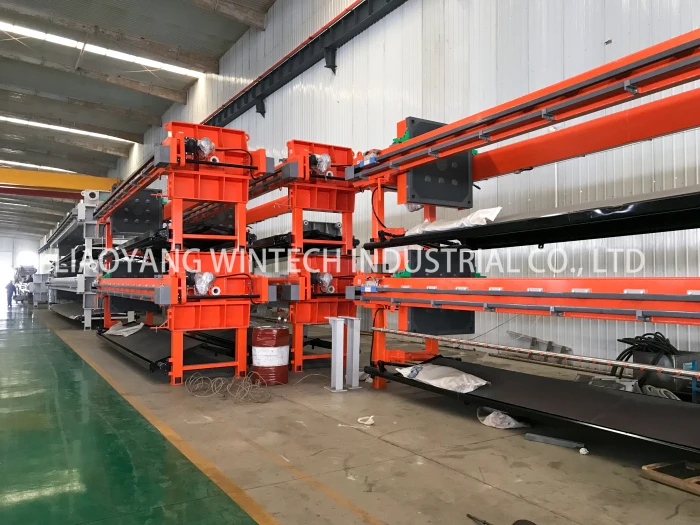

Company Profile
LIAOYANG WINTECH INDUSTRIAL CO.,LTD, takes Centrifugal Filter Equipment and Drying Equipment processing and manufacturing as the main industry, main products are Horizontal Decanter Centrifuge, Disc Centrifuge, Tubular Centrifuge, Flat Series Centrifuge, CO2 Supercritical Extraction Equipment, Spray Dryer, Fluid Bed Dryer, Drying Oven, Drum Dryer and corresponding supporting equipment, eg. food line, chemical line. At the same time, to undertake standards and non-standard products. Our equipment is exported to Europe, America, Southeast Asia, Africa and other countries, and has been praised by foreign customers.
Our company has professional engineers with strong new product development ability, and can develop equipment products according to the actual needs of customers. Our company has ISO 9001 certification, CE certification and other relevant authoritative parts of professional identification and recognition. At the same time, facing the fierce market competition, our company is relying on its own advantages, integrating external resources, optimizing internal management, constantly exploring and innovating, and striding forward in the direction of business specialization and diversification. Our company adheres to the business philosophy of quality and service, and wholeheartedly provides high-quality products and services for new and old customers to meet the needs of customers to the maximum extent. Serve customers, achieve customers, sincerely look forward to cooperating with new and old customers to create a better future.
Our company follows strict quality controls and various systematic procedures. We take utmost care of quality at every stage of the manufacturing process.Our research and development wing is our asset that develops and incorporates innovative ideas and products. Our Team is full of experienced and qualified professionals, who have sound knowledge about the quality of our machinery.
We sincerely invite you to be our long term relationship friend , and we always prepared to provide our best services for you and would like you to know below we want to present :
1. Each machine is manufactured by professional experienced staff.
2. 12 months warranty + 100% QC inspection Before Shipment.
lifetime maintenance service is provided and at buyer’s cost.
1. Each machine is manufactured by professional experienced staff.
2. 12 months warranty + 100% QC inspection Before Shipment.
3. Overseas services provided. Technicians can be sent to spot for guiding the installation and debugging. Training operators and accomplish the commissioning.
4. Consultant services for whole machine life, 24 hours technical support by email and phone.When warranty date expired,lifetime maintenance service is provided and at buyer’s cost.
Похожие товары
Мембранный камерный фильтровальный пресс для печати и окрашивания пивоварения керамики горнодобывающей промышленности металлургии очистки сточных вод
332 782,50 ₽

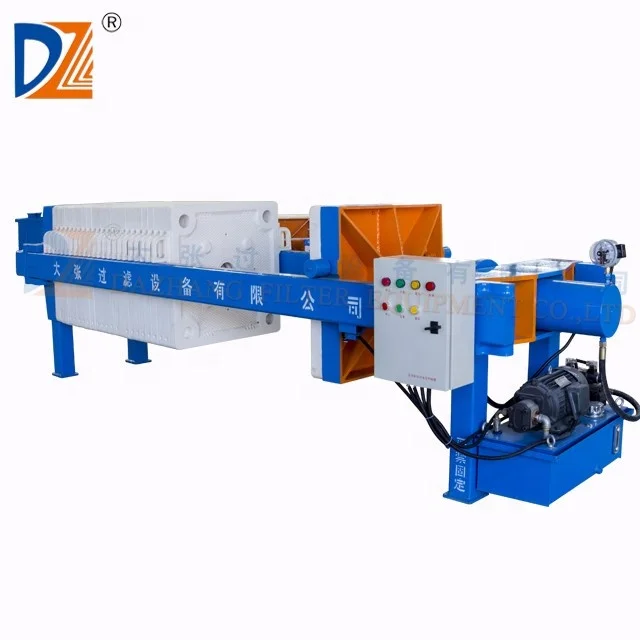

Гидравлический фильтрующий пресс для керамической очистки осадка/очистки сточных вод
554 637,50 ₽
Надувной мембранный пресс-фильтр для заваривания
590 134,30 ₽ - 759 853,38 ₽
Пресс-машина для фильтрации оливкового масла и рамы
New Technology sludge dewatering membrane filter press

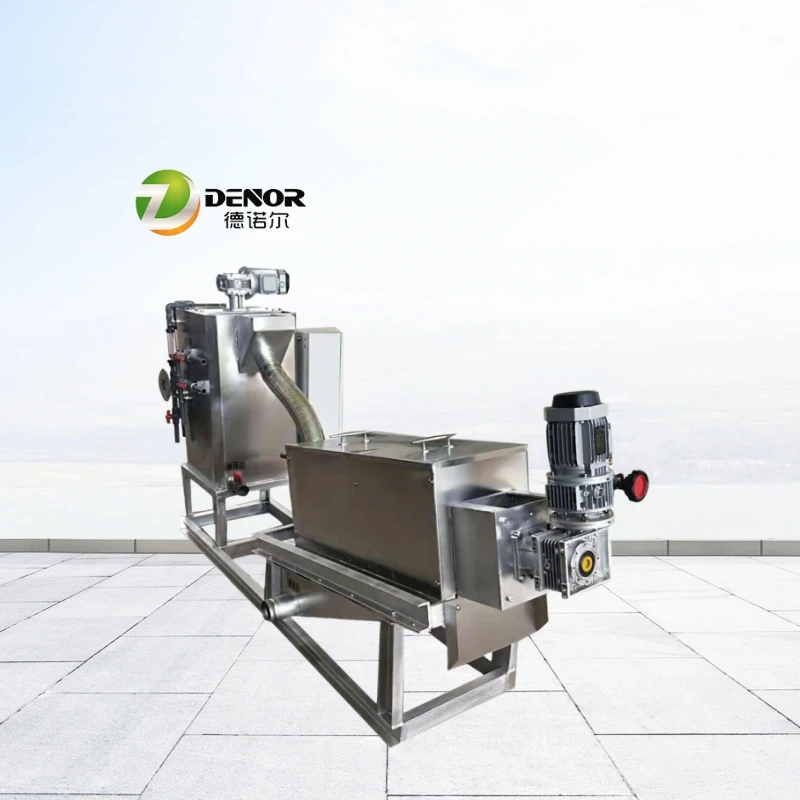

Нержавеющая сталь автоматический обезвоживающий многодисковый винтовой пресс штабелированный осушитель
