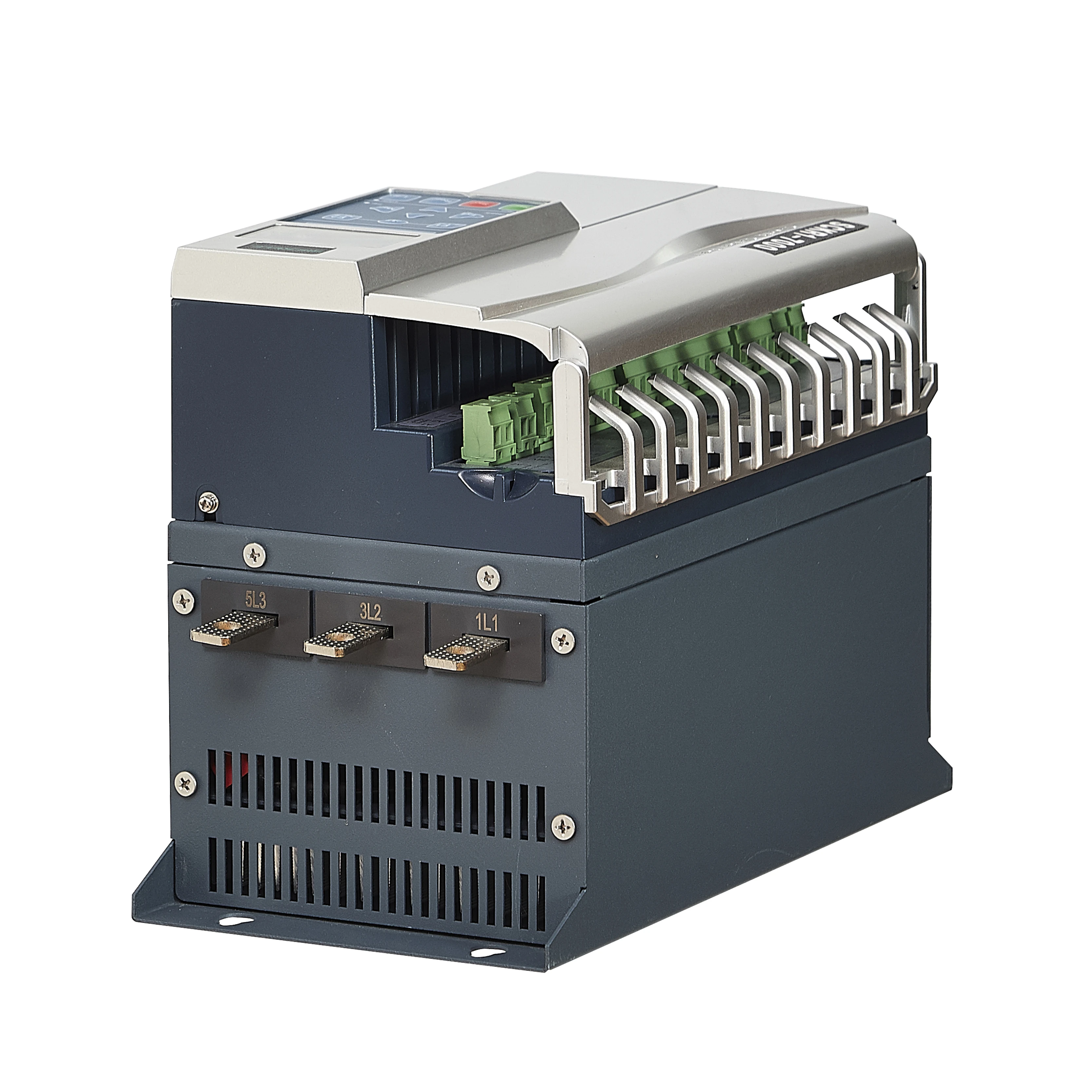

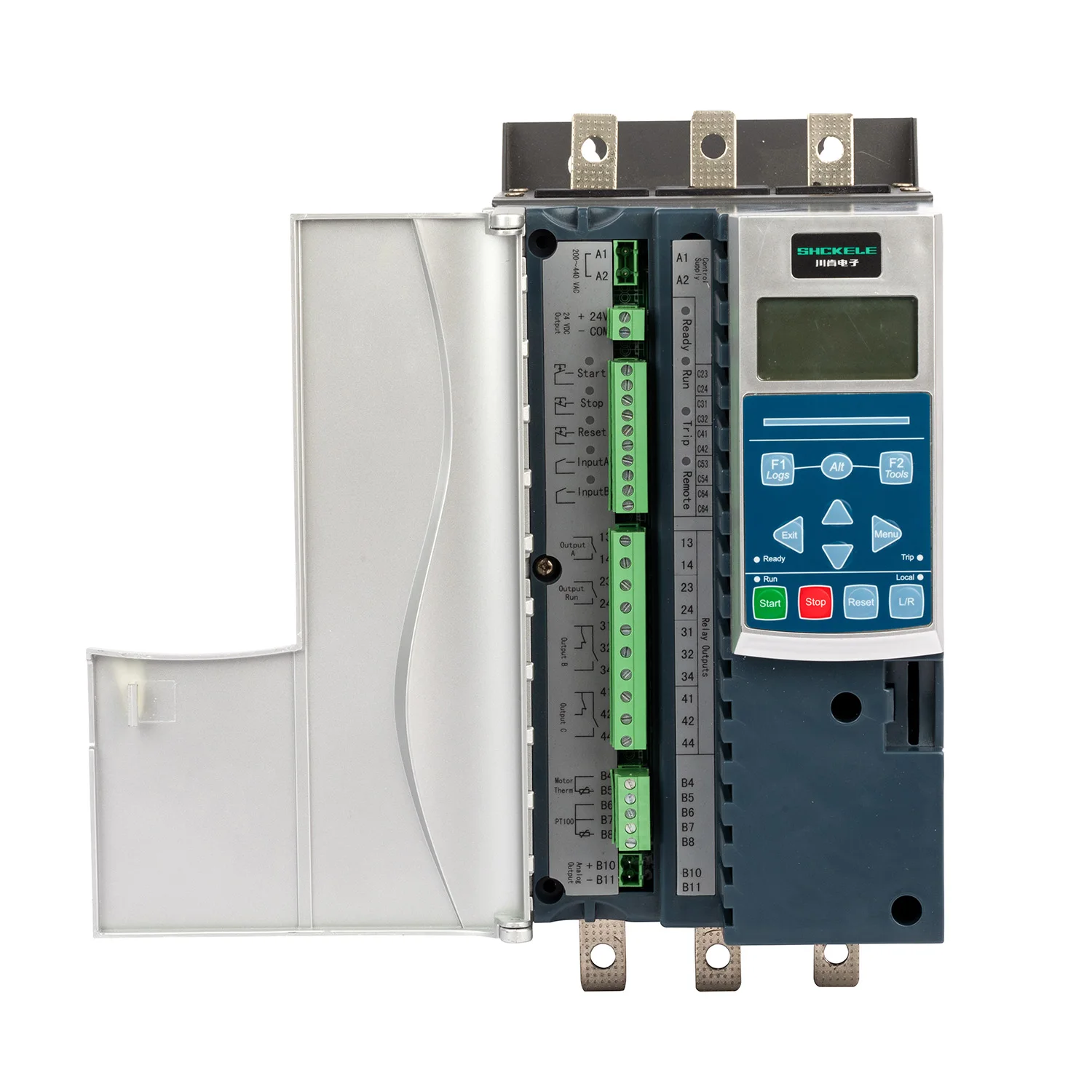

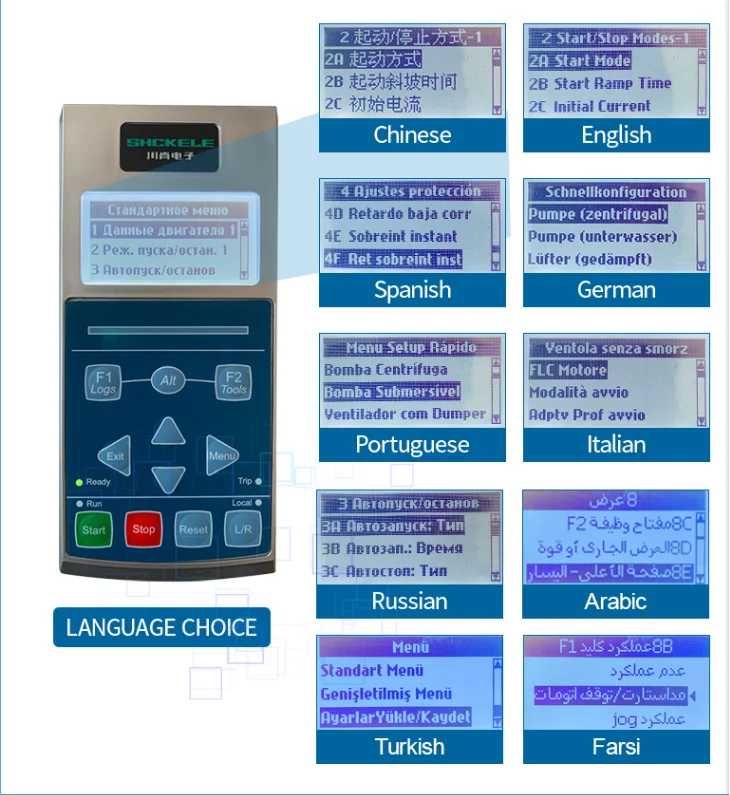

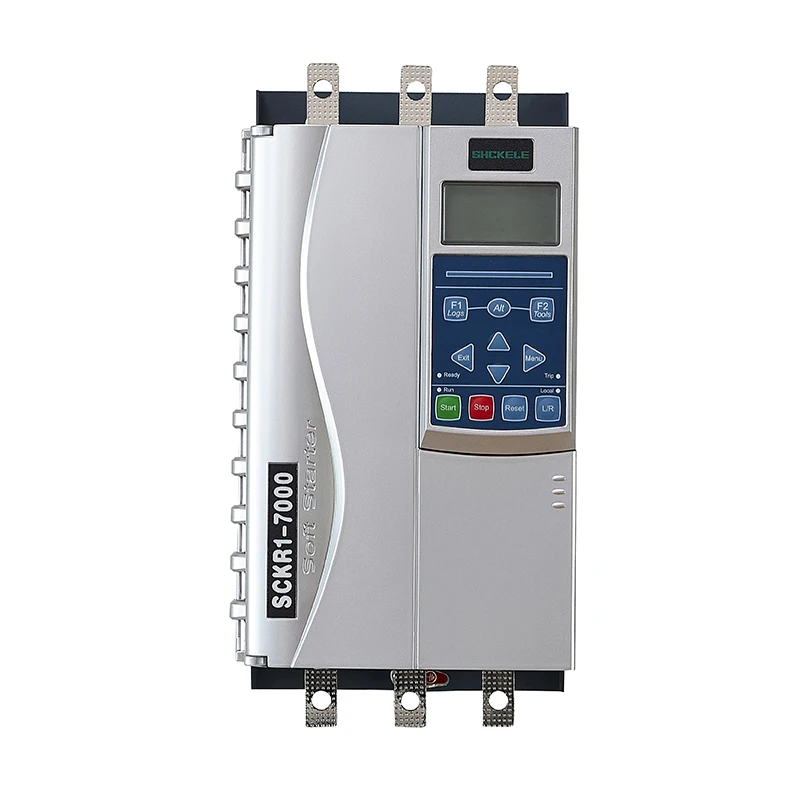

ЖК дисплей на испанском языке 3 фазный 220 В 380 480 мягкий стартер двигателя
- Категория: >>>
- Поставщик: Zhejiang Chuanken Electric Co. Ltd.
Сохранить в закладки 1600801815432:
Описание и отзывы
Характеристики
Product Description
Model | Overall dimension(mm) | Install dimension(mm) | Drawing | ||||||||
A | C | E | B | D | d | ||||||
5.5KW-55KW | 152 | 292 | 215 | 92 | 269 | M6 | 1 | ||||
75KW-110KW | 274 | 408 | 260 | 160 | 385 | M8 | 2 | ||||
132KW-315KW | 440 | 530 | 290 | 320 | 530 | M8 | 3 | ||||
The Quick Setup menu allows you to quickly confifigure the soft starter for common applications. The soft starter selects the parameters related to the application and recommends typical settings. You can adjust each parameter according to your actual needs.
Always set parameter 1A, the rated current of the motor to match the rated current indicated on the motor plate. The recommended value is the minimum rated current of the starter.
On the screen, the highlighted value is the recommended value, and the value marked with is the loaded value.
——————————————————————————————————————————————————————————————
*Application：Centrifugal pump
-Parameter：Motor rated current ；Starting method ；Adaptive starting curve ；Start ramp time ；Stop mode ；Adaptive；stop curve ；Stop time
-Suggested Value：Depending on model ；Adaptive Control ；Early acceleration ；10 seconds ；Adaptive Control ；Deceleration ；15 seconds。
*Application：Submersible pump
-Parameter：Motor rated current ；Starting method ；Adaptive starting curve ；Start ramp time ；Stop mode ；Adaptive；stop curve ；Stop time
-Suggested Value：Depending on the model. ；Adaptive Control ；Speed up early. ；5 seconds ；Adaptive Control ；After decelerating. ；5 seconds。
*Application：Damped fan
-Parameter：Motor rated current ；Starting method ；Current limit
-Suggested Value：Depending on model；Constant current；350%
* Application：Undamped fan
-Parameter：Motor rated current ；Starting method ；Adaptive starting curve ；Start ramp time ；Starting limit time ；Locked rotor time
-Suggested Value：Depending on model ；Adaptive Control ；Constant acceleration ；20 seconds ；30 seconds ；20 seconds
* Application：Screw compressor
-Parameter：Motor rated current ；Starting method ；Start ramp time ；Current limit
-Suggested Value：Depending on model；Constant current；5 seconds；400%
*Application：Reciprocating compressor
-Parameter：Motor rated current ；Starting method；Start ramp time ；Current limit
-Suggested Value：Depending on model ；Constant current ；5 Second ；450%
*Application：Conveyor belt
-Parameter：Motor rated current ；Starting method ；Start ramp time ；Current limit ；Stop mode ；Adaptive stop curve ；Stop time
-Suggested Value：Depending on model ；Constant current ；5 seconds ；400% ；Adaptive Control ；Constant deceleration. ；10 seconds
*Application：Rotary crusher
-Parameter：Motor rated current ；Starting method ；Start ramp time ；Current limit ；Starting limit time ；Locked rotor time
-Suggested Value：Depending on model ；Constant current ；10 seconds ；400% ；30 seconds ；20 seconds
*Application：Jaw Crusher
-Parameter：Motor rated current ；Starting method ；Start ramp time ；Current limit ；Starting limit time ；Locked rotor time
-Suggested Value：Depending on model ；Constant current ；10 seconds ；450% ；40 seconds ；30 seconds
Always set parameter 1A, the rated current of the motor to match the rated current indicated on the motor plate. The recommended value is the minimum rated current of the starter.
On the screen, the highlighted value is the recommended value, and the value marked with is the loaded value.
——————————————————————————————————————————————————————————————
*Application：Centrifugal pump
-Parameter：Motor rated current ；Starting method ；Adaptive starting curve ；Start ramp time ；Stop mode ；Adaptive；stop curve ；Stop time
-Suggested Value：Depending on model ；Adaptive Control ；Early acceleration ；10 seconds ；Adaptive Control ；Deceleration ；15 seconds。
*Application：Submersible pump
-Parameter：Motor rated current ；Starting method ；Adaptive starting curve ；Start ramp time ；Stop mode ；Adaptive；stop curve ；Stop time
-Suggested Value：Depending on the model. ；Adaptive Control ；Speed up early. ；5 seconds ；Adaptive Control ；After decelerating. ；5 seconds。
*Application：Damped fan
-Parameter：Motor rated current ；Starting method ；Current limit
-Suggested Value：Depending on model；Constant current；350%
* Application：Undamped fan
-Parameter：Motor rated current ；Starting method ；Adaptive starting curve ；Start ramp time ；Starting limit time ；Locked rotor time
-Suggested Value：Depending on model ；Adaptive Control ；Constant acceleration ；20 seconds ；30 seconds ；20 seconds
* Application：Screw compressor
-Parameter：Motor rated current ；Starting method ；Start ramp time ；Current limit
-Suggested Value：Depending on model；Constant current；5 seconds；400%
*Application：Reciprocating compressor
-Parameter：Motor rated current ；Starting method；Start ramp time ；Current limit
-Suggested Value：Depending on model ；Constant current ；5 Second ；450%
*Application：Conveyor belt
-Parameter：Motor rated current ；Starting method ；Start ramp time ；Current limit ；Stop mode ；Adaptive stop curve ；Stop time
-Suggested Value：Depending on model ；Constant current ；5 seconds ；400% ；Adaptive Control ；Constant deceleration. ；10 seconds
*Application：Rotary crusher
-Parameter：Motor rated current ；Starting method ；Start ramp time ；Current limit ；Starting limit time ；Locked rotor time
-Suggested Value：Depending on model ；Constant current ；10 seconds ；400% ；30 seconds ；20 seconds
*Application：Jaw Crusher
-Parameter：Motor rated current ；Starting method ；Start ramp time ；Current limit ；Starting limit time ；Locked rotor time
-Suggested Value：Depending on model ；Constant current ；10 seconds ；450% ；40 seconds ；30 seconds
Certifications
More Products
Product packaging

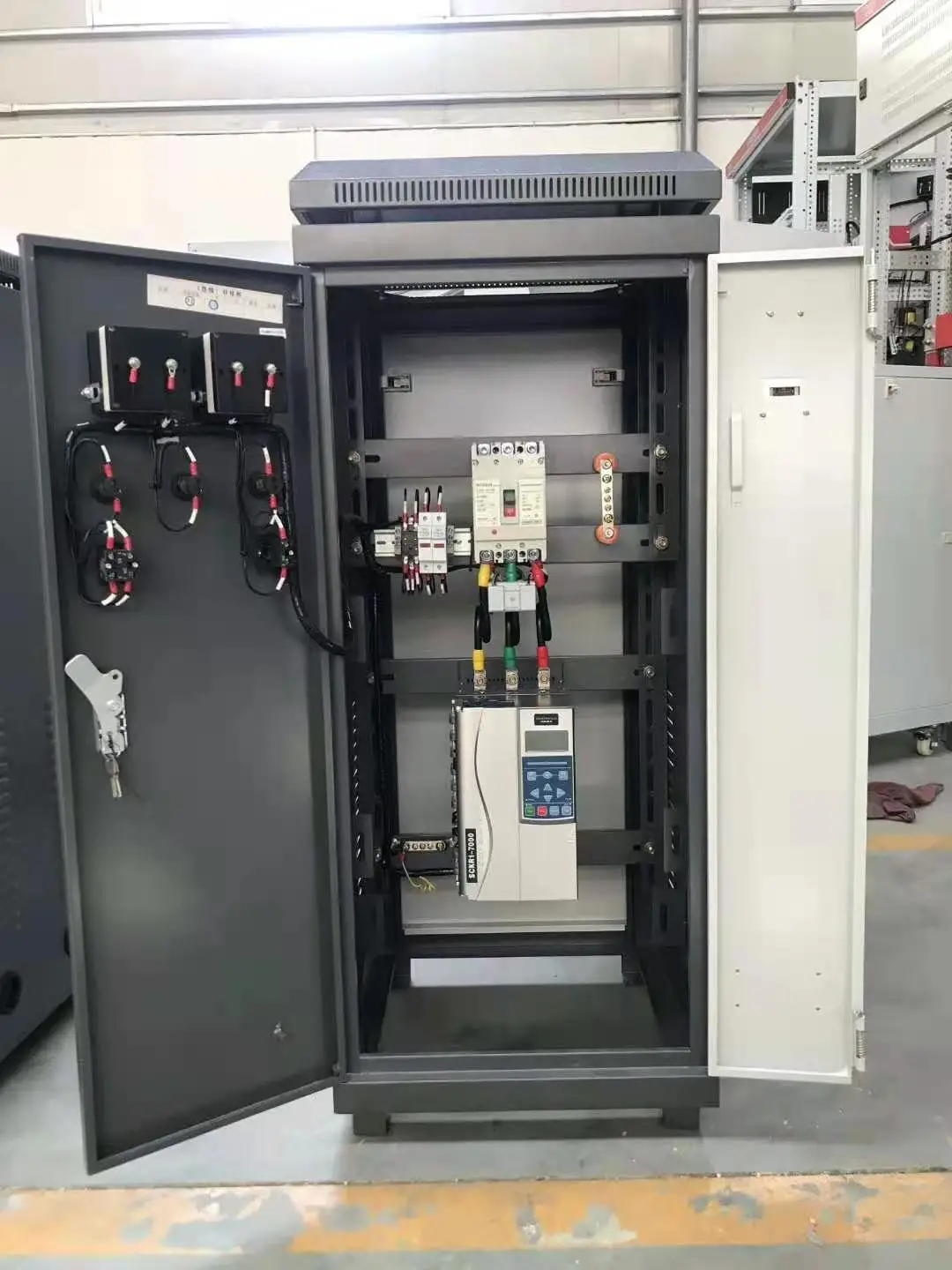

Customer Photos
FAQ
Can you provide price sheet and catalog to me ?
We are pleasure to provide these to you for reference,you can cotact me,give me your emails ID.
Can you send me a sample?
It's my honor to send a sample to you,but you need to pay the sample fee and shipping cost
What's about your delivery time?
All type we have stock,after we receive payment,we will send you within two days.
How to pay it?
You can pay it to Alibaba,Paypal,bank.
How about your warrantly time?
Our warrantly time is 12months,if the goods or accessories can't work,we send new one to you.
We are pleasure to provide these to you for reference,you can cotact me,give me your emails ID.
Can you send me a sample?
It's my honor to send a sample to you,but you need to pay the sample fee and shipping cost
What's about your delivery time?
All type we have stock,after we receive payment,we will send you within two days.
How to pay it?
You can pay it to Alibaba,Paypal,bank.
How about your warrantly time?
Our warrantly time is 12months,if the goods or accessories can't work,we send new one to you.
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
VR
Похожие товары

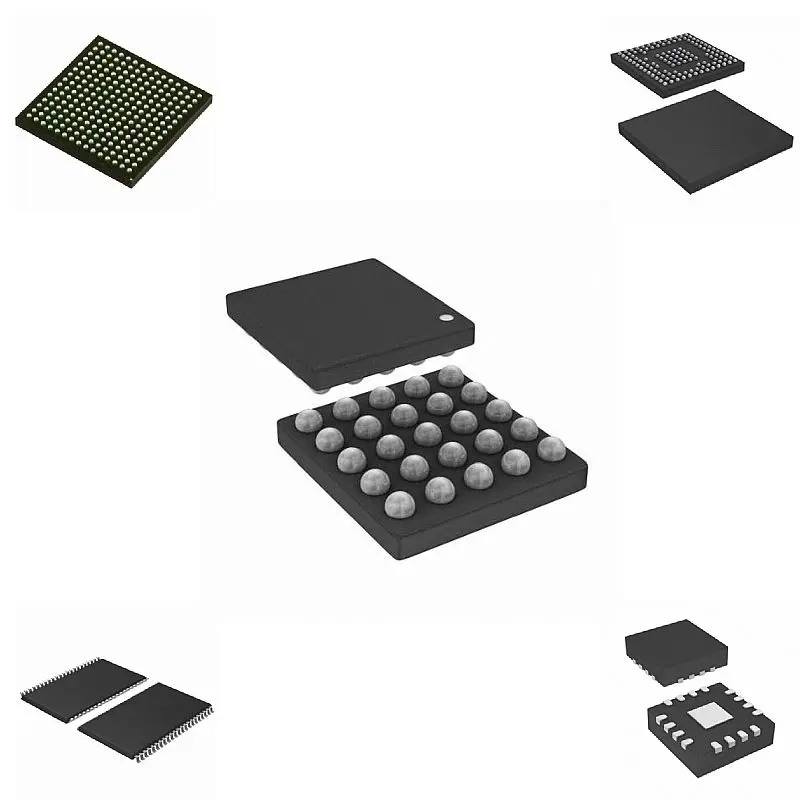

D38999/27ND18XD na integrated circuits Linear Variable Differential Transformer Potentiometer Kits
1,90 $ - 3,50 $
Новый дизайн, серебряная Регулируемая гантеля с шагом 1 кг, 72 фунта, регулируемая гантеля 32 кг, гальваническая гантеля
124,80 $ - 149,90 $
Алюмосиликаты щелочных металлов промышленные продукты натрия X Тип молекулярное сито
1,05 $ - 1,10 $

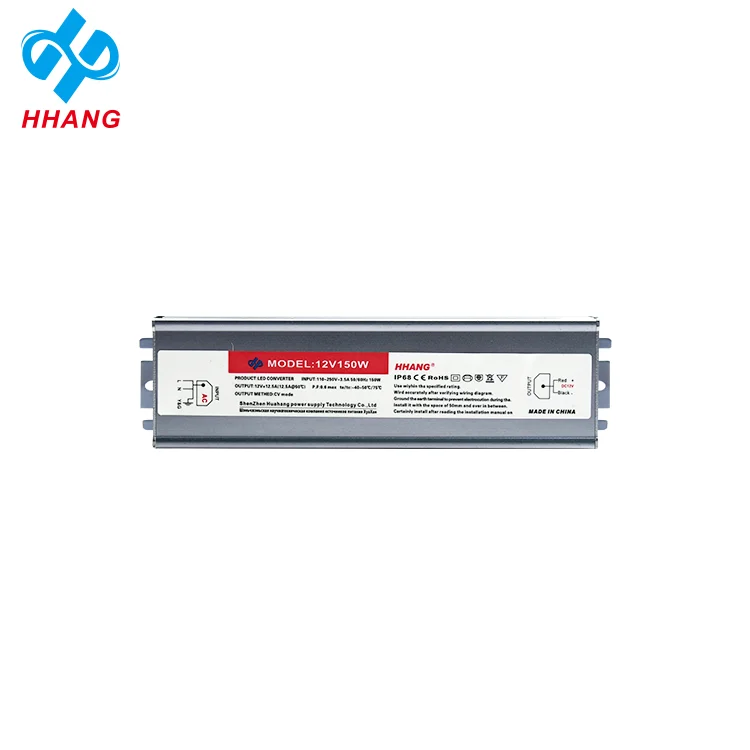

HHANG AC DC постоянное напряжение 150 Вт Smps 12 В 24 В водонепроницаемый светодиодный свет импульсный источник питания
8,62 $ - 9,05 $
Млечный лунный камень, метафизическая медитация, исцеляющая сила, каменные кристаллы, сфера, драгоценные камни высшего качества, лунный камень, сфера

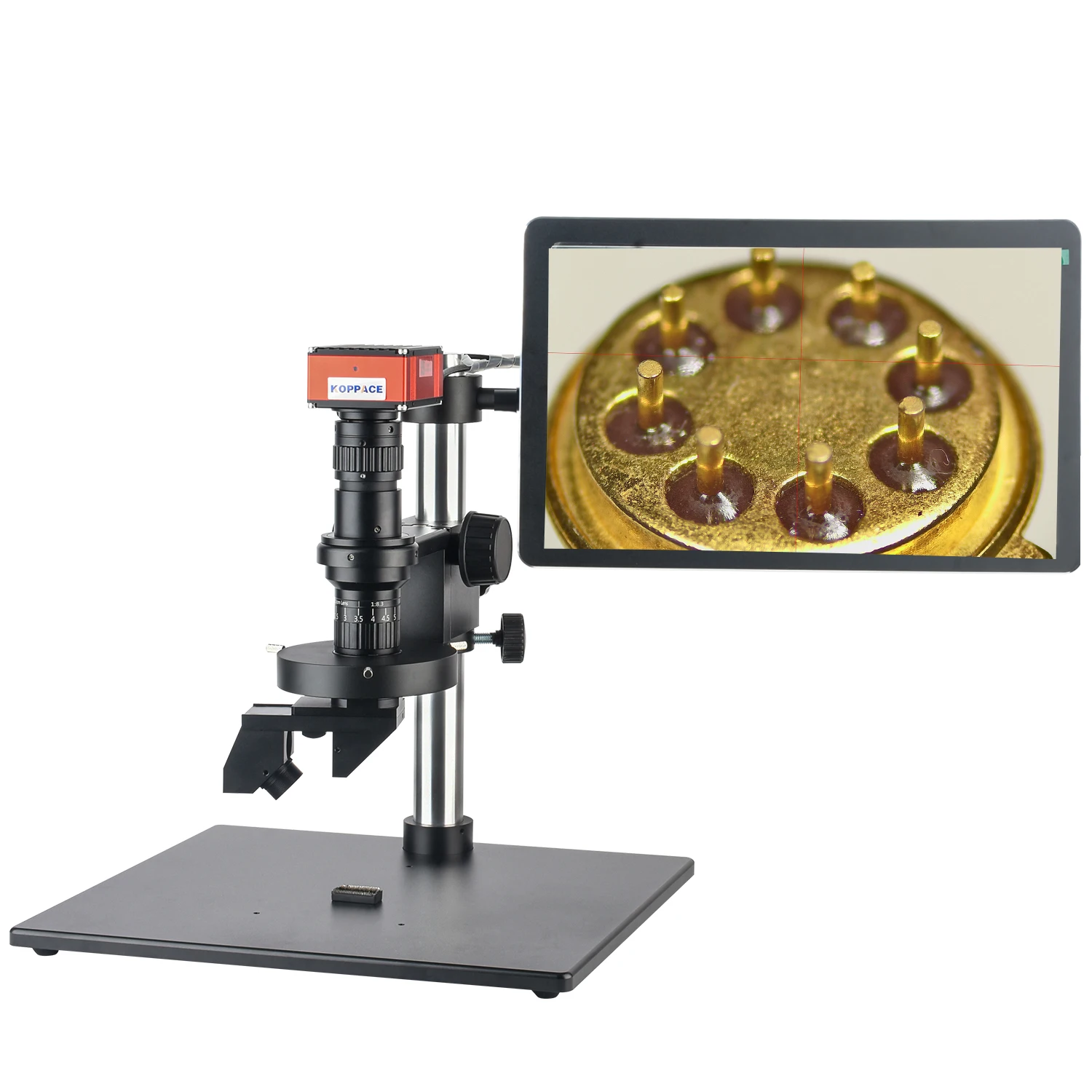

Koppace 2D/3D измерения микроскоп 360 градусов вращение объектива 12X-105X 2K HD камера Поддержка фото и видео 13,3 ЖК-дисплей
1 239,99 $ - 1 299,99 $

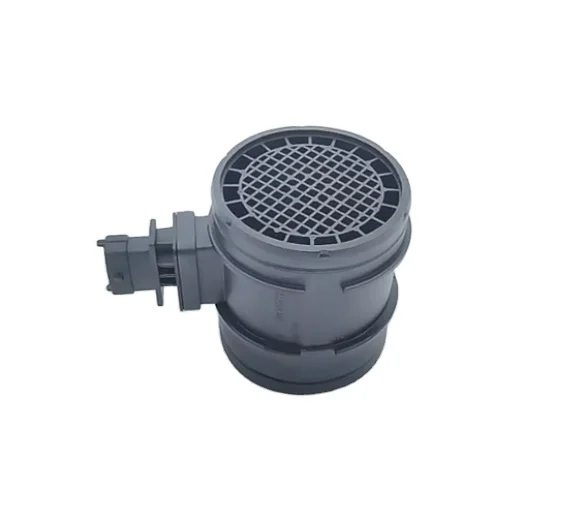

0281006202 Датчик массового расхода воздуха для Great wall haval hover H3 H5 wingle deer 2.8TC 2.5TC 2,0 T
