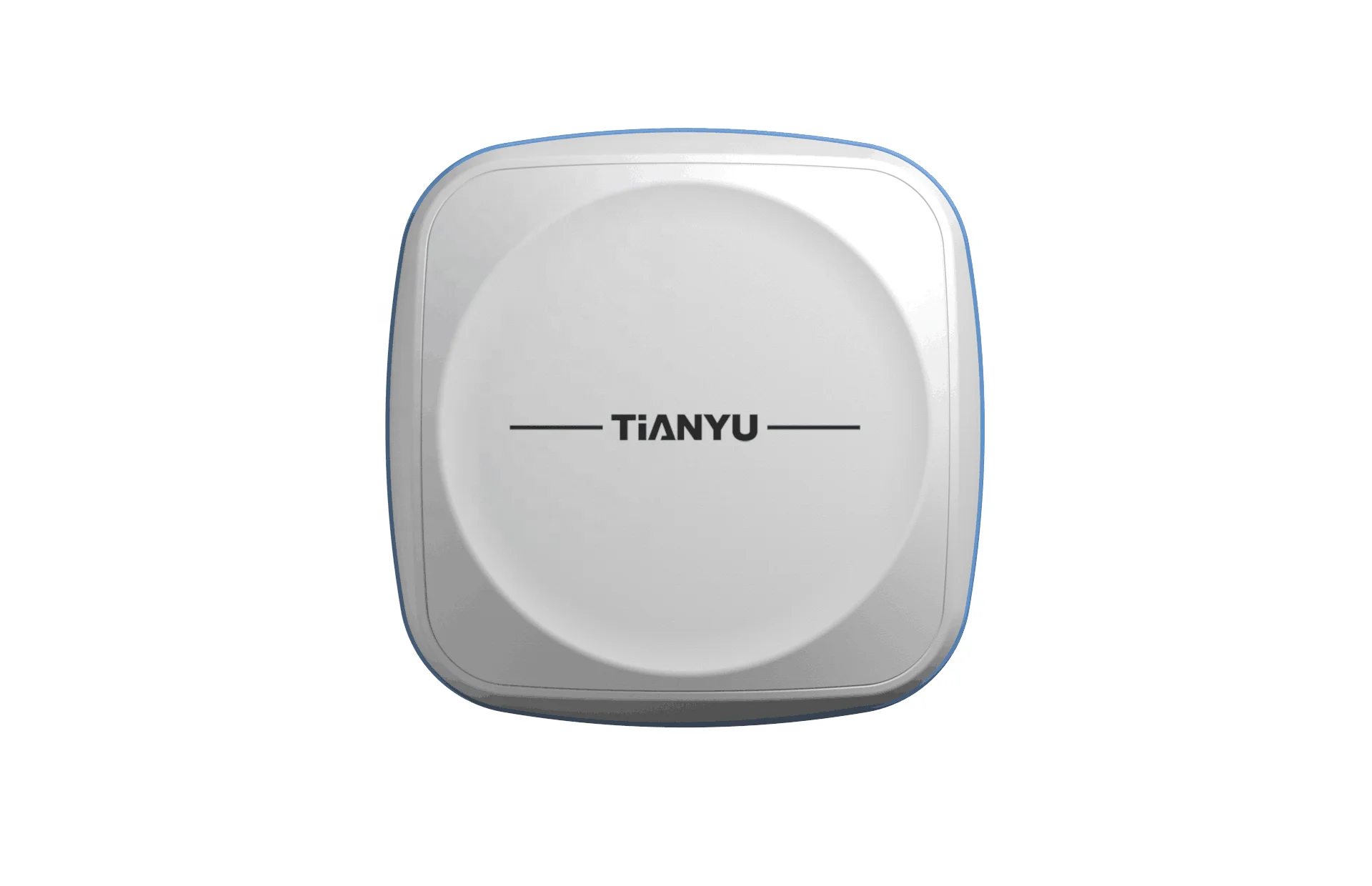

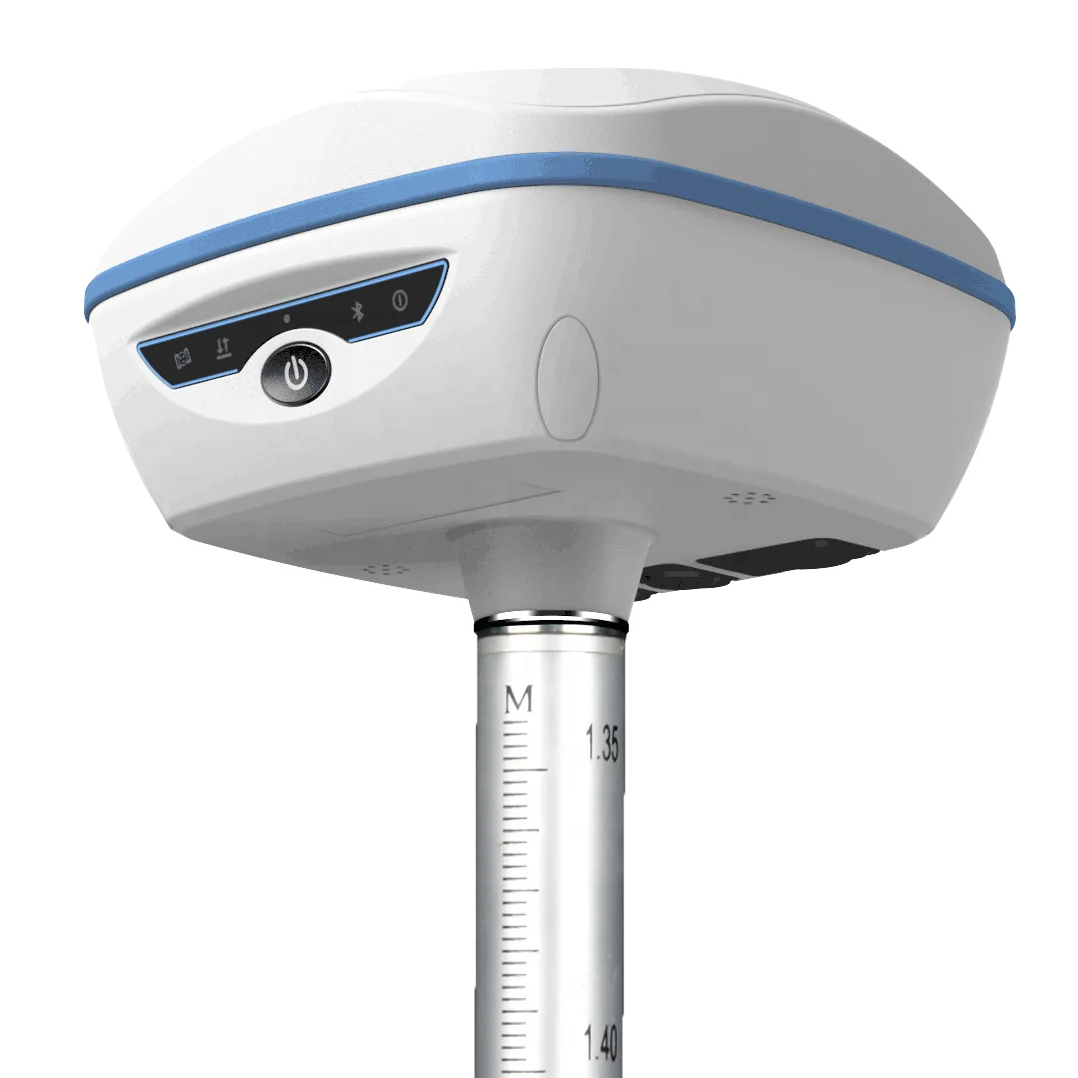

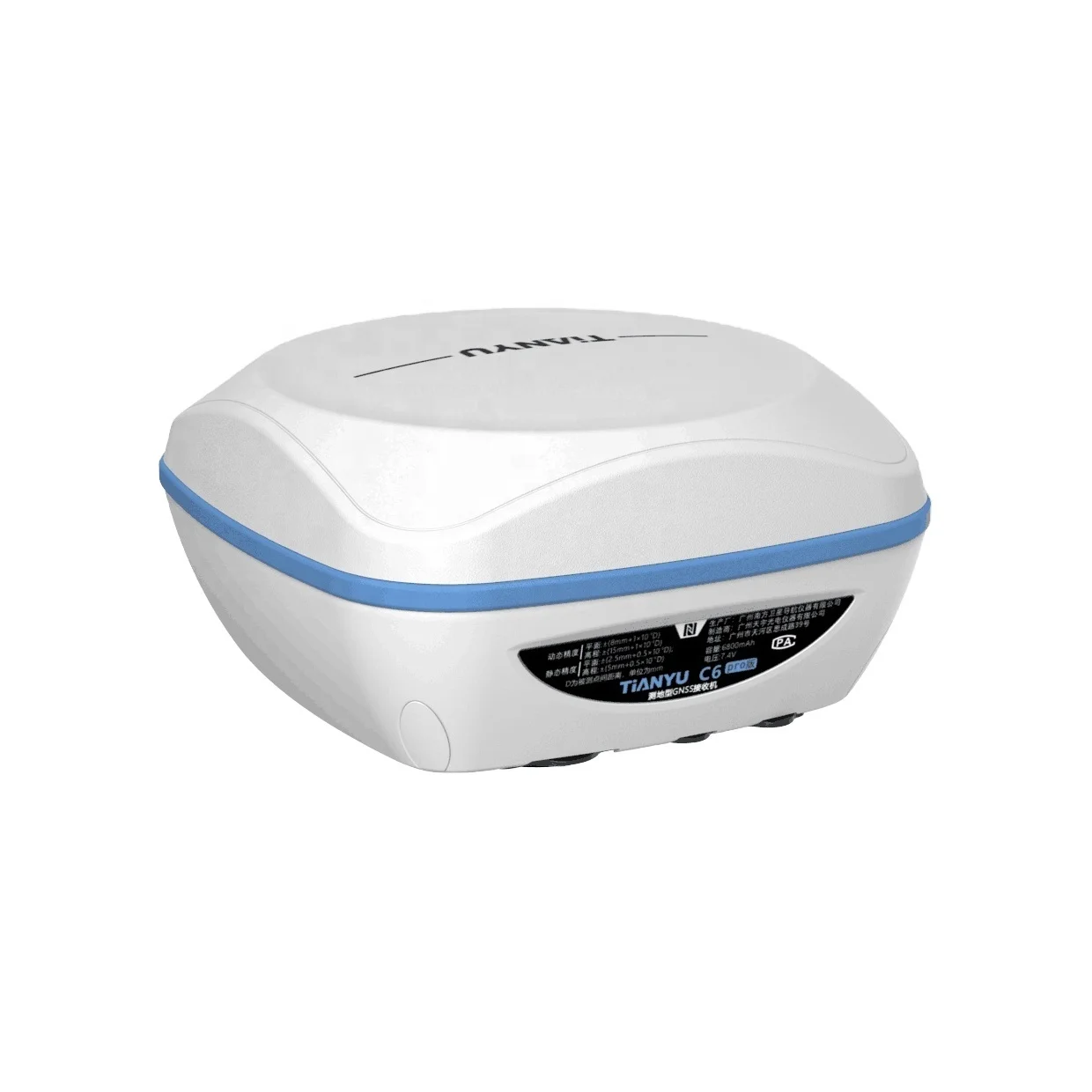

Высокоточное оборудование для наблюдения GPS GNSS RTK South Tianyu C6 с поддержкой Wi Fi NFC аккумулятор 6800 мАч время работы 15 часов
- Категория: >>>
- Поставщик: Shanghai Hexin Survey Instrument Company Ltd.
Сохранить в закладки 1600802660797:
Описание и отзывы
Характеристики
Products Description
High accuracy GNSS RTK South Tianyu C6 GPS survey equipment supports WiFi, NFC GPS GNSS 6800mAh Battery RTK operating time 15h
C6 GNSS POSITIONING SYSTEM
Key feature
1). Powered by Board-803
New generation of powerful GNSS mainboard Board-803 with 1598 channels enables C6 to support a wide range of satellite signals.
New generation of powerful GNSS mainboard Board-803 with 1598 channels enables C6 to support a wide range of satellite signals.
2). 5KM radio link
Built-in transceiver integrated radio, working frequency 410-470MHz. TrimTalk450S, TrimMark3, SOUTH, CHC, SATEL, HI-TARGET are all compatible.
Built-in transceiver integrated radio, working frequency 410-470MHz. TrimTalk450S, TrimMark3, SOUTH, CHC, SATEL, HI-TARGET are all compatible.
3). Barrier-Free Measurement
Built-in 6800mAh high-capacity battery, the battery life is more than 15 hours, one charge, meets all-day work.
Built-in 6800mAh high-capacity battery, the battery life is more than 15 hours, one charge, meets all-day work.
4). WiFi and Web Server
By connecting through the integrated WiFi of C6, you can log on an user-friendly management platform on the browser of your phone or computer.
By connecting through the integrated WiFi of C6, you can log on an user-friendly management platform on the browser of your phone or computer.
5). IMU survey
Built-in IMU compensator, correct the coordinates according to the tilt direction and angle of the centering rod automatically within 60°.
6). Linux OS
Powered by the new generation of embedded Linux operating system, C6 has a greatly improved RTK performance and efficiency.
Powered by the new generation of embedded Linux operating system, C6 has a greatly improved RTK performance and efficiency.
RECOMMENDED PARTNERS

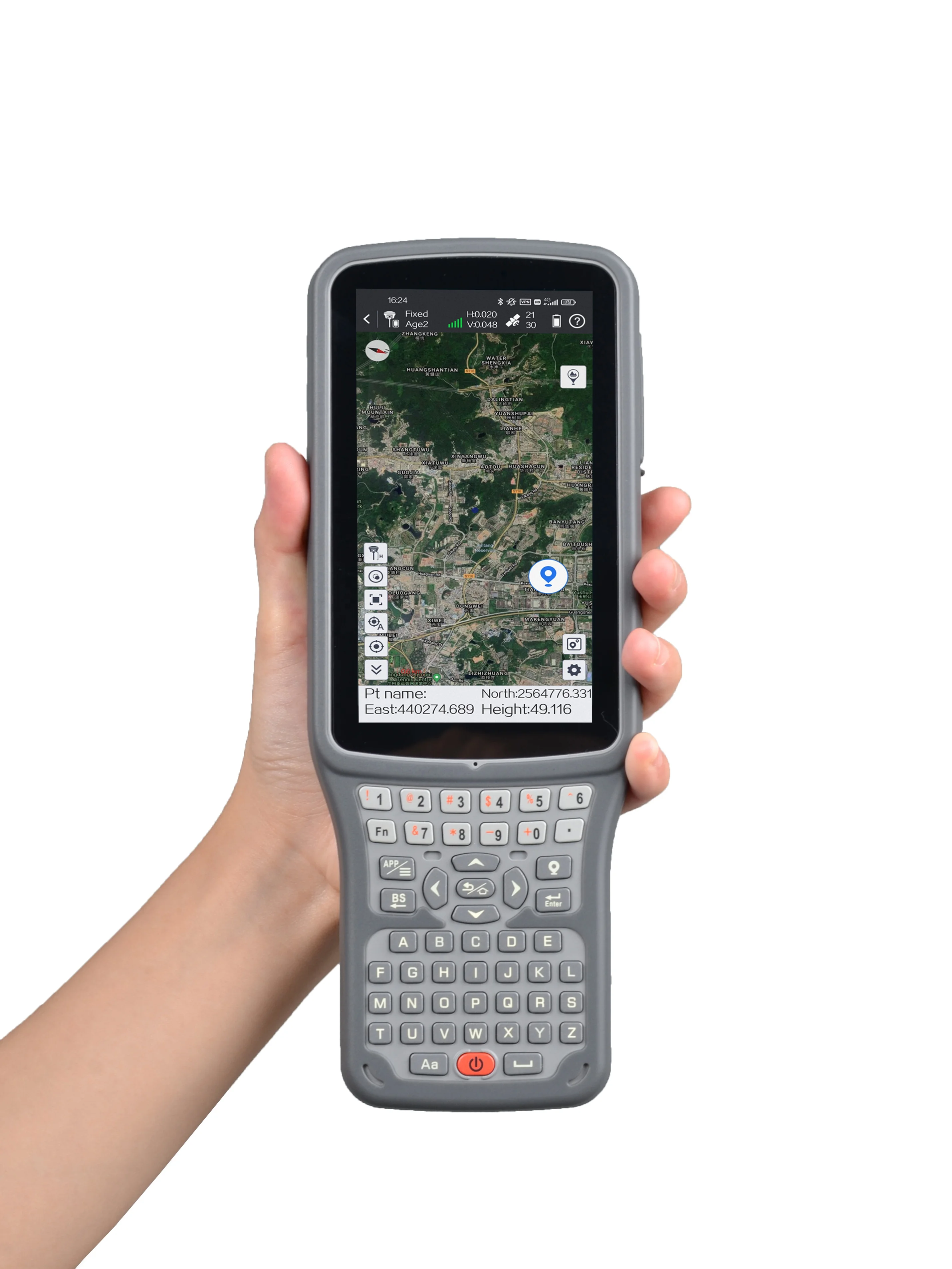

Rugged Controller H6
Android 8.1
5” touch screen
4GB/32GB
Alphanumeric keypad
Ip67
5” touch screen
4GB/32GB
Alphanumeric keypad
Ip67
Field Software
Android software SurvX
Easy-to-use work flow
Useful survey tools Google map supported
DXF, DWG import & display
Easy-to-use work flow
Useful survey tools Google map supported
DXF, DWG import & display
External Radio S1
10/25W Output
SOUTH/Trimtalk Protocol
403-473MHz
Blue tooth 4.0
Ip67
SOUTH/Trimtalk Protocol
403-473MHz
Blue tooth 4.0
Ip67
* Android 8.1 Operating System, 64GB ROM
* 5" sunlight touch screen
* Full keypad, input faster
* 9200 mAh
* 4G cellular module, dual sim card slot
* 5" sunlight touch screen
* Full keypad, input faster
* 9200 mAh
large capacity battery works more time
* 4G cellular module, dual sim card slot
Controller H6 specification | ||||
Operating system | Android 8.1 | |||
CPU | Octa-core 2.0GHz | |||
RAM | 4GB | |||
ROM | 64GB | |||
Storage extension | Support 128GB extension | |||
GSM: B2/B3/B5/B8 | ||||
FDD-LTE :B1/B2/B3/B4/B5/B7/B8/B12/B13/B17/B20/B25/B28 | ||||
TDD-LTE B38/B39/B40/B41 | ||||
TDSCDMA B34/B39 | ||||
WCDMA B1/B2/B5/B8 | ||||
CDMA1x/CDMA2000 BC0 | ||||
Dual SIM card slot | Support two nano sim | |||
USB | Type-C, support OTG | |||
WiFi(WLAN) | IEEE 802.11a/b/g/n, 2.4G/5G | |||
Blue tooth | V4.1 | |||
Display | 5 inches capacitive touch screen (720×1280 dpi) | |||
Keypad | Full keypad | |||
Audio | Integrated speaker, microphone | |||
Camera | 13 megapixel camera with auto-focus | |||
Flash light | High light Flash LED | |||
support | Gyro, NFC, G-Sensor, Compass | |||
GNSS | GPS/GLONASS/BDS | |||
Battery Capacity | 9200mAh | |||
Stand-by Time | 240 Hrs | |||
Operating Time | 15 Hrs | |||
Waterproof/Dustproof | IP67 | |||
Shockproof | 1.5m | |||
Operation temperature | -20°C~+60°C | |||
Storage temperature | -30°C~+70°C | |||
PHYSICAL PROPERTY | Size | 235mm*90mm*35mm | ||
Weight | 520g | |||
Specification
Channels | 1598 | |
GPS Tracking | L1, L1C, L2C, L2P, L5 | |
GLONASS Tracking | G1, G2 | |
BeiDou Tracking | B1, B2, B3 | |
Galileo Tracking | E1, E5A, E5B, AltBOC | |
QZSS | L1, L2C, L5 | |
SBAS | L1 | |
IRNSS | L5 | |
Positoning Rate | 1-20Hz | |
Code Differential | Horizontal 0.25m±1ppm (rms) Vertical 0.50m±1ppm (rms) | |
Static | Horizontal 2.5mm±0.5ppm (rms) Vertical 5mm±0.5ppm (rms) | |
Real-Time Kinematic | Horizontal 8mm±1ppm (rms) Vertical 15mm±1ppm (rms) | |
Network RTK *By controller | Horizontal 8mm±0.5ppm (rms) Vertical 15mm±0.5ppm (rms) | |
IMU MEASUREMENT | Tilt Range | Up to 60° |
Accuracy | ＜2cm(within 30°) ＜5cm(within 60°) | |
I/O | 5pin LEMO external power + RS232 7pin LEMO USB (OTG) + Ethernet Radio antenna interface | |
UHF Radio Module | X-link 1W 410-470MHz | |
Protocol | TrimTalk 450s, TrimMark3, PCC EOT, SOUTH | |
WiFi | 802.11b/g/n Hotspot Data Link | |
Blue tooth | Blue tooth 2.1 +EDR and 4.0 | |
NFC | <10cm | |
INTERFACES | Button | One |
LED Indicator | Blue tooth, Data Link, Satellite, Power | |
Type & Storage | SSD 8GB External USB pen drive | |
Date Transfer | USB transfer Supports FTP/HTTP download | |
Format (Differential) | CMR+, sCRMx, RTCM 2.1, RTCM 2.3, RTCM 3.0, RTCM 3.1, RTCM 3.2 | |
GPS Output Format | NMEA 0183, PJK plane coord., binary code, Trimble GSOF VRS, FKP, MAC | |
Network Model | NTRIP fully supportable | |
Battery | Internal Li-on, 6800mAh, 3.7V PowerCase supported | |
Operating Time | 15h | |
Dimension | 84mm (H), 135mm (W) | |
Weight with batt. | 890g | |
Operating Temp. | -45°C to 60°C | |
Protection Class | IP67 | |
Shock | 2m drop on hard surface | |
Vibration | 40G 10ms sawtooth wave |
Product Display
Payment & Shipping
Payment:
Generally, we accept Advance T/T , PayPal and West union. If you prefer other payment terms, please let us know.
Shipping:
We have strong cooperation with DHL, TNT, UPS, FEDEX, EMS. You can also choose your own shipping forwarder.
Related products
Company Profile
Shanghai Hexin Survey Instrument Co., Ltd. specializes in the R&D and manufacturing and sales of all kinds of surveying products, including total station, electronic theodolite, electronic distance meter, automatic level, laser level, reflector prism, surveying accessory, GPS receiver, mapping software, etc.
All of the company's products meet international quality standards and have been widely recognized around the world. We have high quality products and excellent customer service. We look forward to you contacting us.
All of the company's products meet international quality standards and have been widely recognized around the world. We have high quality products and excellent customer service. We look forward to you contacting us.
FAQ & SERVICES
Delivery:
1.Usually, we will send out the products within 3-5 working days after the payment confirmed.
2.Before shipment, please supply the following information to us :
Contact person or company name
Detail address
Telephone number
Zip code
3.The buyer are responsible for the tax and/or duty charged by their country.
Return and warranty:
1.All products are inspected before shipment, if you are not satisfactory with the purchase,you can exchange the items in one week, and you must contact us within 24 hour of receipt of the products.
2.The shipping charges are not refundable and the customer should be responsible for all the charges of return and reshipping.
1.Usually, we will send out the products within 3-5 working days after the payment confirmed.
2.Before shipment, please supply the following information to us :
Contact person or company name
Detail address
Telephone number
Zip code
3.The buyer are responsible for the tax and/or duty charged by their country.
Return and warranty:
1.All products are inspected before shipment, if you are not satisfactory with the purchase,you can exchange the items in one week, and you must contact us within 24 hour of receipt of the products.
2.The shipping charges are not refundable and the customer should be responsible for all the charges of return and reshipping.
Похожие товары

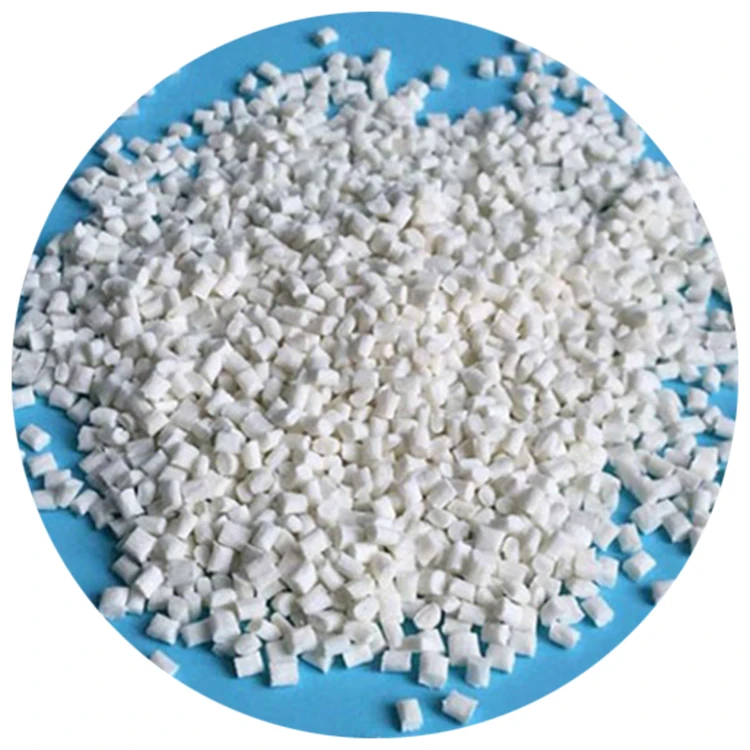

Полипропилен T20 пластиковое сырье PP + тальк 20% для бытовой техники
