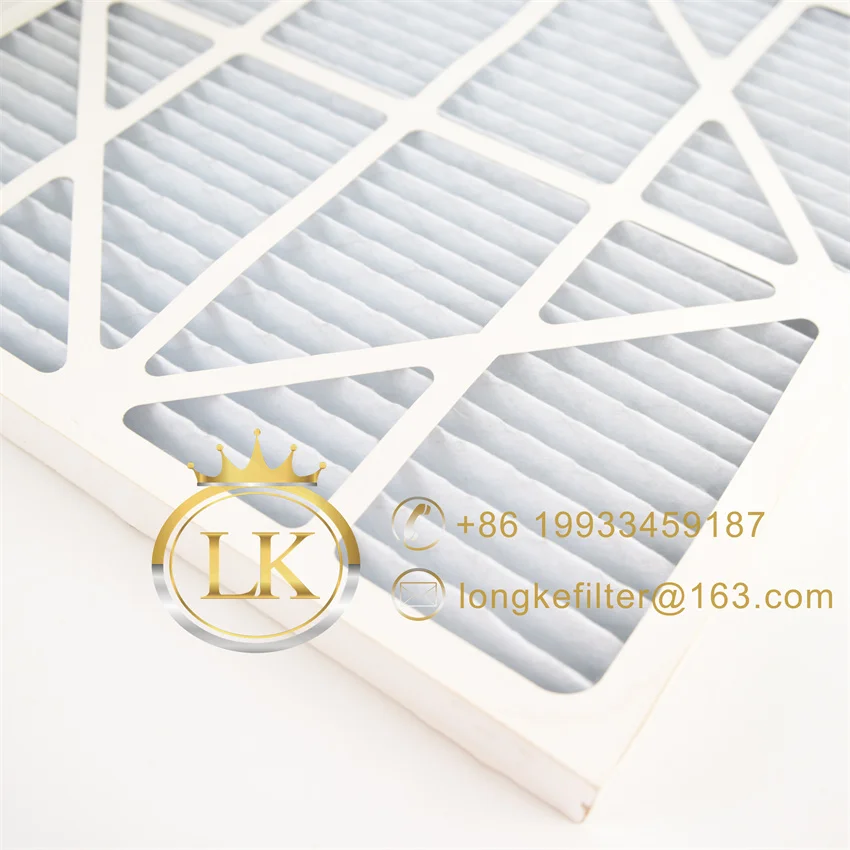

99% высокоэффективные вентиляционные плиссированные Сменные универсальные воздушные фильтры Hvac

Сохранить в закладки 1600804273074:


Цена:308,59 ₽ - 396,76 ₽*

Количество:

  • В избранное

Описание и отзывы

Характеристики


Gas turbine filter  (5)



Product Description





Frame of gas turbine generator air filter:galvanized steel, aluminium


Filter media of gas turbine generator air filter:glass fiber paper


Wire reinforced panel for strength and rigidity


Grids of gas turbine generator air filter:aluminium mesh, galvanized steel mesh


separators of gas turbine generator air filter: continuous thermoplastic cord


sealant of gas turbine generator air filter:polyurethane


Class of gas turbine generator air filter:H11-H14


Efficiency of gas turbine generator air filter:95%-99.999%


Flammability of gas turbine generator air filter: F1


Final pressure drop of gas turbine generator air filter:(recommender) 600Pa


Max. air flow rate of gas turbine generator air filter:125% of nominal air flow rate Max.


Max. operating temperature of gas turbine generator air filter:


The specification of gas turbine generator air filter:80 degree Max.relative humidity:80% RH

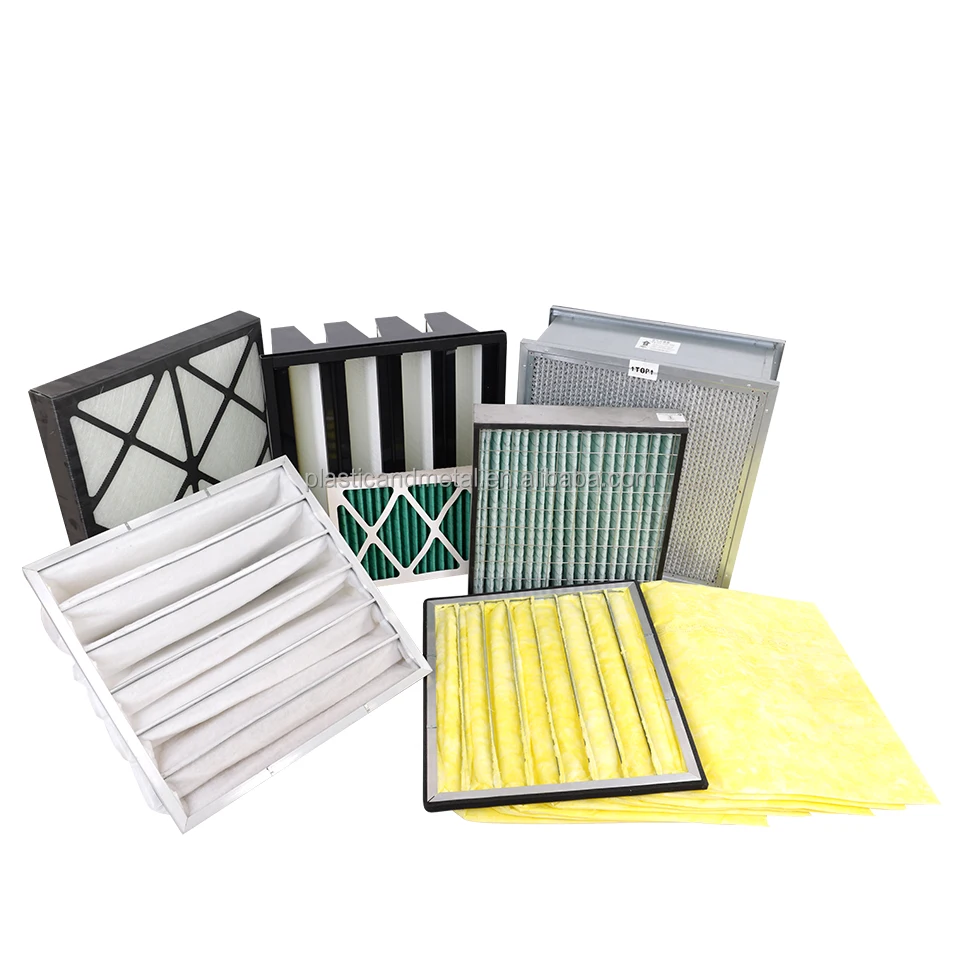

63

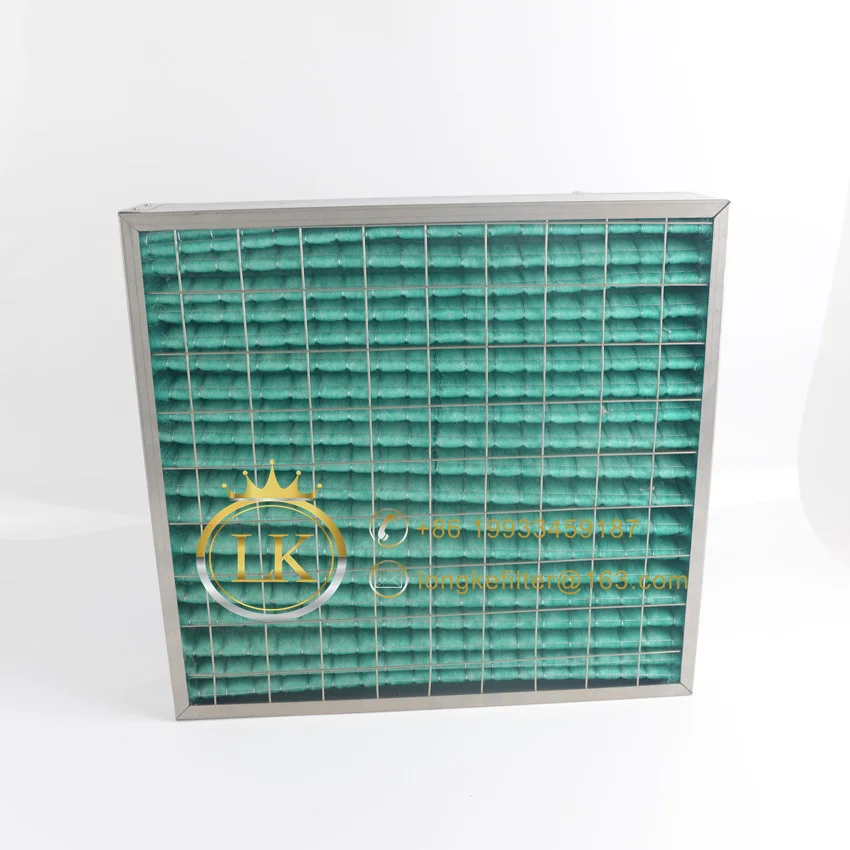

hepa filter (17)





 hepa filter (1)










HEPA Air Filter Material and performance





































External frameAluminum
Manufacturer,factoryManufacturer,factory
Filter mediumFiberglass
PartitionHot melt adhesive
SealantPolyurethane adhesive
Max. temperature85°C
Max. humidity80%RH
ServiceOEM/ODM

 Specification and technical parameters









































































Model NO.



Size


L*W*H (mm)



Rated air flow (m³/h)



Surface wind speed



Initial resistance (pa)



Efficiency 0.3μm


(flame method)



GDW



595*595*45



700



   0.52



      ≤220



            H14



GDW



915*610*50



1100



   0.52



GDW



1220*610*50



1400



   0.52



GDW



610*610*69



1000



   0.75



GDW



915*610*69



1500



   0.75



GDW



1220*610*69



2000



   0.75



GDW



610*610*80



1300



   0.95



GDW



915*610*80



1800



   0.95



GDW



1220*610*80



2600



   0.95



special size can be according to customer sepcial requirement




Applications

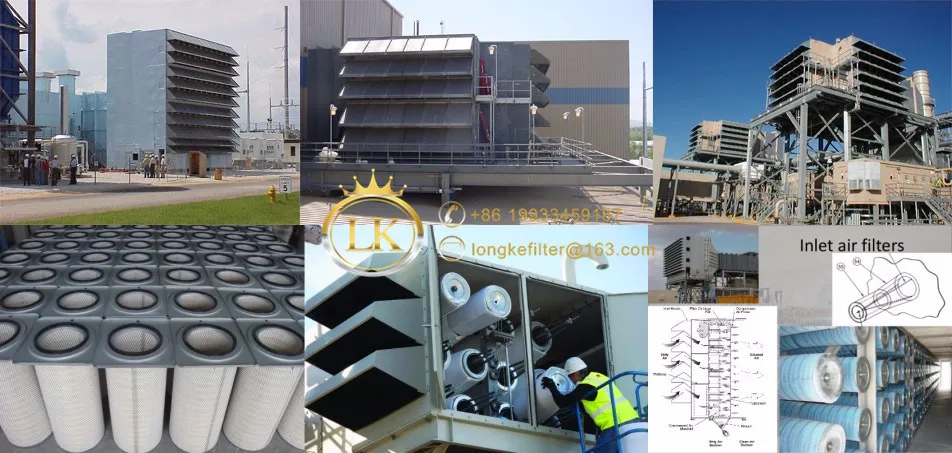

Gas turbine filter (2)


2





Company Information


 5


Factory line (2)_





Related Products


 2


7





Certifications


 PACKING AND SHIPPING





FAQ


 _09
