Промышленные производители пылесборников система сбора пыли
30 362,06 ₽ - 52 049,24 ₽
Dongsheng 2024 пылеуловитель с пульсирующим мешком для промышленного удаления пыли продажа технических деталей
- Категория: >>>
- Поставщик: Dongying Dongsheng Mechanical Automation Co. Ltd.
Сохранить в закладки 1600804314021:
Описание и отзывы
Характеристики
Product Overview

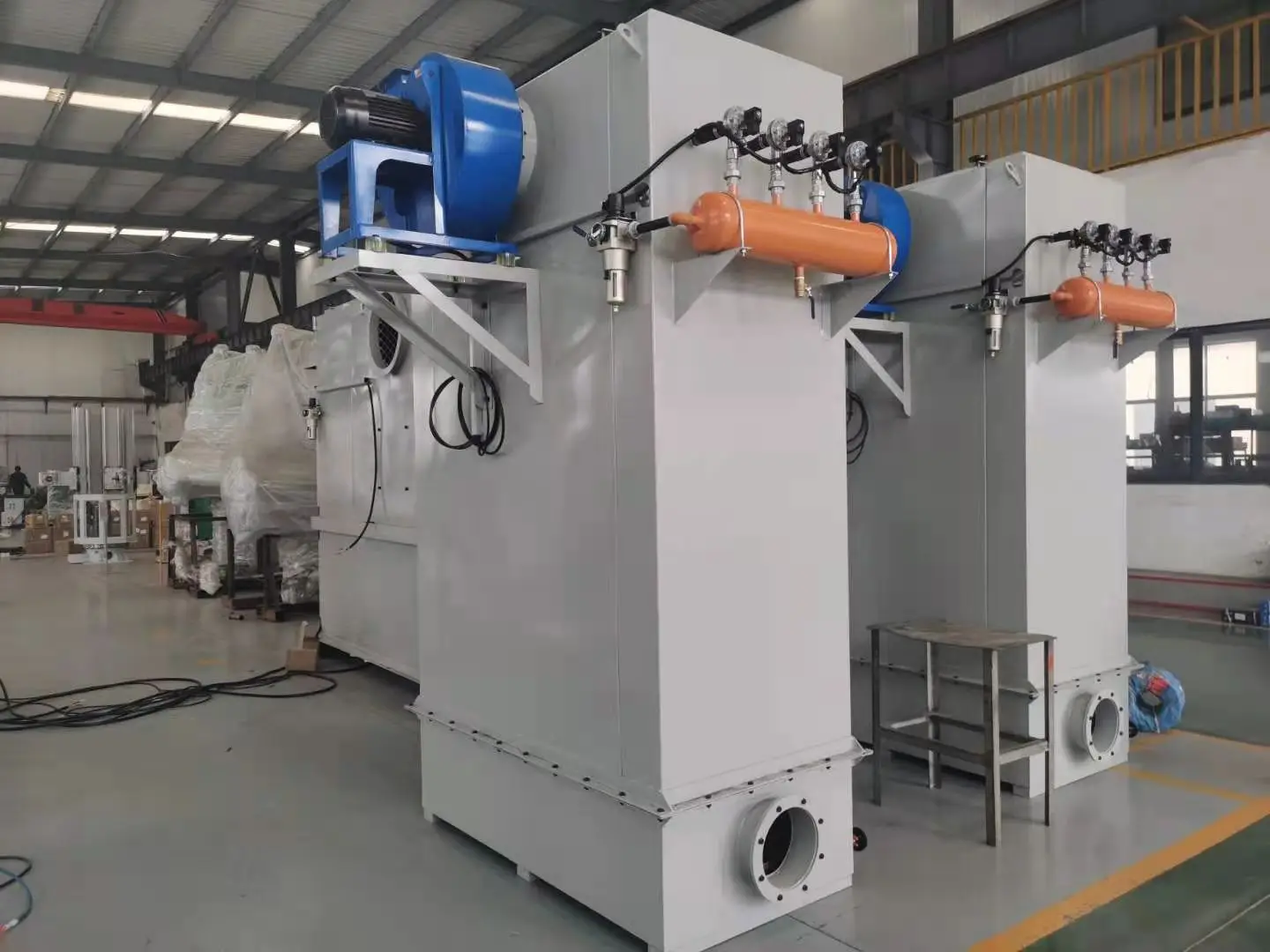

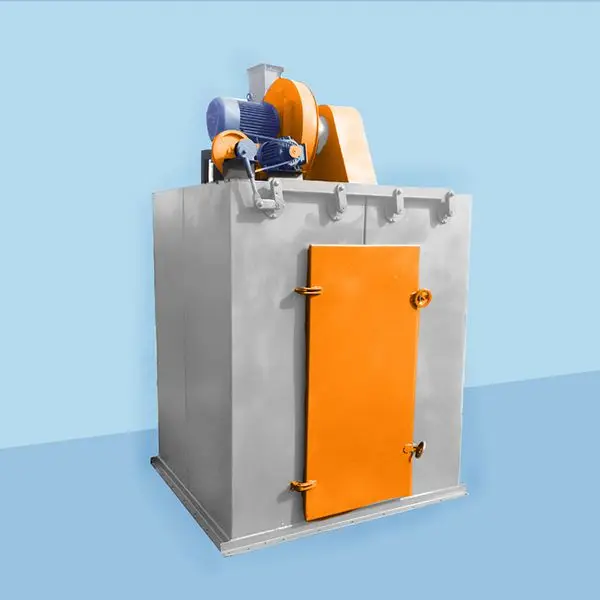

Pulse dust collector
This equipment is a new type of filtering and dust removal device, integrating pulse dust removal and cyclone dust removal, with high purification efficiency, small size, large filtering area, good filtration effect, small pressure loss, long service life of the filter cartridge, quick and convenient installation and maintenance, and continuous use. Its working principle is as follows.

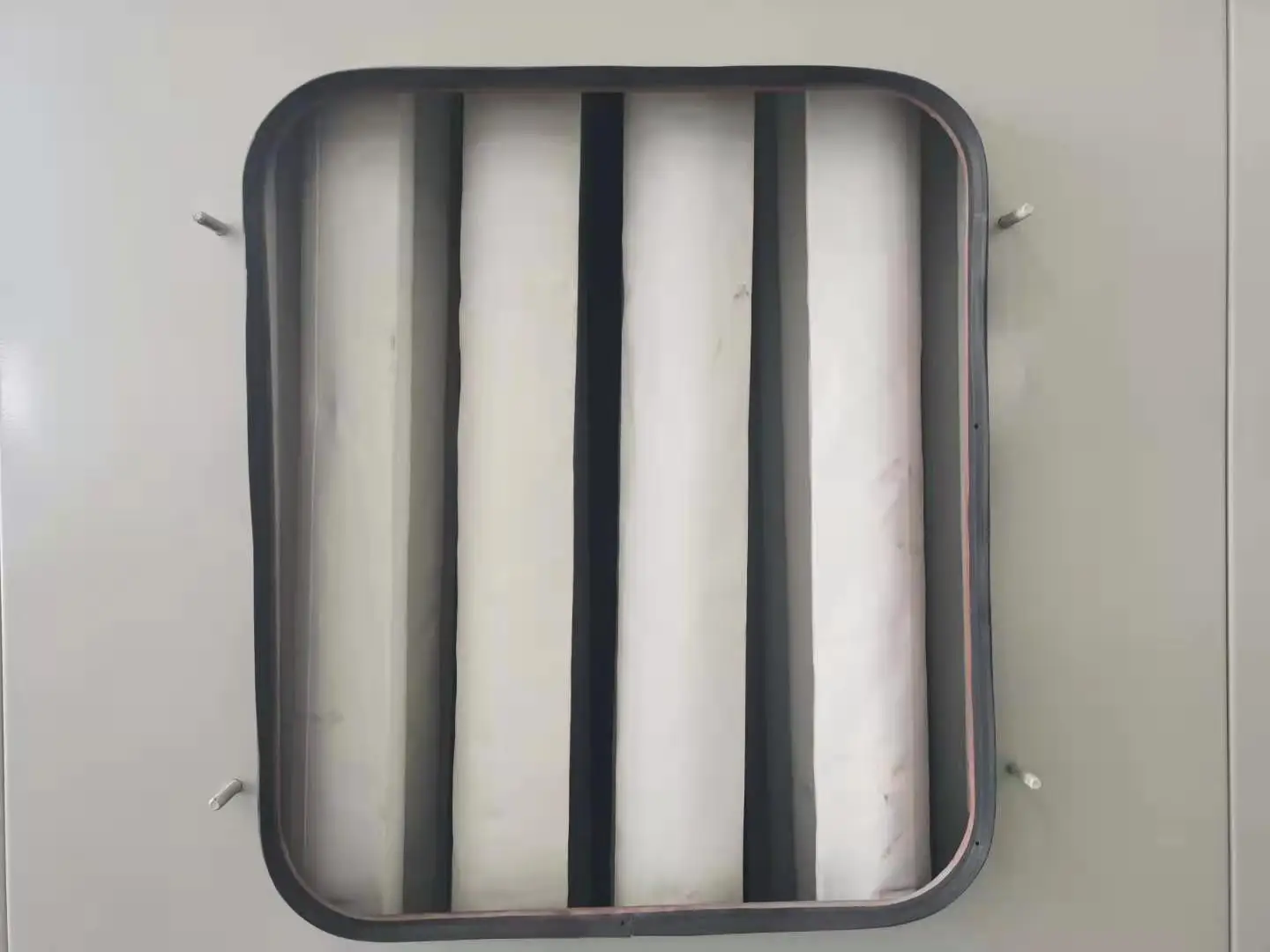

This equipment is equipped with air inlet, filter cartridge, air outlet, air bag, pulse controller, blowing valve, blowing tube, etc. The filter cartridge is made of polyester fiber folded and rolled. The lower end is closed, and the upper center is facing the lower mouth of the blowing tube. After the dusty gas enters the dust collector from the air inlet, the airflow slows down, the coarse particles are separated from the airflow and settled into the dust collection chamber, the fine dust is blocked on the outer surface of the filter cartridge with the airflow, and the clean gas is discharged from the air outlet; when the dust layer on the surface of the filter cartridge is thicker, the pulse controller issues a command to open the blowing valve, the compressed air in the air bag is sprayed out at high speed through the blowing tube, and the surrounding air, which is several times the volume of sprayed air, is induced to enter the filter cartridge.
The dust on the outer surface of the filter cartridge is blown down into the dust collection chamber and finally discharged from the ash hopper. Dust collector cleaning adopts pulse blowing method, which not only cleans the dust thoroughly, but also does not harm the filter cartridge, so that the service life of the filter cartridge can be guaranteed. The dust cleaning process is automatically controlled by pulse controller, which can be controlled by pressure difference or time control.
PRODUCT SPECIFICATIONS
Type | Dust cleaning method | Dust cleaning Air pressure Kgf/cm2 | Fan handling air volume m3/h" | Fan full pressure Pa |
DMLX—20 | Auto | 5~7 | 2198-3215 | 3852-3407 |
DMLX—30 | Auto | 5~7 | 2280-3445 | 4098-3623 |
DMLX—40 | Auto | 5~7 | 2530-3685 | 4310-3876 |
DMLX—50 | Auto | 5~7 | 2926-3829 | 4661-4364 |
Company Profile
Company Profile
Dongying Dongsheng Mechanical Automation Co., Ltd (former Dongying Dongsheng Casting Co., Ltd.), founded in December 1993, is located in the beautiful Yellow River Delta, Shengli Oilfield hinterland. The company now has more than 80 employees, including about 30 people in development and after-sales service. The company has passed ISO9000 quality management system certification, ISO14000 environmental management system certification, OHSAS18000 occupational safety and health management system certification, and owns dozens of national patents, such as three (four) arm shell making robot, thermal storage gas energy-saving roaster, multi-layer crossbar drying line, intelligent swinging dewaxing kettle, and multi-cylinder injection wax machine.
Company Honours
European Union CE marking
Cooperative Partner
FAQ
FAQ
Q1: How long can it be delivered after the order is placed?
Most of our machines are customize ordered, they can be delivered within 30-60 days after the order is placed
Q2: How can I pay for the money for the machine?
We accept 30% as a deposit and the balance need to be paid by T/T before the machine shipping out.
Q3: What should I do if I find quality problems in the process of using my product?
In case of quality problems, if you need after-sales service, you can contact us through wechat / whatsapp: for communication and solution; our engineers provide 24-hour online guidance to solve the problems.If you need to replace the parts, we will provide them to you in the first time through international express after paid.
Q4: Does the machine have an English manual and warranty card?
Each machine has a professional English operation manual. The warranty period of our machine is one year, except for human factors
or wearing parts. In addition, we can provide electronic version of the English manual.
Q5: The delivery time of products without stock is too long for 30-60 days.
First of all, we will speed production to meet your needs. In addition, the long delivery time is because our technicians need to carefully check and debug the equipment to ensure the quality of the machine.
Q6: What if I choose the wrong machine?
We have pre-sales engineers with rich professional knowledge. According to your products, we provide the most suitable machines and solutions. Before placing an order, we make sure you don't choose the wrong machine. If it happen, we will solve the problem with you.
Q7: Who is responsible for the installation and debugging of the machine I purchased?
We the seller are fully responsible to send our engineers within two weeks from the date of the containers arrival to the buyers factory to commissioning the machine and training the staff of the buyer, the buyer should be responsible for a round trip economy ticket, a hotel and any other necessary accommodations for the seller's engineers.
Most of our machines are customize ordered, they can be delivered within 30-60 days after the order is placed
Q2: How can I pay for the money for the machine?
We accept 30% as a deposit and the balance need to be paid by T/T before the machine shipping out.
Q3: What should I do if I find quality problems in the process of using my product?
In case of quality problems, if you need after-sales service, you can contact us through wechat / whatsapp: for communication and solution; our engineers provide 24-hour online guidance to solve the problems.If you need to replace the parts, we will provide them to you in the first time through international express after paid.
Q4: Does the machine have an English manual and warranty card?
Each machine has a professional English operation manual. The warranty period of our machine is one year, except for human factors
or wearing parts. In addition, we can provide electronic version of the English manual.
Q5: The delivery time of products without stock is too long for 30-60 days.
First of all, we will speed production to meet your needs. In addition, the long delivery time is because our technicians need to carefully check and debug the equipment to ensure the quality of the machine.
Q6: What if I choose the wrong machine?
We have pre-sales engineers with rich professional knowledge. According to your products, we provide the most suitable machines and solutions. Before placing an order, we make sure you don't choose the wrong machine. If it happen, we will solve the problem with you.
Q7: Who is responsible for the installation and debugging of the machine I purchased?
We the seller are fully responsible to send our engineers within two weeks from the date of the containers arrival to the buyers factory to commissioning the machine and training the staff of the buyer, the buyer should be responsible for a round trip economy ticket, a hotel and any other necessary accommodations for the seller's engineers.
