Оборудование для майнинга вертикальная мешалка/Интеллектуальная башенная мельница wtm медной руды
- Категория: >>>
- Поставщик: Shanghai Yingyong Machinery Co. Ltd.
Сохранить в закладки 1600804373799:
Описание и отзывы
Характеристики
Product Description

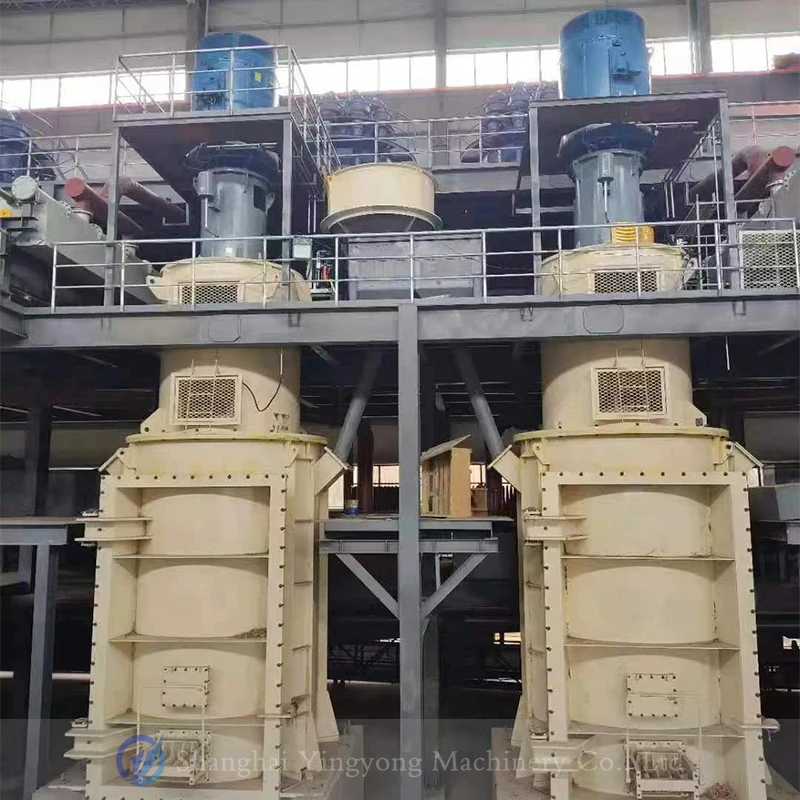

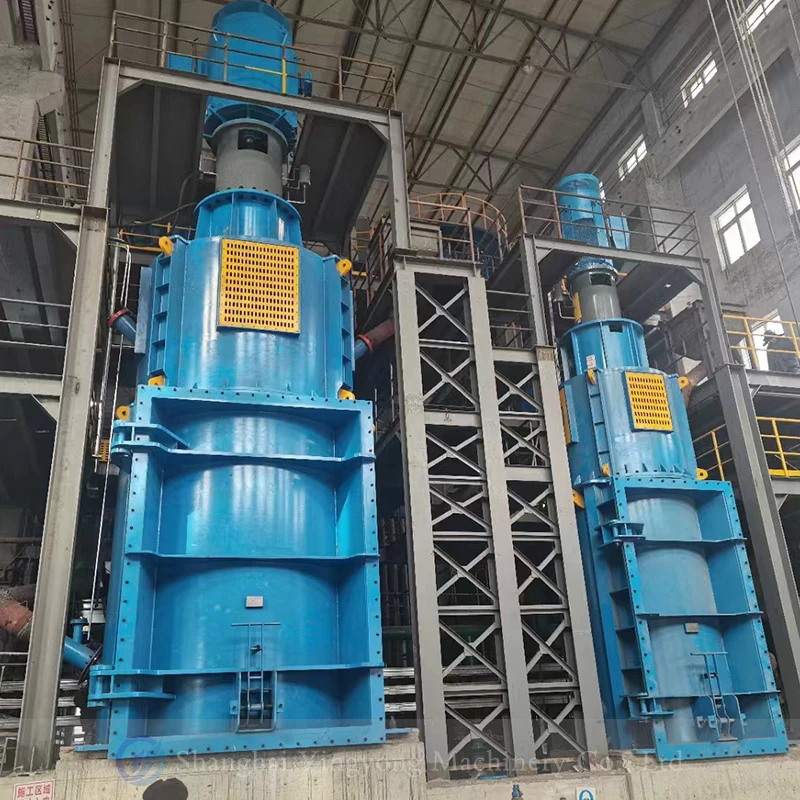

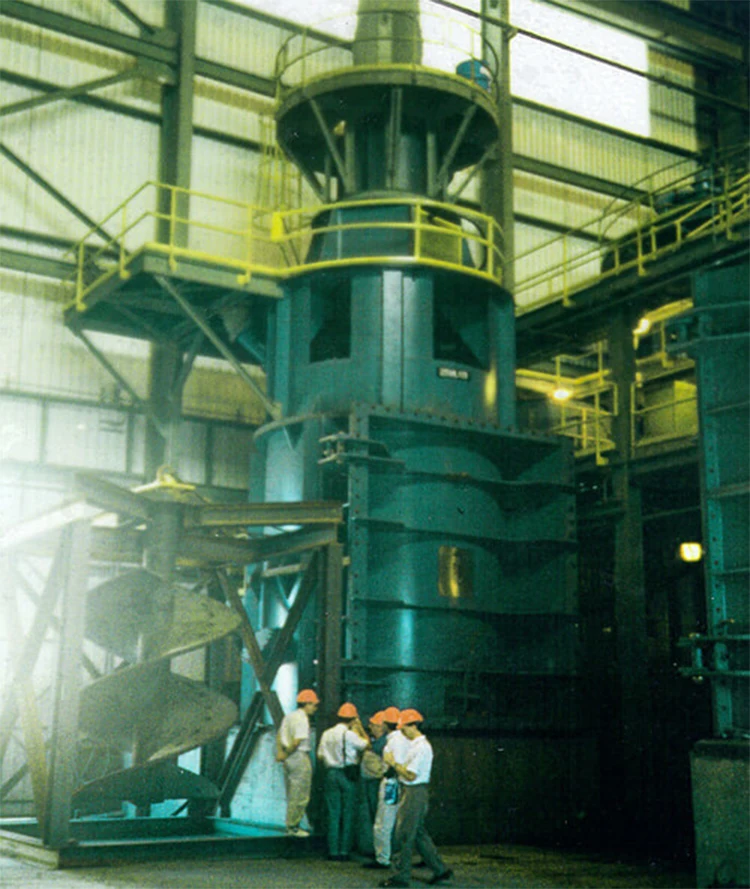

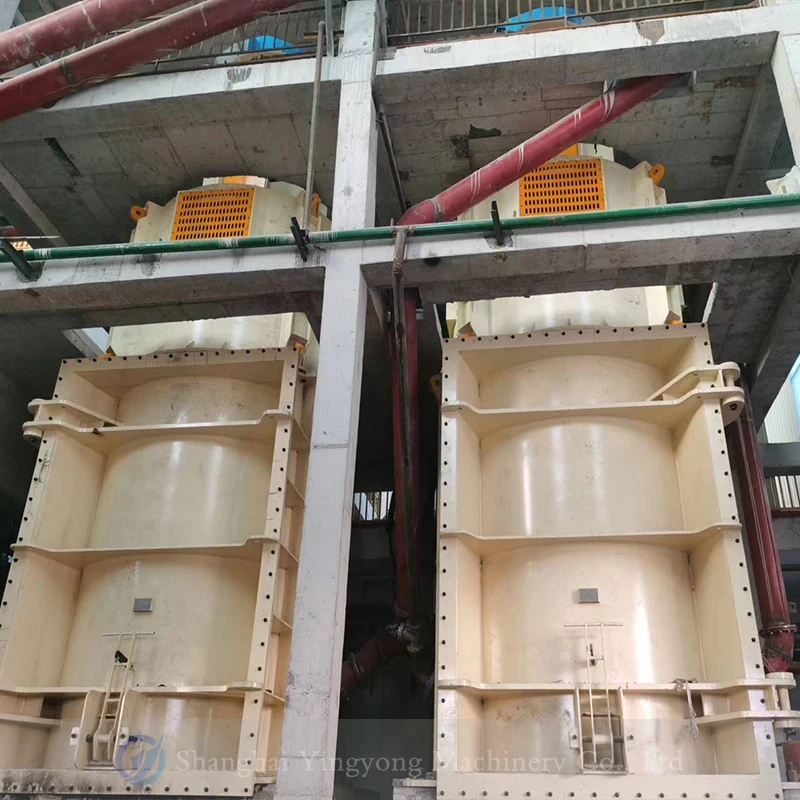

WTM Intelligent Tower Mill
WTM Intelligent Tower Mill is mainly used for grinding fine-grained material, the output particle size is 20~00 μm,which is mainly used for the second stage grinding and the third stage grinding in the grinding process. It is used in the fine crushing of iron ore, lead-zinc ore, copper ore, vanadium-titanium magnetite, gold ore, titanium dioxide,graphite ore, quartz placer and other fields.
Product Description
Tower mill is a common grinding equipment, also known as vertical mill, vertical spiral stirring mill, tower mill, it can be a variety of materials for fine grain grinding, so that it can reach the required size, and no excessive grinding phenomenon. As a fine grinding equipment, it has the advantage of being several times more efficient than the traditional ball mill.

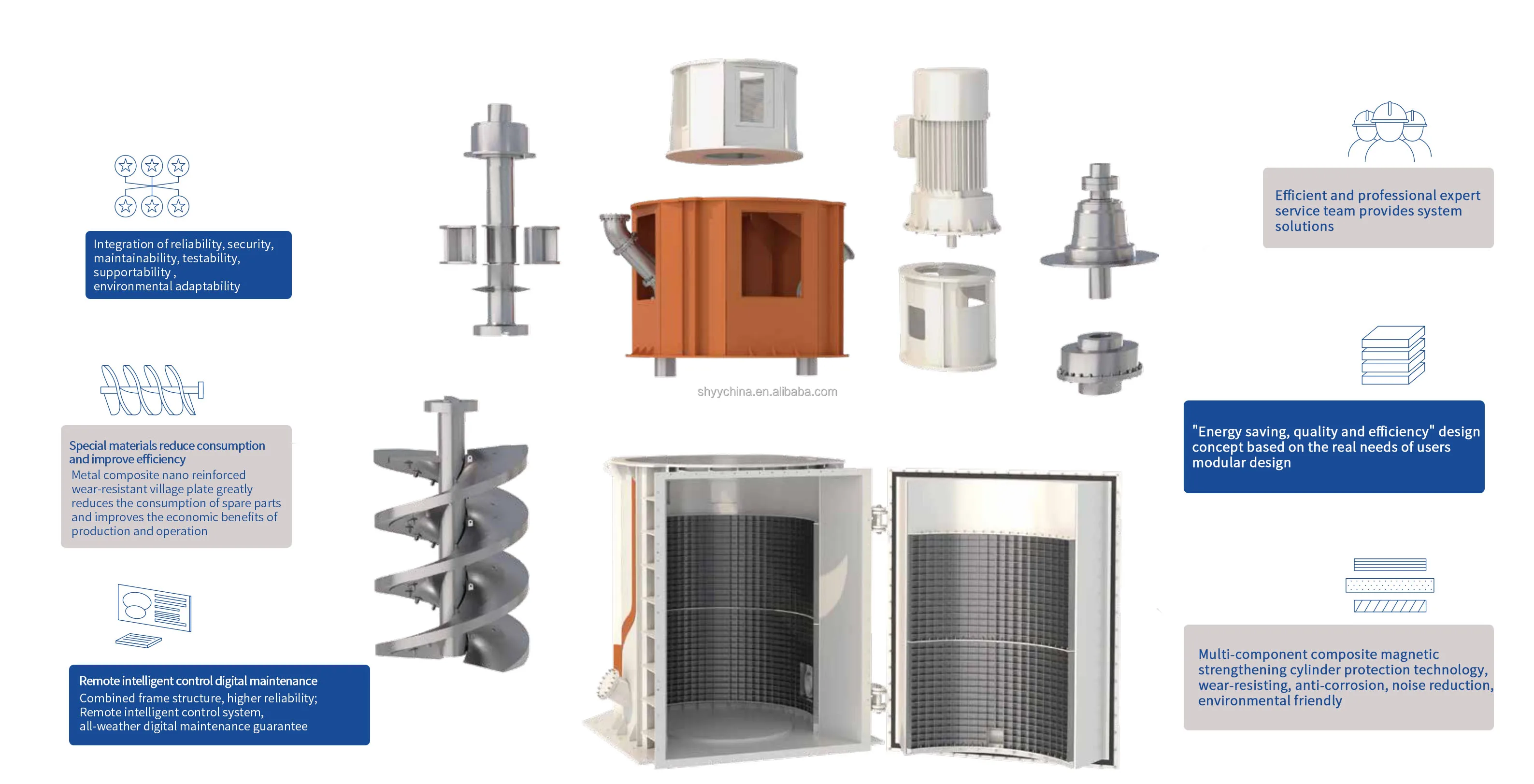

Features of Equipment
1. Remote intelligent control system, all-weather maintenance guarantee
2. Metal composite nano reinforced wear-resistant lining board, better wear resistance
3. Optimized screw application design, higher efficiency
4. International first-class driving system configuration, stronger reliability
5. Efficient and professional expert service team to provide system solutions
6. Multi-component composite magnetic strengthening cylinder protection technology, wear-resistant, anti-corrosion, exposure reduction, environmental friendly
2. Metal composite nano reinforced wear-resistant lining board, better wear resistance
3. Optimized screw application design, higher efficiency
4. International first-class driving system configuration, stronger reliability
5. Efficient and professional expert service team to provide system solutions
6. Multi-component composite magnetic strengthening cylinder protection technology, wear-resistant, anti-corrosion, exposure reduction, environmental friendly
Technical parameters
Model | Dimensions(Length*Width*Height)mm | Power(kw) | Pressing Capacity(t/h) |
WTM-075 | 2400*2400*7500 | 75 | 6-8 |
WTM-112 | 2400*2400*7800 | 112 | 10-12 |
WTM-220 | 2800*2800*9350 | 220 | 22-25 |
WTM-280 | 3000*3000*9750 | 280 | 30-35 |
WTM-355 | 3300*3300*11500 | 335 | 35-40 |
WTM-560 | 3800*3800*12400 | 560 | 55-60 |
WTM-710 | 4300*4300*13200 | 710 | 70-75 |
WTM-850 | 4300*4300*13700 | 850 | 85-90 |
WTM-1000 | 4300*4300*14100 | 1000 | 100-105 |
WTM-1120 | 4650*4650*14100 | 1120 | 110-120 |
WTM-1300 | 4650*4650*14300 | 1300 | 135-140 |
WTM-1500 | 4950*4950*14900 | 1500 | 150-160 |
WTM-1850 | 4950*4950*15500 | 1850 | 185-200 |
WTM-2250 | 6000*6000*17200 | 2250 | 225-250 |
WTM-3300 | 7200*7200*18900 | 3300 | 330-350 |

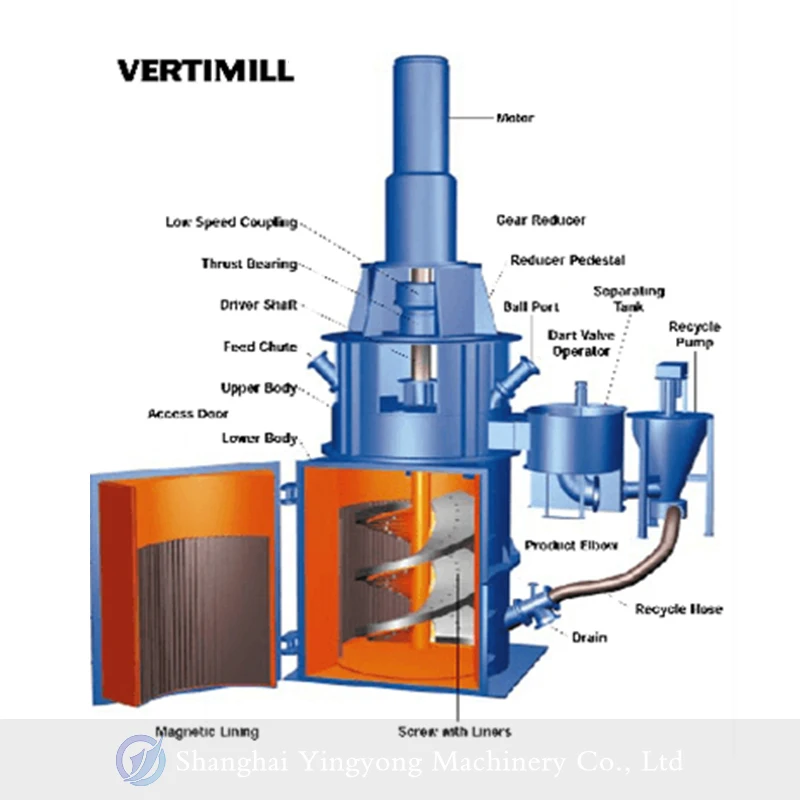

Working Principle
The working principle of the tower mill is also shown in the high degree of enrichment between the crushing medium and the material, the collision between the ball and the ball, the ball and the tower mill lining and the stirring helix is very little;
The balance treatment of the whole rotating part in the macroscopic force makes the bearing system have little force, and the energy consumption of the bearing is also very small. The fine material is always easier to reach the discharge port than the coarse material, and it is easier to realize the internal classification of the crushing process, and the over-crushing phenomenon is greatly reduced. In addition, the internal and external classification systems of tower mill are easy to match, and can produce powder products with very narrow particle size distribution.
Working Principle
The working principle of tower mill is the low speed rotating stirring spiral operation process, due to the effect of centrifugal force, gravity, friction caused by crushing medium and material to achieve orderly motion cycle and macro force basic balance, in the spiral stirring is less than the lifting speed of the spiral rise, in the inner lining and the outer edge of the spiral decline. However, on the micro level, due to the non-uniformity of the force, the dynamic velocity difference and force change are formed, resulting in the comprehensive effect of strong extrusion, grinding and mechanical fracture, micro shear and fragmentation between materials. The conveying of qualified fineness material is rising with the conveying medium, and the internal classification is free from the upper part of the tower grinding body.
The working principle of the tower mill belongs to the category of agitation mill, but the rotating speed of the tower mill is lower than that of other agitation mills, and the stirring medium is orderly rolling, so the tower mill is also suitable for making larger specifications to meet the needs of large-scale production.
Contact us
Corporate positioning:
Shanghai Yingyong Machinery Co., Ltd. is a high-tech enterprise committed to high-end mineral processing, fluid engineering technology and equipment, special materials research and development, intelligent manufacturing technology research, digital engineering technology services and the above engineering project system.
Enterprise strength:
The company has more than 200 research and development personnel. Among the R&D personnel, professors, professor-level senior engineers, senior engineers, doctors, masters account for more than 40%.It has a mineral efficient dissociation and separation engineering experimental center, with complete mineral lamination crushing and preseparation, ultrafine grinding separation, dynamic solid-wave separation, additive manufacturing engineering test system, with a strong ability of mineral processing and special material preparation frontier technology development and engineering application.

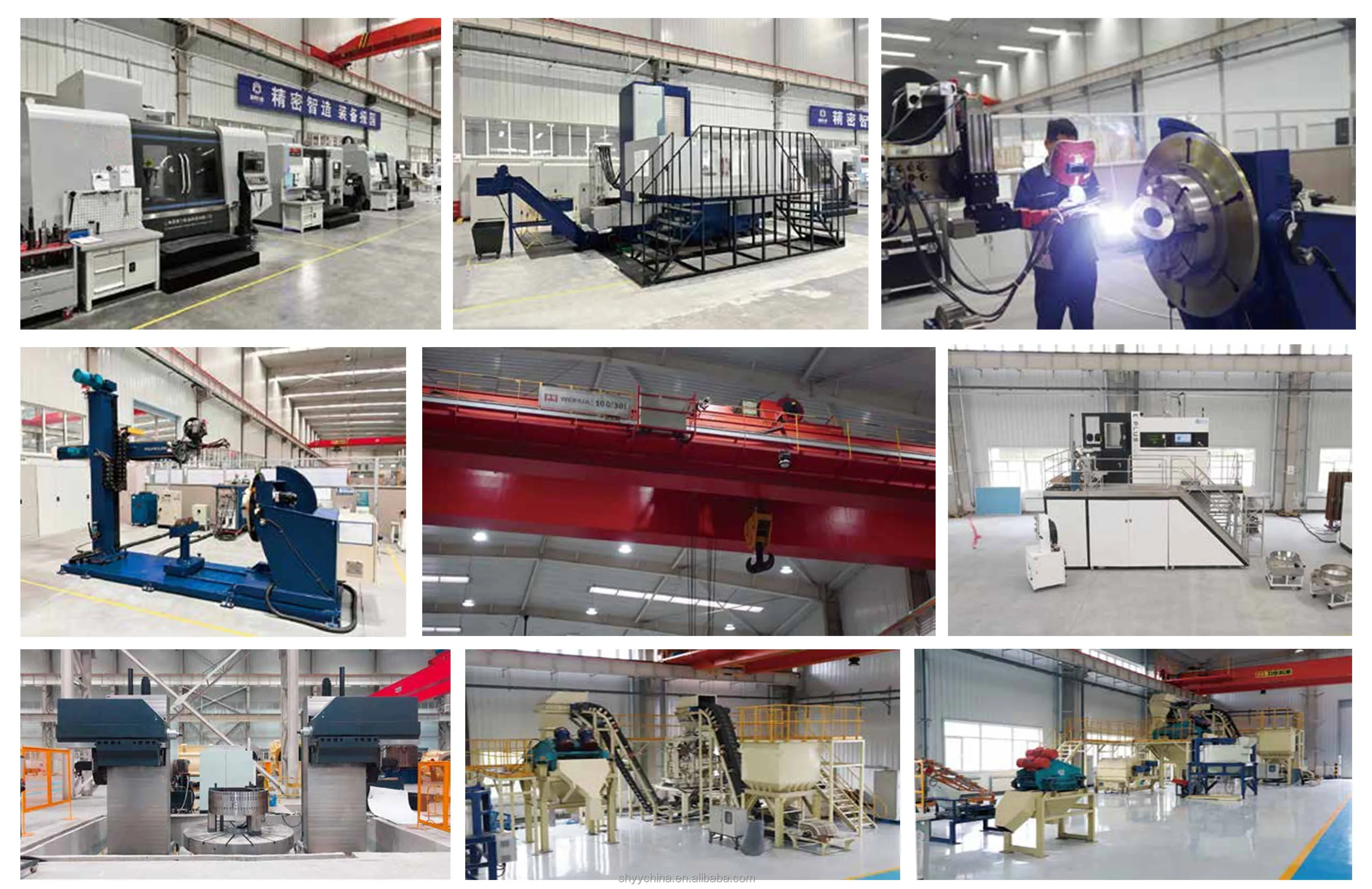

Main processing equipment
Похожие товары

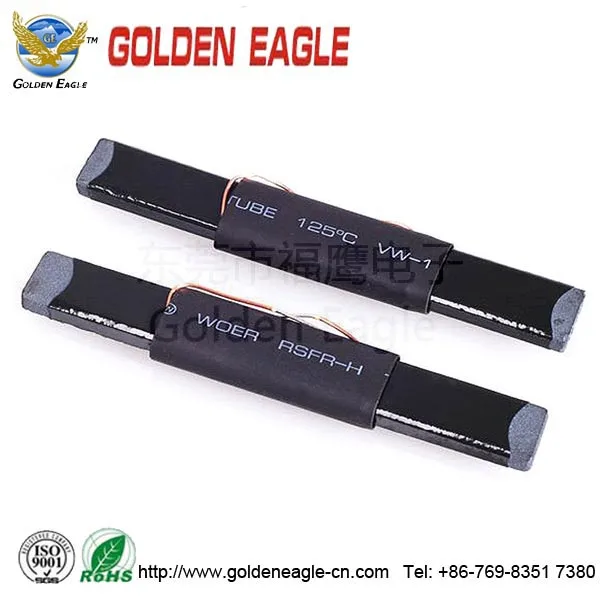

Горячие продажи новейшего 3D антенны катушки с высоким качеством
Кепки премиум класса, кепки с индивидуальным логотипом, черные кепки-тракеры из искусственной кожи, высококачественные мужские кепки с вышивкой
1,85 $ - 5,72 $
Креативное вращающееся уличное украшение на солнечной батарее для маяков, садовых газонов
6,20 $ - 7,63 $
HY CNC нейлоновый резервуар, буксировочный провод для лазерной машины, защитный слот для лазерной резки, кабельная цепь
5,00 $ - 6,00 $
Портативная Рабочая лодка, буксир, земснаряд, стальной материал, год, сборка корпуса, срок службы, для режущего всасывающего земснаряда
1 050 000,00 $

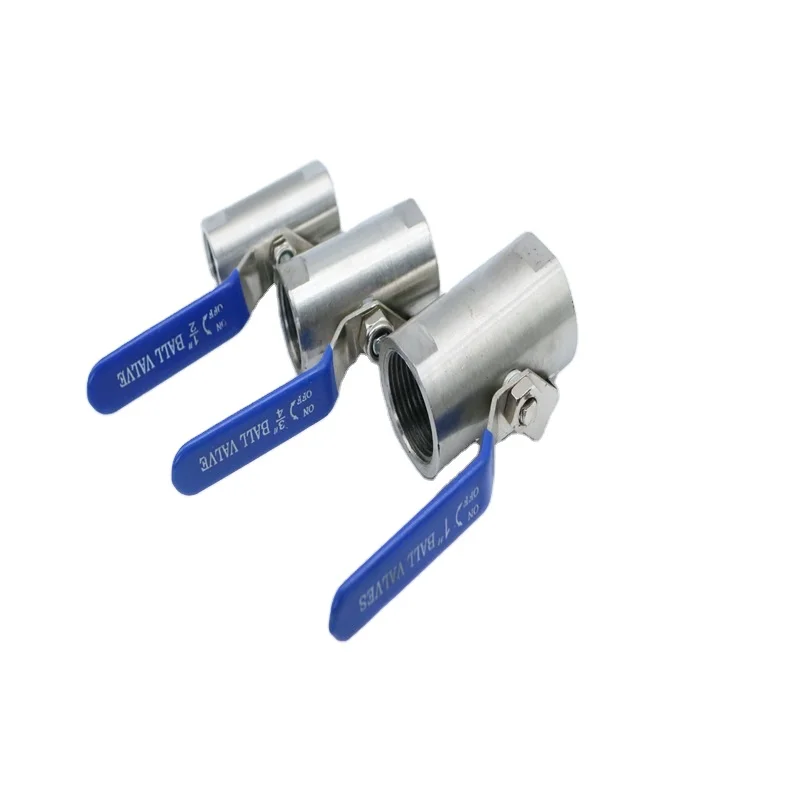

1 шт., шаровой кран из нержавеющей стали 316
1,00 $ - 2,00 $

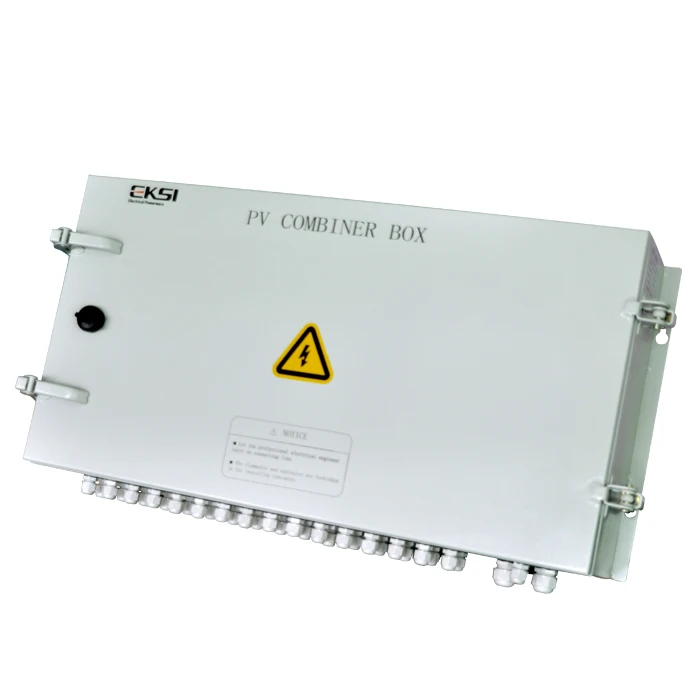

Гирляндный комбайнер GSO pv для солнечной энергетической системы
