Specifications | camera |
Input Voltage | 24VAC±25%, 24VDC±10% |
Power of Pan/Tilt | ≤100W (including heater) |
Pan Speed | Pan:0.01~60 °/s |
Tilt Speed | Tilt:0.01~30 °/s |
Pan Range | Pan:0~360 ° continuous |
Tilt Range | ±90° |
Protocol | Pelco D/Pelco P |
Baud rate | 2400, 4800, 9600, 19200 bps |
Communication | RS-485/RS-422 |
Preset | Up to 128 |
OSD menu | English/Chinese |
Auto Scan | Up to 8 lines, based on OSD function |
Auto Cruise | Up to 8 groups, based on OSD function |
Keep Watch | Programmed a preset, an auto scan line or an auto cruise group, based on OSD function |
Angles Display | Real-time on screen display/Response by query command |
Absolute angles control | Support |
AUX | 4 Relay Outputs |
Lens control | Self-adaptive |
Lens interface | TTL/RS485/RS232/motorized control |
AUX | 4 Relay Outputs |
Operation Temperature | -35°C~ +65°C, ≤90%RH |
Installation | Outdoor |
Waterproof | IP66 |
Dimensions of PT boday | 470mm(L)×322mm(W)×269mm(H) |
Surge Protection | Built-in Lightning and Surge Protection |
Max Load | 15kg |

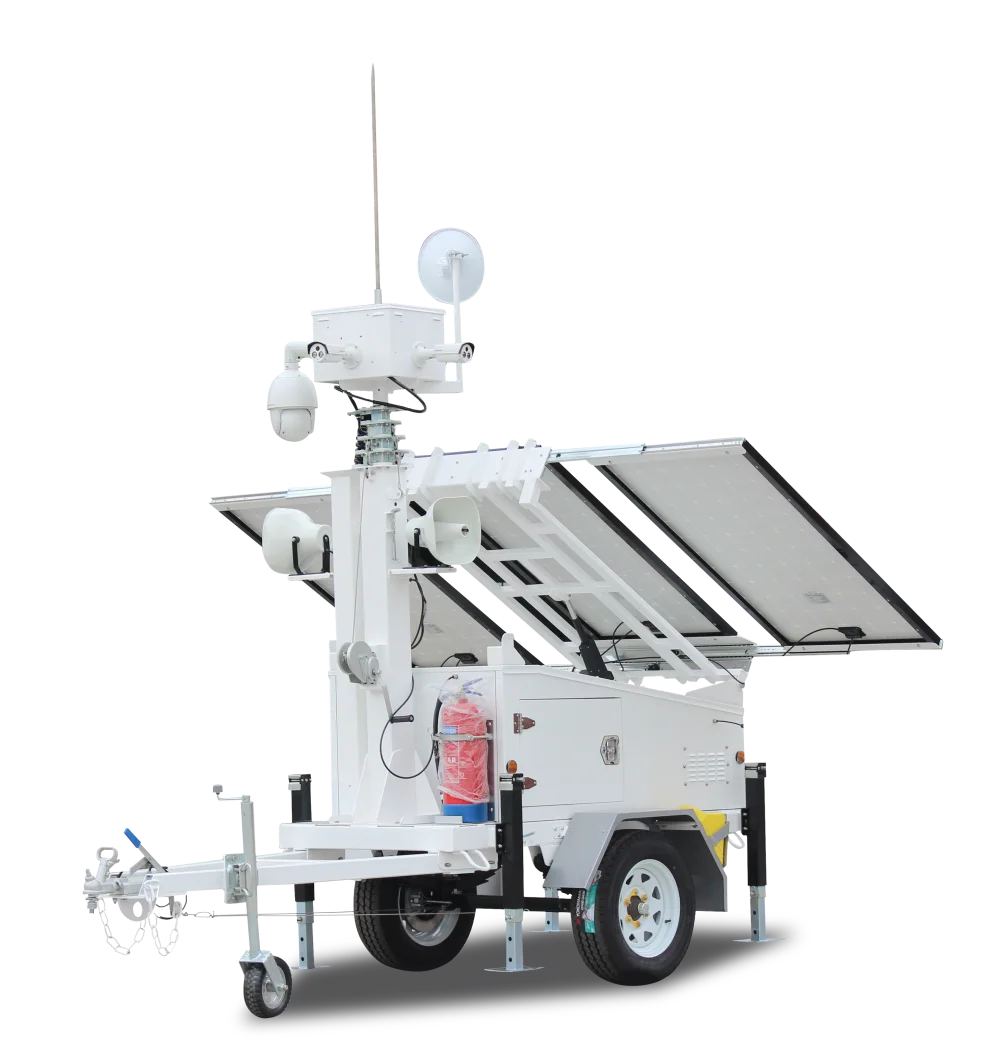

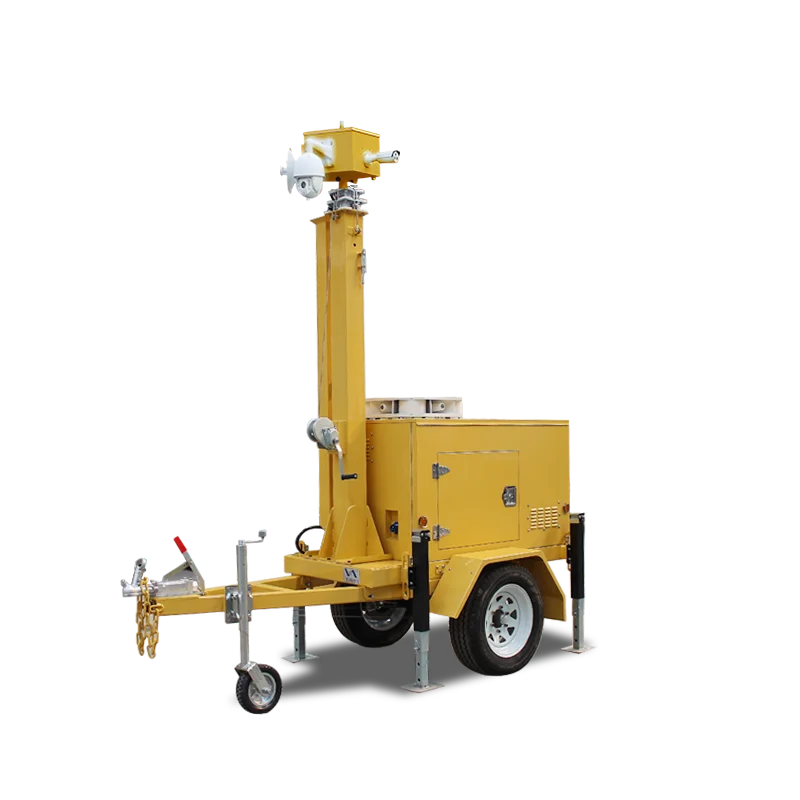

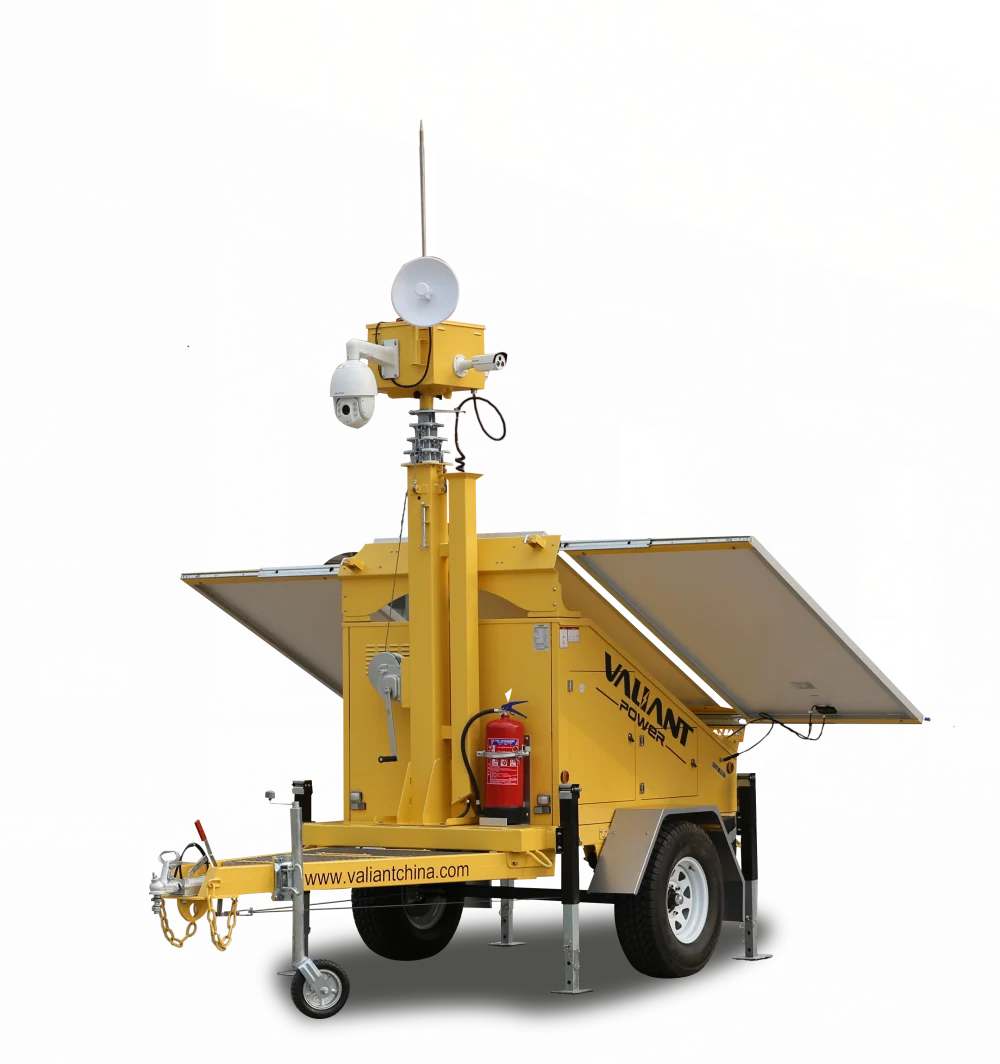

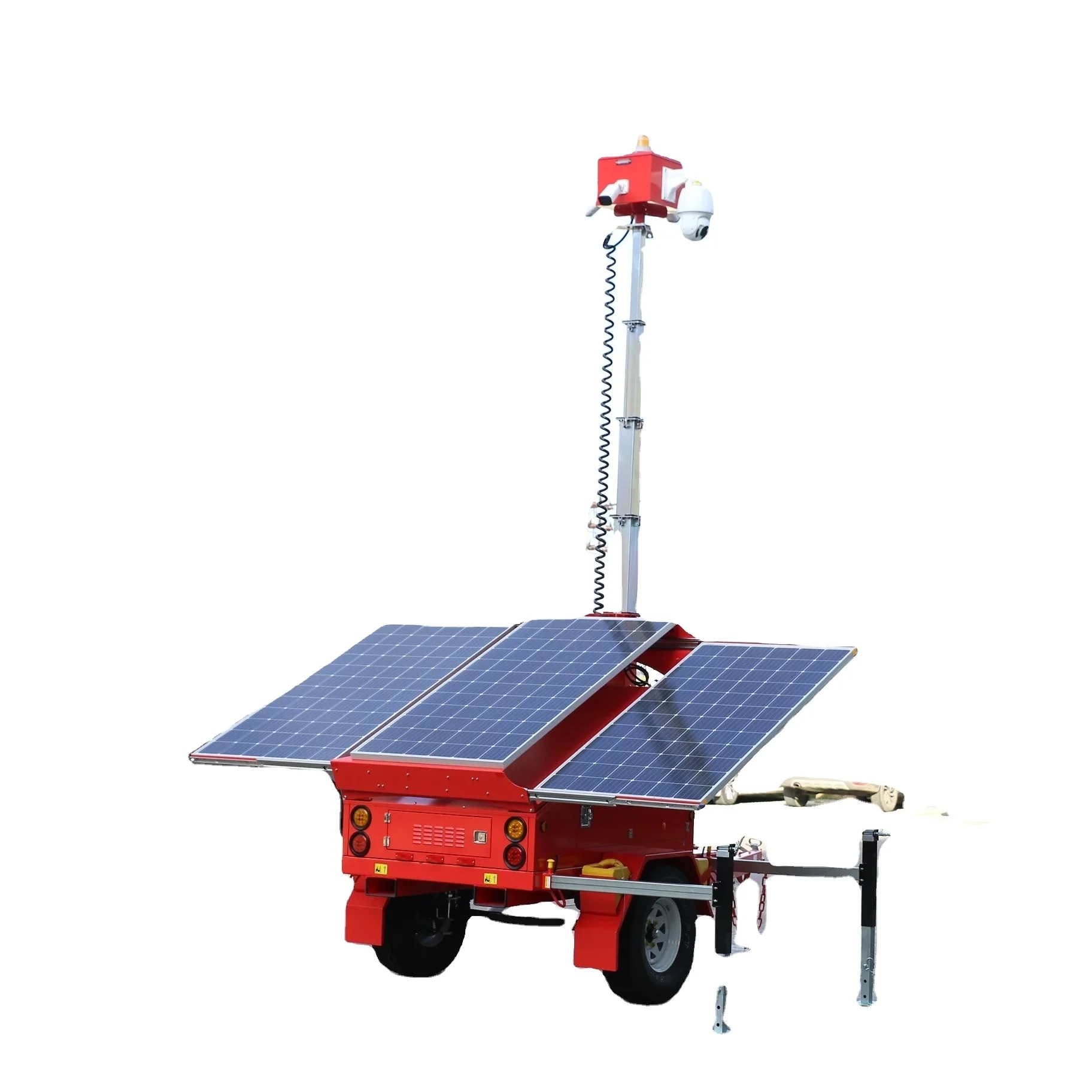

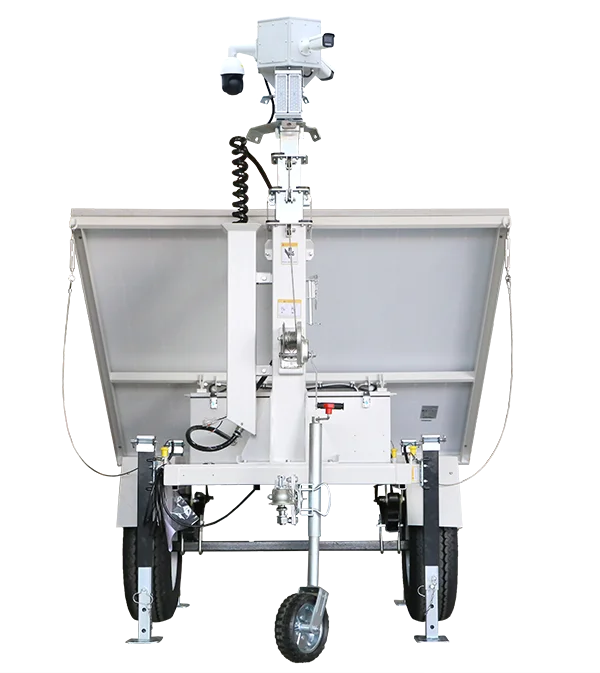

Trailer specification:
cctv security cameras
215/15 wheels
braking system
9 meters mast
