Уличный маршрутизатор для дома и офиса беспроводной с поддержкой Wi Fi POE проводного Интернета 4g со слотом Sim карты
- Категория: >>>
- Поставщик: Shenzhen Lilian Communication Technology Co. Ltd.
Сохранить в закладки 1600804808236:
Описание и отзывы
Характеристики
Product Description
Outdoor Long Range Home Office Router WIFI POE Wireless To Wired Internet 4g Router With Sim Card Slot
Outdoor waterproof 4G wireless wifi router 7628C05 is specially designed for outdoor fast networking. The equipment
adopts MTK industrial grade main core, built-in 4G module, built-in hardware watchdog design, and automatically reconnects when disconnected to ensure the equipment. Supports multiple VPN protocols (PPTP, L2TP), supports
ICMP, TCP, UDP, Telnet, FTP, HTTP, HTTPS and other network protocols. Widely used in vehicle wireless networking, video
surveillance, ATM rapid networking, water monitoring, vehicle networking, environmental monitoring and other fields.
adopts MTK industrial grade main core, built-in 4G module, built-in hardware watchdog design, and automatically reconnects when disconnected to ensure the equipment. Supports multiple VPN protocols (PPTP, L2TP), supports
ICMP, TCP, UDP, Telnet, FTP, HTTP, HTTPS and other network protocols. Widely used in vehicle wireless networking, video
surveillance, ATM rapid networking, water monitoring, vehicle networking, environmental monitoring and other fields.
Details Images

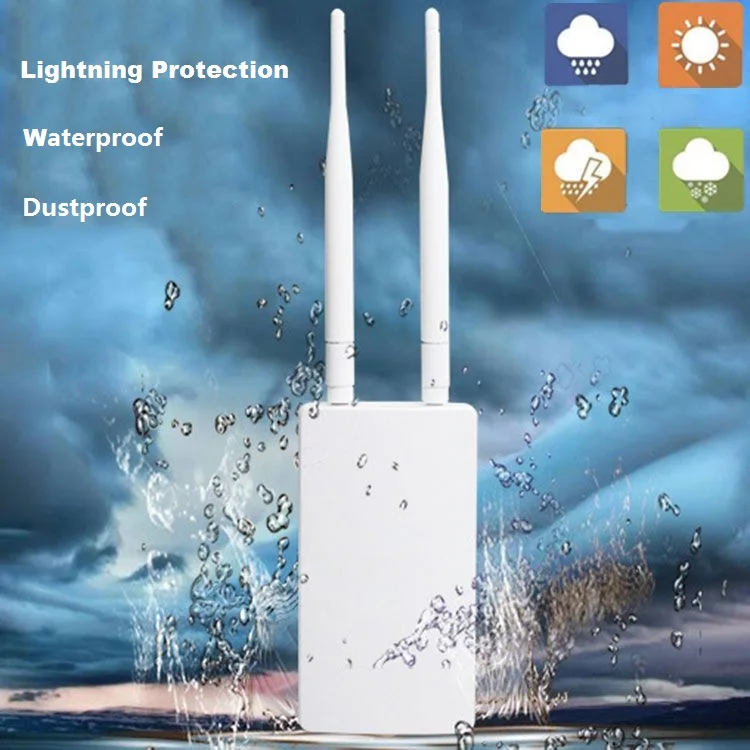

Industrialized design:
IP67 dustproof and waterproof, 15KV ESD and 4000V lightning protection design, can withstand a variety of harsh outdoor
environment. Suppoer POE 24V Power supply. Width Working Temperature：-20℃~70℃.
IP67 dustproof and waterproof, 15KV ESD and 4000V lightning protection design, can withstand a variety of harsh outdoor
environment. Suppoer POE 24V Power supply. Width Working Temperature：-20℃~70℃.
Powerfulnetwork functions
Supports 4G all-Netcom, hot-plug card automatic networking.

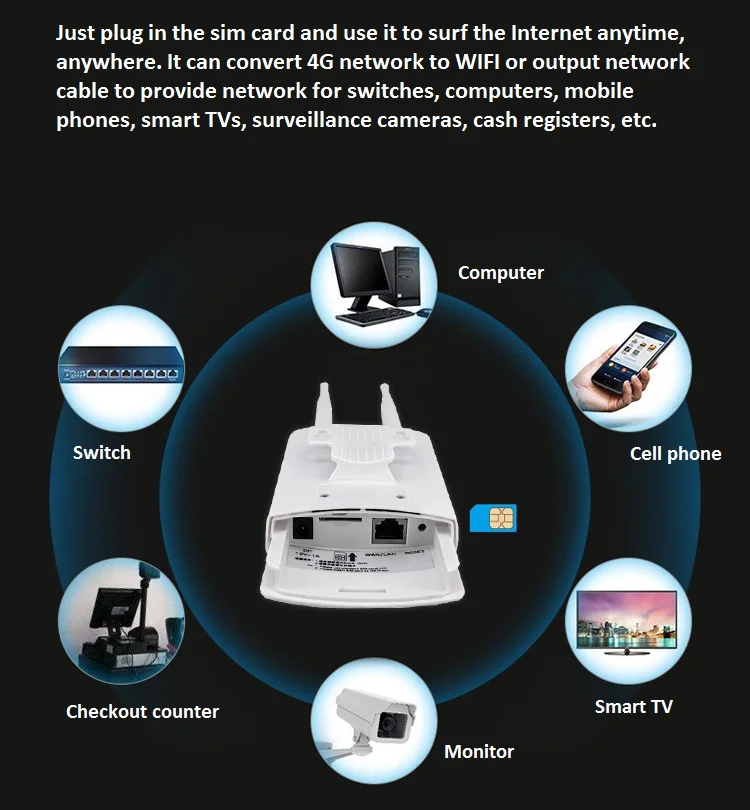

4G to wired network
Supports 2.4GHz 802.11b/g/n
Supports Hardware WDT to provide drop resistance to ensure that end data is always online
Supports IEEE 802.3、IEEE 802.3U
Supports Multiple VPN protocols (PPTP, L2TP). Supports DHCP、DDNS、firewall, NAT, and DMZ host Features. Supports TIMED RESTART
Supports 4G all-Netcom, hot-plug card automatic networking.
4G to wired network
Supports 2.4GHz 802.11b/g/n
Supports Hardware WDT to provide drop resistance to ensure that end data is always online
Supports IEEE 802.3、IEEE 802.3U
Supports Multiple VPN protocols (PPTP, L2TP). Supports DHCP、DDNS、firewall, NAT, and DMZ host Features. Supports TIMED RESTART
Products specification
Hardware Features | |
WIFI Chipset | MT7620N |
4G CPU | ZX297520v3 |
FLASH | SPI/8M |
RAM | DDR2 64MB |
Protocol | IEEE802.11n/802.11g/802.11b/g/n 802.3/802.3u |
Transmit Power | 18dBm（11a），16dBm（11n/HT20/HT40） |
Wireless Speed | 2400MHz-2483.5MHz, Protocol：802.11b/g/n, MAX: 300Mbps |
Antenna Type | 1*built-in 5dBi 2.4GHz antenna 1*detachable 5dBi 4G antenna |

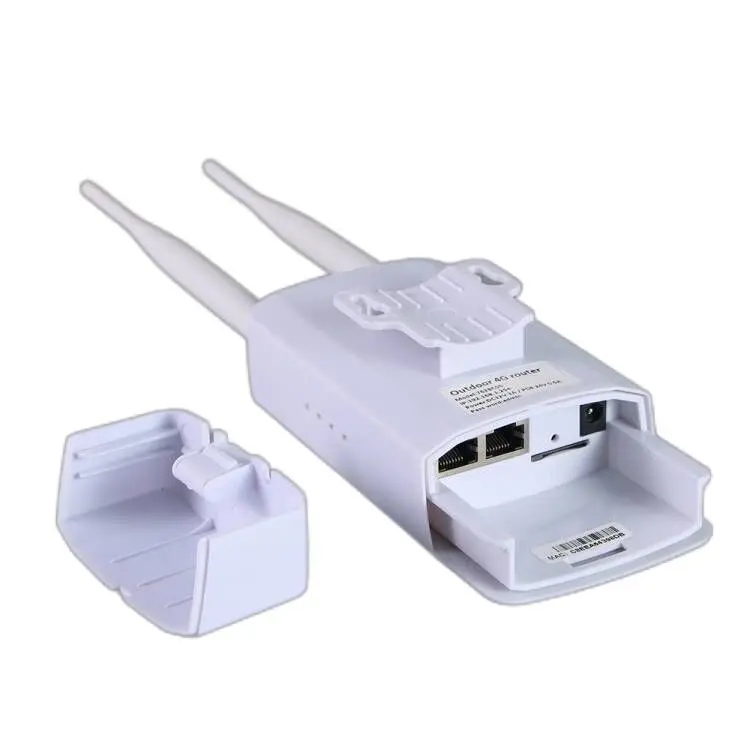

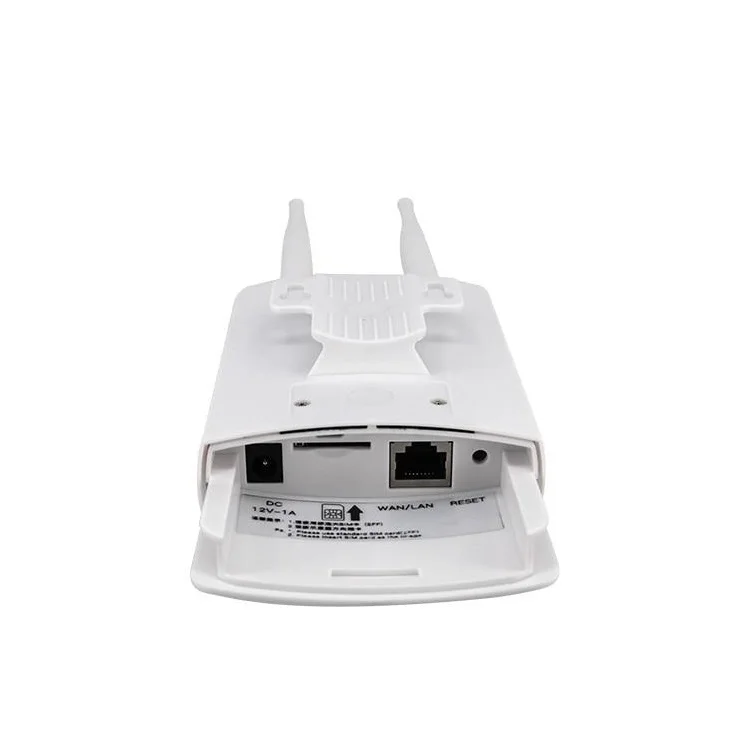

Interface | 2*10/100MLAN 1*SIM card |
LED Indicator | Power, SYS, 2.4G, LAN, 4G |
Power Supply | DC 12 /24V POE |
Max power consumption | <7w |
Dimensions(H*diameter) | 339×85mm |
Total Weight | 0.7Kg |
Work Environments | Operating Temperature: 0°C~40°C (32°F~104°F) Storage Temperature: -30°C~70°C (-40°F~158°F) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
Software | |||||
Default Setting | IP Address: 192.168.1.1 User/Password: admin/admin | ||||
WAN Type | PPPoE/ Dynamic IP/Static IP/3G/UMTS/4G/LTE，dhcp-4/5G | ||||
Working mode | AP;Router | ||||
System | Supports SDK，OpenWRT, eCos | ||||
DDNS | Support | ||||
WEB Style Change | Support | ||||
Band Ctrl | Support | ||||
Static Router | Support | ||||
System Log | Support | ||||
DHCP server | DHCP server Client List；Static address assignment； | ||||
VPN Pass-Through | MVPN/IPsec/OpenVPN/PPTP/L2TP/GRE/N2N | ||||
Other Function | Mac clone NTP Synchronize Web firmware upgrade | ||||
Networking priority | 4G priority （Y/N） | ||||
1) high speed: 300Mbps, complies with EEE802.11b/g/n protocol.
2) Provides 2*10/100M LAN + 1 SIM card.
3) Adopt high grade industrial wireless module.
4) Waterproof shell, protection grade IP65.
5) Support non-standard 24V Poe power supply, and DC12V power supply.
6) Plug and play card, solve the internet problem.
7) 4G to wired network, 4G to wifi .
8) WDT watchdog design ensures system stability.
9) Complete anti dropping mechanism ensures that data terminal is always online.
10) Supports Uboot brush.
11) Supports 64/128 bit WEP encryption, WPA/WPA2, WPA-PSK/WPA2-PSK & other encryption security mechanism.
12) The wireless standby number is 30, HD video is 4~5, wired is about 64.
13) It can be applied to security monitoring transmission, 4K smart TV, HD movie playing, online video, 3D games, etc.
3) Adopt high grade industrial wireless module.
4) Waterproof shell, protection grade IP65.
5) Support non-standard 24V Poe power supply, and DC12V power supply.
6) Plug and play card, solve the internet problem.
7) 4G to wired network, 4G to wifi .
8) WDT watchdog design ensures system stability.
9) Complete anti dropping mechanism ensures that data terminal is always online.
10) Supports Uboot brush.
11) Supports 64/128 bit WEP encryption, WPA/WPA2, WPA-PSK/WPA2-PSK & other encryption security mechanism.
12) The wireless standby number is 30, HD video is 4~5, wired is about 64.
13) It can be applied to security monitoring transmission, 4K smart TV, HD movie playing, online video, 3D games, etc.

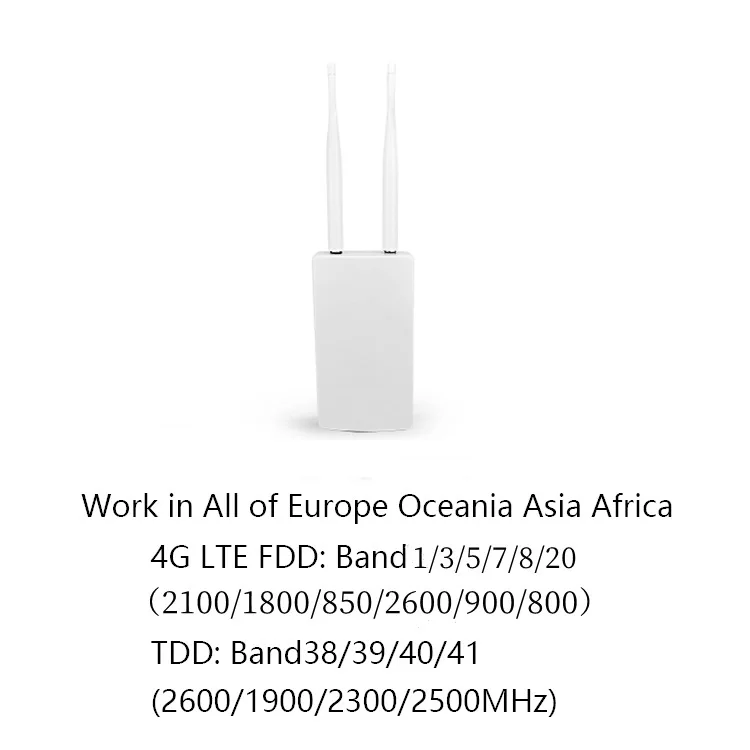

Network:
--4G: LTE-FDD: B1/B3/B7/B8/B20/B28(2100/1800/2600/900/800/700 MHz)
--4G: LTE-FDD: B1/B3/B7/B8/B20/B28(2100/1800/2600/900/800/700 MHz)
--4G: LTE-TDD:B38/B40/B41（2600/2300/2500 MHz）
--3G: DC-HSPA+/HSPA/UMTS:B1/B8(2100/900MHz)
--Wireless speed:up to 300Mbps (2.4G)
--Transmit Power: <27dbmIt also can be adapted according to different countries.
--3G: DC-HSPA+/HSPA/UMTS:B1/B8(2100/900MHz)
--Wireless speed:up to 300Mbps (2.4G)
--Transmit Power: <27dbmIt also can be adapted according to different countries.
It also can be adapted according to different countries.
Packing&Shipping
Company Introduction
FAQ
1.What is our service?
We are a professional manufacturer of 4G/5G wireless network equipment, machine to machine (M2M) and IOT connectivity products and services.
We are a professional manufacturer of 4G/5G wireless network equipment, machine to machine (M2M) and IOT connectivity products and services.
Accept software and hardware customization services, focus on openwrt, give you the best service.
2.how can I get samples?
Sample is available.
Sample lead time: 2-3 working days, 4-5 days with customized logo
More details, please contact with us.
3. what is our Payment methods?
We agree T/T, Western Union, PayPal. 30% deposit, balanced before shipment.
4.What is our Shipping & Trade terms?
Shipping By sea, air, or UPS, FEDEX, EMS, DHL, etc.
Delivered time: 2-3 business days for sample, 20-25 days for mass order.
Trade terms: EXW, FOB , CIF etc.
5. What is our Warranty and Certificates?
Our warranty is 12 months. We have CE, ROHS, FCC certificates.
2.how can I get samples?
Sample is available.
Sample lead time: 2-3 working days, 4-5 days with customized logo
More details, please contact with us.
3. what is our Payment methods?
We agree T/T, Western Union, PayPal. 30% deposit, balanced before shipment.
4.What is our Shipping & Trade terms?
Shipping By sea, air, or UPS, FEDEX, EMS, DHL, etc.
Delivered time: 2-3 business days for sample, 20-25 days for mass order.
Trade terms: EXW, FOB , CIF etc.
5. What is our Warranty and Certificates?
Our warranty is 12 months. We have CE, ROHS, FCC certificates.
Похожие товары
Плоская 6 мм 20 мм 25 мм Толстая декоративная грунтованная плита mdf плинтус плита mdf
260,00 $ - 288,00 $

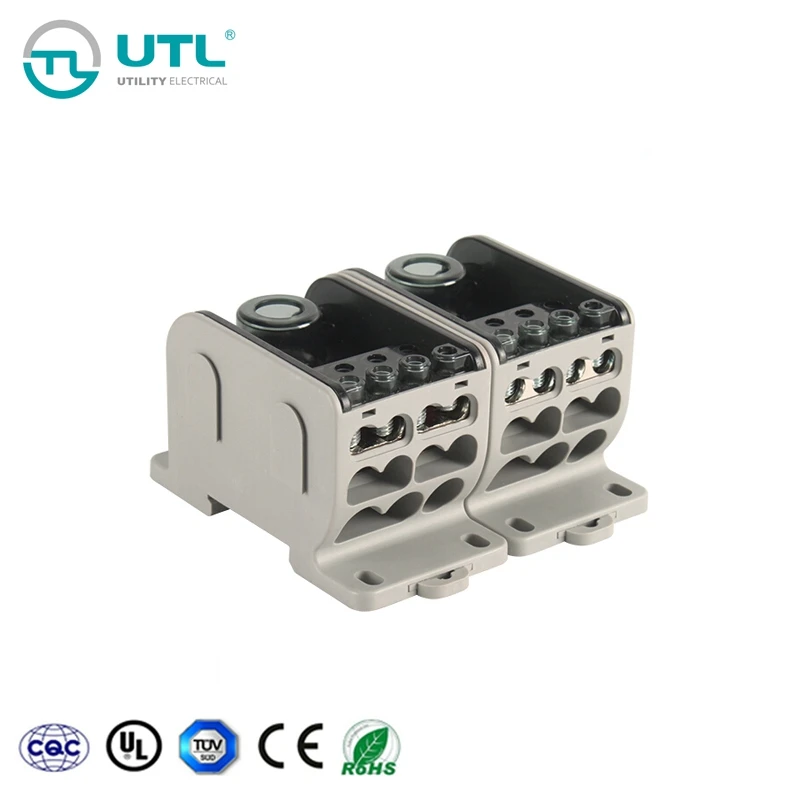

UTL Китай Цена 500A высокая сила тока Din-рейка винтовой клеммный блок распределительная коробка

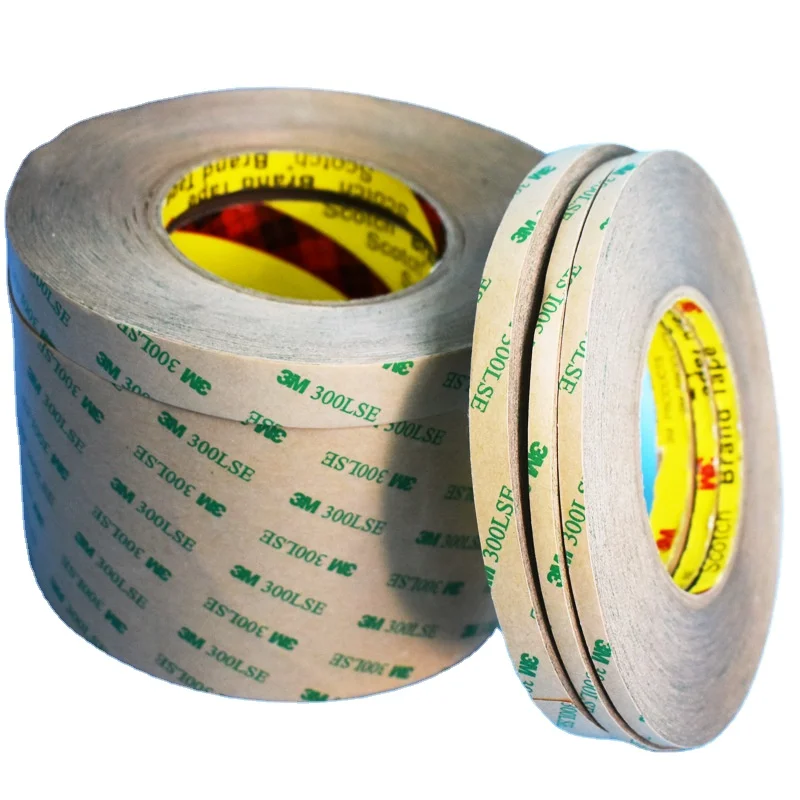

Сверхмощная водонепроницаемая и промышленная Светодиодная лента 3m 300LSE, двухсторонняя Монтажная лента

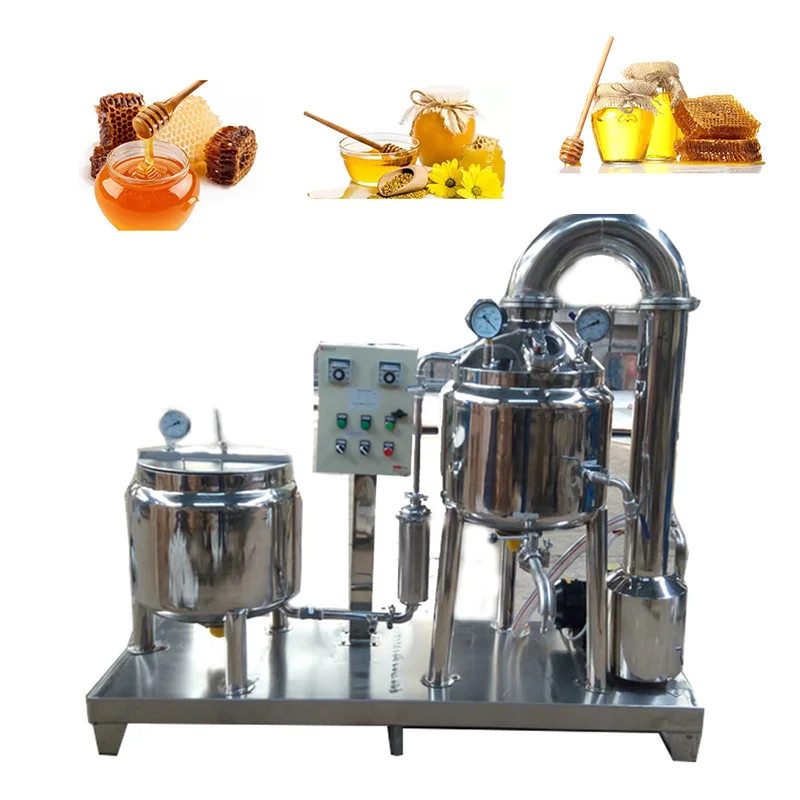

Автоматическое оборудование для производства меда 0,5 т с гарантией
2 290,00 $ - 2 500,00 $
Полностью Точная машина для нанесения покрытия с одним роликом (Праймер, машина для нанесения покрытия с двумя роликами на выбор) модель 620
Частная торговая марка, кислородный отбеливатель, Осветляющий порошок для волос, отбеливатель для волос оптом, белый отбеливающий порошок для волос
1,50 $ - 3,50 $

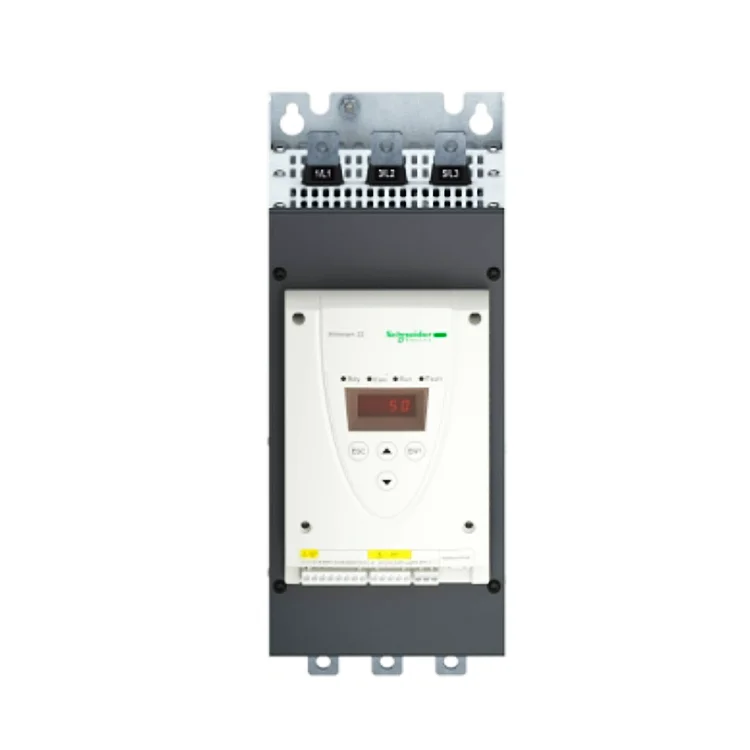

ACS DCS новый оригинальный инвертор ATS22C25Q
