Машина для склеивания и складывания картонных коробок 400 м/мин
- Категория: >>>
- Поставщик: Zhejiang New Luolan Machinery Co. Ltd.
Сохранить в закладки 1600805176328:
Описание и отзывы
Характеристики
Product Description
Rolam High Speed GS Automatic 4&6 Corner Folder Gluer
* Fast job changeover
* Multi-type work capabilities
* With integrated bump & turn allows to turn cartons 90º and its alignment
* Extra length crash lock bottom section
* Extra folding & closing section with collapsible central carrier

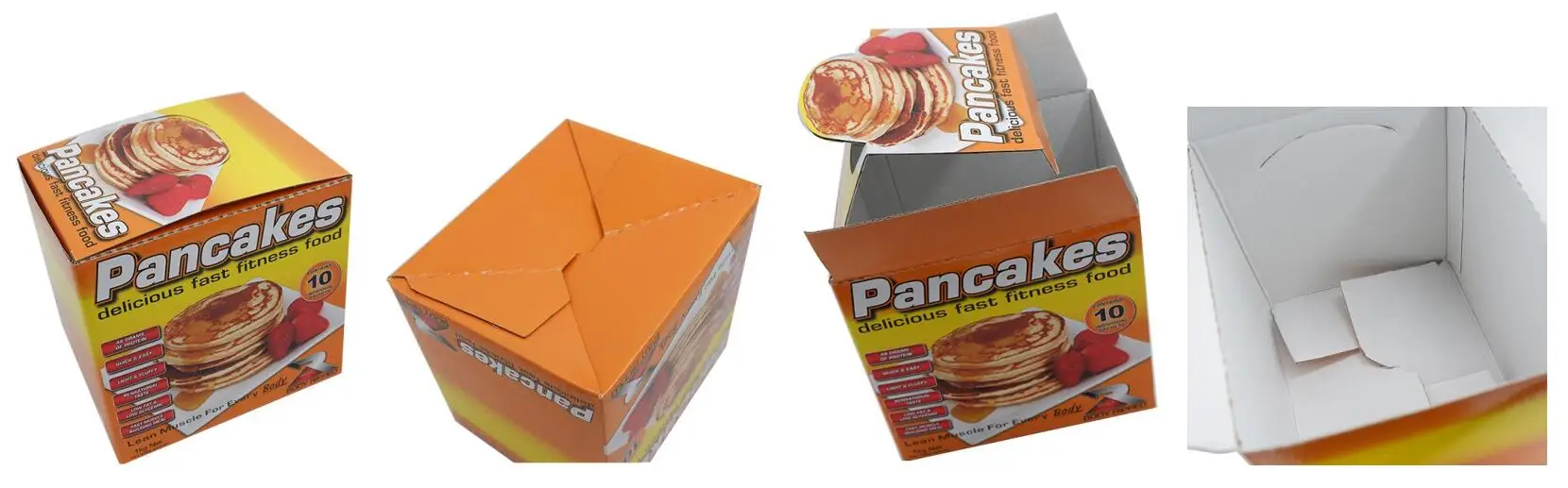

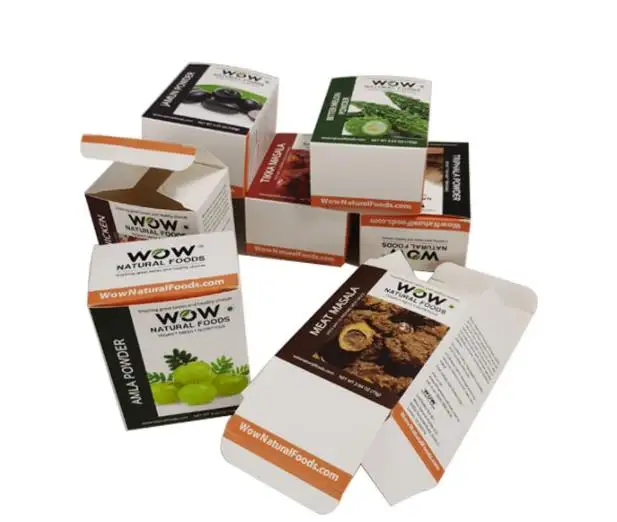

* Suitable for Straight line, lock bottom, 4 & 6 corner cartons and more
* Fast job changeover
* Multi-type work capabilities
* With integrated bump & turn allows to turn cartons 90º and its alignment
* Extra length crash lock bottom section
* Extra folding & closing section with collapsible central carrier
* Suitable for Straight line, lock bottom, 4 & 6 corner cartons and more
Product Paramenters
MODEL | 650 | 800 | 1100 | ||
Paper Material | Cardboard 210-800 GSM，B/N/E/F Flute | ||||
Max Speed | 400 M/Min | ||||
Max Thickness of Folded Box | 12 MM | ||||
Way of Folding | Fold 1 and fold 3 are 180°and 135°, fold 2 and fold 4 are 180° | ||||
Power Supply | 3P 380V 50HZ | ||||
Blank Width | 650 MM | 800 MM | 1100 MM | ||
Length X Width X Height | 13 X 1.3 X 1.3M | 15 X 1.5 X 1.3M | 15 X 1.8 X 1.3M | ||
Net Weight | 5.5 T | 7.5 T | 8.0 T | ||
Total Power | 28.6 KW | 31.18 KW | 31.18 KW | ||
Machine Details
Feeding Section
* Rail width can be horizontally adjusted and set by seven pieces 30mm thickened feeding belt and 10mm metal board.
* Operators can operate feeder switch in any regional.
Pre-folding Section
* Special first folding line pre-fold 180°.
* Third line 165° ,which perfectly meeting the requirements of automatic packaging industry.
Folding and Closing Section
* The Second and fourth folding line 180°.
* Folding and closing section transmit from right and left side ,the belt speed can be adjusted separately and correct the way of box running to ensure straightly delivery.
* Folding and closing section transmit from right and left side ,the belt speed can be adjusted separately and correct the way of box running to ensure straightly delivery.
Trombone Section
* Upper and lower belt can be adjusted separately.
* Equipped with photo electronic counting device and kicking paper device, which can press the paper after accounting and make it easy to pack.
* Also equipped with feeding paper inspection device.
* Equipped with photo electronic counting device and kicking paper device, which can press the paper after accounting and make it easy to pack.
* Also equipped with feeding paper inspection device.
Conveyor
* Equipped with special additional sponge belt for the press of boxes valley part.
* Upper section moves back and forward, allowing for different box length.
* Upper section moves back and forward, allowing for different box length.
About Us
VR
Packing & Delivery
Normally, we use wooden pallets and cases, we use fumigation/ free fumigation wooden pallets and cases for some European countries, also some are according to the customer's requirement.
FAQ
Q:What is the machine warranty?
A:one year.
Q:Does your machine with CE certificate?
A:Yes.
Q:What is the production time while placing order?
A:About 30 days
Q:What is the delivery time?
A:Within 30 days after get the payment.
Q:Can your company handle shipping for customers?
A:Yes.(Please provide us your requested seaport and we can check the shipping charge and arrange shipping for your order)
Q:Does the packing strong?
A:Yes, of course! All of our export packing is with strong wooden pallets, all are confirmed to export packing standard.
Q:How about after-sales service process?
A:When your machine has problem, contact your sales and we will solve your problem soon as possible.
Q:Are you manufacturer?
A:Yes, we are manufacturer with 10-year experience and profession.
Q:Do you have stock product to sell?
A:Actually our machine need 20-30 days to manufacture, and there are many orders from China and foreign countries, so we need to custom one for you, and your order will be highly attention to manufacture.
Q:Do you inspect the finished products?
A:Yes, we have QC department, they will inspect the machine before shipping, to ensure there is nothing problem of the machine.
Q:What's the payment term?
A:T/T 30% in advance, the balance paid before delivery. We also accept payment via West Union and L/C.
A:one year.
Q:Does your machine with CE certificate?
A:Yes.
Q:What is the production time while placing order?
A:About 30 days
Q:What is the delivery time?
A:Within 30 days after get the payment.
Q:Can your company handle shipping for customers?
A:Yes.(Please provide us your requested seaport and we can check the shipping charge and arrange shipping for your order)
Q:Does the packing strong?
A:Yes, of course! All of our export packing is with strong wooden pallets, all are confirmed to export packing standard.
Q:How about after-sales service process?
A:When your machine has problem, contact your sales and we will solve your problem soon as possible.
Q:Are you manufacturer?
A:Yes, we are manufacturer with 10-year experience and profession.
Q:Do you have stock product to sell?
A:Actually our machine need 20-30 days to manufacture, and there are many orders from China and foreign countries, so we need to custom one for you, and your order will be highly attention to manufacture.
Q:Do you inspect the finished products?
A:Yes, we have QC department, they will inspect the machine before shipping, to ensure there is nothing problem of the machine.
Q:What's the payment term?
A:T/T 30% in advance, the balance paid before delivery. We also accept payment via West Union and L/C.
Похожие товары

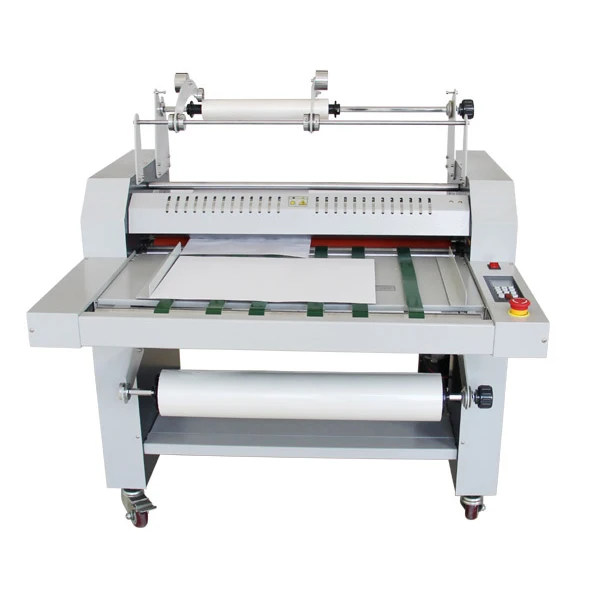

720Z автоматический гидравлический рулонный ламинатор для ламинирования бумаги с автоматической отдельной функцией
495 950,85 ₽ - 548 631,86 ₽

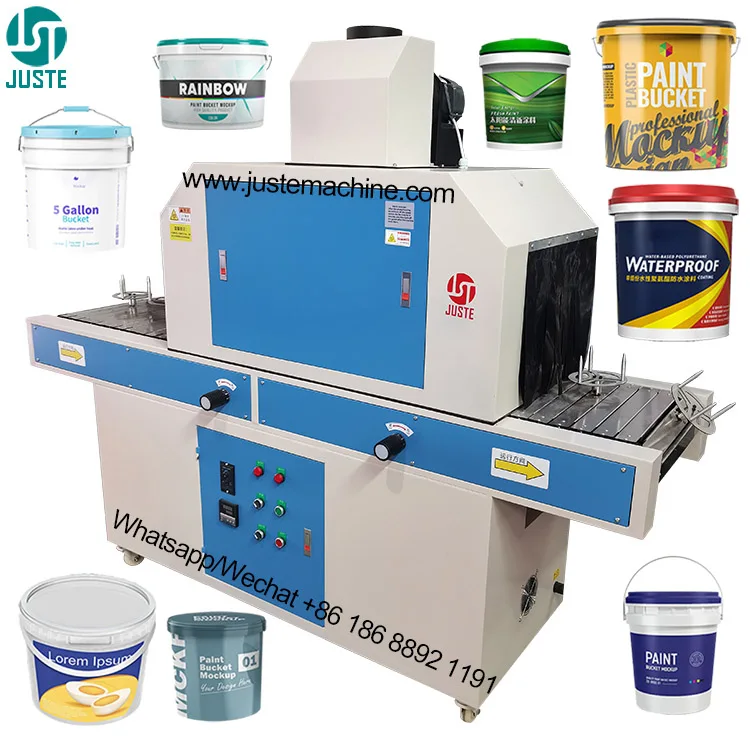

Заводская УФ-сушилка 400 мм конвейер УФ-отверждающая машина для ламинирования 5070 клеевой клей
165 316,95 ₽ - 319 612,77 ₽

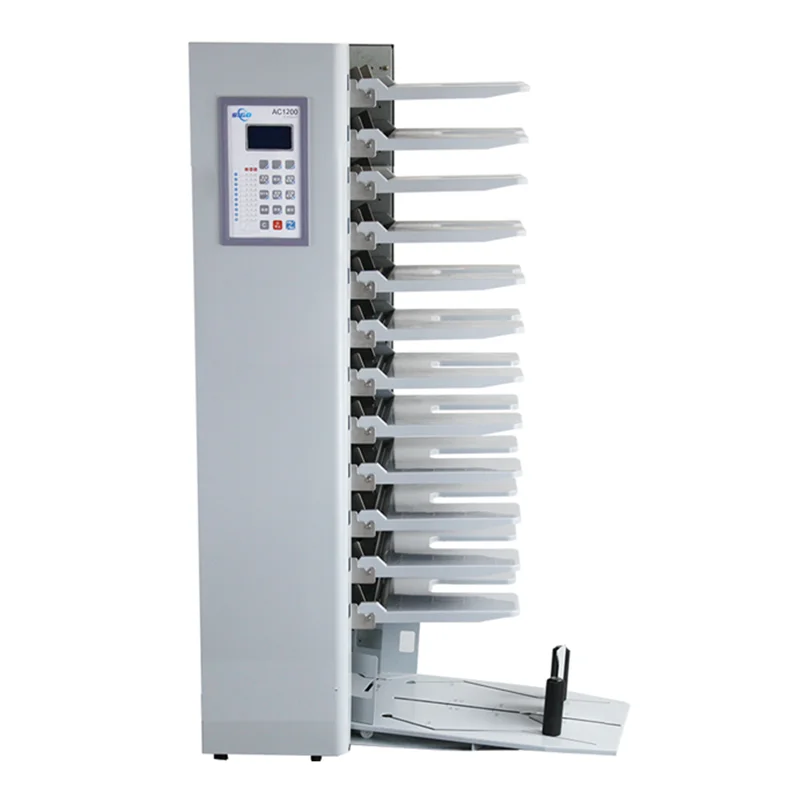

Супер September NO MOQ Лидер продаж 6/10/12 лотков автоматическая машина для сбора бумажных листов
330 633,90 ₽ - 374 718,42 ₽
Портативная компактная машина для отверждения УФ-излучения мощностью 500 Вт
19 838,04 ₽ - 22 042,26 ₽

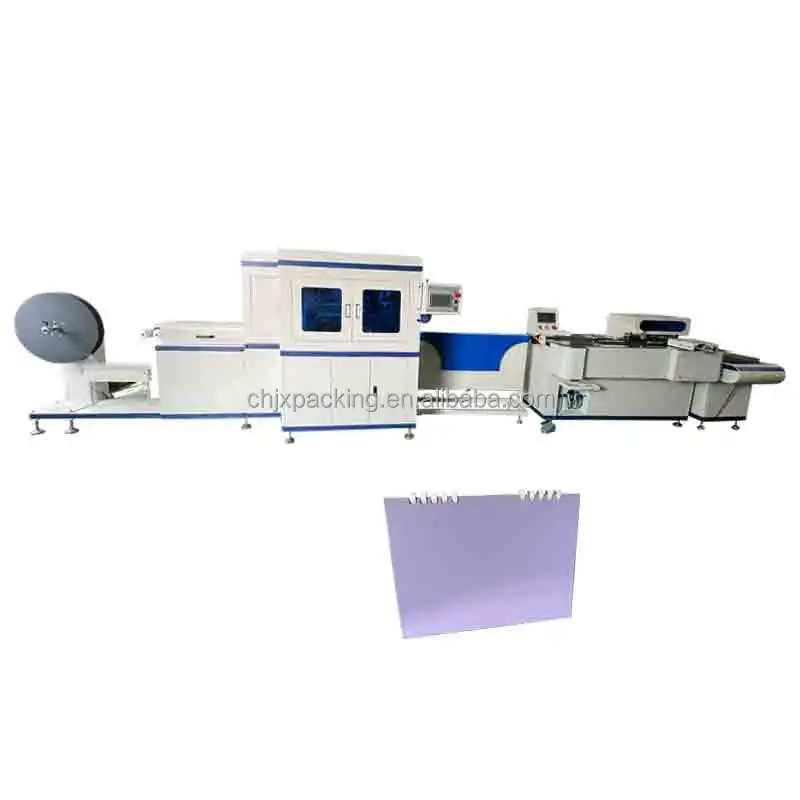

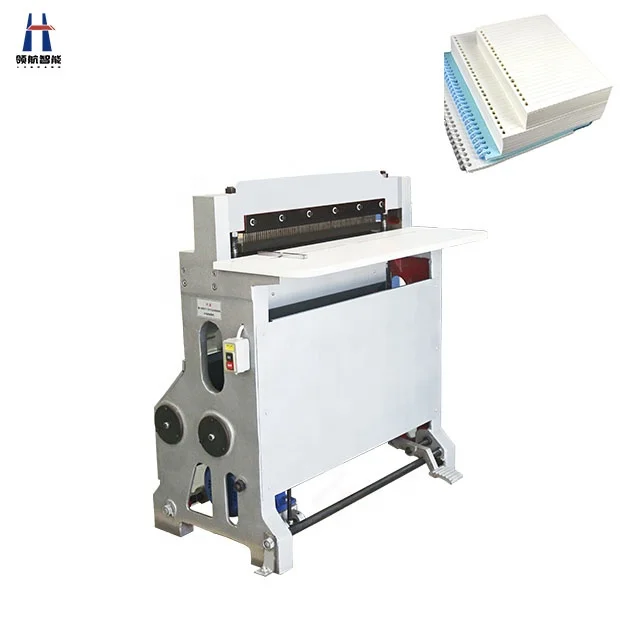

Машина для производства спиральной бумаги
5 069 719,80 ₽ - 5 378 311,44 ₽

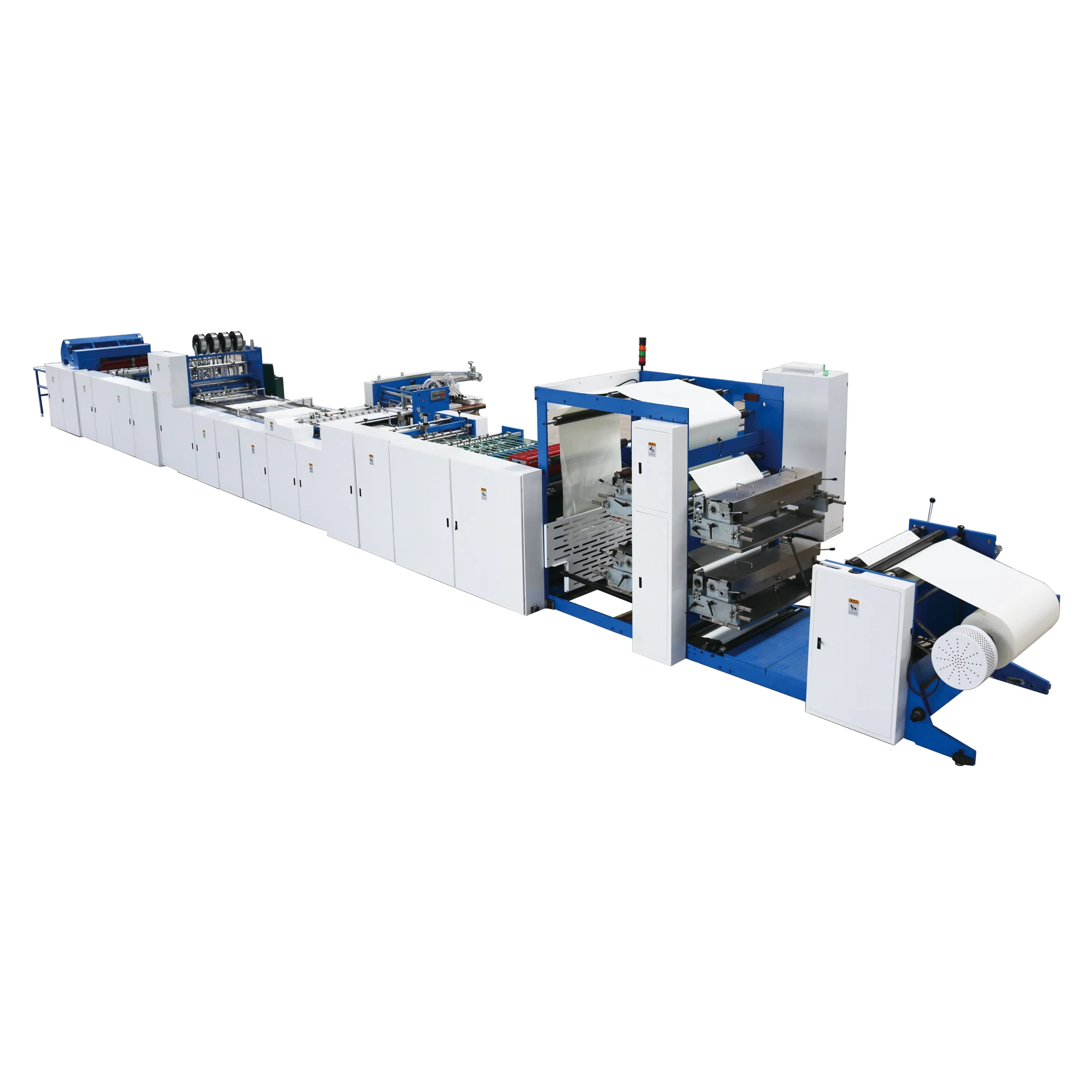

Полностью автоматическая Школьная тетрадь тренажер для производства учебников полнолинейная машина
