Лазерная лампа Yongli DLT 40Z rici RECI 200w 300w 400w 500 co2
- Категория: >>>
- Поставщик: Jilin Yongli Laser Technology Co. Ltd.
Сохранить в закладки 1600805303979:
Описание и отзывы
Характеристики

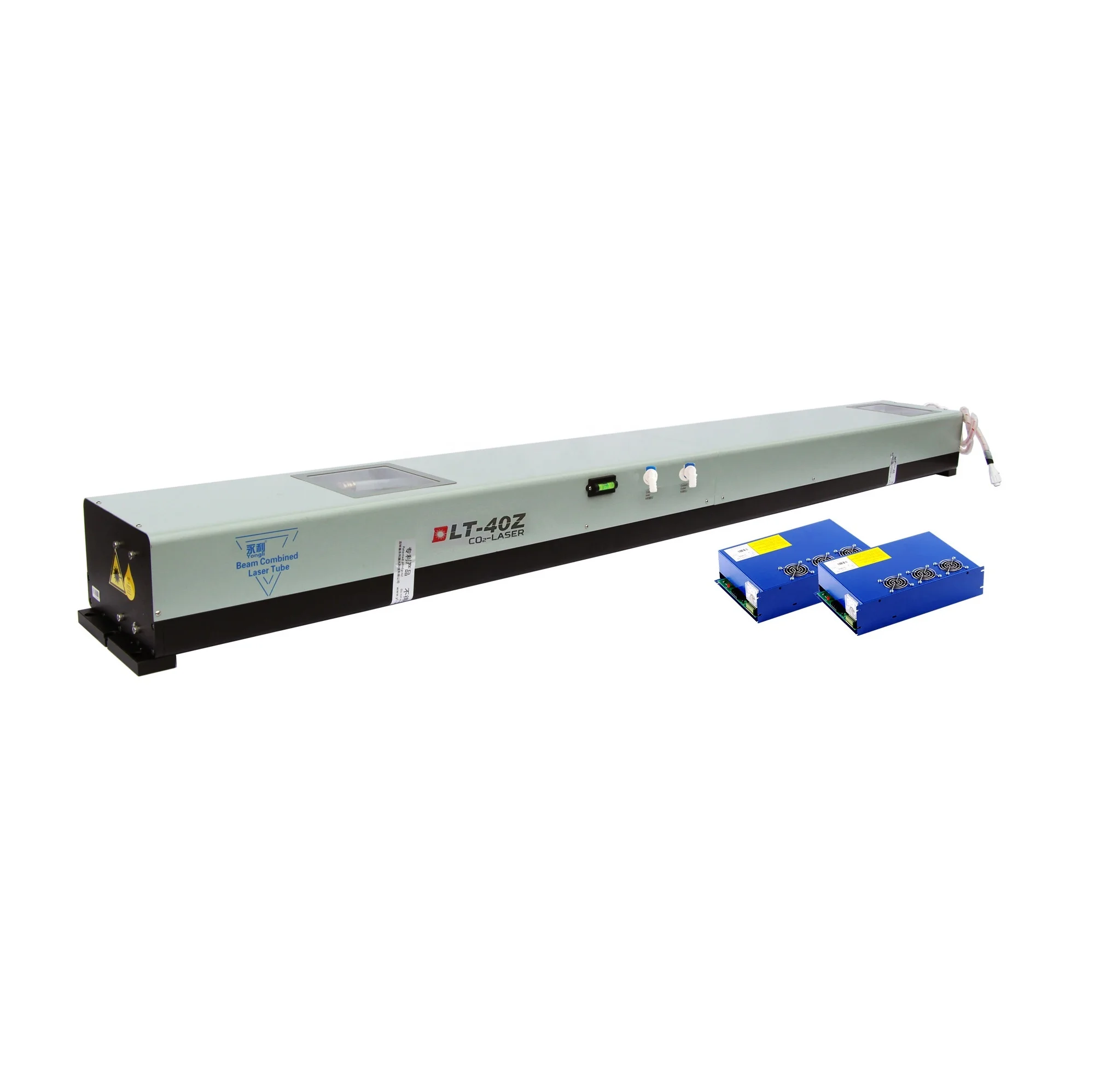

Yongli DLT-40Z DLT-280 rici RECI 200w 300w 400w 500w 1490 co2 laser tube
Products Description
PERFECT HIGH POWER CO2 LASER TUBE WITH BEST COST EFFECTIVE
YONGLI 300W 320W DLT-300P DLT-40Z Beam Combined Co2 Laser Tube using our core patterned technology combined two laser tubes' beams into One High-Quality Laser Beam. With parallel tube design and laser beam combiner technology enables more stable laser performance than the folding type laser tube
YongLi DLT series high power Co2 laser tube is a perfect replacement or upgrade for the same power or length CO2 laser tube with high-cost effective value Originally manufactured laser tube with 12 months warranty guaranteed high-quality low maintenance cost. Estimate working lifespan over 25,000 hours.
YongLi 300W CO2 LASER TUBE Widely used in industry like sheet metal cutting Stainless steel and Carbon steel Also other deep cuttings on wood and acrylic
YongLi DLT series high power Co2 laser tube is a perfect replacement or upgrade for the same power or length CO2 laser tube with high-cost effective value Originally manufactured laser tube with 12 months warranty guaranteed high-quality low maintenance cost. Estimate working lifespan over 25,000 hours.
YongLi 300W CO2 LASER TUBE Widely used in industry like sheet metal cutting Stainless steel and Carbon steel Also other deep cuttings on wood and acrylic
High Power 300w Co2 Laser Tube For Co2 Laser Metal Cutting Engraving Machine!
YongLi Top Branded High power beam combined DLT-300P DLT-40Z 300w CO2 laser tubes are highly regarded in the laser industry, offering exceptional reliability and beam diameter.
This 300W Beam Combined model YongLi co2 laser tube is universal and it can work with virtually any CO2 laser engraving/cutting machine it fits in, but is an ideal candidate for replacing a CO2 tube of similar power/length.
This high-output tube can handle up to 36mA at 26,000 volts. We recommend supplying this YongLi laser tube with our HSP-200(100/220V) power supply unit to ensure ample power supply.
With this laser installed and a proper chiller, you can cut through 40mm acrylic or 3mm Stainless steel!
This 300W Beam Combined model YongLi co2 laser tube is universal and it can work with virtually any CO2 laser engraving/cutting machine it fits in, but is an ideal candidate for replacing a CO2 tube of similar power/length.
This high-output tube can handle up to 36mA at 26,000 volts. We recommend supplying this YongLi laser tube with our HSP-200(100/220V) power supply unit to ensure ample power supply.
With this laser installed and a proper chiller, you can cut through 40mm acrylic or 3mm Stainless steel!
Technical Parameters
Model | DLT-40Z |
Rated Power | 300w |
Peak Power | 320w |
Triggering Voltage | 40kV |
Working Voltage | 26kV |
Max Operating Current | 40mA |
Recommend Operating Current | 36mA |
Beam quality (M2) | ≤1.1 |
Divergence (mrad) | ≤3 |
Stability (%) | ≤±5% |
Weight(Kg) | 26 |
Laser Tube Dimension | 1850*270*146 |
Recommend Installation Dimension | 2000*400*200 |
Warranty | 18 months |
Cutting Material Reference Suggestion Parameter
Thickness | 98% Power Output | 80% Power Output | |||||
DLT-40Z | DLT-300P | DLT-300P | DLT-300P | ||||
2mm | 190mm/s | 115mm/s | 160mm/s | 110mm/s | |||
3mm | 100mm/s | 80mm/s | 85mm/s | 75mm/s | |||
5.5mm | 45mm/s | 34mm/s | 40mm/s | 30mm/s | |||
10mm | 20mm/s | 15mm/s | 15mm/s | 13mm/s | |||
15mm | 6mm/s | 5mm/s | 4mm/s | 3mm/s | |||
Carbon Steel | 1.2mm | 65mm/s | 55mm/s | ||||
1.5mm | 45mm/s | 40mm/s | |||||
2mm | 30mm/s | 25mm/s | |||||
3mm | 16mm/s | 14mm/s | |||||
Stainless Steel | 1mm | 55mm/s | 45mm/s | ||||
Product Details
High Power 300w 320w co2 laser tube
Stable laser power output, excellent beam profiles at every level
Excellent sealed technology, &long service life exceeding 25000 hours
Diffuse cooling design
Fully sealed tubes free of maintenance
Easy integration-separated laser tube or fully cased system
Special sealed dust-proof glasses
Optional alignment beam
Normal operation without overload the laser tube, its lifespan is longer than those low quality laser tubes. Best alternative for the folding type high power Co2 laser tubes.
Excellent sealed technology, &long service life exceeding 25000 hours
Diffuse cooling design
Fully sealed tubes free of maintenance
Easy integration-separated laser tube or fully cased system
Special sealed dust-proof glasses
Optional alignment beam
Normal operation without overload the laser tube, its lifespan is longer than those low quality laser tubes. Best alternative for the folding type high power Co2 laser tubes.
Perfect Co2 Laser Tube For Mixed Cutting Engraving Metal, SS, Acrylic, Wood, Plastic
YongLi DLT Series Beam Combination co2 laser tube with numbers of patent, it includes integrated design combined device, and dedicated power supply. It features with high output power and stable spot mode.
Rated Power: 300W
Max.Power:320W.
Max. cutting size: 1300 *900mm.
Cooling system:Water chiller CW6000
Engraving Speed:0-60,000mm/min
Cutting Speed:0-30,000mm/min
Rated Power: 300W
Max.Power:320W.
Max. cutting size: 1300 *900mm.
Cooling system:Water chiller CW6000
Engraving Speed:0-60,000mm/min
Cutting Speed:0-30,000mm/min
NEWEST TECHNOLOGY OF HIGH POWER CO2 LASER TUBE FOR MIXED CUTTING ENGRAVING
DLT Series co2 laser tube using YongLi patented technology, it includes an integrated beam combiner. Concentrate the laser energy to improve the beam quality.
Stable beam spot mode, achieved 1+1≤1 beam spot.
Single unit can be synchronous controlled and continually adjusted from 50-320 watts.
Stable beam spot mode, achieved 1+1≤1 beam spot.
Single unit can be synchronous controlled and continually adjusted from 50-320 watts.
Full metal shell structure, full range of protection. With Kovar sealing technology and inner tube nano- gold catalyst process, YongLi Beam Combined DLT-40Z and DLT-300P's working lifetime could reach over 25,000 Hrs.
SAFETY FIRST--Visual working window, Open cover protection, Water protection function ,dust-proof blower to ensure the DLT series 300W CO2 LASER TUBE always working safely. With power-off protection function while temperature or water flow of the machine exceeds the regular working range
DLT-300 VS DLT-40Z
1. Global Warranty Service
We provide a Global After Sales Warranty Service For DLT-40Z, which means within the warranty period, we will take care of all the exchange or repair, including the shipping cost.
For DLT-300P, we still cover the repair or exchange, only customers will take care of the shipping cost on their own(this could be upgrade by extra charge before the order) .
2.Water protection controller-Coolant over temperature protection
DLT-40Z comes with a water protection in the package, provides extra coolant over temperature protection, the factory-set maximum cooling water temperature is 35°, and the minimum temperature is 30°. When the water temperature exceeds 35°, the temperature protection will be triggered due to the high water temperature, and the output of the laser power supply will be cut off, and the
laser tube will stop working. The laser continues to work when the temperature of the water is lower than 30° The factory-set water flow rate is 40L/min. If the cooling water flow is lower than this, the laser power supply will not work. We suggest the customers to use CW6000 model water cooler to meet this requirement.
We provide a Global After Sales Warranty Service For DLT-40Z, which means within the warranty period, we will take care of all the exchange or repair, including the shipping cost.
For DLT-300P, we still cover the repair or exchange, only customers will take care of the shipping cost on their own(this could be upgrade by extra charge before the order) .
2.Water protection controller-Coolant over temperature protection
DLT-40Z comes with a water protection in the package, provides extra coolant over temperature protection, the factory-set maximum cooling water temperature is 35°, and the minimum temperature is 30°. When the water temperature exceeds 35°, the temperature protection will be triggered due to the high water temperature, and the output of the laser power supply will be cut off, and the
laser tube will stop working. The laser continues to work when the temperature of the water is lower than 30° The factory-set water flow rate is 40L/min. If the cooling water flow is lower than this, the laser power supply will not work. We suggest the customers to use CW6000 model water cooler to meet this requirement.
Application
300W CO2 LASER TUBE APPLICATIONS
YongLi 300W co2 laser tube, beam combined co2 metal laser tubes widely used in Metal /Non Metal Laser Cutting Machines used in electrical power, sheet metal processing, spaceflight, electronics, subway parts, automobile manufacturing,electrical equipment, elevator equipment, advertising, lighting hardware, display equipment, metal products and other industries.Mainly cut 1-2mm
stainless steel and 1.5-2.5mm carbon steel.Professional engraving/cutting such as stainless steel,carbon steel,wood,organic glass,plastic, cloth.
Widely used in the industry of Advertising, craft gift, shoes, toys, garments, models, construction, package, paper, and computerized embroidery & lipping.
stainless steel and 1.5-2.5mm carbon steel.Professional engraving/cutting such as stainless steel,carbon steel,wood,organic glass,plastic, cloth.
Widely used in the industry of Advertising, craft gift, shoes, toys, garments, models, construction, package, paper, and computerized embroidery & lipping.
Packing & Shipping
PACKING PROCEDURES & SHIPPING POLICY
Standard export packing customized packing as your request. We use hard boxes, your cargo will not be affected in any way. Every DLT series Co2 laser tube is packed with great care and tough material. It is packed with cling films first and then film bags. At last, it is packed with a wooden case which is reinforced with an iron bar on the top and bottom, all our laser tubes can protect well during a long trip by sea or by train.We can transport laser tubes by sea/air freight or express by DHL EMS UPS according to your requirement.
Important Note:
The Shipping fee shown on the product detail page is just a rough count by the system, The Shipping Fee can be very different depending on the shipping method and the location. It does not represent the Precise Shipping Cost.
Please contact us to get the accurate shipping fee for this product
Condition
Price Term: Only the price term under CIF CIP DAT DDU can be covered by shipping insurance.
New tube will be offered free by the supplier and sent to the buyer at no cost except the import customs and tax, if there is any damage during transportation.
Claim procedure
1-Open the package and check the status when get the parcel.
2-Report to the ellerif there is any damage within 5 days.
3-Collect the neccessary paper to cooperate with the seller get compensation from shipping company.
Please contact us to get the accurate shipping fee for this product
Shipping Insurance
Price Term: Only the price term under CIF CIP DAT DDU can be covered by shipping insurance.
New tube will be offered free by the supplier and sent to the buyer at no cost except the import customs and tax, if there is any damage during transportation.
Claim procedure
1-Open the package and check the status when get the parcel.
2-Report to the ellerif there is any damage within 5 days.
3-Collect the neccessary paper to cooperate with the seller get compensation from shipping company.
Company Profile
The Largest Laser Manufacturer in China
Yongli Laser Technology Co.,ltd Was Founded in 2005, Yongli is the No.1 Co2 & Fiber Laser Parts & Machine Manufacturer in China, with 69 Core Technology and Independent Intellectual Property Rights.
We Are Committed to the Development and Manufacture of Laser Machine Parts & accessories (co2 Laser Tube, Power Supply, Lens&mirrors, Power Meter, Water Chiller and Control System, Fiber Laser Source, and Fiber Laser Head) and CNC Laser Machines (Laser Marking Machines, Laser Engraving Machines, Laser Cleaning Machines, and Laser Welding Machines). We Are Always Providing Customers with High-quality Products, Competitive Prices, and Excellent Services.
Whether You’re a Professional Supplier, a Large Material Processing Enterprise, or an Inspiring Workshop, We Understand Your Need for Pin-point Precision with a Pleasing Price Tag. Our Machines and Parts Come Equipped for Every Need — from Desktop Engravers to Large Cutters, Fiber Laser Markers and Even 100w for Small Businesses.
We Are Committed to the Development and Manufacture of Laser Machine Parts & accessories (co2 Laser Tube, Power Supply, Lens&mirrors, Power Meter, Water Chiller and Control System, Fiber Laser Source, and Fiber Laser Head) and CNC Laser Machines (Laser Marking Machines, Laser Engraving Machines, Laser Cleaning Machines, and Laser Welding Machines). We Are Always Providing Customers with High-quality Products, Competitive Prices, and Excellent Services.
Whether You’re a Professional Supplier, a Large Material Processing Enterprise, or an Inspiring Workshop, We Understand Your Need for Pin-point Precision with a Pleasing Price Tag. Our Machines and Parts Come Equipped for Every Need — from Desktop Engravers to Large Cutters, Fiber Laser Markers and Even 100w for Small Businesses.
YongLi Laser- Products and solutions for laser professionals.
Yongli Laser Technology is a Leading Manufacturer of Co2 Lasers & Fiber Lasers Machine&parts in China. from Our Base in Changchun, We Supply a Range of Advanced Products for Laser Solutions for Customers Throughout the World.
All Yongli Laser Products Are Designed and Produced On-site Ensuring Transparency and Quality Control Throughout the Manufacturing Process. with In-house Cnc Machining Capabilities and a Roster of Highly Skilled Engineers, Our Facility is Equipped to Produce Equipment of Remarkable Performance and Quality.
Yongli Laser Technology Has the Knowledge and Experience to Provide Expert Advice on Any Laser Application. Combined with Comprehensive After-sales Support Yongli Can Provide an Unrivaled Solution to Your Needs. Solving the Most Difficult Manufacturing Challenges with Thought Leadership and Innovative Laser Systems Solutions. Our Experts Engage Customers on over 2,500 Projects Per Year.
Certifications
Certification is commitment to quality and safety
Product certification acts as an indicator of that product’s safety, reliability, and quality, Product certification is one of our best tools to tell the quality from the questionable, or reliable from the risky.
YongLi Laser Technology has obtained 50 patents, 6 software copyrights, and has successfully passed European CE certification, RoHS certification, FCC certification, REACH certification, MSDS certification, US Food and Drug Administration Certification, TUV Rheinland certification, Swiss SGS testing certification, and ISO9001 quality management system certification.
YongLi Laser Technology is a member of Alibaba Group’s TrustPass VIP member and Golden & Assessed Supplier. The business covers more than 70 cities in China, as well as nearly 80 countries and regions such as Southeast Asia, Europe, America, Oceania and Africa, and is highly recognized by domestic and global customers.
Pre-sales support. Build customers value with trustworthy
All laser products with comprehensive pre-sales support services that enable you an easy and resourceful journey with YongLi Laser. All we want is to give you a delightful experience.
Extensive coverage of 30+ domestic offices and institutions to create a 2-hour service arrival. Combination of online live chat and other social media video chat to meet customer needs in multiple directions and at multiple levels. Multi-batch customer return visits, timely discovery of problems to solve and improve.
Customer Need Focus
Tell us about your business needs or any questions about CNC laser machines. We strive to put 100% effort into helping you find the most suitable metal laser solution.
Free Consultation
Free consultation and laser market analysis are provided to help you commence and get returns with our high quality lasers.
Free consultation and laser market analysis are provided to help you commence and get returns with our high quality lasers.
Customized Solutions
Customized metal laser solutions will be designed to meet diverse needs, together with free drawings and free trial running. Lifetime technical support is offered for all YongLi Laser laser products.
Customized metal laser solutions will be designed to meet diverse needs, together with free drawings and free trial running. Lifetime technical support is offered for all YongLi Laser laser products.
Showroom Visit
You are always welcomed to visit our factory and office in China, or visit our online 3D VR showroom and experience a fast and efficient way to connect with us.
You are always welcomed to visit our factory and office in China, or visit our online 3D VR showroom and experience a fast and efficient way to connect with us.
We guarantee the most professional after-sales service.
Less than 5 MINS QUICK RESPONSE. Within 24 HOURS SOLUTION PROVIDED. Proud to be No.1 in customer satisfaction for our guaranteed after-sales service.
We guarantee the profitability of our laser products.The laser equipment we designed is highly efficient and durable, which can bring benefits and is easy to oversell.
You can always contact our company's specialized after-sales service staff. Our team will professionally answer all questions about the equipment at any time. No need to worry about anything, we are always by your side.
Why Choose Us
2015-Serigrafia Sign Futuretextil , Sao Paulo, Brasil
2016-EXPO PUBLICITAS, Mexico City, Mexico
2017-LASER PHOTONICS, Munich, Germany
2017-Sign Africa Expo Durban, Cape Town, South Africa
2018-Digi Sign,Cairo Egypt
2018-Media Expo, Mumbai, India
2018-Print & Signage Expo, Berlin, Germany
2019-Media Expo Mumbai, India
2019-FESPA , Sao Paulo, Brasil
2019-ITMA , Bienvenido, Spain
2022-LASER World of PHOTONICS, Messe München, Germany
