Подгонянная паяльная станция для переделок BGA, станция для переделок BGA, инфракрасная станция для переделок BGA в Шэньчжэне, самая продаваемая
542 179,50 ₽ - 650 615,40 ₽
MT R580 инфракрасная ремонтная паяльная станция
- Категория: >>>
- Поставщик: Guangzhou Minster Technology Co. Ltd
Сохранить в закладки 1600807114020:
Описание и отзывы
Характеристики
Product Overview

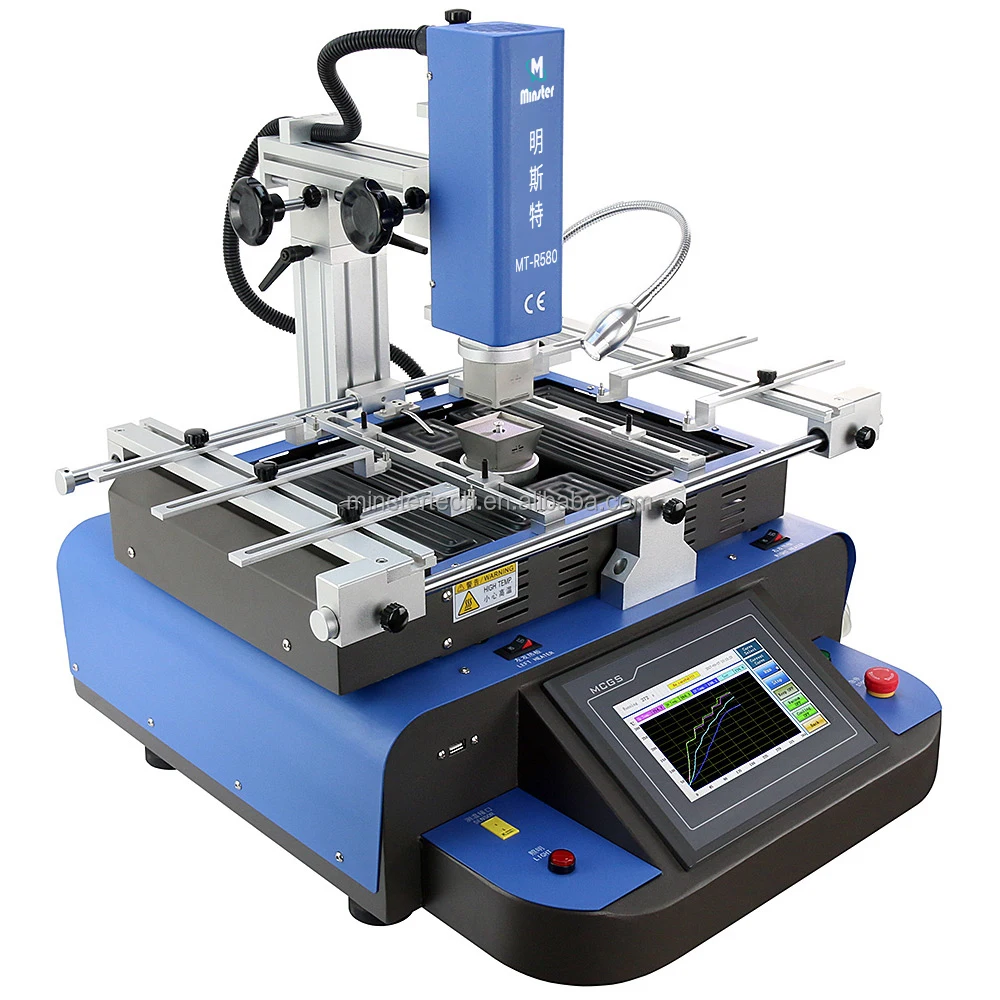

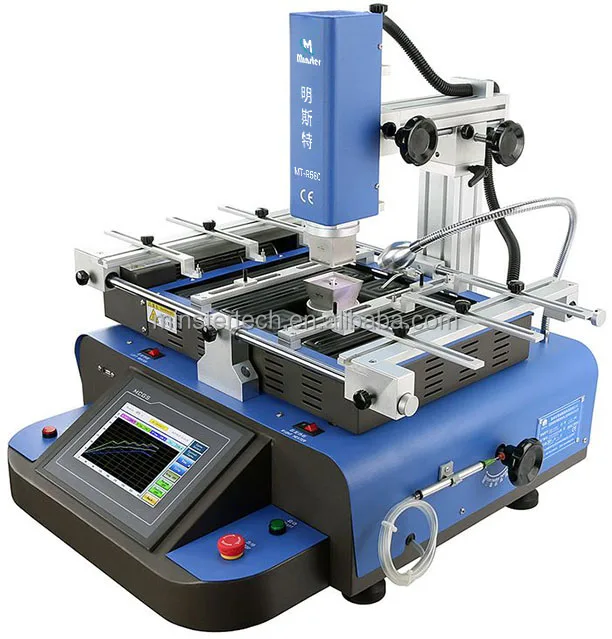

MT-R580 IR Infrared Repair desoldering soldering reballing SMD BGA Repair rework machine Station
(1)Application
1. Smart phone /iPhone/iPad
2. Notebook/ Laptop /Computer/Mac book /PC
3. XBOX 360/PS2/ PS3/PS4 Wii and so on video game consoles
4. Other LED/SMD/SMT/IC BGA
5. BGA VGA CPU GPU soldering and de-soldering. 6.BGA chips, QFP QFN chip, PC, PLCC PSP PSY rework.
1. Smart phone /iPhone/iPad
2. Notebook/ Laptop /Computer/Mac book /PC
3. XBOX 360/PS2/ PS3/PS4 Wii and so on video game consoles
4. Other LED/SMD/SMT/IC BGA
5. BGA VGA CPU GPU soldering and de-soldering. 6.BGA chips, QFP QFN chip, PC, PLCC PSP PSY rework.
PRODUCT SPECIFICATIONS
Total Power | 4800W |
Upper Heating Power | 800W |
Lower Heating Power | 1200W |
Infrared Heating Power | 2700W(1200W is controlled) |
Power supply | (Single Phase) AC 220V±10 50Hz |
Location way | V-shape card slot + Universal jigs |
Temperature Controlling | K-type thermocouple closed loop control, independent temperature control, precision up to ±3 degree |
Electrical Material | Touch screen + Temperature control module + PLC control |
Max PCB size | 400×370mm |
Min PCB size | 10×10mm |
Sensor | 1 unit |
PCB Thickness | 0.3-5mm |
Suitable Chip Size | 2*2mm-60*60mm |
Machine Size | 500×590×650mm |
Weight | Net 40kg |
Details Images
1. Adopted with Linear slider, so all the three axles (X, Y, and Z) can do fine tuning and quick orientation with perfect
positioning accuracy and speedily maneuverability.

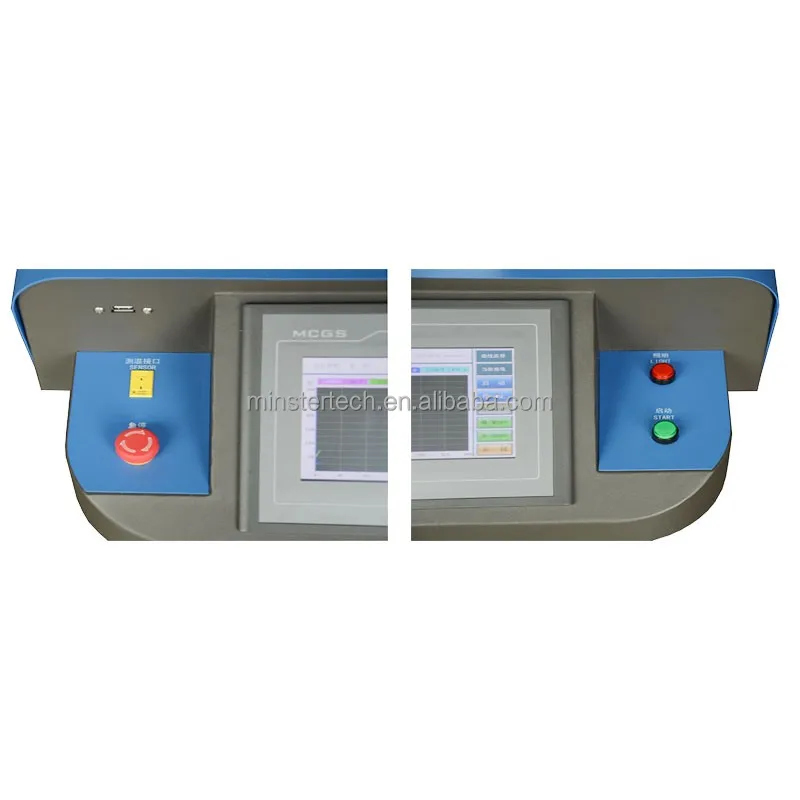

2. Equipped with touch panel interface and PLC controlling to ensure it work stably and reliably. And it can storage multiple
temperature profiling data of users. With password protection and modification function while power on. The temperature profiles
will be displayed on the touch screen.

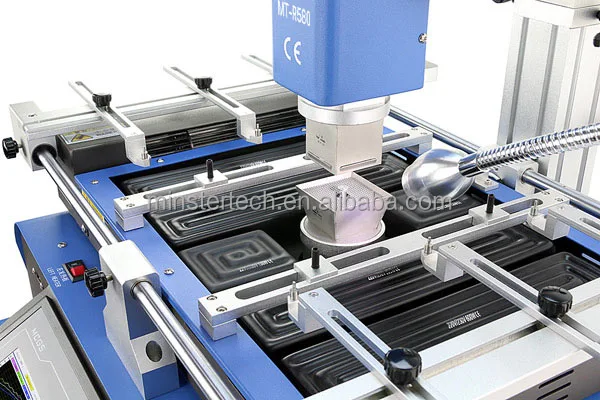

3. Three temperature zones to heat up independently, hot air heat up between up and down zones, IR heat in the bottom, temperature precise control is in±3℃.The upper temperature zone can be moved freely according to needs, the second zone can be adjusted up and down. The top and bottom heaters can be set several segments control at the same time. IR heating zone can be adjusted output power in the light of operation requirements.
4. The hot air nozzle can be rotated in 360 degree, the IR heater in the bottom can heat up the PCB board uniformly.
5. High accuracy K-type thermocouple closed-loop controlling. It can test temperature accurately through external temperature measurement interface, PCB board positioned by closed V-shape slot. The flexible and convenient universal jigs can prevent any damage or PCB deformation as well as it is suitable for all size of BGA package.
positioning accuracy and speedily maneuverability.
2. Equipped with touch panel interface and PLC controlling to ensure it work stably and reliably. And it can storage multiple
temperature profiling data of users. With password protection and modification function while power on. The temperature profiles
will be displayed on the touch screen.
3. Three temperature zones to heat up independently, hot air heat up between up and down zones, IR heat in the bottom, temperature precise control is in±3℃.The upper temperature zone can be moved freely according to needs, the second zone can be adjusted up and down. The top and bottom heaters can be set several segments control at the same time. IR heating zone can be adjusted output power in the light of operation requirements.
4. The hot air nozzle can be rotated in 360 degree, the IR heater in the bottom can heat up the PCB board uniformly.
5. High accuracy K-type thermocouple closed-loop controlling. It can test temperature accurately through external temperature measurement interface, PCB board positioned by closed V-shape slot. The flexible and convenient universal jigs can prevent any damage or PCB deformation as well as it is suitable for all size of BGA package.
6. Large power fan to cool down the PCB quickly. The built-in vacuum pump and external vacuum nozzle is able to take BGA chips out easily.
7. Having alarm prompt function after welding is done, specially added early warning function for convenient operation.
8. It has Passed CE certificate. It is equipped with emergency stop switch and protection equipment to power off automatically when abnormal accident happened. Under this situation that temperature is out of control, circuit can automatically cut off the power with double over temperature protection function.
7. Having alarm prompt function after welding is done, specially added early warning function for convenient operation.
8. It has Passed CE certificate. It is equipped with emergency stop switch and protection equipment to power off automatically when abnormal accident happened. Under this situation that temperature is out of control, circuit can automatically cut off the power with double over temperature protection function.
Product packaging
Machine Dimension: L680*W630*H900 mm (LCD stand not included)Net weight: 79KG
Packing: L780*W800*H1090mm
Gross Weight: 105KG
Carton number : 1
Packing: L780*W800*H1090mm
Gross Weight: 105KG
Carton number : 1
Company Profile
SALES AND SERVICE NETWORK
Why Choose Us
1.Your inquiry will be replied in 12 hours.
2.Original Manufacture to customers, with competitive prices.
3.We provide one year warranty, free training.
4.Well-trained and Professional after-sales service team to support you.
5.Manual and Demo video CD will package with machine, It will show you how to use machine step by step.
6.Payment terms ,like T/T, Westerunion is choosed by customers.
2.Original Manufacture to customers, with competitive prices.
3.We provide one year warranty, free training.
4.Well-trained and Professional after-sales service team to support you.
5.Manual and Demo video CD will package with machine, It will show you how to use machine step by step.
6.Payment terms ,like T/T, Westerunion is choosed by customers.
FAQ
1. Are you a manufacturer of the machine?
Yes, we are a manufacturer .
2. what is the warranty?
we offer one year warranty for all our machines.
3. will you provide free spare parts?
YES, we will provide free machine spare parts.
4. Do you provide training?
YES, we can provide free training on how to use our BGA rework station machine. welcome to visit our factory.
5. When can you ship the machine after payment?
We have the machine in stock. Goods will be shipped by sea in 3 days after payment.
Yes, we are a manufacturer .
2. what is the warranty?
we offer one year warranty for all our machines.
3. will you provide free spare parts?
YES, we will provide free machine spare parts.
4. Do you provide training?
YES, we can provide free training on how to use our BGA rework station machine. welcome to visit our factory.
5. When can you ship the machine after payment?
We have the machine in stock. Goods will be shipped by sea in 3 days after payment.
