FLCNC Fangling F7000 Series F7600W IN Sh CNC контроллер для станка плазменной резки типа Gantry
- Категория: >>>
- Поставщик: Shanghai Fangling Computer Software Co. Ltd.
Сохранить в закладки 1600808162880:
Описание и отзывы
Характеристики
Product Description
Technical Specification | ||
Control Axis | 2 Axis Linkage (Maximum Expandable to 6 Axes) | |
Operating System | Windows 10 | |
Control Accuracy | +/-0.001mm | |
Motor Drive | Pulse + direction | |
Max Speed | 30,000 mm/m | |
Space | 120G SSD | |
Working Voltage | DC +24V | |
CPU | 1.5Ghz | |
F7600W-IN-Sh CNC system absorbs the advantages of many CNC systems at home and abroad, and with reference to the company's F2000 series systems, a CNC system with more complete functions, stronger performance and more convenient use is developed. The product uses a multi-axis digital position control method that supports up to 6 axes of linkage, of which 4 axes have position monitoring. It is suitable for all CNC machine tools that use position control. Such as oxygen gas, plasma, laser cutting machine tools.
F7600W-IN-Sh controller runs on the Linux real-time operating system. It is equipped with Cortex-A8 chip and very large programmable device FPGA. The combination of software and hardware is adopted for interpolation. The Company has been engaged in numerical control system research for many years. Based on the original trajectory planning, speed preview and corner control, the S-type acceleration and deceleration and B-spline interpolation technology of the machine tool have been introduced, which makes the machine control more stable and the protection mechanism more perfect.
Details Images

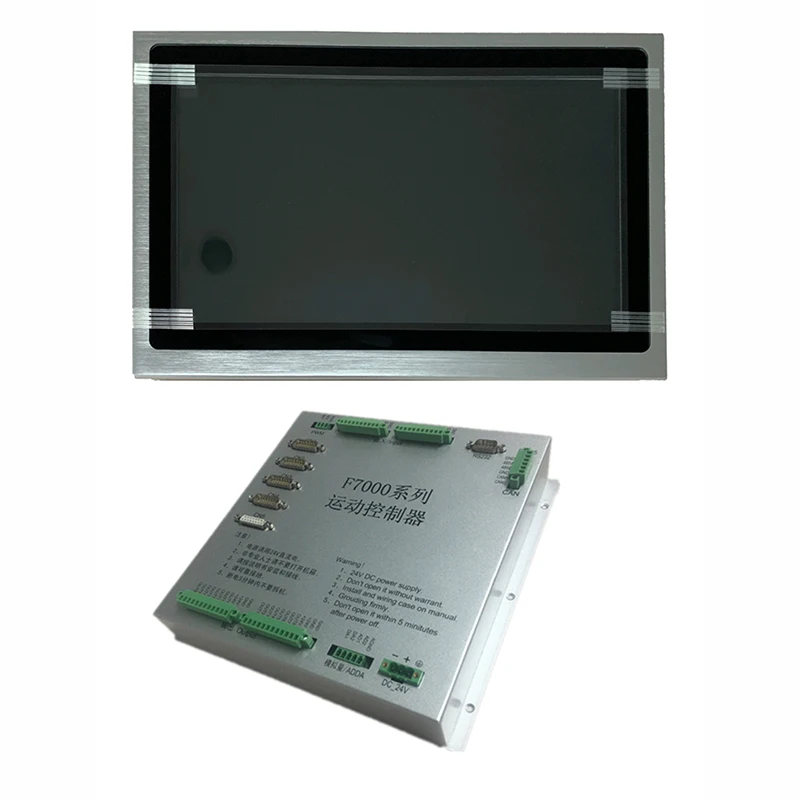

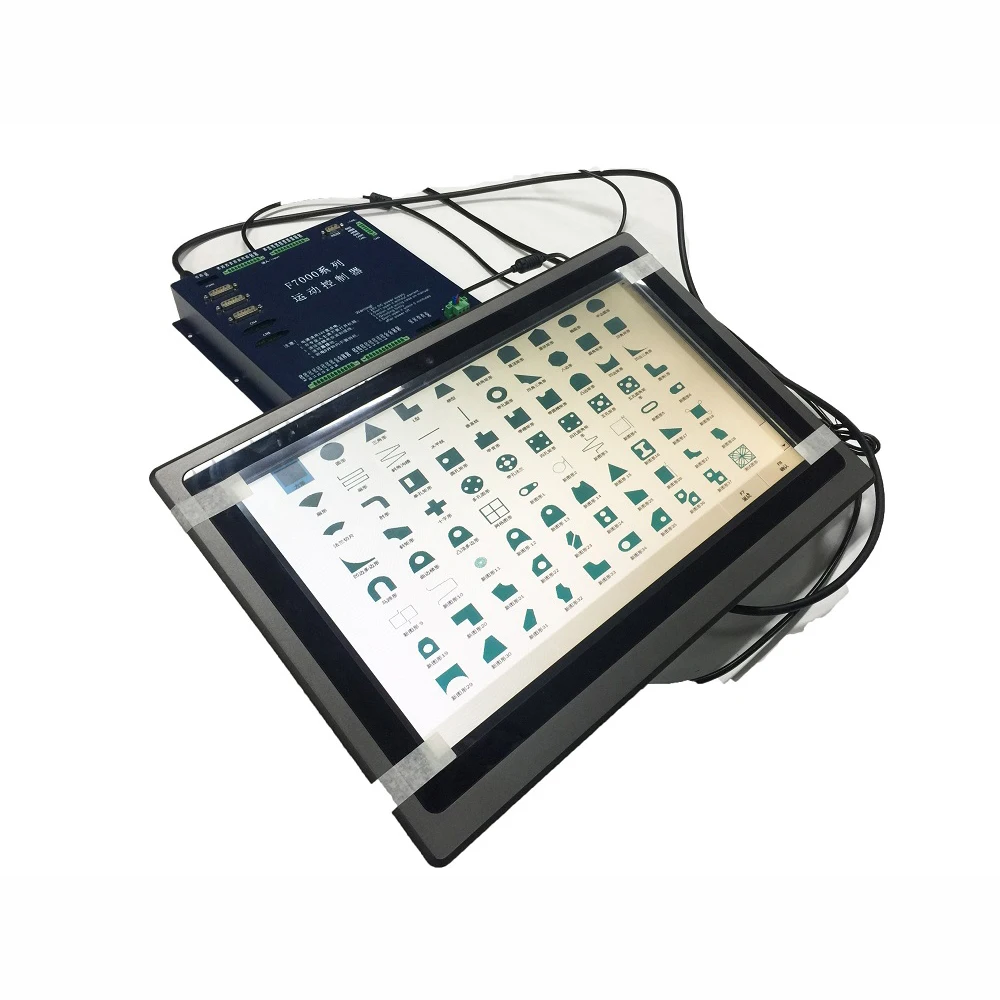

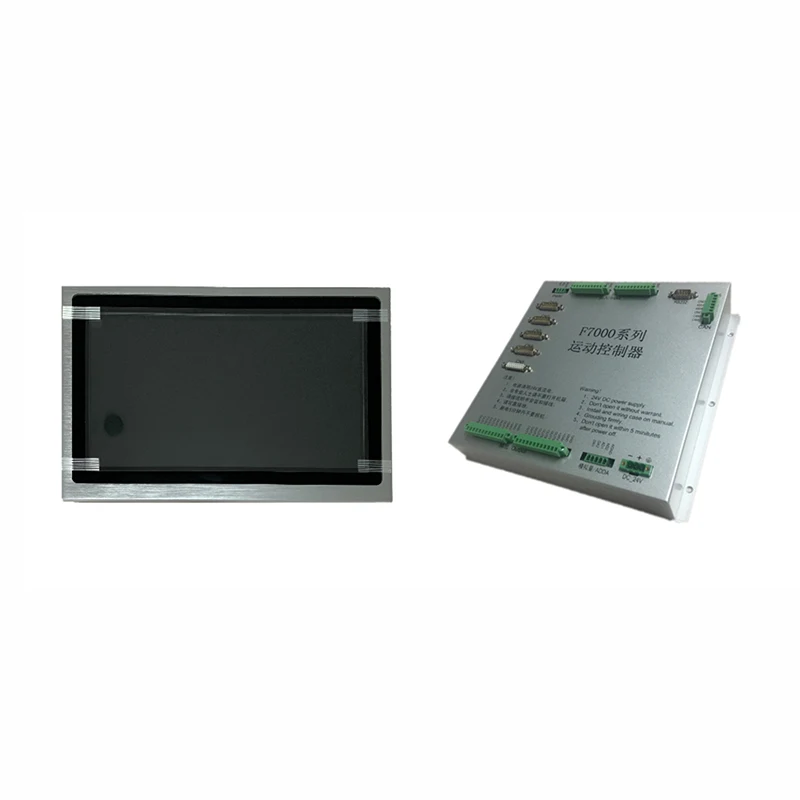

1.Monitor：19" LCD widescreen touch screen
2.Capacitive touch screen
3.Installation dimensions: 495*325*54mm
2.Capacitive touch screen
3.Installation dimensions: 495*325*54mm
1.Axis: 2 axes（extendable to 6 axes）
2.Accuracy: ±0.001mm
3.Motor: Pulse+Direction
4.Pulse Freq：250K
5.Running Speed: 30m/min
6.Static test：±4KV
7.I/O: 16 in 16 out, all optocoupler
2.Accuracy: ±0.001mm
3.Motor: Pulse+Direction
4.Pulse Freq：250K
5.Running Speed: 30m/min
6.Static test：±4KV
7.I/O: 16 in 16 out, all optocoupler
Industrial Control Computer
1.CPU: 1.5Ghz
2.RAM: 4G3.Space: 120G SSD

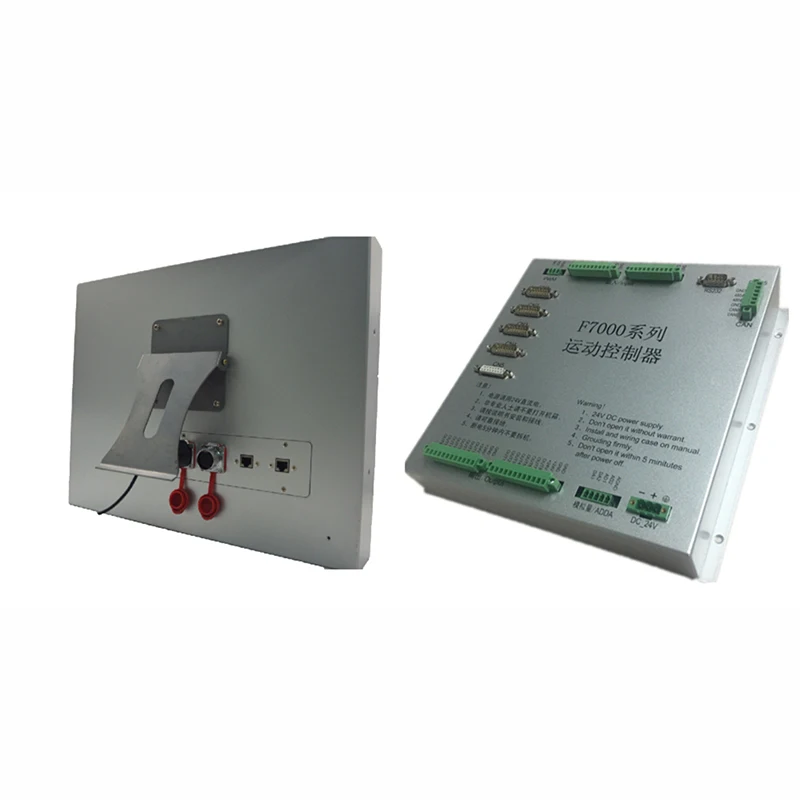

For F7600W-IN all-in-one machine, industrial computer back hung on the back of 19-inch touch screen metal case!
Functions
Standard Function Optional Function
01 Gantry dual-drive + Encoder feedback 10 Auto edge-tracing
02 Pre-installed CAM Software 11 Remote system diagnosis
03 Integrated THC(optional) 12 Plasma power source communication
04 Drilling and cutting 13 S-type acceleration
05 Cutting parameter library 14 Bezier curve
06 Dual small hole cutting 15 Work piece edge scanning and cutting
07 Horizontal independence servo axis 16 OPC UA Communication
08 Visualize remnant process 17 Cloud MES
09 Inkjet system 18 Laser/Plasma cutting
Certifications
Application&Cutting Samples
Company Profile
Shanghai Fangling Computer Software Co., Ltd is the high-tech enterprise which has more than 15 years’ experience in research, development, production and marketing of Computer Numerical Control (CNC) Field. Nowadays, the company has successfully launched several product lines that include Plasma/Flame plate cutting controller, Built-up Welding Control System, Drilling Control System, Tube Cutting CNC controller, C-beam/H-beam Cutting CNC controller and other related CNC field control systems.
These products are widely being used in multiple manufacturing businesses such as Marine Engineering, Mineral Engineering, Construction, and Automobile manufactory. The market is not only covering China, but also covering Southeast Asia, Russian, Africa, Europe, and South America, etc.. The products are being highly spoken because of their performance and cost-effectiveness.
These products are widely being used in multiple manufacturing businesses such as Marine Engineering, Mineral Engineering, Construction, and Automobile manufactory. The market is not only covering China, but also covering Southeast Asia, Russian, Africa, Europe, and South America, etc.. The products are being highly spoken because of their performance and cost-effectiveness.
Our Factory
Packing & Delivery
Pre-sales service:
1. Office visit
2. Pre-consult and technical guidance
3. Pipe cutting solution guidance
2. Pre-consult and technical guidance
3. Pipe cutting solution guidance
After-sales service:
1. Network technical support and guidance
2. Related documents access
3. Cutting Solution consulting
2. Related documents access
3. Cutting Solution consulting
Exhibition
FAQ
Q: How do you guarantee the quality?
A: We have the professional engineer to test the goods and make sure they are 100% working before they are dispatched.
Q: How do I make the payment?
A: We accept T/T, Western Union(only for a small amount).
Q: Do you provide training for your product?
A: We will provide a manual for our controller to help you study, and we have a professional after-sales agent to guide you through the whole process.
Q: What if I am not sure which controller I need? What if I need some technical consult?
A: Please make sure you consult our sales before you decide to purchase, our goal is to provide you a complete and efficient CNC cutting solution.
Q: How do you pack the goods?
A: Our controllers are light and compact size, It is very easy to pack it up, we usually pack our goods with carton box with extra foam to absorb the shock. We will make sure the package will protect the goods 100% OK.
A: We have the professional engineer to test the goods and make sure they are 100% working before they are dispatched.
Q: How do I make the payment?
A: We accept T/T, Western Union(only for a small amount).
Q: Do you provide training for your product?
A: We will provide a manual for our controller to help you study, and we have a professional after-sales agent to guide you through the whole process.
Q: What if I am not sure which controller I need? What if I need some technical consult?
A: Please make sure you consult our sales before you decide to purchase, our goal is to provide you a complete and efficient CNC cutting solution.
Q: How do you pack the goods?
A: Our controllers are light and compact size, It is very easy to pack it up, we usually pack our goods with carton box with extra foam to absorb the shock. We will make sure the package will protect the goods 100% OK.
Похожие товары
ST5461D11-4 CSOT 55 дюймов 4k ЖК-экран для ремонта телевизора
Уретановая фенольная смола/жидкий фенол 99/Кристаллы фенола 500 г
1 300,00 $ - 1 500,00 $
Заводское производство, различные лодочные двигатели, подвесной мотор Yamaha, подвесная пусковая пластина 6b4-15711-00
22,20 $ - 25,60 $

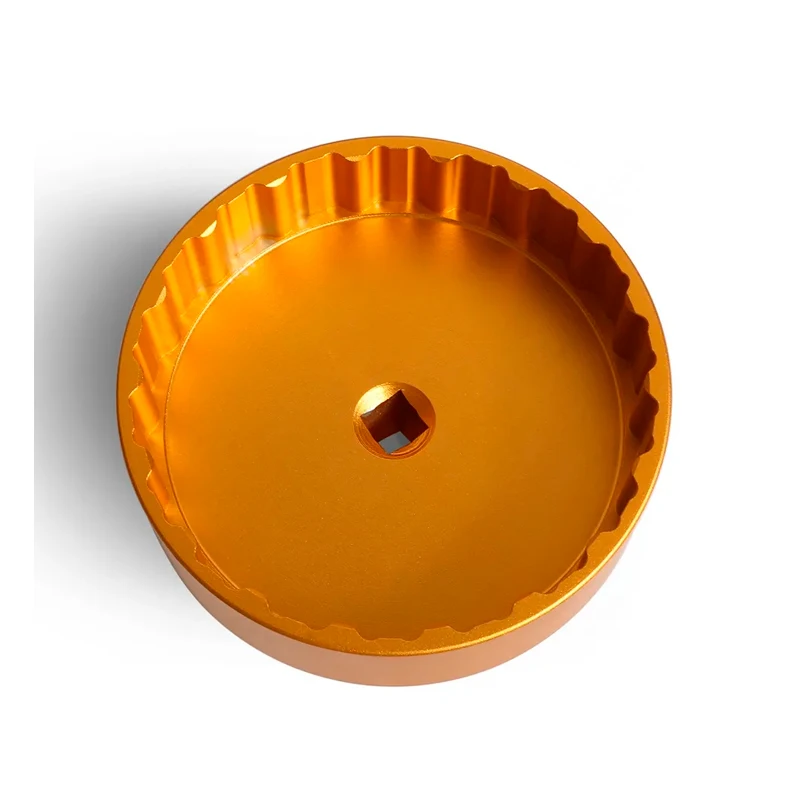

Ключ для масляного фильтра подходит для инструмента для разборки и сборки масляного фильтра Bentley Bentayga
