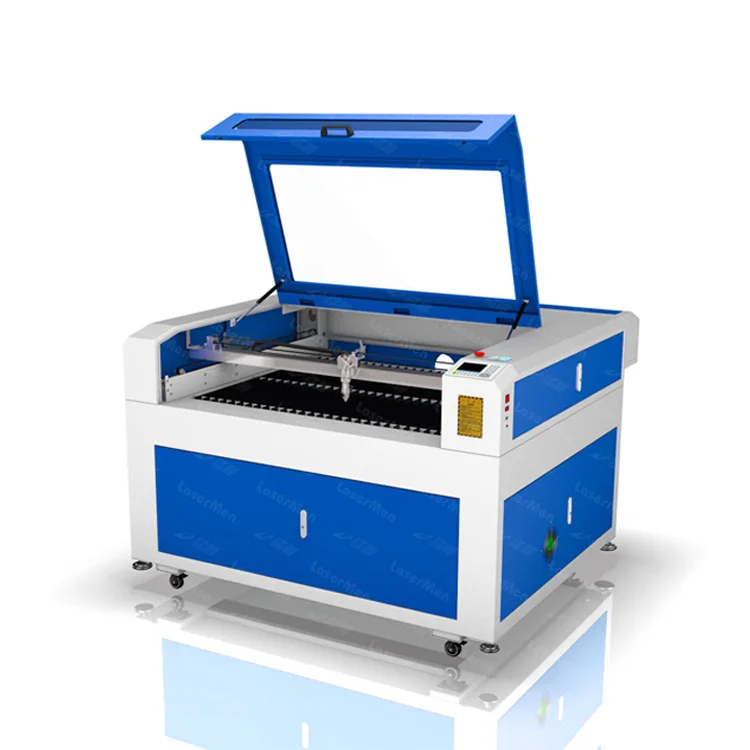

2023New 9060 80 Вт 100 130 150 скорость голодания CO2 лазерная гравировка резки для акрила неметалл
197 367,12 ₽ - 219 296,80 ₽
Небольшой 6040 ручной гравировальный станок CO2 акриловая кожа лазерная Неметаллическая гравировальная машина резка
- Категория: >>>
- Поставщик: Wuhan Tianxingtong Photoelectricity Technology Co. Ltd.
Сохранить в закладки 1600811036168:
Описание и отзывы
Характеристики
Products Description
Main Features:
1 ) Adjustable Speed and Power, Smooth and Precise Engraving and Cutting
2)USB interface, support USB dropped breakpoints continued
3 ) Air Assist, Remove heat and combustible gases from the cutting surface
4 ) Embedded Exhaust Fan, Easier install, Safer transport
5 ) Rotary Axis, Engrave any cylindrical object ( Optional parts )
6 ) Aluminum Knife Worktable or Honeycomb Worktable.
7 ) Intuitive Control Panel, Set Speed, power, and more controls directly from the laser
8 ) Water Cooling and Protection System
9 ) Red light positioning
10 ) Emergency Stop Button
11 ) Larger Size, 400' 600mm working area
12 ) The lifting platform is electric control
13 ) Drag-and-chain transmission line.
14 ) Laser focal length: 5CM
2)USB interface, support USB dropped breakpoints continued
3 ) Air Assist, Remove heat and combustible gases from the cutting surface
4 ) Embedded Exhaust Fan, Easier install, Safer transport
5 ) Rotary Axis, Engrave any cylindrical object ( Optional parts )
6 ) Aluminum Knife Worktable or Honeycomb Worktable.
7 ) Intuitive Control Panel, Set Speed, power, and more controls directly from the laser
8 ) Water Cooling and Protection System
9 ) Red light positioning
10 ) Emergency Stop Button
11 ) Larger Size, 400' 600mm working area
12 ) The lifting platform is electric control
13 ) Drag-and-chain transmission line.
14 ) Laser focal length: 5CM
Product Paramenters
Model | TXT4060 laser engraving and cutting machine |
Colour | Blue and White |
Working Table Size | 400mm *600mm |
Laser Tube | Sealed CO2 glass Tube |
Working Table | Honeycomb |
Laser Power | 60W/80W |
Cutting Speed | 0-60 mm/s |
Engraving Speed | 0-600mm/s |
Resolution | ±0.05mm/1000DPI |
Minimum Letter | English 1×1mm (Chinese Characters 2*2mm) |
Support Fils | BMP,HPGL,PLT,DST and AI |
Interface | USB2.0 |
Software | Rdworks v8 ( suitable for Ruida 6442s controller ) |
Computer system | Windows XP/win7/ win8/win10 |
Motor | Stepper Motor |
Power Voltage | AC 110 or 220V±10%,50-60Hz |
Power cable | European Type/China Type/America Type/UK Type |
Working Environment | 0-45ºC(temperature) 5-95%(humidity) |
Power consumption | <350W (Total) |
Z-Axis Movement | Automatic |
Position system | Red-light pointer |
Cooling way | Water cooling and protection system |

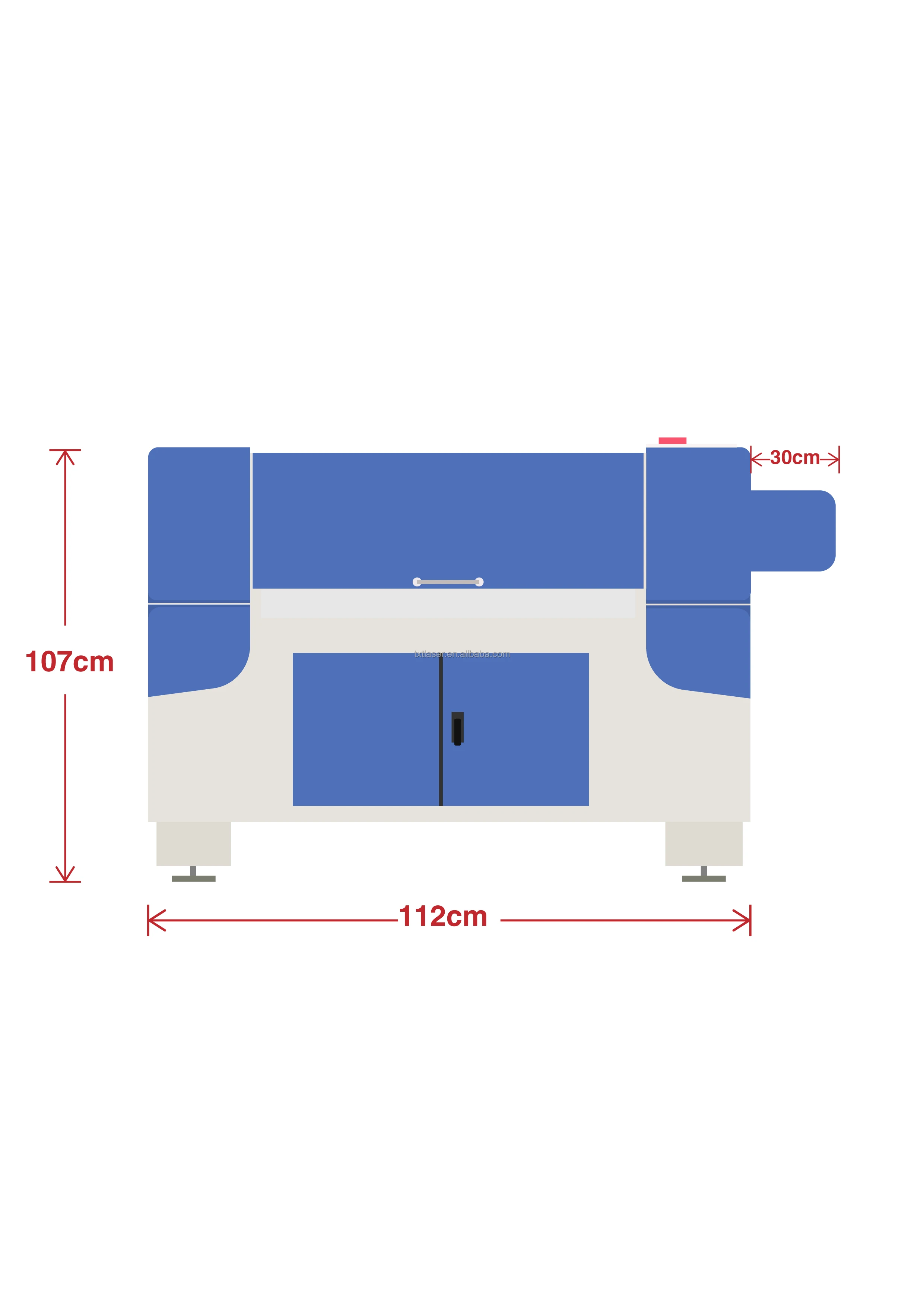

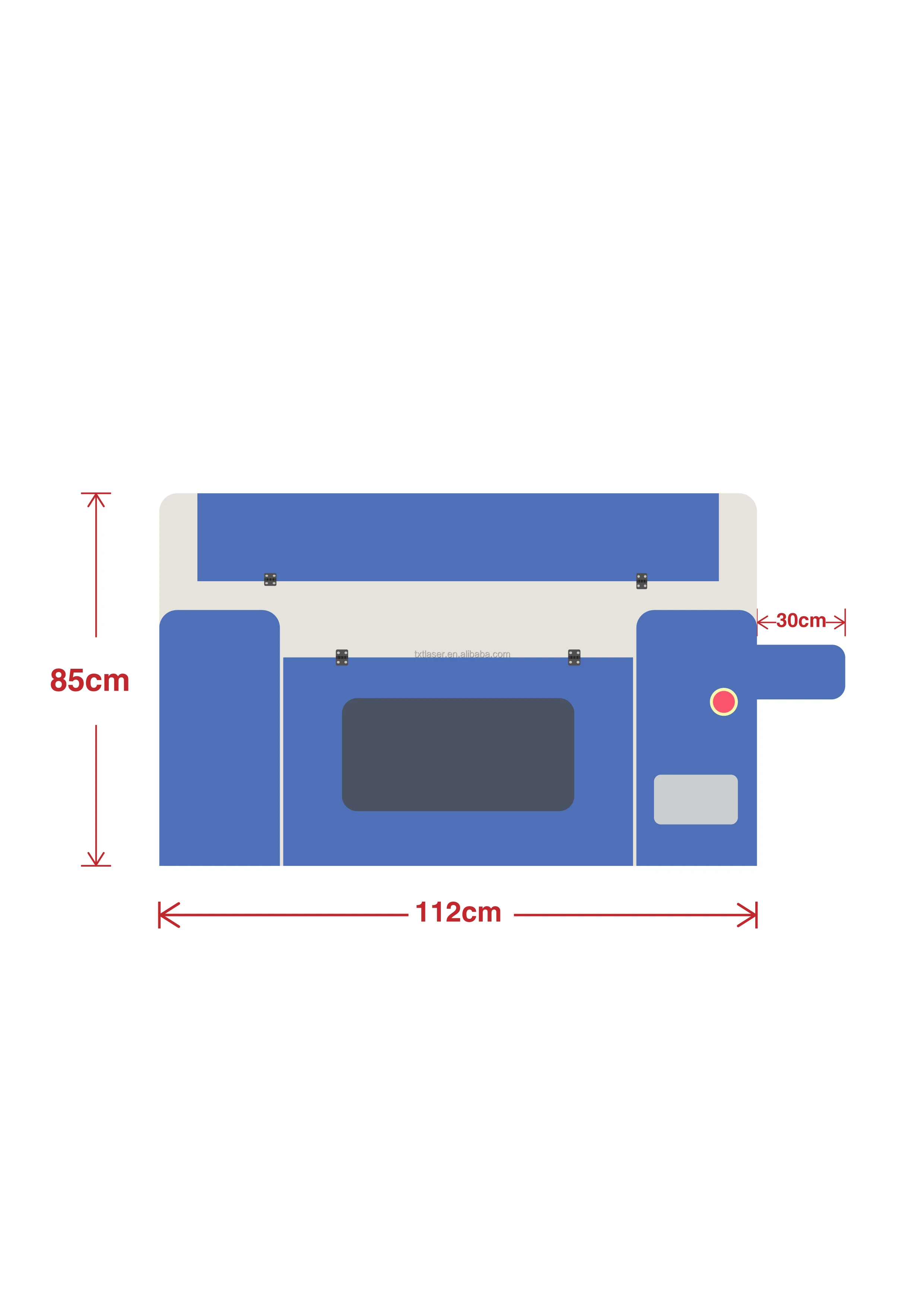

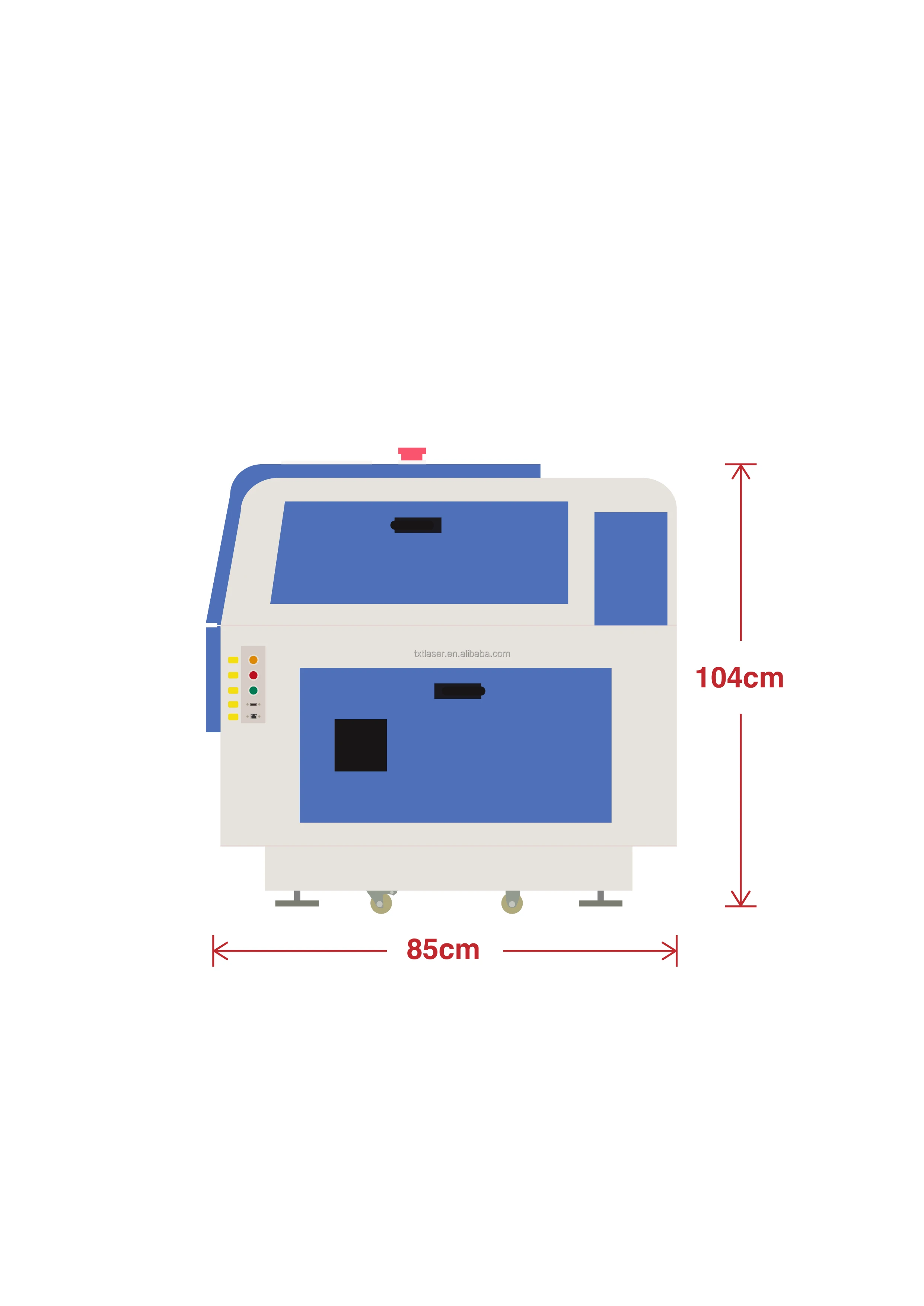

Machine Size | 147*85*86cm |
Gross Weight | 135KG |
Package | Standard plywood case for export |
Warranty | All life free tech support, one year warranty, except consumables |
Free accessories | Air Compressor/Water Pump/Air Pipe/Water Pipe/Software and Dongle/ English User Manual/USB Cable/Power Cable |

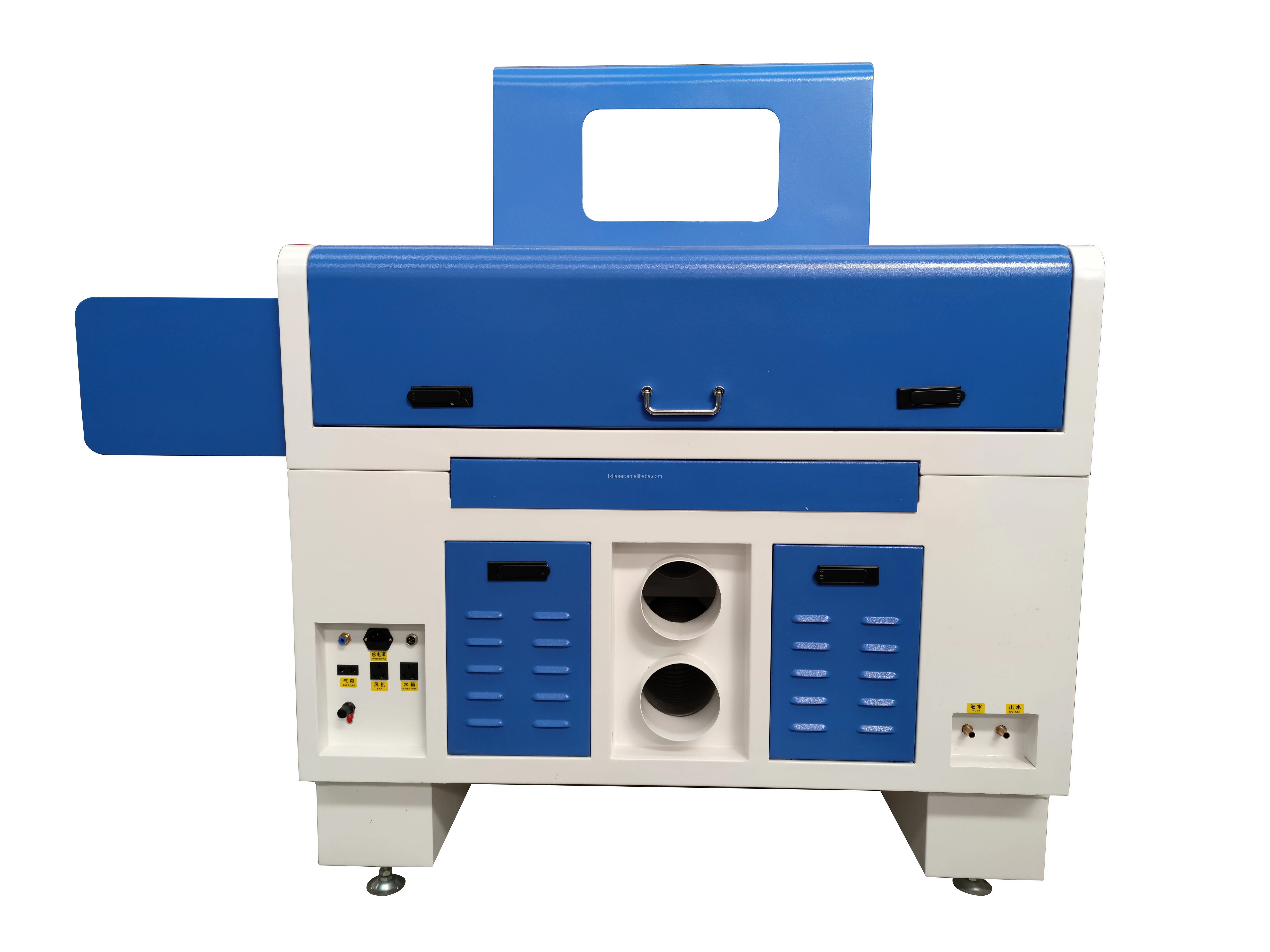

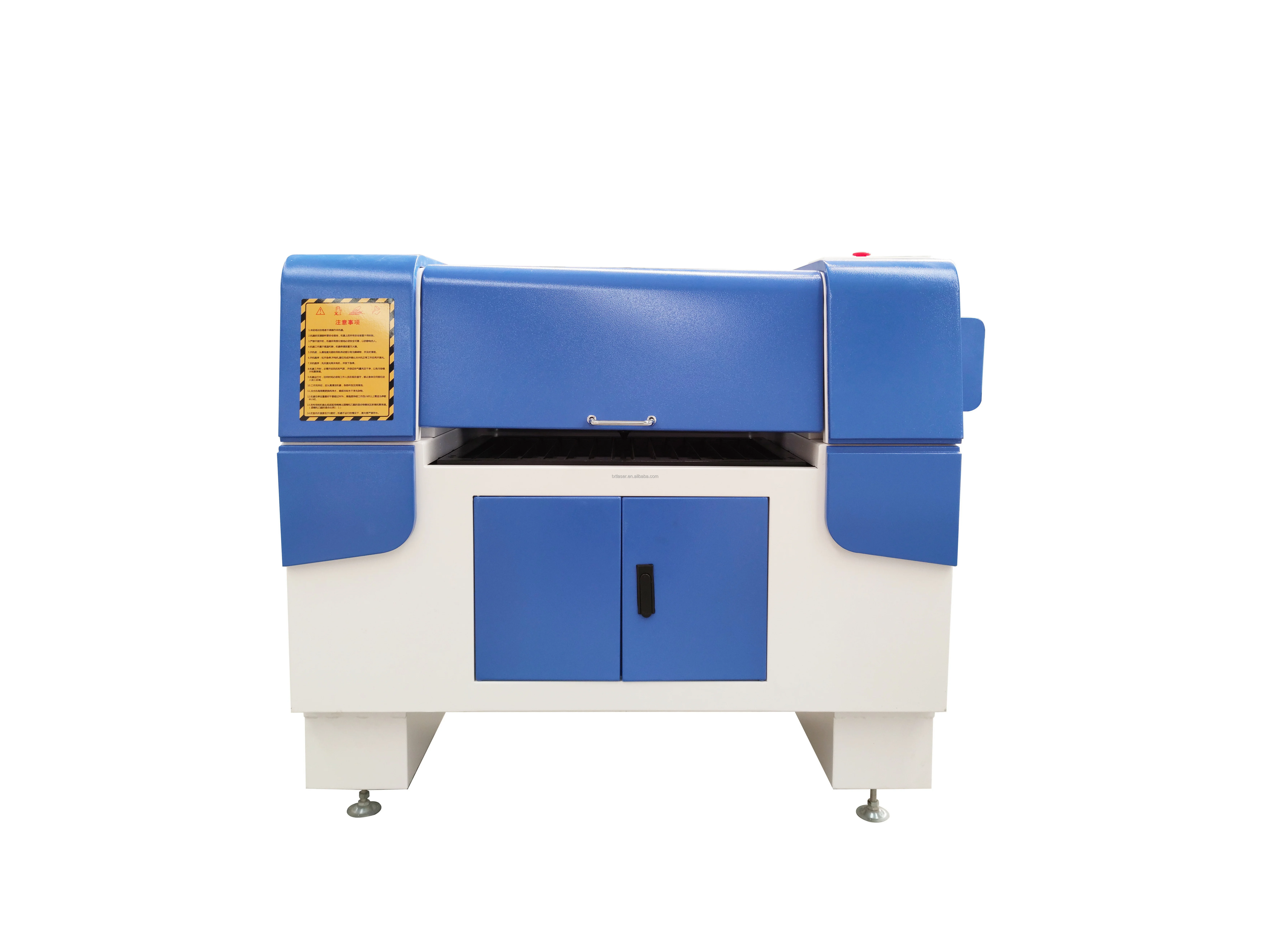

Details Images
Quality inspection
Our Advantages.
Wuhan Tianxingtong Optoelectronic Technology Co., Ltd. is a technology enterprise committed to the research and development, production and sales of laser equipment and automation equipment. The company is located in Xinte Optoelectronic Industrial Park, Jiangxia District, Wuhan City. Tianxingtong photoelectric team has more than 20 years of laser industry experience, 18 R & D personnel, equipment annual shipments of 1000+, to provide customers with: free proofing, 8 hours on-site service, 24 hours to help customers solve after-sales problems.
As an industry and trade integrated enterprise, TXT laser adheres to quality as the center, service as the core, and constantly carries out core technology innovation and research and development, and is committed to providing better laser cutting solutions for global customers
Product serialization, diversification, to meet the needs of more customers, excellent product quality and durability, to create maximum value for customers, timely after-sales service, professional and efficient problem solving, free sample cutting, free customer training, mass exhibition support, support OEM,ODM cooperation.
As an industry and trade integrated enterprise, TXT laser adheres to quality as the center, service as the core, and constantly carries out core technology innovation and research and development, and is committed to providing better laser cutting solutions for global customers
Product serialization, diversification, to meet the needs of more customers, excellent product quality and durability, to create maximum value for customers, timely after-sales service, professional and efficient problem solving, free sample cutting, free customer training, mass exhibition support, support OEM,ODM cooperation.
FAQ
Q: How can I install and debug the machine?
A:We will provide instructions and installation videos with the machine, and provide online guidance from English engineers to ensure that the machine can operate normally, and at the same time, let customers learn how to operate and maintain the machine.
Q:Can I customize the machine according to my requirement? Or OEM?
A:TXT is a research and development manufacturing company, we will provide suitable machines according to the specific needs of customers, and provide OEM services.
Q:Can you arrange transportation for me?
A:Of course, for foreign trade business, we provide EXW, FOB and CIF services. Customers with urgent needs can also choose air freight.
Q:What is the warranty period of the machine?
A:According to different types of machines, we provide a two-year or three-year warranty period. During the warranty period, free repairs or replacement of broken parts are provided. Free maintenance services and machine upgrade services are provided for life outside the warranty period.
Q:What's the consumables of the machine? How much?
A:The machine is very easy to maintenance, only lens and laser tube, power supply are consumables. And laser tube lifetime about 10000 hours, as to lens and power supply, they will not damage if no accident.
A:We will provide instructions and installation videos with the machine, and provide online guidance from English engineers to ensure that the machine can operate normally, and at the same time, let customers learn how to operate and maintain the machine.
Q:Can I customize the machine according to my requirement? Or OEM?
A:TXT is a research and development manufacturing company, we will provide suitable machines according to the specific needs of customers, and provide OEM services.
Q:Can you arrange transportation for me?
A:Of course, for foreign trade business, we provide EXW, FOB and CIF services. Customers with urgent needs can also choose air freight.
Q:What is the warranty period of the machine?
A:According to different types of machines, we provide a two-year or three-year warranty period. During the warranty period, free repairs or replacement of broken parts are provided. Free maintenance services and machine upgrade services are provided for life outside the warranty period.
Q:What's the consumables of the machine? How much?
A:The machine is very easy to maintenance, only lens and laser tube, power supply are consumables. And laser tube lifetime about 10000 hours, as to lens and power supply, they will not damage if no accident.
Похожие товары

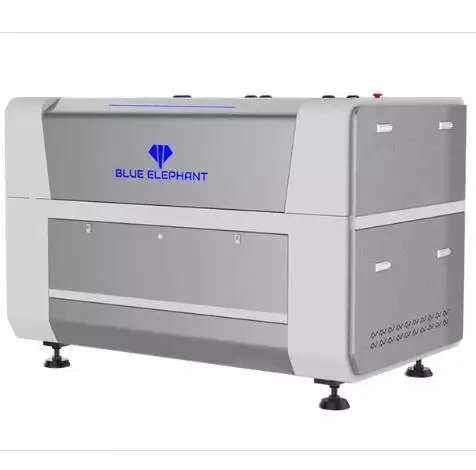

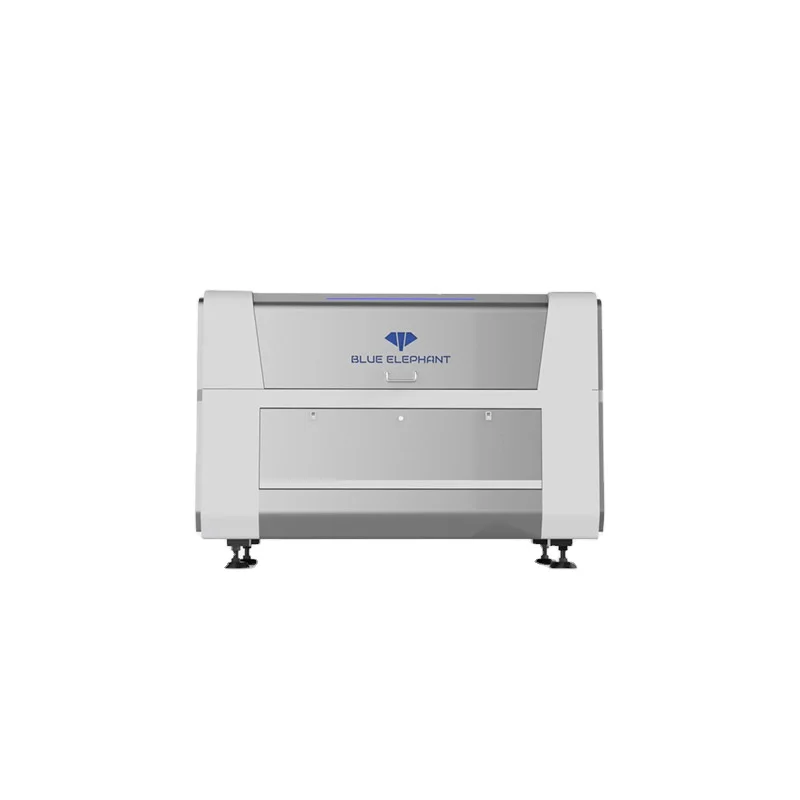

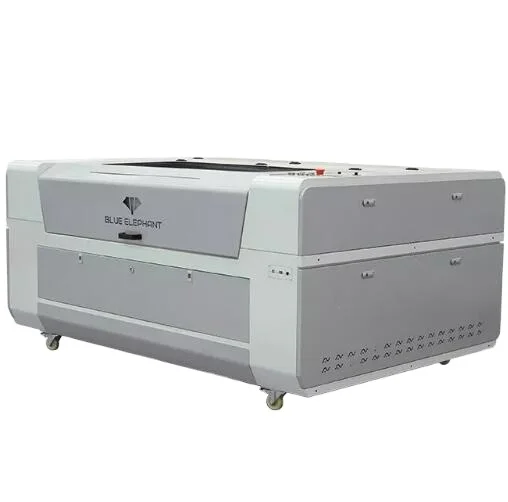

Большая распродажа co2 лазерная гравировальная машина для резки стекла пластиковая кожа малого бизнеса идеи в нас
