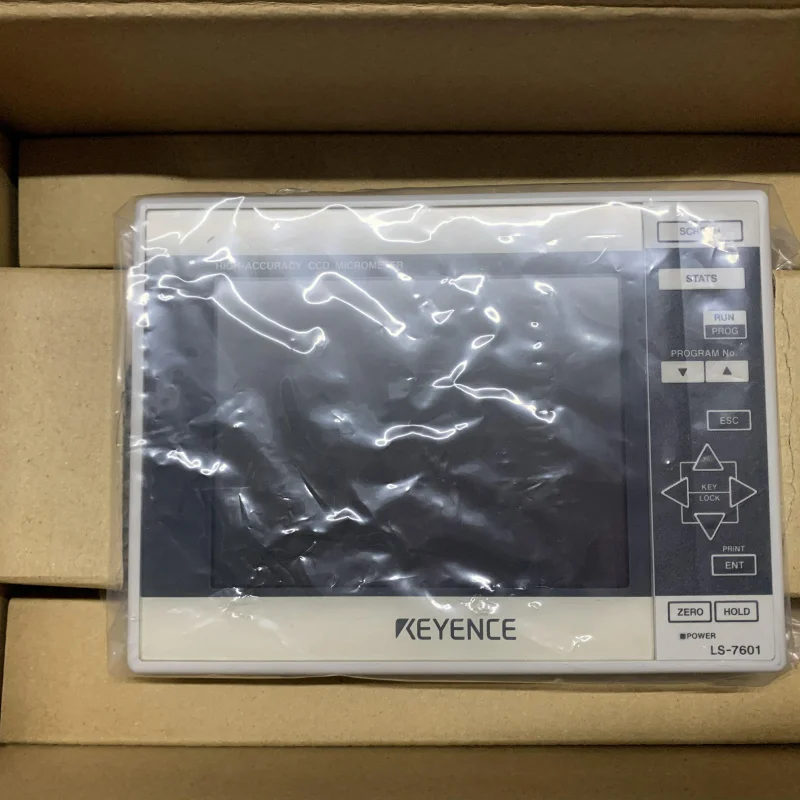

Высокопроизводительный контроллер 0riginal KEYENCE без LS 7601 функции монитора

Model

LS-7601^*1

Type

High-performance

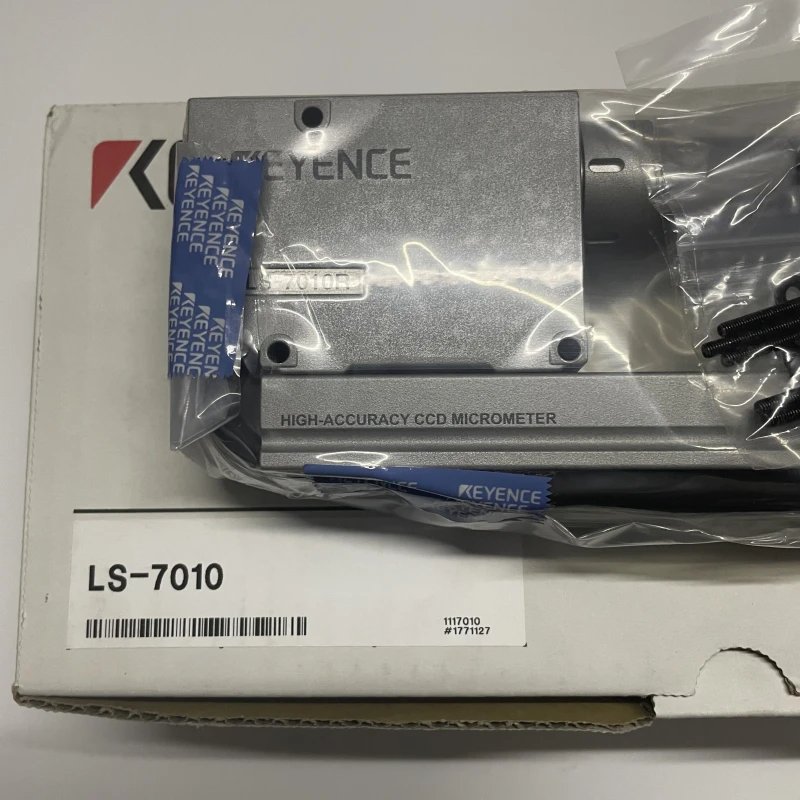

No. of connectable sensor heads

2 (fully compatible for all head types)

Display

Measurement display

TFT 5.5-inch LCD display

Minimum display unit

0.01 to 100 µm (7-level selectable)

Display range

±99.99999 to 9,999.9 mm (Linked to minimum display unit setting, mm/µm selectable)

Measurement position monitor

Monitor image (When the measuring head with the monitor function is connected.)

Tolerance check output display

5-level LCD indicator

Input terminal block

Synchronous 1, 2 input

Non-voltage input for OUT1

Auto-zero 1, 2 input

Reset 1, 2 input

Statistics 1, 2 input

Program selection input

Non-voltage input x 4 inputs

Output terminal

Analogue voltage output

±10 V x 2 outputs

Alarm output

NPN open-collector output (N.C.)

Total judgment output

NPN open-collector output for OUT1

Comparator ready output

Strobe 1, 2 output

Connector I/O

SUB mode

Statistical processing output

NPN open-collector output x 2 outputs^*2

Function output

Selectable from focus, area check, and differential, NPN open-collector output x 2 outputs^*2

5-level comparator output

NPN open-collector output for OUT2^*2

Comparator ready output

Strobe output

BCD mode

BCD output

Measurement data output (Sign + 7 digits), OUT1/OUT2 selectable, NPN open-collector output^*2

BCD selection output

NPN open-collector output^*2

BCD selection input

Non-voltage input^*2

Statistical processing input

Non-voltage input for OUT2

Synchronous input

Reset input

Auto-zero input

Interface

RS-232C

Measurement data output and control I/O, printer (Baud rate can be selected up to 115,200 bps.)

Video output

Conforming to the NTSC system (PIN connector)

Major functions

Simultaneous measurement, Area designation, Calculation, Averaging, Calibration, 16-program memory,
Measurement modes, Auto-zero, Print-out, Abnormal value elimination, Transparent object measurement,
Measurement point display, Group comparison, Unacceptable value history, Trend display, Statistical processing,
Mutual interference prevention, Application function, etc.

Rating

Power voltage

24 VDC ±10 %^*3

Power consumption

1.2 A max.^*3

Environmental resistance

Enclosure rating

IP64 (Panel surface only)

Ambient temperature

0 to +40 °C

Relative humidity

35 to 85 % RH (No condensation)

Weight

Approx. 1,010 g
