Ветряная турбина Lanji 10 кВт 5 3 ветрогенератор ветряная
18 074,28-33 738,66 ₽
Ветровая турбина с горизонтальной осью zonhan
- Категория: >>>
- Поставщик: Jiangsu DHC Environmental Si-Tech Co. Ltd.Jiangsu Ltd.
Сохранить в закладки 1600812787611:
Описание и отзывы
Характеристики
Product Description

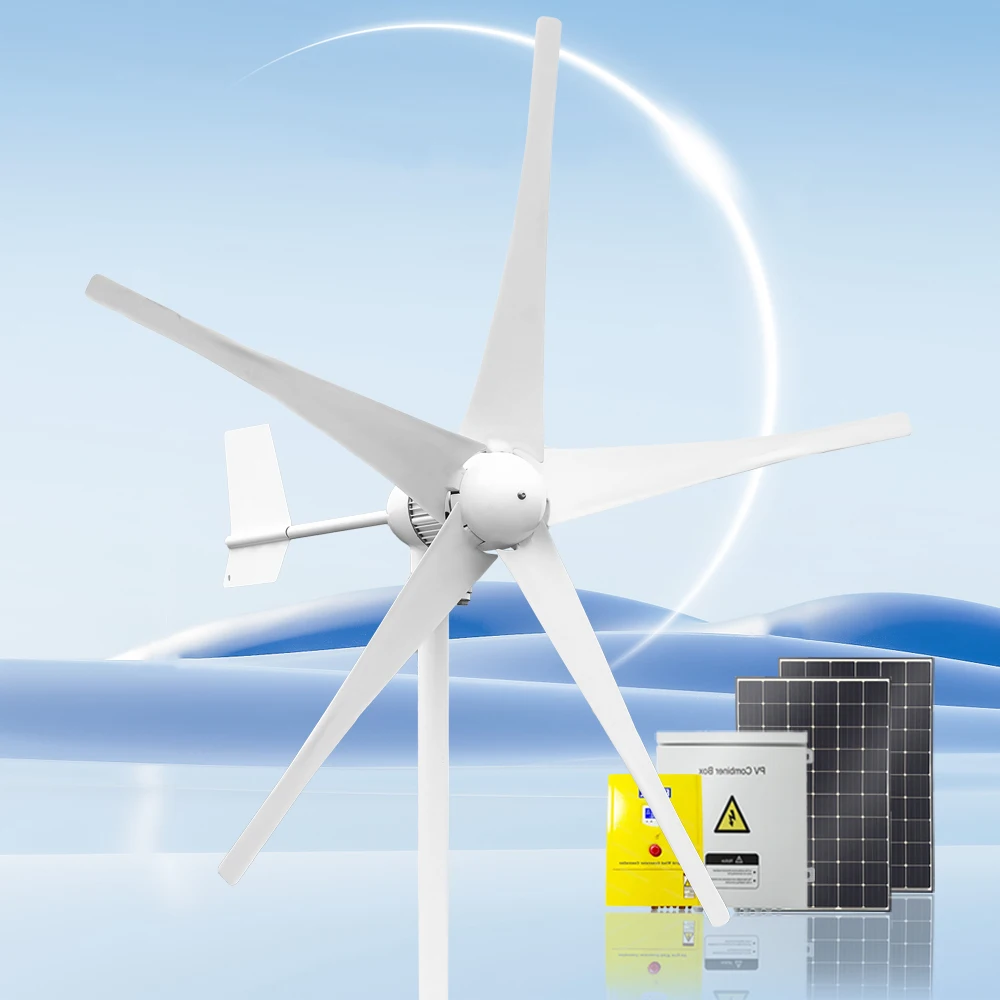

Horizontal Axis zonhan wind turbine grid tie wind turbine a wind turbine
Our horizontal wind turbine have wind alignment devices that can rotate as the wind direction changes. For small horizontal wind generators, this type of wind alignment device uses a tail rudder, while for large wind turbines, a transmission device composed of wind direction sensing elements and servo motors is used.
Technical Parameter
Model | M400 | M500 | M600 | M800 | M1000 | M1500 | M2000 | ||||||
Rated power | 400w | 500w | 600w | 800w | 1kw | 1.5kw | 2kw | ||||||
Rated voltage | 12V/24V/48V | 12/24/48V | 24V/48V/96V | 48V/96V | |||||||||
Start the wind speed | 2m/s | ||||||||||||
Rated wind speed | 12m/s | ||||||||||||
Safe wind speed | ≤50m/s | ||||||||||||
Fan blade diameter | 1.35m | 1.55m | 1.85/1.65m | 2m | 2.1m | 2.2m | 2.5m | ||||||
Blade number | 3/5 pcs | 3 pcs | |||||||||||
Blade material | Reinforced nylon fiber | ||||||||||||
Fuselage material | Reinforced die-cast aluminum | ||||||||||||
Magnetic steel material | NdFeB | ||||||||||||
Generator type | Three-phase AC permanent magnet synchronous generator | ||||||||||||
Control mode | Electromagnetic brakes | ||||||||||||
Wind direction adjustment | Automatically adjusts the windward angle | ||||||||||||
Service life | ≥ 20 years | ||||||||||||
Degree of protection | IP54 | ||||||||||||
Net weight | 12kg | 13kg | 20kg | 26kg | 28kg | 32kg | 35kg | ||||||
Gross weight | 14kg | 15kg | 22kg | 28kg | 30kg | 35kg | 40kg | ||||||
Packing size(mm) | 930*400*215 | 1100*400*300 | 1150*400*300 | 1320*400*300 | |||||||||
Horizontal Axis zonhan wind turbine grid tie wind turbine a wind turbine
The casing of the horizontal wind turbine is made of alloy aluminum or A3 steel, with small volume, light weight, beautiful appearance, and low operating vibration.
Adopting flange installation, horizontal wind generator has good strength and is convenient for installation and maintenance.
The horizontal wind turbine adopts nylon blades or reinforced fiberglass wind turbine blades, combined with optimized aerodynamic shape and structural design, with low starting wind speed, high wind energy utilization coefficient, and higher power generation efficiency compared to vertical axis fans.
Adopting flange installation, horizontal wind generator has good strength and is convenient for installation and maintenance.
The horizontal wind turbine adopts nylon blades or reinforced fiberglass wind turbine blades, combined with optimized aerodynamic shape and structural design, with low starting wind speed, high wind energy utilization coefficient, and higher power generation efficiency compared to vertical axis fans.
Details Images

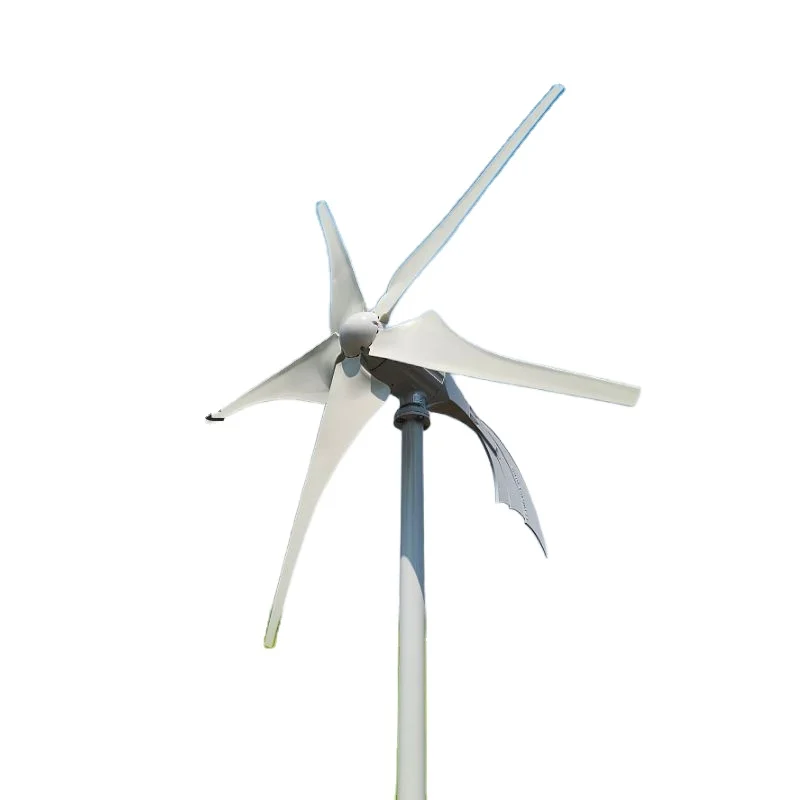

Horizontal Axis zonhan wind turbine grid tie wind turbine a wind turbine
The 1kw wind turbine uses a patented permanent magnet rotor AC generator. The special stator and rotor design can effectively reduce the resistance torque of the generator.
Optional maximum power tracking intelligent controller, effectively regulating current and voltage.

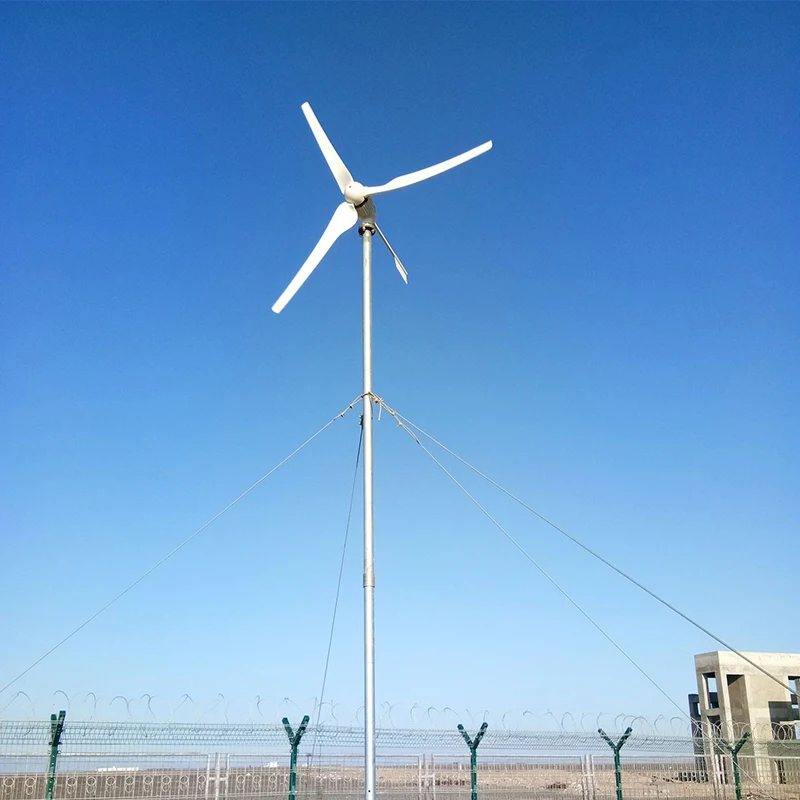

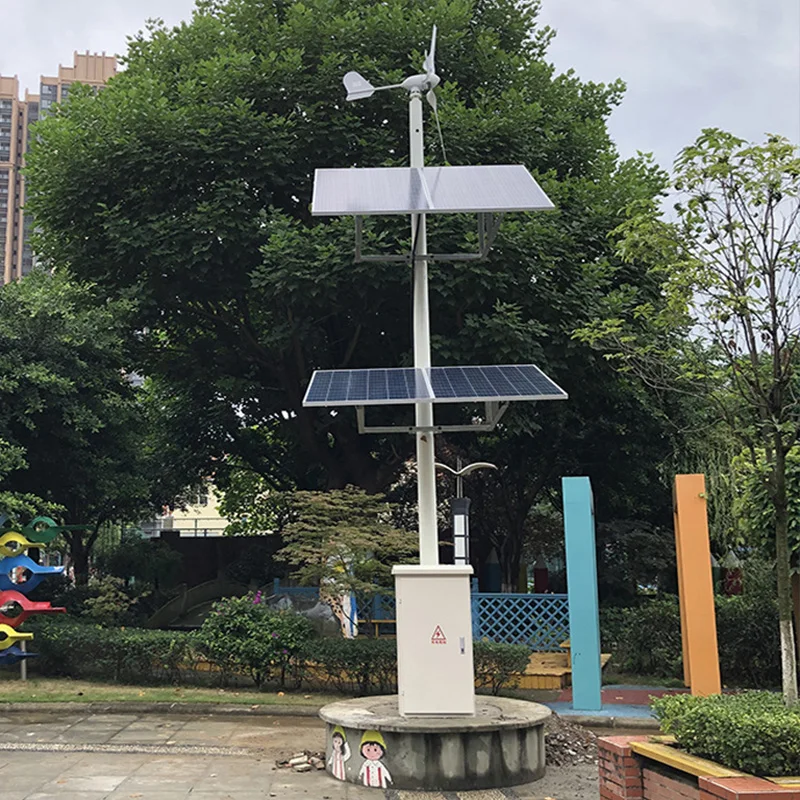

Project Cases
Project Case Display
Our company is committed to providing customers with one-stop services for wind and solar hybrid systems. The main products include 100w-100kw small and medium-sized wind generator, solar panel, photoelextric water heater and heating furnace, solar energy storage system, portable power station, etc.
Our company's products sold worldwide. The company has won the unanimous recognition of consumers with satisfactory quality and perfect after-sales service. We has a professional team, which can help you solve questions.
Recommend Products
All types of our wind generator
We mainly have several types of wind turbine generator above, as well as solar wind turbine system.
The working principle of a wind turbine is relatively simple. The wind rotor rotates under the action of the wind, which converts the kinetic energy of the wind into the mechanical energy of the wind rotor shaft, and the generator rotates to generate electricity under the drive of the wind rotor shaft.
The working principle of a wind turbine is relatively simple. The wind rotor rotates under the action of the wind, which converts the kinetic energy of the wind into the mechanical energy of the wind rotor shaft, and the generator rotates to generate electricity under the drive of the wind rotor shaft.
Company Profile
Jiangsu DHC environmental SI-Tech Co.,Ltd,
Jiangsu DHC Environment Si-Tech Co.，Ltd. was founded in 2016 and is located in Suzhou City, Jiangsu Province.
We are dedicated in environmental protect area and new energy products, and launched our own brand: Ever Saving and Qianyue, aiming at protecting the environment and saving energy. We have a wealth of industry experience and are a reliable supplier. Our cooperation factory has advanced production equipment and skilled front-line employees. The products are more safer and durable, with better appearance design, distinctive materials.
We are dedicated in environmental protect area and new energy products, and launched our own brand: Ever Saving and Qianyue, aiming at protecting the environment and saving energy. We have a wealth of industry experience and are a reliable supplier. Our cooperation factory has advanced production equipment and skilled front-line employees. The products are more safer and durable, with better appearance design, distinctive materials.
Packing & Delivery
Knowing that the development of the company depends on the innovation and quality of the products, we have established a quality management system to meet the requirements of the international quality management system. With continuously releasing the original innovations according to the market and customer needs, our company always maintains the novelty and innovative products to take the customer's thoughts and urgency into consideration. Providing excellent service for customers and meeting customer needs are our eternal pursuit!
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Business Card
Do you need solutions for solar wind turbine system?
Just send inquiry and express your requirement, DHC technical engineer always at your service!
Похожие товары
Китай заводская цена ветряная турбина 900 домашнего использования ветровая с горизонтальной осью
12 049,52-14 459,43 ₽
Лопасти ветровой турбины из алюминиевого сплава 500 Вт 5 шт. 3 фазы переменного тока низкая скорость вращения непосредственно 1:10 или производство по запросу
600 Вт 800 1 кВт ветряные турбины с горизонтальной осью 12 В 24 48 3/5 лопастями низкоскоростные генераторы для домашнего использования
13 133,98-30 123,80 ₽

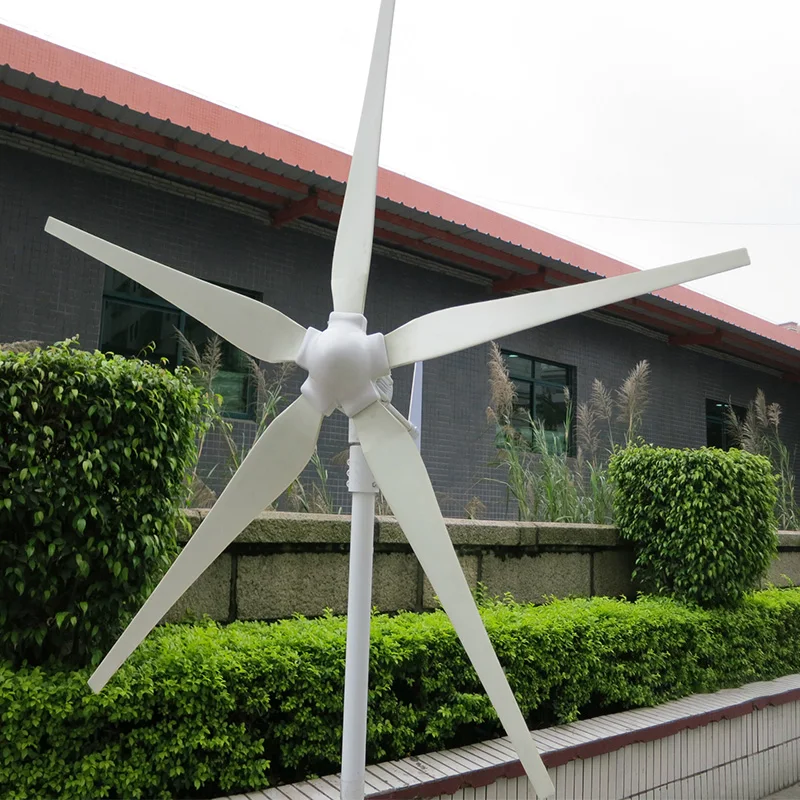

Ветровая турбина с 5 лопастями
Высокоэффективный маленький ветротурбинный генератор спиральный 10 кВт для домашнего использования
311 841,58-384 138,70 ₽

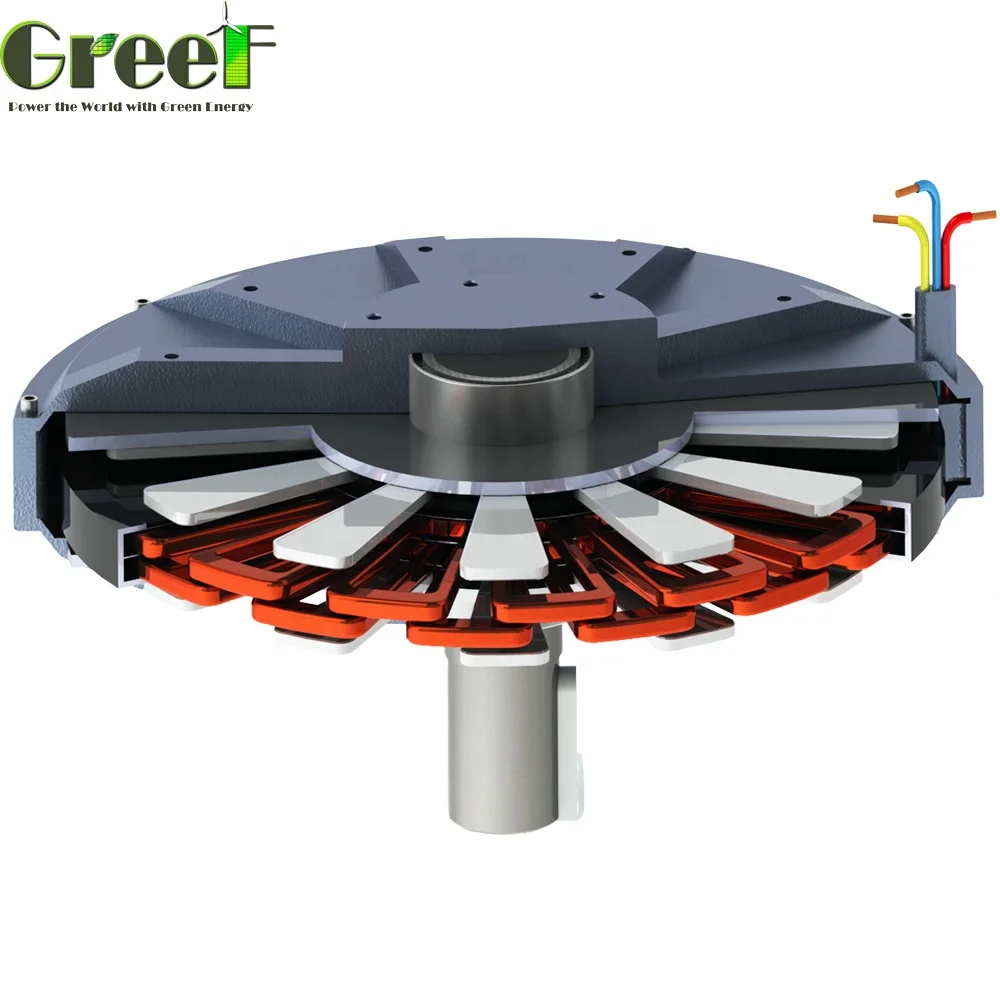

Ветряная турбина с низким стартом 5 кВт 150 об/мин 1000 Вт генератор переменного тока осевым флюсом без сердечника
84 731,08 ₽

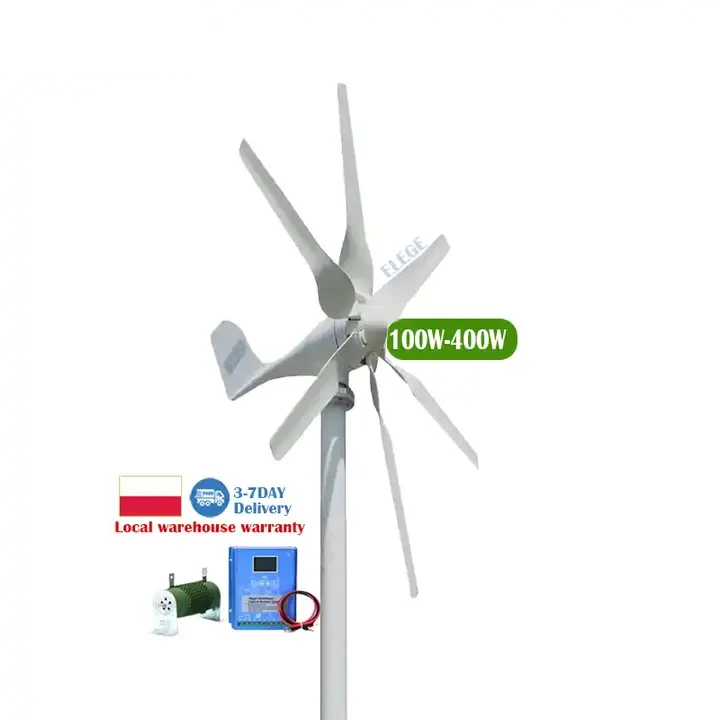

Elege низкая цена мини эольевая ветряная турбина 24 В 600 Вт маховик натуральный генератор комплект с контроллером инвертора батареи мельница
