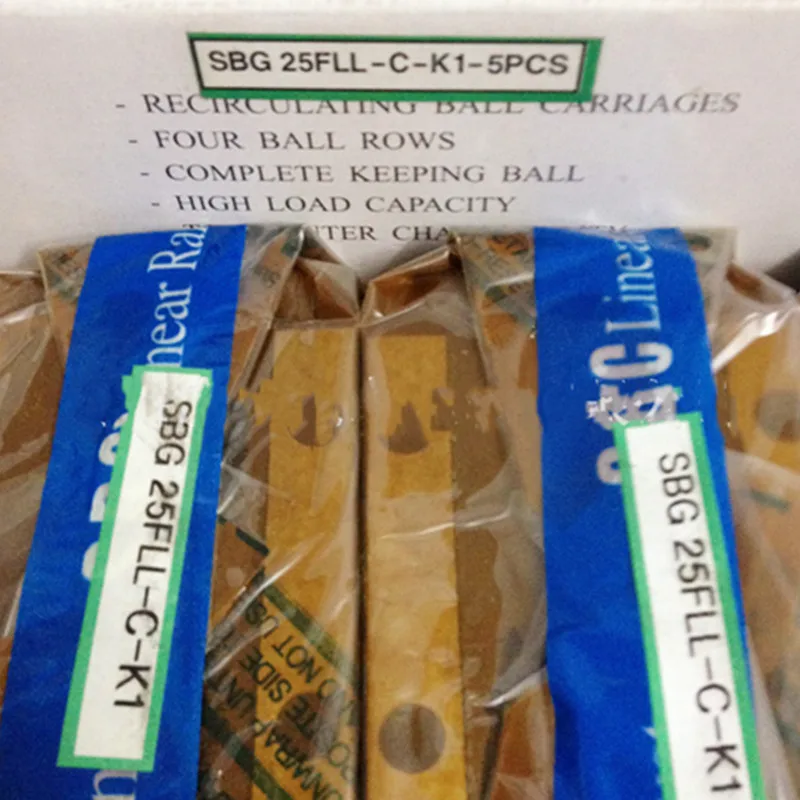

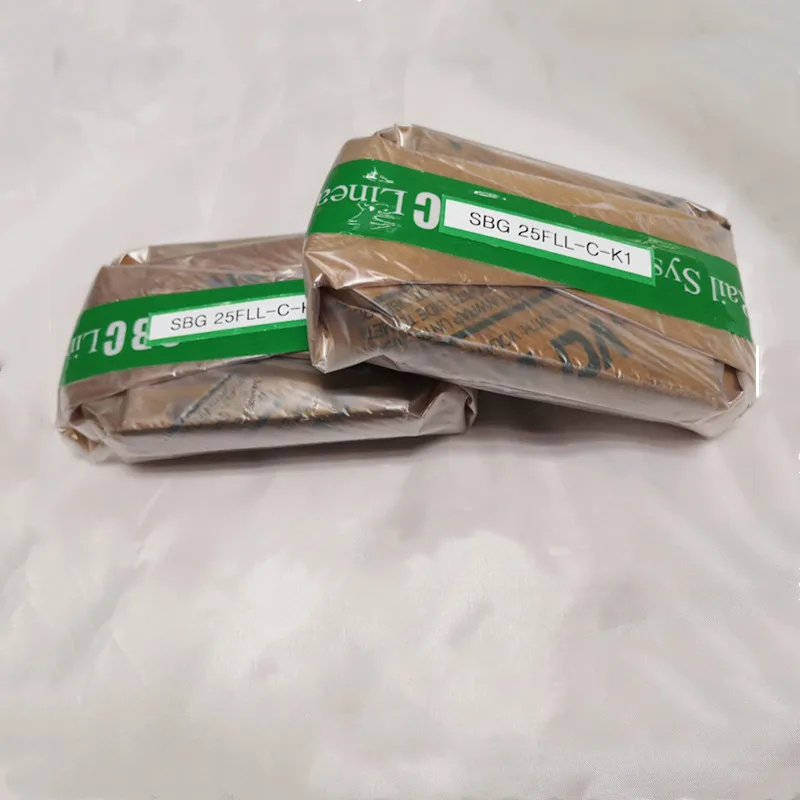

Корея SBC линейная направляющая блок SBG25FLL SBG25FLL K1 SBG25FLL C K1

Structure and Features

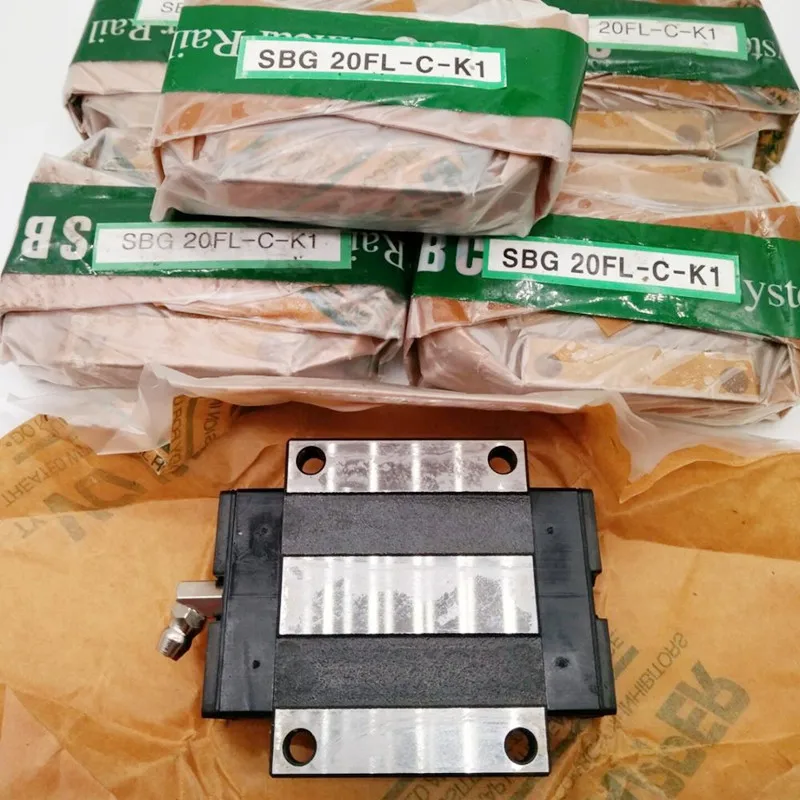

Linear rail The same rail profile may be used for every type of block (SBG, SBS, SPG and SPS). SBC uses only high strength and heat- treated special steels in all rails. End seal New double lip structure which improves resistance to dust and particle contamination. Linear block SBG, SBS, SPG and SPS types are available. All blocks are dimensionally interchangeable.

1.Circular arc groove

Two pint contact structure of circular arc groove. It keeps the function of self-aligning and smooth rolling performance.

2.45° angle of contact

Four rows of circular arc groove contact balls at an angle of 45 degree. It provides the same load  capacity in all directions. Single component Return tube & reversing plate structure Inserting a molded tube into the ball return paths keeps lubricant cleaner by providing better loose ball control and free lubricant flow while preventing metal to metal skidding contact with what is normally an imprecise return path wall.

Retainer Ball retainers are snap assembled to the internal body and end-plate without fixed position screws. The retainers can self align according to load orientation and direct the balls smoothly into the load zone. This function eliminates ball skid and hot zone pre-load creating smoother running and longer life. These new retainers are made of stainless steel (SUS304) and are corrosion resistant. Bottom retainer is one body type with rubber seal to prevent contamination from bottom.

Relative Model

SBS15SL SBS20SL SBS25SL SBS30SL SBS35SL SBS45SL

SBS20SLL  SBS25SLL SBS30SLL SBS35SLL SBS45SLL

SBS15SV SBS20SV SBS25SV SBS15FV SBS20FV SBS25FV

SBG15FL SBG20FL SBG25FL SBG30FL SBG35FL SBG45FL SBG55FL SBG65FL
SBG20FLL SBG25FLL SBG30FLL SBG35FLL SBG45FLL SBG55FLL SBG65FLL

SBG15SL SBG20SL SBG25SL SBG30SL SBG35SL SBG45SL SBG55SL SBG65SL
SBG15SL SBG20SLL SBG25SLL SBG30SLL SBG35SLL SBG45SLL SBG55SLL SBG65SLL

SBS15SL SBS20SL SBS25SL SBS30SL SBS35SL SBS45SL SBS15FV SBS20FV SBS25FV
SBS20SLL SBS25SLL SBS30SLL SBS35SLL SBS45SLL SBS15SV SBS20SV SBS25SV

SBI15FL SBI20FL SBI25FL SBI30FL SBI35FL SBI45FL SBI55FL SBI65FL
SBI15SL SBI20SL SBI25SL SBI30SL SBI35SL SBI45SL SBI55SL SBI65SL
SBI20FLL SBI25FLL SBI30FLL SBI35FLL SBI45FLL SBI55FLL SBI65FLL
SBI20SLL SBI25SLL SBI30SLL SBI35SLL SBI45SLL SBI55SLL SBI65SLL

1.Deep groove ball bearings (68series,69series,60series,62series,63series,64series)
2.Tapered roller bearing(320 series,322 series,323 series)
3.Linear bearing
4.Thrust ball bearing(511 series,512 series,513 series)
5.Cylindrical roller bearing(NU10 series,NJ2 Series,N3 series, NN series)
6.Needle roller bearing
7.Angular contact ball bearing(70 series.72 series.73 series.74 series)
8.Spherical roller bearing
9.Thurst roller bearing
10.Spherical ball bearing(230 series,222series,223series)
11.Pillow block bearing(UCP series, UCF series, UCT series, UCFL series)

1.Professional bearing manufacturer and exporter for more than 10 years;

2.The lowest cost price from our factory with high quality;

3.OEM brand available and customized;

4.Good after-sale service with professional technical engineers.
