PEV EUROPEAN JAW CRUSHER

The Jaw Crusher Is Simple In Structure, Firm, Reliable In Operation, Easy To Maintain And Repair, And Has Relatively Low
Production And Construction Costs. Therefore, It Is Still Widely Used In Metallurgy, Chemical Industry, Building Materials, Power,Transportation And Other Industrial Sectors Until Now, Mainly For Various Ores And Rocks With Compressive Strength Between 147 And245Mpa To Carry Out Different Degrees Of Coarse, Medium And Fine Crushing.

Equipment parameters

Feeding size： 125-900mm
Capacity： 50-800T/h
pplication field： Metal and nonmetal mine crushing, industrial, chemical and ceramic industries, sand aggregate

production line, construction waste recycling, railway ballast stone production, etc.
Scope of application： It is suitable for medium crushing and fine crushing of various soft and medium hard ores, such

as granite, diabase, basalt, limestone, quartzite, pebble, iron ore, etc

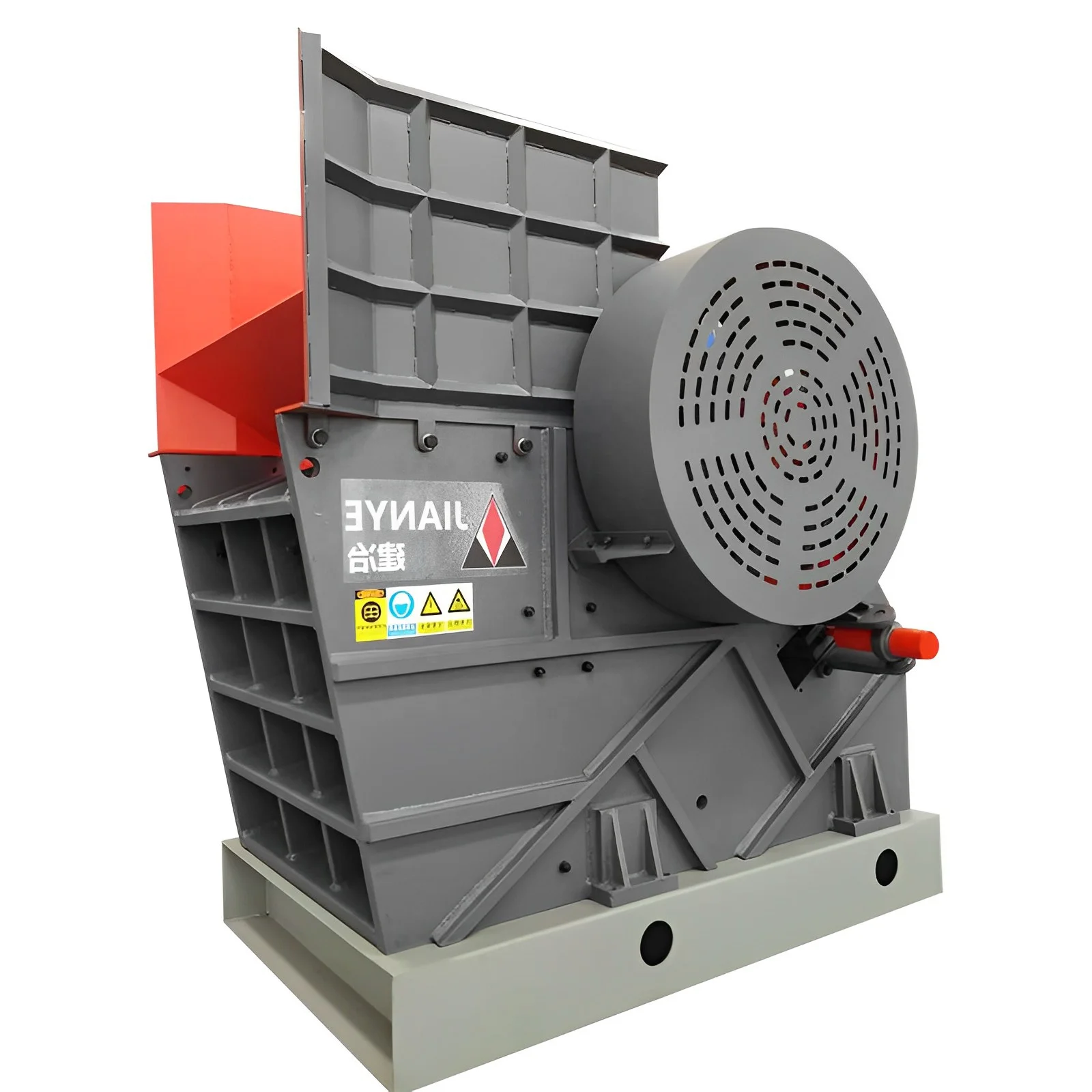

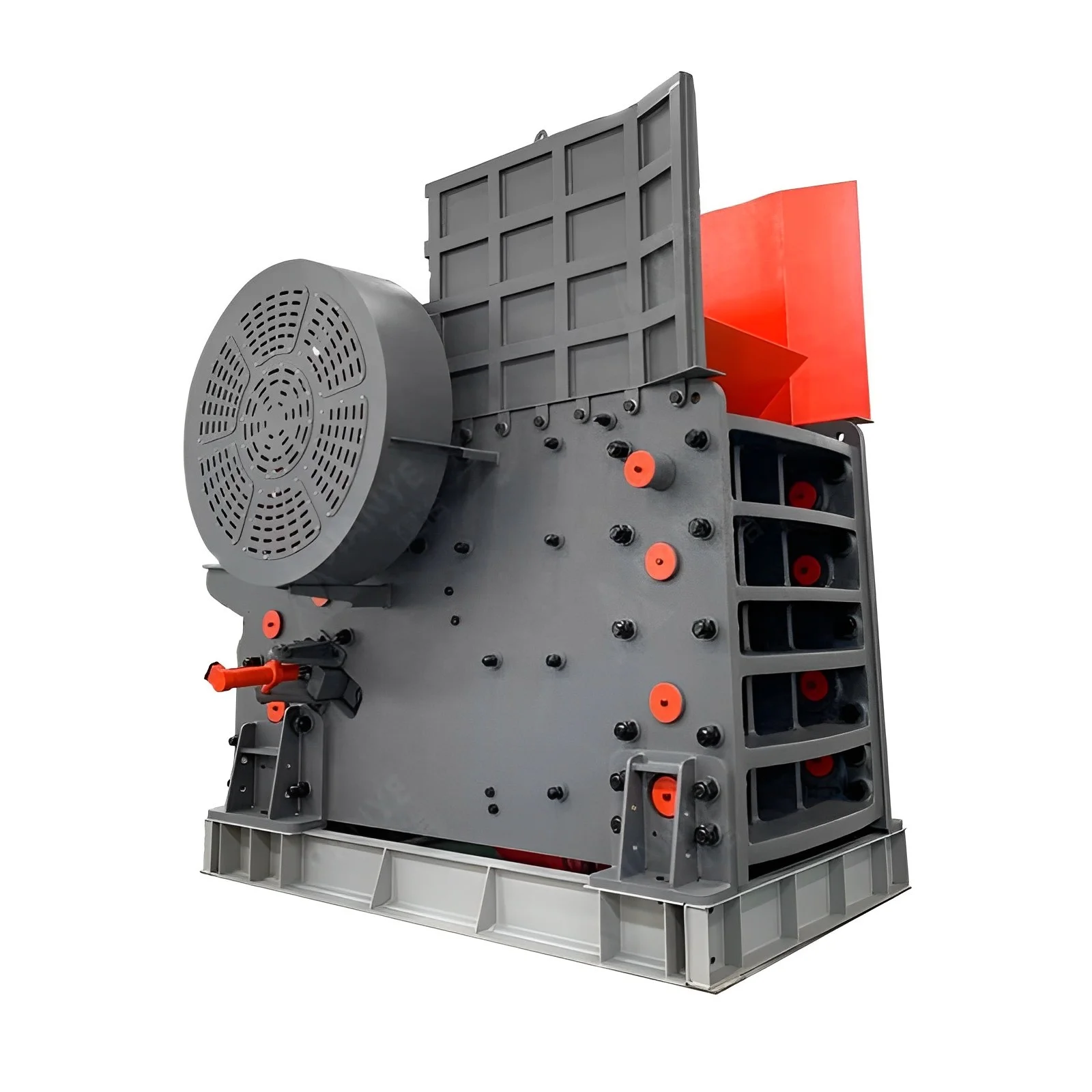

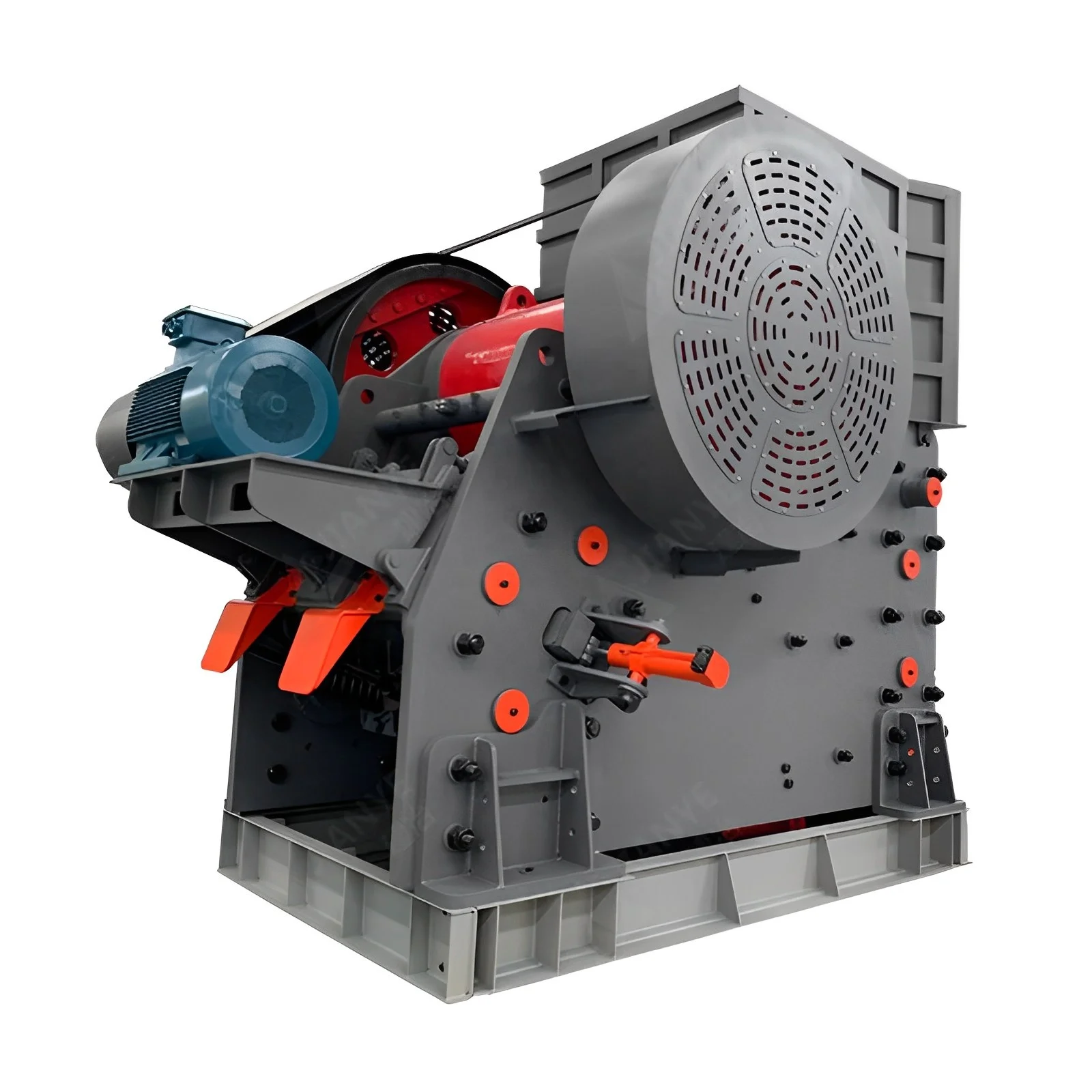

REAL SHOT OF THE PRODUCT

PRODUCT ADVANTAGES AND CHARACTERISTICS

I. The frame is made of high quality steel plate, which has higher strength and fatigue life compared with ordinary steel plate.
After welding, the frame is annealed to avoid stress concentration.
2.Jaw head is made of advanced technology, which has higher strength and more stable performance.
3.Main shaft is made of high quality steel, through forging. the yield strength and tensile strength are higher, the performance is more stable, and the service life is longer.
4. Toggle plate is designed by large centrifugal and large angle. It makes the crushing chamber at the bottom of larger stroke.
5.Discharging area is large. The small discharging can produce fine granularity products, the large discharging can produce larger products; hydraulic adjusting the discharge, more convenient and stable.
6.Compared with ordinary jaw crusher, PEV crusher ' s foundation is simple, installation is more convenient and practical.

During operation, the motor drives the eccentric shaft to rotate through the belt and pulley, so that the movable jaw plate movesup and down, pushing the movable jaw plate close to the fixed jaw plate, so that there are multiple crushing of the material suchas extrusion, rubbing and grinding, so that the material changes from large to small, and gradually falls, until it is discharged from the discharge port, so as to prepare a sample for composition analysis.

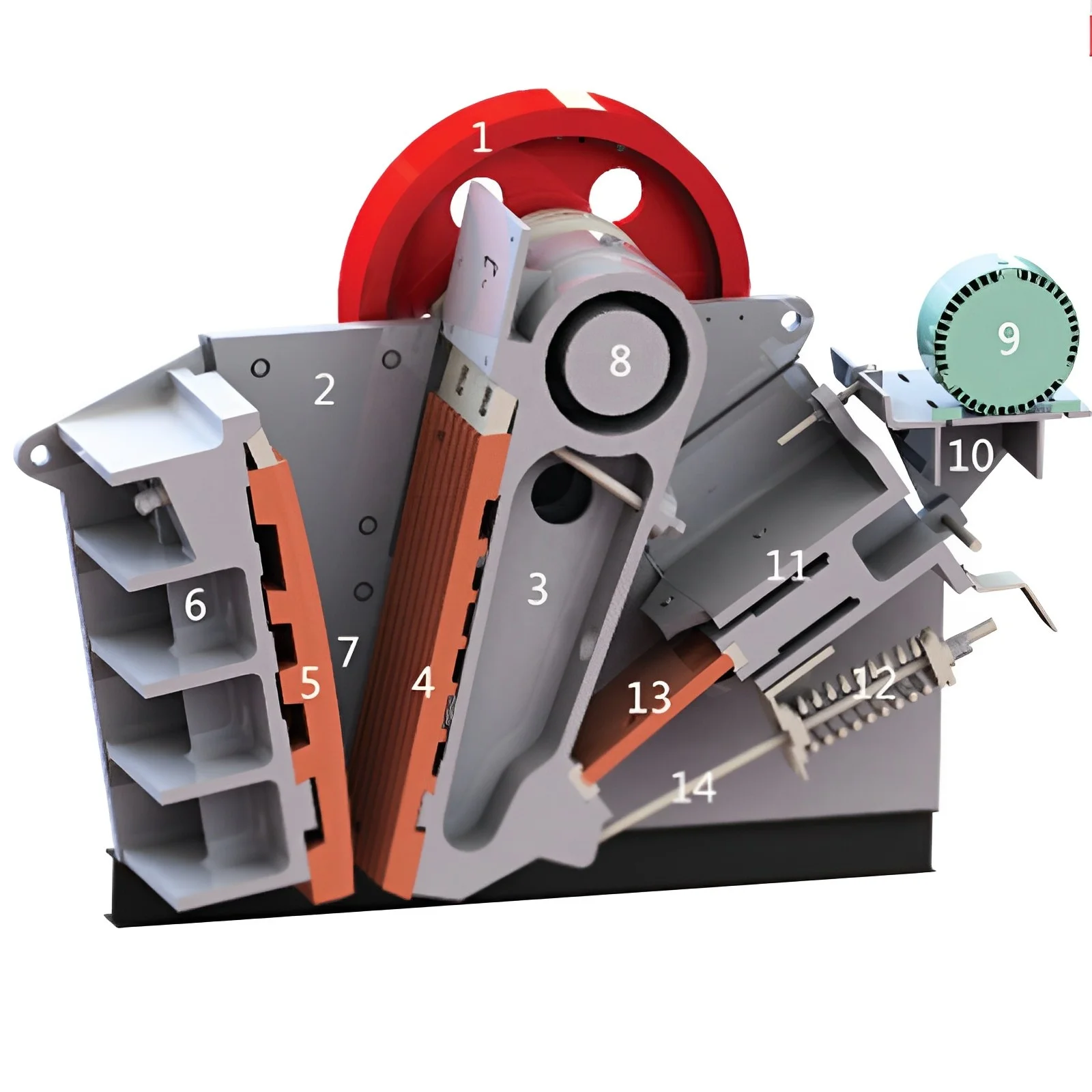

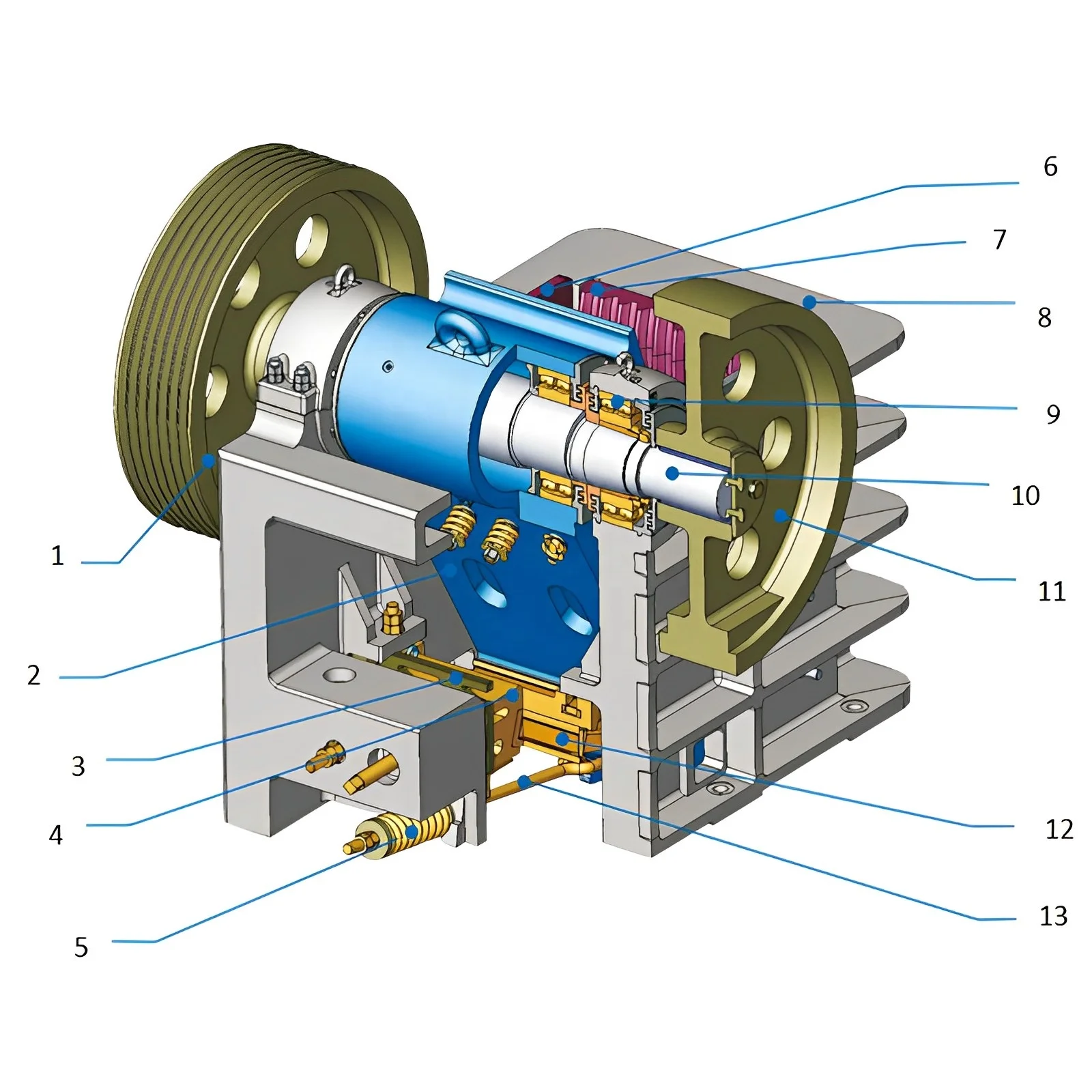

INTERNAL STRUCTURE DIAGRAM

The Jaw Crusher Is Mainly Composed Of Static Jaw Plate, Movable Jaw Plate, Frame, Upper And Lower Guard Plates, Adjusting Seat, Movable Jaw Pull Rod, Etc.

Technology advantage（PE Jaw Crusher）

M0DEL	Size of feed mouth(mm)	Max feeder size(mm)	Output size(mm)	Capacity(t/h)	Power(kw)	Overall dimensions(mm)
PE-500*750	500*750	425	50-100	45-100	55	189019401870
PE-600*900	600*900	500	65-160	70-180	55	239518432230
PE-750*1060	750*1060	630	80-140	130-260	110	227524262840
PE-800*1060	800*1060	640	100-200	150-300	110	250024722840
PE-900*1200	900**1200	750	95-165	200-400	110/132	333531823430
PE-1000*1200	1000*1200	850	195-265	230-450	110/132	343531823430
PE-1200*1500	1200*1500	1020	150-300	400-850	160/220	420037324620
PE-1500*1800	1500*1800	1200	220-350	500-1600	355	510047004300
PE-250*1000	250*1000	210	25-60	16-52	30	160020001500
PE-250*1200	250*1200	210	25-60	20-60	37	190022001500
PE-300*1300	300*1300	260	30-90	30-90	55	180023001700

Technology advantage（PEV European Jaw Crusher）

M0DEL	Size of feed mouth(mm)	Max feeder size(mm)	Output size(mm)	Capacity(t/h)	Power(kw)	Overall dimensions(mm)
PEV-500*750	500*750	420	40-150	50-150	55	305020202300
PEV-600*900	600*900	500	60-190	60-220	75	345023502780
PEV-700*1100	700*1100	620	80-210	80-300	110	328020202376
PEV-900*1200	900*1200	750	90-280	200-480	132	445023103410
PEV-1000*1400	1000*1400	850	130-380	300-700	200	470033503780
PEV-1100*1400	1100*1400	900	160-480	350-800	220	490033503780

AFTER-SALES SERVICE AND CONCEPT

PRODUCTION LINE PROFILE

Our Company Has Reliable Products And Experienced Service Team. 1et The Internet Techinology Apply To Every Tache Of Pro-Duct Andoperation. Sale By Internate Actively, Provide The Atest Product Information And Technical Service. We Believyou-Not Only Need a Product, Butalso Good After Service. Based On The Techinology And Quality Products,We Would Provide The Gratfed, Save Worry, Disburden Service For Ouicustomers.

PRE-SALE

1.Guide Our Customers To Deploy The Most Useful Equipment Item According To Theirs Requiryment.

2.Provide Technical Date,Including Equipment Bill, Layout, Base Specification And Installation Picture To Consult,
3.Design And Manufacture Product According To The Customers'Special Requestment.
4.Dispatch The Technical Person To Reach The Locale To Layout Field, Design The Best Installtion Flow And Scheme To Consult For Free.

SALE

1 Product According To The Standard Of Technology Strictly.

2.Experiment The Machine By The Operating Regulate,
3.Verify The Product Before Leaving Factory Strictly, 4.Organize Shipping By The Contract In Time.

AFTER-SALES

1 Dispatch Special Worker After Service To Arrive Locale To Guide The User To Install And Debug, Experiment Circulate, Train Operating Persons For Free.

2. Guarantee Of Repair, Replacement And Refund Of Substandard Products, The Period Of Guarantee Is 1 Year(Except Abrasion In Normal, Wearing Parts, The Damaged Parts By Misoperation) If The Equipment Appears Fault During Guarantee, Our Company Woulde To Reach The Locale After Take The User's Telephone, Remove The Fault, Ensure The User's Produce Innormal.
