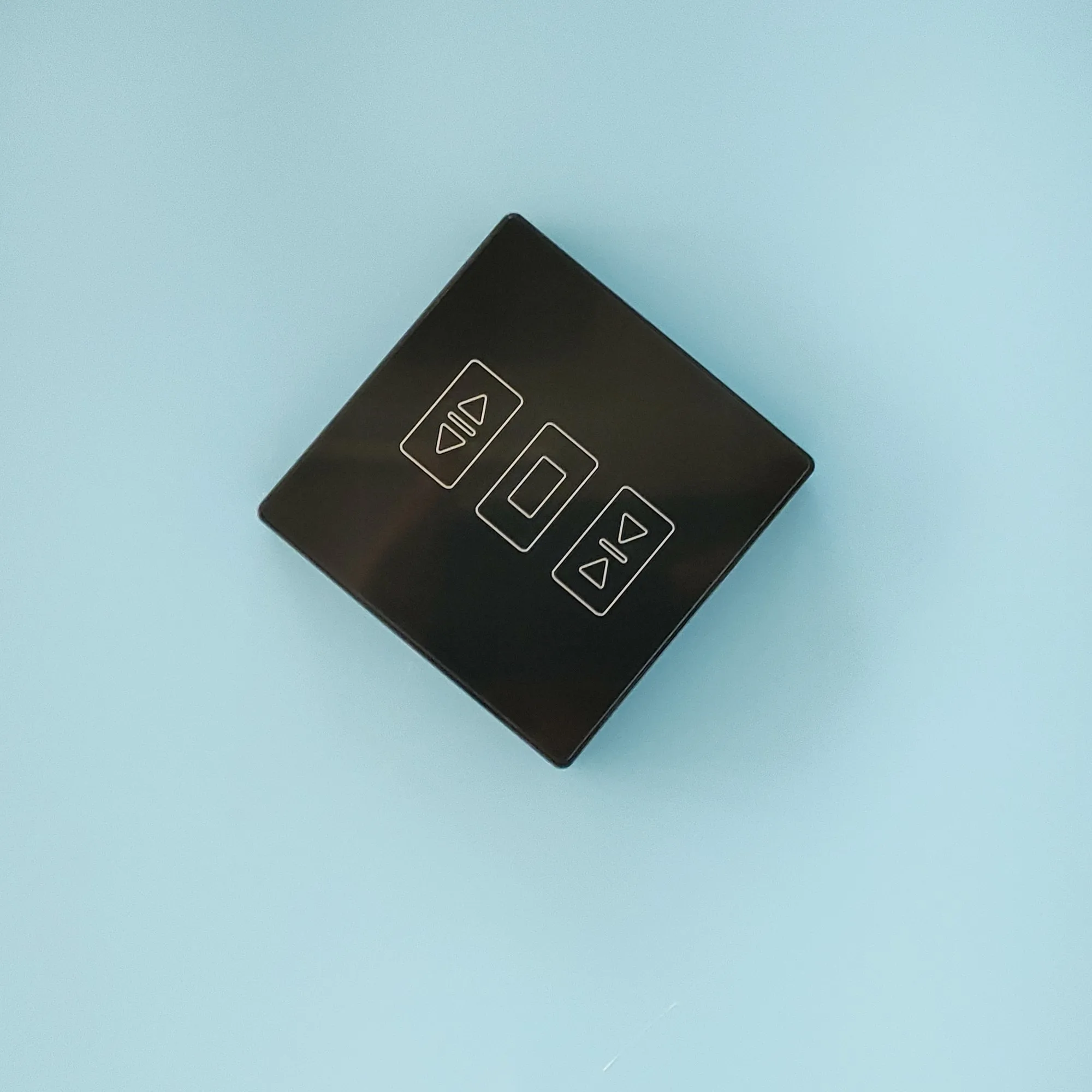

Дистанционные излучатели для штор KECO для двигателя штор и трубчатого двигателя для электрической системы штор и электрической системы для штор
11,50 $ - 12,50 $

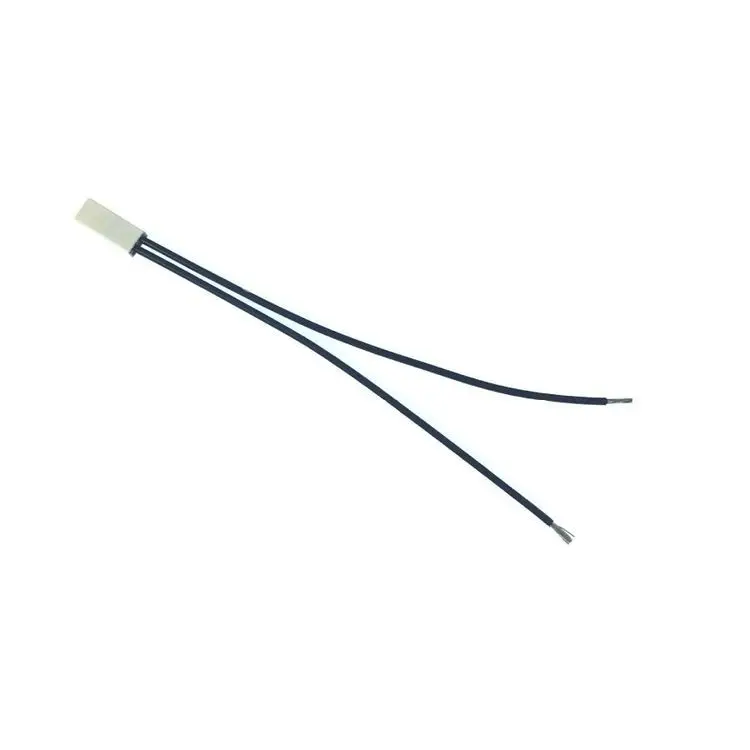

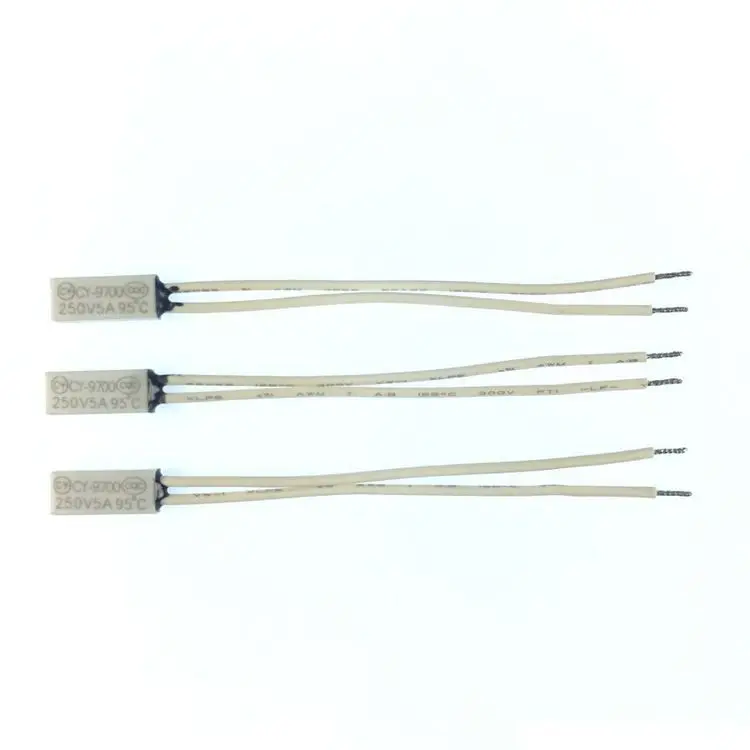

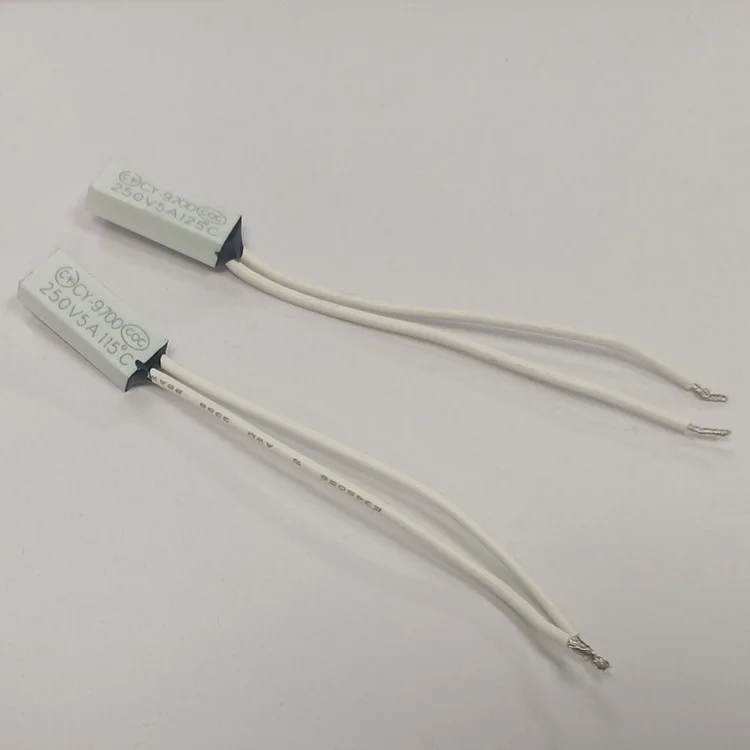

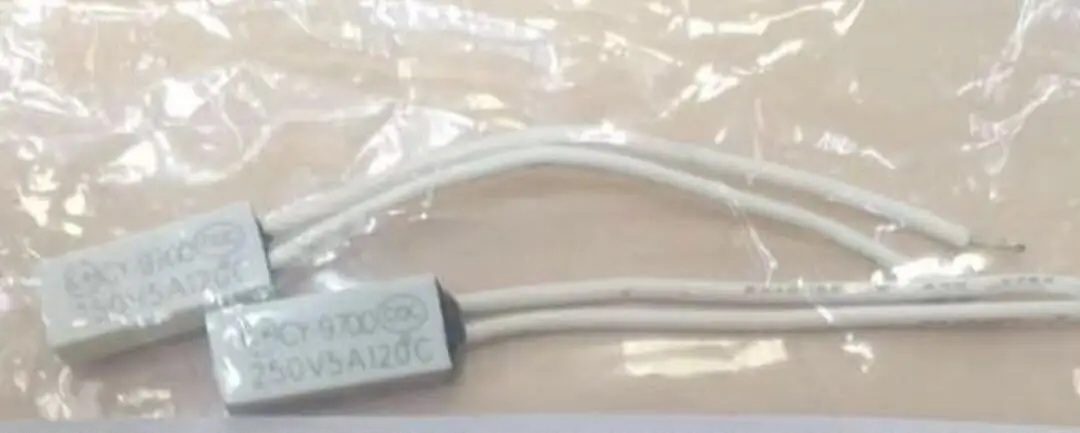

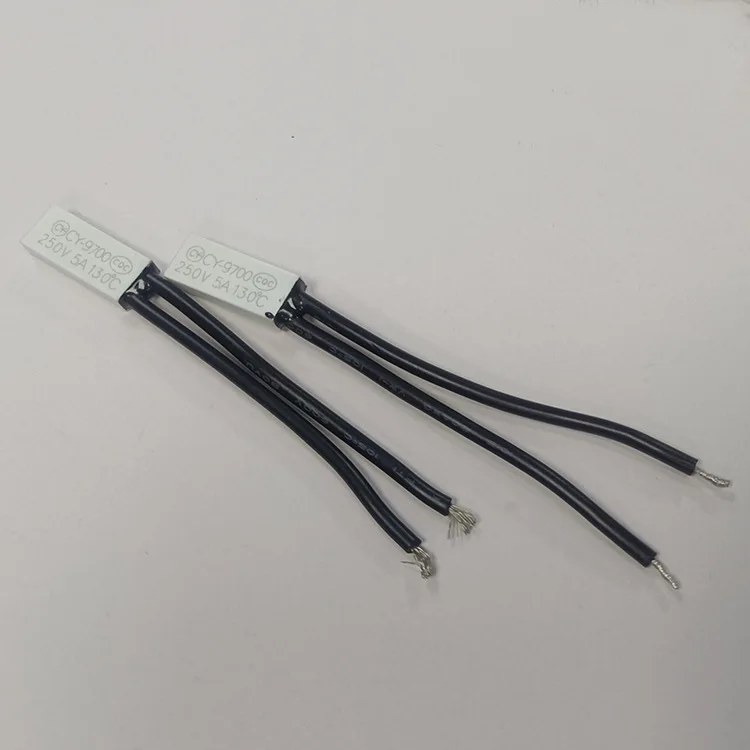

250 В 5A KSD9700 KSD 9700 биметаллический термостат регулятор температуры переключатель управления инкубатор
- Категория: >>>
- Поставщик: Dongguan Jianchang Hardware Products Co. Ltd.
Сохранить в закладки 1600814862776:
Описание и отзывы
Характеристики
Products Description
Plastic shell | 4.2mm × 8.0mm × 20.0mm |
Metal shell | 3.8mm × 7.4mm × 20.0mm |
Action temperature (OFF) | 135 ± 5 ℃ |
Reset temperature (ON) | 95 ± 15 ℃ |
Product Usage | The 9700 thermal protector has the characteristics of small size, insulated shell, sensitive action, and long service life. It is widely used for dual protection of overheating and overcurrent in horsepower motors, electric heating appliances, fluorescent lamp ballasts, transformers, automotive motors, integrated circuits, and general electrical equipment |
1.The 9700 series thermal protectors have the characteristics of small size, shell insulation, sensitive action, and long service life. They are widely used for the dual protection of overheating and overcurrent of various motors, induction cookers, vacuum cleaners, coils, transformers, heaters, ballasts, electric heating appliances, fluorescent lamp ballasts, automotive motors, integrated circuits, and general electrical equipment.
2. Structural features: The BW series thermal protector adopts a certain geometric shape of bimetallic sheets, without the need for auxiliary mechanisms. It relies solely on the self sensing and current thermal effects of the bimetallic sheets to quickly change the state of the bimetallic components, directly driving the contacts to automatically cut off and connect the electrical circuit, playing a role in overheating and overload protection.
2. Structural features: The BW series thermal protector adopts a certain geometric shape of bimetallic sheets, without the need for auxiliary mechanisms. It relies solely on the self sensing and current thermal effects of the bimetallic sheets to quickly change the state of the bimetallic components, directly driving the contacts to automatically cut off and connect the electrical circuit, playing a role in overheating and overload protection.
Product model | Operating temperature (℃) | Reset temperature (℃) | Product model | Operating temperature (℃) | Reset temperature (℃) | ||
BW-DCM(P)-50℃ | 50±5 | 30±8 | BW-DCM(P)-105℃ | 105±5 | 70±15 | ||
BW-DCM(P)-55℃ | 55±5 | 35±10 | BW-DCM(P)-110℃ | 110±5 | 75±15 | ||
BW-DCM(P)-60℃ | 60±5 | 40±10 | BW-DCM(P)-115℃ | 115±5 | 75±15 | ||
BW-DCM(P)-65℃ | 65±5 | 45±10 | BW-DCM(P)-120℃ | 120±5 | 80±15 | ||
BW-DCM(P)-70℃ | 70±5 | 45±15 | BW-DCM(P)-125℃ | 125±5 | 85±15 | ||
BW-DCM(P)-75℃ | 75±5 | 50±15 | BW-DCM(P)-130℃ | 130±5 | 90±15 | ||
BW-DCM(P)-80℃ | 80±5 | 55±15 | BW-DCM-135℃ | 135±5 | 95±15 | ||
BW-DCM(P)-85℃ | 85±5 | 55±15 | BW-DCM-140℃ | 140±5 | 100±15 | ||
BW-DCM(P)-90℃ | 90±5 | 60±15 | BW-DCM-145℃ | 145±5 | 105±15 | ||
BW-DCM(P)-95℃ | 95±5 | 65±15 | BW-DCM-150℃ | 150±5 | 110±15 | ||
BW-DCM(P)-100℃ | 100±5 | 65±15 | OEM&ODM | ||||
Company Profile
Production workshop
Production equipment
Our Advantages
Customized process
FAQ
Q1: Are you a factory or a trading company
A: We are a factory with 18 years of experience. We can guarantee that your price is first-hand, very cheap and competitive.
Q2: Are small orders below 100 units acceptable?
A: Yes, you can make a small order in the early stage.
Q3: I need a price list for all your products. Do you have a price list?
A: Sorry, we don't have a price list for all our products. "Because we have too many products with different attributes, we cannot list all the prices on the list.". And because of production costs, prices are always changing. If you want to check the prices of our products, please feel free to contact us. We will send you a quote soon!
Q4: I can't find a product on your website. Can you make this product for me?
A4: Our website shows some of our products, but not all of them. So just let us know what products you need and how many products you want. We can customize it for you.
Q5: Can you provide samples? Is the sample free of charge?
A: Yes, we can provide samples.Generally, we provide 1-3 free samples for testing or quality inspection. But you must pay for the freight. If you need many items, or require more quantities per item, we will charge a sample fee.
Q6: What is your delivery time?
A:Generally, it takes 7-10 days after receiving the advance payment. The specific delivery time depends on the item and quantity on your order.
A: We are a factory with 18 years of experience. We can guarantee that your price is first-hand, very cheap and competitive.
Q2: Are small orders below 100 units acceptable?
A: Yes, you can make a small order in the early stage.
Q3: I need a price list for all your products. Do you have a price list?
A: Sorry, we don't have a price list for all our products. "Because we have too many products with different attributes, we cannot list all the prices on the list.". And because of production costs, prices are always changing. If you want to check the prices of our products, please feel free to contact us. We will send you a quote soon!
Q4: I can't find a product on your website. Can you make this product for me?
A4: Our website shows some of our products, but not all of them. So just let us know what products you need and how many products you want. We can customize it for you.
Q5: Can you provide samples? Is the sample free of charge?
A: Yes, we can provide samples.Generally, we provide 1-3 free samples for testing or quality inspection. But you must pay for the freight. If you need many items, or require more quantities per item, we will charge a sample fee.
Q6: What is your delivery time?
A:Generally, it takes 7-10 days after receiving the advance payment. The specific delivery time depends on the item and quantity on your order.
Похожие товары

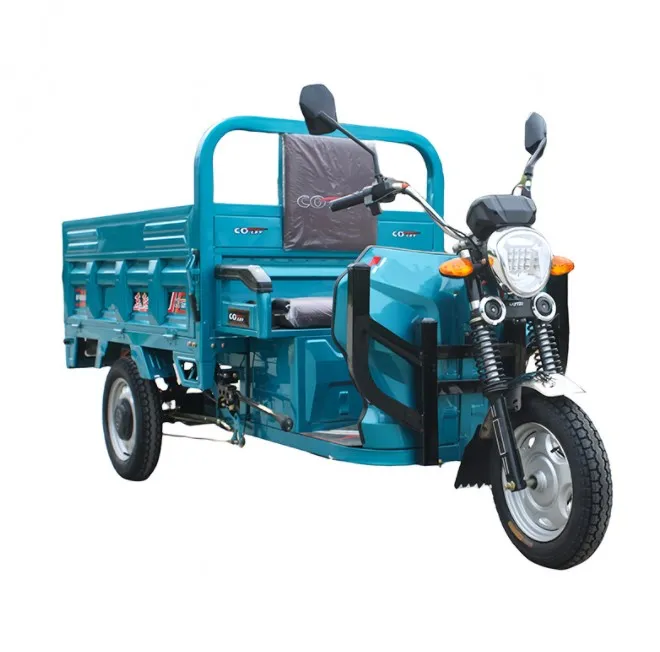

Электрические трехколесные велосипеды, бытовые перевозчики, сельскохозяйственные электрические скутеры, подъемные
1 500,00 $

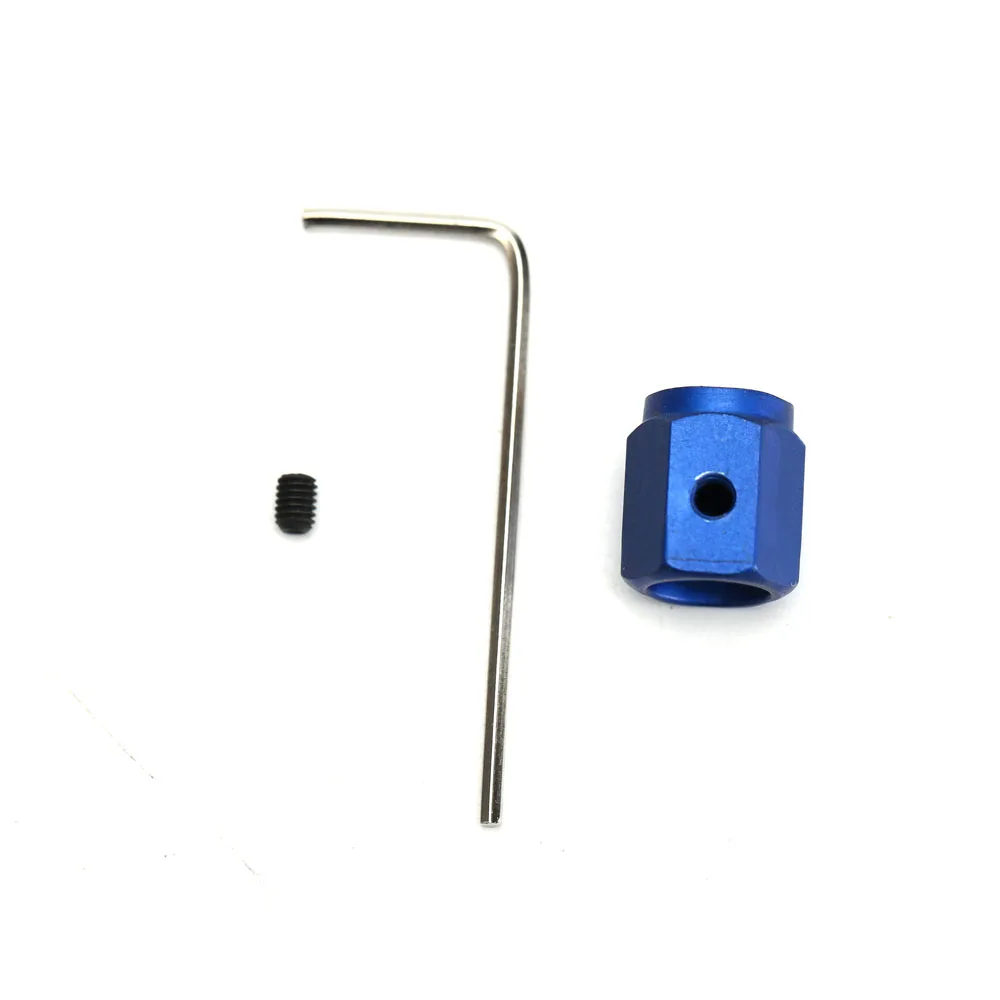

Колпачки для стержней клапанов автомобильных шин с замковым винтом и шестигранным ключом
0,30 $ - 1,00 $

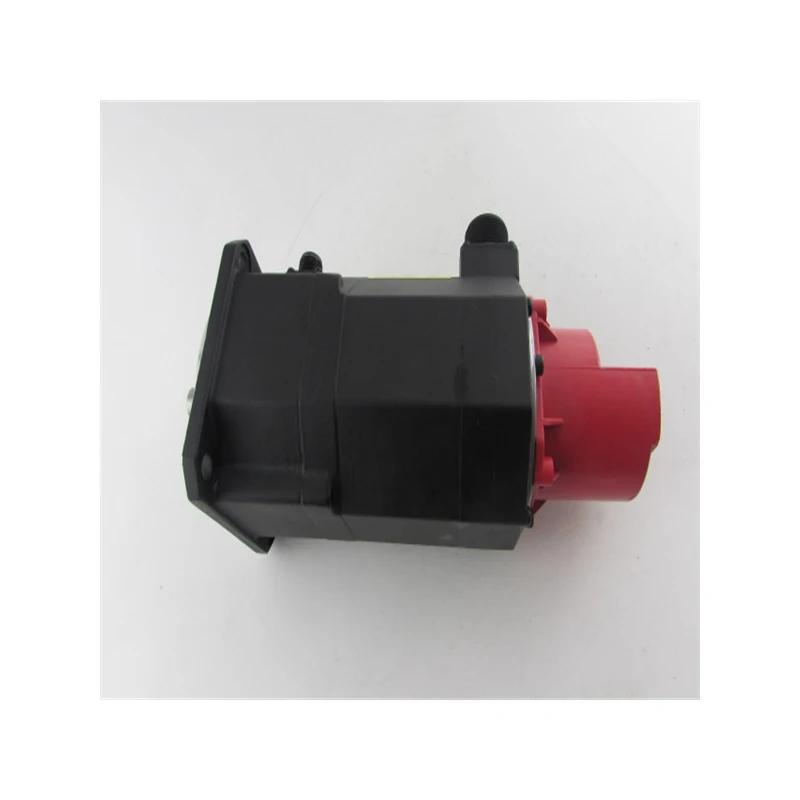

Fanuc Новый и оригинальный водитель серводвигателя A06B-0857-B190
1 306,80 $ - 1 742,40 $
Удивительная цена за 2022 г., 3D Пазлы «сделай сам», Обучающие сборные модели, игрушки для детей
10,12 $ - 11,56 $

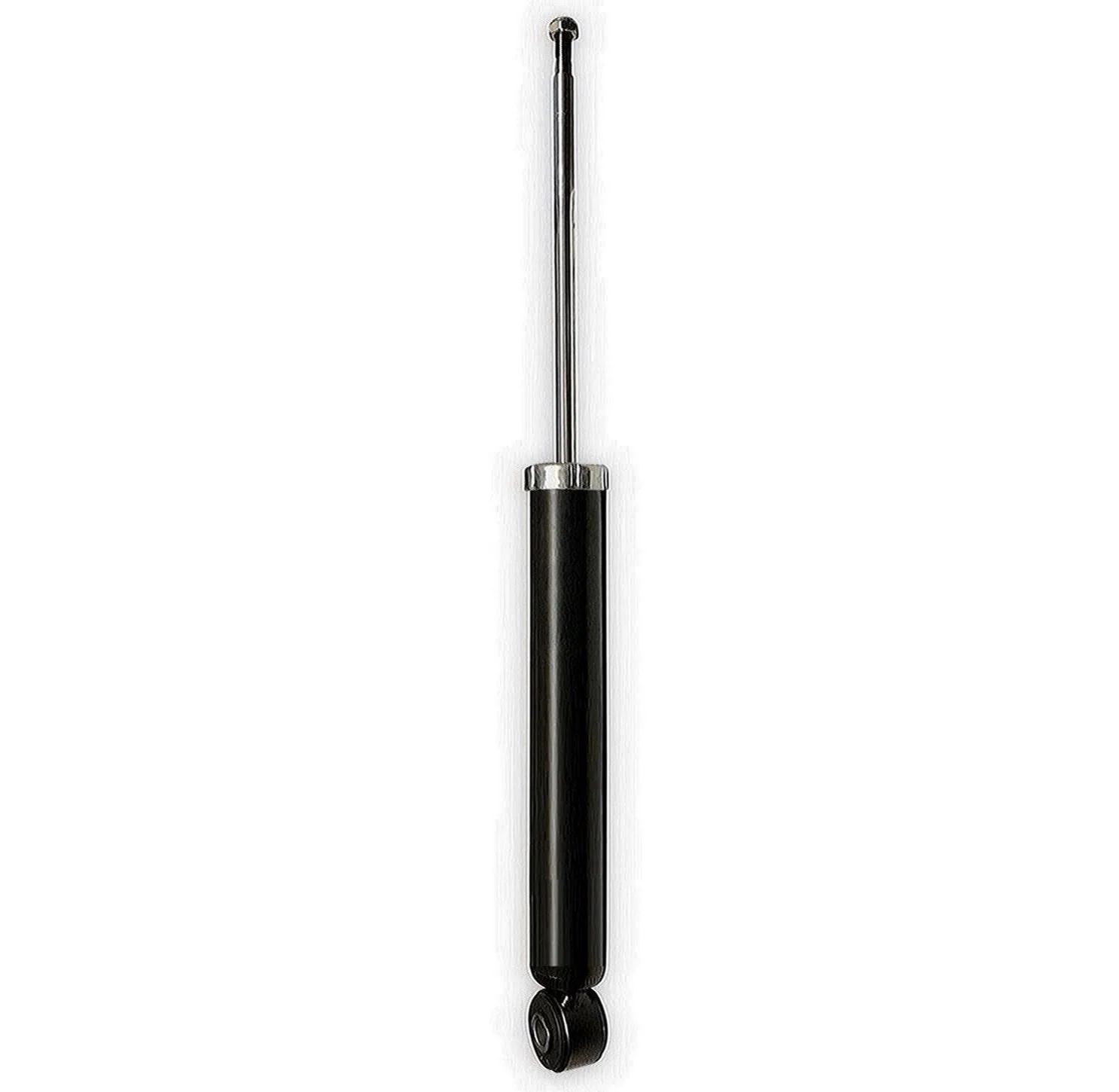

343348 автомобильные запчасти, задний амортизатор для Volkswagen Polo
Регулируемый ремешок с пряжкой быстросъемный браслет из пяти бусин для ювелирных изделий бриллиантовый iPhone серии Apple
4,50 $ - 5,50 $

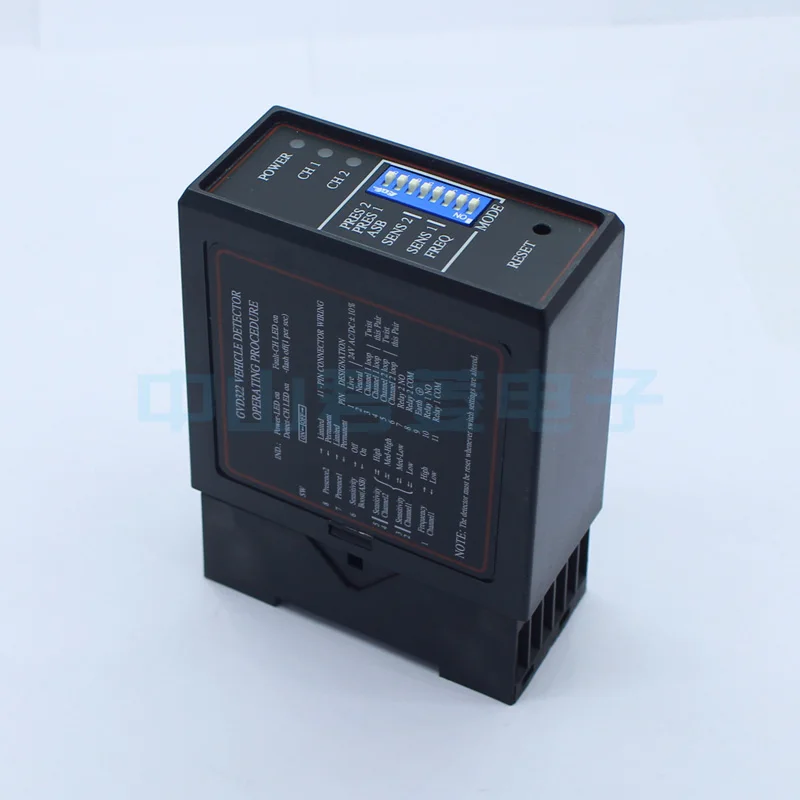

G-TEK двухканальный датчик обнаружения транспортного средства GVD301 GVD321 GVD302 оригинальный пятно
