Main Features
1). Large air suction volume, low power consumption.
2). Long service life of wear parts.
3). Each tank with air suction, slurry suction and flotation function does not need any accessory equipment to form flotation circle, which is convenient for process flow changing.
4). The reasonable slurry circulation minimizes coarse sand sediments, and is conducive to flotation of coarse particle.
5). Auto-control device of slurry volume, convenient adjustment.
6). Impeller with backward style upper and lower leaf, the upper blade generates upper circulation,the lower blade generates lower circulation.
7). Mechanical stirring, self- air suction, self-slurry suction.
2). Long service life of wear parts.
3). Each tank with air suction, slurry suction and flotation function does not need any accessory equipment to form flotation circle, which is convenient for process flow changing.
4). The reasonable slurry circulation minimizes coarse sand sediments, and is conducive to flotation of coarse particle.
5). Auto-control device of slurry volume, convenient adjustment.
6). Impeller with backward style upper and lower leaf, the upper blade generates upper circulation,the lower blade generates lower circulation.
7). Mechanical stirring, self- air suction, self-slurry suction.
Long Service Life Copper Refinery Plant 200 Tons Per Hour Raw Material Ore Extract Machine Lithium Ore Concentrate Plant In Peru
Jiangxi Henghong mining machinery is devoting to provide turnkey solution with worldwide clients for mineral processing plant including research, design, manufacture,installation and commissioning, personnel training, after-sale service and management of processing plant. Up to now, we have developed five major product lines: they are mining crushing machine, mining milling machine,mining classifying separator, mining flotation machine and the mining gravity separator. When you find us, you find one best mining machinery manufacturer.

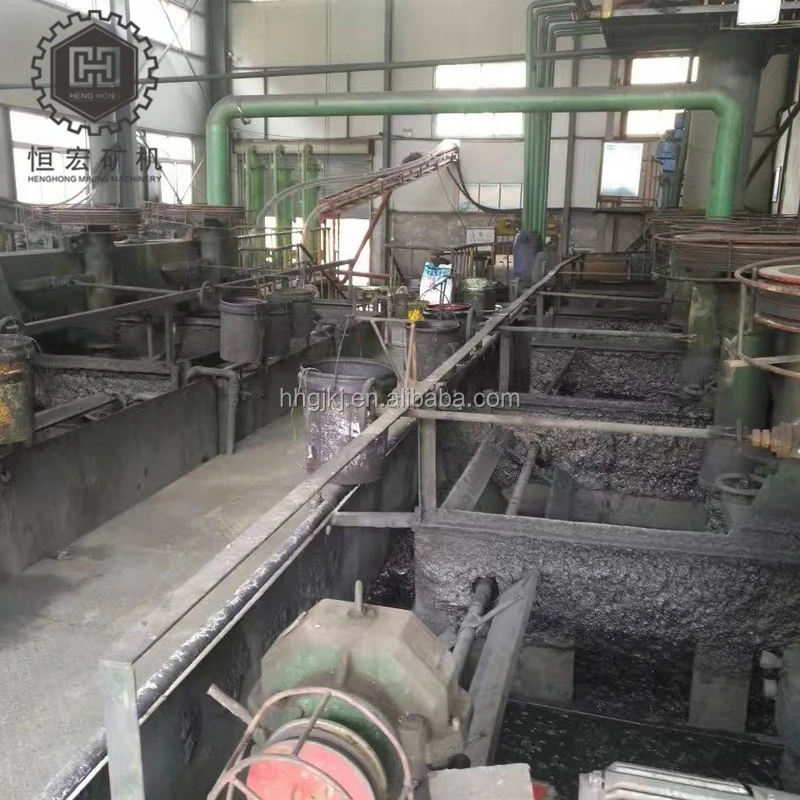

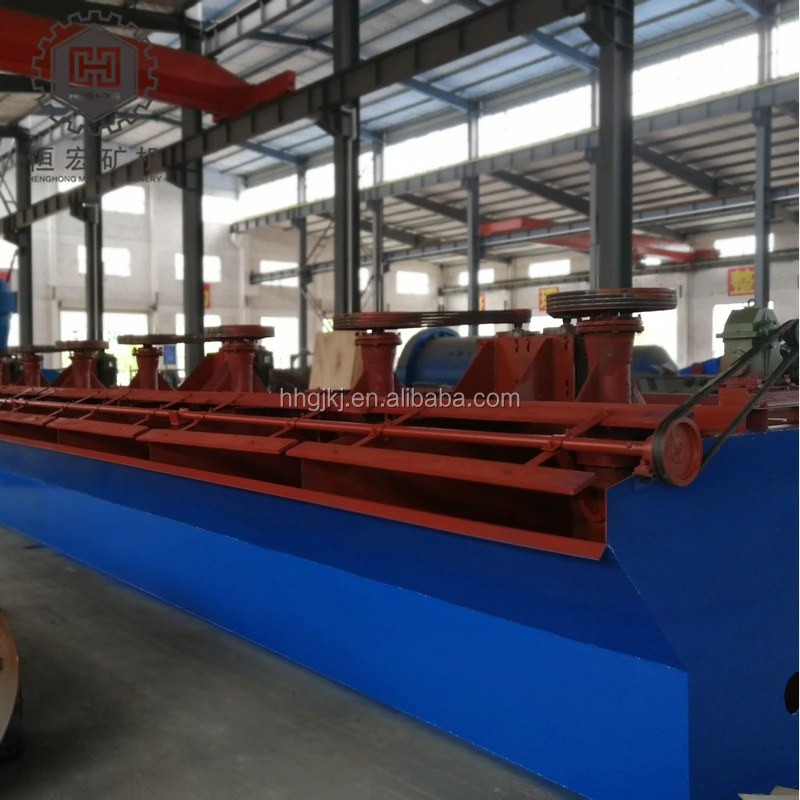

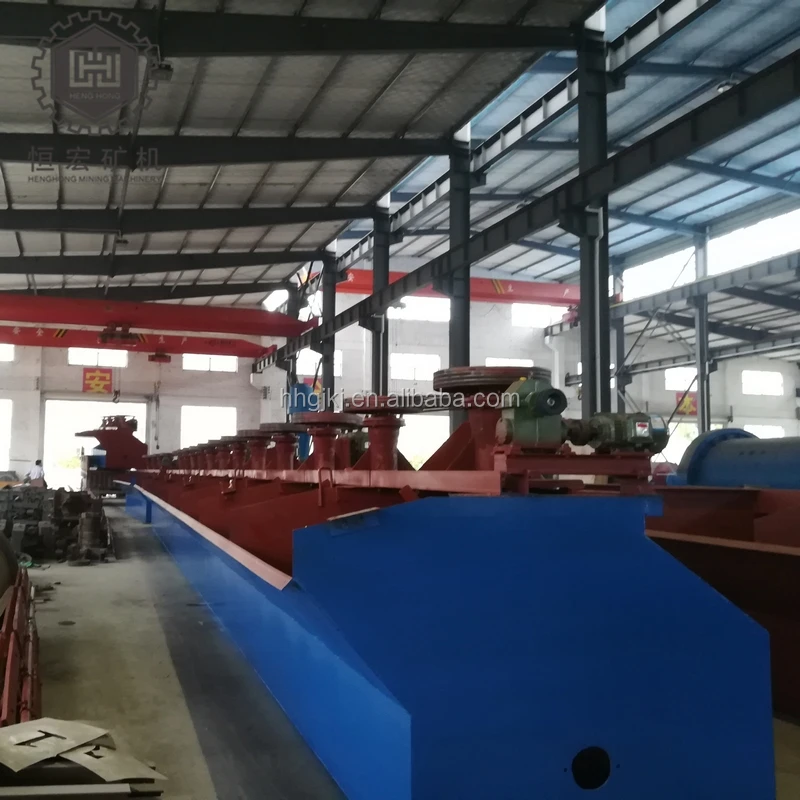

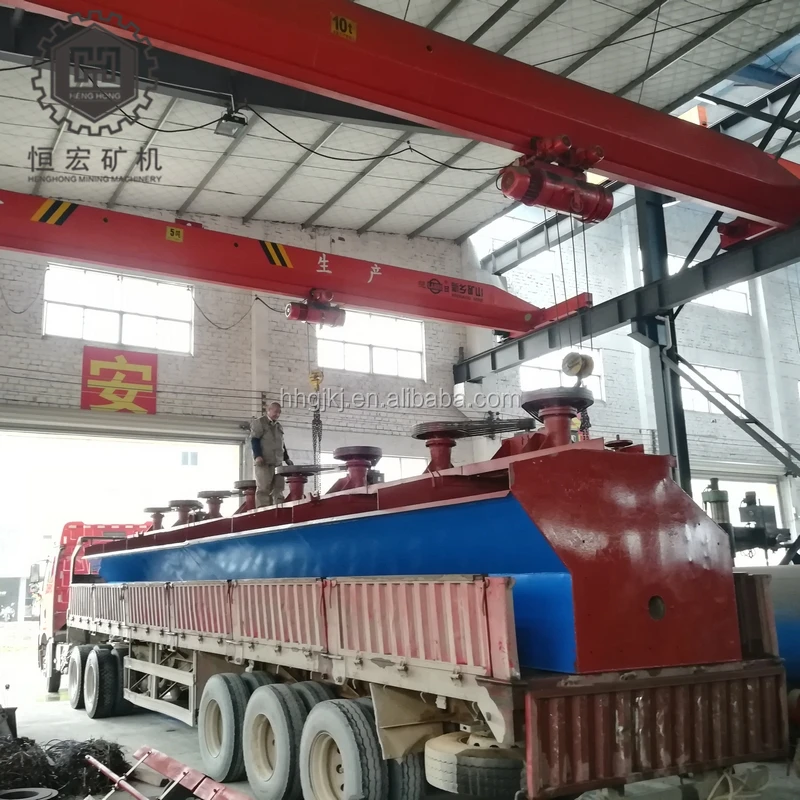

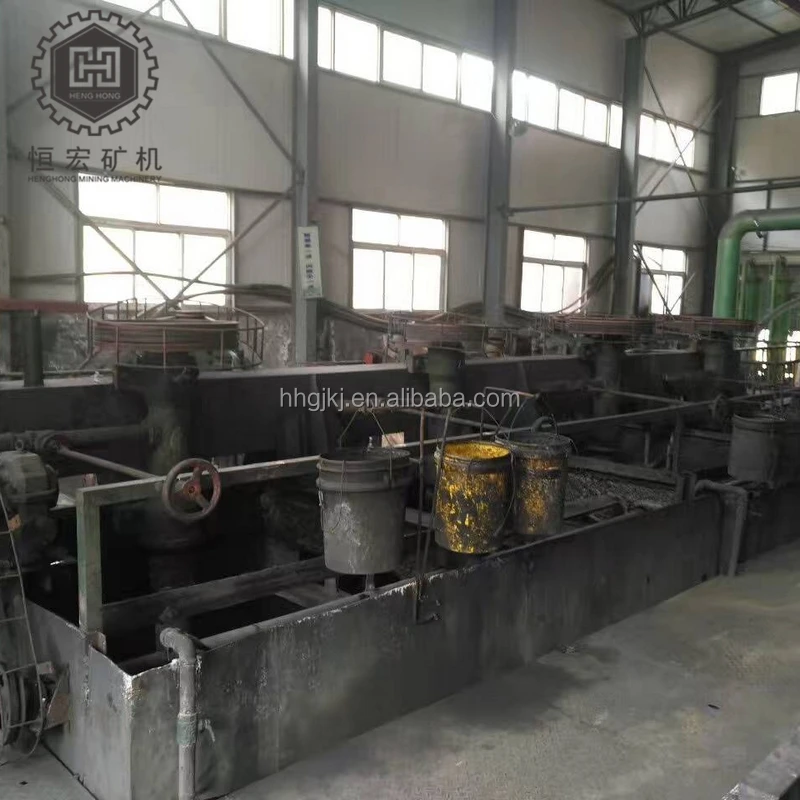

Flotation Separation Machine Introduction
XJK-1, XJK-2, XJK-4 are four cells and six cells as the basic cell. Two cells of the XJK-1 and XJK-2 as the motor body. XJK-3A,4A,5A and 6A are two cells, four cells and six cells as the basic cell. XJK-11 is one cell, two cells and four cells as the basic cell and combining some cells for the roughing, scavenging and cleaning concentration.
Application
Flotation Separator ,It is widely used for copper, lead, zinc, nickel, molybdenum, gold and other non-ferrous metals, ferrous metals and non-metallic minerals roughing, concentration and flotation operations. Especially for fine disseminated and complex composition ore, using this series flotation machine can get better separation effect.
Working Principle
The motor drives belt pulleys to make the impeller moving by triangle belt. One is to mix the air and pulp sufficient, the other side is to agitate the pulp with chemical reagents as well as thinning the bubbles. The ore particles stick on the bubbles by the chemical reagents and float to the surface of the pulp and then become the forth and scraped by the scrapper.
When the flotation machine is working, the inlet ore pipe feed the pulp to the center of the cover and then swi out the pulp by the revolving impeller of the centrifugal force. Meanwhile, there is a negative pressure zone in the space of the impeller and cover so air can be inhaled from the air inlet pipe automatically. The strong agitation of the impeller mixes the pulp and air sufficient and then be made to many small bubbles. The bubbles go up to the forth and be scrapped out to be forth product.
Model | Effective Volume (m3) | Diameter of impeller (mm) | Capacity (m3/min) | Impeller rotation (r/min) | Scrapper Rotation (r/min) | Impeller motor （kw） | Scrapper motor (kw) | Weight of each cell (Kg) |
XJK-0.13 | 0.13 | 200 | 0.05-0.16 | 600 | 17.5 | 1.5 | 0.55 | 0.35 |
XJK-0.23 | 0.23 | 250 | 0.12-0.28 | 500 | 17.5 | 1.5 | 0.55 | 0.41 |
XJK-0.35 | 0.35 | 300 | 0.15-0.5 | 470 | 17.5 | 2.2 | 0.55 | 0.45 |
XJK-0.62 | 0.62 | 350 | 0.3-0.9 | 400 | 16 | 3 | 1.1 | 0.85 |
XJK-1.1 | 1.1 | 500 | 0.6-1.6 | 330 | 26 | 5.5 | 1.1 | 1.24 |
XJK-2.8 | 2.8 | 600 | 15-3.5 | 280 | 26 | 11 | 1.1 | 2.43 |
Q:1.What is your machine used for ?
A: Our Flotation Separation machine is widely used for separating non-ferrous metal, black metal, noble metal, non-metal mineral,raw body and materials of chemical industry, which are subject to coarse separation, swept separation, fine separation and flotation, so the useful ore are reclaimed.
Q: 2.Are you factory or trade company?
A: Yes dear,we are the Professional manufacturer from 1985.So we could give you original factory price than those trade companies.
We're also warmly welcome your Visiting our factory if you are coming to China.Please Call at +86-18870736160
Q: 3.Can I operate it well, if I have no experience?
A: Do not worry! Our machines is designed to use easily.You are welcome to visit our company to be trained here,And we could arrange the engineer to go to your country/company to train your workers directly as your requested and the relative travel cost will be on your account.
Q:4.Can you send me the video to show how the machine works?
A: Surely.we have made video of every machine,so if you need we can send for you to checking in clearly.
Q:5. What should I take care when using the machine?
A: Please using the machine in regular and Keeping the machine away from thinner and other chemical liquid.
Q:6.How about the service of your company?
A:24Hours Online service.all machines have one year warranty and Wholelife Technology support to make sure your machine work well.
Q:7.How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to
quantity.
Q:8 What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
Q: 9.What's Information we need from your side ?
A: What kind of ore do you want to process ? The Capacity per hour do you need ? and the Max feeding size of your material ?
A: Our Flotation Separation machine is widely used for separating non-ferrous metal, black metal, noble metal, non-metal mineral,raw body and materials of chemical industry, which are subject to coarse separation, swept separation, fine separation and flotation, so the useful ore are reclaimed.
Q: 2.Are you factory or trade company?
A: Yes dear,we are the Professional manufacturer from 1985.So we could give you original factory price than those trade companies.
We're also warmly welcome your Visiting our factory if you are coming to China.Please Call at +86-18870736160
Q: 3.Can I operate it well, if I have no experience?
A: Do not worry! Our machines is designed to use easily.You are welcome to visit our company to be trained here,And we could arrange the engineer to go to your country/company to train your workers directly as your requested and the relative travel cost will be on your account.
Q:4.Can you send me the video to show how the machine works?
A: Surely.we have made video of every machine,so if you need we can send for you to checking in clearly.
Q:5. What should I take care when using the machine?
A: Please using the machine in regular and Keeping the machine away from thinner and other chemical liquid.
Q:6.How about the service of your company?
A:24Hours Online service.all machines have one year warranty and Wholelife Technology support to make sure your machine work well.
Q:7.How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to
quantity.
Q:8 What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
Q: 9.What's Information we need from your side ?
A: What kind of ore do you want to process ? The Capacity per hour do you need ? and the Max feeding size of your material ?
For more details,please feel freely to send Inquiry,We will give 100% positive responses.
