Прямая Продажа с завода OEM высокое качество домашняя солнечная система низковольтный инвертор ip65 20 кВт 10 гибридный

Прямая Продажа с завода OEM высокое качество домашняя солнечная система низковольтный инвертор ip65 20 кВт 10 гибридный

Категория: >>>
Поставщик: Amensolar Ess Co. ltdAmensolar ltd

Цена:205 261,69-228 221,61 ₽*

Количество:

В избранное

Описание и отзывы

Характеристики

Products Description

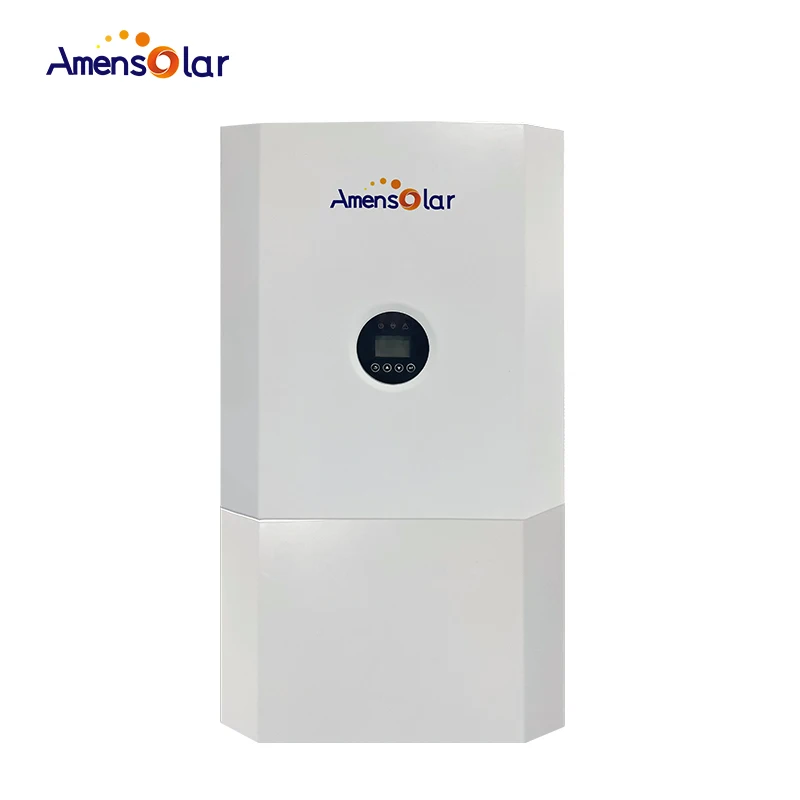

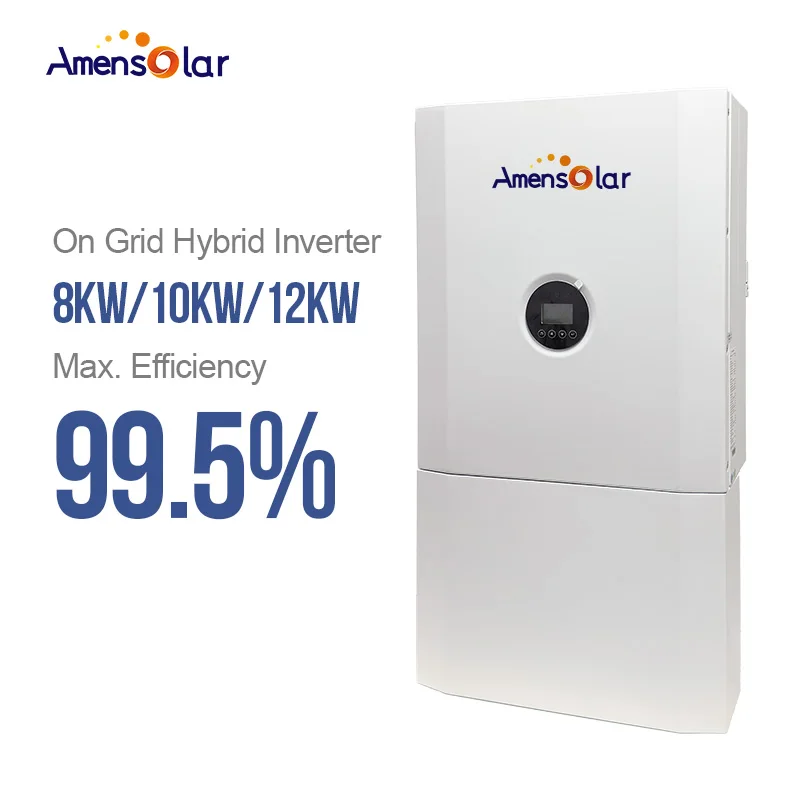

Amensolar HYBRID 220/240V ON/OFF GRID INVERTER

◆Three Phase Hybrid Inverter
◆44~58V low-voltage batteries
◆Zero export application,VSG application
◆Solarman APP Remote Monitoring for IOS and Android

◆5 Years Warranty

Product Paramenters

Model

N3H-A8.0

N3H-A10.0

N3H-A12.0

INPUT(PV)

Max. DC voltage (V)

1100

MPPT voltage range (V)

140~1000

MPPT voltage range (full load)

380~850 Vd.c

420~850 Vd.c

480~850 Vd.c

Maximum input current

2*15 Ad.c

Battery input/output parameter

Battery type

Lithium or lead-acid

Input voltage range

40~58

Rated voltage

51.2Vd.c.

Maximum input/output voltage

58

Maximum charging current

160 Ad.c.

Maximum charging power

8000 W

Maximum discharging current

160 Ad.c.160 Ad.c.

200 Ad.c

Maximum discharging power

8000 W

10000 W

Grid parameter

Rated input/output voltage

3/N/PE, 230/400 Va.c.

Rated input/output frequency

50 Hz

Maximum input current

25 Aa.c.

Maximum input active power

16000 W

17800 W

Maximum input apparent power

16000 VA

17800 VA

^{Maximum input active power from grid to battery}

_{8600 W}

Rated output current

11.6 Aa.c.

14.5 Aa.c.

17.4 Aa.c

Maximum continuous output current

12.8 Aa.c.

16.0 Aa.c.

19.2 Aa.c.

Rated output active power

8000 W

10000 W

12000 W

Maximum output apparent power

8800 VA

11000 VA

13200 VA

^{Maximum output active power from battery to grid (without PV input)}

_{7500 W}

_{9300 W}

Power factor

0.9 leading~0.9 lagging

Backup terminal parameter

Rated output voltage

3/N/PE, 230/400 Va.c.

Rated output frequency

50 Hz

Rated output current

10.7 Aa.c

13.3 Aa.c

Maximum continuous output current

11.6 Aa.c.

14.5 Aa.c.

Rated output active power

7360 W

9200 W

Maximum output apparent power

8000 VA

10000 VA

Certifications and Standards

Certifications and Standards

VDE 0126, AS4777, NRS2017, G98, G99, IEC61683, IEC62116, IEC61727, RD1699: 2011, XP C15-712-3, CEI 0-21

Safety Regulation

IEC62109-1, IEC62109-2

EMC

EN61000-6-1, EN61000-6-3

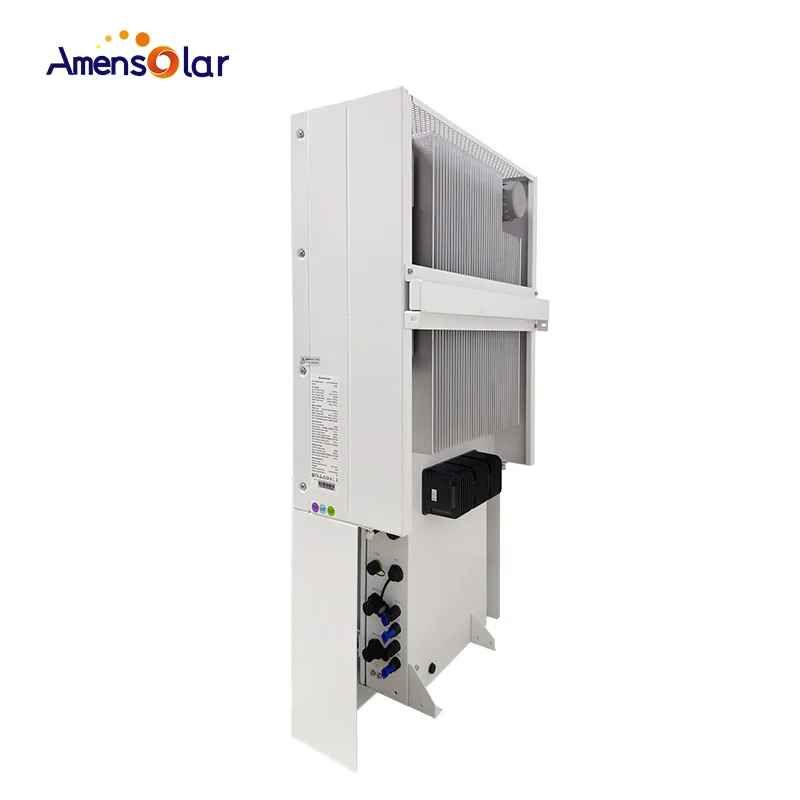

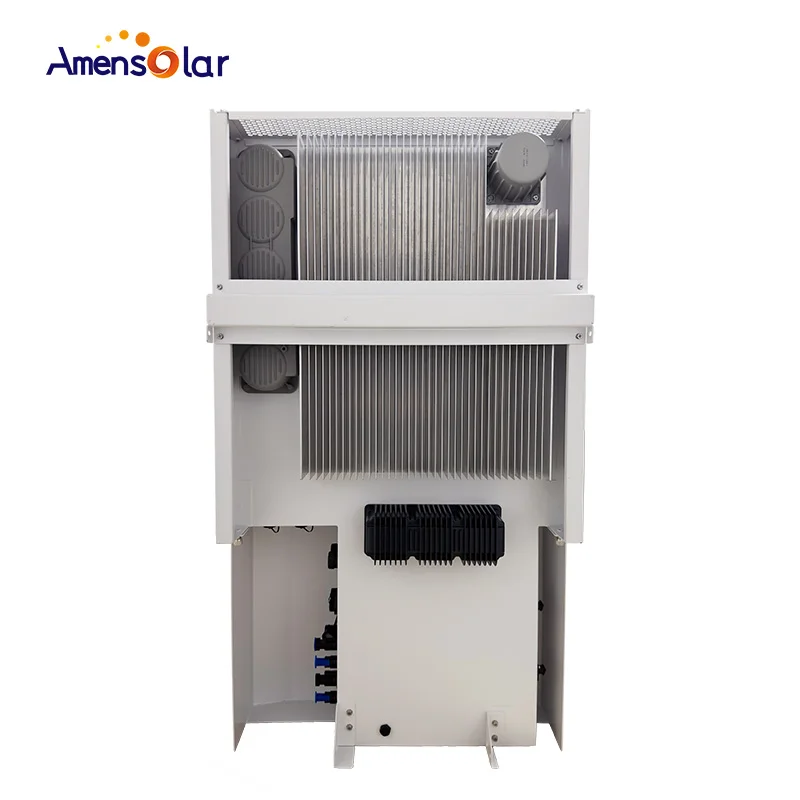

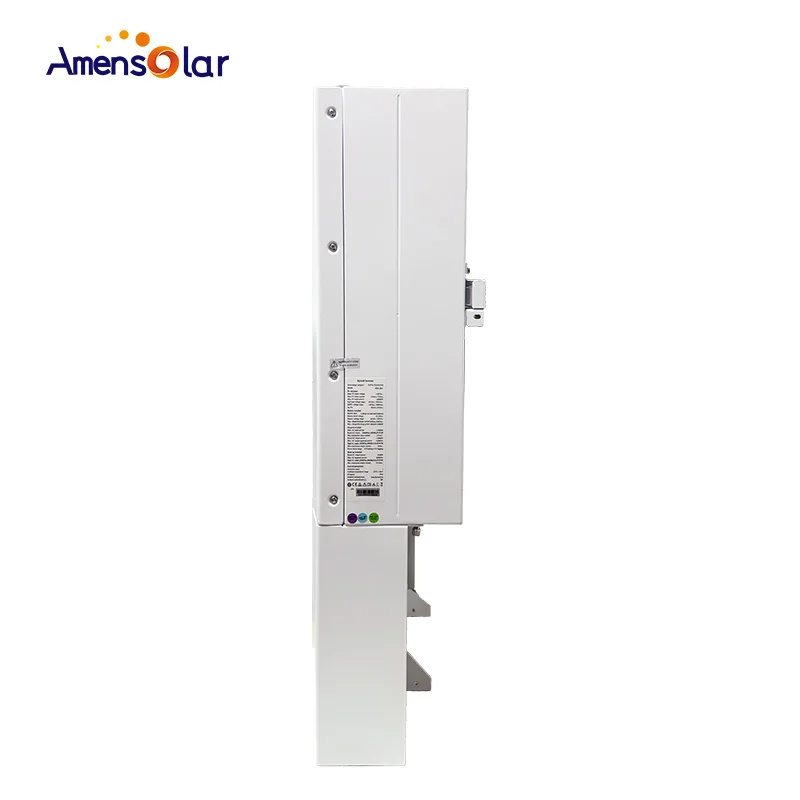

Inverter Details

Certificate

Customer Cases

About us

About Amensolar

Amensolar ESS Co, Ltd., located in Suzhou, an international manufacturing city in the center of the Yangtze River Delta, is a high-tech photovoltaic enterprise integrating R & D, production and sales. Holding the concept of "Focusing on quality, technology upgrading, customers' demand and professional service" Amensolar has become the strategic partner with many famous solar energy
companies in the world.

Amensolar's main products include solar photovoltaic energy storage inverters, energy storage battery systems, etc, and Amensolar provides the services of system design, project construction and maintenance, and third-party operation and maintenance.
