Тонкопленочный фотогальванический стекло для производства солнечной энергии Теллурид
- Категория: >>>
- Поставщик: Qingdao Vatti Glass Co. LtdQingdao Ltd
Сохранить в закладки 1600816778733:
Описание и отзывы
Характеристики
Product Description

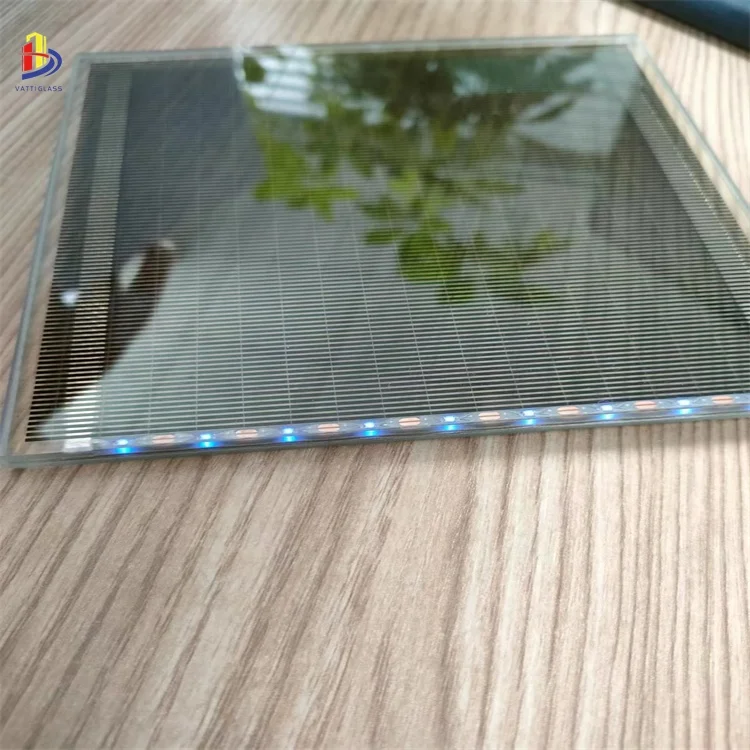

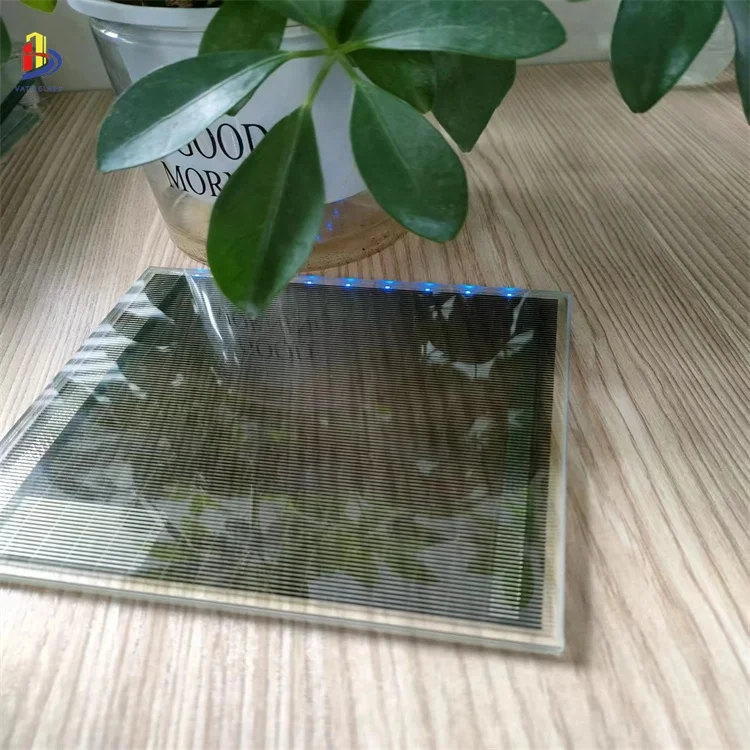

Cadmium telluride power generation glass is a photovoltaic device formed by sequentially depositing 5 layers of semiconductor thin films on a glass substrate, with a total film thickness of 3 μ m. Equivalent to 1/100 of the diameter of a hair strand. Cadmium telluride power generation glass is a "one material, multiple energy", green, energy-saving, and energy generating building material. It has strong power generation capacity (3%~8% higher than monocrystalline silicon power generation), high conversion efficiency (theoretical conversion rate of 33%), low temperature coefficient (least affected by temperature), good weak light power generation performance (can generate electricity even in cloudy and rainy days), small installation angle influence (free installation angle), high stability (strong adaptability to the environment) Low heat spot effect (less heat generated by being covered by leaves and dust, A-level fire protection), making it very suitable for use in distributed, modular, and integrated green buildings.
CdTe cadmium tellurium thin film solar cells solar glass BIPV panel for building

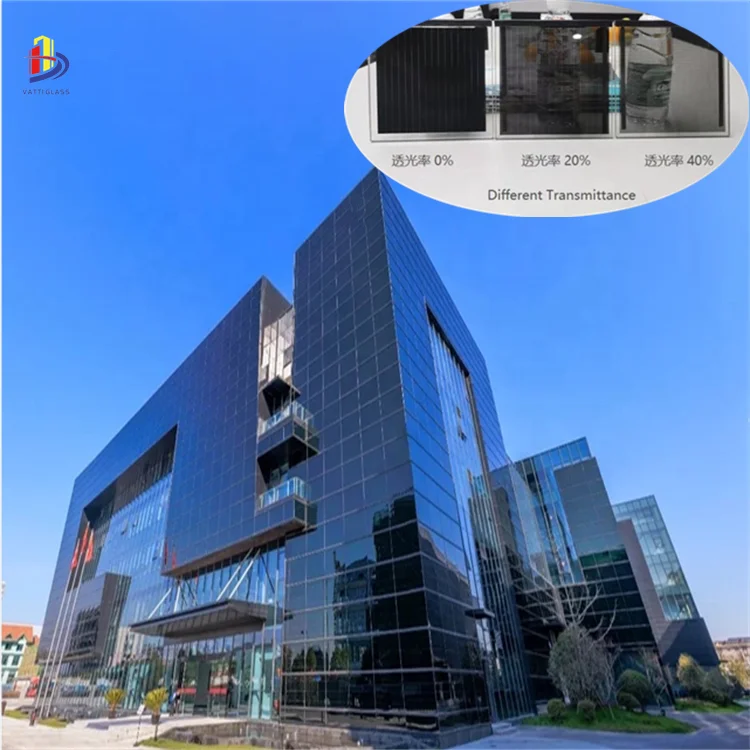

New energy solar glass
Transmittance 0%
Transmittance 20%
Transmittance 40%
Different transmittance are possible
Different colors are possible
Installation method
Product Feature
1. High absorption coefficient
2. Low hot spot effect
3. Good weak light effect
4. High aesthetics
5. Strong customizability,
It can be flexibly applied to various building structures such as roofs and curtain walls, and maximize the use of the building's surface to increase the effective power generation area, meet the power generation needs of multi angle buildings, and ultimately reduce building carbon emissions from the source!
2. Low hot spot effect
3. Good weak light effect
4. High aesthetics
5. Strong customizability,
It can be flexibly applied to various building structures such as roofs and curtain walls, and maximize the use of the building's surface to increase the effective power generation area, meet the power generation needs of multi angle buildings, and ultimately reduce building carbon emissions from the source!
Product name | New energy solar glass/BIPV/Cadmium telluride Solar glass |
Function | Heat insulation,energy saving,safety,decoration,etc |
Application | Curtain wall, sunlight room, factory building, roof, doors and windows, power station, parking and charging shed, vegetable greenhouse, breeding farm,etc |
Thickness | 6.8mm,16.2mm,36.2mm,etc |
Power | 50-300Wp |
Transmittance | 0%-50% |
Size | 1200*600mm,1200*1200mm,1200*1600mm,1200*1800mm,1200*2400mm,1200*3000mm,etc |
Edge | Grinding or polishing |
Glass material | Float glass,ultra clear glass,low-e glass,etc |
Interlayer type | EVA film,PVB film,SGP film,etc |
Color | Clear or color |
Pattern | Available |
Drilling | Available |
Irregular shape | Available |
Certificated | ISO 9001 |
Application scenarios
BIPV Classic style
Transmittance(Tr):0-50%
Power(Wp):50-300
Size(mm):1200*600/1200*1200/1200*1800
Structure:5+1.52PVB+3.2CdTe+1.52PVB+5
Frameless design, better integrated with architecture, widely used, easy to install, customizable in size, suitable for building curtain walls, daylighting roofs, sunlight rooms, etc
Transmittance(Tr):0-50%
Power(Wp):50-300
Size(mm):1200*600/1200*1200/1200*1800
Structure:5+1.52PVB+3.2CdTe+1.52PVB+5
Frameless design, better integrated with architecture, widely used, easy to install, customizable in size, suitable for building curtain walls, daylighting roofs, sunlight rooms, etc
Hollow power generation glass
Transmittance(Tr):0-50%
Power(Wp):50-300
Size(mm):1200*600/1200*1200/1200*1800
Power(Wp):50-300
Size(mm):1200*600/1200*1200/1200*1800
U-value(W/m²·K):1~1.8
Shading Coefficient(Sc):0.2~0.6
Structure:6+1.52PVB+3.2CdTe+1.52PVB+6 clear glass with double silver Low-E+12A+6
High efficiency CdTe power generation glass chip is adopted, and the hollow structure effectively reduces the heat transfer coefficient. Combined with Low-E, the Sc value and U value are lower, and the laminated structure increases the sound insulation effect
Structure:6+1.52PVB+3.2CdTe+1.52PVB+6 clear glass with double silver Low-E+12A+6
High efficiency CdTe power generation glass chip is adopted, and the hollow structure effectively reduces the heat transfer coefficient. Combined with Low-E, the Sc value and U value are lower, and the laminated structure increases the sound insulation effect

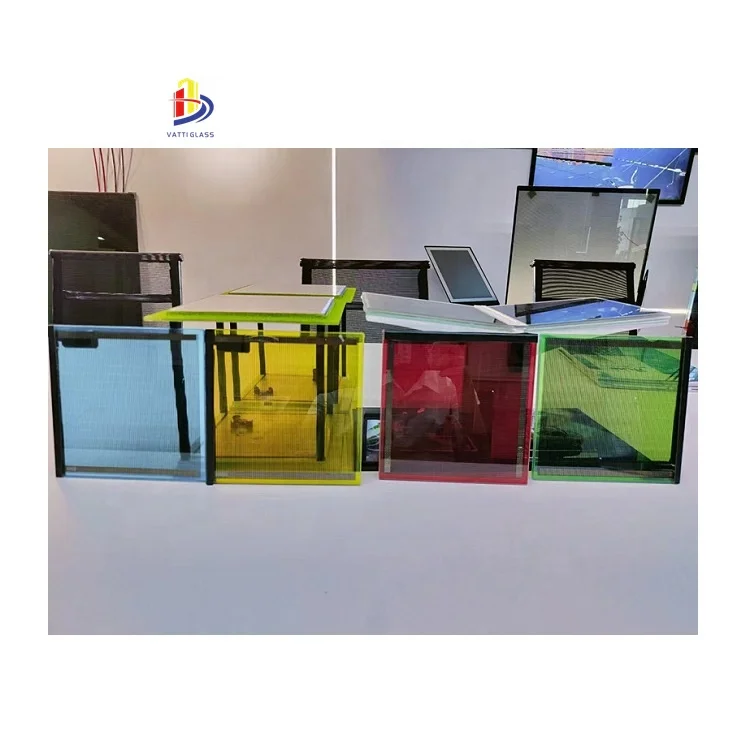

Colored power generation glass
Power(Wp):50-300
Size(mm):1200*600/1200*1200/1200*1800
Structure:5+1.52PVB+3.2CdTe+1.52PVB+5
Size(mm):1200*600/1200*1200/1200*1800
Structure:5+1.52PVB+3.2CdTe+1.52PVB+5
According to the requirements of the building facade
Customized colors can be achieved through various methods such as sanding, coating, colored PVB, and glaze,
Applied to facades, guardrails, and window walls, it can be perfectly matched with aluminum panels, stones, and other materials.
Customized colors can be achieved through various methods such as sanding, coating, colored PVB, and glaze,
Applied to facades, guardrails, and window walls, it can be perfectly matched with aluminum panels, stones, and other materials.
Edge, corner and hole display
2 Smooth and flat edges
3 Customizable shape
4 Drilling holes are possible
5 Surface effect can be customized
6 Other requirements besed on needs of every customer
Certificate
What is laminated glass?
Laminated glass is a composite glass product that consists of two or more pieces of glass with one or more layers of organic polymer intermediate film sandwiched between them. After special high-temperature preloading (or vacuum pumping) and high-temperature and high-pressure processing, the glass and the intermediate film * are bonded into one. Laminated glass has good permeability, high mechanical strength, light resistance, heat resistance, cold resistance,good impact resistance and safety performance when broken. When the laminated glass is impacted and broken, the fragments still stand firmly on the interlayer,which is not easy to hurt people!
Laminated glass is a composite glass product that consists of two or more pieces of glass with one or more layers of organic polymer intermediate film sandwiched between them. After special high-temperature preloading (or vacuum pumping) and high-temperature and high-pressure processing, the glass and the intermediate film * are bonded into one. Laminated glass has good permeability, high mechanical strength, light resistance, heat resistance, cold resistance,good impact resistance and safety performance when broken. When the laminated glass is impacted and broken, the fragments still stand firmly on the interlayer,which is not easy to hurt people!
Advantages of laminated glass
1) High safety performance
2) High mechanical strength
3) Able to filter ultraviolet light
4) Good sound insulation effect
5) Heat resistance
6) Cold resistance
5) Heat resistance
6) Cold resistance
Laminated glass applications
Laminated glass is not easy to be broken, even if it is broken, it will not fall,remain as a whole.Because of its excellent properties, laminated glass as one of safety glass is used in many fields of our live,mainly curtain wall,door,window,floor,stair,balustrade,
shower room,walkway road,partition,bank,submarine,showcase,car,sunroom,green house,swimming pool,etc.
Packing & Delivery
Shipping
1) 30% deposit and 70% before shipping, FOB Qingdao Port.
2) For small quantities, you can choose DHL or FedEx. It is safe and fast. We have a good rate with them. Please contact us for rates.
3) Ocean shipment is economical for big quantity.
4) We can also help custom clearance at destination port and deliver goods to your warehouse or office.And the cost is extra.
1) 30% deposit and 70% before shipping, FOB Qingdao Port.
2) For small quantities, you can choose DHL or FedEx. It is safe and fast. We have a good rate with them. Please contact us for rates.
3) Ocean shipment is economical for big quantity.
4) We can also help custom clearance at destination port and deliver goods to your warehouse or office.And the cost is extra.

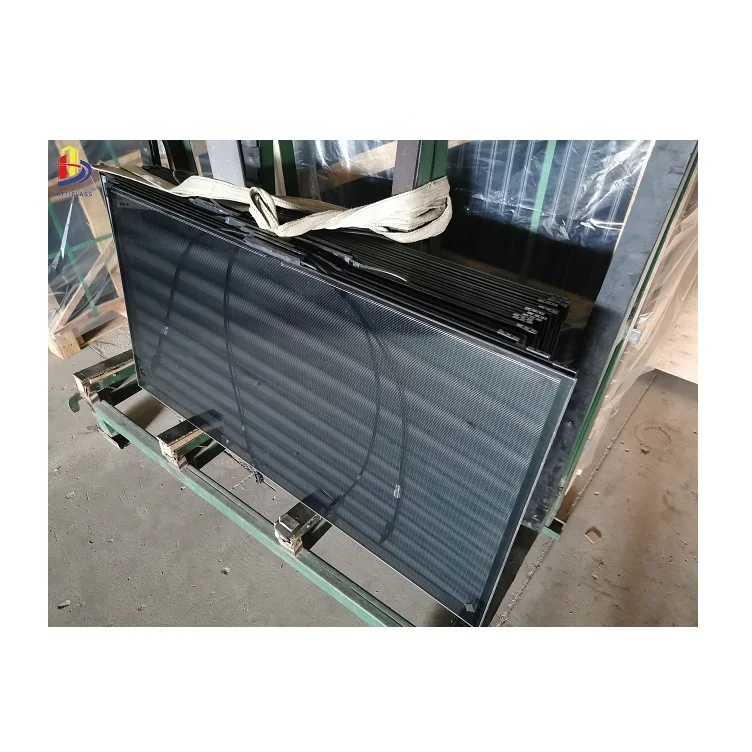

Packing
2) Wooden boxes suitable for air and sea transportation.
Company Profile
1) Rich production experience:
Qingdao Vatti Glass Co.,Ltd established in 1998, is a professional glass manufacturer and supplier with more than 16 years experience,dealing with Laminated Glass,Bulletproof Glass,Tempered Glass,Insulating Glass,Borosilicate Glass,Ceramic Glass,Heat-resistant Glass,Aluminosilicate Glass,Anti-glare Glass,Anti-reflective glass,Glass Tube,Sight Glass,Solar PV Glass,Quartz glass, Furniture glass Series,Art Glass Series, Tinted Glass and so on.
2) Satisfying Clients' Requirements with Best Abilities:
We have our own factory and warehouse with advanced imported equipment, most valuable professional talents and strict quality control system,with such resources, we promise to satisfy customer's request with our best capabilities.
3) Order follow up:
We will have special personnel to ensure the confirmation of every order, production, quality testing,delivery, after-sales and so on every link.
4) Enjoying Convenient Transportation:
We are located in Qingdao City,only 40 kms away from Qingdao port and 20 kms away from Jiaodong International airport, which is very convenient for both sea and air transportation.
5) Business Presence Worldwide:
We export to clients in more than 90 countries in North and South America, Europe, Oceania,the Middle East, Africa, and Southeast Asia,our products have been widely recognized by customers, and maintain a very good cooperative relationship with customers.
Qingdao Vatti Glass Co.,Ltd established in 1998, is a professional glass manufacturer and supplier with more than 16 years experience,dealing with Laminated Glass,Bulletproof Glass,Tempered Glass,Insulating Glass,Borosilicate Glass,Ceramic Glass,Heat-resistant Glass,Aluminosilicate Glass,Anti-glare Glass,Anti-reflective glass,Glass Tube,Sight Glass,Solar PV Glass,Quartz glass, Furniture glass Series,Art Glass Series, Tinted Glass and so on.
2) Satisfying Clients' Requirements with Best Abilities:
We have our own factory and warehouse with advanced imported equipment, most valuable professional talents and strict quality control system,with such resources, we promise to satisfy customer's request with our best capabilities.
3) Order follow up:
We will have special personnel to ensure the confirmation of every order, production, quality testing,delivery, after-sales and so on every link.
4) Enjoying Convenient Transportation:
We are located in Qingdao City,only 40 kms away from Qingdao port and 20 kms away from Jiaodong International airport, which is very convenient for both sea and air transportation.
5) Business Presence Worldwide:
We export to clients in more than 90 countries in North and South America, Europe, Oceania,the Middle East, Africa, and Southeast Asia,our products have been widely recognized by customers, and maintain a very good cooperative relationship with customers.
FAQ
1. Who are we?
We are based in Shandong, China, a professional manufacturer and supplier of glass and glass products.
2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment.
3.What can you buy from us?
Curtain wall glass,Door&Window glass,Bulletproof glass,Floor glass,Stairs glass,Railing glass,Plank road glass,Showcase glass,Museum glass,etc
4. Why should you buy from us not from other suppliers?
Qingdao Vatti Glass Co.,Ltd established in 1998, is a professional laminated glass manufacturer and supplier, we specialize in this field for 16 years,we have always been committed to providing high quality glass to our clients!
We are based in Shandong, China, a professional manufacturer and supplier of glass and glass products.
2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment.
3.What can you buy from us?
Curtain wall glass,Door&Window glass,Bulletproof glass,Floor glass,Stairs glass,Railing glass,Plank road glass,Showcase glass,Museum glass,etc
4. Why should you buy from us not from other suppliers?
Qingdao Vatti Glass Co.,Ltd established in 1998, is a professional laminated glass manufacturer and supplier, we specialize in this field for 16 years,we have always been committed to providing high quality glass to our clients!
Vatti quality, trustworthy!
We have been working hard for high quality products and excellent service!
Looking forward to cooperating with you in the near future!
If you have any other questions,pls feel free to contact us as below:
