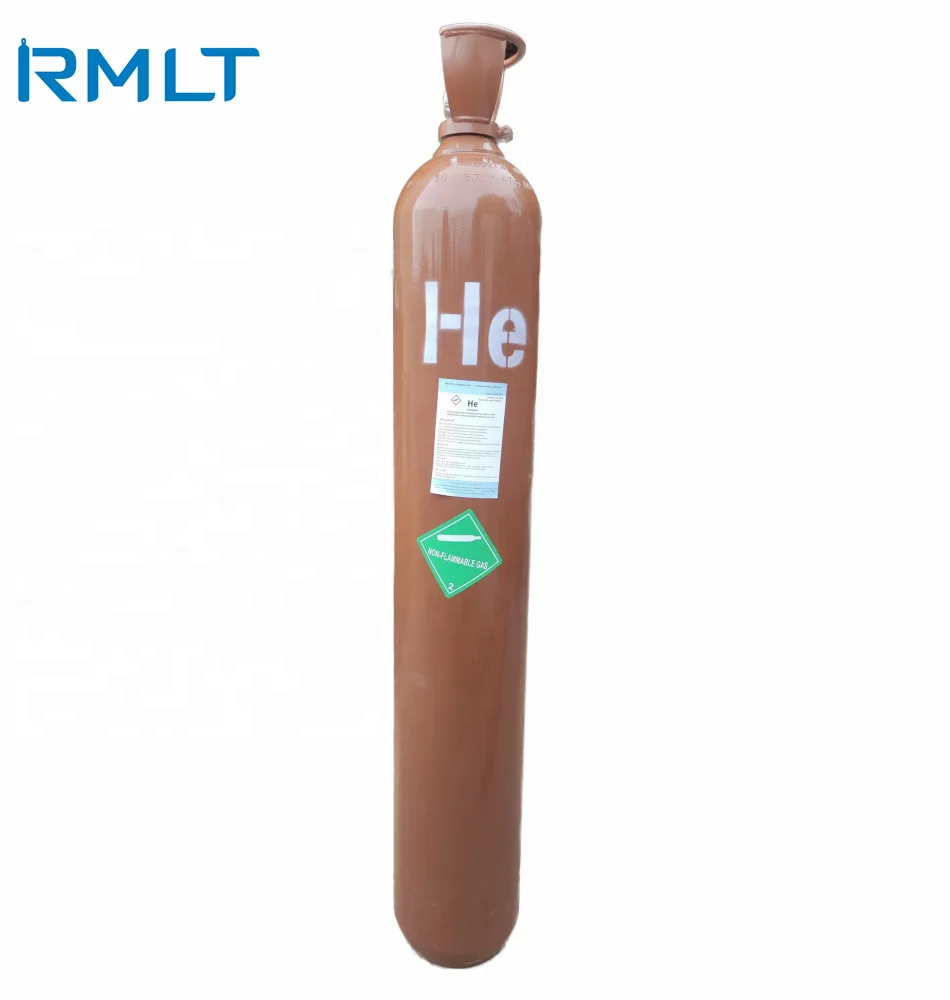

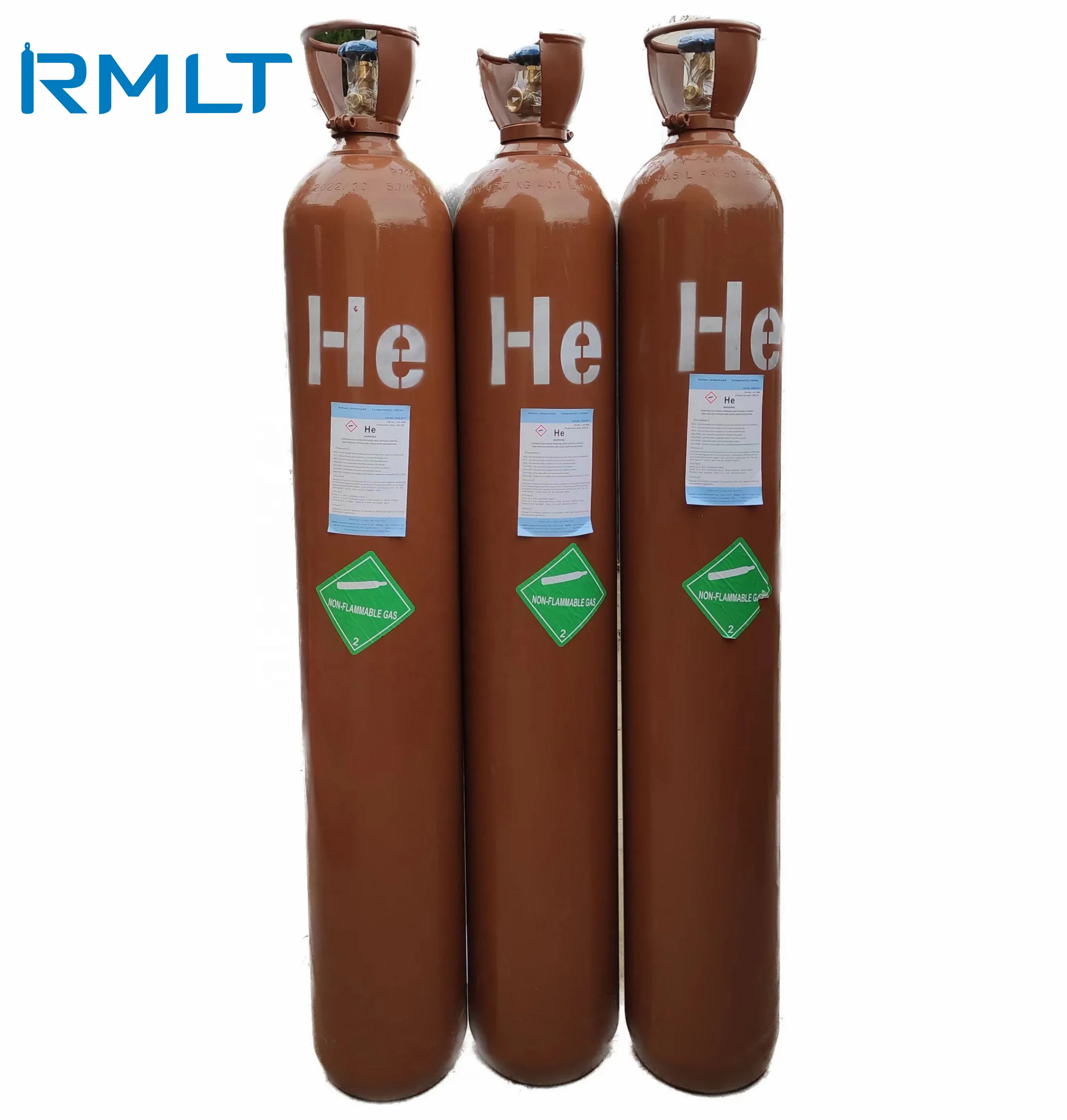

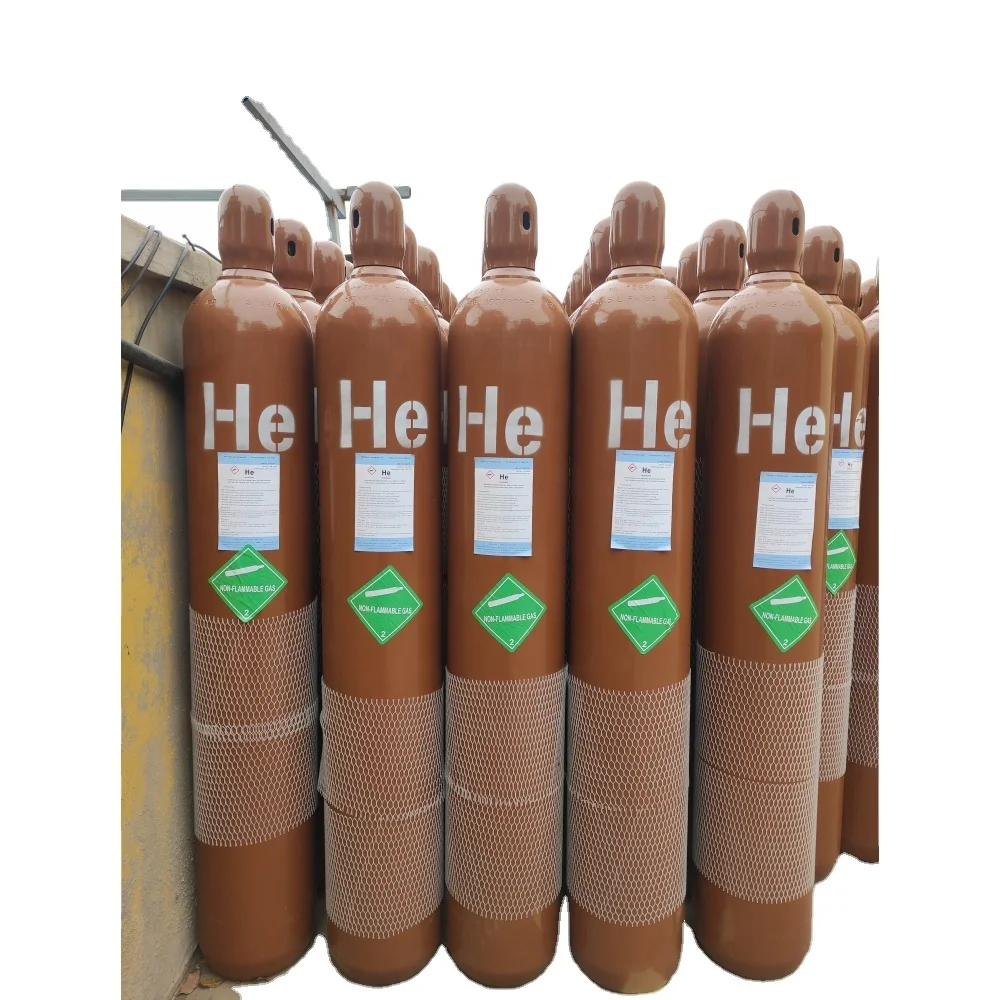

Промышленный высокочистый 99.999% гелий газ в 40L 50L стальные баллоны сжимают резервуар для

Сохранить в закладки 1600816809713:


Цена:200,00 $*

Количество:

  • В избранное

Описание и отзывы

Характеристики



Product Overview


Helium--He
Helium is a highly specialized product. It’s chemically inert and non-flammable, with high thermal conductivity, low molecular weight and size, and the lowest boiling point known.


FEATURES AT A GLANCE



HIGH PURITY
HIGH QUALITY
SAFE PACAGING
INDRUSTRIAL GRADE
CYLINDER OEM
EASY OPERATION
FAST DELIVERY
GOOD SERVICE



Clear steel mark
Safe valve

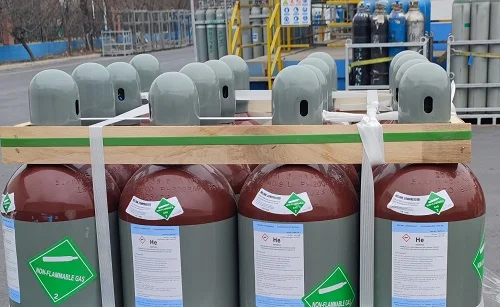

Safe packaging




APPLICATION


Aerospace & Aircraft
From manufacturing to flight, helium is widely utilized throughout the aerospace and aircraft industry. In space flight
operations, helium is used to purge hydrogen systems and works as a pressurizing agent for ground and flight fluid systems. It is also a source of lift in weather and other surveillance balloons.

Automotive & Transportation Equipment
Helium is used to test critical automotive parts such as radiator heat exchangers, air conditioning components, fuel tanks and torque converters to ensure they meet quality specifications. It is also used in combination with argon as a source of inflation in a growing number of airbags.

Diving
In combination with oxygen, helium is used in diving to help eliminate nitrogen narcosis, reduce breathing resistance at depth, and shorten decompression stops. Known as heliox, the mixture allows divers to reach greater depths for longer periods of time. The deeper the dive, the higher the concentration of helium, allowing divers to explore more and weld longer.

Electronics
Helium plays a significant role in the manufacturing of semiconductors, LCD panels, and fiber optic wire. It cools parts and
components quickly to enhance throughput, controls the rate of heat transfer to improve productivity and reduce defects, and functions as a carrier gas in the production process.

Healthcare
Helium is used to achieve cryogenic temperatures of -451 degrees required for superconducting magnets in MRIs and NMRs, allowing the capture of high-resolution images of internal organs and tissues.

Welding & Metal Fabrication
Helium's inert properties at arc temperatures make it an ideal gas for welding materials with high heat conductivity such as aluminum, stainless steel, copper and magnesium alloys. Helium is also used in heat treating processes such as gas quenching and in furnace atmospheres to produce parts with higher tolerance and improved quality.




PRODUCT SPECIFICATIONS


Size
40L-150
50L-150
50L-200
Volume
6M3
7.5M3
10M3
Outside Diameter
219MM
232MM
232MM
Height
1333MM
1420MM
1420MM
Weight
47.8KG
52KG
52KG
Working pressure
150BAR
150BAR
200BAR
Test pressure
250BAR
250BAR
300BAR
Material
37Mn
37Mn
34CrMo4
Wall thickness
5.7MM
5.7MM
5.7MM
Standard
ISO9809-3
ISO9809-3
ISO9809-1


SALES AND SERVICE NETWORK




SIMILAR PRODUCTS




CF4
CH4
Argon


FAQ


Q1. What's the MOQ?
A:Different products have different MOQ,Pls feel free to contact with me directly for your requirement.

Q2:What is the delievery time?
A:Normal delivery time for 40L gas cylinder: 15 days
50L 200 BAR gas cylinders: 25-30 days
If you need gas filling , it will take more 10 days.

Q3:What is the package, storage& transportation details?
A:Package:Steamless steel cylinder with different valves,or as to your requirement.

Q4:What is the payment terms?
A:30% T/T in advance, balance against the B/L.

Q5: If the cylinder recycled and can be refilled gas again?
A: Yes, usually the seamless steel cylinder can recycle to use for 20 years, and also can be refill gas again.
But , when you ordered our cylinder, you have to inform us before exporting, we will handle all the import customs clearance formalities.
