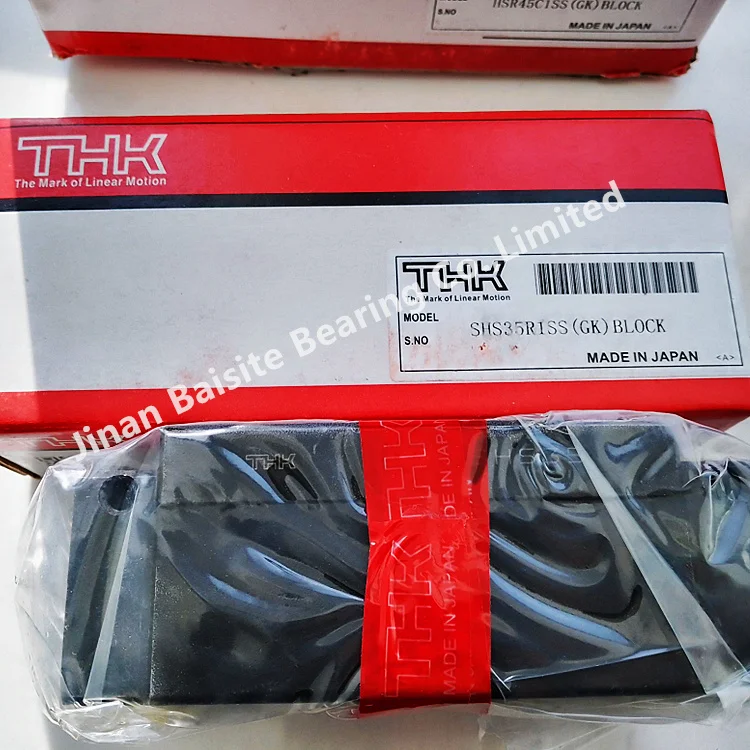

Япония ЧПУ THK SHS35C1SS SHS35 440L линейная опорная направляющая

Япония ЧПУ THK SHS35C1SS SHS35 440L линейная опорная направляющая

Категория: >>>
Поставщик: Jinan Baisite Bearing Co. Limited

Цена:9,99 $ - 24,90 $*

Количество:

В избранное

Описание и отзывы

Характеристики

JAPAN CNC THK SHS35C1SS SHS35 440L Linear bearing block rail THK linear guide SHS35

Product Description

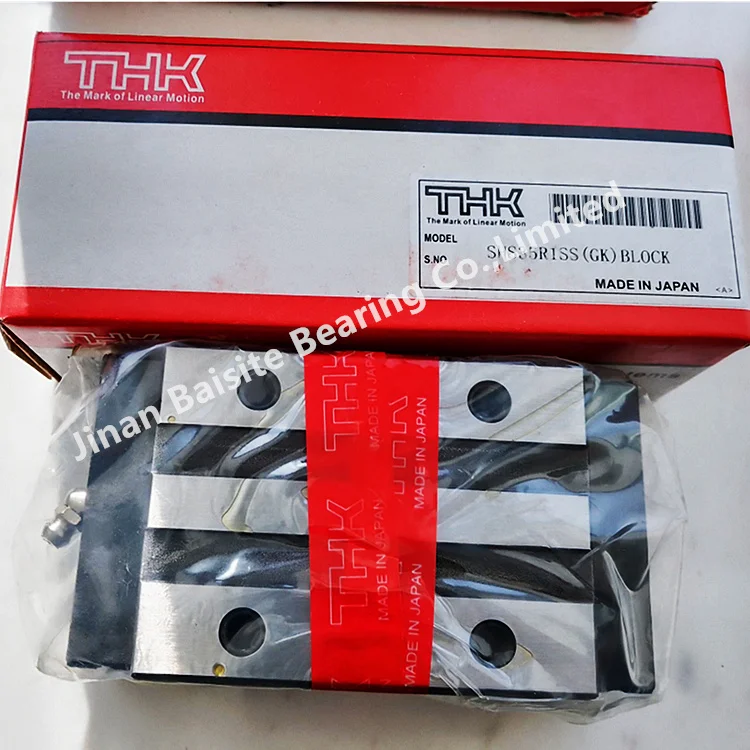

THK SHS35 C1SS GK BLOCK 3

Set/Single Item	Block Only	Block Type	[Wide] C: Flanged w/Tapped and Thru Holes
Nominal Part Number	35	Rail Type	Standard
Mounting Height M(mm)	48	Material	Carbon Steel
Radial Clearance	Normal	Accuracy Grade	Normal Grade (Best Leadtime)
Ball Arrangement	4-Row, Circular	Retainer	Available
Lubrication System	N/A	Rolling Element	Ball
Basic Load Rating Dynamic Rating C(N)	62300	Basic Load Rating Static Rating Co(N)	96600
Allowable Static Moment MA(N⋅m)	1380	Allowable Static Moment MB(N⋅m)	1380
Allowable Static Moment MC(N⋅m)	1530	Block Mounting Hole Pitch (Width Direction)(mm)	50
Block Mounting Hole Pitch (Length Direction)(mm)	50	Block Mounting Hole Diameter	8
Rail Mounting Hole Pitch(mm)	80	Rail Mounting Hole Diameter	9
Symbols for Dust Resistance	SS: End, Side, and Inner Seal (Standard seal - best leadtime)	Block external dimension W(mm)	100
Block external dimension L(mm)	122	Mounting hole for blocks	Tapped and Thru Holes
Number of Block Mounting Holes(holes)	4	Mounting Hole Dimension S(M)	M10
Mounting Hole Dimension H(ø)	8.5	Mounting Hole Screw Depth(mm)	Through
Block dimension L1(mm)	93	Enclosed Grease	AFB-LF
RoHS	-	-	-

High rigidity linear motion rolling guides designed to evenly support high load capacity by incorporating large-diameter balls.

Products of ultra seal specifications have excellent dust protection performance thanks to the combination of the dedicated track rail finished with total ground and slide unit with end seal and under seal of special shapes. Special specification with inner seal further improves dust protection property of the ball circulation section against foreign substances from the upper surface of the track rail.

Detailed Images

THK SHS35 C1SS GK BLOCK 2

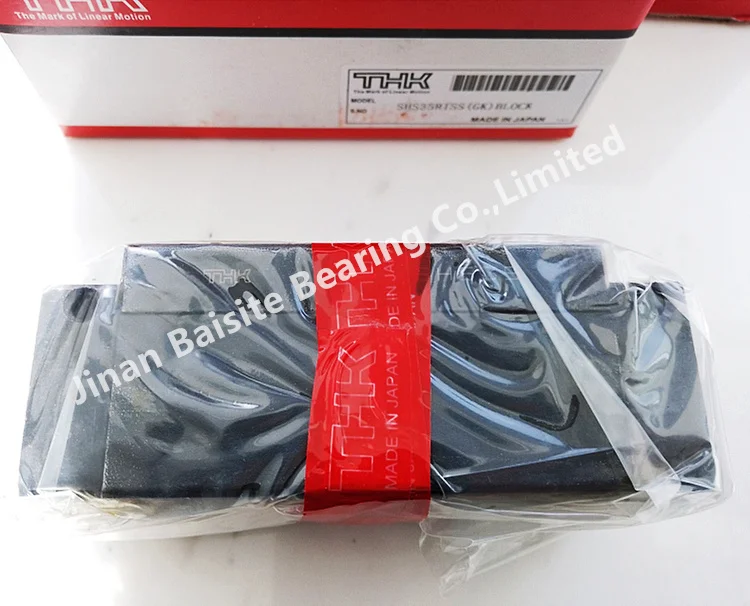

THK SHS35 C1SS GK BLOCK 6

THK SHS35 SHS25 2

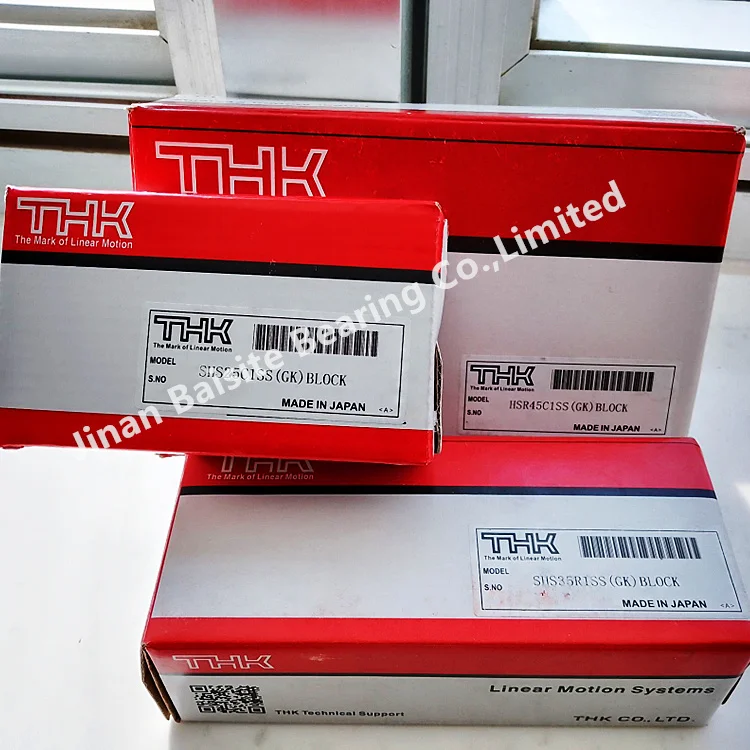

THK SHS25 SHS35 HSR45

Related Products

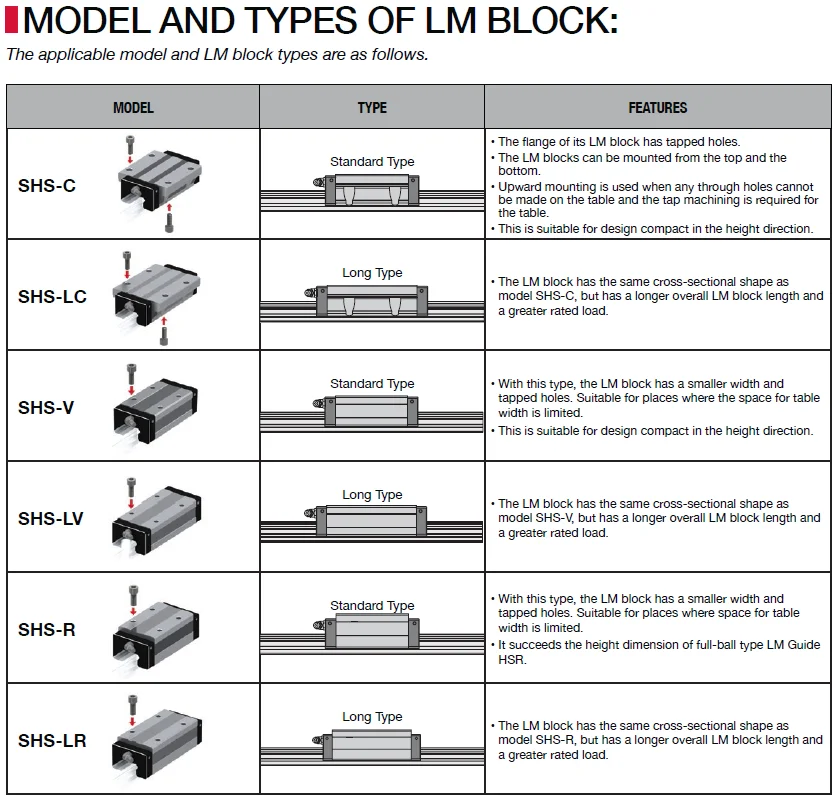

SHS block

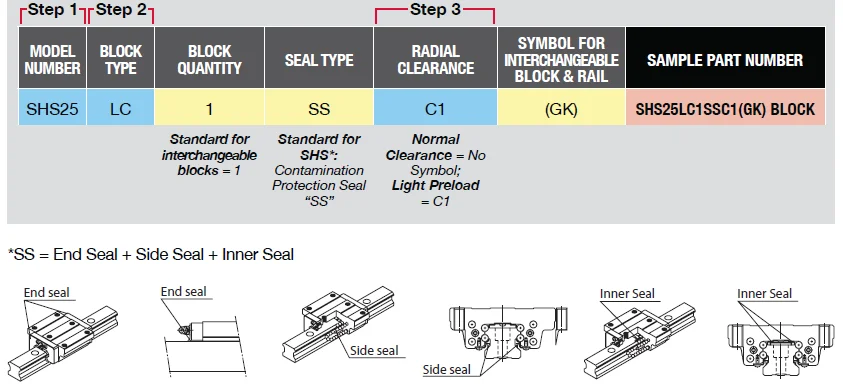

SHS suffix

SHS15,SHS20,SHS25,SHS30,SHS35,SHS45,SHS55,SHS65

SHS15C,SHS20C,SHS25C,SHS30C,SHS35C,SHS45C,SHS55C,SHS65C,

SHS15LC,SHS20LC,SHS25LC,SHS30LC,SHS35LC,SHS45LC,SHS55LC,SHS65LC,

SHS15V,SHS20V,SHS25V,SHS30V,SHS35V,SHS45V.SHS55V SHS65V

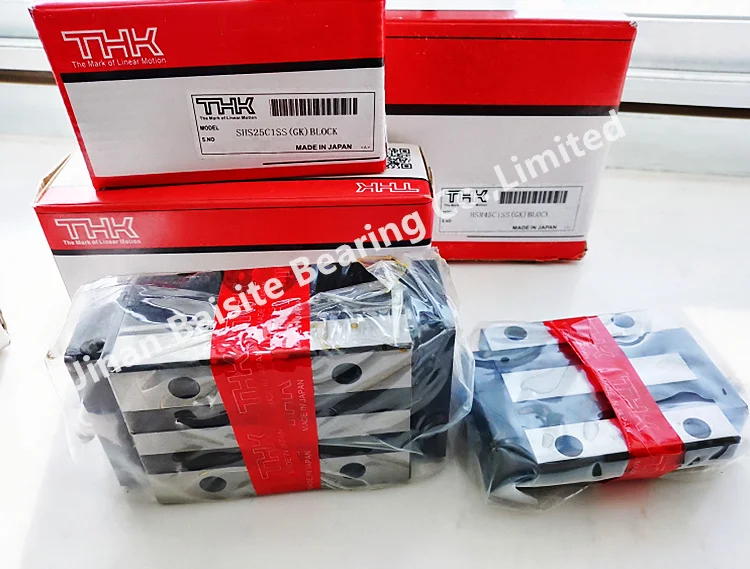

THK SHS25 C1SS GK BLOCK 3

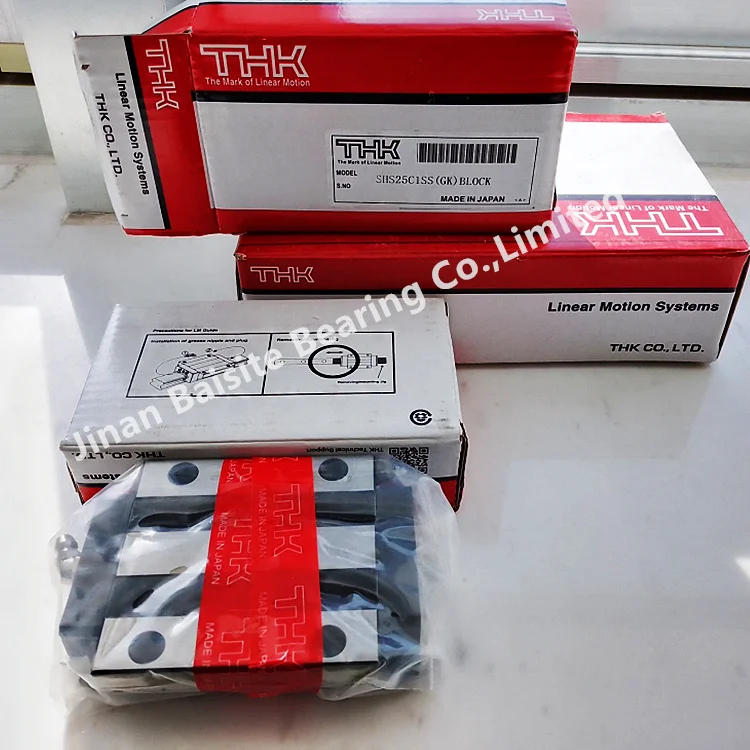

THK SHS25 C1SS GK BLOCK

SHS25LC SHS25LV JAPAN CNC THK linear guide rail SHS25LR,SHS25

Wide range of variations for your needs,As the lineup of 5 types of slide unit shape including the flange type, block type with small width and side mounting type, etc., and 3 types with different slide unit length with same section are available, you can select an optimal product for the specifications of your machine and device.

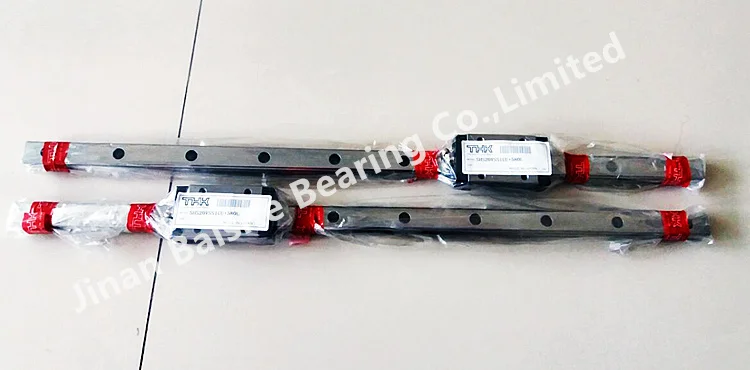

THK SHS20VSS1UU+580L 2

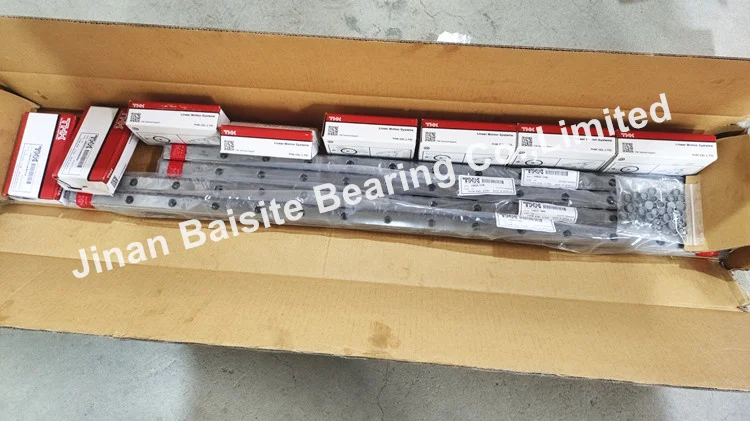

THK HSR25+770L 2

Company information

Customer feedback BST BSSD

We can provide one-stop service, saving you time and cost. In addition to JAPAN CNC THK SHS35C1SS SHS35 440L Linear bearing block rail THK linear guide SHS35, we can also provide you with other types of bearings, well-known brands are in stock.

for all brand bearings

Contact us

Contact us for further information or to get a quote on JAPAN CNC THK SHS35C1SS SHS35 440L Linear bearing block rail THK linear guide SHS35, and we will be happy to assist you! Please send inquiry of THK linear guides SHS GK block in below .

BST-Aland 750
