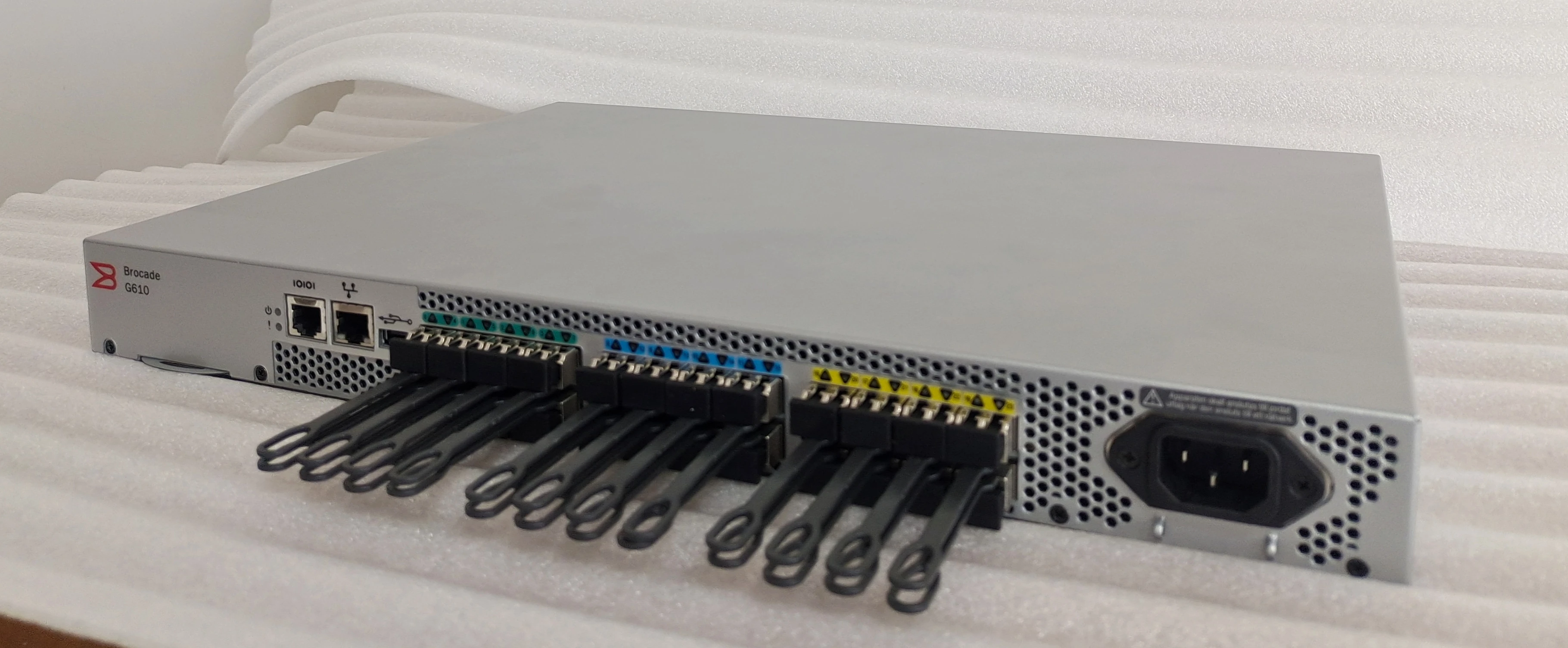

ПАРЧОВЫЙ Br G610 8 16G 0 poe переключатель 8 Порт
- Категория: >>>
- Поставщик: Tianhaiheng (beijing) Technology Development Co. Ltd.
Сохранить в закладки 1600817132383:
Описание и отзывы
Характеристики
Products Display
• Provides an affordable storage switch that redefines simplicity and flexibility.
• Leverages industry-leading reliability, an unprecedented lifetime warranty, and unmatched product support for peace of mind.
• Meets the high-throughput, low-latency demands of critical applications with flash-ready performance.
• Enables the seamless transition to next-generation NVMe flash arrays, without a disruptive rip-and-replace.
• Starts small and grows on demand, from 8 to 24 ports, to support an evolving storage environment.
• Powers up from 16G to 32G to deliver increased performance on demand.
• Simplifies end-to-end management by automating repetitive daily management tasks.
• Installs in three easy steps with a point-and-click user interface— simplifying deployment and saving time.
• Proactively monitors and optimizes the health and performance of individual virtual machines (VMs), and identifies anomalies with VM Insight.
Leverages Brocade® Fabric Vision® technology to simplify administration, quickly resolve problems, increase uptime, and reduce costs.
• Leverages industry-leading reliability, an unprecedented lifetime warranty, and unmatched product support for peace of mind.
• Meets the high-throughput, low-latency demands of critical applications with flash-ready performance.
• Enables the seamless transition to next-generation NVMe flash arrays, without a disruptive rip-and-replace.
• Starts small and grows on demand, from 8 to 24 ports, to support an evolving storage environment.
• Powers up from 16G to 32G to deliver increased performance on demand.
• Simplifies end-to-end management by automating repetitive daily management tasks.
• Installs in three easy steps with a point-and-click user interface— simplifying deployment and saving time.
• Proactively monitors and optimizes the health and performance of individual virtual machines (VMs), and identifies anomalies with VM Insight.
Leverages Brocade® Fabric Vision® technology to simplify administration, quickly resolve problems, increase uptime, and reduce costs.
Fibre Channel ports | Switch mode (default): 8-, 16-, and 24-port configurations (8-port increment through Ports on Demand [PoD] license); E_Ports, F_Ports, M_Ports, and D_Ports. Brocade Access Gateway default port mapping: 16 F_Ports, 8 N_Ports. |
Scalability | Full-fabric architecture with a maximum of 239 switches |
Certified maximum | 6000 active nodes; 56 switches, 19 hops in Brocade Fabric OS? fabrics; larger fabrics certified as required. |
Performance | Fibre Channel: 4.25Gb/s line speed, full duplex; 8.5Gb/s line speed, full duplex; 14.025Gb/s line speed,full duplex; 28.05Gb/s line speed, full duplex; auto-sensing of 4, 8, 16, and 32G port speeds |
ISL trunking | Frame-based trunking with up to eight 32G SFP+ ports per ISL trunk; up to 256Gb/s per ISL trunk.Exchange-based load balancing across ISLs with DPS included in Brocade Fabric OS fabrics. |
Aggregate bandwidth | 768Gb/s |
Maximum fabric latency | Latency for locally switched ports is <780 ns (including FEC). |
Maximum frame size | 2112-byte payload |
Frame buffers | 2000 dynamically allocated |
Classes of service | Class 2, Class 3, Class F (inter-switch frames) |
Port types | F_Port, E_Port, M_Port, D_Port (ClearLink Diagnostic Port) on 24 SFP+ ports.Brocade Access Gateway mode: F_Port and NPIV-enabled N_Port. |
Data traffic types | Fabric switches supporting unicast |
Media types | 32G FC SFP+ LC connector: SWL, LWL, ELWL 16G FC SFP+ LC connector: SWL, LWL, ELWL |
USB | One USB port for system log file downloads or firmware upgrades |
Fabric services Note: Some fabric services do not apply or are unavailable in Brocade Access Gateway mode. | BB Credit Recovery; Brocade Advanced Zoning (Default Zoning, Port/WWN Zoning, Peer Zoning); Congestion Signaling; Dynamic Path Selection (DPS); Extended Fabrics; Fabric Performance Impact Notification (FPIN); Fabric Vision; FDMI; Flow Vision; F_Port Trunking; FSPF; Integrated Routing; ISL Trunking; Management Server; Name Server; NPIV; NTP v3; Port Decommission/Fencing; QoS; Registered State Change Notification (RSCN); Target-Driven Zoning; VMID and AppServer |
Management | |
Management | HTTP/HTTPS; SNMP v1/v3 (FE MIB, FC Management MIB); SSH; Brocade Advanced Web Tools; Brocade SANnav Management Portal and SANnav Global View; EZSwitchSetup; Command Line Interface (CLI); RESTful API; trial licenses for add-on capabilities |
Security | DH-CHAP (between switches and end devices), FCAP switch authentication; HTTPS, IP filtering, LDAP with IPv6, OpenLDAP, Port Binding, RADIUS, TACACS+, User-defined Role-Based Access Control (RBAC), Secure Copy (SCP), Secure Syslog, SFTP, SSH v2, SSL, Switch Binding, Trusted Switch |
Management access | 10/100/1000 Mb/s Ethernet (RJ-45), in-band over Fibre Channel, serial port (RJ-45) and one USB port. |
Diagnostics | Active Support Connectivity (ASC) and Brocade Support Link (BSL); built-in flow generator; ClearLink optics and cable diagnostics, including electrical/optical loopback, link traffic/latency/distance; Fabric Performance Impact Monitoring (FPI); flow mirroring; Forward Error Correction (FEC); frame viewer; Monitoring and Alerting Policy Suite (MAPS); nondisruptive daemon restart; optics health monitoring; POST and embedded online/offline diagnostics, including environmental monitoring, FCping and Pathinfo (FC traceroute); power monitoring; RAStrace logging; Rolling Reboot Detection (RRD); Syslog/ Audit Log; VM Insight. |
Mechanical | |

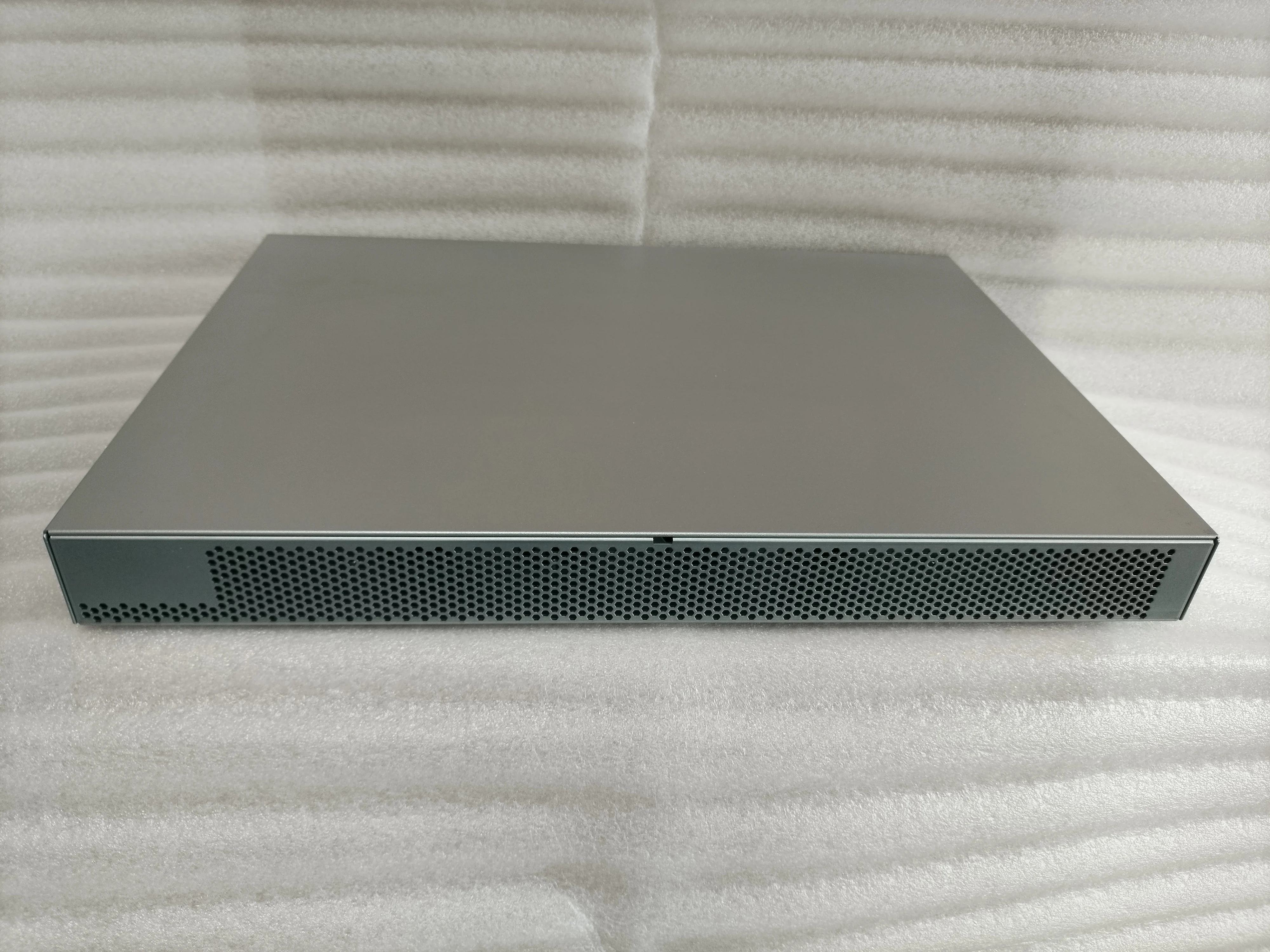

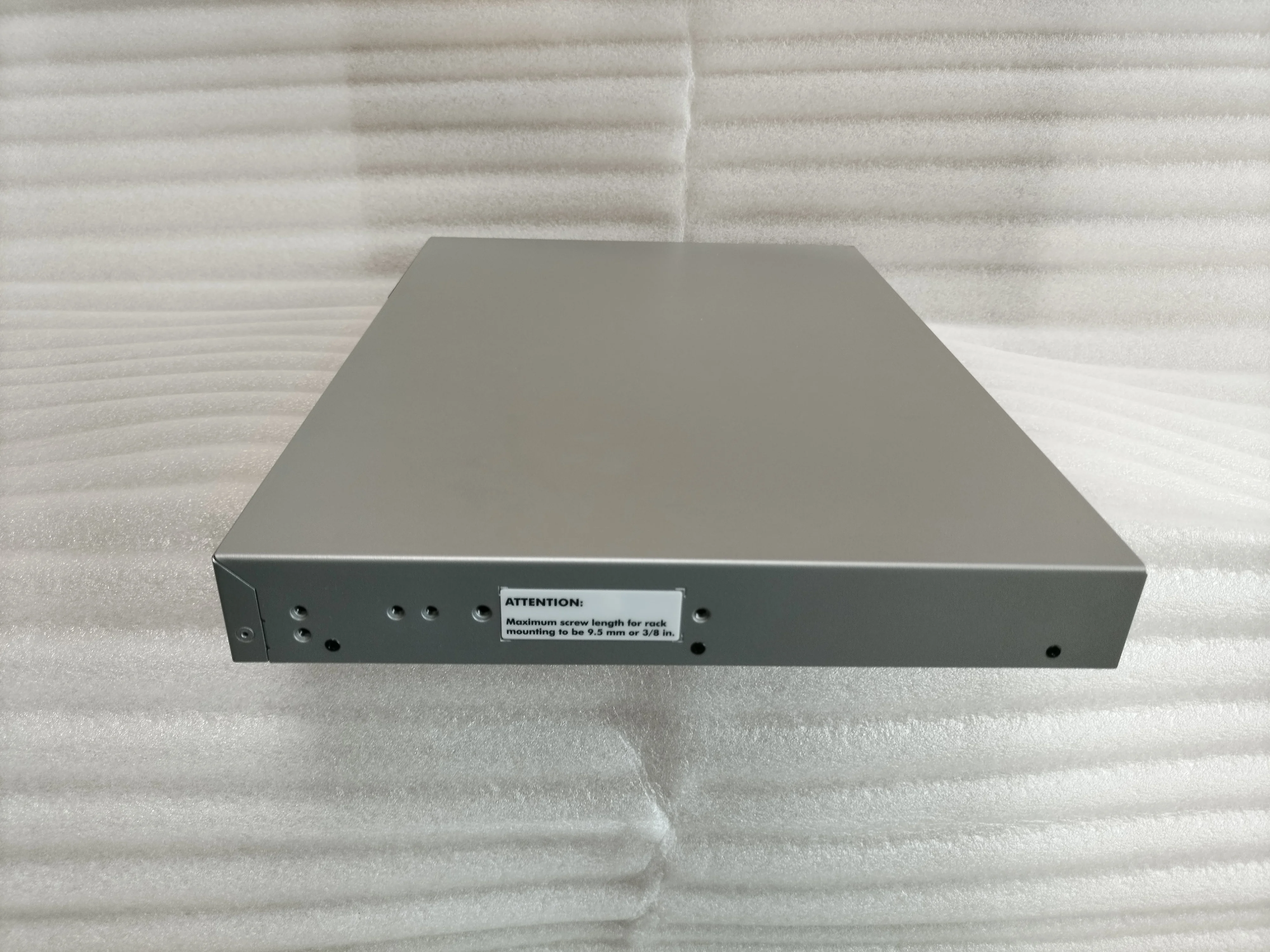

Enclosure | Back-to-front airflow (non-port-side intake); power from back, 1U |
Size | Width: 428.80 mm (16.88 in.) Height: 42.90 mm (1.69 in.) Depth: 306.60 mm (12.07 in.) |
System weight | 5.75 kg (12.67 lb) with one integrated power supply, without transceivers |
Main Products
Company Information
Why Choose Us
Our Certificates
Package & Transport
FAQ
1. Who are we?
The company is good at providing cost-effective FC SAN storage solutions (8G/16G/32G/64G) in the industry. The company's agent products mainly include BROCADE/DELL EMC fiber switch, Qlogic/Emulex fiber card, etc. The products are applicable to all data centers, storage switching networks, etc. The products provided can help operators, data centers, and network service providers enhance and improve the performance of network systems in a cost effective and efficient way.
The company is good at providing cost-effective FC SAN storage solutions (8G/16G/32G/64G) in the industry. The company's agent products mainly include BROCADE/DELL EMC fiber switch, Qlogic/Emulex fiber card, etc. The products are applicable to all data centers, storage switching networks, etc. The products provided can help operators, data centers, and network service providers enhance and improve the performance of network systems in a cost effective and efficient way.
2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment.
Always a pre-production sample before mass production;
Always final Inspection before shipment.
3. What can you buy from us?
Switch,server,Storage,HDD.
4. Why should you buy from us not from other suppliers?
We have been focusing on brocade products for nearly 10 years, adequate supply, affordable, has a perfect service system, each district of the country set up local engineers, do 7*24 hours service response.
5. What services can we provide?
Accepted Delivery Terms: FOB,EXW；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,Western Union;
Language Spoken:English,Chinese.
Switch,server,Storage,HDD.
4. Why should you buy from us not from other suppliers?
We have been focusing on brocade products for nearly 10 years, adequate supply, affordable, has a perfect service system, each district of the country set up local engineers, do 7*24 hours service response.
5. What services can we provide?
Accepted Delivery Terms: FOB,EXW；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,Western Union;
Language Spoken:English,Chinese.
Похожие товары
Дешевый станок с ЧПУ токарный станок с ЧПУ для продажи небольшой токарный станок с ЧПУ мини-машина CK6130
4 800,00 $ - 5 000,00 $
Высокое качество Оптический энкодер диск 1024 импульсный инкрементный датчик положения ABZ UVW
Безвредный продукт, арахисовое масло без добавок и консервантов, чистая энергия, оптовая продажа арахисового масла
20 см животное чучело бегемота плюшевые игрушки, украшение для дома, подарок для детей друг Специальное предложение коготь машина Тряпичные куклы
180 кВт 5 кВт 8 кВт 10 кВт Солнечная система солнечная панель Вт Suntech
0,17 $ - 0,19 $
Косметические ингредиенты Cas 194237-89-3, биосахаридная камедь-1

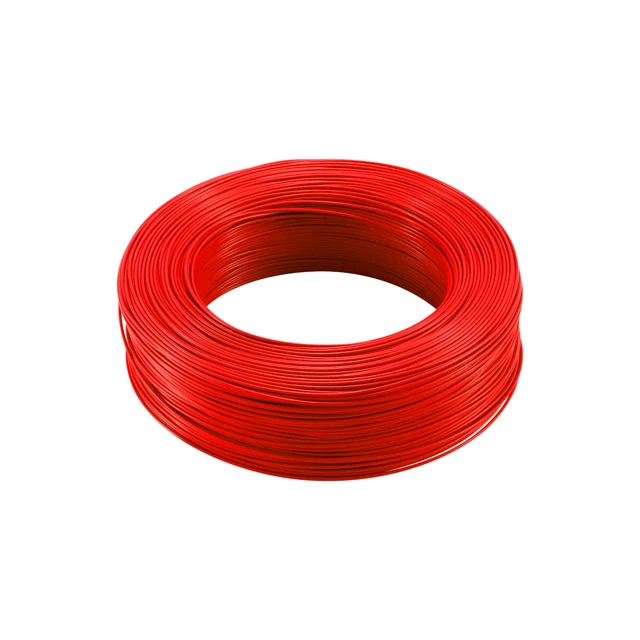

Многожильный электрический кабель провод ПТФЭ никель/посеребренные медные UL1199 12AWG 600V/200C для бытовой техники, бла (беспилотный летательный аппарат пижамы с принтом робота для освещения,
0,01 $
Новые поступления
Новинки товаров от производителей по оптовым ценам
Кокосовая стружка мягкая и сладкая на вкус без глютена запеченная Ароматизированная упаковка для приготовления пищи кондитерских
Медицинский одноразовый стерильный катетер
Эффективные акустические панели эффективные звукоизоляционные материалы для качественной
65% полиэстер/35% хлопок саржа TC камуфляжная ткань 220gsm с водонепроницаемым принтом
1,48-1,61 $
Органическое жидкое мыло для мытья рук оптом
0,66-1,46 $

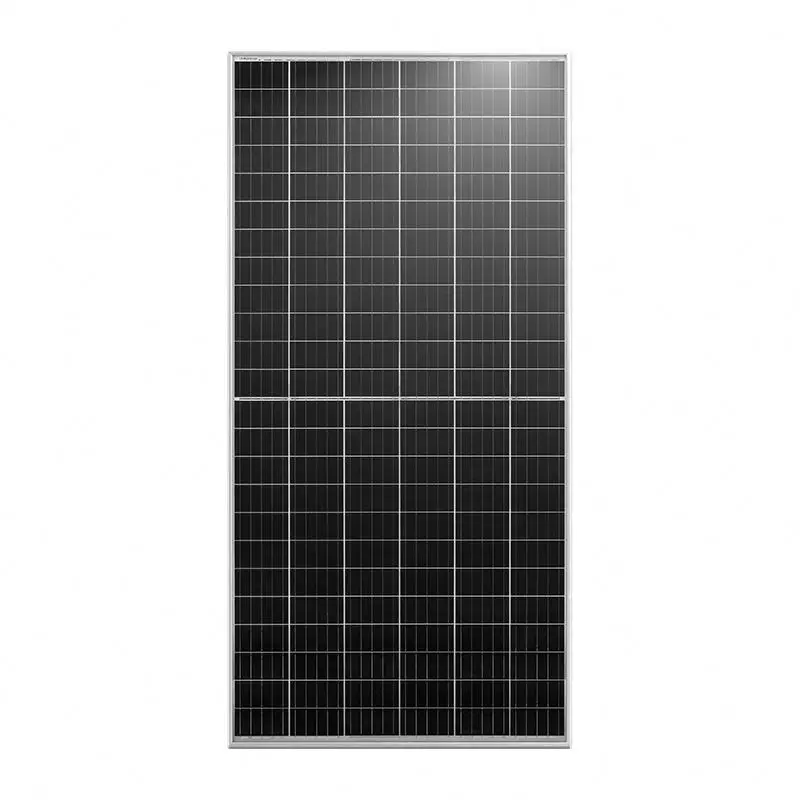

Высокое качество Sunpal 450W-600W 48V фотоэлектрические солнечные панели 500W 500Wp 600W заводская цена с белой задней простыней
