Заводская цена индивидуальные спецификации широкое применение шиномонтажный и балансировочный комбо

Сохранить в закладки 1600820355603:


Цена:102 471,93 ₽ - 129 580,91 ₽*

Количество:

  • В избранное

Описание и отзывы

Характеристики

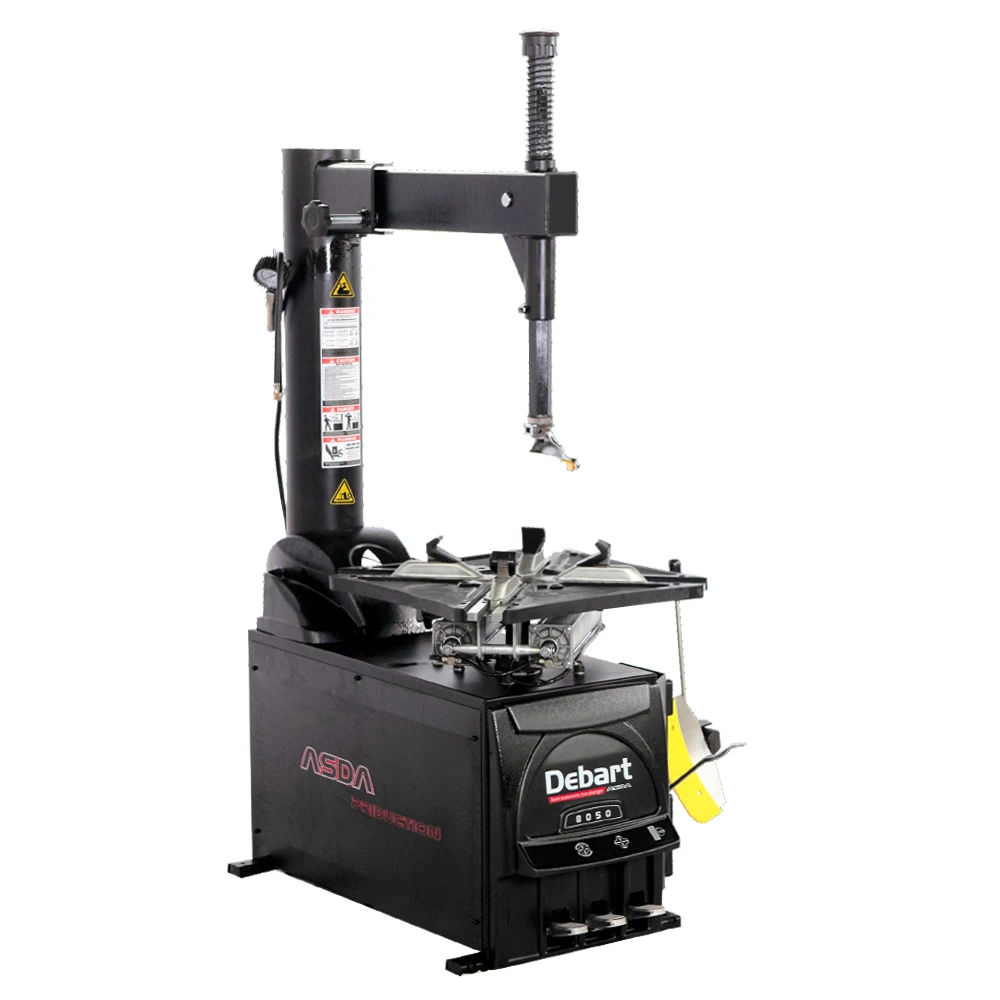

Product Description

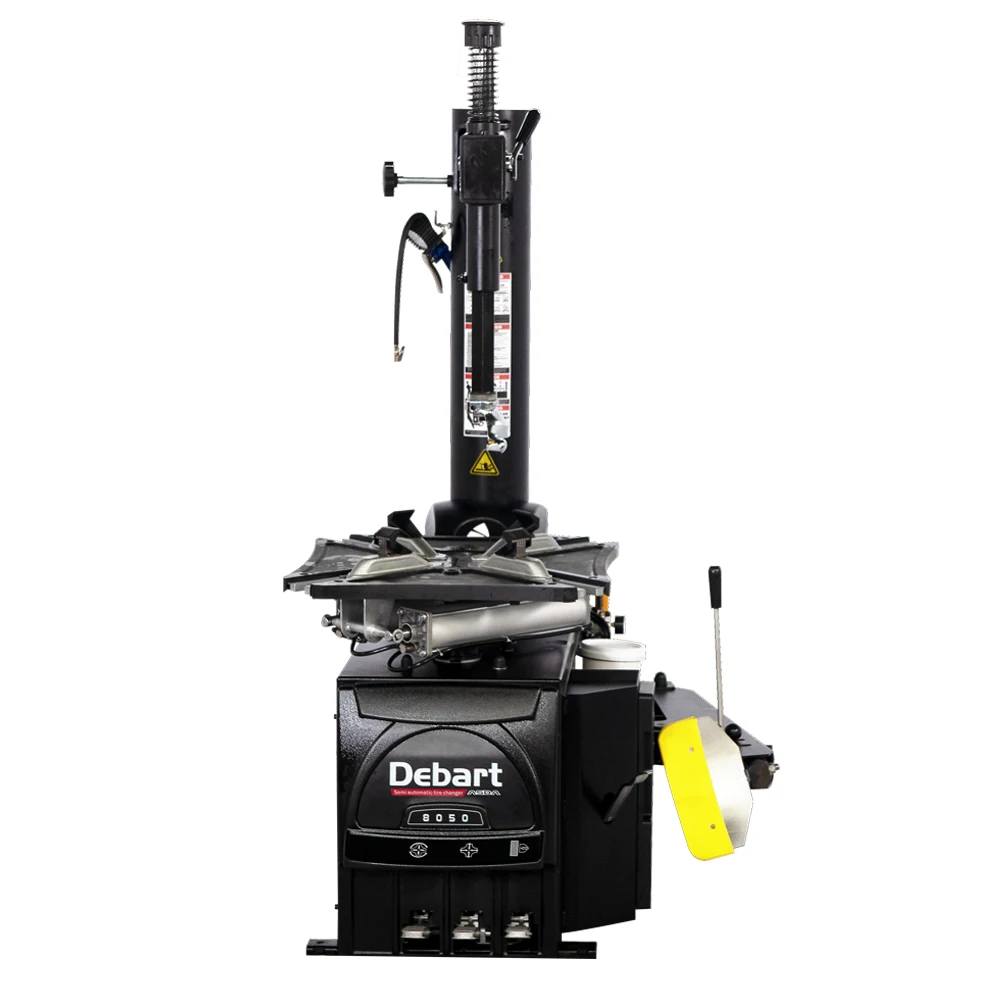

Model
8050
Supply Voltage
110V、220V 50/60 Hz,1Ph 380V 50/60 Hz 3 Ph
Electromotor
1.1kW/0.75kW
Working pressure
116PSI-145PSI(8bar-10bar)
Shovel tire force
Pneumatic 5500 pounds
Driving system type
Electric and pneumatic
Working disk power
Double cylinder
Shovel tire system
The shovel tire sheet can be retractable
The outside clamping
11" - 24" (276 mm – 630 mm )
The inner clamping
13" - 26" (326 mm - 680 mm )
Highest wheel width
14" (350 mm )
Highest wheel diameter
51" (1250 mm )
Rotary table rotation torque
885 ft/lbs
Length of wire
78 47/64" (2000 mm )
Revolution of table
7RPM
Turntable tyre width capacity (mounting)
3" - 15" (80 mm - 385 mm )
Tire spreader tire width capacity (removed)
1 1/2" - 14" (40 mm - 350 mm )
Noise level
<70dB
Product size
L 51.02" x W 52.86" x H 78.98"(1250mm x 1295mm x 1935mm)
Product packing weight
245 kg
Product package size
950 mm x 1180 mm x 1020 mm

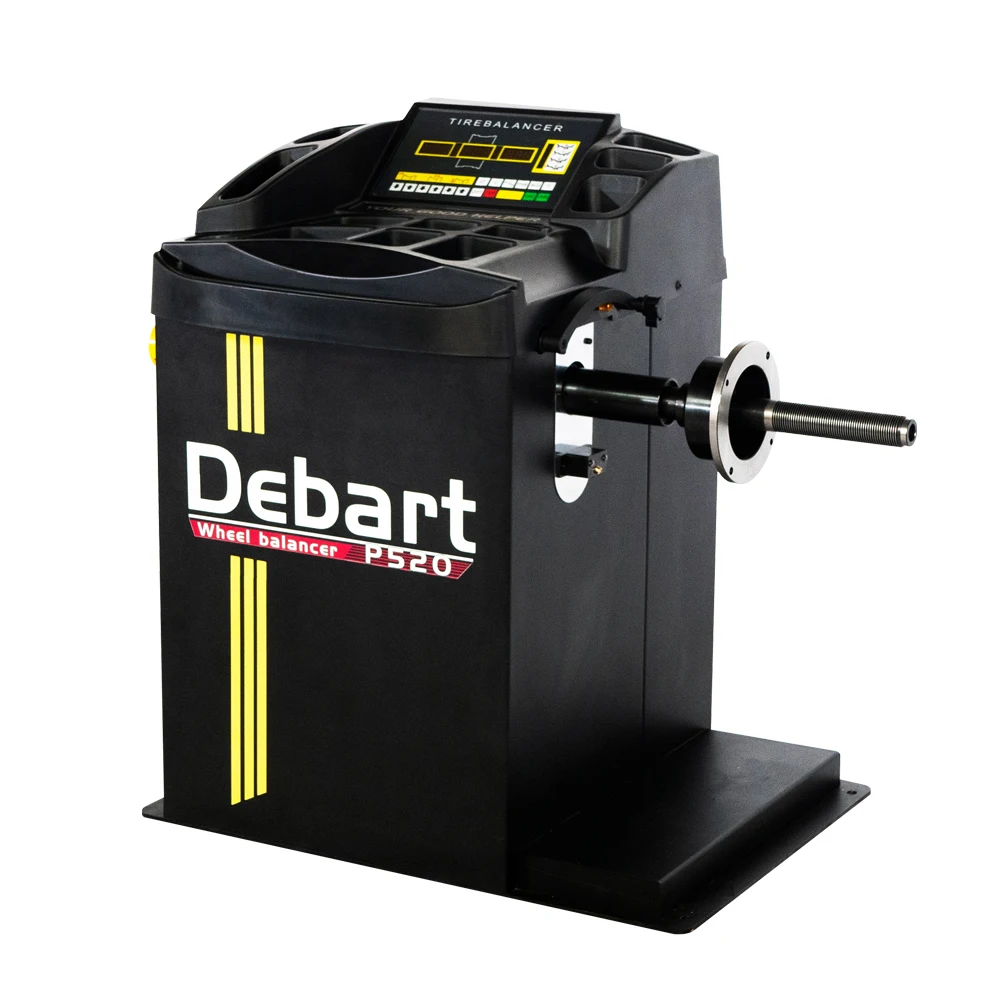

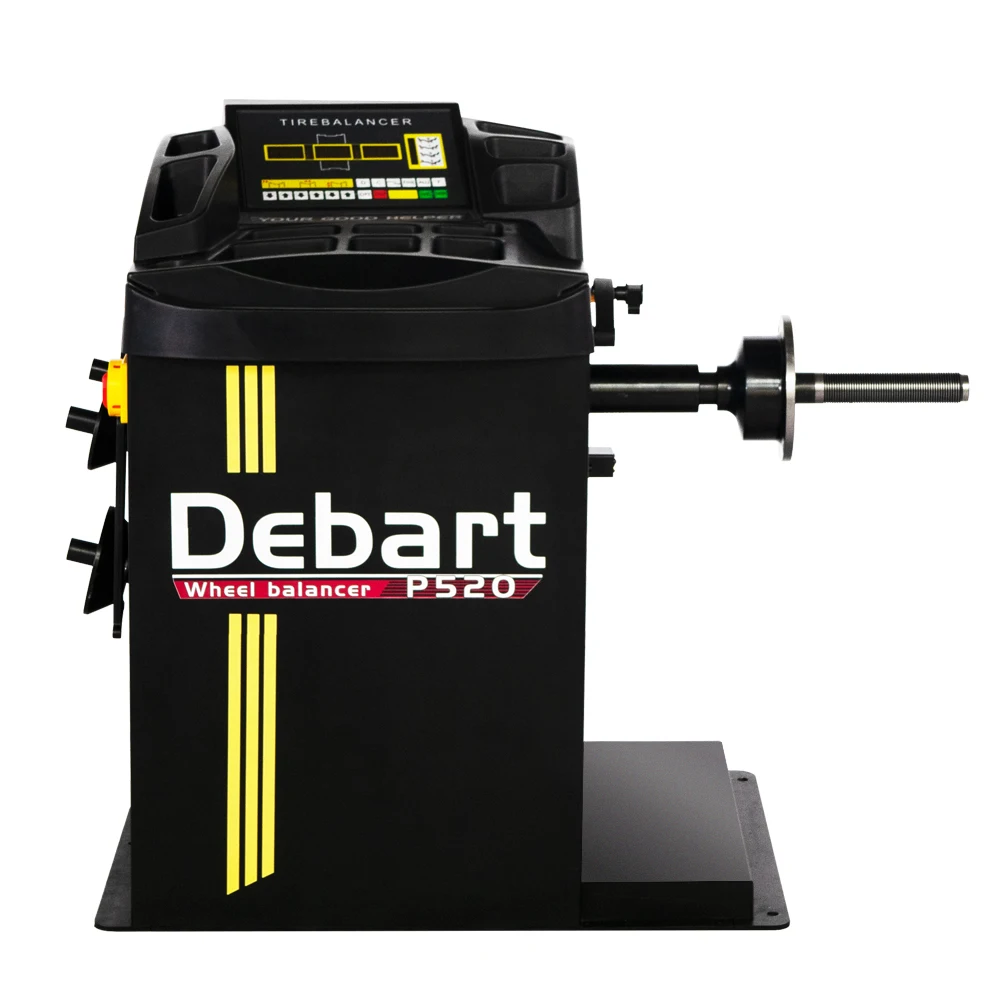

Product Description






Power supply voltage
110v, 220v 50/60 hz, 1 ph
Electric motor
250w
Power cable length
61.22" (1500 mm)
Balance maximum wheel weight
60kg
Precision of balance
1g
Revolution of equilibrium
210rmp
Wheel hub diameter
10" ~24 "or 254~610mm
Wheel hub width
1.5 "~ 20" or 38 ~ 508mm
Period of equilibrium
8~10s
The noise
<70dB(A)
Working Environment
0~50℃
Laser finding point (up/down)
under the
Lighting (top/bottom)
have (below)
Automatic drawing ruler
there are
Size of product
L 45.31" x W 26.93" x H 38.57" (1110 mm x 660 mm x 945 mm)
Net weight of product
95 kg
Product package size
1000 mm x 770 mm x 1100 mm
