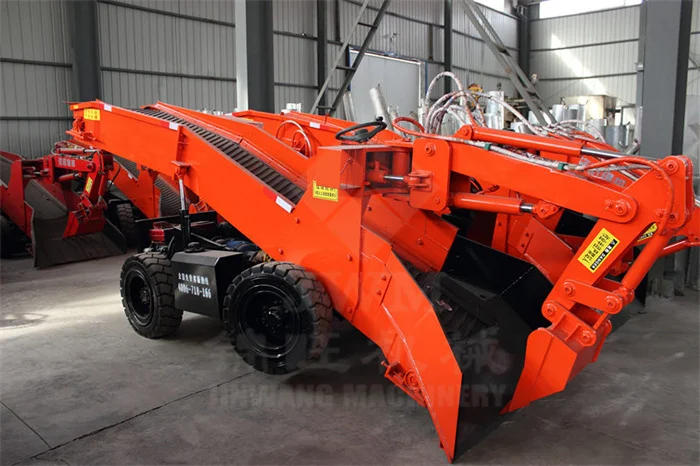

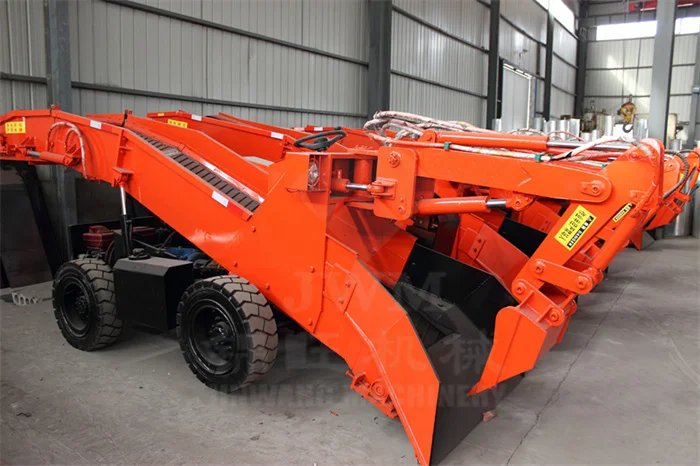

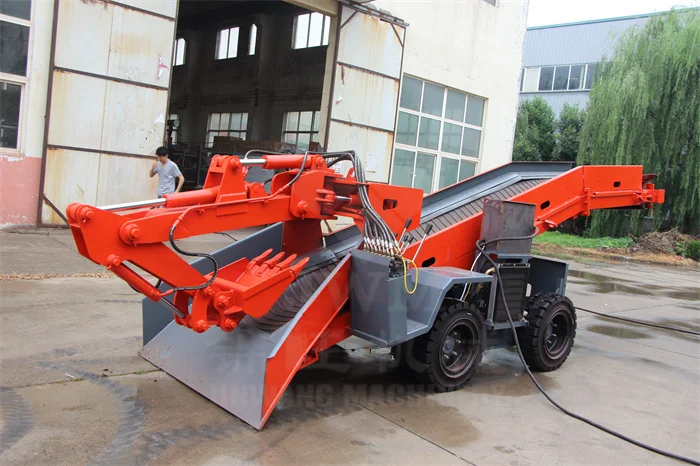

ZWY 50A Haggloader используется в туннельной экскаваторной технике
- Категория: >>>
- Поставщик: Gongyi Xiaoyi Jinwang Machinery Factory
Сохранить в закладки 1600820707410:
Описание и отзывы
Характеристики
Underground mining mucking loader is also called excavating loader, integrates multiple functions including excavation, conveying, loading, running, Because of its high working efficiency, strong ability to adapt the space, less polluting to the air inside of the tunnel, it becomes a very important mechanical equipment in tunnel construction.
Product Paramenters
ZWY-50A For tunnel over 1.6*1.8 m | ||||||
Traveling Speed | 2km | Machine Weight | 3100kg | |||
Ground Clearance | 200mm | Minimum Turning Radius | 4m | |||
Wheel Tread | 1380mm | Digging Width | 2000mm | |||
Wheel Base | 1500mm | Digging Height | 1700mm | |||
Rated Working Pressure | 16mpa | Digging Depth | 700mm | |||
Big Arm Maximum Turning Angle | ±73˚ | Digging Distance | 1300mm | |||
Total Motor Power | 15kw | Dumping Height | 1400-1700mm | |||
Maximum Material Dimension | 650*500*550 | Dumping Distance | 1400mm | |||
Adaptive Tunnel Gradient | ≤15° | Grade ability | ≤15° | |||
Belt speed | 0.63m/s | Adaptive Tunnel Minimum Fracture | ＞1.6*1.8m | |||
Overall Dimensions | 600*1380*1600mm | |||||
Products Description
* Conveying part
The belt is specially made for heavy metal mine thickened wear-resistant flame retardant belt. And the life of the conveyor belt used by our factory is 8 ~ 10 months.
* Hydraulic control system
Adopt hydraulic seven-way distribution valve, a total of 5 operating handles.
* Heat sink
When not working, the oil is filtered by the intermediate oil passage of the multi-way reversing valve, and the radiator is returned to the mailbox.
* Bucket and bucket teeth
Due to the different working site and ore hardness, can be equipped with a variety of buckets to achieve wear resistance and impact resistance requirements
* Diesel generator
Changchai famous brand, the parts are not easy to aging, long service life.
High thermal efficiency, exhaust gas turbocharging.
Custom Design
* Bucket type
Due to the different hardness of the working place and the material to be contacted, it can be equipped with a variety of buckets
Conveyor belt type, scraper type and hopper type.
Conveyor belt type, scraper type and hopper type.
* Type of conveyor belt
Different conveyer belt types can be selected according to the size and weight of the material to be transferred.
* Wheeled or crawler
According to the construction site, the following factors should be considered in the selection:
1. Conveying object
2. Engineering quantity
3. Environmental conditions of roadway (whether roadbed is smooth, whether there is water)
4. Slope or not
* Parameter size requirements of mucking loader
We can design the suitable model according to the customer's mine size.
Digging height, digging depth, unloading height, unloading distance can be customized according to the actual requirements of customers.
Digging height, digging depth, unloading height, unloading distance can be customized according to the actual requirements of customers.
Customer Photos
Company Profile
Gongyi Xiaoyi Jinwang Machinery Factory is a specialized trader and manufacturer. It is located in Yongan road Zhengzhou Gongyi city, Henan province of China. Company has aways adhered to credit first, customer first for the purpose. We are holding this line for more than 20 years, with well-equipped testing facilities and strong technical force. Our products are exported to many countries all over the world, including: Europe, North America, South America, Asia, Africa, Oceania, which have widely recognized and trusted by users. With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in construction, woodworking and other industries. Our products are widely recognized and trusted by users and can meet continuously changing economic and social needs. We welcome new and old customers from all walks of life to contact us for future business relationships and mutual success!
Our products are CE certified, and for European import customers, this certification ensures smooth customs clearance.
Packing and Delivery
20GP container can accommodate 1 units of mucking loader.
40HQ container can accommodate 2 units of mucking loader.
FAQ
Q: What is the delivery time ?
A: Normally the leadtime is 10 days after receipt of the deposit.
Q: What is the warranty of the products ?
A: The whole vehicle and various parts and accessories wear parts are supported by 1 year warranty.
Q: Are you manufacturer or trading company ?
A: We are manufacturer,not dealer.
Q: Do you provide equipment operation training?
A: Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training.
Q: Can you customize the products as per request ?
A: Yes,we can customize your products.
Q: Where is the products are used?
A: The products are used for mining in the tunnel of coal mine or metal mine or non-metal mine.
Q: Can the products be installed dual power –diesel engine and electric power ?
A: Yes,we can make the products with diesel engine and electric power .
A: Normally the leadtime is 10 days after receipt of the deposit.
Q: What is the warranty of the products ?
A: The whole vehicle and various parts and accessories wear parts are supported by 1 year warranty.
Q: Are you manufacturer or trading company ?
A: We are manufacturer,not dealer.
Q: Do you provide equipment operation training?
A: Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training.
Q: Can you customize the products as per request ?
A: Yes,we can customize your products.
Q: Where is the products are used?
A: The products are used for mining in the tunnel of coal mine or metal mine or non-metal mine.
Q: Can the products be installed dual power –diesel engine and electric power ?
A: Yes,we can make the products with diesel engine and electric power .
Q: What is the usage of the products ?
A: The products are multiple function integrating walking, digging,collecting,conveying,discharge.
Q: How to contact us？
A: Tel/Wechat/Whatsapp: 0086 15736792076
A: The products are multiple function integrating walking, digging,collecting,conveying,discharge.
Q: How to contact us？
A: Tel/Wechat/Whatsapp: 0086 15736792076
Похожие товары
1:18 ENOZE 9302E 2 4g 4wd 4x4 большой Экстремальный дикий дистанционный гусеничный автомобиль Электрический радиоуправляемый полу-грузовик Радиоуправляемый
2 873,03 ₽ - 3 094,88 ₽
Детский развивающий строительный блок интеллектуальные микрокирпичи игрушки
Автомобильный видеорегистратор с
Высокое качество пользовательских дорожные знаки Светоотражающие дорожный знак
388,25 ₽ - 610,11 ₽
3/8 блок питания 250A панель для морской автомобильной лодки на солнечной батарее красный и черный коннектор аксессуары
865,24 ₽ - 1 009,45 ₽

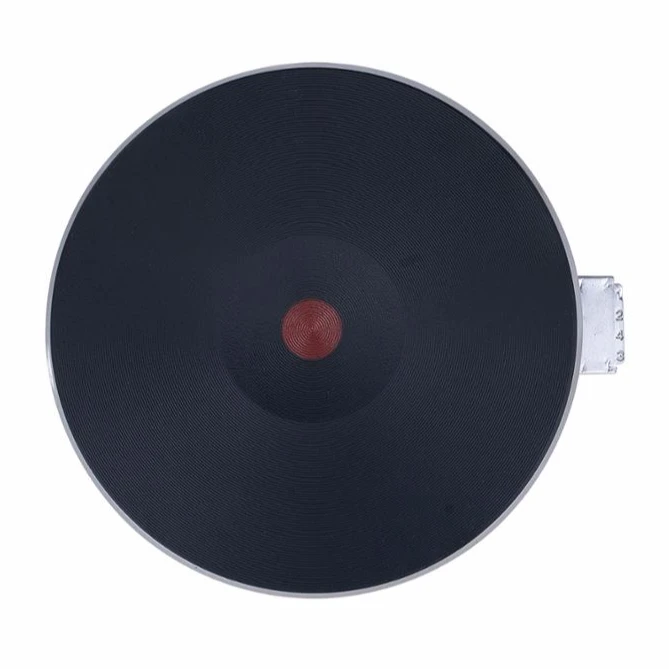

Цена по прейскуранту завода-изготовителя HP-F220A керамическая нагревательная плита для приготовления
