FS5712FW B Sdapo 10 м/100 м 1500 В высоковольтный изоляционный Черный Водонепроницаемый 12 1A кабель для IP камеры PoE
- Категория: >>>
- Поставщик: Shenzhen Dapo Communication Co. Ltd.
Сохранить в закладки 1600820719368:
Описание и отзывы
Характеристики
Products Description
Our POE cable is ultrasonic process +1500V high voltage isolation. Not injection molding + non-isolated. Injection molding and non-isolation can cause disconnection drop line during use. Because injection molding the process is plastic injection molding. The PCB board is all covered with adhesive. The impact process will result in 16 legs of the network filter. Virtual welding. False welding. Once the use of heat. Your feet will go up. Caused the image to drop. If not isolated. It's also dropped. This non - isolation dropped line is generally clear to everyone. And ours is the ultrasonic process + isolation module. Ultrasonic press the gap of upper and lower cover. And then the modules inside because there's no impact. We can make it isolation. Because the isolating transformer has a magnetic core. Injection molding will crush) the isolation is very stable. We test for water resistance. It was soaked in water for several hours. It's very waterproof well.
Security：Has a perfect short circuit protection, 1500V high voltage isolation
Compatibility: integrated network adapter supports End-span (1,2 + / 3,6 -) and Mid-span (4,5 + / 7,8 -) two power modes
Applications：All IP Camera

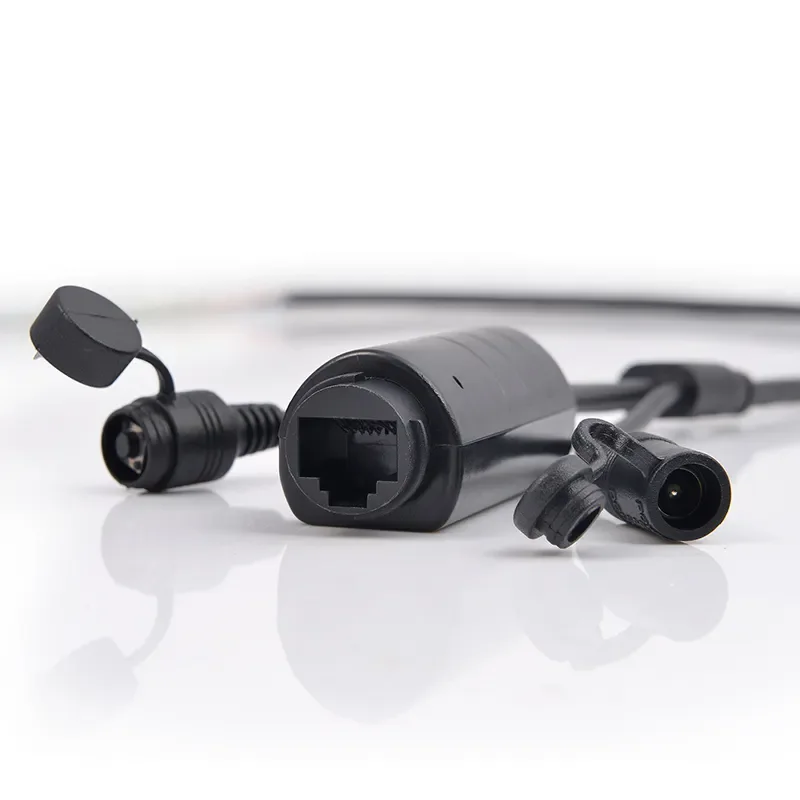

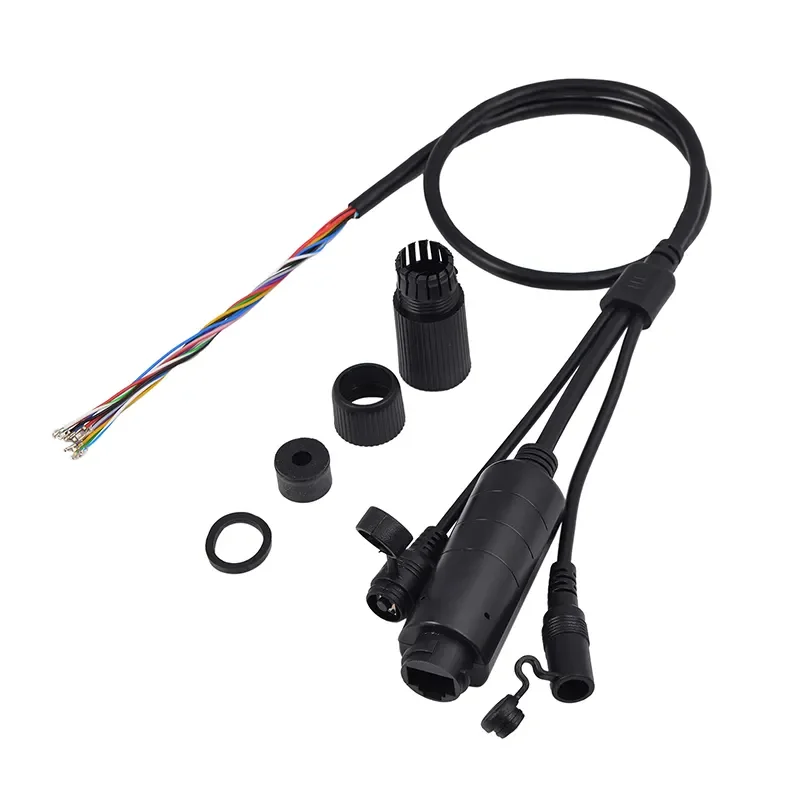

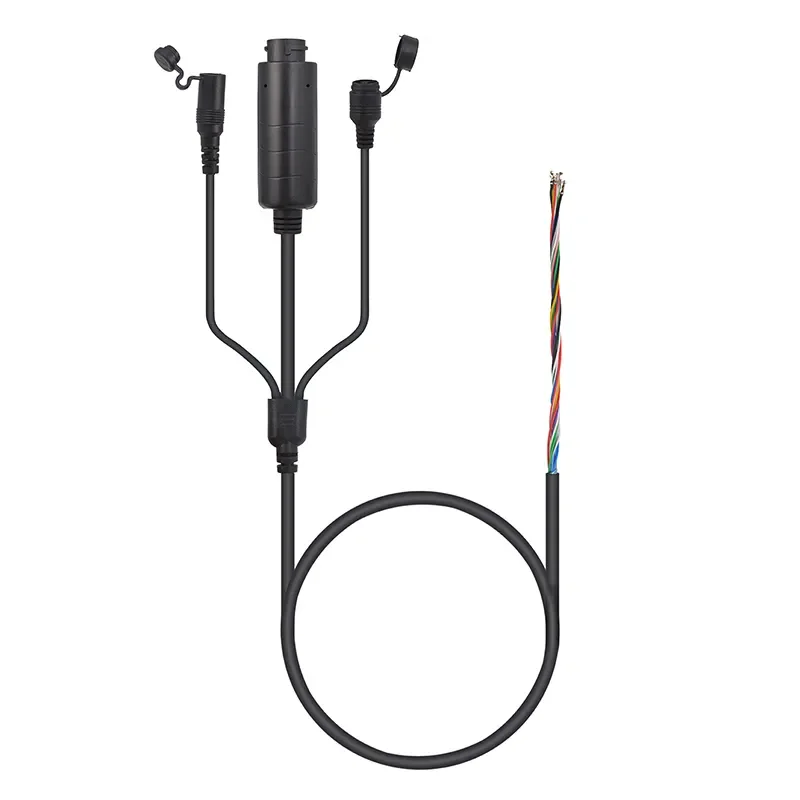

POE Cable WATERPROOF
SDAPO POE Cable waterproof IEEE802.3AF 12V1A
Now all poe cables change to DC with waterproof caps
SDAPO POE Cable waterproof IEEE802.3AF 12V1A
Now all poe cables change to DC with waterproof caps
Security：Has a perfect short circuit protection, 1500V high voltage isolation
Compatibility: integrated network adapter supports End-span (1,2 + / 3,6 -) and Mid-span (4,5 + / 7,8 -) two power modes
Applications：All IP Camera
The main parameters：
No. | Parameter | Symbol | Min | Typical values | Max | Unit |
1 | Input Voltage | Vin | 37 | 48 | 57 | V |
2 | output voltage | +VDC | 11.8 | 12.3 | 12.5 | V |
3 | output Current | PWR | 0.85 | 1 | A | |
4 | Isolation Voltage | ISO | 1500 | V | ||
5 | Storage Temperature | Tj | -30 | 25 | 90 | ℃ |
6 | Operating Temperature | Tstg | -30 | 25 | 65 | ℃ |
Temperature is typically 25 ℃, measured under the 48V power supply environment, only for reference design.
Do not exceed the recommended load value of 850mA (not included IR-cut switch) to adapt to different environments.
Cable colour | definition | |
green white（1.25） | Tx+ | IPC signal |
green（1.25） | Tx- | |
blue white（1.25） | RX+ | |
blue（1.25） | RX- | |
purple（1.25） | LED+ | IPC indicator light |
red（1.25） | 12V+ | IPC power |
black（1.25） | GND | |
red（2.0） | 12V+ | Lamp board power |
black（2.0） | GND |
Reset poe cable reset function is gray colour.audio poe cable audio function is yellow and gray .yellow is “+” and gray is GND ”-”
Features
· Support international standard IEEE802.3af (15.4W)
· Support 10/100Mdata transmission
· PD support 37V-57V voltage transmission, Automatically detects power supply from PSE power supply module
· 12V power output, easy to access Poe network for non-poe terminal
· Support the isolation circuit protection, can effectively protect electrical equipment.
· Support the short circuit, overvoltage protection
Overview
PoE cable, it is an economical and practical PoE remote power equipment base on IEEE802.3af standard. It can separate the power and data via cable transmission. Proper matching use with poe switch or PSE injector which meet standard IEEE802.3af, Provide power and data at the same time for the terminal device does not support PoE.
PoE cable, it is an economical and practical PoE remote power equipment base on IEEE802.3af standard. It can separate the power and data via cable transmission. Proper matching use with poe switch or PSE injector which meet standard IEEE802.3af, Provide power and data at the same time for the terminal device does not support PoE.
PoE cable, output voltage of 12V use with the power supply equipment, It helps to expand wireless city, Security monitoring and other poe practical place, and is not restricted by layout of power line.
Features
· Support international standard IEEE802.3af (15.4W)
· Support 10/100Mdata transmission
· PD support 37V-57V voltage transmission, Automatically detects power supply from PSE power supply module
· 12V power output, easy to access Poe network for non-poe terminal
· Support the isolation circuit protection, can effectively protect electrical equipment.
· Support the short circuit, overvoltage protection
Model | FS5712 |
Transfer Rate | 10/100M |
Power | Input 48V DC /0.35A, Output 12V/1A |
Standard | IEEE802.3 af(15.4W) |
TRNF | 1/2(+),3/6(-);4/5(+),7/8(-) |
Interface Type | 1 Input RJ45 port, output terminal |
Security | 1500V high voltage isolation |
Standard | IEEE 802.3 I, IEEE 802.3 u, IEEE 802.3 x, IEEE 802.3 af |
LED | Yellow PoE lamp |
Environment | Work within -20~50°,Storage within -30~60° Work within 10%~90% Non-condensing,Storage within 5%~95% Non-condensing |
Dimension | 70CM |
Weight | 0.3kg |
Hot Products
Company Profile
Our Certificate
Our Exhibition
Our Advantages
Payment & Shipping
FAQ
Похожие товары

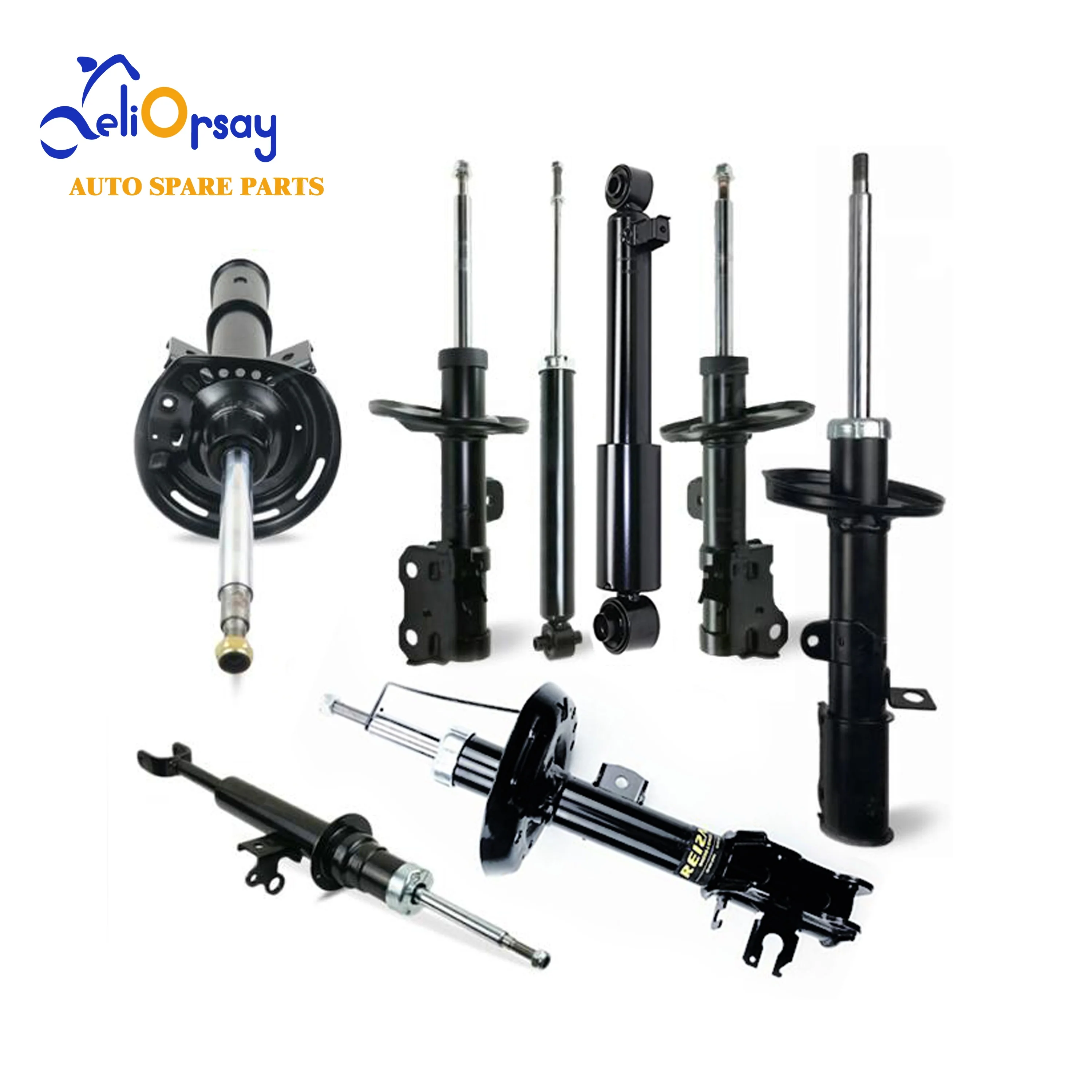

Deliorsay хорошая цена oem Автозапчасти автомобильный амортизатор для Корея японский Toyota Mitsubishi Hyundai Suzuki
3,00 $

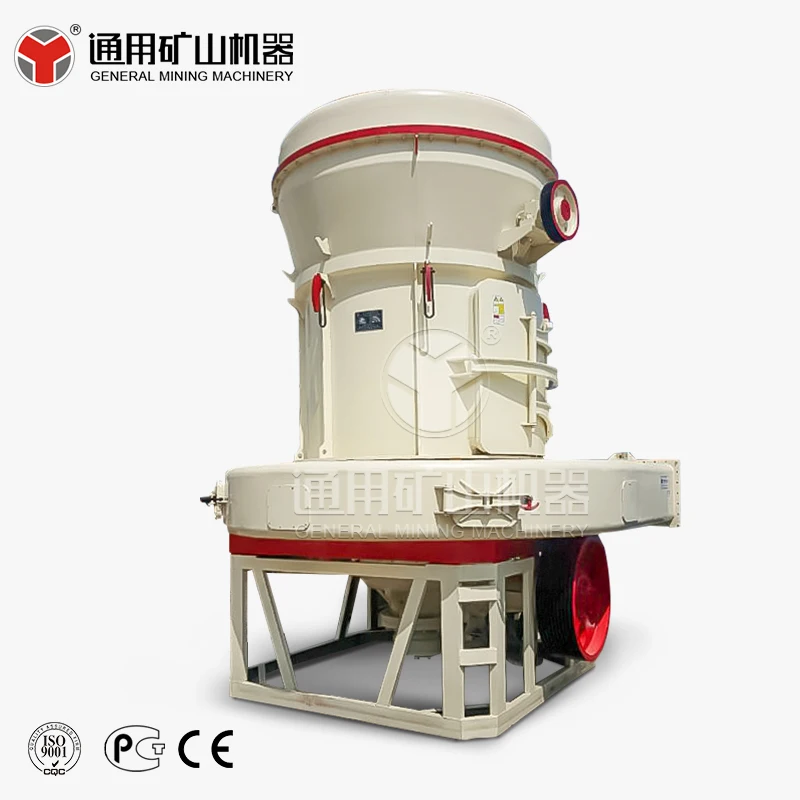

Новая технология большой мощности силикат натрия Европейская версия мельница горное оборудование
149 990,00 $ - 150 000,00 $

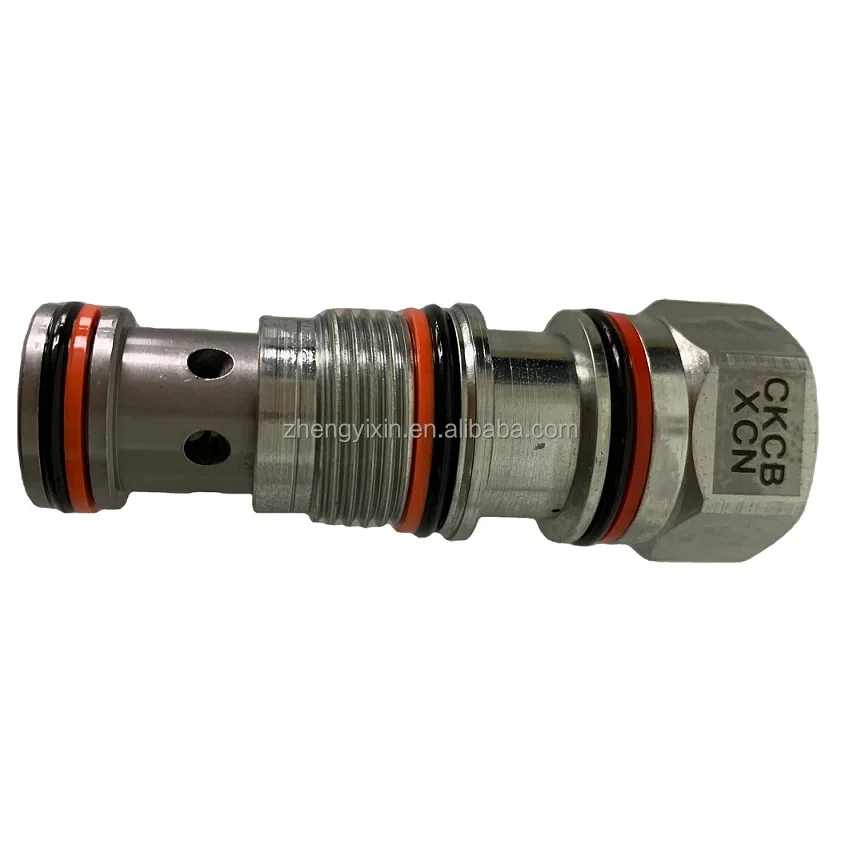

Ckcb XCN пилот обратный клапан ckcb XCN CKCB-XCN солнце гидравлика картриджи
35,00 $ - 39,00 $

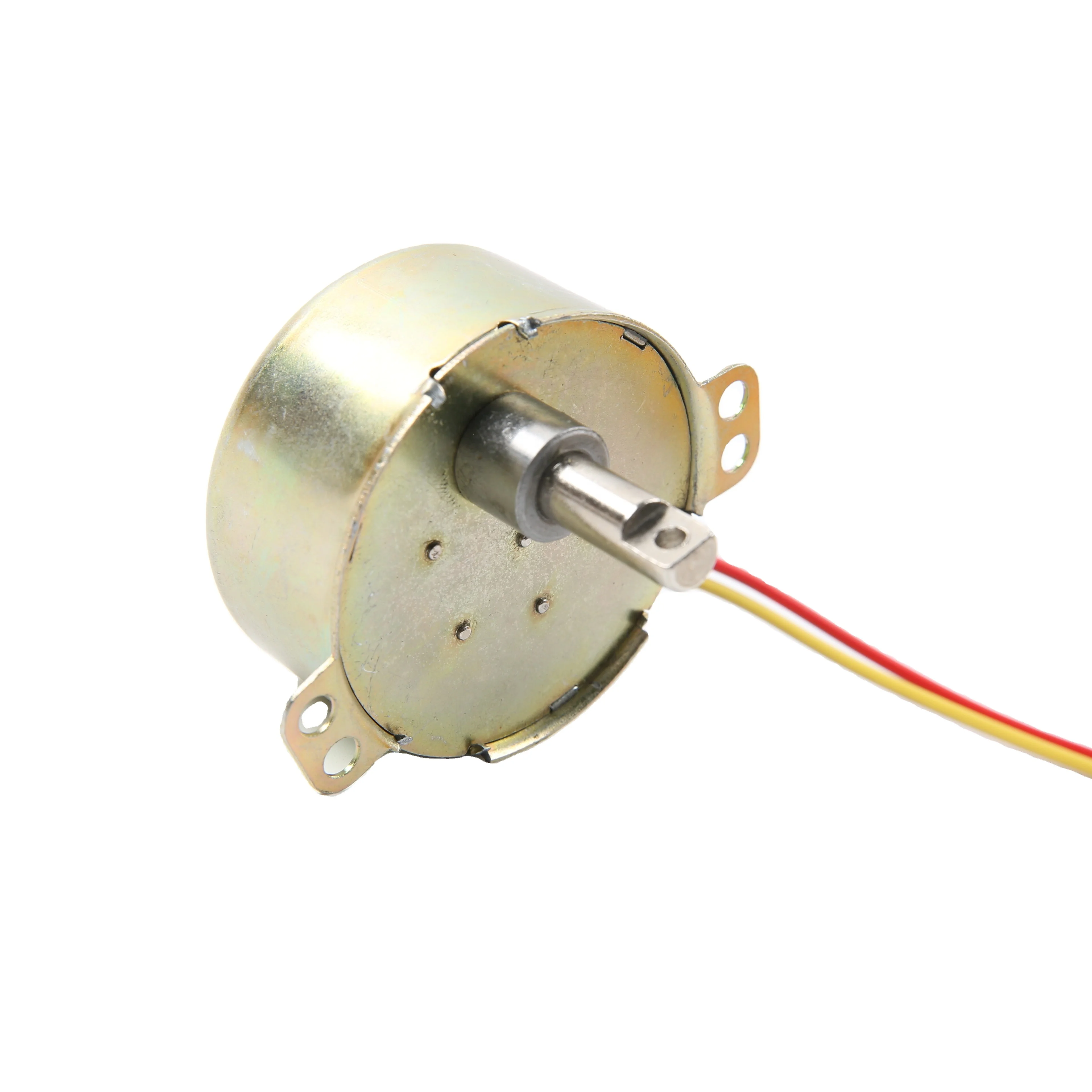

Металлическая Шестерня синхронный мотор 49TYJ для долгой жизни
1,20 $ - 1,80 $

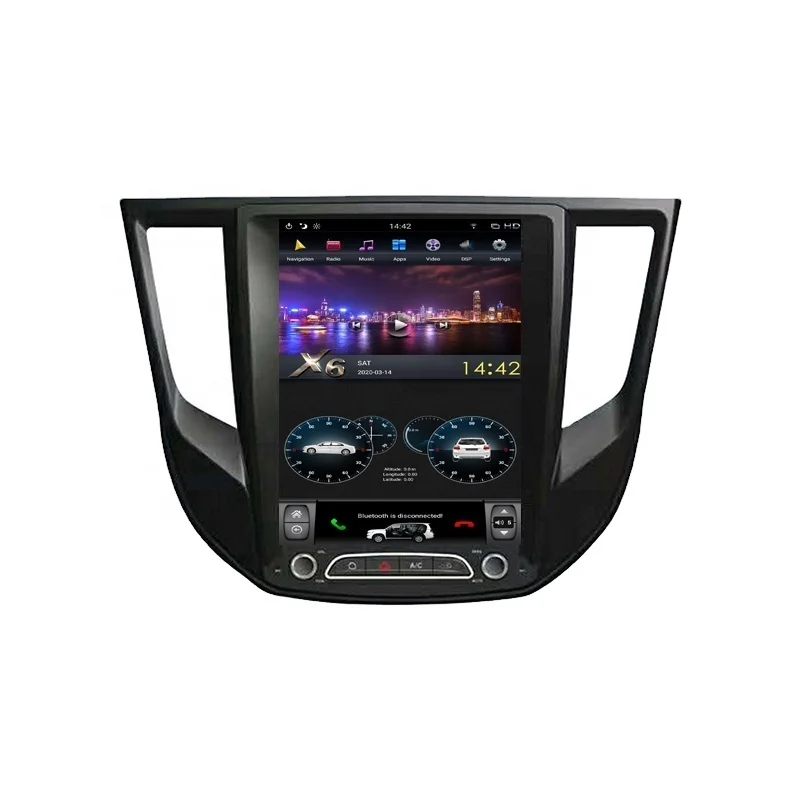

Автомобильный мультимедийный плеер с вертикальным экраном 12,1 дюйма, 4 + 64 ГБ, Android, радио, GPS-навигация для Mistubishi L200/Triton 2015-2018
569,80 $ - 613,80 $

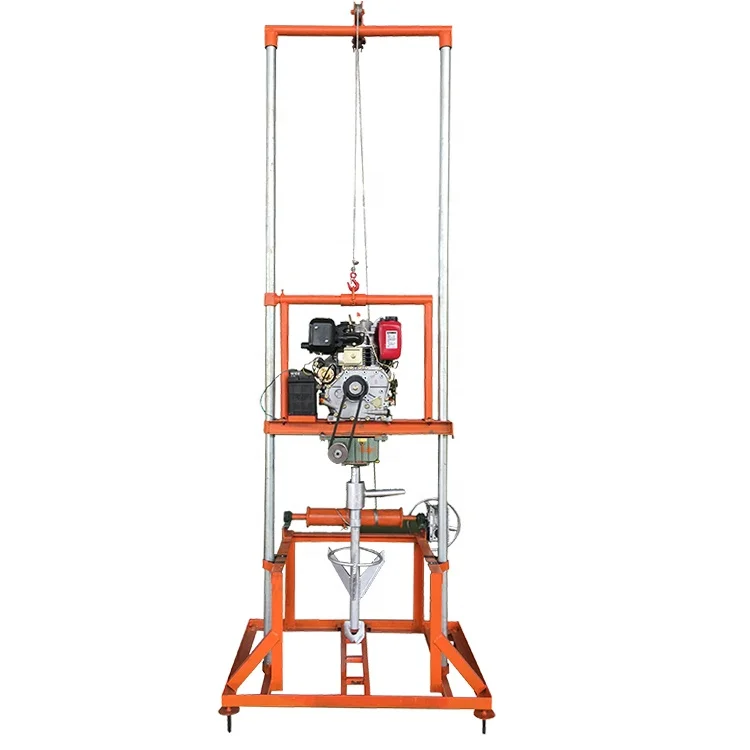

Простая эксплуатация, низкая цена, буровая машина для бурения скважин
